AVERAGE SHEAR STRESS • Shear stress is a stress where the stress is parallel

AVERAGE SHEAR STRESS • Shear stress is a stress where the stress is parallel or tangential to a face of the material. • Consider a force F acting to the bar • For rigid supports, and F is large enough, bar will deform and fail along the planes identified by AB and CD • Free-body diagram indicates that shear force, V = F/2 be applied at both sections to ensure equilibrium

AVERAGE SHEAR STRESS Average shear stress over each section is: V avg = A

AVERAGE SHEAR STRESS Average shear stress over each section is: V avg = A τavg = average shear stress at section, assumed to be same at each pt on the section V = internal resultant shear force at section determined from equations of equilibrium A = area of section

AVERAGE SHEAR STRESS • Case discussed above is example of simple or direct shear

AVERAGE SHEAR STRESS • Case discussed above is example of simple or direct shear • Caused by the direct action of applied load F • Occurs in various types of simple connections, e. g. , bolts, pins, welded material

AVERAGE SHEAR STRESS • • Single shear Steel and wood joints shown below are

AVERAGE SHEAR STRESS • • Single shear Steel and wood joints shown below are examples of single-shear connections, also known as lap joints. Since we assume members are thin, there are no moments caused by F

AVERAGE SHEAR STRESS • • Single shear For equilibrium, x-sectional area of bolt and

AVERAGE SHEAR STRESS • • Single shear For equilibrium, x-sectional area of bolt and bonding surface between the two members are subjected to single shear force, V = F The average shear stress equation can be applied to determine average shear stress acting on colored section in (d).

AVERAGE SHEAR STRESS Single Shear

AVERAGE SHEAR STRESS Single Shear

AVERAGE SHEAR STRESS • • • Double shear The joints shown below are examples

AVERAGE SHEAR STRESS • • • Double shear The joints shown below are examples of doubleshear connections, often called double lap joints. For equilibrium, x-sectional area of bolt and bonding surface between two members subjected to double shear force, V = F/2 Apply average shear stress equation to determine average shear stress acting on colored section in (d).

AVERAGE SHEAR STRESS Double Shear = F/2

AVERAGE SHEAR STRESS Double Shear = F/2

AVERAGE SHEAR STRESS Procedure for analysis Internal shear 1. Section member at the point

AVERAGE SHEAR STRESS Procedure for analysis Internal shear 1. Section member at the point where the τavg is to be determined 2. Draw free-body diagram 3. Calculate the internal shear force V Average shear stress 1. Determine sectioned area A 2. Compute average shear stress τavg = V / A

AVERAGE SHEAR STRESS Determine average normal stress and average shear stress acting along (a)

AVERAGE SHEAR STRESS Determine average normal stress and average shear stress acting along (a) section planes a-a, and (b) section plane b-b. Depth and thickness = 40 mm

AVERAGE SHEAR STRESS Part (a) Internal loading Based on free-body diagram, Resultant loading of

AVERAGE SHEAR STRESS Part (a) Internal loading Based on free-body diagram, Resultant loading of axial force, P = 800 N

AVERAGE SHEAR STRESS Part (a) Average stress Average normal stress, σ P 800 N

AVERAGE SHEAR STRESS Part (a) Average stress Average normal stress, σ P 800 N = 500 k. Pa = σ= A (0. 04 m)(0. 04 m)

AVERAGE SHEAR STRESS Part (a) Internal loading No shear stress on section, since shear

AVERAGE SHEAR STRESS Part (a) Internal loading No shear stress on section, since shear force at section is zero.

AVERAGE SHEAR STRESS Part (b) Internal loading + ∑ Fx = 0; 800 N

AVERAGE SHEAR STRESS Part (b) Internal loading + ∑ Fx = 0; 800 N + N sin 60° + V cos 60° = 0 + ∑ Fy = 0; V sin 60° + N cos 60° = 0

AVERAGE SHEAR STRESS Part (b) Average normal stress N 692. 8 N = σ=

AVERAGE SHEAR STRESS Part (b) Average normal stress N 692. 8 N = σ= = 375 k. Pa A (0. 04 m)(0. 04 m/sin 60°)

AVERAGE SHEAR STRESS Part (b) Average shear stress V 400 N τavg = =

AVERAGE SHEAR STRESS Part (b) Average shear stress V 400 N τavg = = = 217 k. Pa A (0. 04 m)(0. 04 m/sin 60°) Stress distribution shown below

ALLOWABLE STRESS If load applied is linearly related to stress developed within member, then

ALLOWABLE STRESS If load applied is linearly related to stress developed within member, then F. S. can also be expressed as: σfail F. S. = σ allow • • τfail F. S. = τ allow In all the equations, F. S. is chosen to be greater than 1, to avoid potential for failure Specific values will depend on types of material used and its intended purpose

DESIGN OF SIMPLE CONNECTIONS • To determine area of section subjected to a normal

DESIGN OF SIMPLE CONNECTIONS • To determine area of section subjected to a normal force, use P A= σallow • To determine area of section subjected to a shear force, use V A= τallow

DESIGN OF SIMPLE CONNECTIONS Cross-sectional area of a tension member Condition: The force has

DESIGN OF SIMPLE CONNECTIONS Cross-sectional area of a tension member Condition: The force has a line of action that passes through the centroid of the cross section.

DESIGN OF SIMPLE CONNECTIONS Cross-sectional area of a connecter subjected to shear Assumption: If

DESIGN OF SIMPLE CONNECTIONS Cross-sectional area of a connecter subjected to shear Assumption: If bolt is loose or clamping force of bolt is unknown, assume frictional force between plates to be negligible.

DESIGN OF SIMPLE CONNECTIONS Required area to resist bearing Bearing stress is normal stress

DESIGN OF SIMPLE CONNECTIONS Required area to resist bearing Bearing stress is normal stress produced by the compression of one surface against another. Assumptions: 1. (σb)allow of concrete < (σb)allow of base plate 2. Bearing stress is uniformly distributed between plate and concrete

DESIGN OF SIMPLE CONNECTIONS Required area to resist shear caused by axial load Although

DESIGN OF SIMPLE CONNECTIONS Required area to resist shear caused by axial load Although actual shear-stress distribution along rod difficult to determine, we assume it is uniform. Thus use A = V / τallow to calculate l, provided d and τallow is known.

AVERAGE SHEAR STRESS Example: Bolted Joint with Two Shear Planes. P D = 50

AVERAGE SHEAR STRESS Example: Bolted Joint with Two Shear Planes. P D = 50 KN = 13 mm avg = ?

AVERAGE SHEAR STRESS Area of bolt (Ab) = D 2 / 4 = (13)2

AVERAGE SHEAR STRESS Area of bolt (Ab) = D 2 / 4 = (13)2 / 4 = 132. 7 mm 2 A resisting shear = 2 Ab avg = P / 2 Ab = 50000 N/ 2(132. 7) mm 2 = 188. 4 MPa

AVERAGE SHEAR STRESS EXAMPLE 1 -13 The two members pinned together at B. If

AVERAGE SHEAR STRESS EXAMPLE 1 -13 The two members pinned together at B. If the pins have: 1. allowable shear stress of allow = 90 MPa, 2. allowable tensile stress of rod CB is (σt)allow = 115 Determine to nearest MPa mm the smallest diameter of pins A and B and the diameter of rod CB necessary to support the load.

AVERAGE SHEAR STRESS EXAMPLE 1 -13 Draw free-body diagram:

AVERAGE SHEAR STRESS EXAMPLE 1 -13 Draw free-body diagram:

AVERAGE SHEAR STRESS EXAMPLE 1 -13 Diameter of pins: 2. 84 k. N VA

AVERAGE SHEAR STRESS EXAMPLE 1 -13 Diameter of pins: 2. 84 k. N VA − 6 m 2 = (d 2/4) AA = = 31. 56 10 A Tallow = 90 103 k. Pa d. A = 6. 3 mm 6. 67 k. N VB AB = = = 74. 11 10− 6 m 2 = (d. B 2/4) Tallow 90 103 k. Pa d = 9. 7 mm B

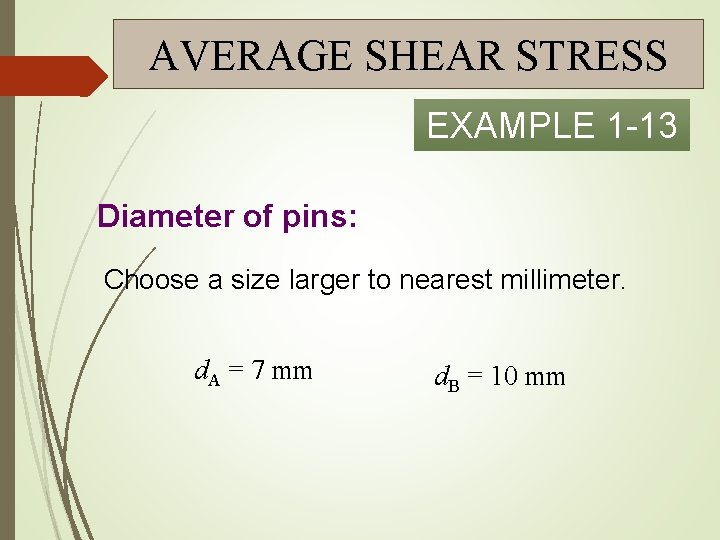

AVERAGE SHEAR STRESS EXAMPLE 1 -13 Diameter of pins: Choose a size larger to

AVERAGE SHEAR STRESS EXAMPLE 1 -13 Diameter of pins: Choose a size larger to nearest millimeter. d. A = 7 mm d. B = 10 mm

AVERAGE SHEAR STRESS EXAMPLE 1 -13 ABC = P (σt)allow 6. 67 k. N

AVERAGE SHEAR STRESS EXAMPLE 1 -13 ABC = P (σt)allow 6. 67 k. N 115 103 k. Pa = 58 10− 6 m 2 = (d. BC 2/4) d. BC = 8. 59 mm Choose a size larger to nearest millimeter. d. BC = 9 mm

SHEAR STRESS Internal loadings consist of: 1. 2. 3. 4. Normal force, N Shear

SHEAR STRESS Internal loadings consist of: 1. 2. 3. 4. Normal force, N Shear force, V Bending moments, M Torsional moments, T Get the resultants using: 1. Method of sections 2. Equations of equilibrium CHAPTER REVIEW

SHEAR STRESS Assumptions for a uniform normal stress distribution over x-section of member (σ

SHEAR STRESS Assumptions for a uniform normal stress distribution over x-section of member (σ = P/A) 1. Member made from homogeneous isotropic material 2. Subjected to a series of external axial loads that, 3. The loads must pass through centroid of cross-section CHAPTER REVIEW

SHEAR STRESS Determine average shear stress by using τ = V/A equation ◦ ◦

SHEAR STRESS Determine average shear stress by using τ = V/A equation ◦ ◦ V is the resultant shear force on crosssectional area A Formula is used mostly to find average shear stress in fasteners or in parts for connections CHAPTER REVIEW
