Streamlining Aerodynamics Analyzing a moving body in a

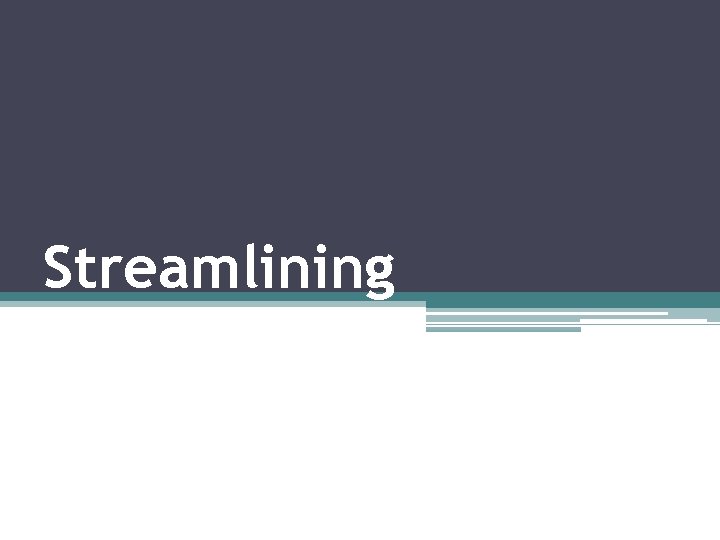

Streamlining

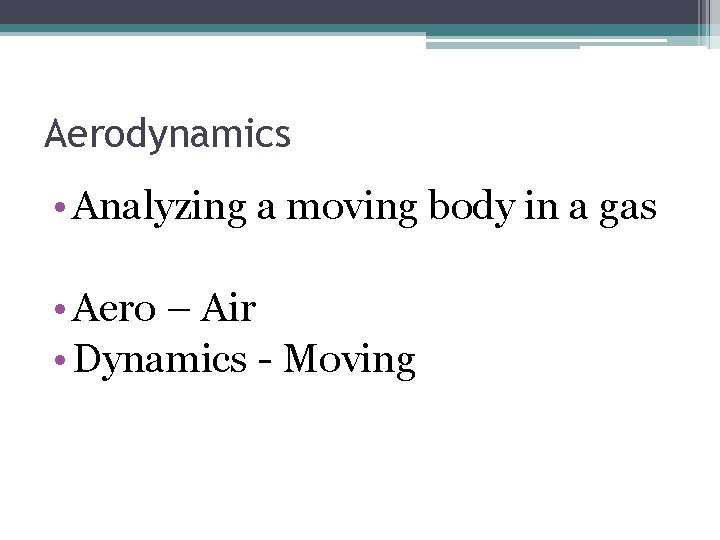

Aerodynamics • Analyzing a moving body in a gas • Aero – Air • Dynamics - Moving

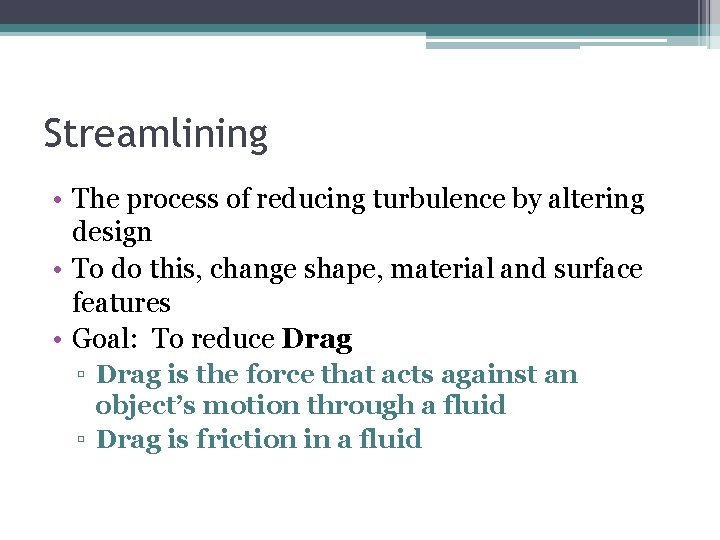

Streamlining • The process of reducing turbulence by altering design • To do this, change shape, material and surface features • Goal: To reduce Drag ▫ Drag is the force that acts against an object’s motion through a fluid ▫ Drag is friction in a fluid

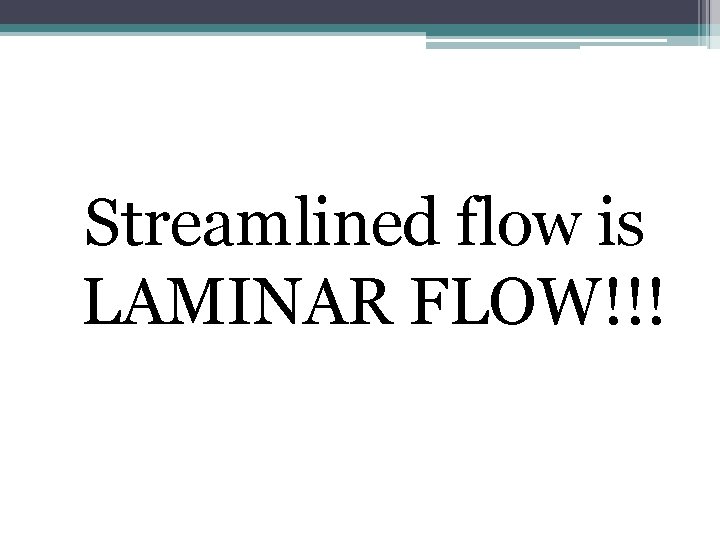

Streamlined flow is LAMINAR FLOW!!!

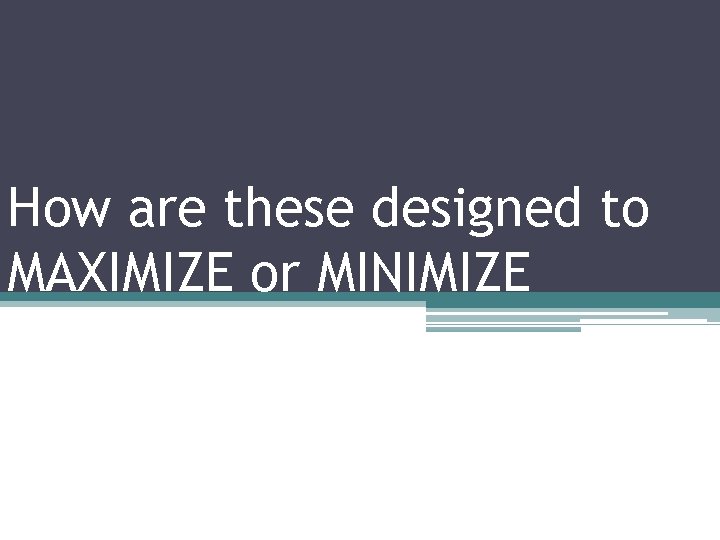

How are these designed to MAXIMIZE or MINIMIZE DRAG?

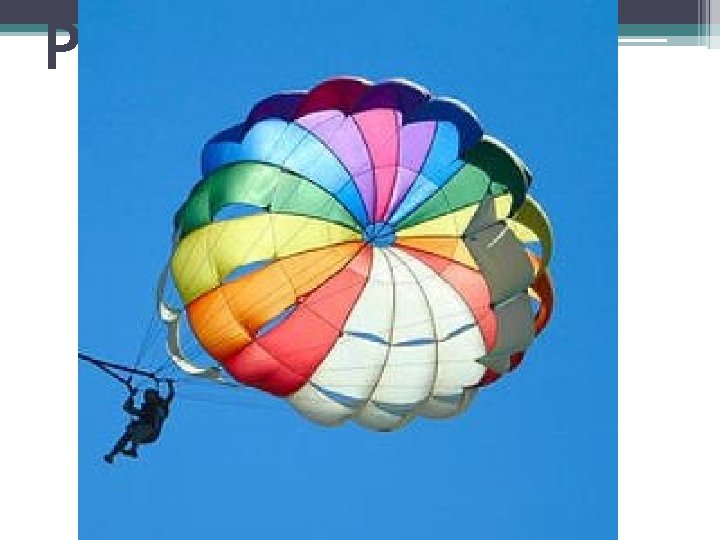

Parachute

Train

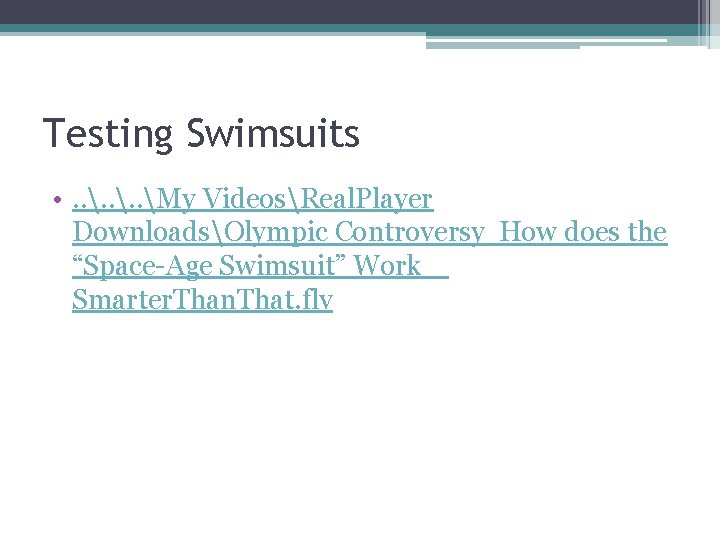

Testing Swimsuits • . . My VideosReal. Player DownloadsOlympic Controversy How does the “Space-Age Swimsuit” Work Smarter. Than. That. flv

How to Streamline? • Use wind tunnels, water tanks and computer simulations for research • To ‘see’ laminar flow, use pressure sensitive beams, electronic sensors, drops of coloured water, small flags and plumes of smoke

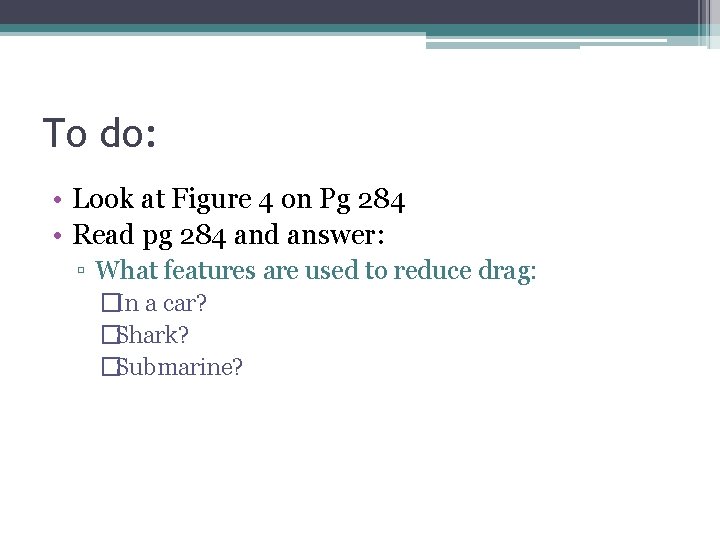

To do: • Look at Figure 4 on Pg 284 • Read pg 284 and answer: ▫ What features are used to reduce drag: �In a car? �Shark? �Submarine?

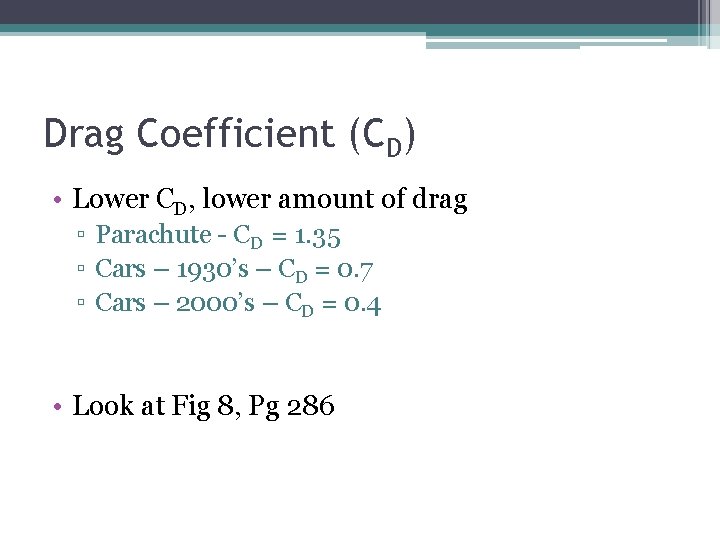

Drag Coefficient (CD) • Lower CD, lower amount of drag ▫ Parachute - CD = 1. 35 ▫ Cars – 1930’s – CD = 0. 7 ▫ Cars – 2000’s – CD = 0. 4 • Look at Fig 8, Pg 286

What is this?

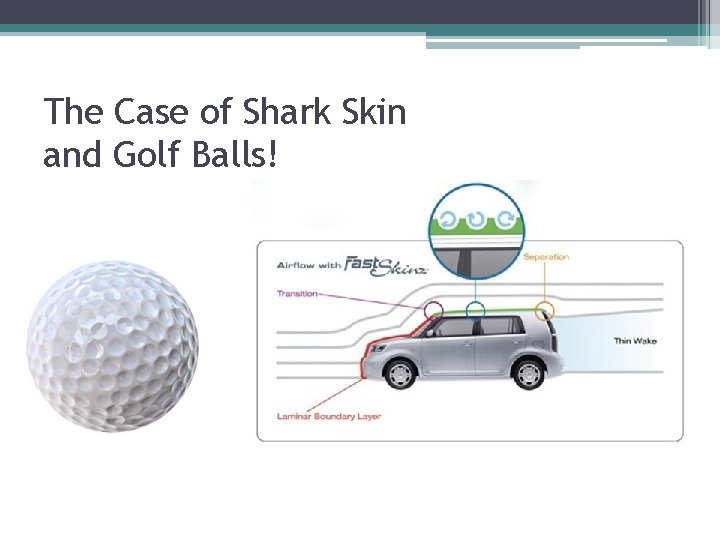

The Case of Shark Skin and Golf Balls!

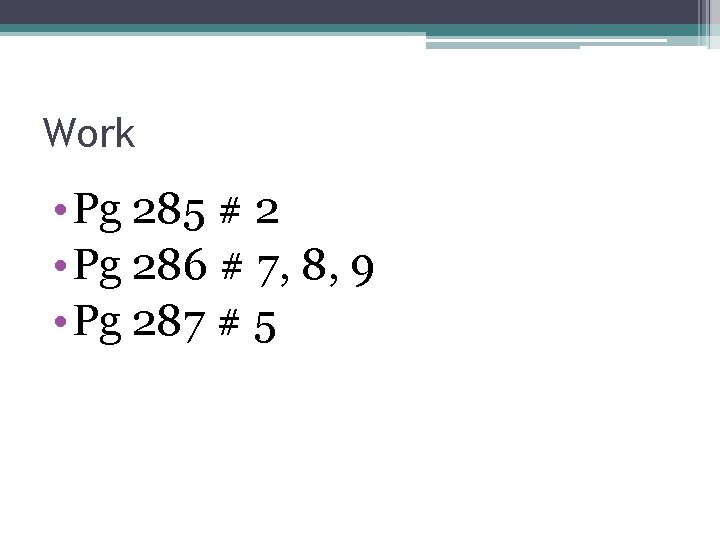

Work • Pg 285 # 2 • Pg 286 # 7, 8, 9 • Pg 287 # 5
