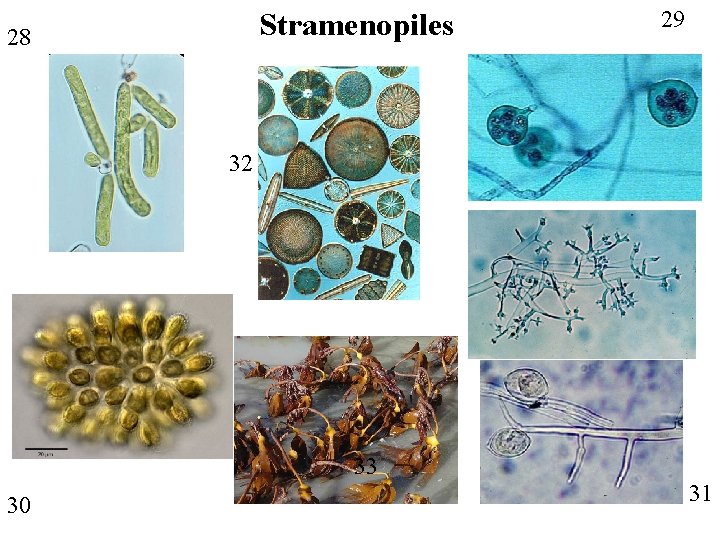

Stramenopiles 28 29 32 33 30 31 STRAMENOPILES

Stramenopiles 28 29 32 33 30 31

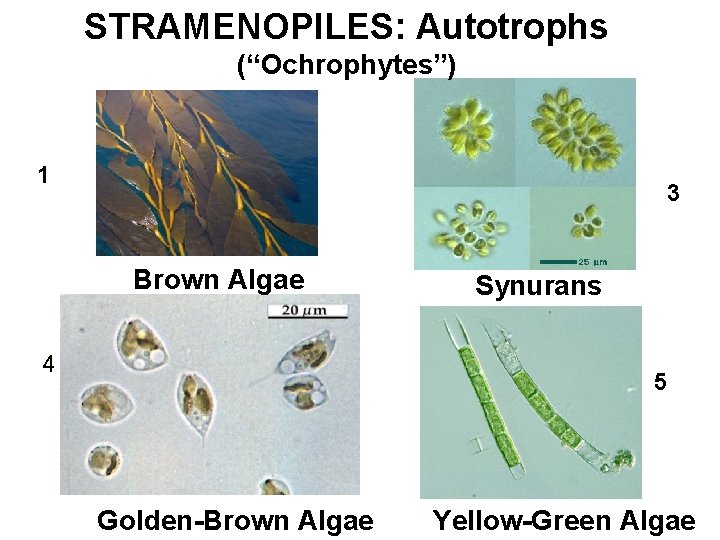

STRAMENOPILES: Autotrophs (“Ochrophytes”) 1 3 Brown Algae 4 Synurans 5 Golden-Brown Algae Yellow-Green Algae

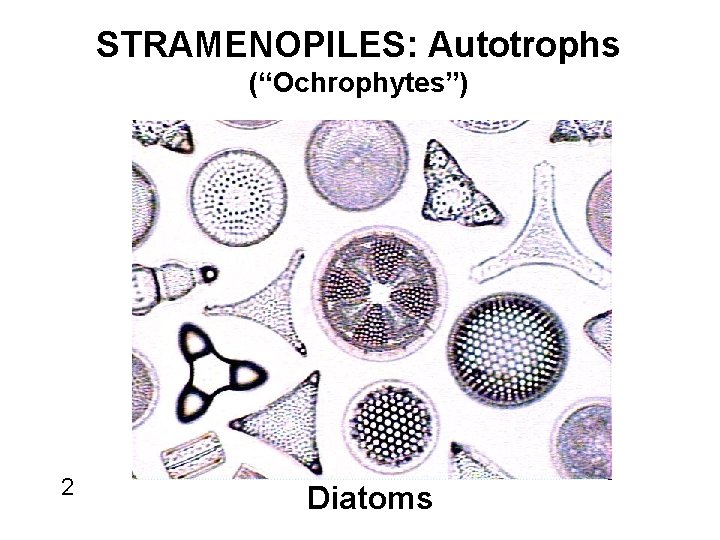

STRAMENOPILES: Autotrophs (“Ochrophytes”) 2 Diatoms

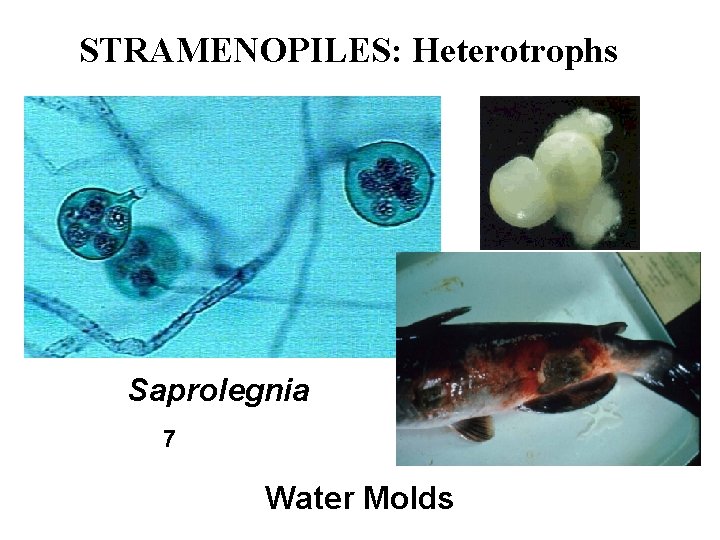

STRAMENOPILES: Heterotrophs Saprolegnia 7 6 Water Molds

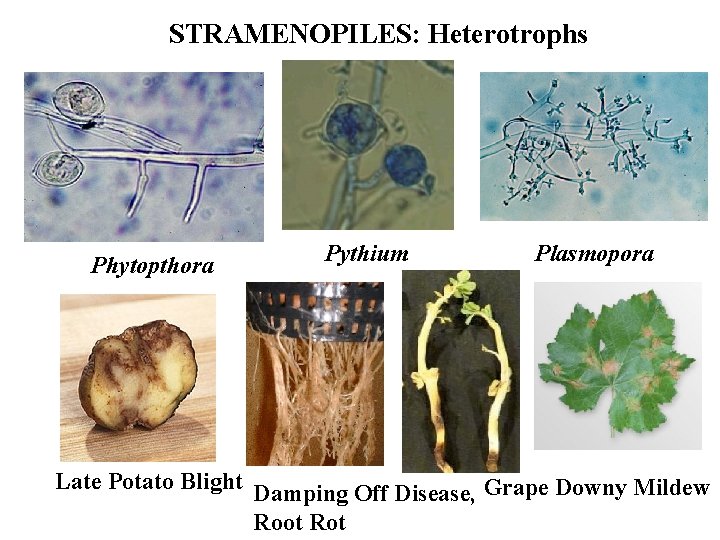

STRAMENOPILES: Heterotrophs Phytopthora Late Potato Blight Pythium Plasmopora Damping Off Disease, Grape Downy Mildew Root Rot

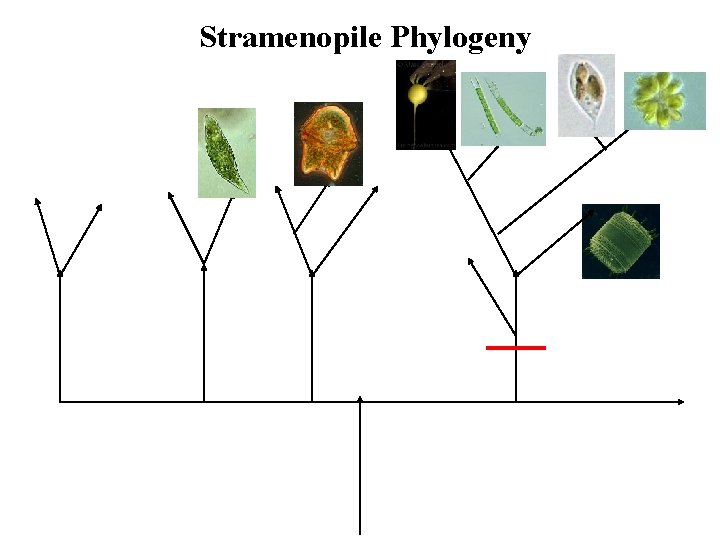

Stramenopile Phylogeny

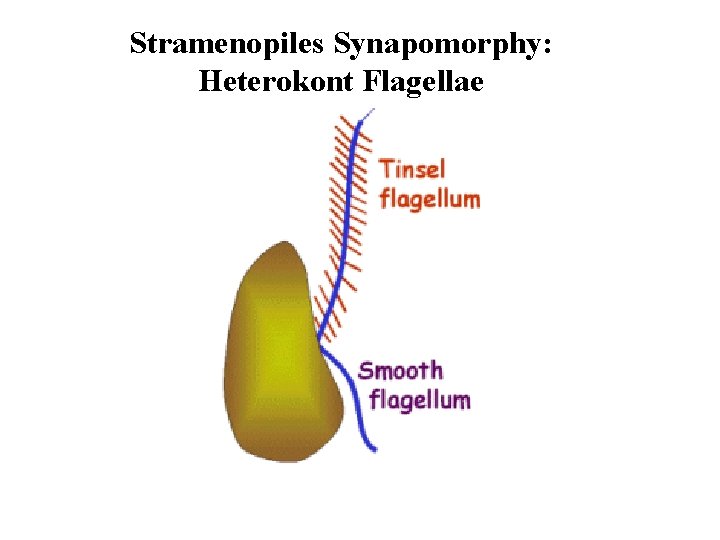

Stramenopiles Synapomorphy: Heterokont Flagellae

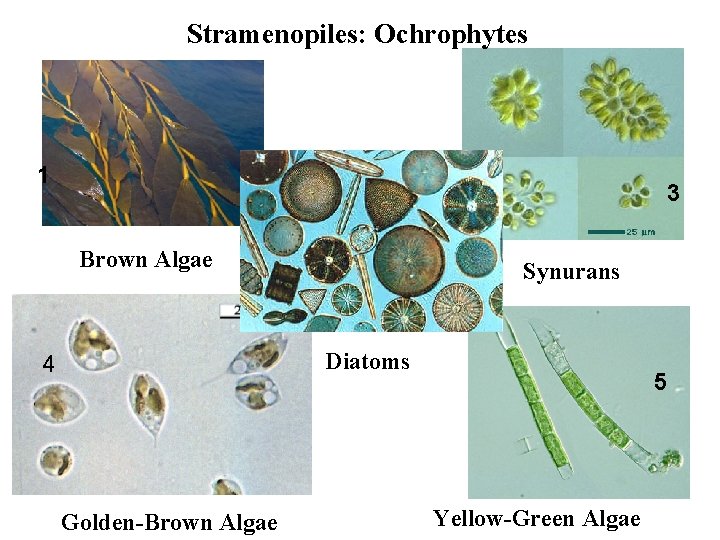

Stramenopiles: Ochrophytes 1 3 Brown Algae Synurans Diatoms 4 Golden-Brown Algae 5 Yellow-Green Algae

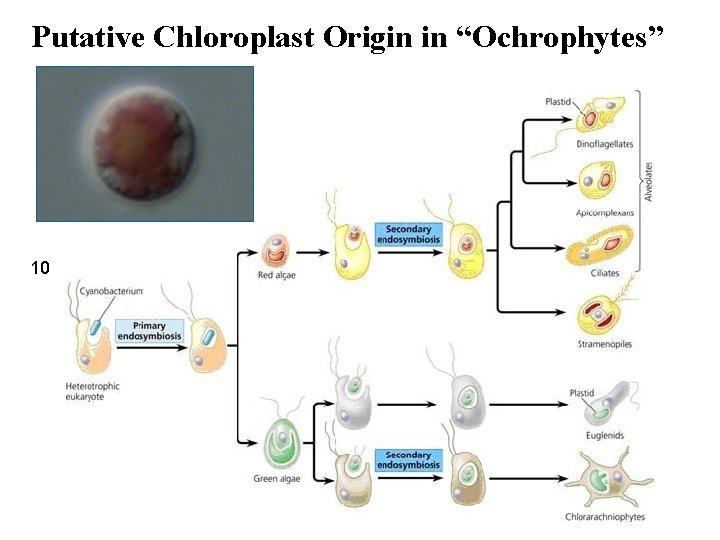

Putative Chloroplast Origin in “Ochrophytes” 10 11

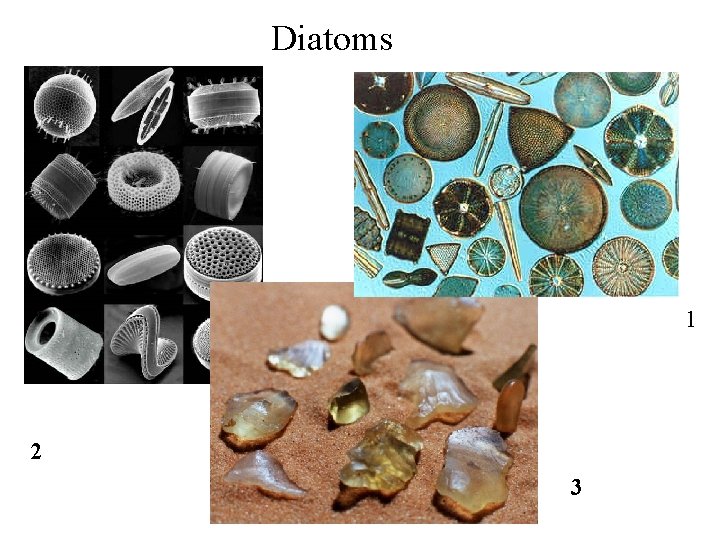

Diatoms 1 2 3

Diatom Habitat (Marine, Freshwater)

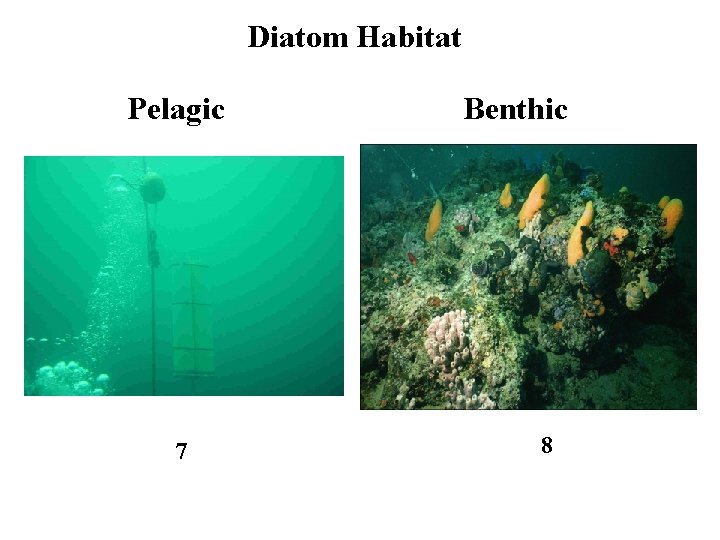

Diatom Habitat Pelagic 7 Benthic 8

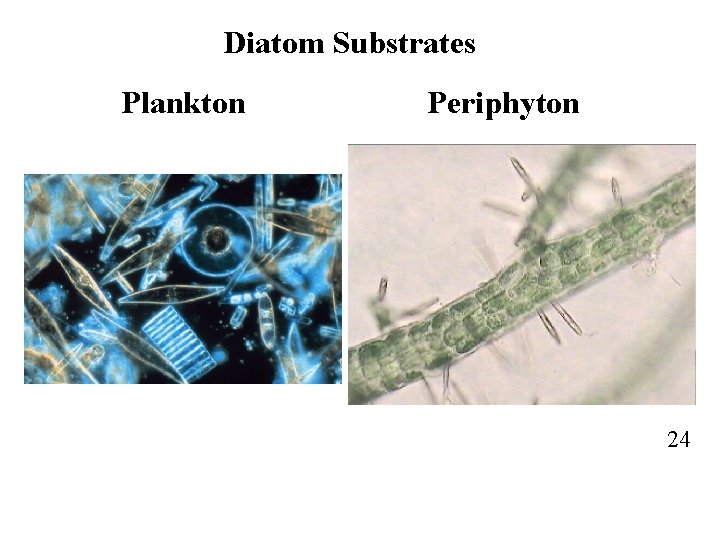

Diatom Substrates Plankton Periphyton 24

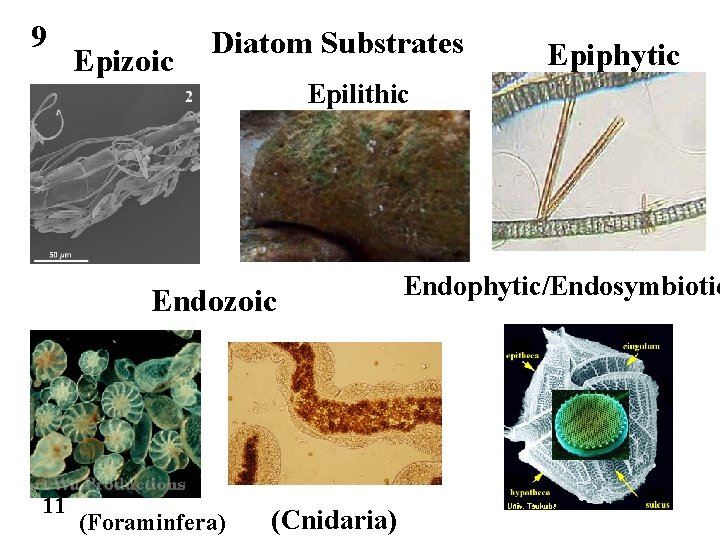

9 Epizoic Diatom Substrates Epiphytic Epilithic Endozoic 11 (Foraminfera) (Cnidaria) Endophytic/Endosymbiotic

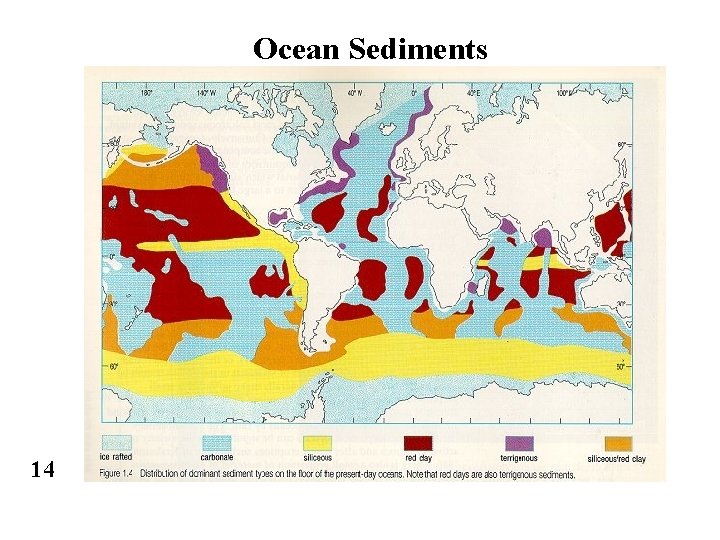

Ocean Sediments 14

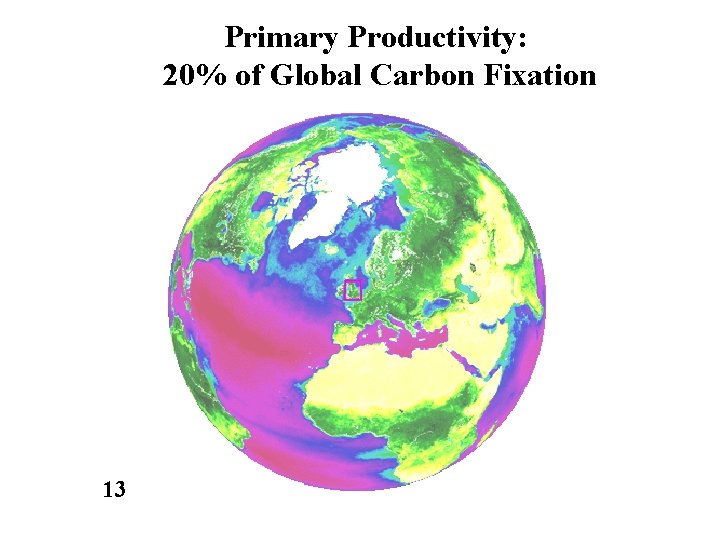

Primary Productivity: 20% of Global Carbon Fixation 13

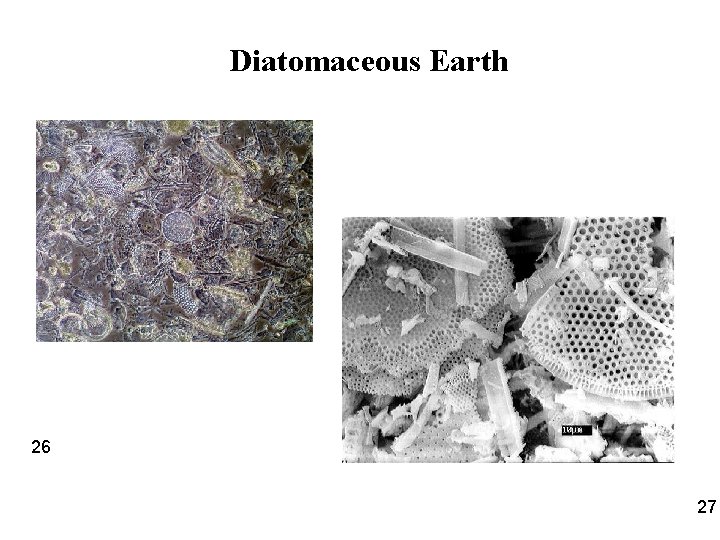

Diatomaceous Earth 26 27

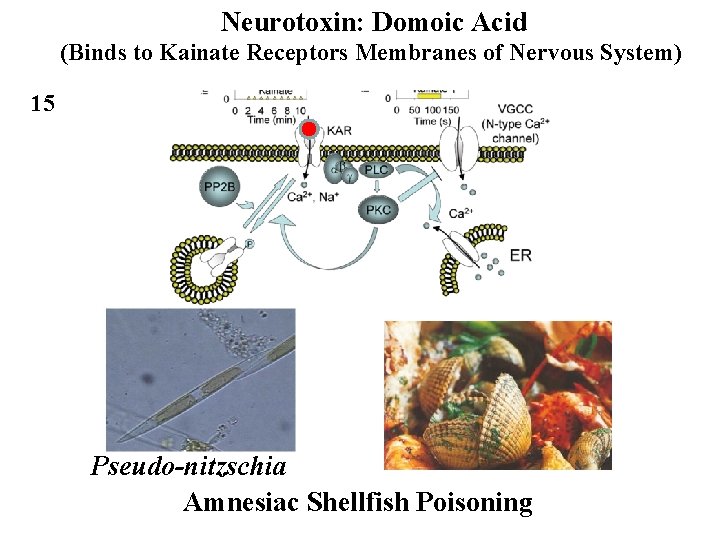

Neurotoxin: Domoic Acid (Binds to Kainate Receptors Membranes of Nervous System) 15 Pseudo-nitzschia Amnesiac Shellfish Poisoning

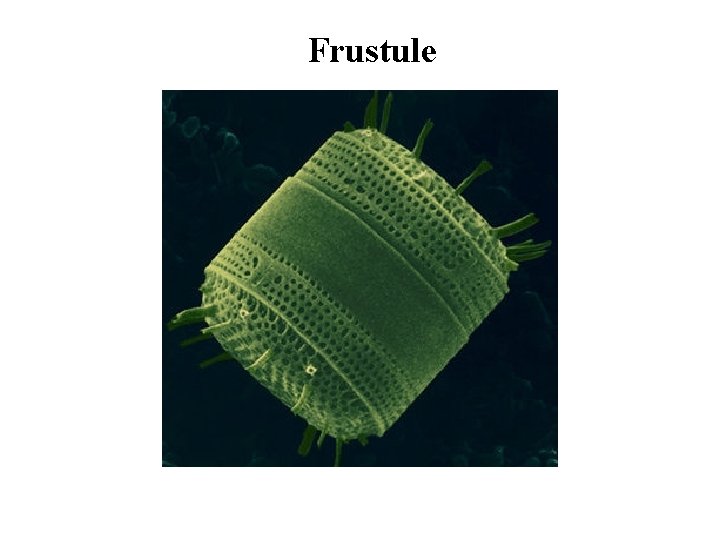

Frustule

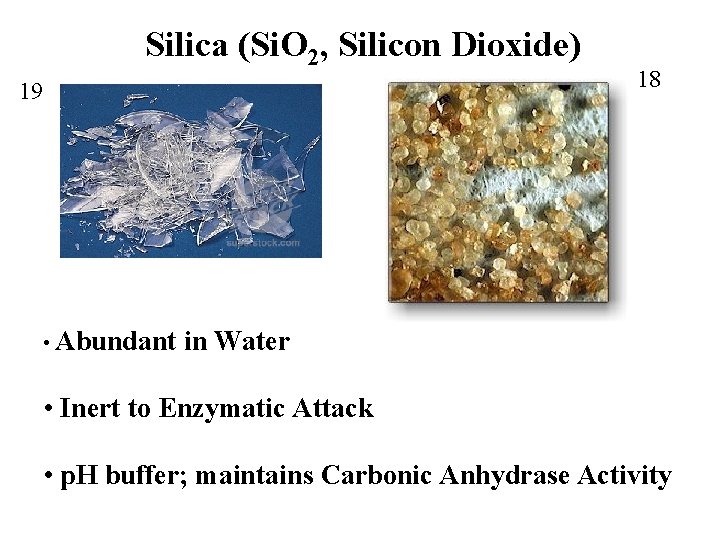

Silica (Si. O 2, Silicon Dioxide) 19 • Abundant 18 in Water • Inert to Enzymatic Attack • p. H buffer; maintains Carbonic Anhydrase Activity

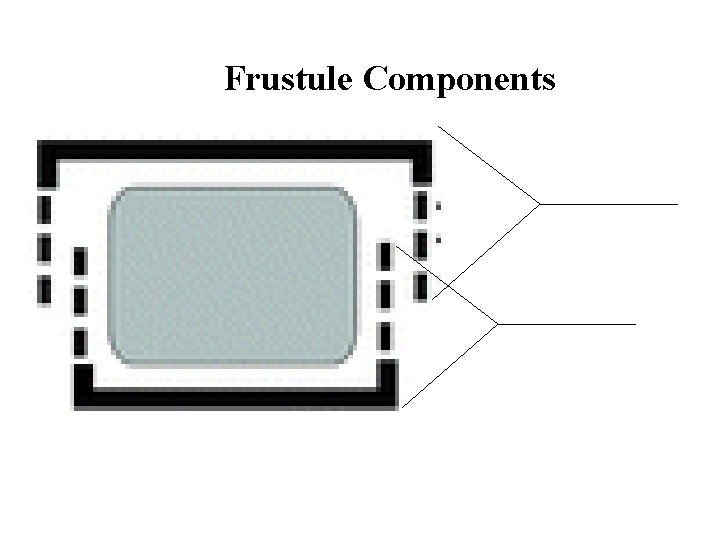

Frustule Components

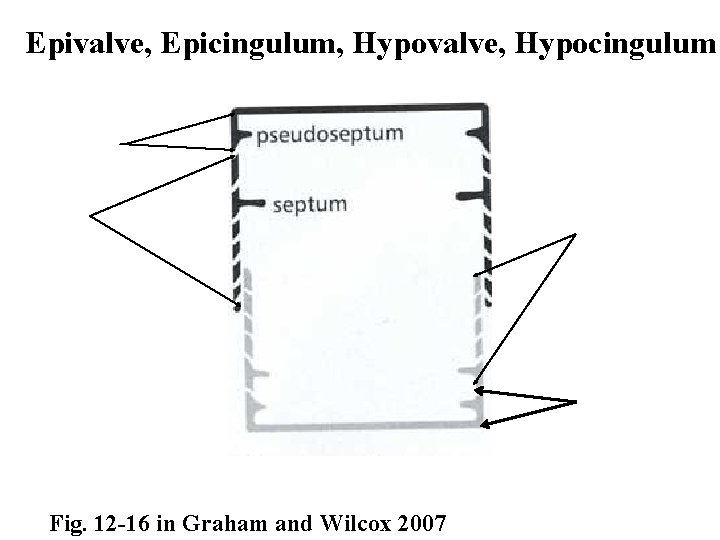

Epivalve, Epicingulum, Hypovalve, Hypocingulum Fig. 12 -16 in Graham and Wilcox 2007

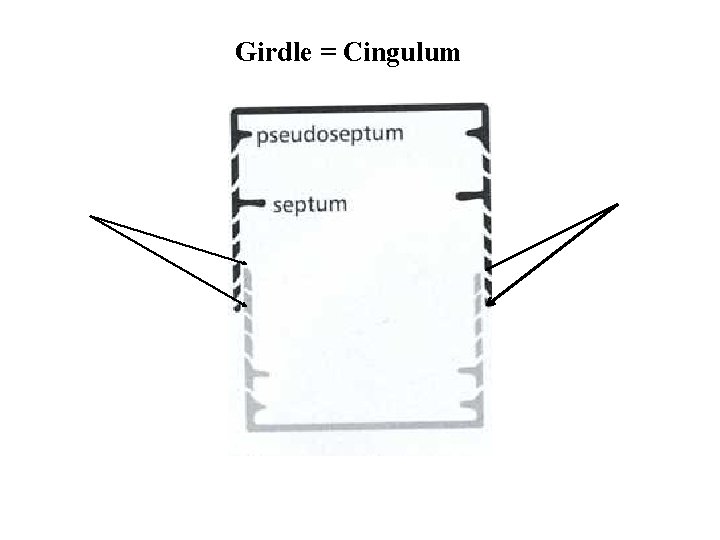

Girdle = Cingulum

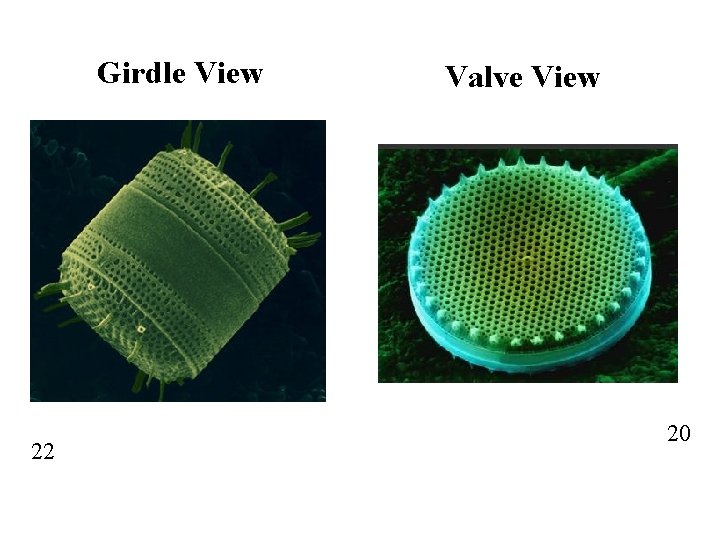

Girdle View 22 Valve View 20

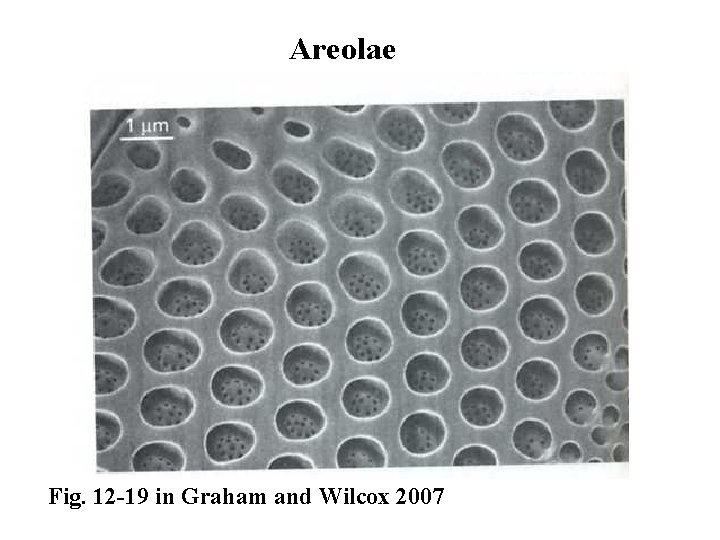

Areolae Fig. 12 -19 in Graham and Wilcox 2007

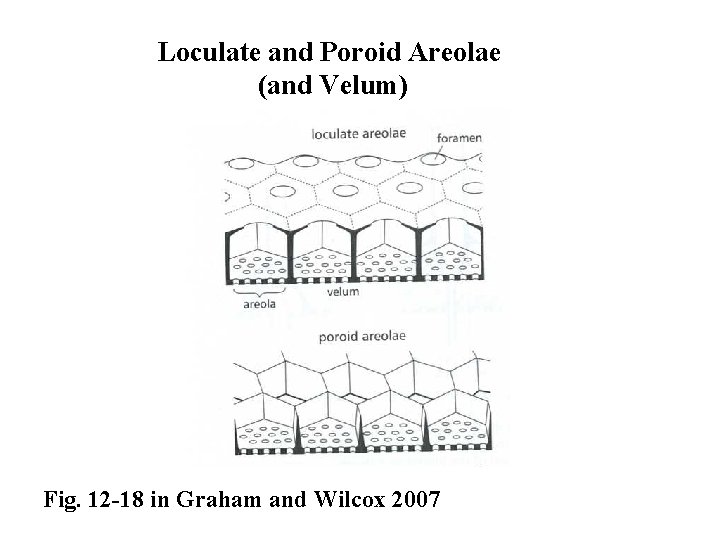

Loculate and Poroid Areolae (and Velum) Fig. 12 -18 in Graham and Wilcox 2007

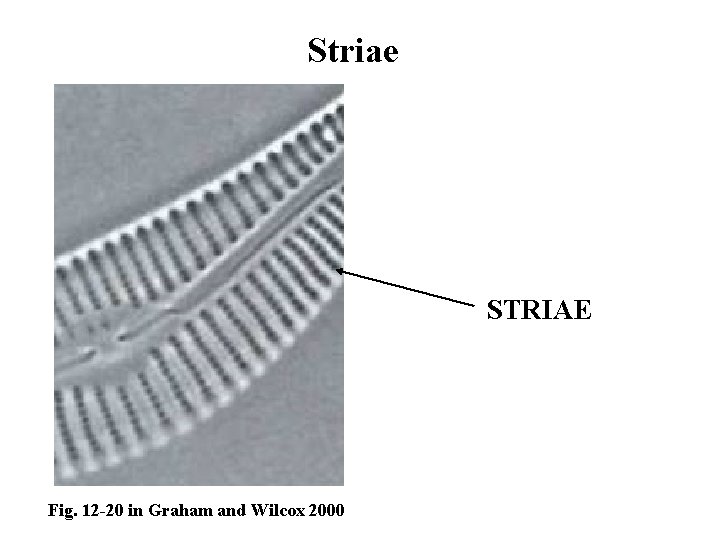

Striae STRIAE Fig. 12 -20 in Graham and Wilcox 2000

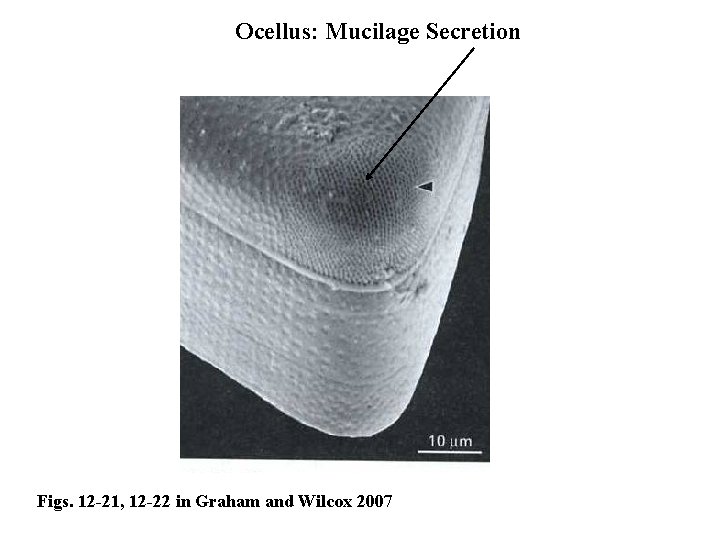

Ocellus: Mucilage Secretion Figs. 12 -21, 12 -22 in Graham and Wilcox 2007

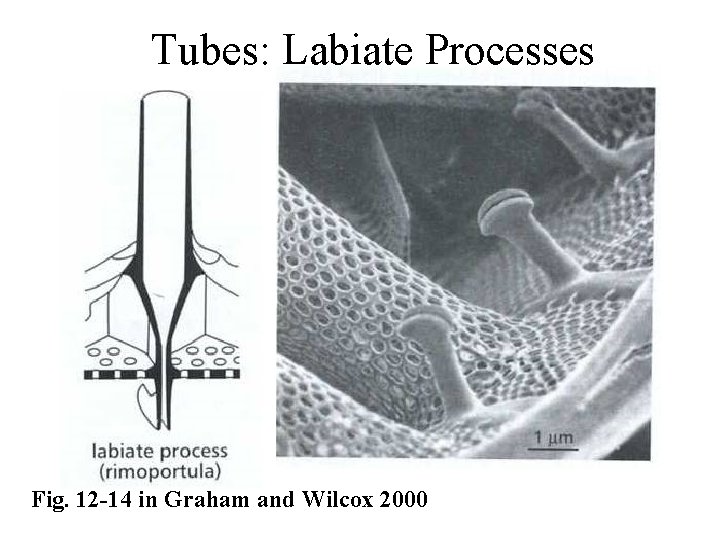

Tubes: Labiate Processes Fig. 12 -14 in Graham and Wilcox 2000

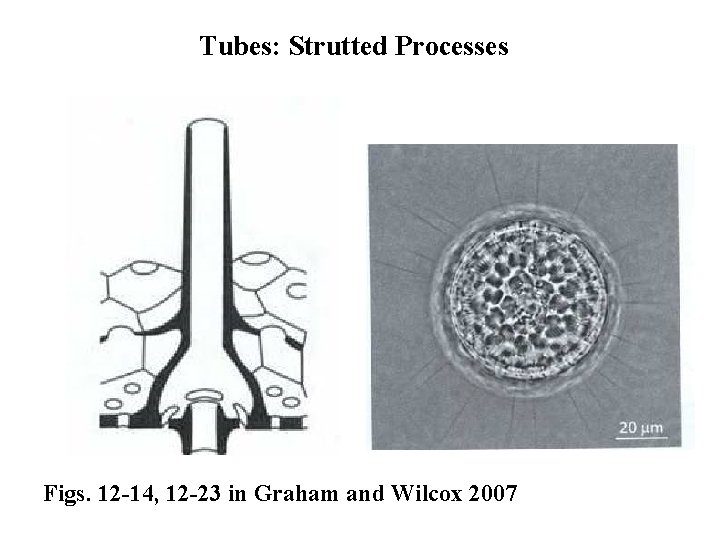

Tubes: Strutted Processes Figs. 12 -14, 12 -23 in Graham and Wilcox 2007

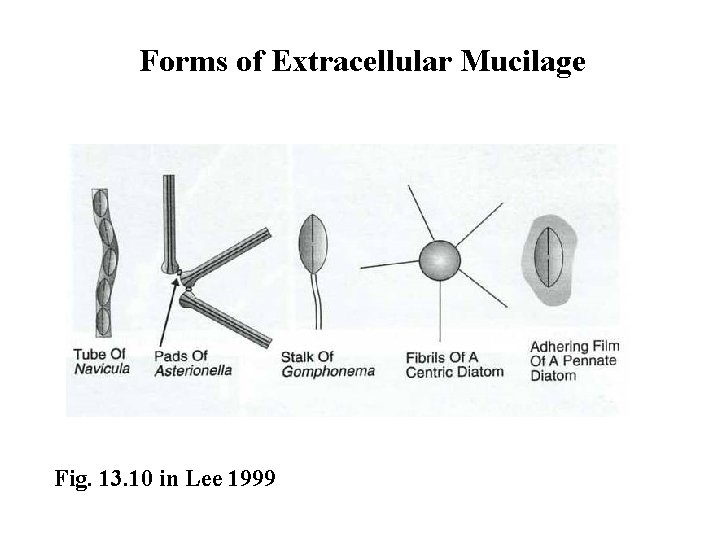

Forms of Extracellular Mucilage Fig. 13. 10 in Lee 1999

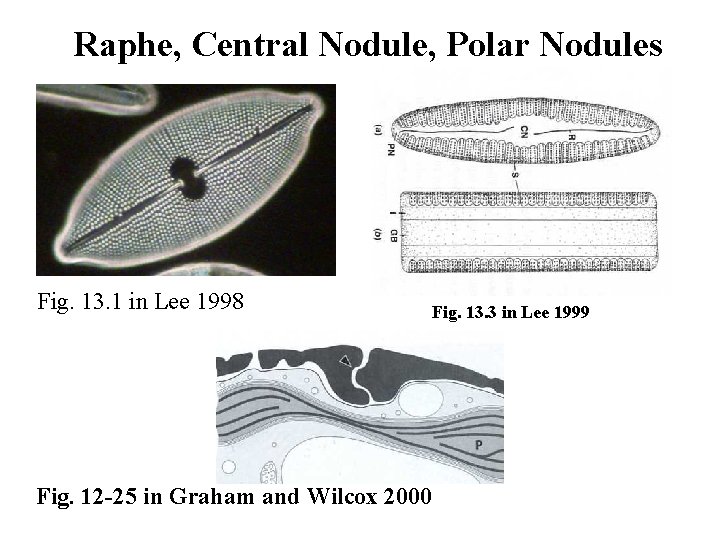

Raphe, Central Nodule, Polar Nodules Fig. 13. 1 in Lee 1998 Fig. 13. 3 in Lee 1999 Fig. 12 -25 in Graham and Wilcox 2000

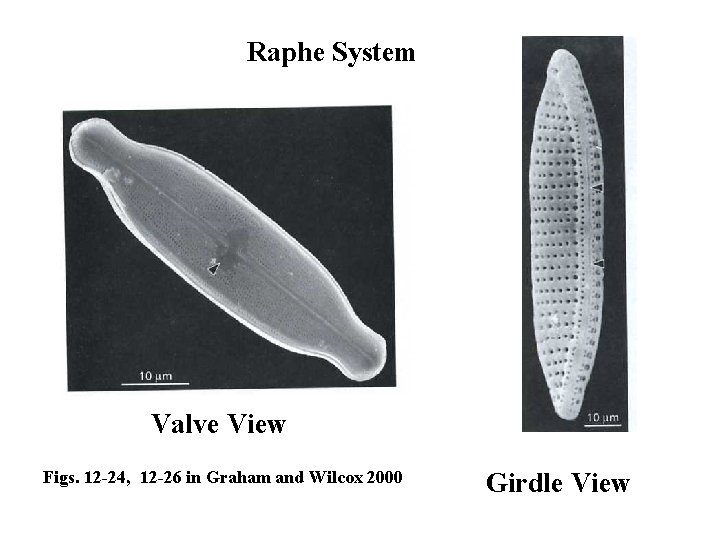

Raphe System Valve View Figs. 12 -24, 12 -26 in Graham and Wilcox 2000 Girdle View

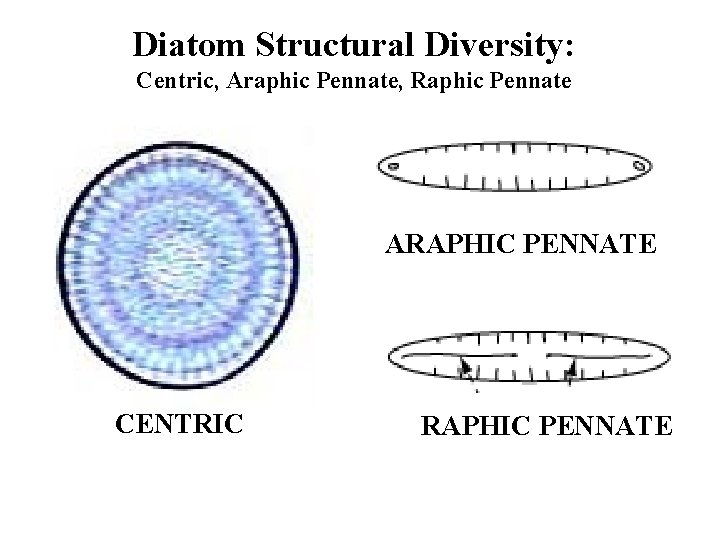

Diatom Structural Diversity: Centric, Araphic Pennate, Raphic Pennate ARAPHIC PENNATE CENTRIC RAPHIC PENNATE

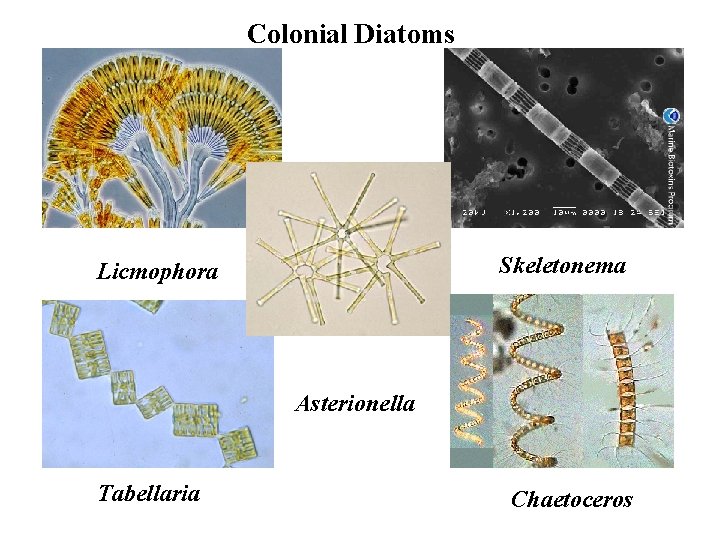

Colonial Diatoms Skeletonema Licmophora Asterionella Tabellaria Chaetoceros

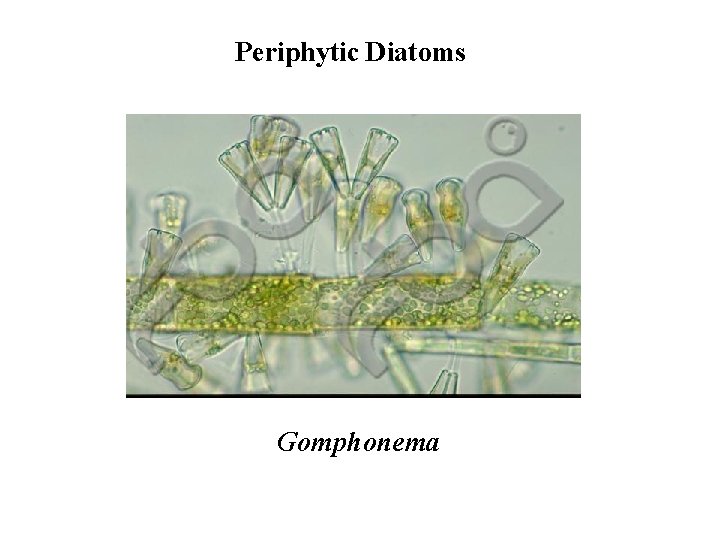

Periphytic Diatoms Gomphonema

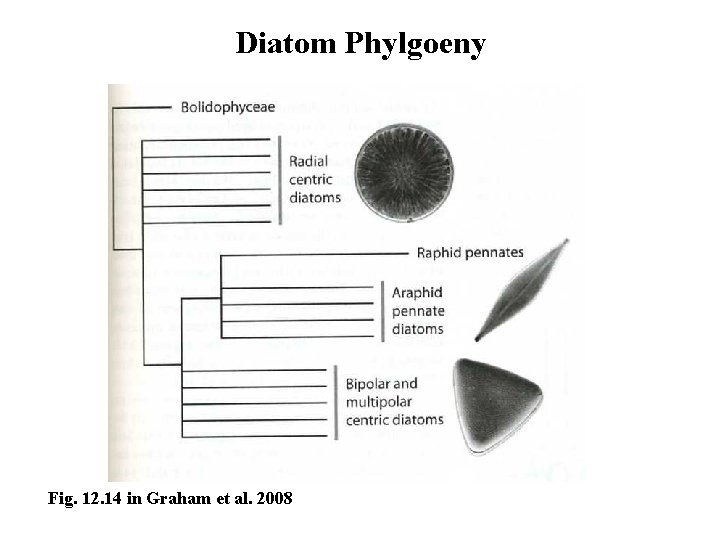

Diatom Phylgoeny Fig. 12. 14 in Graham et al. 2008

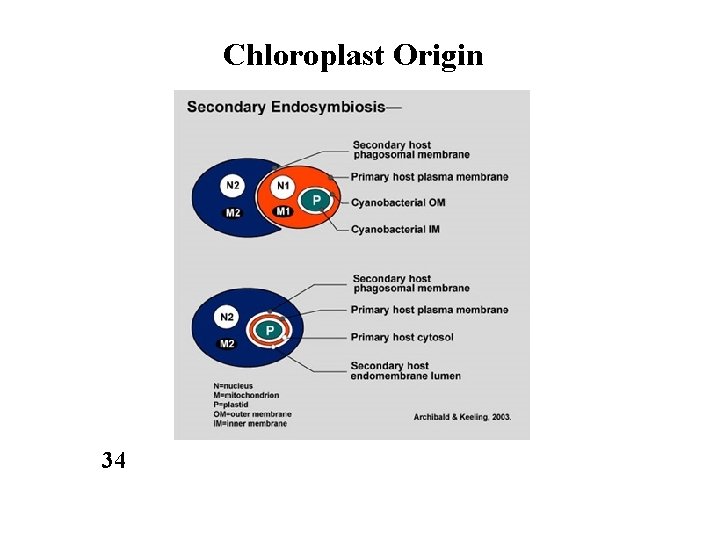

Chloroplast Origin 34

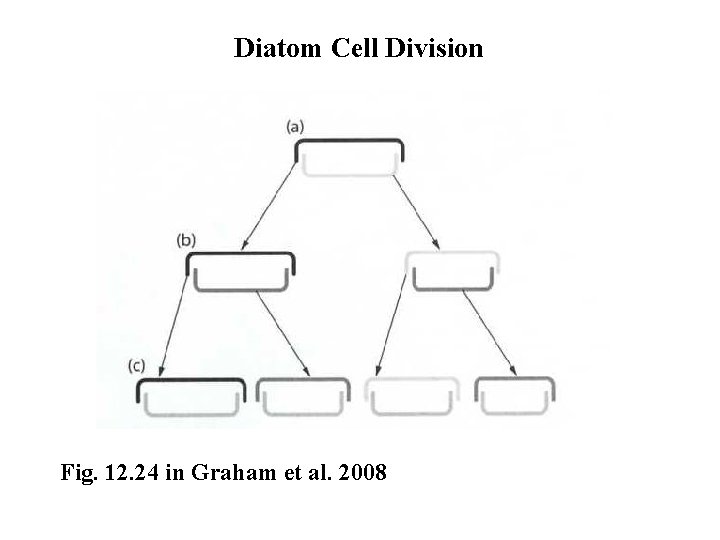

Diatom Cell Division Fig. 12. 24 in Graham et al. 2008

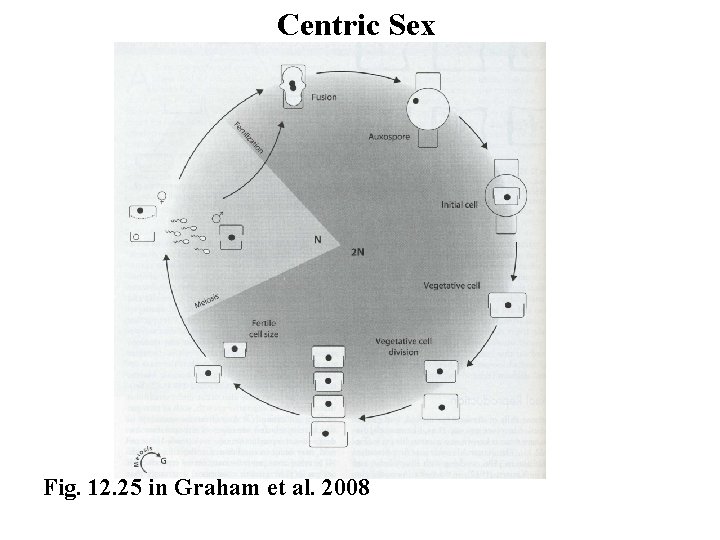

Centric Sex Fig. 12. 25 in Graham et al. 2008

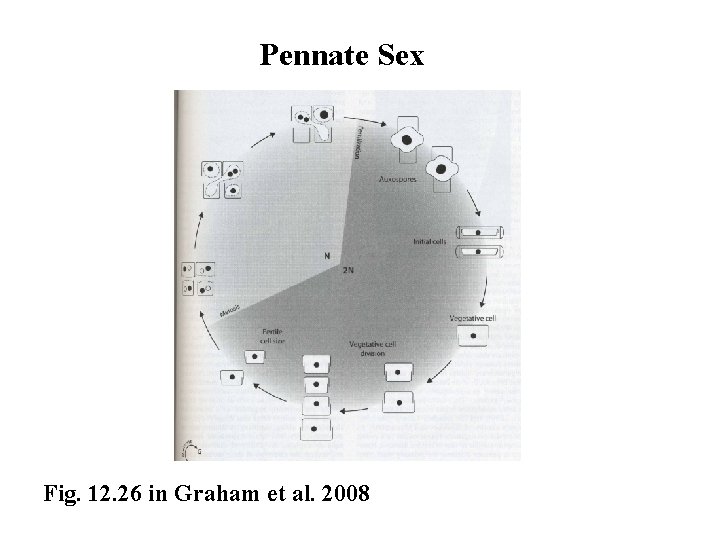

Pennate Sex Fig. 12. 26 in Graham et al. 2008
