Straight line graphs Mahobe Draw the graphs of

Straight line graphs Mahobe

Draw the graphs of the lines

• Starts at -3 and slopes 1 in y to 2 in x

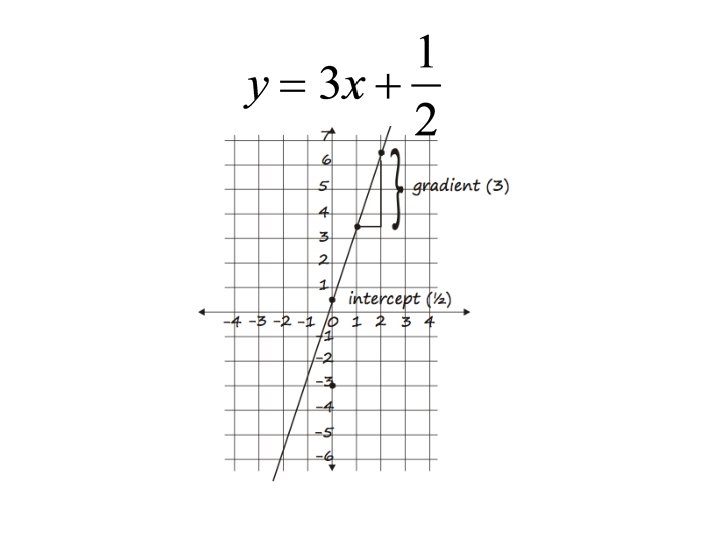

Draw the graph of the line

• Starts at ½ • Slope: 3 in ‘y’ to 2 in ‘x’

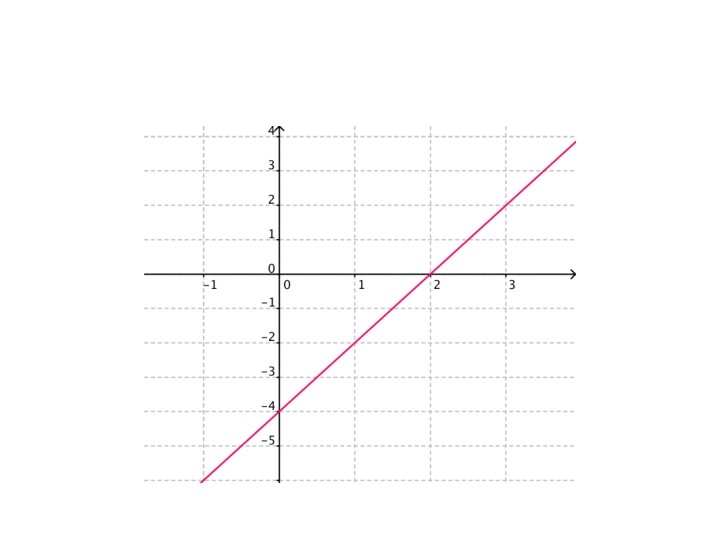

Draw the graph of the line

Find the points where x = 0 and where y = 0

Parts of the Red Devils and Easy Riders cycle ramps can be viewed from the end of a spectator stand at a dirt cycle track. The graph below shows the height above ground level of the two ramps.

What is the height of the Easy Riders ramp at the end of the spectator stand?

1. 5 metres

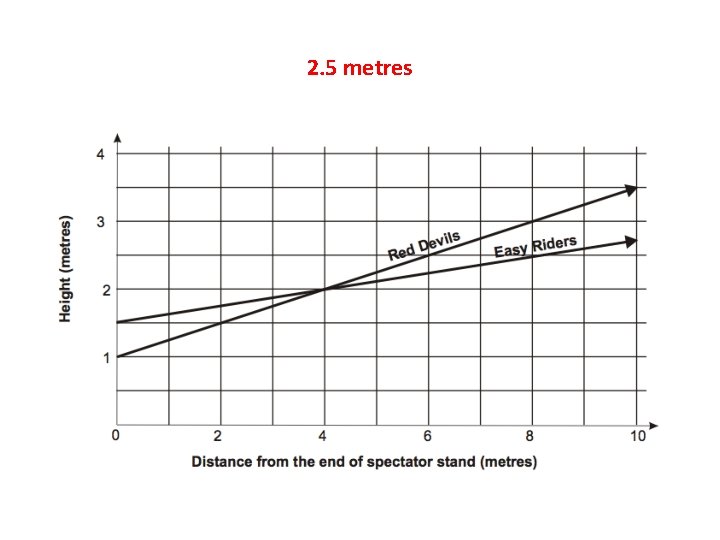

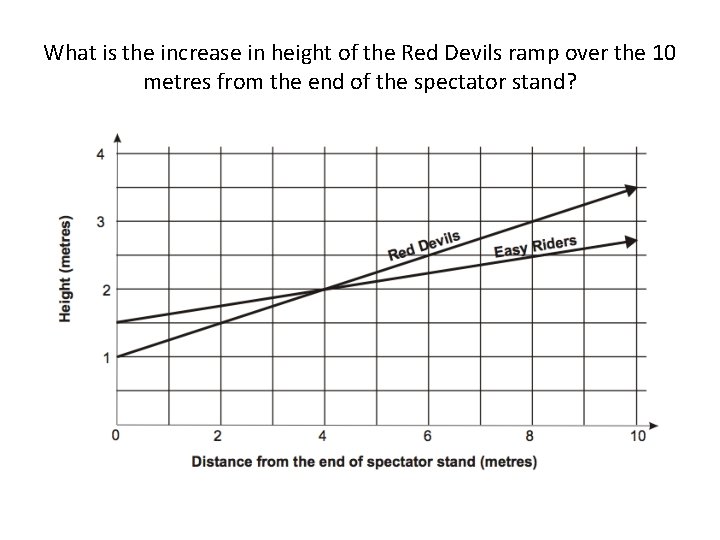

What is the increase in height of the Red Devils ramp over the 10 metres from the end of the spectator stand?

2. 5 metres

Draw the graph and give the equation of the following:

Starts at -5 and increases by ‘ 3’

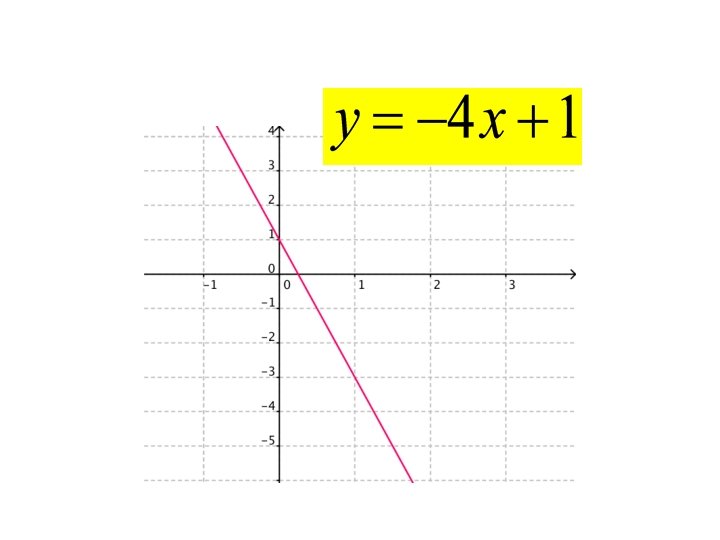

Starts at 1 and slope is -4

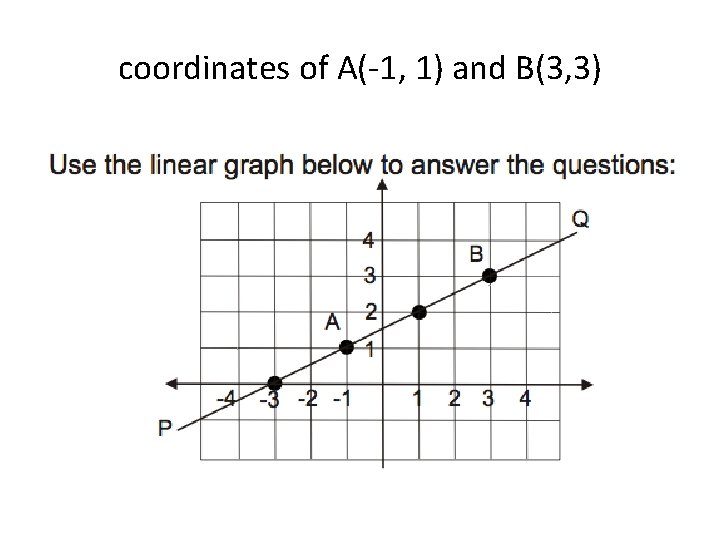

Write down the coordinates of A and B

coordinates of A(-1, 1) and B(3, 3)

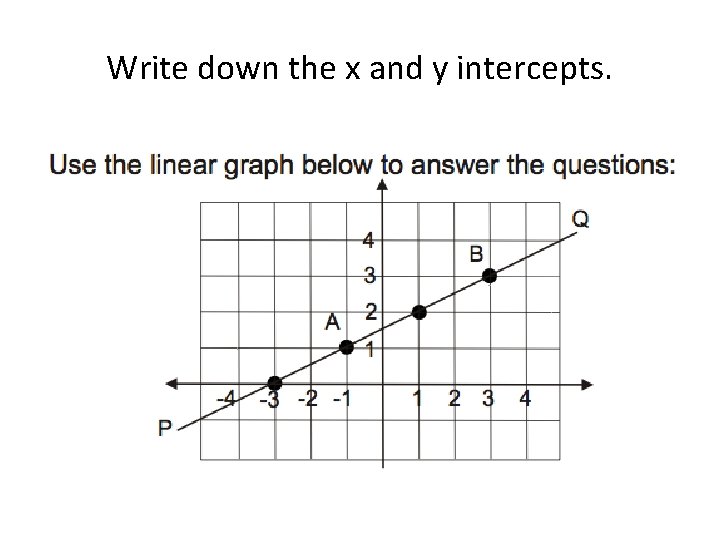

Write down the x and y intercepts.

x intercepts is(-3, 0) and y intercepts is(0, 1. 5).

Write the equation of the line

The equation of the line is

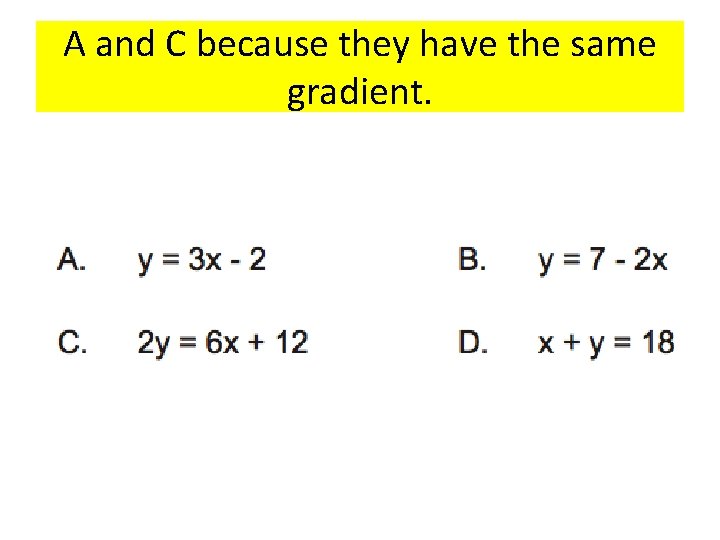

Which two lines are parallel?

A and C because they have the same gradient.

Which two lines have negative gradients?

B and D

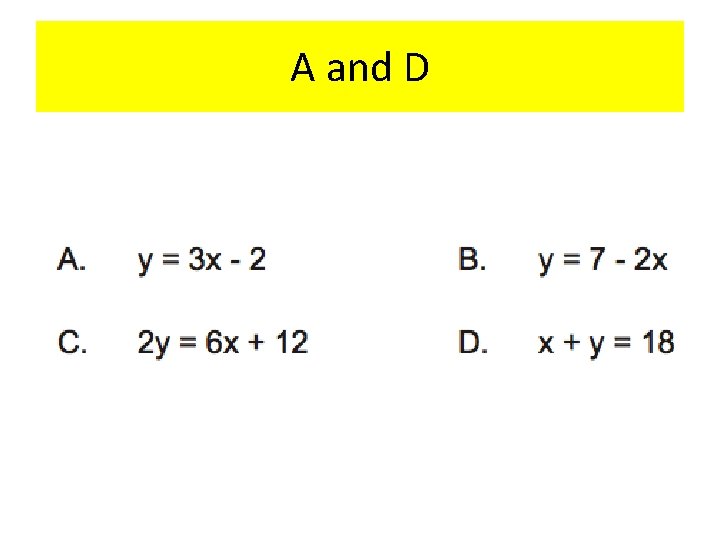

Which two lines go through the point (5, 13)?

A and D

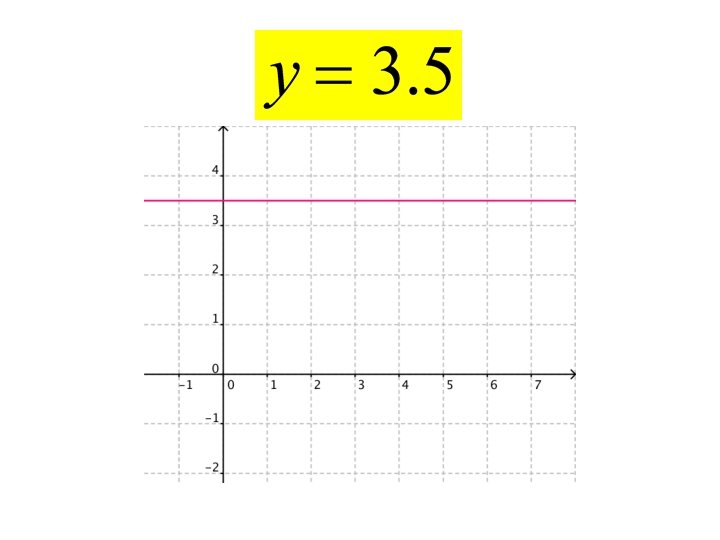

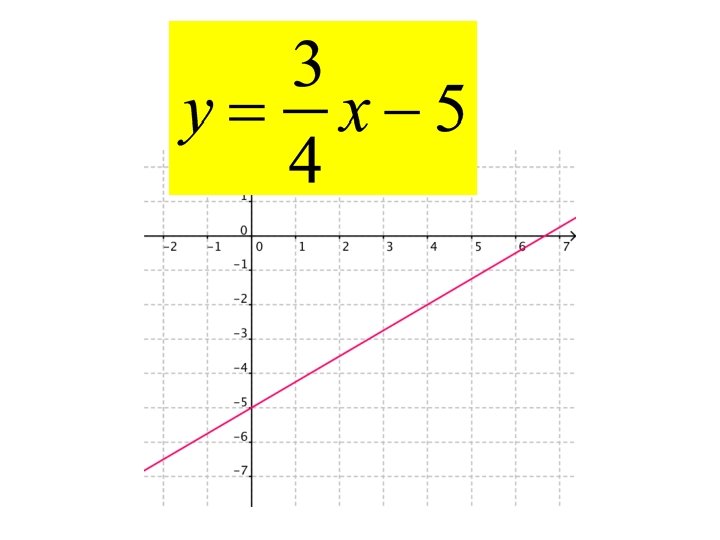

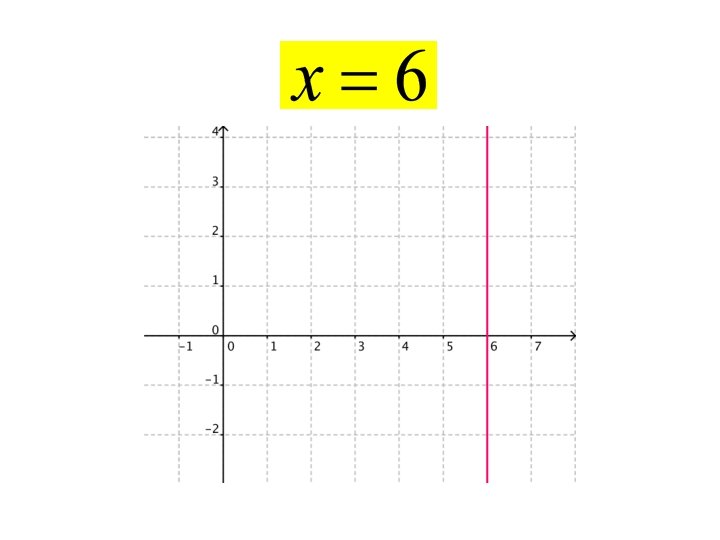

Draw the following lines.

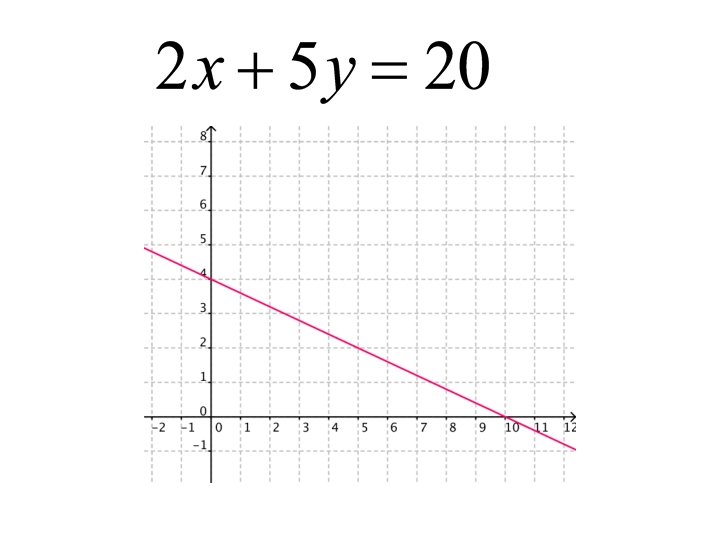

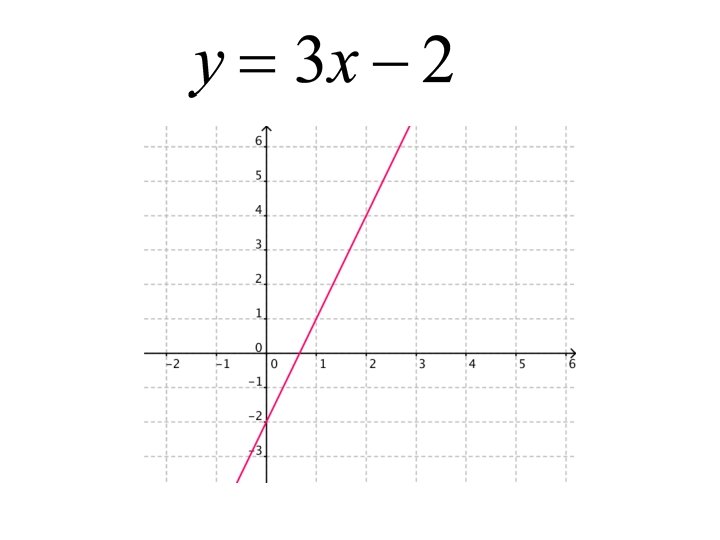

Draw the graphs of the following equations.

The graph shows the net worth of 3 famous siblings who are all famous singers.

Who initially had the most successful career?

Michael

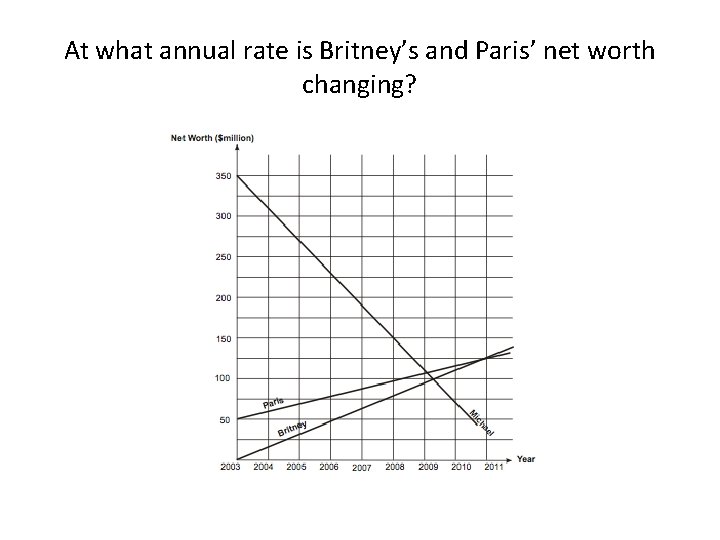

At what annual rate is Britney’s and Paris’ net worth changing?

Britney’s $15, 625, 000 and Paris’ $9, 375, 000

Michael seems to be losing his net worth. When do you estimate that he will be worth less than a $1 million?

Michael

Britney runs from her house to the shopping mall. Paris walks from her house to the shopping mall. The distances and times are shown on the graph below

Which line represents Britney? Explain your answer.

The steeper line because we presume she runs faster than Paris can walk.

Both Britney and Paris left their homes at 1: 30 pm to go to the mall. At what time would they be at the same distance from the mall?

4 minutes later at 1: 34 pm

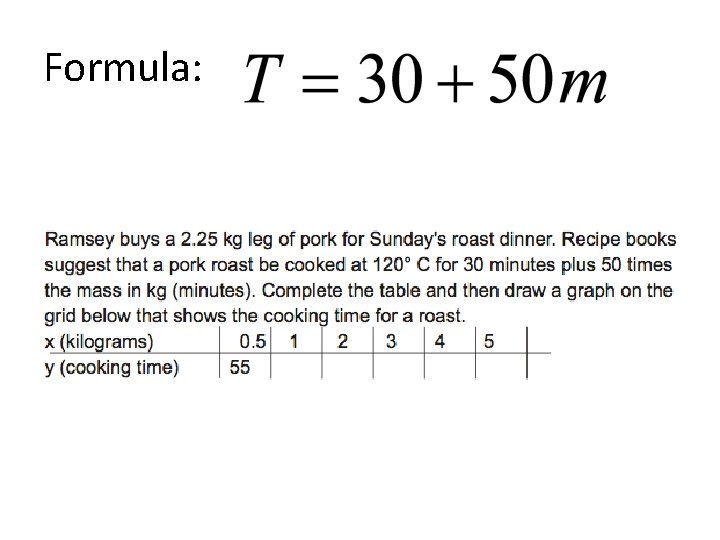

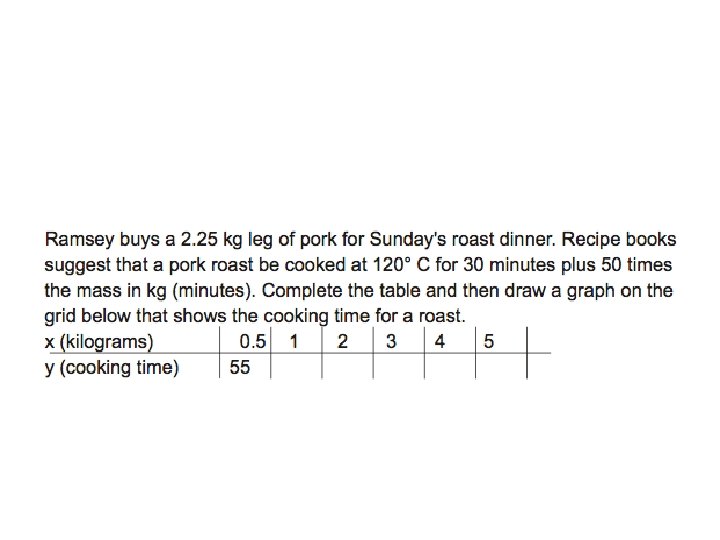

Formula:

Formula: 0. 5 55 1 80 2 130 3 180 4 230 5 280

Draw both graphs.

Compare the two lines and comment.

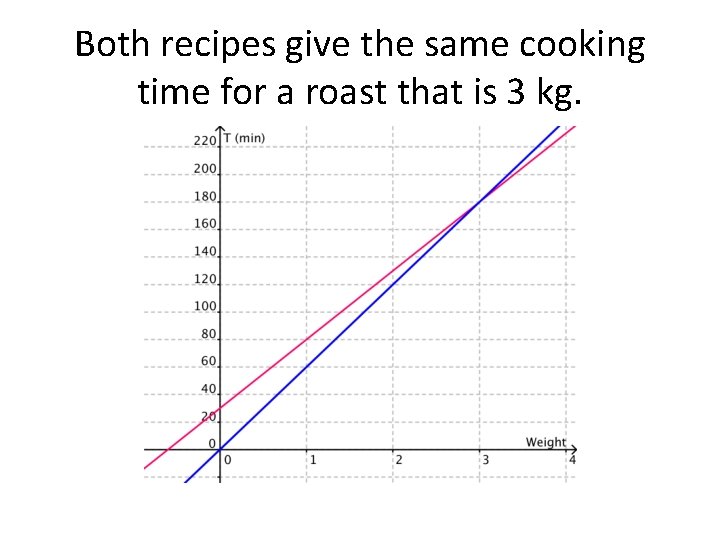

Both recipes give the same cooking time for a roast that is 3 kg.

The recipe book recommends longer times for roasts under 3 kg.

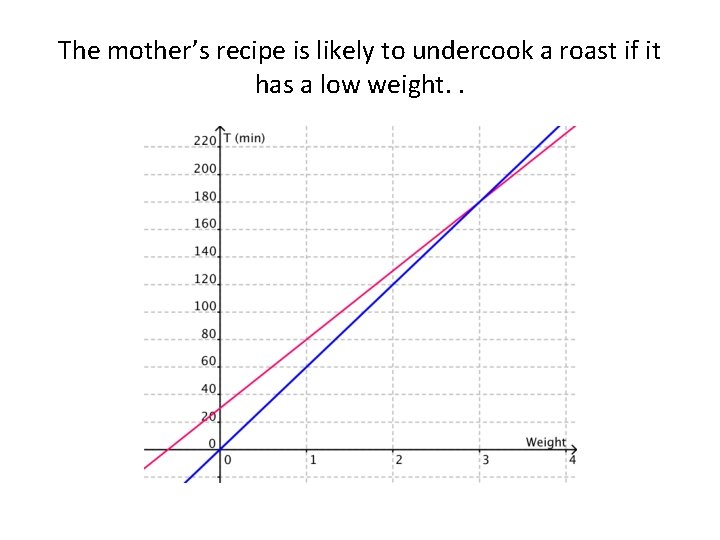

The mother’s recipe is likely to undercook a roast if it has a low weight. .

Brad and Angie are travelling overseas. There are three international phone card they can buy. • 1 More Talk • 2 Talk on • 3 Stay in touch

The graph below shows the call costs for More Talk and Talk On cards

The Stay in Touch card costs 4 cents per minute plus a $1 call connection fee. The cost per call using the Stay in Touch card can be described by the equation

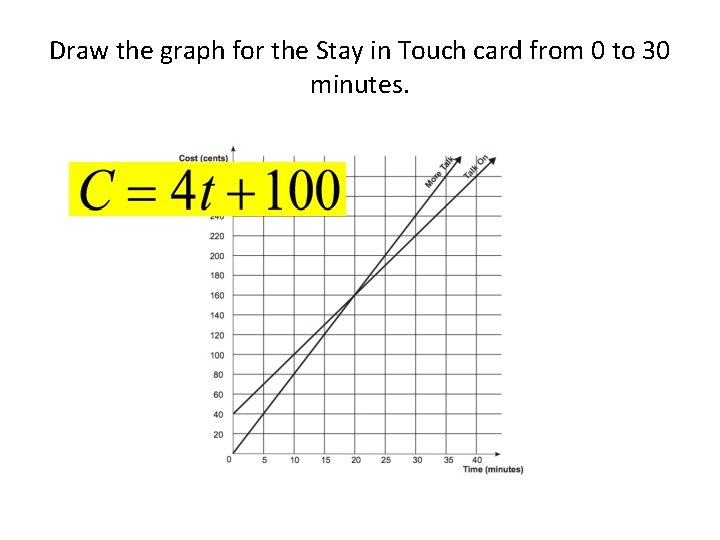

Draw the graph for the Stay in Touch card from 0 to 30 minutes.

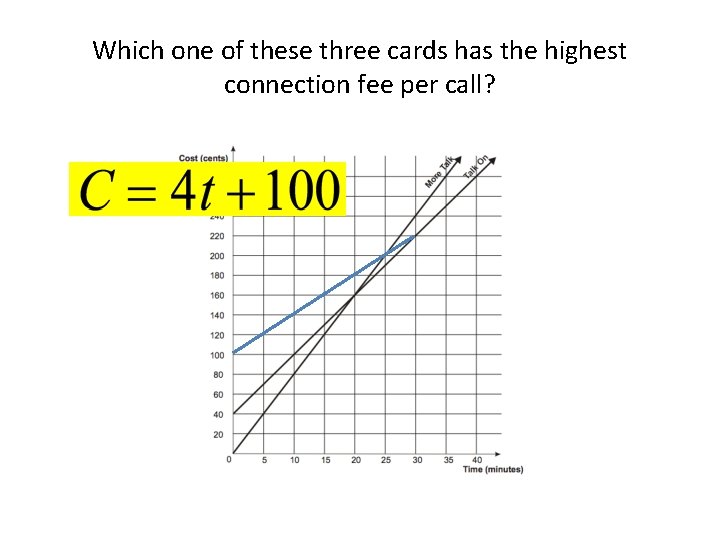

Which one of these three cards has the highest connection fee per call?

Stay in Touch

How is this shown by the graphs?

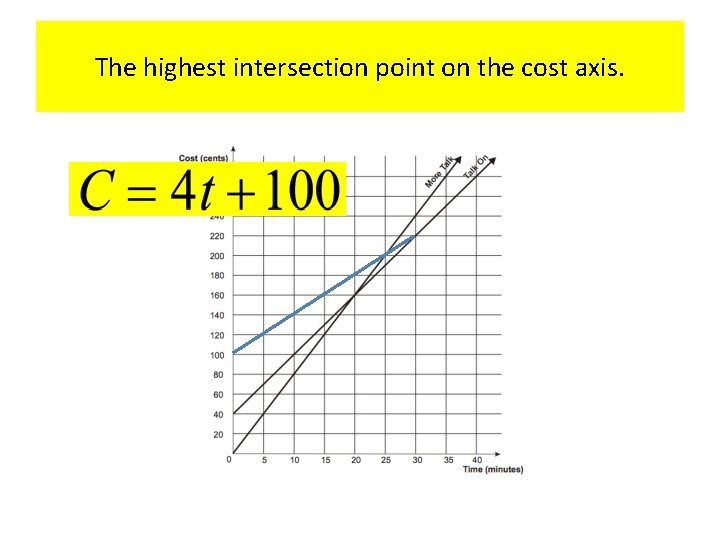

The highest intersection point on the cost axis.

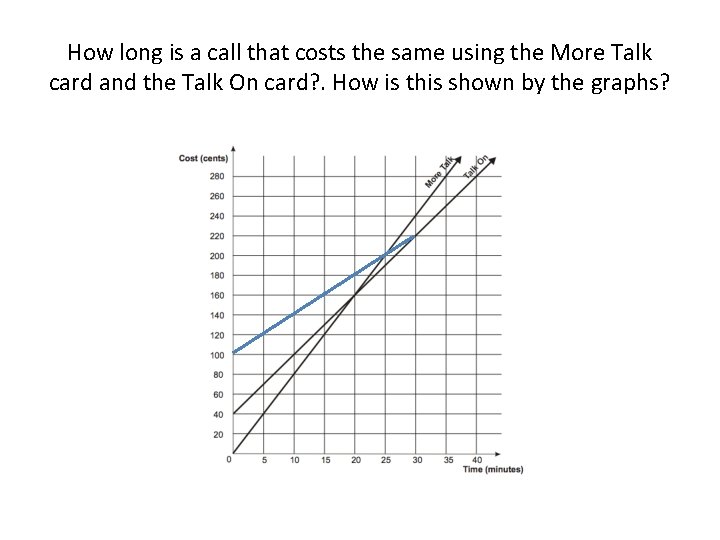

How long is a call that costs the same using the More Talk card and the Talk On card? . How is this shown by the graphs?

20 minutes. The intersection point of the two lines.

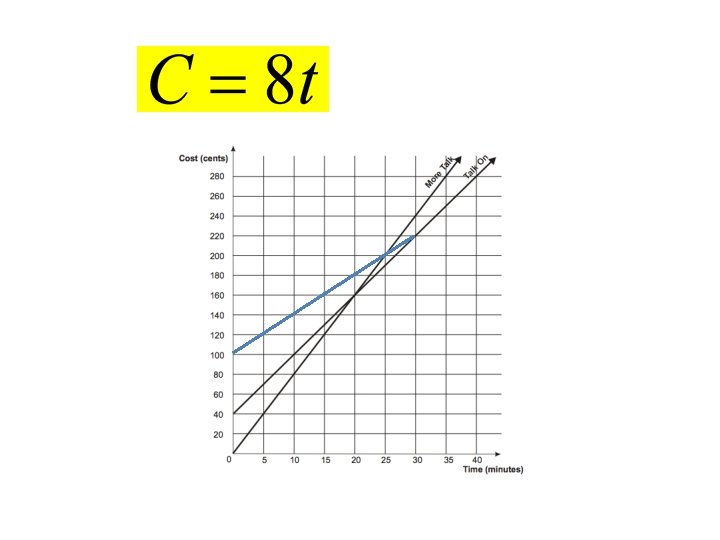

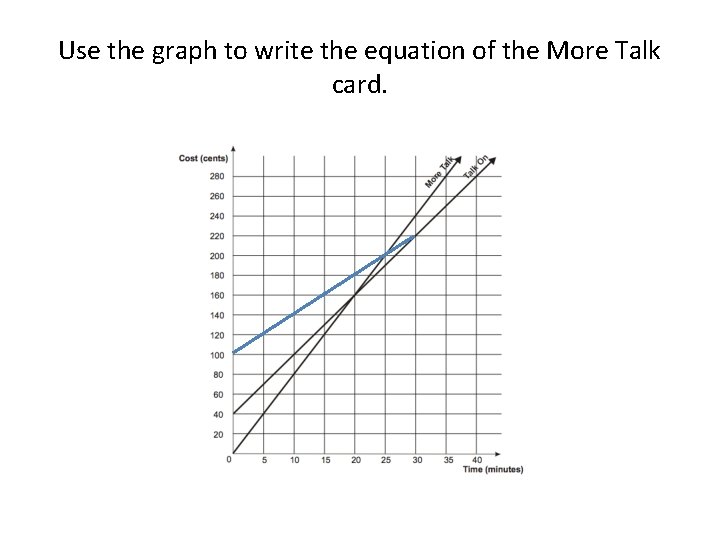

Use the graph to write the equation of the More Talk card.

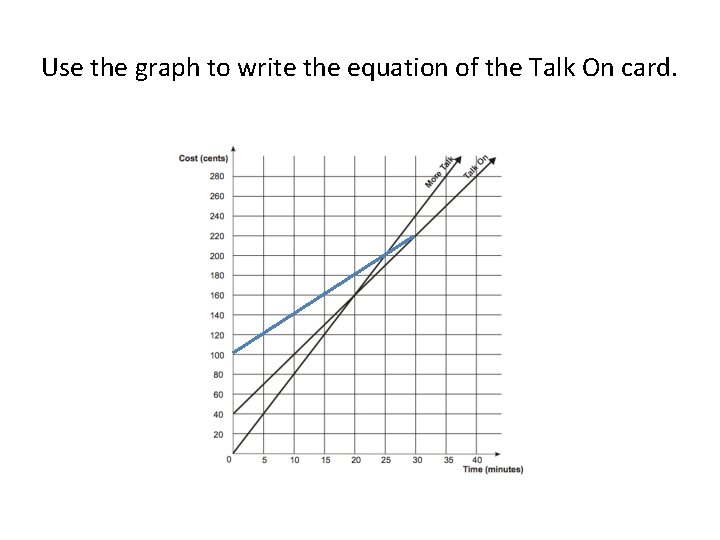

Use the graph to write the equation of the Talk On card.

Terrance investigates the cost of hiring exercise equipment for his home. He phones 2 companies – ‘Work It Out’ and ‘Fitness Concepts’. The graph shows the cost of hiring the same equipment for up to 50 days.
