Store Summary I Store Avg Init Lumi E

  • Slides: 11
Download presentation
Store Summary I Store Avg Init. Lumi (E 30) Avg Deliv’d Lumi (nb-1) Time

Store Summary I Store Avg Init. Lumi (E 30) Avg Deliv’d Lumi (nb-1) Time (hr) How did it end? Comments 7416 248. 4 6177 15. 2 Normal Protons blow up transversely. Lowered pbar H & V tunes. 001. Also see pbar long instability 7417 253. 5 5090 15. 0 Normal Protons blew up transversely; lowered base V tune by. 001. Also see pbar long instability 7418 269. 4 6571 14. 6 Normal Protons blew up transversely; lowered base V tune by. 001. Also see pbar long. instability 7419 276. 4 6602 14. 1 Normal No transverse blowups but did get pbar long instability 7420 277. 6 6757 15. 0 Normal Had a pbar long instability; Lowered Proton V tune at Collisions. 001 7421 276. 9 7963 21. 6 Normal Lowered Proton H tune only at Low Beta by. 001. Also adjusted D 0 VANG at Seq 14, 15 & 16 7422 220. 2 5108 15. 2 Normal Sent out a smooth Tevatron Coordinator - FNAL 12/8/2020

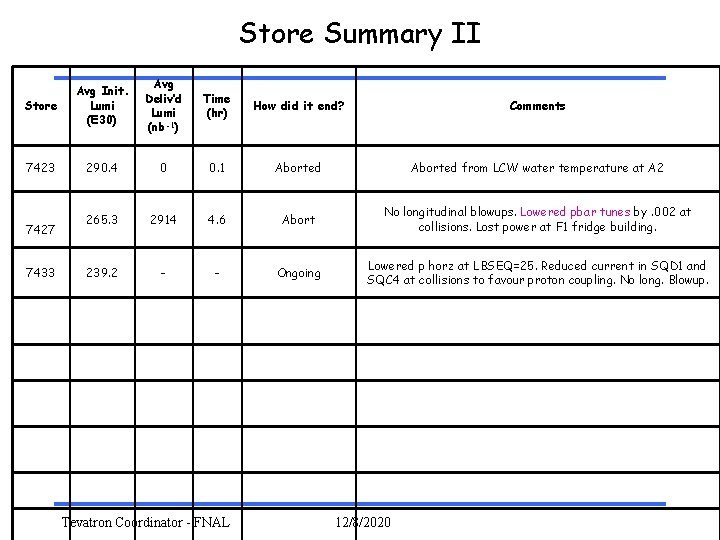

Store Summary II Store Avg Init. Lumi (E 30) Avg Deliv’d Lumi (nb-1) Time

Store Summary II Store Avg Init. Lumi (E 30) Avg Deliv’d Lumi (nb-1) Time (hr) How did it end? Comments 7423 290. 4 0 0. 1 Aborted from LCW water temperature at A 2 265. 3 2914 4. 6 Abort No longitudinal blowups. Lowered pbar tunes by. 002 at collisions. Lost power at F 1 fridge building. 239. 2 - - Ongoing Lowered p horz at LBSEQ=25. Reduced current in SQD 1 and SQC 4 at collisions to favour proton coupling. No long. Blowup. 7427 7433 Tevatron Coordinator - FNAL 12/8/2020

Pbar Tunes using BBQ at Collisions with tickling As found tunes were at 0.

Pbar Tunes using BBQ at Collisions with tickling As found tunes were at 0. 6 for 7423. Lowered them for 7427 by. 002. Tevatron Coordinator - FNAL 12/8/2020 3

The Numbers

The Numbers

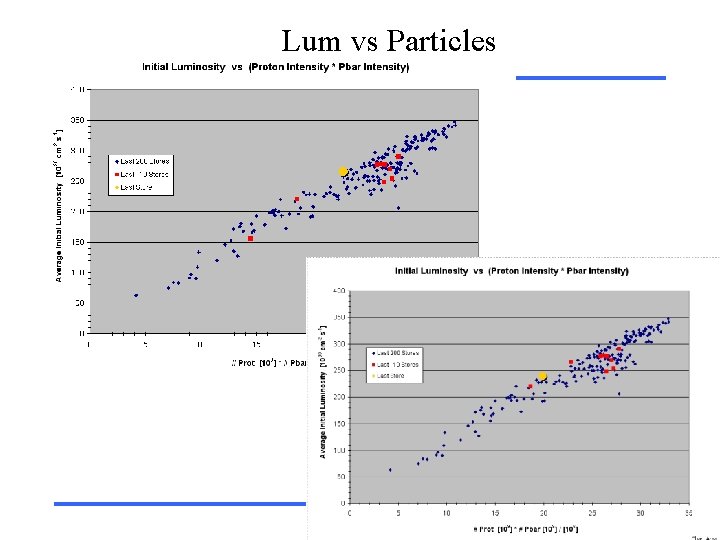

Lum vs Particles

Lum vs Particles

Longitudinal Pbar Blowups Continue (maybe)

Longitudinal Pbar Blowups Continue (maybe)

Integrated Luminosity for the Week

Integrated Luminosity for the Week

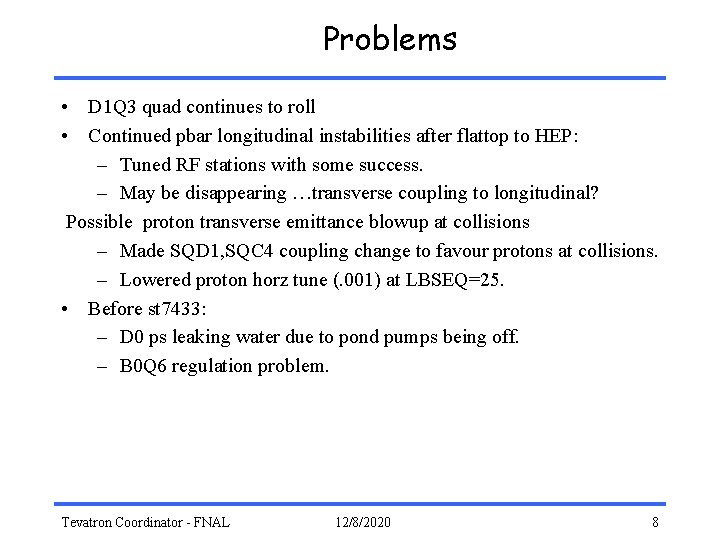

Problems • D 1 Q 3 quad continues to roll • Continued pbar longitudinal

Problems • D 1 Q 3 quad continues to roll • Continued pbar longitudinal instabilities after flattop to HEP: – Tuned RF stations with some success. – May be disappearing …transverse coupling to longitudinal? Possible proton transverse emittance blowup at collisions – Made SQD 1, SQC 4 coupling change to favour protons at collisions. – Lowered proton horz tune (. 001) at LBSEQ=25. • Before st 7433: – D 0 ps leaking water due to pond pumps being off. – B 0 Q 6 regulation problem. Tevatron Coordinator - FNAL 12/8/2020 8

Problems • LOSTP at collisions high. – Tuning changes for protons sent out (st

Problems • LOSTP at collisions high. – Tuning changes for protons sent out (st 7423, 7427) • E 48 SF 6 required refill. (after st 7427)

Studies/Work Completed • • BBQ to measure pbars tunes at lbseq/collisions. Tune mult calibrations

Studies/Work Completed • • BBQ to measure pbars tunes at lbseq/collisions. Tune mult calibrations completed Many small tune and coupling changes made store to store. Work continues on Tev RF to try to stop pbars from blowing up at collisions. • Crystal collimator electronics installed. Tevatron Coordinator - FNAL 12/8/2020 10

Studies • • • T-980 (EOS 2 -3 hours, Still) TEL alignment studies (Alex,

Studies • • • T-980 (EOS 2 -3 hours, Still) TEL alignment studies (Alex, 2 hours) Beam based alignment study at feeddown locations. Tune space study at collisions? Bumper magnet studies. Tevatron Coordinator - FNAL 12/8/2020 11
