Storage WFP Logistics We Deliver Lesson Plan Storage
- Slides: 28

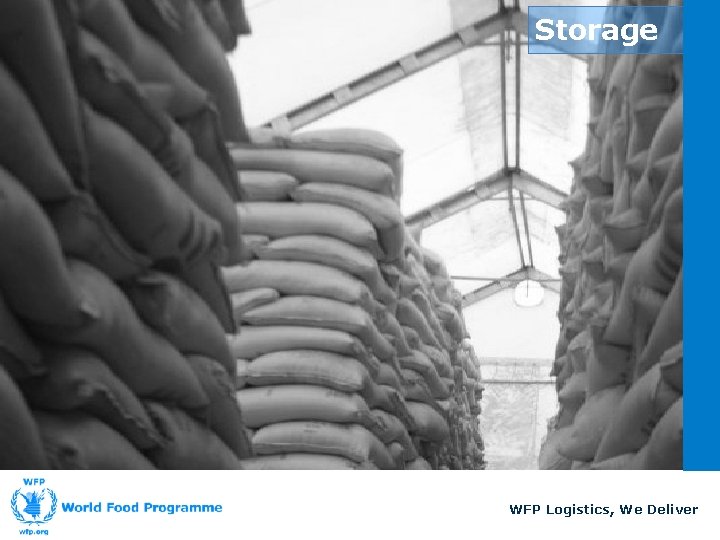

Storage WFP Logistics, We Deliver

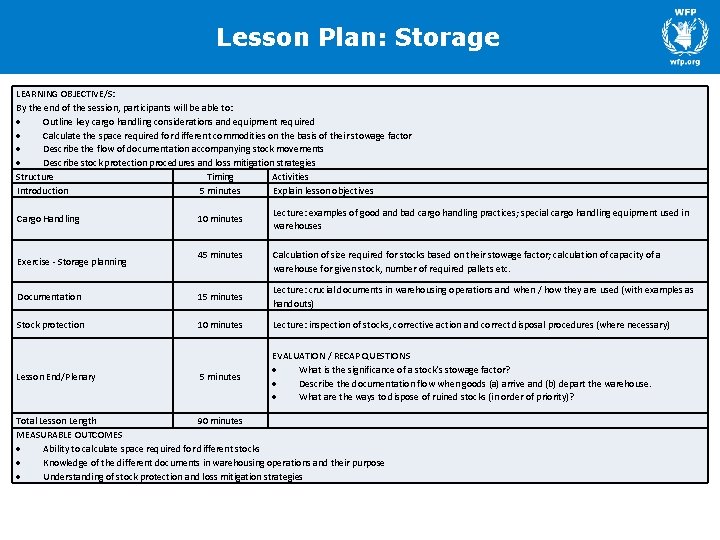

Lesson Plan: Storage LEARNING OBJECTIVE/S: By the end of the session, participants will be able to: Outline key cargo handling considerations and equipment required Calculate the space required for different commodities on the basis of their stowage factor Describe the flow of documentation accompanying stock movements Describe stock protection procedures and loss mitigation strategies Structure Timing Activities Introduction 5 minutes Explain lesson objectives Cargo Handling 10 minutes Lecture: examples of good and bad cargo handling practices; special cargo handling equipment used in warehouses Exercise - Storage planning 45 minutes Calculation of size required for stocks based on their stowage factor; calculation of capacity of a warehouse for given stock, number of required pallets etc. Documentation 15 minutes Lecture: crucial documents in warehousing operations and when / how they are used (with examples as handouts) Stock protection 10 minutes Lecture: inspection of stocks, corrective action and correct disposal procedures (where necessary) 5 minutes EVALUATION / RECAP QUESTIONS What is the significance of a stock’s stowage factor? Describe the documentation flow when goods (a) arrive and (b) depart the warehouse. What are the ways to dispose of ruined stocks (in order of priority)? Lesson End/Plenary Total Lesson Length 90 minutes MEASURABLE OUTCOMES Ability to calculate space required for different stocks Knowledge of the different documents in warehousing operations and their purpose Understanding of stock protection and loss mitigation strategies

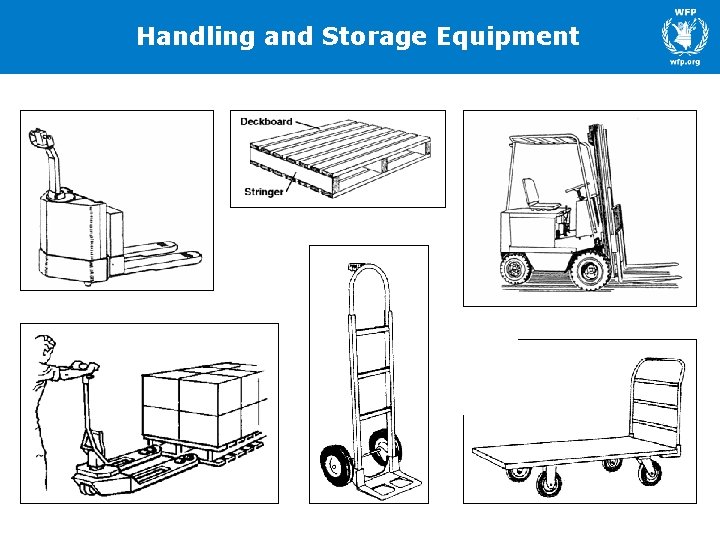

Handling and Storage Equipment
Why stack?
Stacking Methods Unbonded Stacking Bonded Stacking
Stacking Methods Clean area before creating stack Use good and clean pallets Select stacking method Identify space for spoiled and empty packaging Identify space for reconditioning & repackaging damaged cargo Use stack card

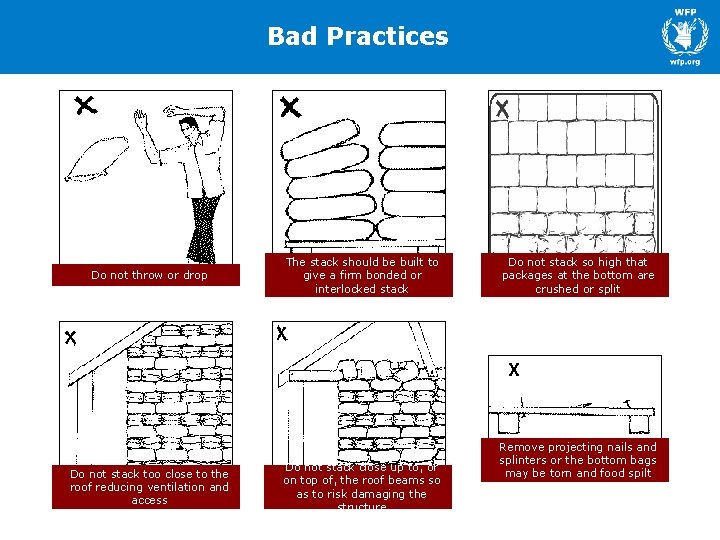

Bad Practices Do not throw or drop The stack should be built to give a firm bonded or interlocked stack Do not stack so high that packages at the bottom are crushed or split X Do not stack too close to the roof reducing ventilation and access Do not stack close up to, or on top of, the roof beams so as to risk damaging the structure Remove projecting nails and splinters or the bottom bags may be torn and food spilt

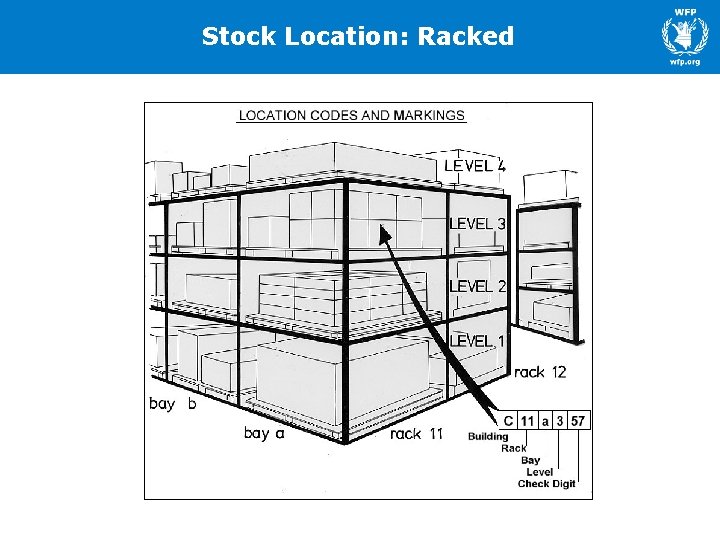

Stock Location: Racked
Handling of Hazardous Material Hazardous materials include (but not limited to): Pesticides Corrosive Material Fuel & Lubricants Gas Cylinders Considerations National Legislation and Regulations Environmental Concerns Staff Safety Additional Security Measures
Warehouse Activities Storage Planning ? Goods receipt Storage Goods Dispatch

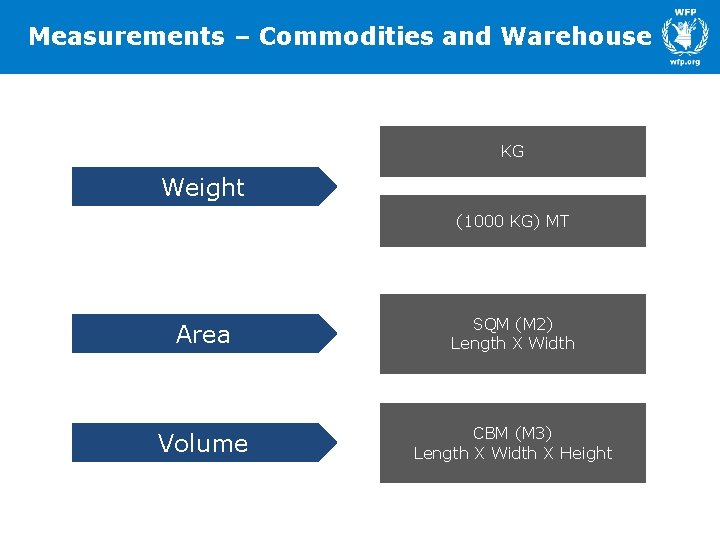

Measurements – Commodities and Warehouse KG Weight (1000 KG) MT Area SQM (M 2) Length X Width Volume CBM (M 3) Length X Width X Height

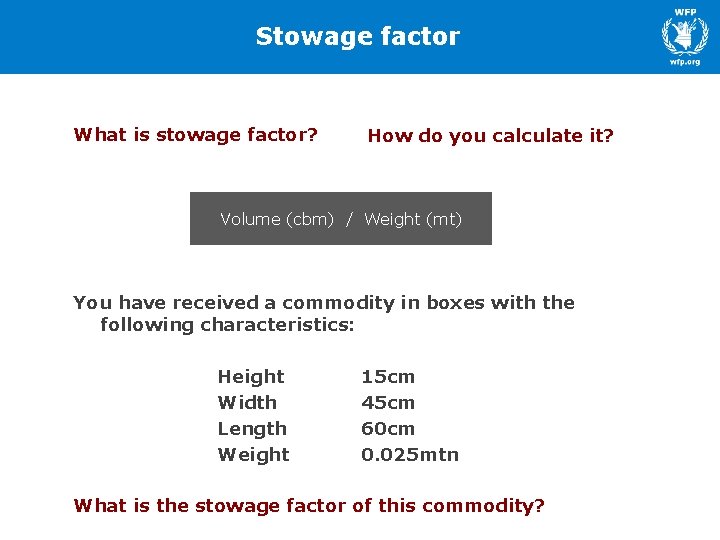

Stowage factor What is stowage factor? How do you calculate it? Volume (cbm) / Weight (mt) You have received a commodity in boxes with the following characteristics: Height Width Length Weight 15 cm 45 cm 60 cm 0. 025 mtn What is the stowage factor of this commodity?

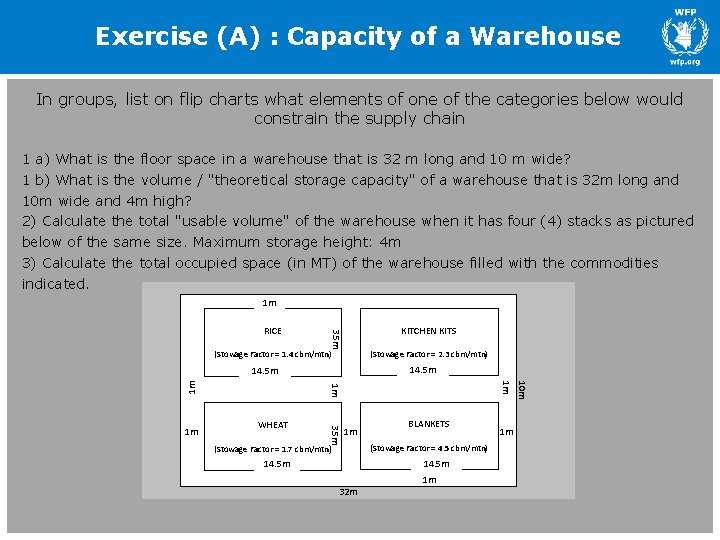

Exercise (A) : Capacity of a Warehouse In groups, list on flip charts what elements of one of the categories below would constrain the supply chain 1 a) What is the floor space in a warehouse that is 32 m long and 10 m wide? 1 b) What is the volume / "theoretical storage capacity" of a warehouse that is 32 m long and 10 m wide and 4 m high? 2) Calculate the total "usable volume" of the warehouse when it has four (4) stacks as pictured below of the same size. Maximum storage height: 4 m 3) Calculate the total occupied space (in MT) of the warehouse filled with the commodities indicated. 1 m KITCHEN KITS 3. 5 m RICE (Stowage Factor = 2. 3 cbm/mtn) (Stowage Factor = 1. 4 cbm/mtn) 14. 5 m 1 m (Stowage Factor = 1. 7 cbm/mtn) 14. 5 m BLANKETS (Stowage Factor = 4. 5 cbm/mtn) 14. 5 m 1 m 32 m 1 m 10 m 1 m WHEAT 3. 5 m 1 m 14. 5 m

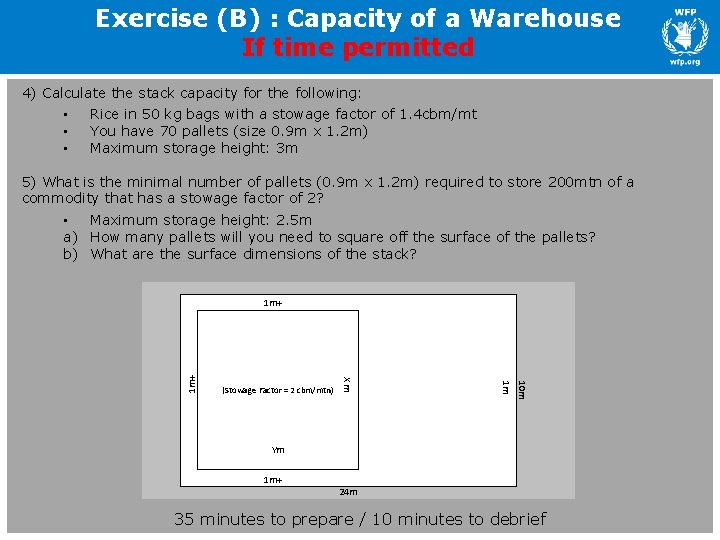

Exercise (B) : Capacity of a Warehouse If time permitted 4) Calculate the stack capacity for the following: • • • Rice in 50 kg bags with a stowage factor of 1. 4 cbm/mt You have 70 pallets (size 0. 9 m x 1. 2 m) Maximum storage height: 3 m 5) What is the minimal number of pallets (0. 9 m x 1. 2 m) required to store 200 mtn of a commodity that has a stowage factor of 2? • Maximum storage height: 2. 5 m a) How many pallets will you need to square off the surface of the pallets? b) What are the surface dimensions of the stack? 10 m 1 m (Stowage Factor = 2 cbm/mtn) X m 1 m+ Ym 1 m+ 24 m 35 minutes to prepare / 10 minutes to debrief
Answers (A): Capacity of a Warehouse 1 a) Ground surface: 32 x 10 = 320 sqm 1 b) Theoretical storage capacity: 32 x 10 x 4 = 1280 cbm 2 Usable volume: Working space = (32 x 1 x 3) + (10 x 1 x 3) = 126 Usable volume = (320 – 126) x 4 = 194 x 4 = 776 cbm 3) Occupied space (All stacks have the same dimension) Stacks volume = 3. 5 x 14. 5 x 4 = 203 cbm • Rice occupied space = 203 / 1. 4 = 145 MT • Kitchen Kits occupied space = 203 / 2. 3 = 88. 3 MT • Wheat occupied space = 203 /1. 7 = 119. 5 MT • Blankets occupied space = 203 / 4. 5 = 45. 2 MT Total occupied space: 145 + 88. 3 + 119. 5 + 45. 2 = 398 MT

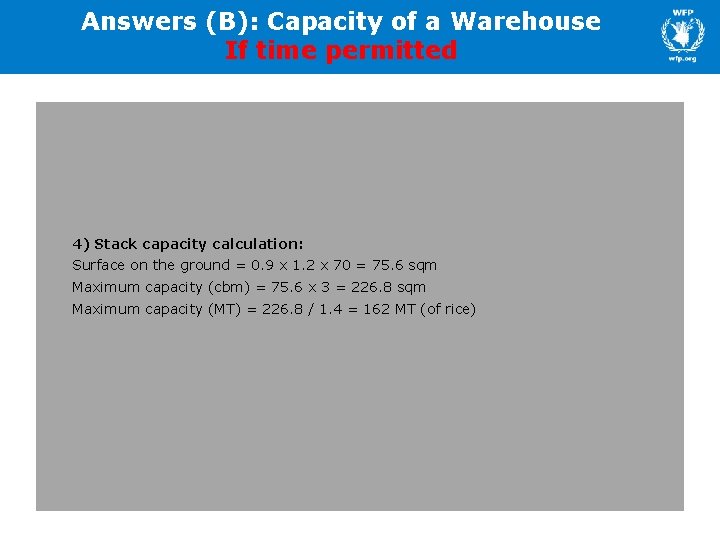

Answers (B): Capacity of a Warehouse If time permitted 4) Stack capacity calculation: Surface on the ground = 0. 9 x 1. 2 x 70 = 75. 6 sqm Maximum capacity (cbm) = 75. 6 x 3 = 226. 8 sqm Maximum capacity (MT) = 226. 8 / 1. 4 = 162 MT (of rice)

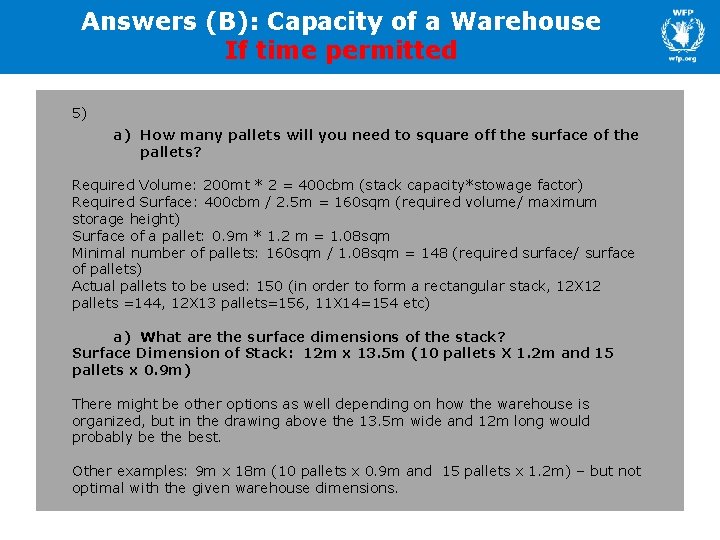

Answers (B): Capacity of a Warehouse If time permitted 5) a) How many pallets will you need to square off the surface of the pallets? Required Volume: 200 mt * 2 = 400 cbm (stack capacity*stowage factor) Required Surface: 400 cbm / 2. 5 m = 160 sqm (required volume/ maximum storage height) Surface of a pallet: 0. 9 m * 1. 2 m = 1. 08 sqm Minimal number of pallets: 160 sqm / 1. 08 sqm = 148 (required surface/ surface of pallets) Actual pallets to be used: 150 (in order to form a rectangular stack, 12 X 12 pallets =144, 12 X 13 pallets=156, 11 X 14=154 etc) a) What are the surface dimensions of the stack? Surface Dimension of Stack: 12 m x 13. 5 m (10 pallets X 1. 2 m and 15 pallets x 0. 9 m) There might be other options as well depending on how the warehouse is organized, but in the drawing above the 13. 5 m wide and 12 m long would probably be the best. Other examples: 9 m x 18 m (10 pallets x 0. 9 m and 15 pallets x 1. 2 m) – but not optimal with the given warehouse dimensions.
Inventory Management Receipt Storage Dispatch Waybill Stack Card Release Note Tally Sheet Stock Card* Loading Authorisation Daily Receipts Report Daily Stock Position Tally sheet Daily Stock Position Waybill Daily Dispatch Report Daily Stock Position
Inventory Management GOLDEN RULE: "IF IT MOVES - RECORD IT"
Stack Card

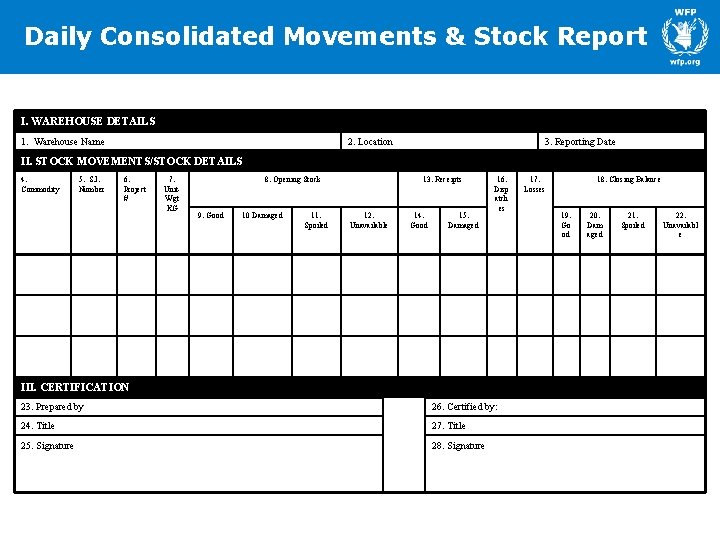

Daily Consolidated Movements & Stock Report I. WAREHOUSE DETAILS 1. Warehouse Name 2. Location 3. Reporting Date II. STOCK MOVEMENTS/STOCK DETAILS 4. Commodity 5. S. I. Number 6. Project # 7. Unit. Wgt KG 8. Opening Stock 9. Good 10 Damaged 11. Spoiled 13. Receipts 12. Unavailable 14. Good 15. Damaged 16. Disp atch es III. CERTIFICATION 23. Prepared by 26. Certified by: 24. Title 27. Title 25. Signature 28. Signature 17. Losses 18. Closing Balance 19. Go od 20. Dam aged 21. Spoiled 22. Unavailabl e

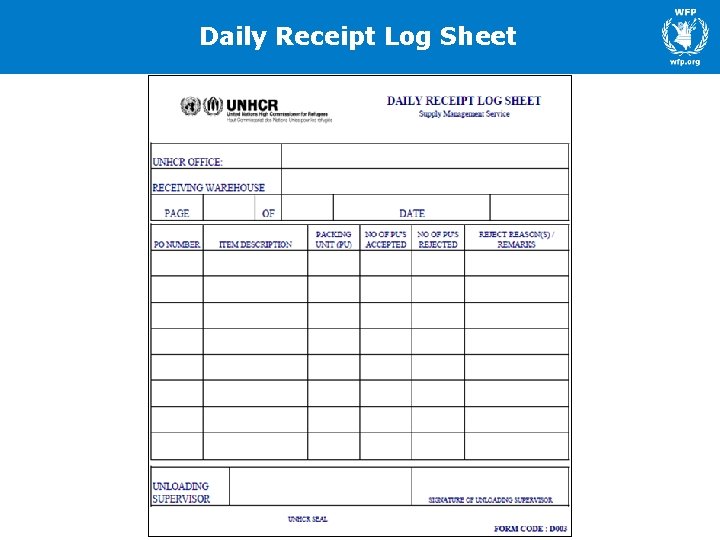

Daily Receipt Log Sheet

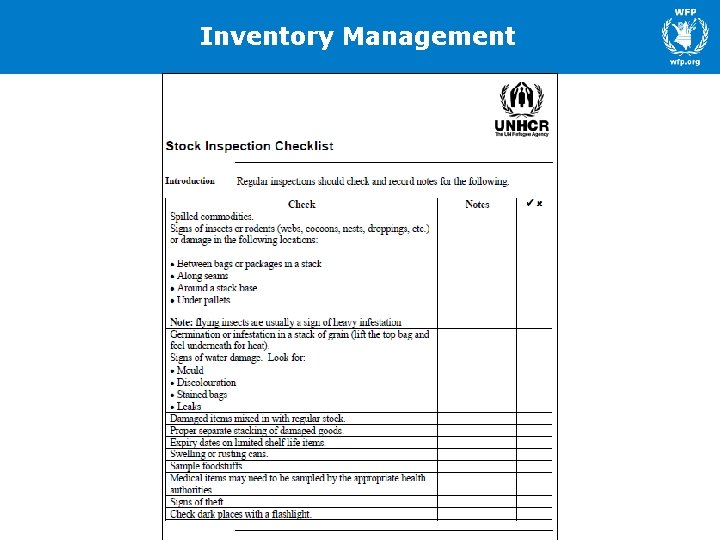

Inventory Management

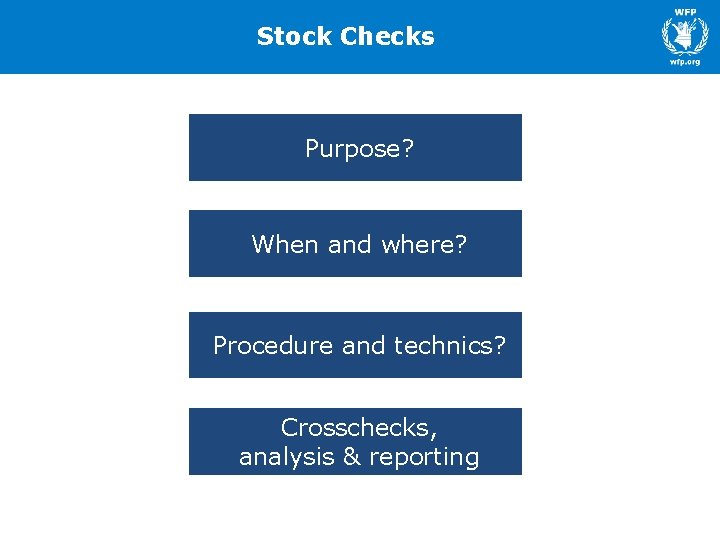

Stock Checks Purpose? When and where? Procedure and technics? Crosschecks, analysis & reporting
Inspection Techniques What to Look For How to Look Contamination Where to inspect Infestation Use your senses Damaged Packaging Equipment Expiry Dates Other considerations

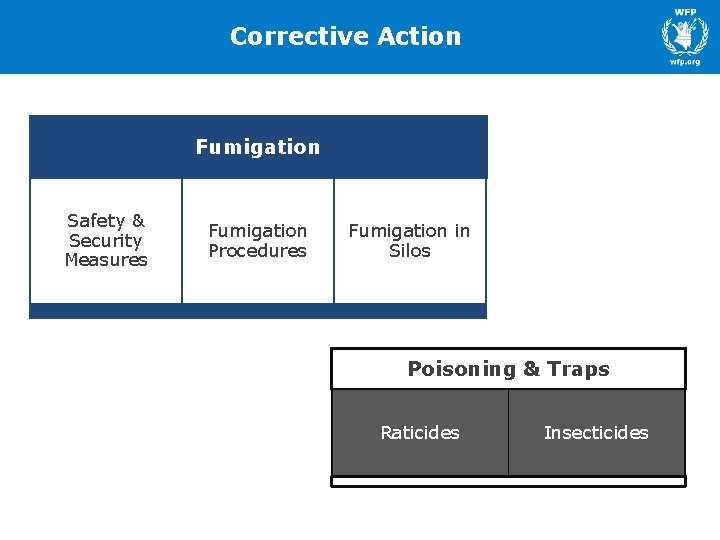

Corrective Action Fumigation Safety & Security Measures Fumigation Procedures Fumigation in Silos Poisoning & Traps Raticides Insecticides
Disposal Mandatory Requirements Priority Disposal Methods Salvage Sale Donation Destruction Burning Burial
Questions WFP Logistics, We Deliver
