Stochastic Processes Fundamental Copyright by YuChi Ho 1

Stochastic Processes Fundamental Copyright by Yu-Chi Ho 1

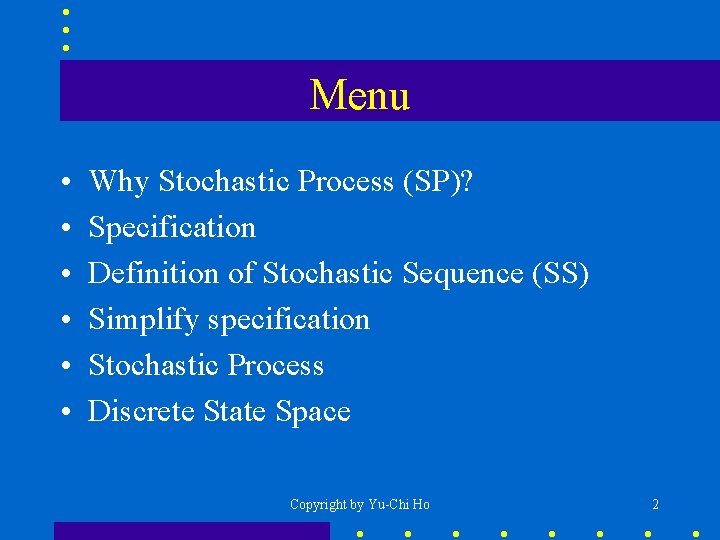

Menu • • • Why Stochastic Process (SP)? Specification Definition of Stochastic Sequence (SS) Simplify specification Stochastic Process Discrete State Space Copyright by Yu-Chi Ho 2

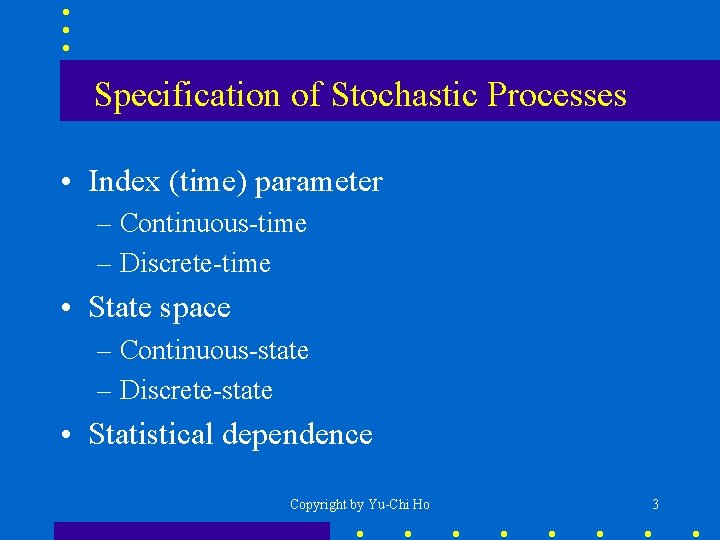

Specification of Stochastic Processes • Index (time) parameter – Continuous-time – Discrete-time • State space – Continuous-state – Discrete-state • Statistical dependence Copyright by Yu-Chi Ho 3

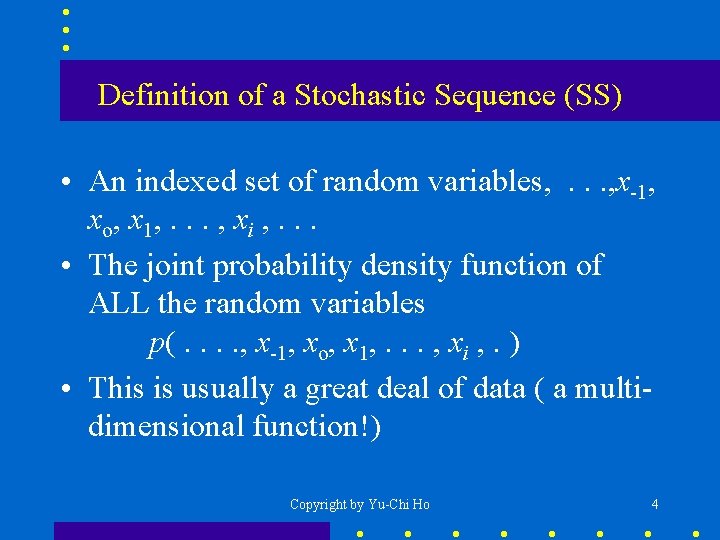

Definition of a Stochastic Sequence (SS) • An indexed set of random variables, . . . , x-1, xo, x 1, . . . , xi , . . . • The joint probability density function of ALL the random variables p(. . , x-1, xo, x 1, . . . , xi , . ) • This is usually a great deal of data ( a multidimensional function!) Copyright by Yu-Chi Ho 4

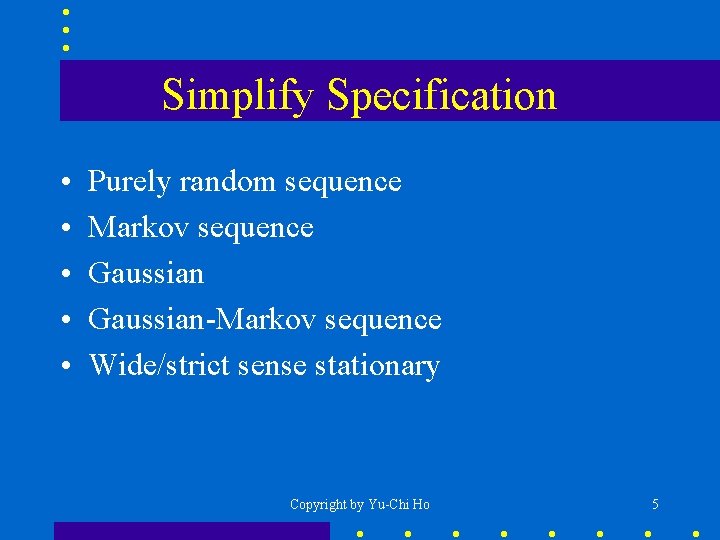

Simplify Specification • • • Purely random sequence Markov sequence Gaussian-Markov sequence Wide/strict sense stationary Copyright by Yu-Chi Ho 5

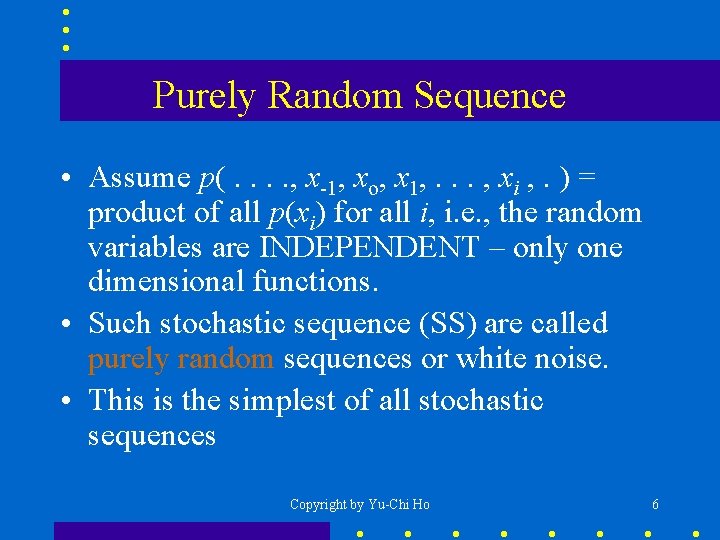

Purely Random Sequence • Assume p(. . , x-1, xo, x 1, . . . , xi , . ) = product of all p(xi) for all i, i. e. , the random variables are INDEPENDENT – only one dimensional functions. • Such stochastic sequence (SS) are called purely random sequences or white noise. • This is the simplest of all stochastic sequences Copyright by Yu-Chi Ho 6

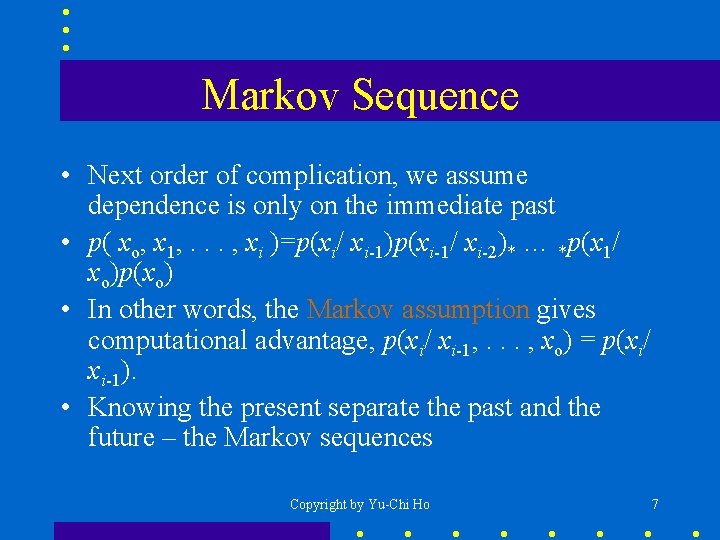

Markov Sequence • Next order of complication, we assume dependence is only on the immediate past • p( xo, x 1, . . . , xi )=p(xi/ xi-1)p(xi-1/ xi-2)* … *p(x 1/ xo)p(xo) • In other words, the Markov assumption gives computational advantage, p(xi/ xi-1, . . . , xo) = p(xi/ xi-1). • Knowing the present separate the past and the future – the Markov sequences Copyright by Yu-Chi Ho 7

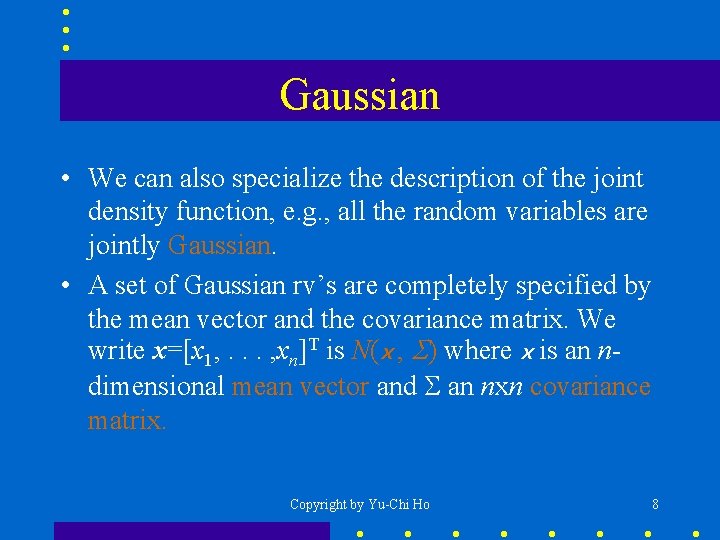

Gaussian • We can also specialize the description of the joint density function, e. g. , all the random variables are jointly Gaussian. • A set of Gaussian rv’s are completely specified by the mean vector and the covariance matrix. We write x=[x 1, . . . , xn]T is N(x , S) where x is an ndimensional mean vector and S an nxn covariance matrix. Copyright by Yu-Chi Ho 8

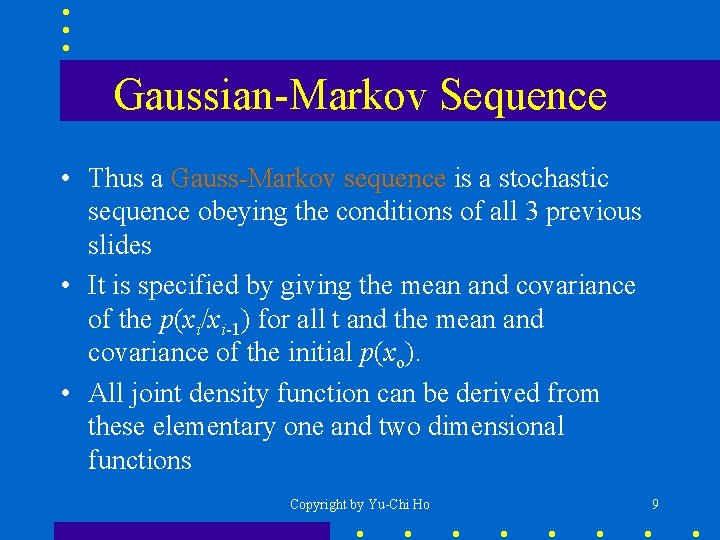

Gaussian-Markov Sequence • Thus a Gauss-Markov sequence is a stochastic sequence obeying the conditions of all 3 previous slides • It is specified by giving the mean and covariance of the p(xi/xi-1) for all t and the mean and covariance of the initial p(xo). • All joint density function can be derived from these elementary one and two dimensional functions Copyright by Yu-Chi Ho 9

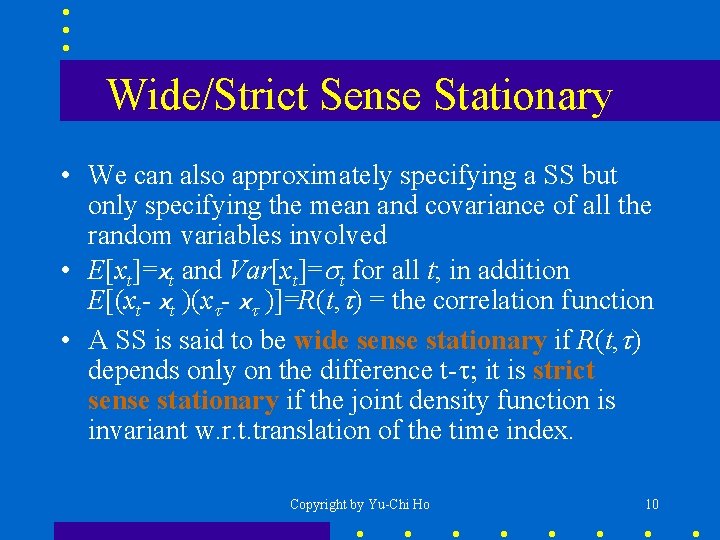

Wide/Strict Sense Stationary • We can also approximately specifying a SS but only specifying the mean and covariance of all the random variables involved • E[xt]=xt and Var[xt]=st for all t; in addition E[(xt- xt )]=R(t, t) = the correlation function • A SS is said to be wide sense stationary if R(t, t) depends only on the difference t-t; it is strict sense stationary if the joint density function is invariant w. r. t. translation of the time index. Copyright by Yu-Chi Ho 10

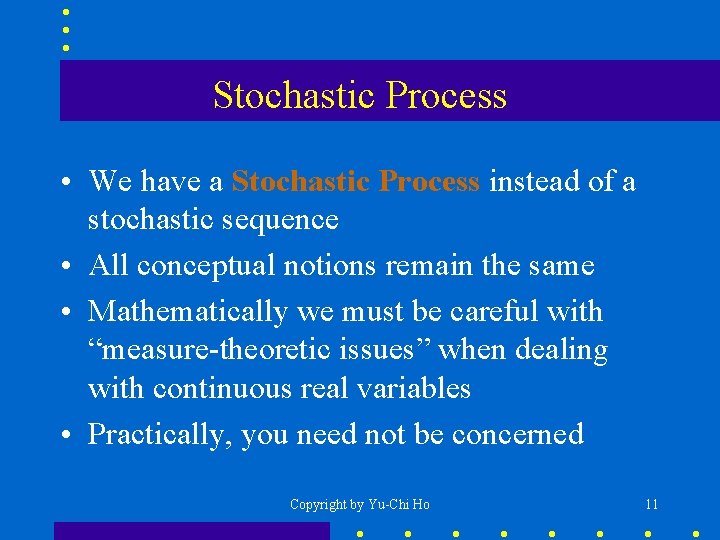

Stochastic Process • We have a Stochastic Process instead of a stochastic sequence • All conceptual notions remain the same • Mathematically we must be careful with “measure-theoretic issues” when dealing with continuous real variables • Practically, you need not be concerned Copyright by Yu-Chi Ho 11

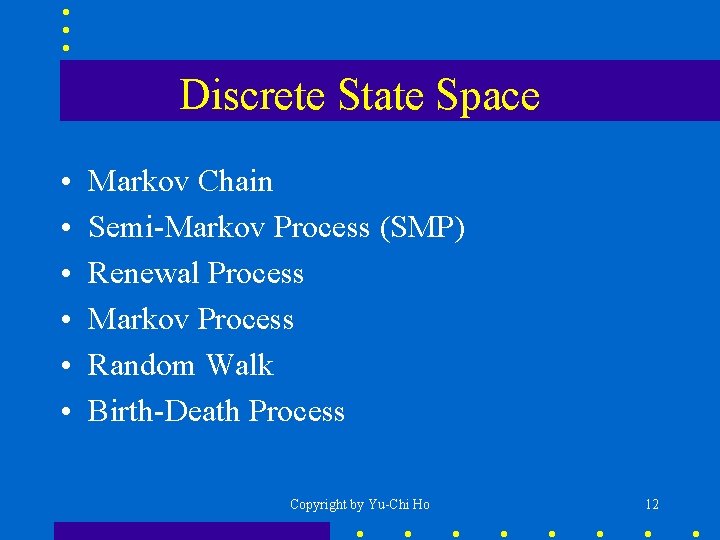

Discrete State Space • • • Markov Chain Semi-Markov Process (SMP) Renewal Process Markov Process Random Walk Birth-Death Process Copyright by Yu-Chi Ho 12

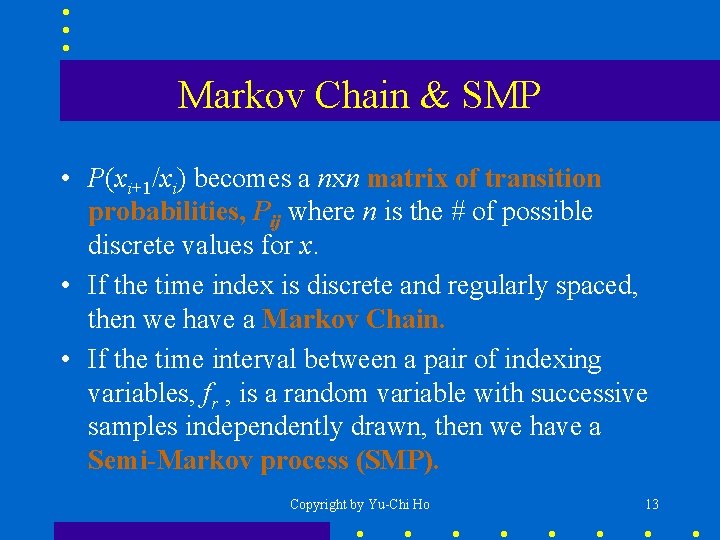

Markov Chain & SMP • P(xi+1/xi) becomes a nxn matrix of transition probabilities, Pij where n is the # of possible discrete values for x. • If the time index is discrete and regularly spaced, then we have a Markov Chain. • If the time interval between a pair of indexing variables, fr , is a random variable with successive samples independently drawn, then we have a Semi-Markov process (SMP). Copyright by Yu-Chi Ho 13

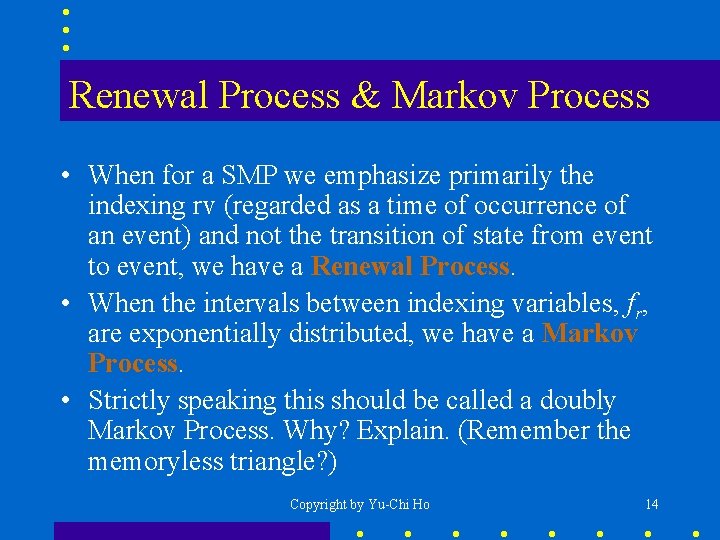

Renewal Process & Markov Process • When for a SMP we emphasize primarily the indexing rv (regarded as a time of occurrence of an event) and not the transition of state from event to event, we have a Renewal Process. • When the intervals between indexing variables, fr, are exponentially distributed, we have a Markov Process. • Strictly speaking this should be called a doubly Markov Process. Why? Explain. (Remember the memoryless triangle? ) Copyright by Yu-Chi Ho 14

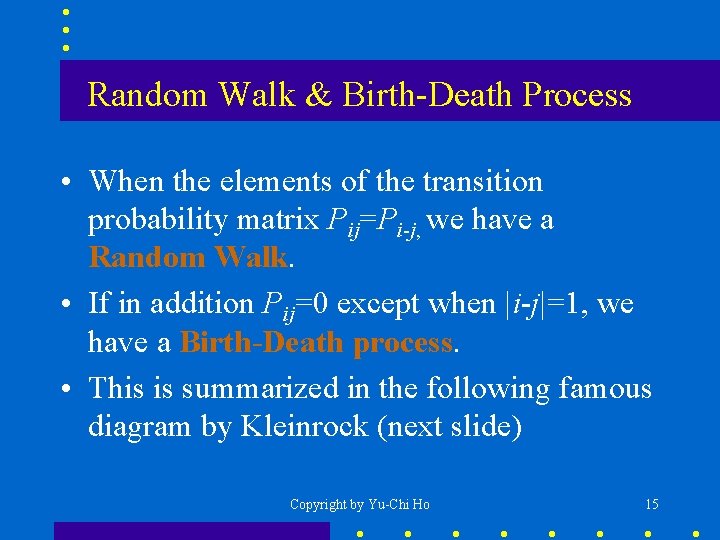

Random Walk & Birth-Death Process • When the elements of the transition probability matrix Pij=Pi-j, we have a Random Walk. • If in addition Pij=0 except when |i-j|=1, we have a Birth-Death process. • This is summarized in the following famous diagram by Kleinrock (next slide) Copyright by Yu-Chi Ho 15

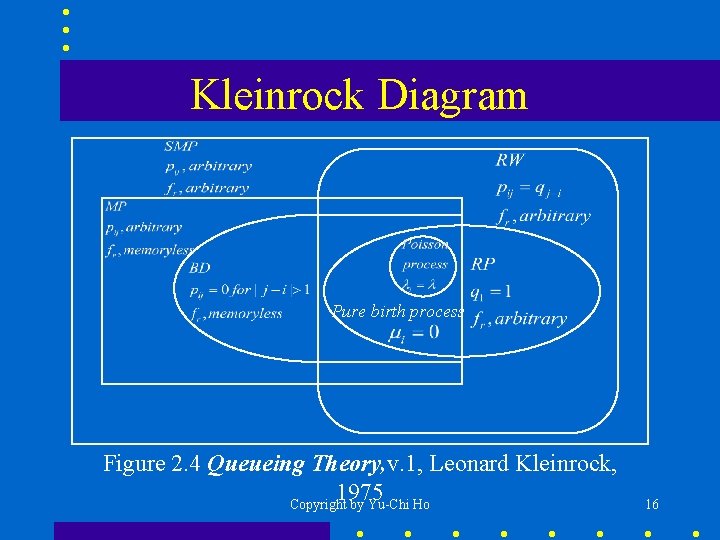

Kleinrock Diagram Pure birth process Figure 2. 4 Queueing Theory, v. 1, Leonard Kleinrock, 1975 Copyright by Yu-Chi Ho 16

End of the lecture Copyright by Yu-Chi Ho 17

APPENDIX Copyright by Yu-Chi Ho 18

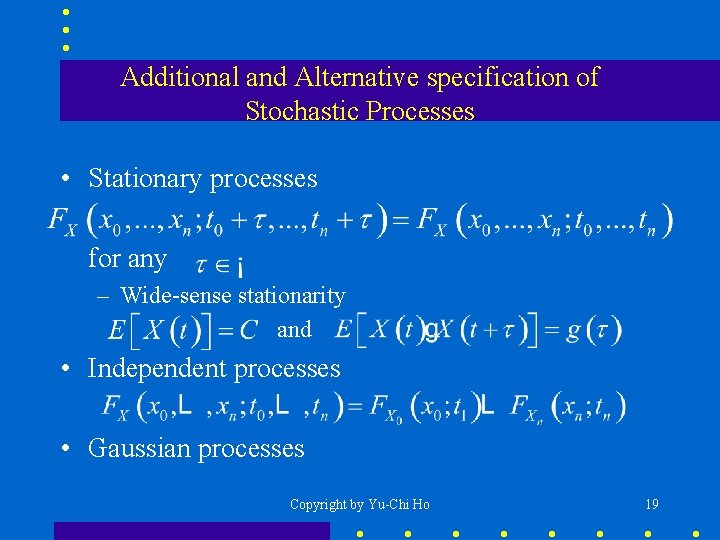

Additional and Alternative specification of Stochastic Processes • Stationary processes for any – Wide-sense stationarity and • Independent processes • Gaussian processes Copyright by Yu-Chi Ho 19

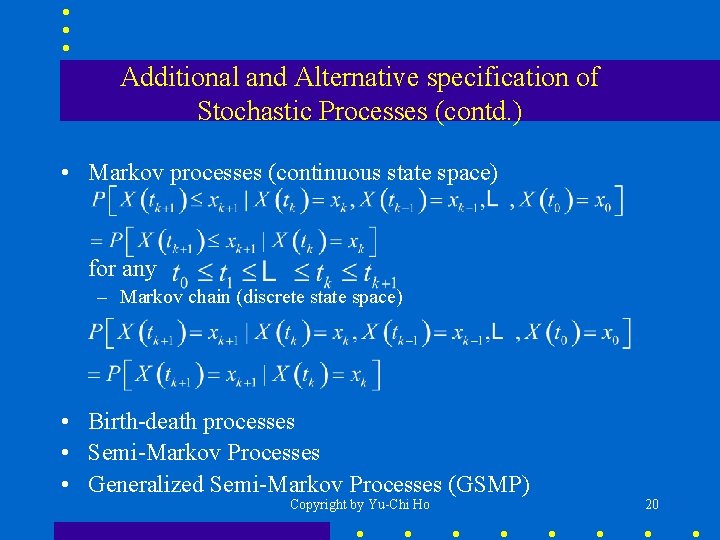

Additional and Alternative specification of Stochastic Processes (contd. ) • Markov processes (continuous state space) for any – Markov chain (discrete state space) • Birth-death processes • Semi-Markov Processes • Generalized Semi-Markov Processes (GSMP) Copyright by Yu-Chi Ho 20

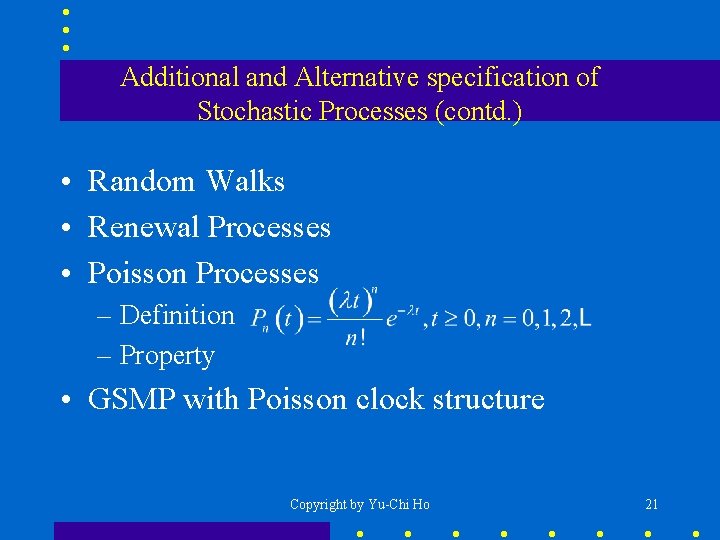

Additional and Alternative specification of Stochastic Processes (contd. ) • Random Walks • Renewal Processes • Poisson Processes – Definition – Property • GSMP with Poisson clock structure Copyright by Yu-Chi Ho 21
