STFT Short time Fourier transform Or windowed Fourier
- Slides: 61

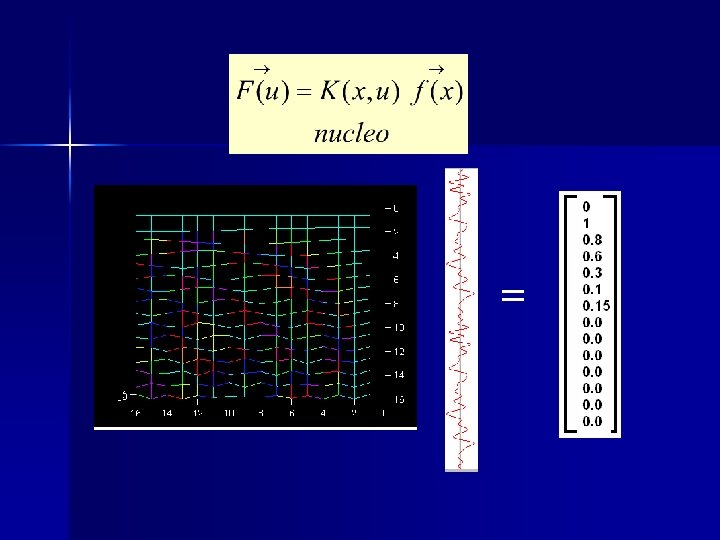

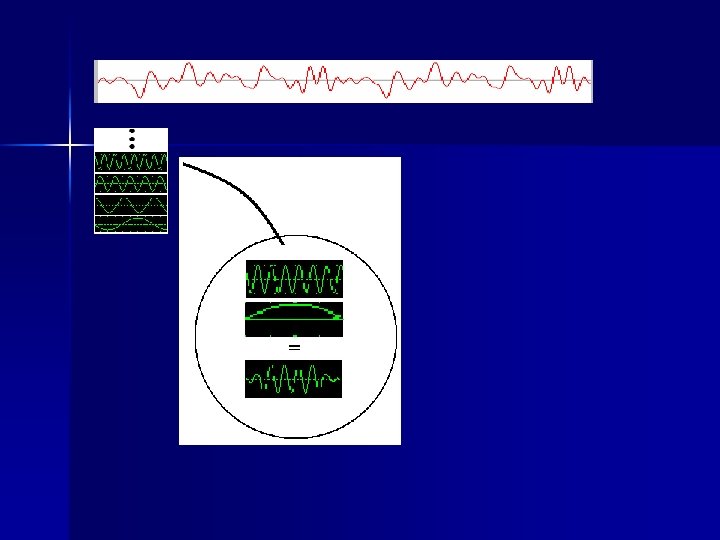

STFT (Short time Fourier transform) Or windowed Fourier transform

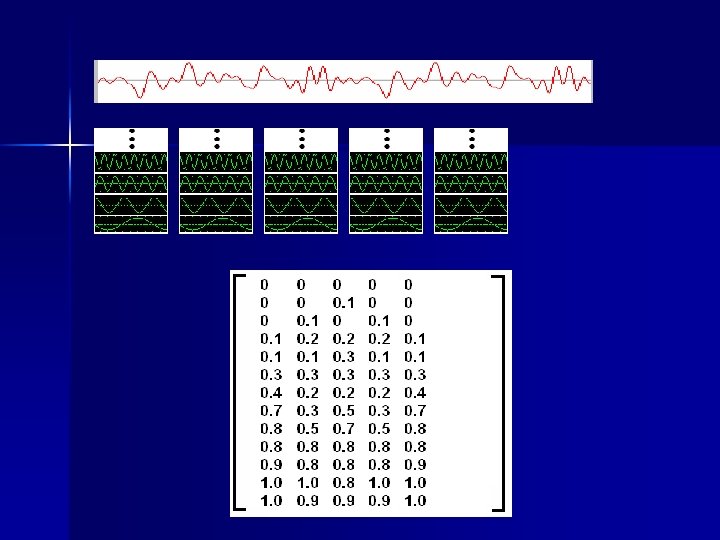

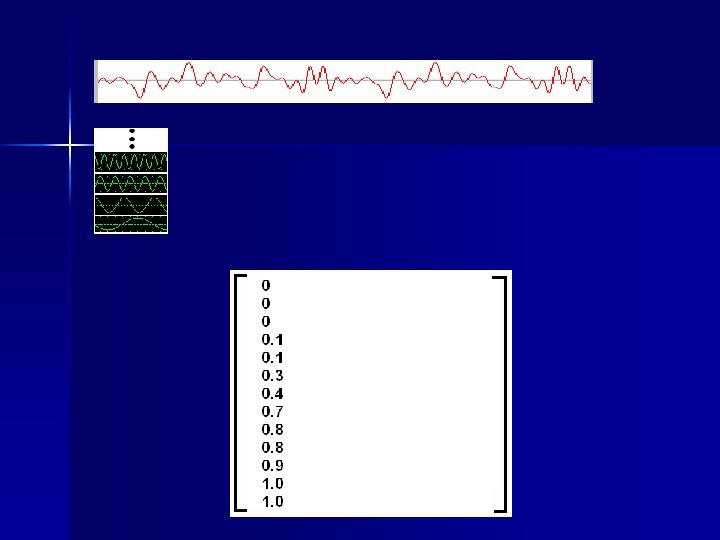

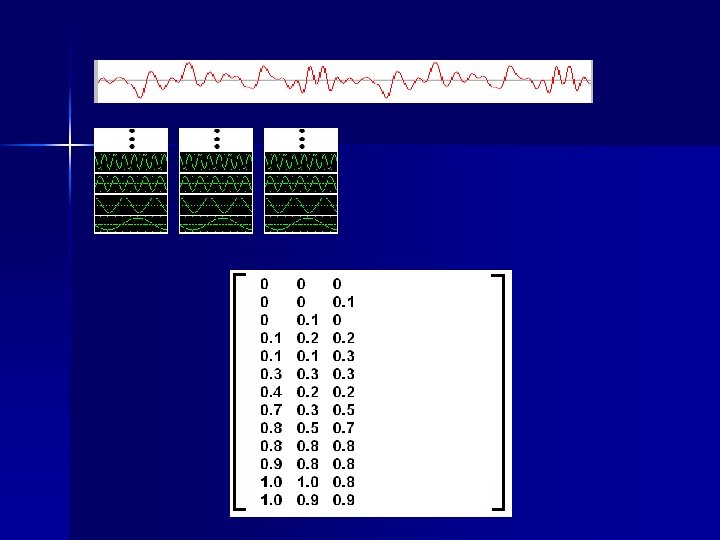

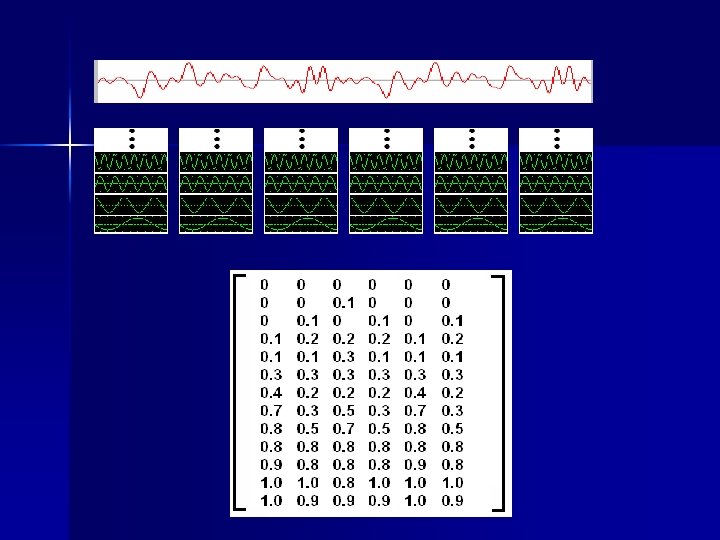

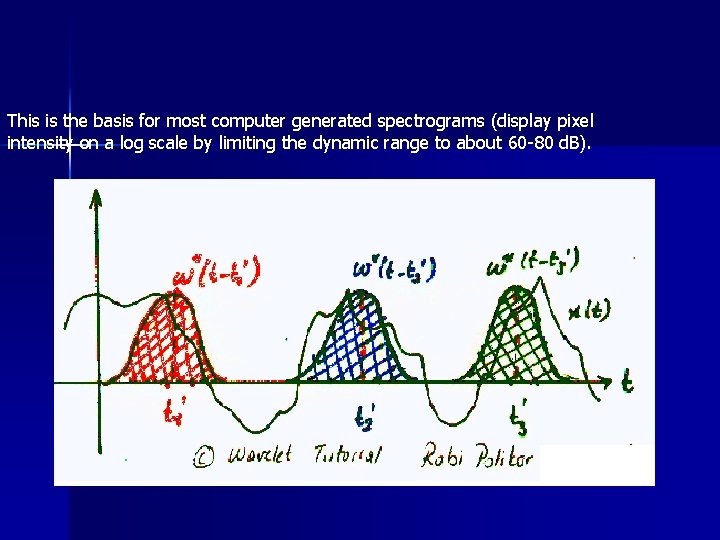

This is the basis for most computer generated spectrograms (display pixel intensity on a log scale by limiting the dynamic range to about 60 -80 d. B).
Ejemplos de espectrogramas Here is the sum of two parallel linear chirps with its spectrogram.
Here is the sum of two hyperbolic chirps and its spectrogram.

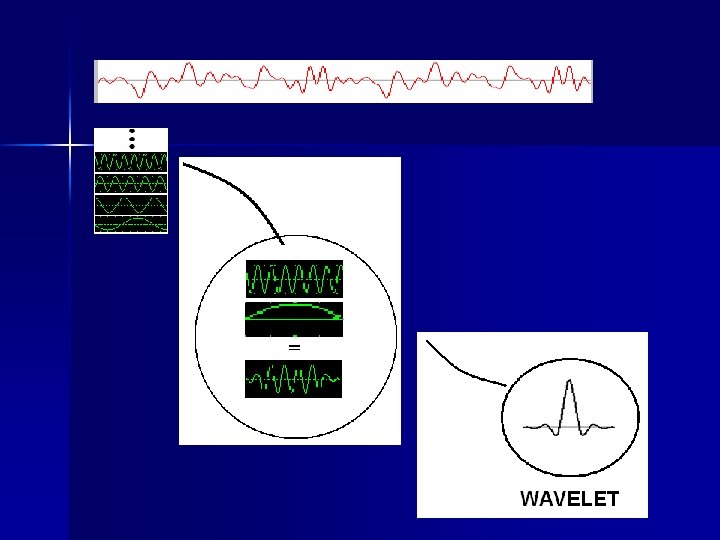

Introducción a Wavelets

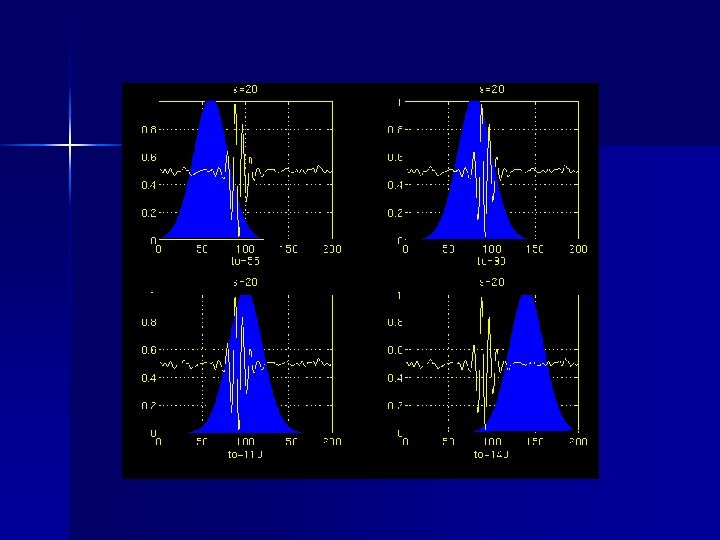

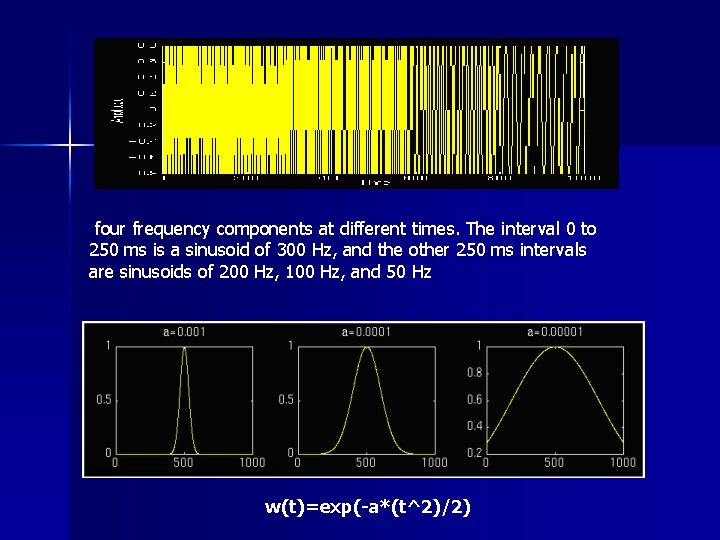

four frequency components at different times. The interval 0 to 250 ms is a sinusoid of 300 Hz, and the other 250 ms intervals are sinusoids of 200 Hz, 100 Hz, and 50 Hz w(t)=exp(-a*(t^2)/2)

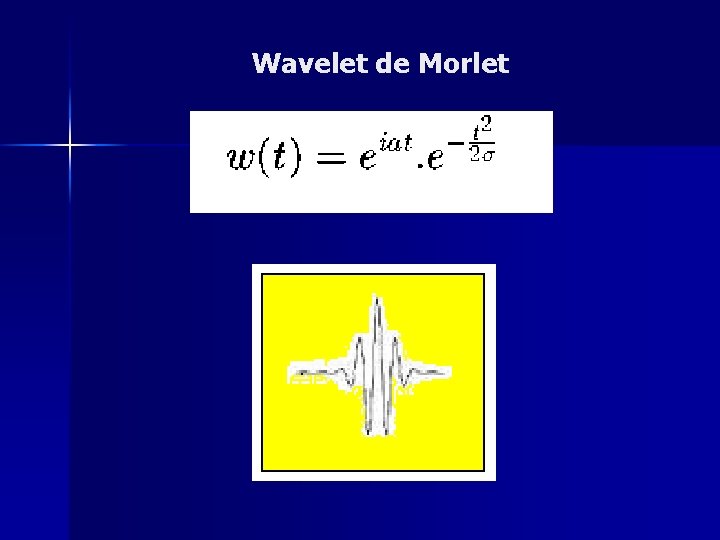

Wavelet de Morlet

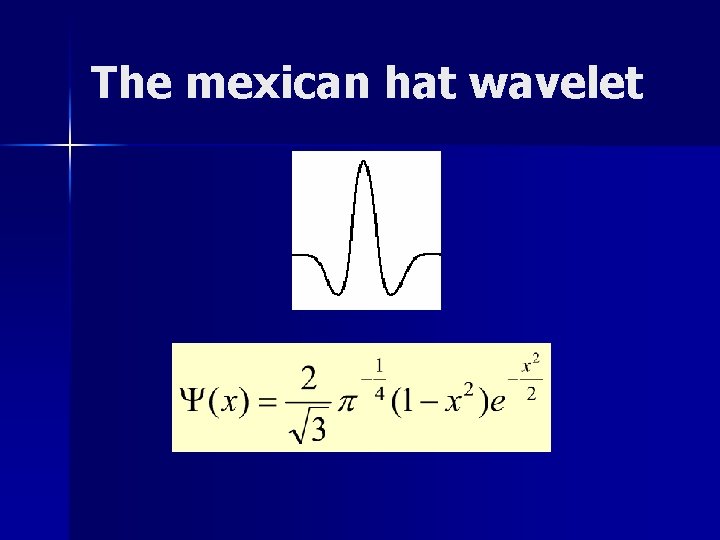

The mexican hat wavelet
Gráficos de varios tipos distintos de wavelets. (a) Wavelet de Haar, (b) Wavelet de Daubechies, (c) Wavelet de Morlet. (Cortesía de Ofer Levi, Universidad de Stanford)
Escala

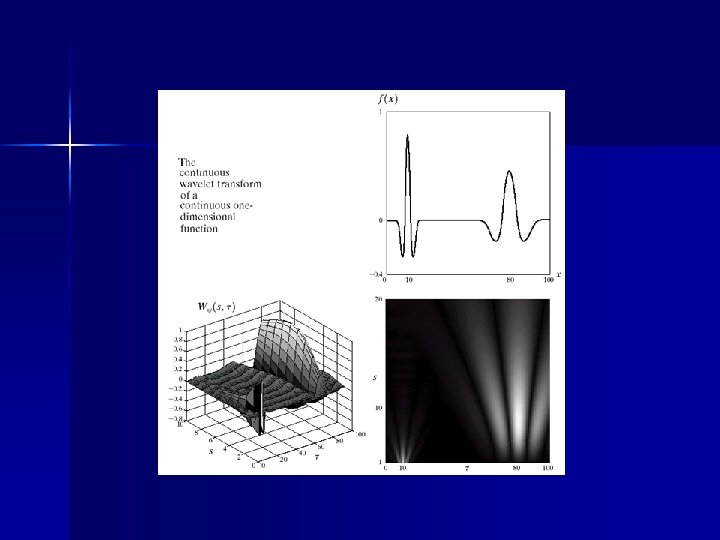

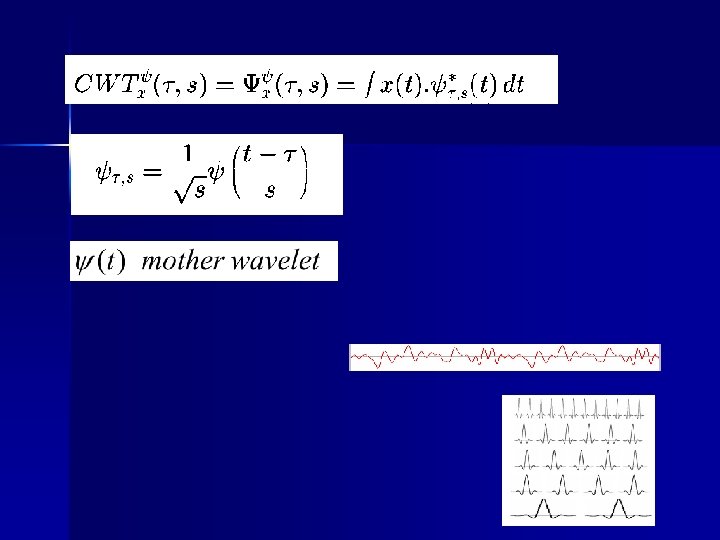

(CWT) Continuous Wavelet Transform ¨escalograma¨ These signals are drawn from a database signals that includes event related potentials of normal people, and patients with Alzheimer's disease.
En un espectrograma:
En un escalograma:
Suma de dos señales CHIRP hiperbólicas Windowed fourier transform (Espectrograma) Continuous Wavelet Transform CWT (Escalograma)
Representación frecuencia-tiempo para: (a) Datos muestreados (b) FT (c) WFT (d) CWT

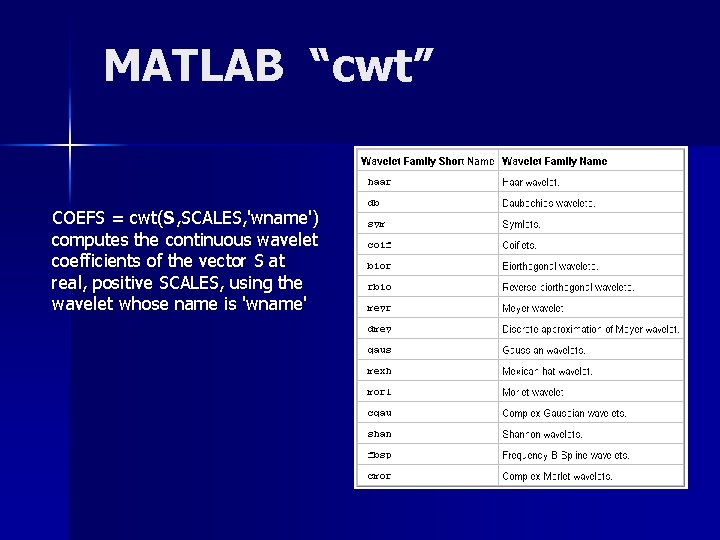

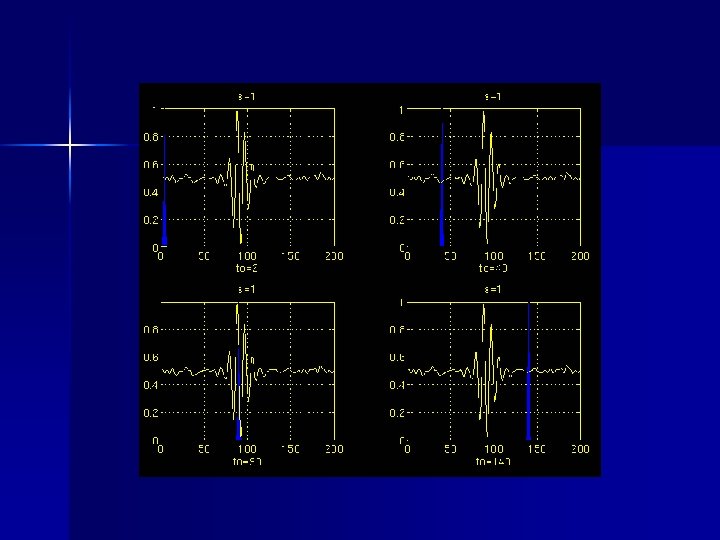

MATLAB “cwt” COEFS = cwt(S, SCALES, 'wname') computes the continuous wavelet coefficients of the vector S at real, positive SCALES, using the wavelet whose name is 'wname'

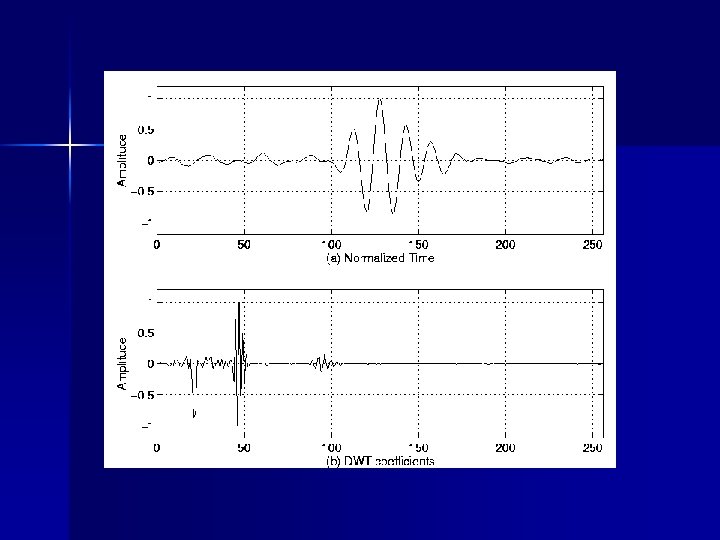

DWT (Discrete Wavelet Transform)

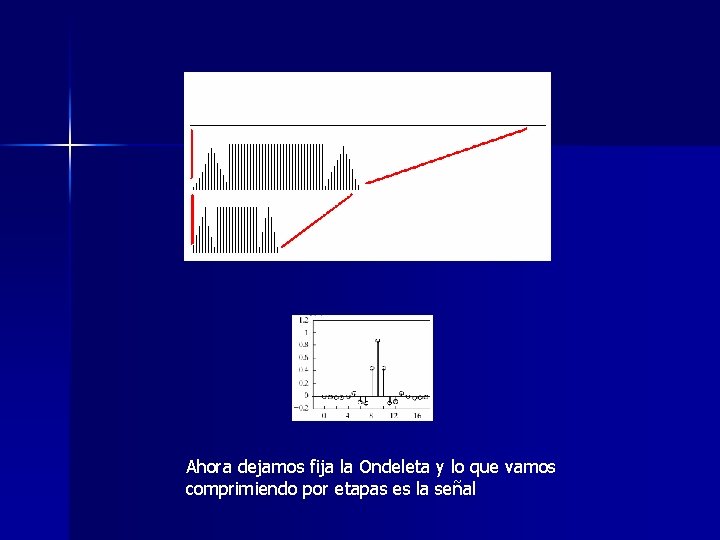

Ahora dejamos fija la Ondeleta y lo que vamos comprimiendo por etapas es la señal

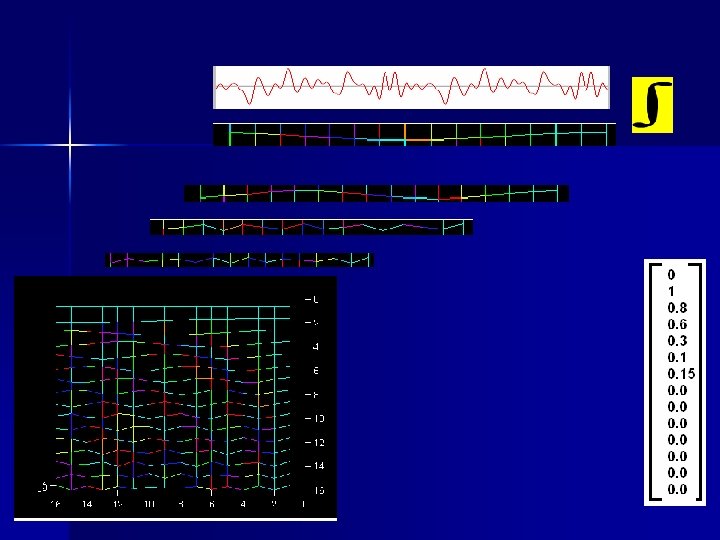

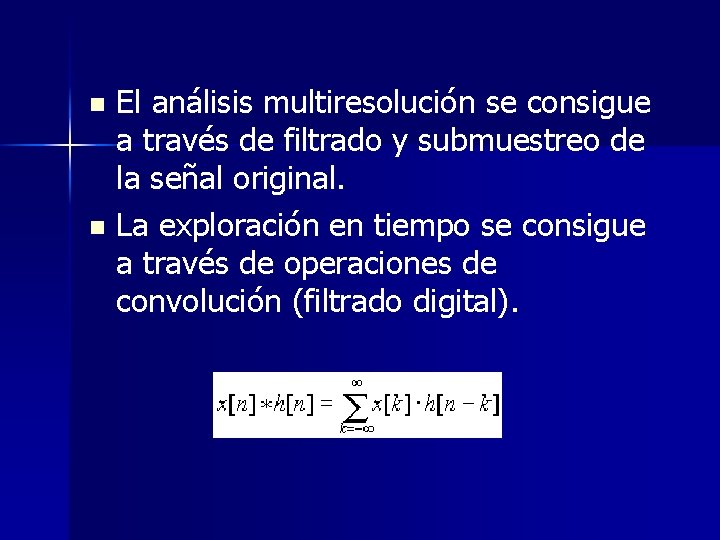

El análisis multiresolución se consigue a través de filtrado y submuestreo de la señal original. n La exploración en tiempo se consigue a través de operaciones de convolución (filtrado digital). n
Sub-band coding

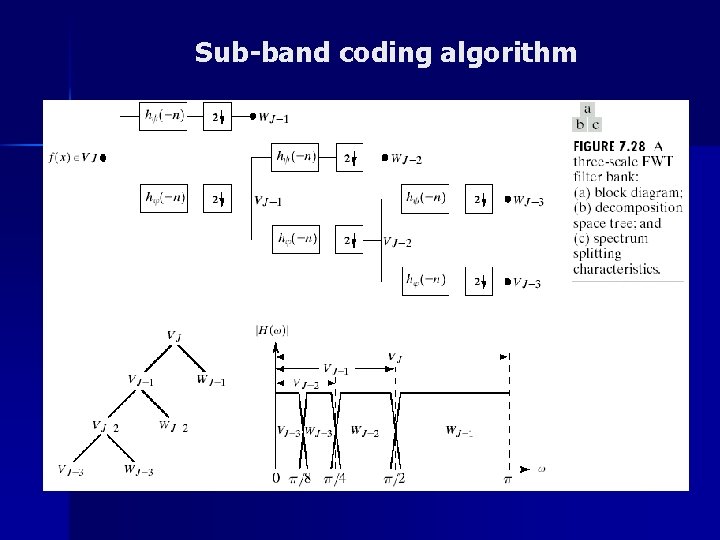

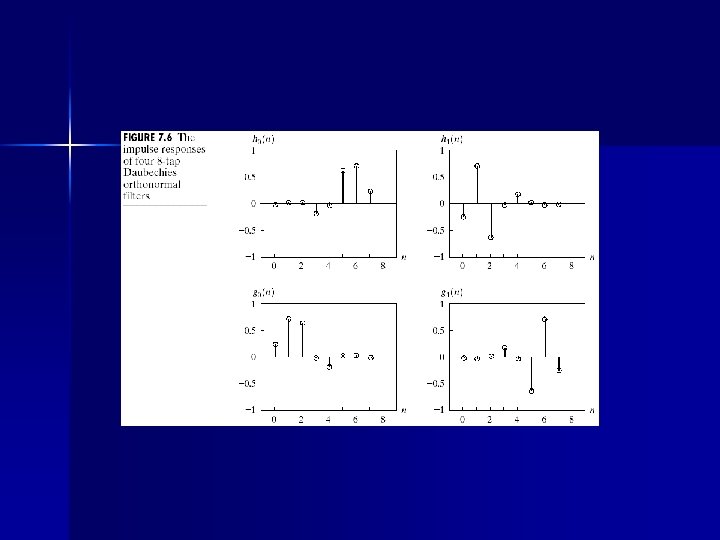

Sub-band coding algorithm
Transformada inversa

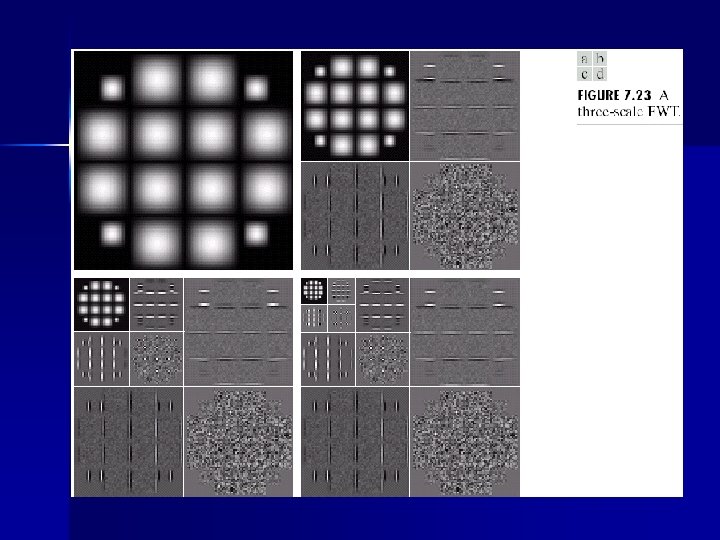

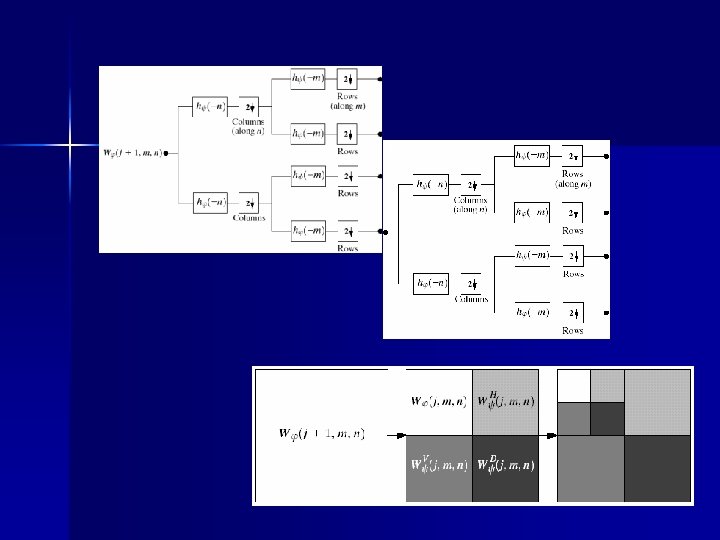

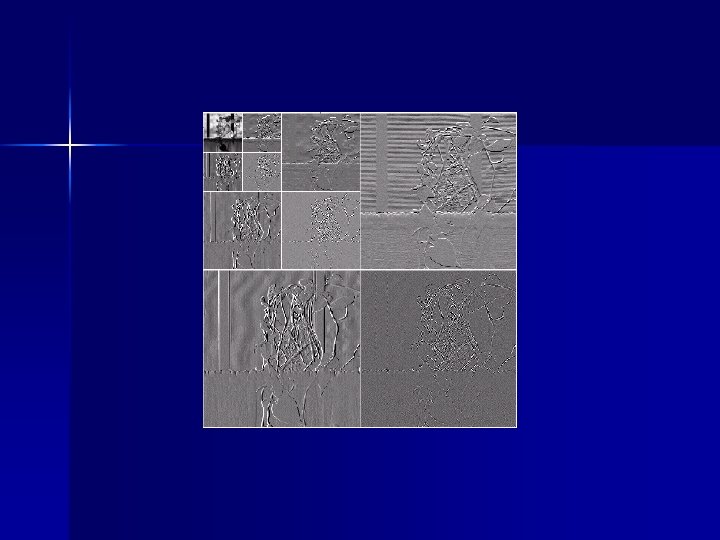

2 -D Discrete Wavelet Transform

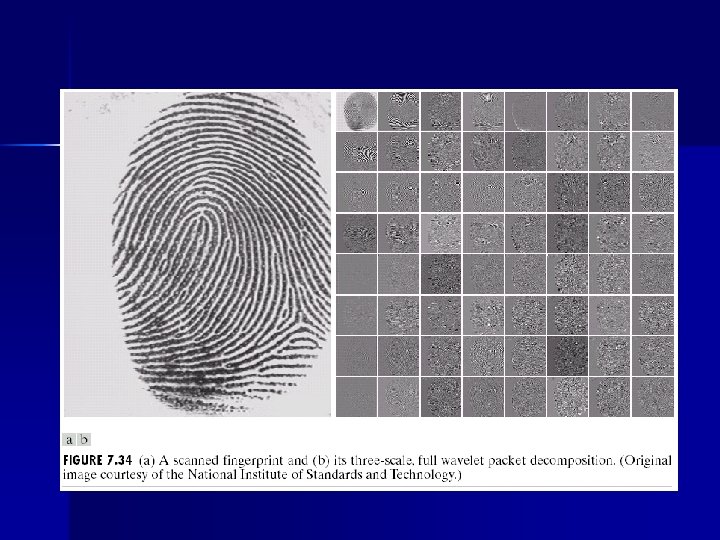

Wavelet Packet
En resumen: CWT DWT 2 D - DWT
. . . En resumen: CWT DWT 2 D - DWT
n http: //www. gisdevelopment. net/techn ology/ic/techip 0003 a. htm COMPRESION DE LA DCT A WAVELETS http: //www. acm. org/crossroads/xrds 6 -3/sahaimgcoding. html#Fig 6
