Stevens Road Improvements E Main Street to Robert
Stevens Road Improvements E Main Street to Robert Trent Jones Boulevard Jaime Jordan, PE Project Manager Eric Germundson, EI Roadway Designer
Presentation Outline • Background • Project Timeline • Project Overview – Location – Scope • Design Elements – Roadway Section – Retaining Walls – Detour • Value Engineering • Questions 5/22/18 2
Background • City of Eagle Point Transportation System Plan • Congestion Mitigation and Air Quality Improvement (CMAQ) Program Funding • Project Goals: – Improve Public Safety: • Pedestrian and bicycle safety in corridor • Routes to Hillside Elementary School – Support future development • Idlewood Estates • Bridgeport Subdivision 5/22/18 3
Project Timeline Current – Winter 2019 Current – • Final Design • 90% Plans, Specifications & Construction Cost Estimate • 100% Plans, Specifications & Construction Cost Estimate • Right of Way Acquisition • Permanent right of way and Easements Winter 2019 Spring 2019 – Winter 2019 5/22/18 • Open Construction Bids • Construction • Stevens Road Closed During Summer • Hillside Elementary to Idlewood Drive 4
Project Location 5/22/18 5
Project Scope 5/22/18 6
Roadway Section Existing Proposed 5/22/18 7
Roadway Section Existing Proposed 5/22/18 8

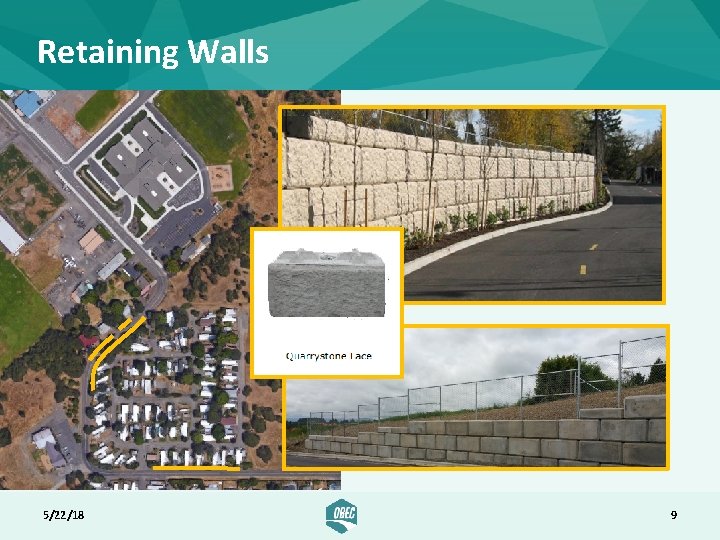

Retaining Walls 5/22/18 9
Street Lighting 5/22/18 10
Detour Road Closure (Local Access Only) Detour – 4 miles (Summer Only) 5/22/18 11
Value Engineering • Drainage Design – Preliminary: Separate systems with water quality ponds ($$$) – Advance: Combine systems and utilize modular water quality structure ($$) • Retaining Wall Design – Soldier Pile ($$$) – Gravity ($$) – Precast Concrete Block ($) • Traffic Design – Full Service option with Pacific Power – Removal of Rectangular Rapid Flashing Beacon (RRFB) • Roadway Design – Pavement grind and inlay – Half street improvements from Bridgeport Drive to Robert Trent Jones Boulevard 5/22/18 12
Questions Jaime Jordan, PE Project Manager (541) 494 -0595 jjordan@obec. com Eric Germundson, EI Roadway Designer (971) 634 -2011 egermundson@obec. com Bob Atchison Right of Way Services (503) 213 -3975 batchison@epicland. com Nate Schroeder, PE, PTOE Traffic Engineering (503) 972 -1238 nns@dksassociates. com 5/22/18 13
