Sterilization facility based on ILU electron accelerators Research
Sterilization facility based on ILU electron accelerators. Research and Practical Conference “Accelerators and Radiation technologies for the Futures of Russia” 28 -29 September 2012, Saint-Petersburg 1

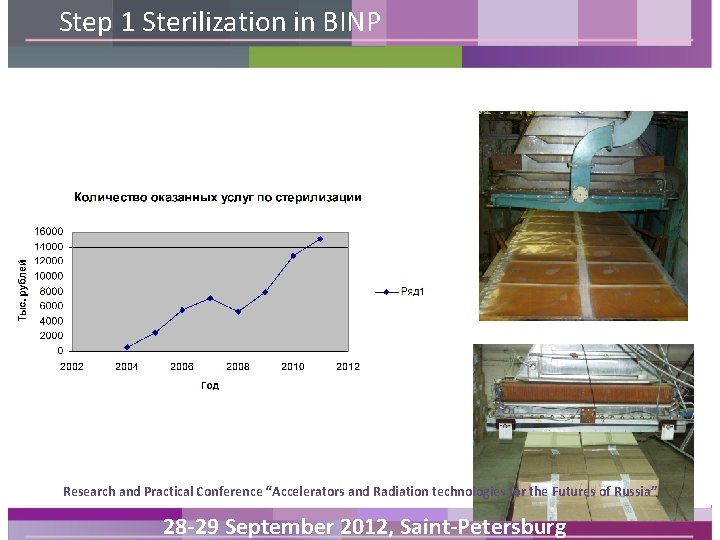

Step 1 Sterilization in BINP Research and Practical Conference “Accelerators and Radiation technologies for the Futures of Russia” 28 -29 September 2012, Saint-Petersburg
Step 2. Sterilization line based on ILU-6 (2. 5 Me. V, 20 k. W) in Biysk EVALAR pharmaceutical company. ILU-6 Irradiation zone BUDKER INSTITUTE OF NUCLEAR PHYSICS
Step 3. Irradiation plant in Kurchatov (Kazakhstan) • Sterilization plant based on ILU-10 accelerator in Park of Nuclear Technology in Kazakhstan (Running in 2012) (Ronik, BINP, NIITFA) 28 -29 September 2012, Saint-Petersburg
Step to future: Sterilization plant based 2 accelerators ILU-10 RF-accelerator ULR-10 -12 Linac accelerator Energy/penetration 5 Me. V/ 4 g/cm 2 10 Me. V/ 8 g/cm 2 Up to 8 g/cm 2 Power/Productivity 50 k. W/ 4500 kg/h 12 k. W/ 1100 kg/h 62 k. W/ 5600 kg/h Production Surgical sets and clothes cotton wool, bandages All Cost 1 000 k. E 1 500 k. E 2 500 k. E • Reliable • Efficiency of beam using • X-ray mode Σ • Wide range of packs 28 -29 September 2012, Saint-Petersburg

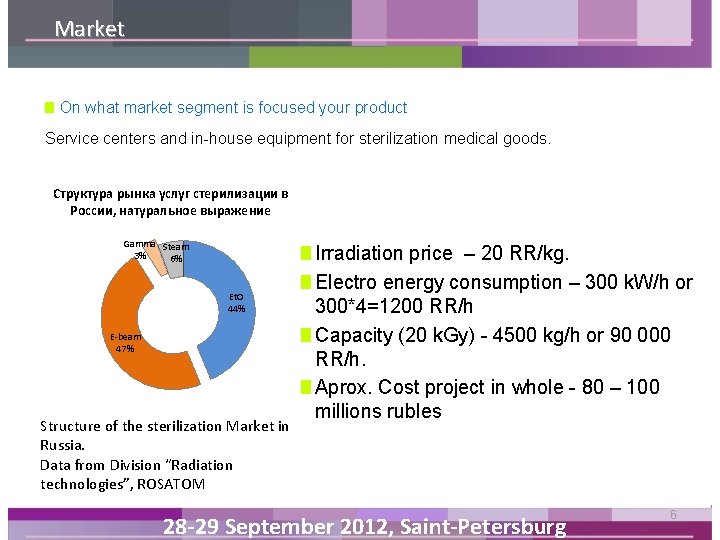

Market On what market segment is focused your product Service centers and in-house equipment for sterilization medical goods. Структура рынка услуг стерилизации в России, натуральное выражение Gamma Steam 3% 6% Et. O 44% E-beam 47% Structure of the sterilization Market in Russia. Data from Division “Radiation technologies”, ROSATOM Irradiation price – 20 RR/kg. Electro energy consumption – 300 k. W/h or 300*4=1200 RR/h Capacity (20 k. Gy) - 4500 kg/h or 90 000 RR/h. Aprox. Cost project in whole - 80 – 100 millions rubles 28 -29 September 2012, Saint-Petersburg 6
List sterilization accelerators based on ILU accelerators. Компания/company Город/city Ускоритель/accelerator Ввод в эксплуатацию/ work start year Аксион/ Aksion Ижевск/Izhevsk ИЛУ-6/ILU-6 1996 ИЯФ/BINP Новосибирск/ Novosibirsk ИЛУ-10/ILU-10 2001, 2013(upgrade) Эвалар/EVALAR Бийск/Biysk ИЛУ-6/ILU-6 2007 СЦФБ/SCPB Новосибирск Novosibirsk ИЛУ-10 2 шт. 2 pcs ПЯТ/PNT Казахстан/ Kazakhstan ИЛУ-10/ILU-10 2012 ИЯФ НЯЦ/INP NNC Казахстан, Алма-Аты Kazakhstan/ Almaaty ИЛУ-10/ILU-10 2013 -2014 ФМБЦ/FMBC Москва Moscow ИЛУ-14/ILU-14 2012 (? ) ОИК (ИЗОТОП) UIC (ISTOP) Старая Купавна/ near Moscow ИЛУ-10+УЛР-1012+Со-60 2014 ILU-10 2012 28 -29 September 2012, Saint-Petersburg
- Slides: 8
