Stepping Motor Contents Stepping Motor n n PROM

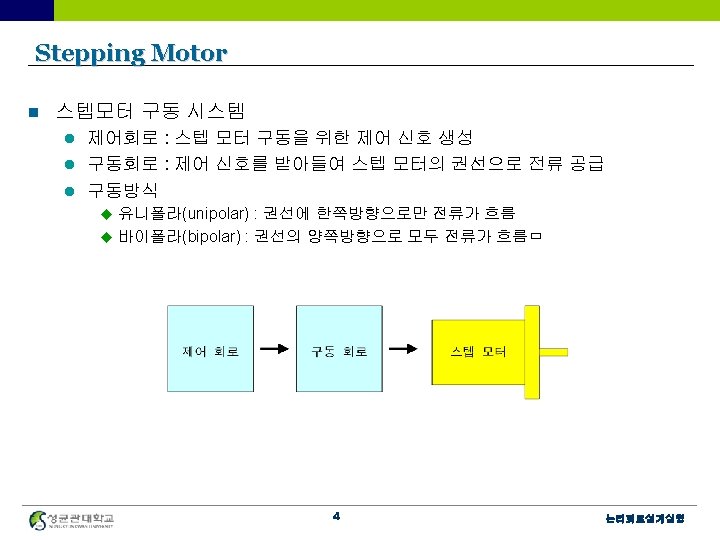

Stepping Motor 논리회로설계실험

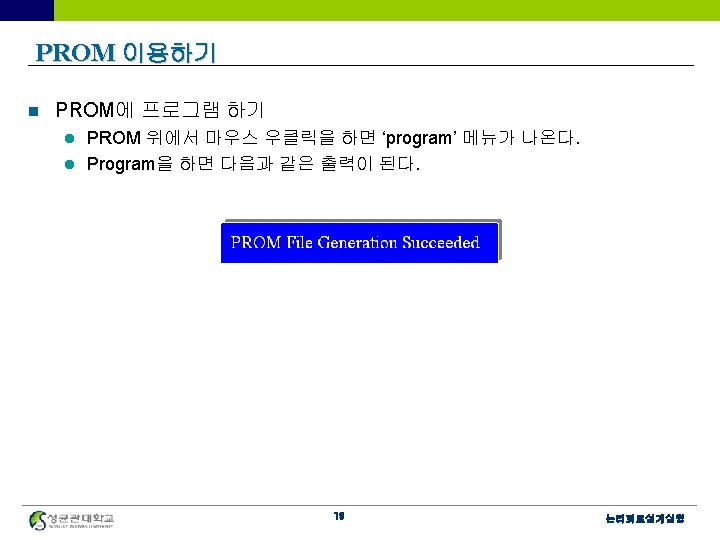

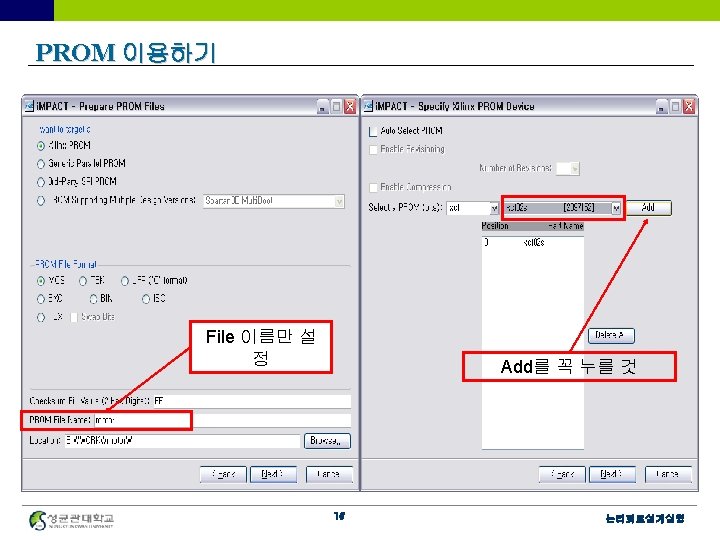

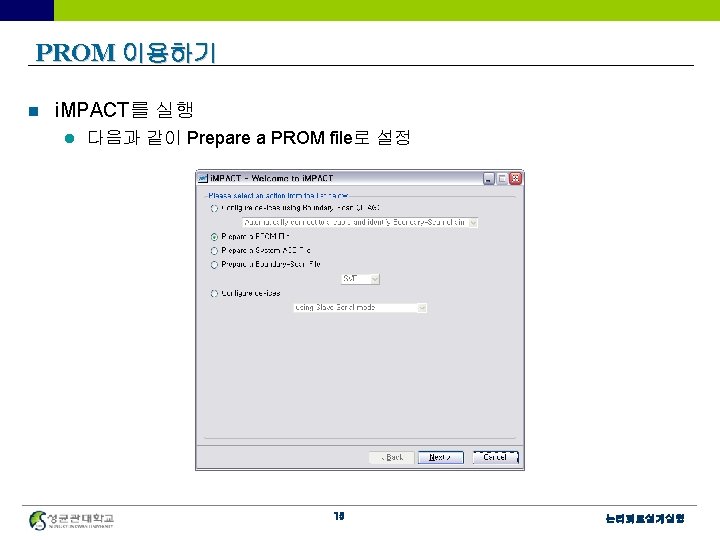

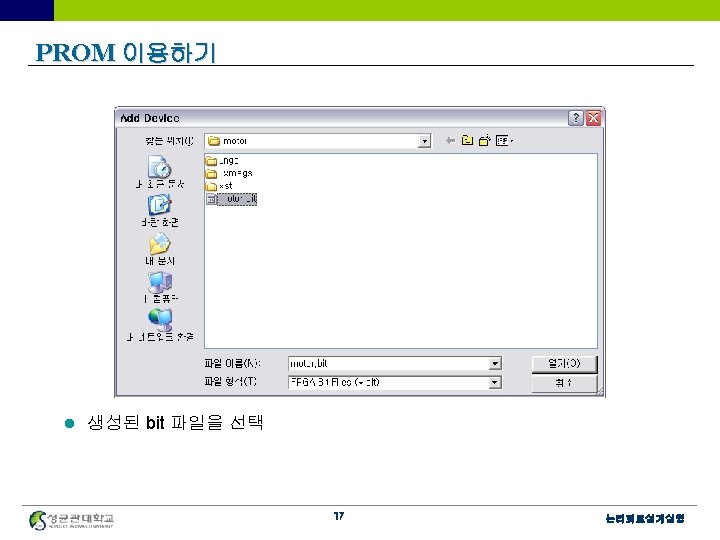

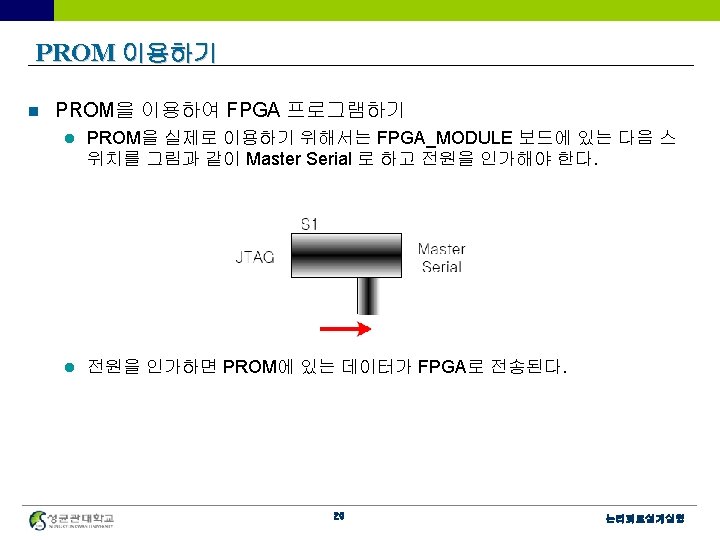

Contents Stepping Motor n 실습내용 n PROM 이용하기 n 2 논리회로설계실험

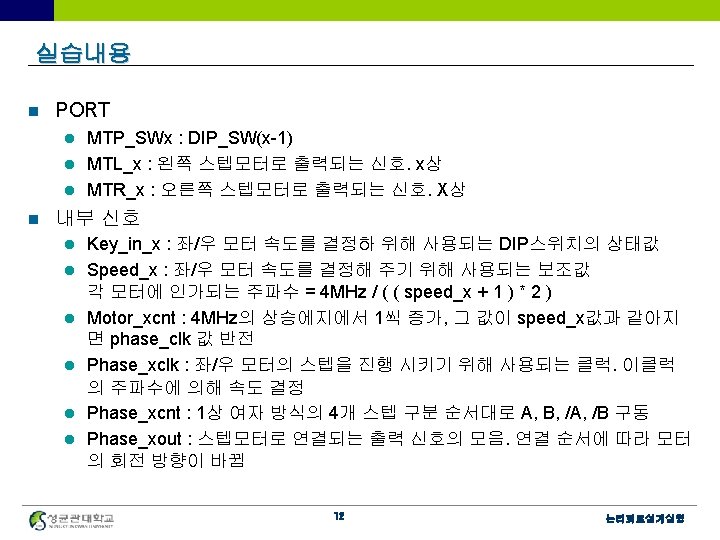

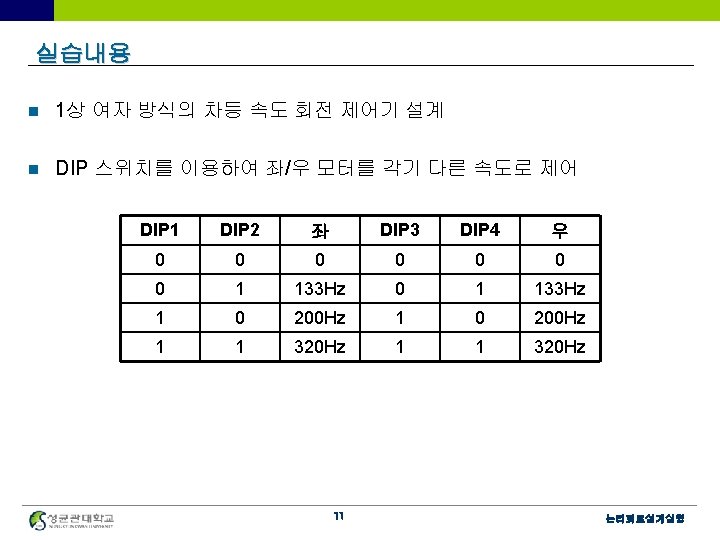

실습내용 n Pin table Signal Pin CLK_4 M P 79 MTP_SW 3 P 15 MTL_A P 128 MTP_SW 4 P 16 MTL_B P 130 MTR_A P 133 MTL_n. A P 131 MTR_B P 135 MTL_n. B P 132 MTR_n. A P 137 MTP_SW 1 P 12 MTR_n. B P 138 MTP_SW 2 P 13 RSTB p 205 13 논리회로설계실험
