Step-by-Step Tutorial NEXTA: Simulation Data Visualizer for Open-Source DTALite Engine NEXTA: Network EXplorer for Traffic Analysis This tutorial is prepared by Dr. Xuesong Zhou and Mingxin Li at Univ. of Utah

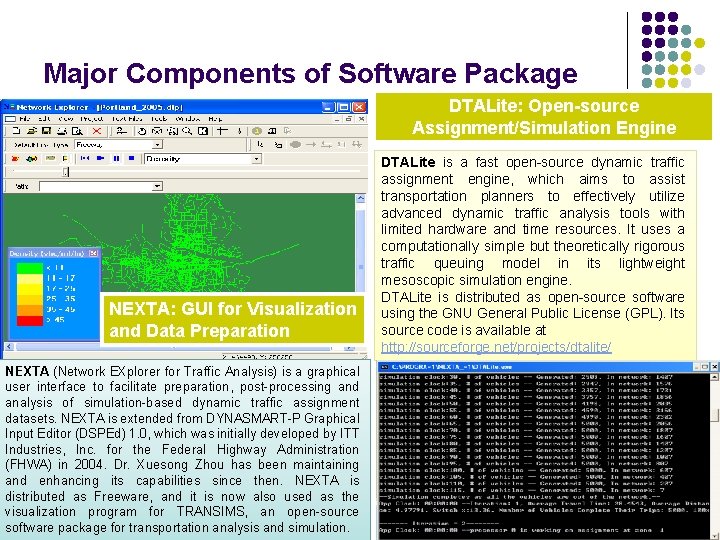

Major Components of Software Package DTALite: Open-source Assignment/Simulation Engine NEXTA: GUI for Visualization and Data Preparation NEXTA (Network EXplorer for Traffic Analysis) is a graphical user interface to facilitate preparation, post-processing and analysis of simulation-based dynamic traffic assignment datasets. NEXTA is extended from DYNASMART-P Graphical Input Editor (DSPEd) 1. 0, which was initially developed by ITT Industries, Inc. for the Federal Highway Administration (FHWA) in 2004. Dr. Xuesong Zhou has been maintaining and enhancing its capabilities since then. NEXTA is distributed as Freeware, and it is now also used as the visualization program for TRANSIMS, an open-source software package for transportation analysis and simulation. DTALite is a fast open-source dynamic traffic assignment engine, which aims to assist transportation planners to effectively utilize advanced dynamic traffic analysis tools with limited hardware and time resources. It uses a computationally simple but theoretically rigorous traffic queuing model in its lightweight mesoscopic simulation engine. DTALite is distributed as open-source software using the GNU General Public License (GPL). Its source code is available at http: //sourceforge. net/projects/dtalite/ 2

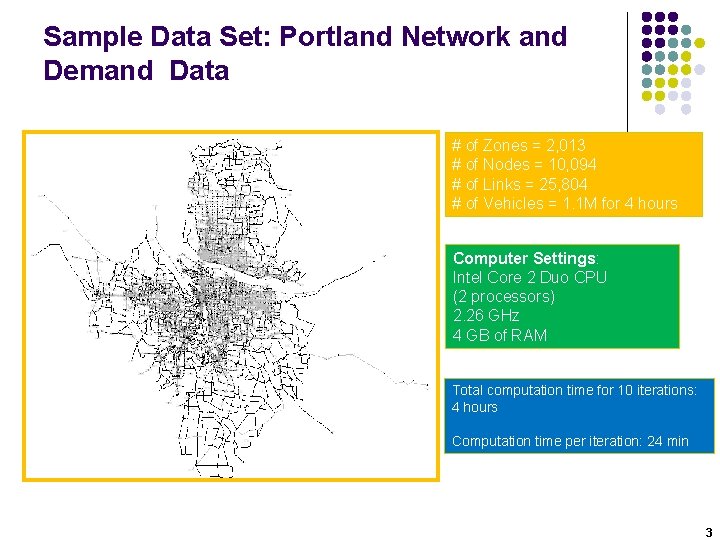

Sample Data Set: Portland Network and Demand Data # of Zones = 2, 013 # of Nodes = 10, 094 # of Links = 25, 804 # of Vehicles = 1. 1 M for 4 hours Computer Settings: Intel Core 2 Duo CPU (2 processors) 2. 26 GHz 4 GB of RAM Total computation time for 10 iterations: 4 hours Computation time per iteration: 24 min 3

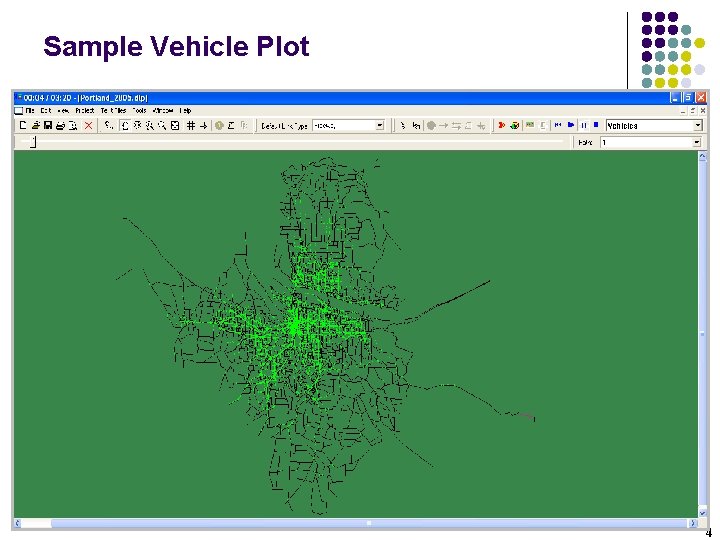

Sample Vehicle Plot 4

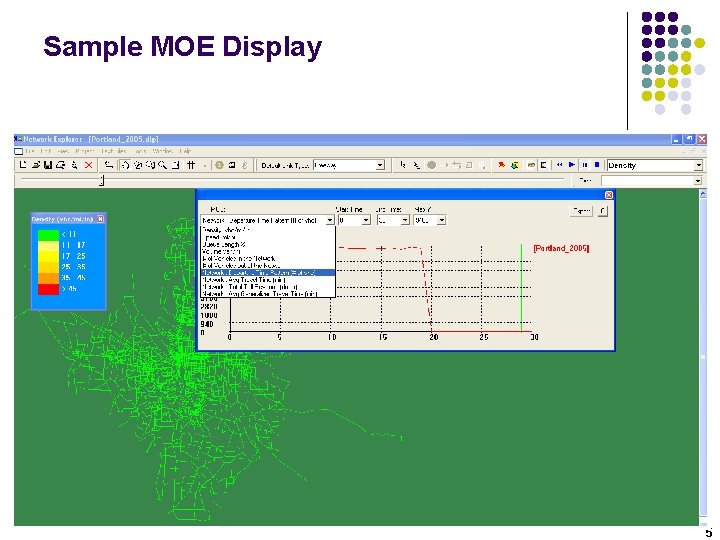

Sample MOE Display 5

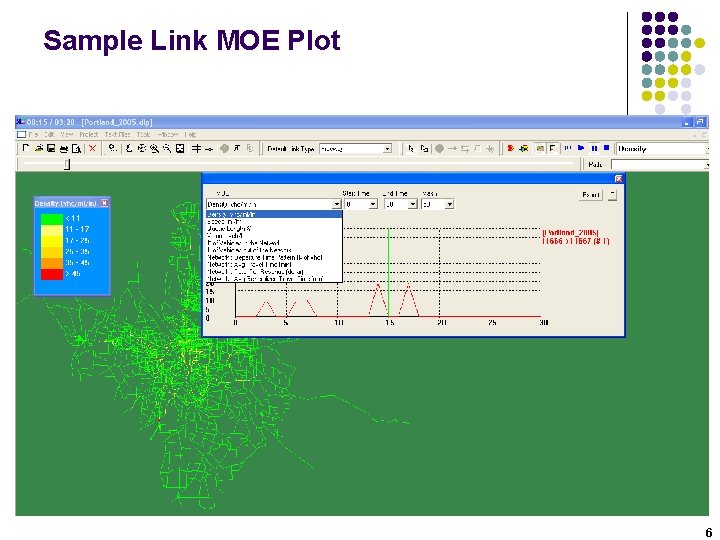

Sample Link MOE Plot 6

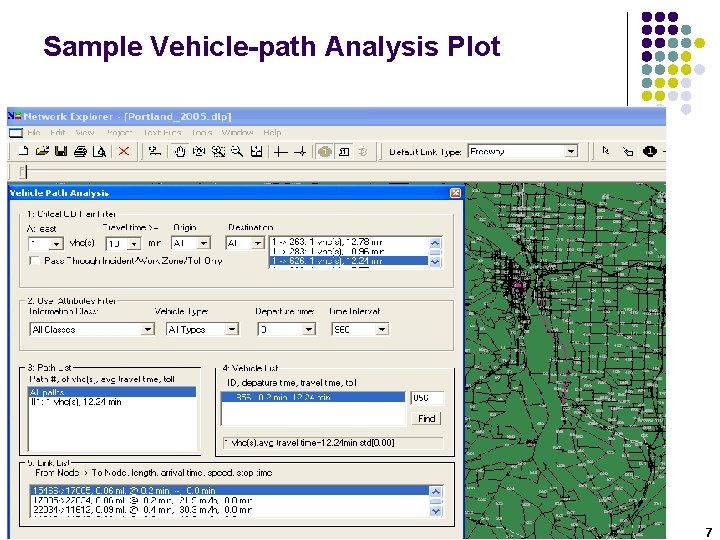

Sample Vehicle-path Analysis Plot 7
Tutorial Outline l Software installation l Exercise 1: View simulation results l Exercise 2: Running traffic simulation and understand output files l Exercise 3: Prepare input data from Excel spreadsheet 8

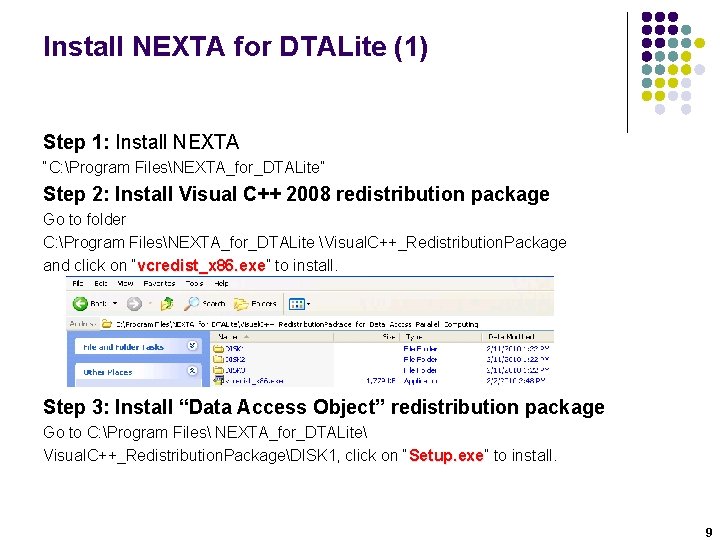

Install NEXTA for DTALite (1) Step 1: Install NEXTA “C: Program FilesNEXTA_for_DTALite” Step 2: Install Visual C++ 2008 redistribution package Go to folder C: Program FilesNEXTA_for_DTALite Visual. C++_Redistribution. Package and click on “vcredist_x 86. exe” vcredist_x 86. exe to install. Step 3: Install “Data Access Object” redistribution package Go to C: Program Files NEXTA_for_DTALite Visual. C++_Redistribution. PackageDISK 1, click on “Setup. exe” Setup. exe to install. 9

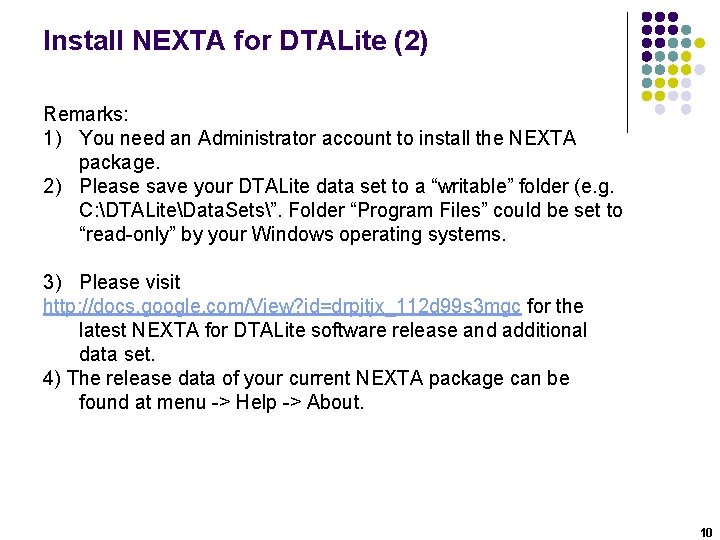

Install NEXTA for DTALite (2) Remarks: 1) You need an Administrator account to install the NEXTA package. 2) Please save your DTALite data set to a “writable” folder (e. g. C: DTALiteData. Sets”. Folder “Program Files” could be set to “read-only” by your Windows operating systems. 3) Please visit http: //docs. google. com/View? id=drpjtjx_112 d 99 s 3 mgc for the latest NEXTA for DTALite software release and additional data set. 4) The release data of your current NEXTA package can be found at menu -> Help -> About. 10

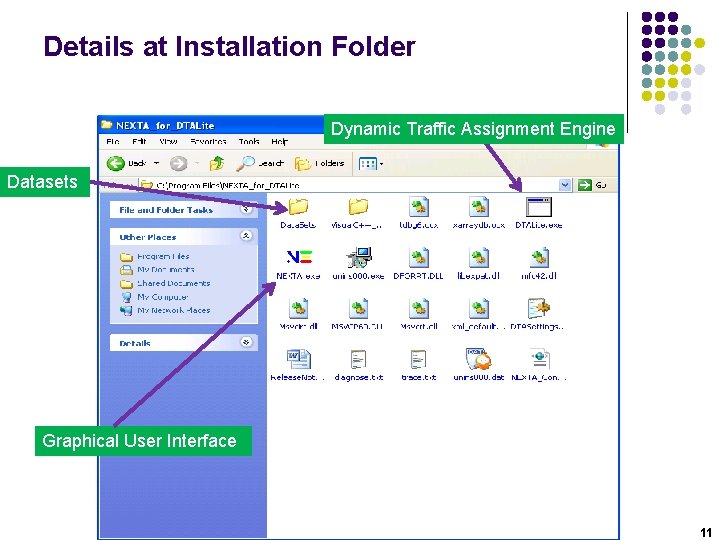

Details at Installation Folder Dynamic Traffic Assignment Engine Datasets Graphical User Interface 11

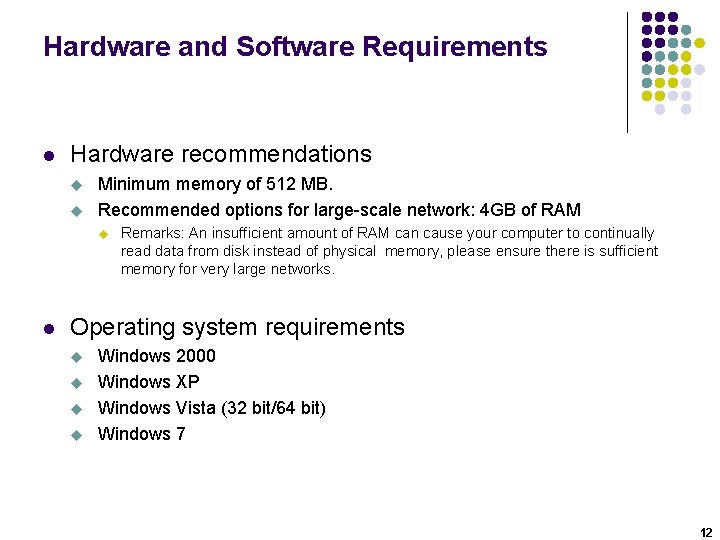

Hardware and Software Requirements l Hardware recommendations u u Minimum memory of 512 MB. Recommended options for large-scale network: 4 GB of RAM u l Remarks: An insufficient amount of RAM can cause your computer to continually read data from disk instead of physical memory, please ensure there is sufficient memory for very large networks. Operating system requirements u u Windows 2000 Windows XP Windows Vista (32 bit/64 bit) Windows 7 12

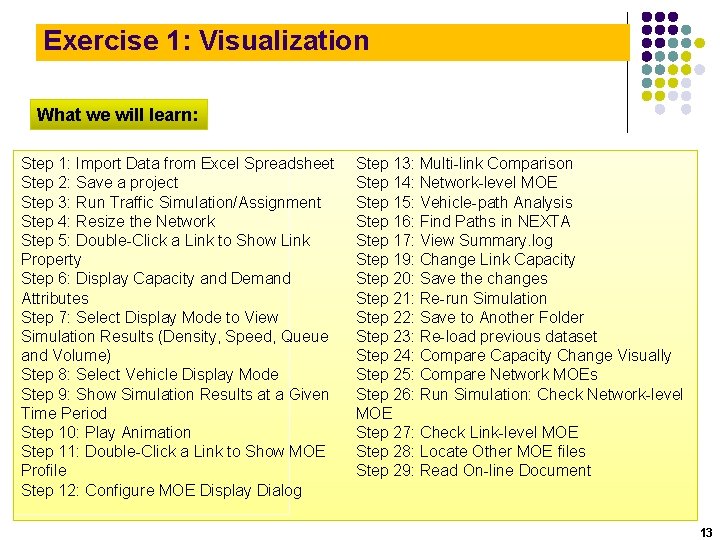

Exercise 1: Visualization What we will learn: Step 1: Import Data from Excel Spreadsheet Step 2: Save a project Step 3: Run Traffic Simulation/Assignment Step 4: Resize the Network Step 5: Double-Click a Link to Show Link Property Step 6: Display Capacity and Demand Attributes Step 7: Select Display Mode to View Simulation Results (Density, Speed, Queue and Volume) Step 8: Select Vehicle Display Mode Step 9: Show Simulation Results at a Given Time Period Step 10: Play Animation Step 11: Double-Click a Link to Show MOE Profile Step 12: Configure MOE Display Dialog Step 13: Multi-link Comparison Step 14: Network-level MOE Step 15: Vehicle-path Analysis Step 16: Find Paths in NEXTA Step 17: View Summary. log Step 19: Change Link Capacity Step 20: Save the changes Step 21: Re-run Simulation Step 22: Save to Another Folder Step 23: Re-load previous dataset Step 24: Compare Capacity Change Visually Step 25: Compare Network MOEs Step 26: Run Simulation: Check Network-level MOE Step 27: Check Link-level MOE Step 28: Locate Other MOE files Step 29: Read On-line Document 13
Step 1: Import Data from Excel Spreadsheet • Filename: Sample. Network. xls • Dataset folder: C: Program FilesNEXTA_for_DTALiteData. Sets • The data structure of the spreadsheet will be explained in Exercise 3. 14

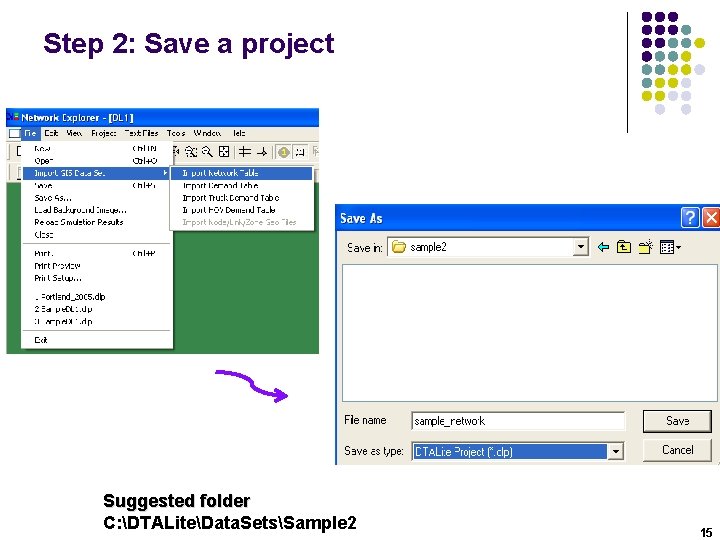

Step 2: Save a project Suggested folder C: DTALiteData. SetsSample 2 15

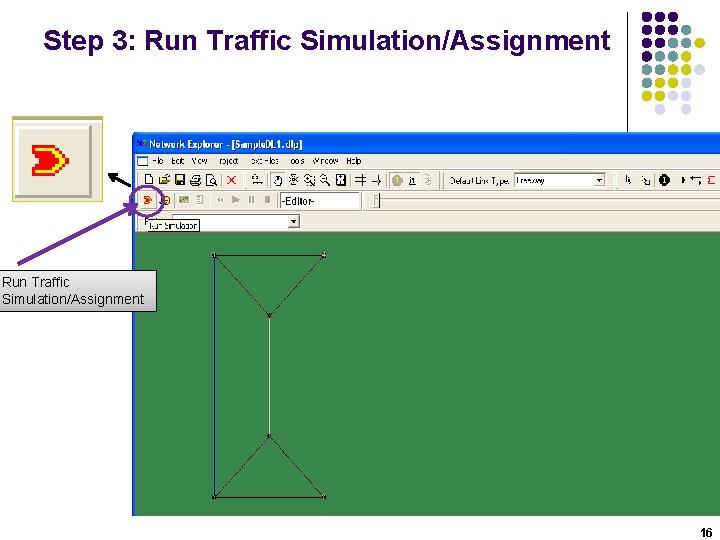

Step 3: Run Traffic Simulation/Assignment 16

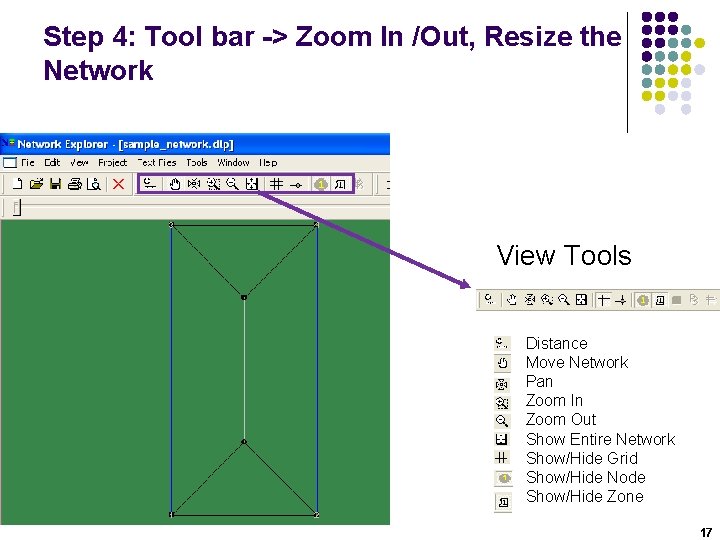

Step 4: Tool bar -> Zoom In /Out, Resize the Network View Tools Distance Move Network Pan Zoom In Zoom Out Show Entire Network Show/Hide Grid Show/Hide Node Show/Hide Zone 17

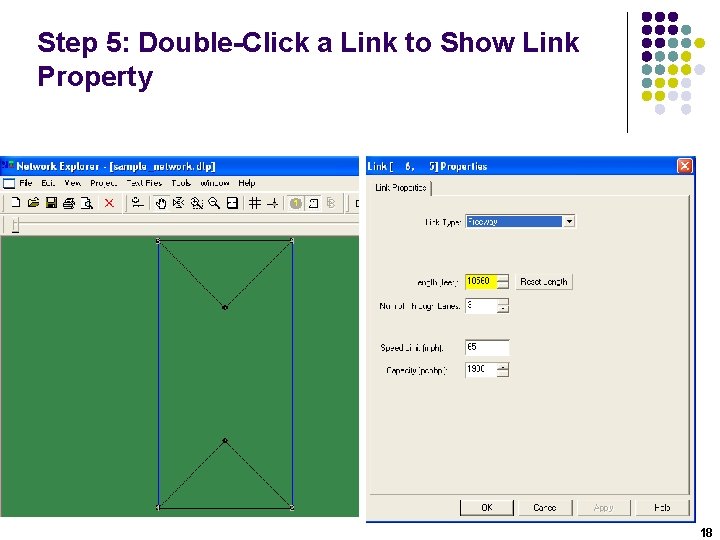

Step 5: Double-Click a Link to Show Link Property 18

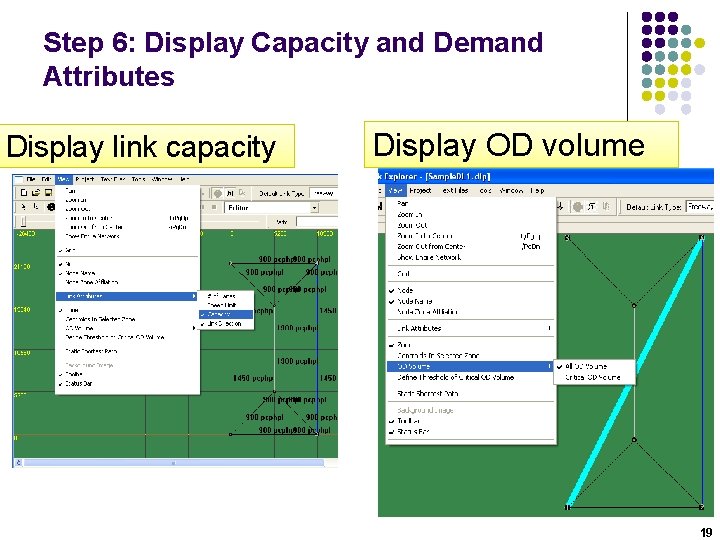

Step 6: Display Capacity and Demand Attributes Display link capacity Display OD volume 19

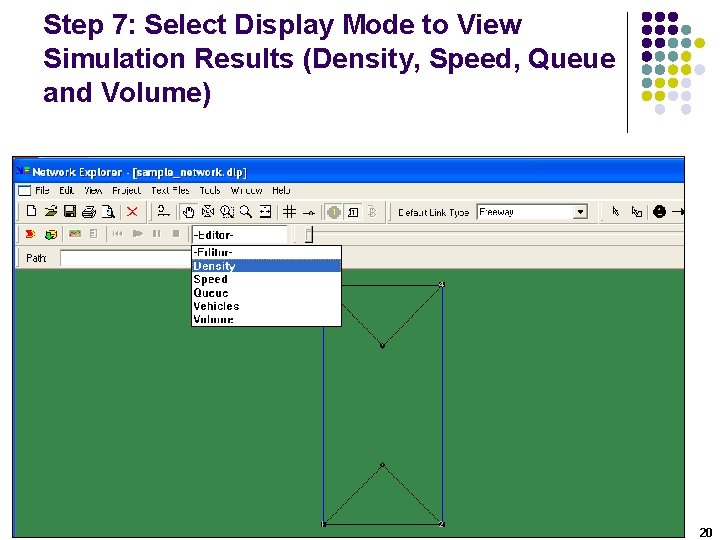

Step 7: Select Display Mode to View Simulation Results (Density, Speed, Queue and Volume) 20

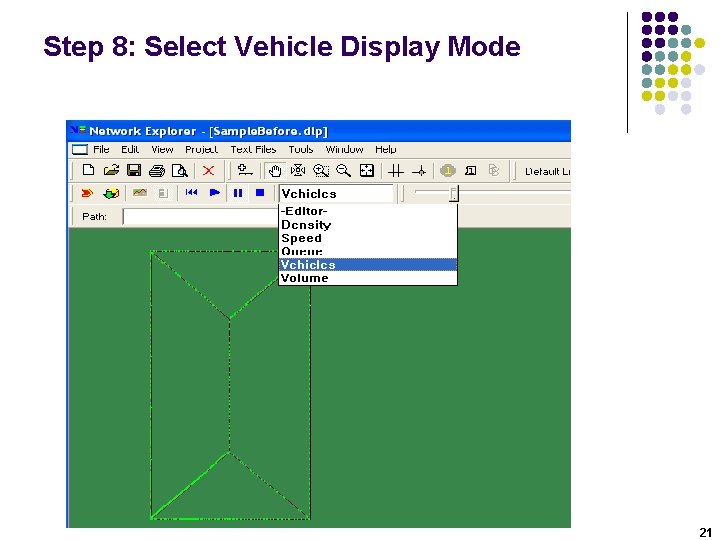

Step 8: Select Vehicle Display Mode 21
Step 9: Show Simulation Results at a Given Time Period First number is current time stamp Clock Bar Second number is simulation horizon Slider 22

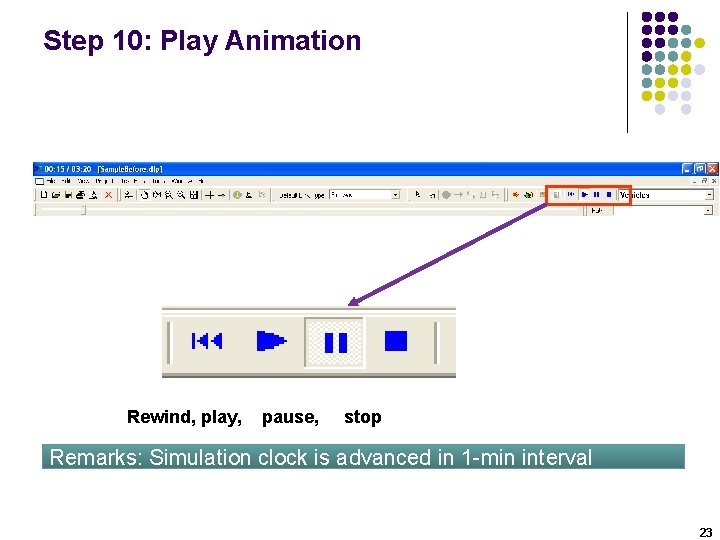

Step 10: Play Animation Rewind, play, pause, stop Remarks: Simulation clock is advanced in 1 -min interval 23

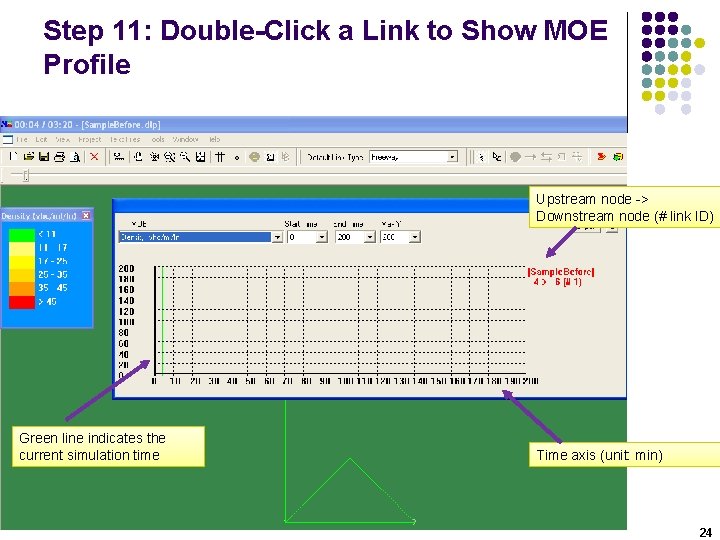

Step 11: Double-Click a Link to Show MOE Profile Upstream node -> Downstream node (# link ID) Green line indicates the current simulation time Time axis (unit: min) 24

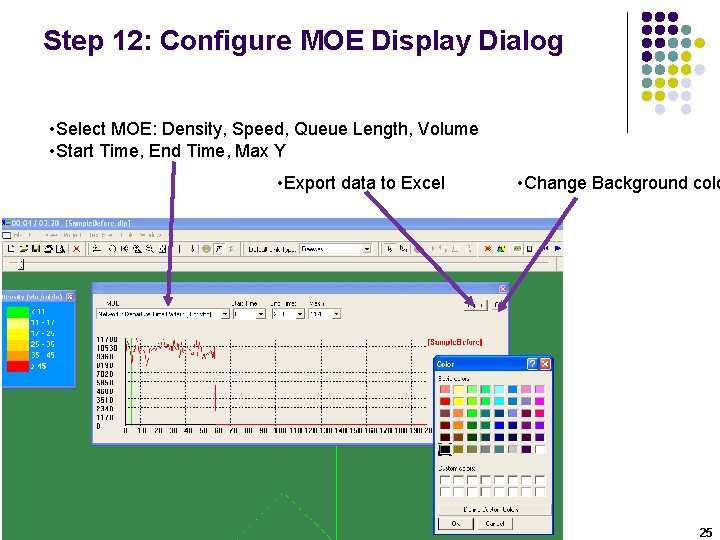

Step 12: Configure MOE Display Dialog • Select MOE: Density, Speed, Queue Length, Volume • Start Time, End Time, Max Y • Export data to Excel • Change Background colo 25

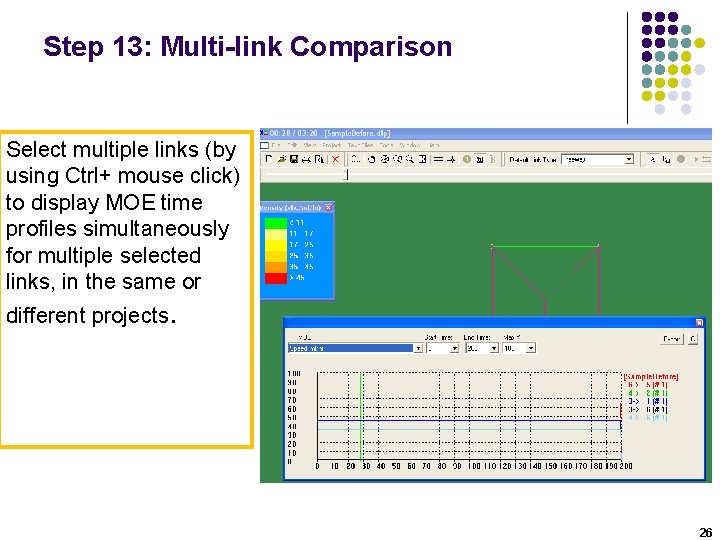

Step 13: Multi-link Comparison Select multiple links (by using Ctrl+ mouse click) to display MOE time profiles simultaneously for multiple selected links, in the same or different projects. 26
Step 14: Display Network-level MOE 27
Step 15: Vehicle-path Analysis OD to paths Paths to vehicles Vehicles –to list of links Select a path from path list to highlight the path on the background network 28
Step 16: Find Paths in NEXTA Define Origin Define Destination Find Paths 29

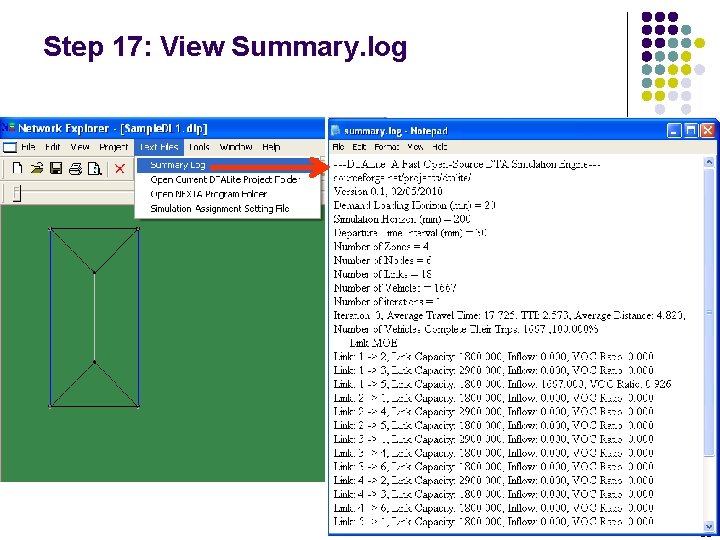

Step 17: View Summary. log 30

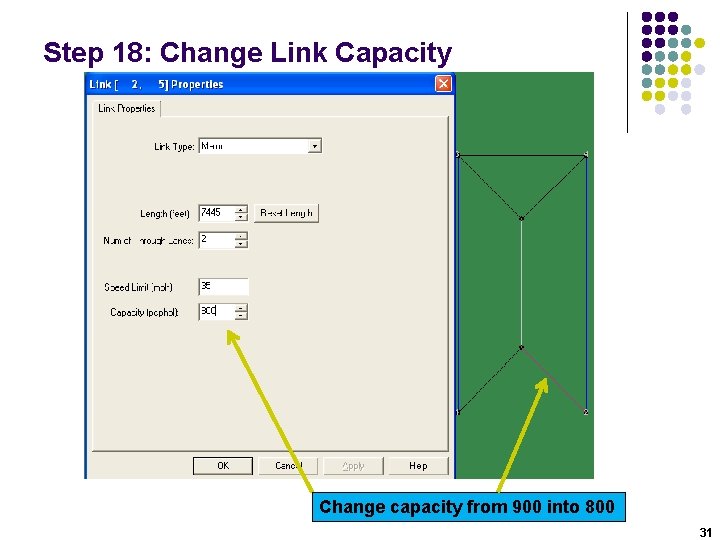

Step 18: Change Link Capacity Change capacity from 900 into 800 31

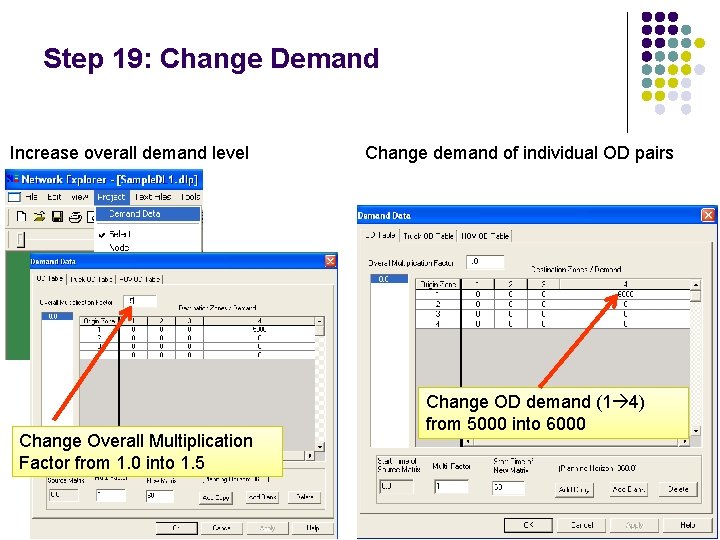

Step 19: Change Demand Increase overall demand level Change Overall Multiplication Factor from 1. 0 into 1. 5 Change demand of individual OD pairs Change OD demand (1 4) from 5000 into 6000 32
Step 20: Save the changes 33

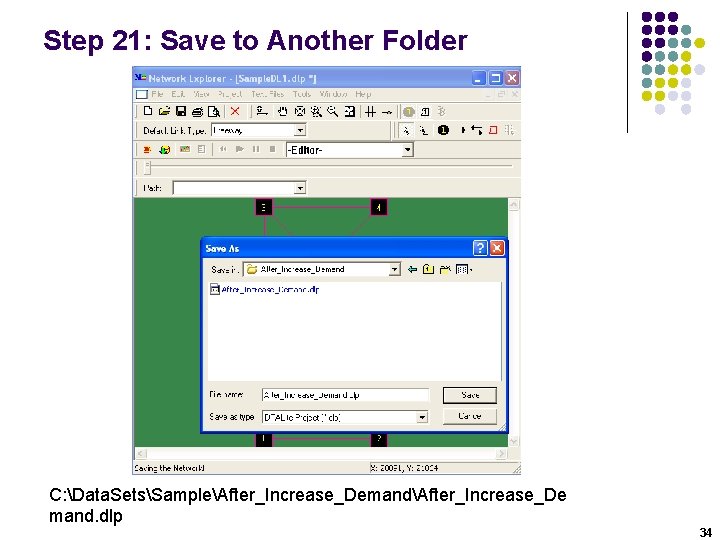

Step 21: Save to Another Folder C: Data. SetsSampleAfter_Increase_DemandAfter_Increase_De mand. dlp 34

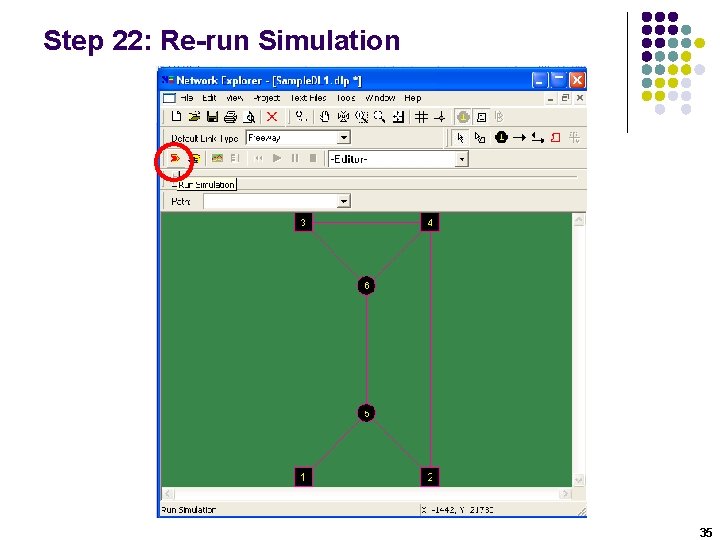

Step 22: Re-run Simulation 35

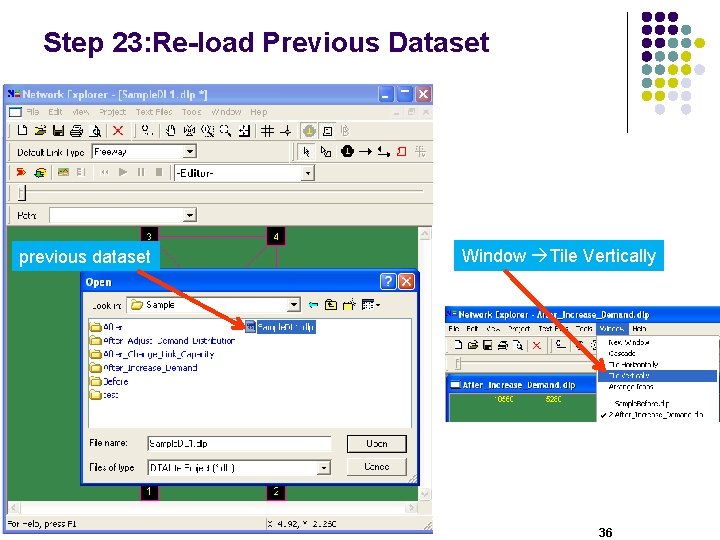

Step 23: Re-load Previous Dataset previous dataset Window Tile Vertically 36

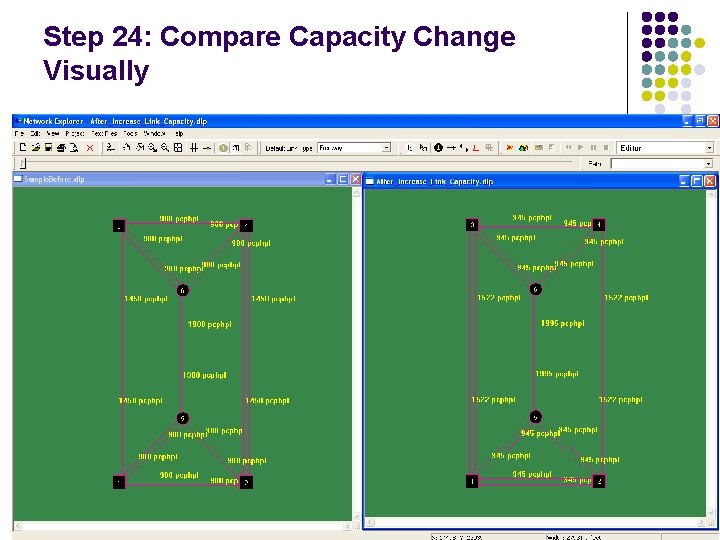

Step 24: Compare Capacity Change Visually 37

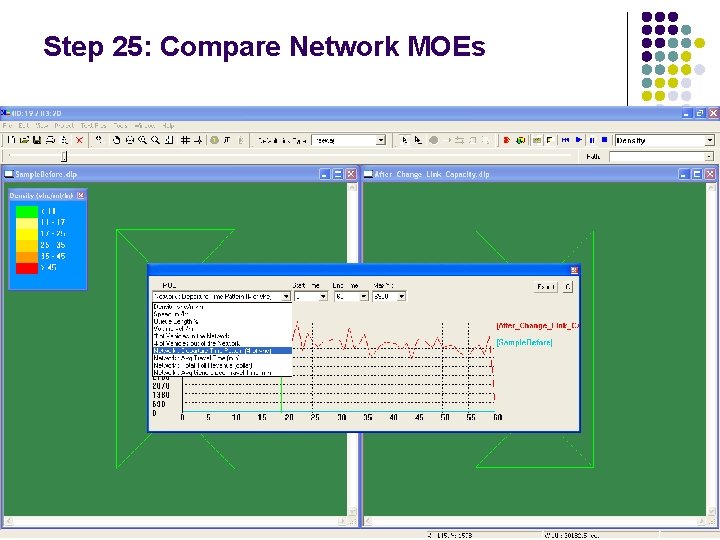

Step 25: Compare Network MOEs 38

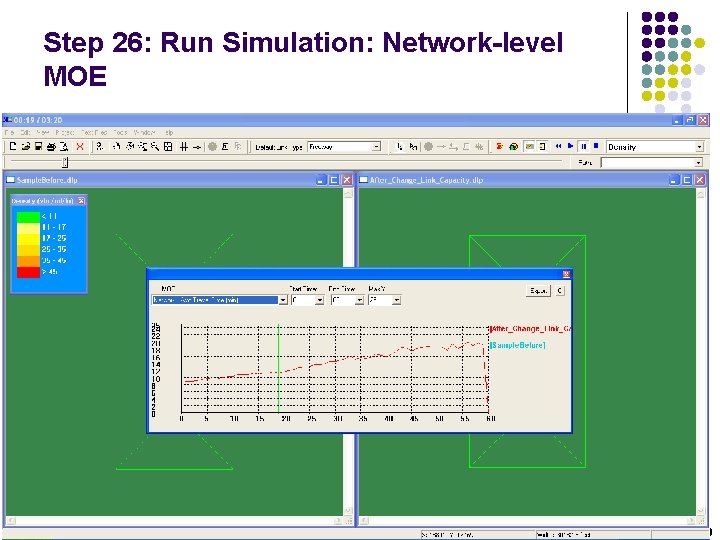

Step 26: Run Simulation: Network-level MOE 39

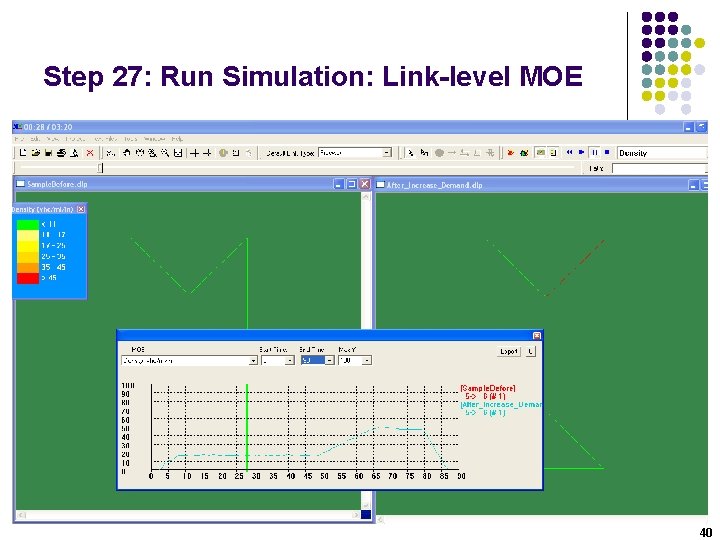

Step 27: Run Simulation: Link-level MOE 40

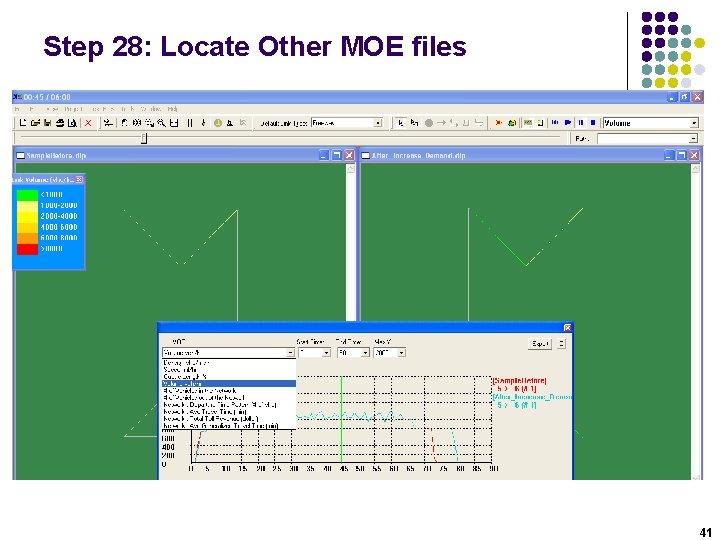

Step 28: Locate Other MOE files 41

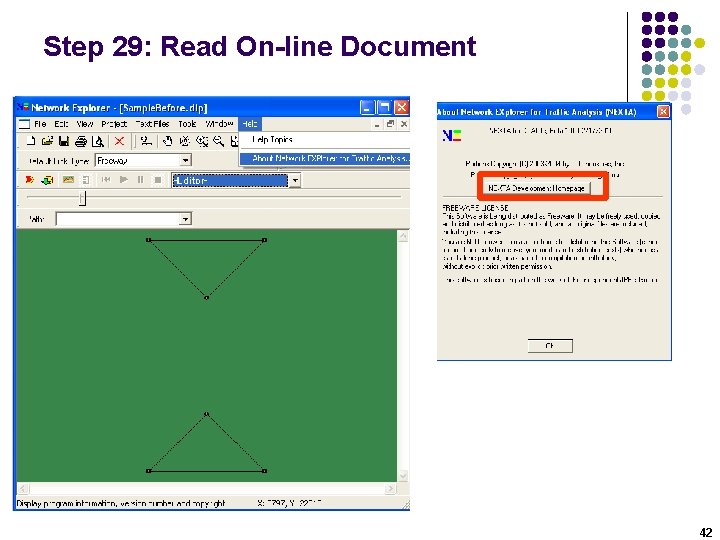

Step 29: Read On-line Document 42
Advanced Topic 1: l l Scenario Configuration Locate major output files 43

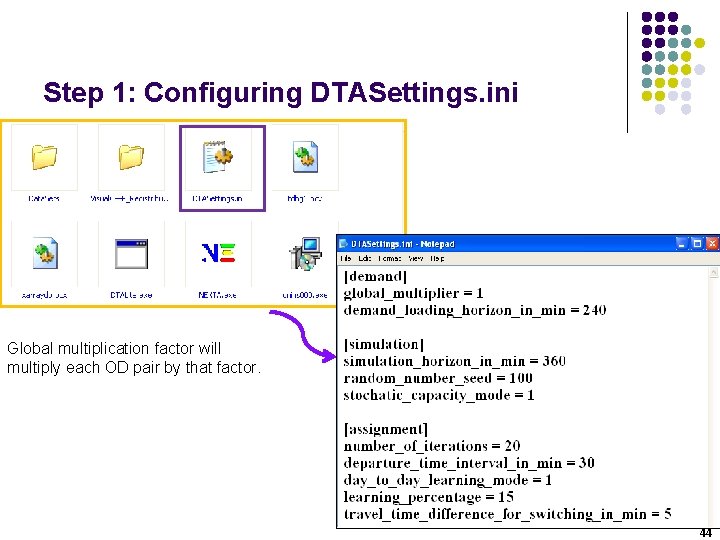

Step 1: Configuring DTASettings. ini Global multiplication factor will multiply each OD pair by that factor. 44

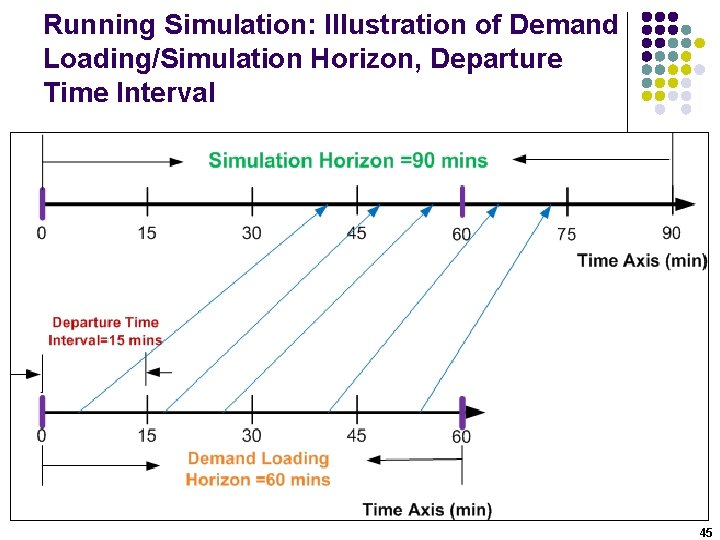

Running Simulation: Illustration of Demand Loading/Simulation Horizon, Departure Time Interval 45

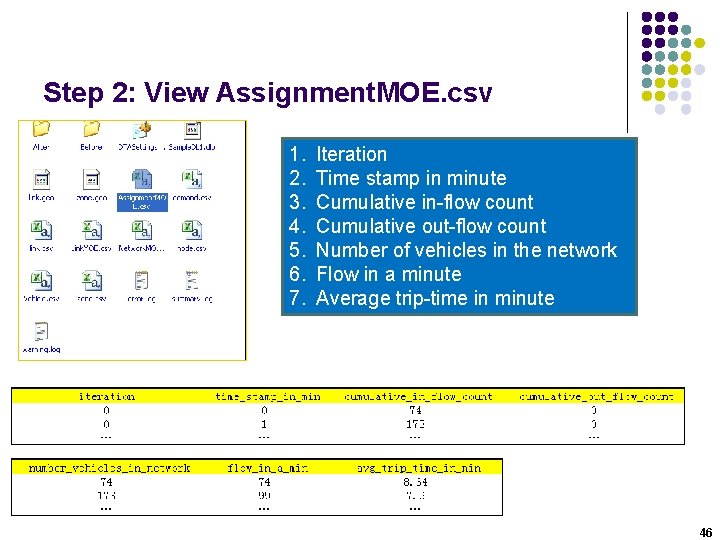

Step 2: View Assignment. MOE. csv 1. 2. 3. 4. 5. 6. 7. Iteration Time stamp in minute Cumulative in-flow count Cumulative out-flow count Number of vehicles in the network Flow in a minute Average trip-time in minute 46

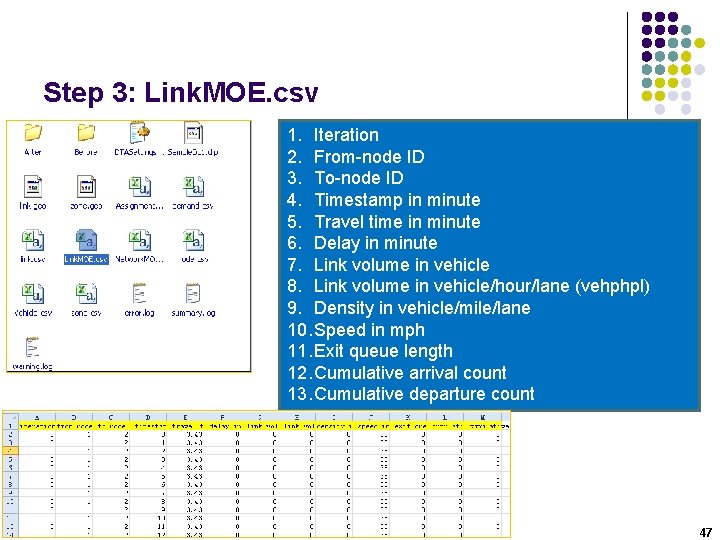

Step 3: Link. MOE. csv 1. Iteration 2. From-node ID 3. To-node ID 4. Timestamp in minute 5. Travel time in minute 6. Delay in minute 7. Link volume in vehicle 8. Link volume in vehicle/hour/lane (vehphpl) 9. Density in vehicle/mile/lane 10. Speed in mph 11. Exit queue length 12. Cumulative arrival count 13. Cumulative departure count 47

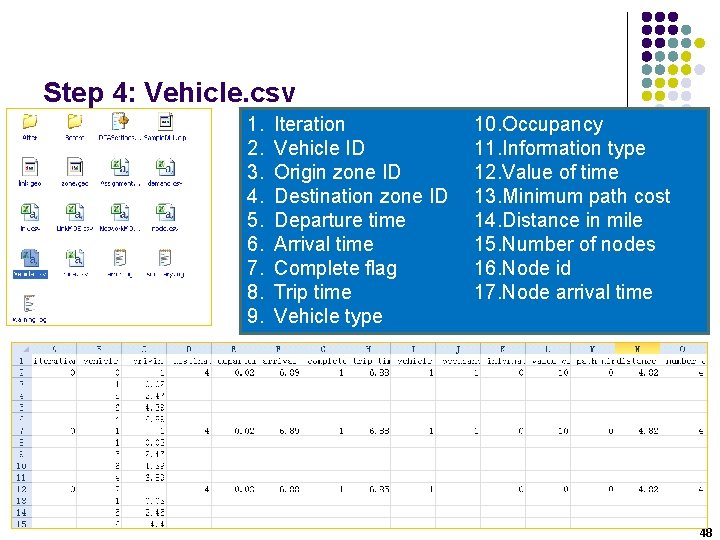

Step 4: Vehicle. csv 1. 2. 3. 4. 5. 6. 7. 8. 9. Iteration Vehicle ID Origin zone ID Destination zone ID Departure time Arrival time Complete flag Trip time Vehicle type 10. Occupancy 11. Information type 12. Value of time 13. Minimum path cost 14. Distance in mile 15. Number of nodes 16. Node id 17. Node arrival time 48

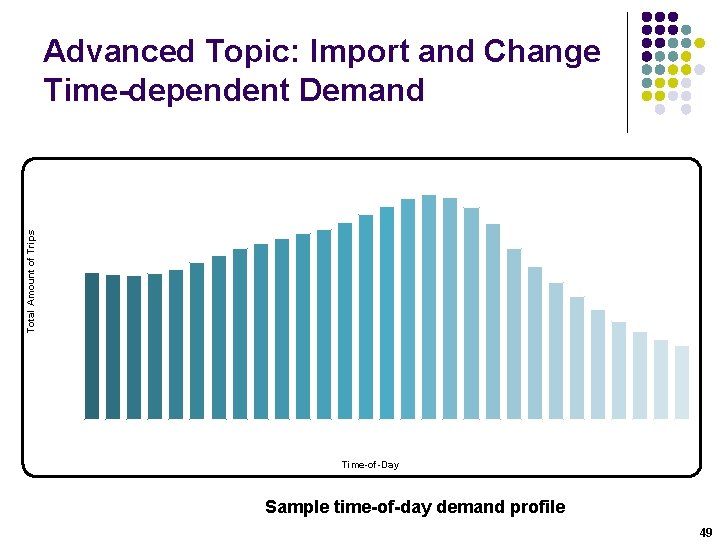

Total Amount of Trips Advanced Topic: Import and Change Time-dependent Demand Time-of-Day Sample time-of-day demand profile 49

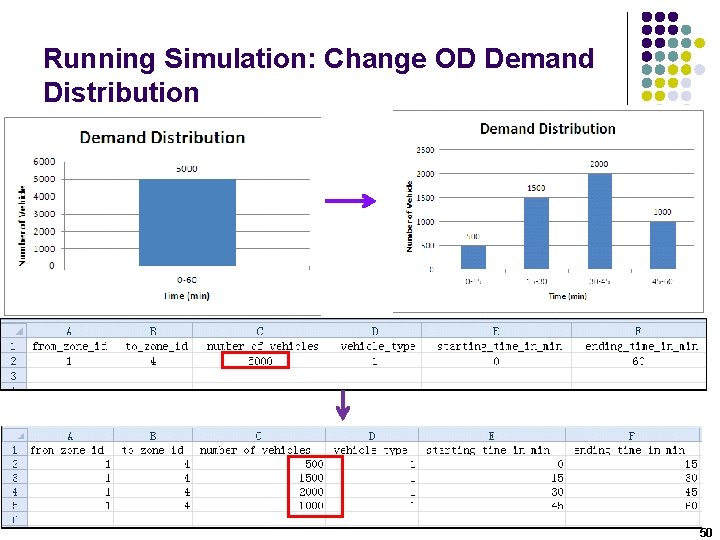

Running Simulation: Change OD Demand Distribution 50
