Steering Devices MPD and Veigel Knob APPLICATIONS Generally

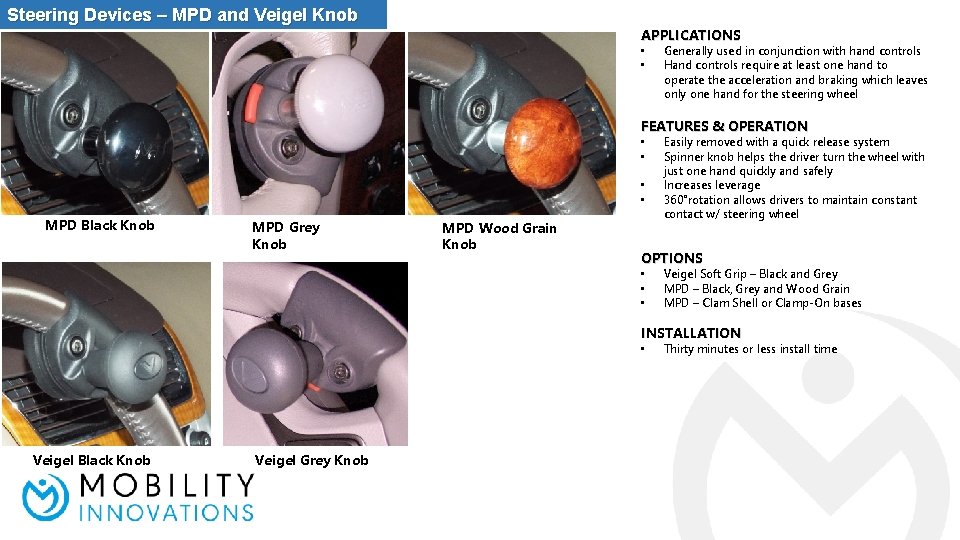

Steering Devices – MPD and Veigel Knob APPLICATIONS • • Generally used in conjunction with hand controls Hand controls require at least one hand to operate the acceleration and braking which leaves only one hand for the steering wheel FEATURES & OPERATION • • MPD Black Knob MPD Grey Knob MPD Wood Grain Knob Easily removed with a quick release system Spinner knob helps the driver turn the wheel with just one hand quickly and safely Increases leverage 360°rotation allows drivers to maintain constant contact w/ steering wheel OPTIONS • • • Veigel Soft Grip – Black and Grey MPD – Black, Grey and Wood Grain MPD – Clam Shell or Clamp-On bases INSTALLATION • Veigel Black Knob Veigel Grey Knob Thirty minutes or less install time

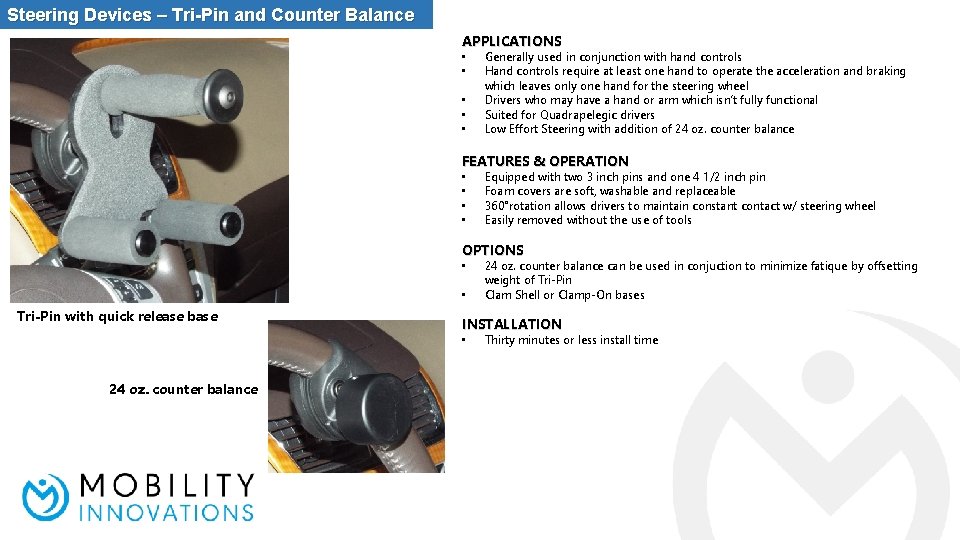

Steering Devices – Tri-Pin and Counter Balance APPLICATIONS • • • Generally used in conjunction with hand controls Hand controls require at least one hand to operate the acceleration and braking which leaves only one hand for the steering wheel Drivers who may have a hand or arm which isn’t fully functional Suited for Quadrapelegic drivers Low Effort Steering with addition of 24 oz. counter balance FEATURES & OPERATION • • Equipped with two 3 inch pins and one 4 1/2 inch pin Foam covers are soft, washable and replaceable 360°rotation allows drivers to maintain constant contact w/ steering wheel Easily removed without the use of tools OPTIONS • • Tri-Pin with quick release base INSTALLATION • 24 oz. counter balance can be used in conjuction to minimize fatique by offsetting weight of Tri-Pin Clam Shell or Clamp-On bases Thirty minutes or less install time

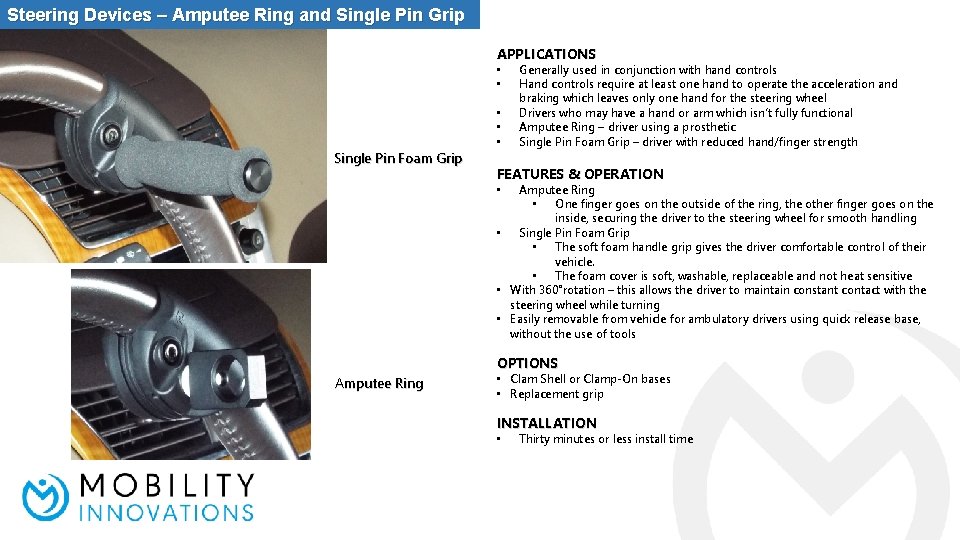

Steering Devices – Amputee Ring and Single Pin Grip APPLICATIONS • • Single Pin Foam Grip • • • Generally used in conjunction with hand controls Hand controls require at least one hand to operate the acceleration and braking which leaves only one hand for the steering wheel Drivers who may have a hand or arm which isn’t fully functional Amputee Ring – driver using a prosthetic Single Pin Foam Grip – driver with reduced hand/finger strength FEATURES & OPERATION Amputee Ring • One finger goes on the outside of the ring, the other finger goes on the inside, securing the driver to the steering wheel for smooth handling • Single Pin Foam Grip • The soft foam handle grip gives the driver comfortable control of their vehicle. • The foam cover is soft, washable, replaceable and not heat sensitive • With 360°rotation – this allows the driver to maintain constant contact with the steering wheel while turning • Easily removable from vehicle for ambulatory drivers using quick release base, without the use of tools • OPTIONS Amputee Ring • Clam Shell or Clamp-On bases • Replacement grip INSTALLATION • Thirty minutes or less install time
Steering Devices – V-Grip and Palm Grip APPLICATIONS • • • Generally used in conjunction with hand controls Hand controls require at least one hand to operate the acceleration and braking which leaves only one hand for the steering wheel Drivers who may have a hand or arm which isn’t fully functional V-Grip – Reduced hand/finger strength needing backhand support Palm Grip – Limited hand/finger strength FEATURES & OPERATION V-Grip • Foam covered single pin with foam covered aluminum wrap providing backhand support • Palm Grip • Lightweight aluminum wrap with sheepskin or foam liner • Fits to hand size with unique finger rest • With 360°rotation – this allows the driver to maintain constant contact with the steering wheel while turning • Easily removable from vehicle for ambulatory drivers using quick release base, without the use of tools • Palm Grip with Foam Palm Grip with Sheepskin OPTIONS V-Grip • Clam Shell or Clamp-On bases • Replacement foam grip (V-Grip) • Replacement sheepskin or foam liner (Palm Grip) INSTALLATION • Thirty minutes or less install time
Steering Devices – My. Command APPLICATIONS • My. Command is a handheld steering device, which also enables the driver to operate the vehicles secondary functions at the touch of a button via Radio Frequency. FEATURES & OPERATION • • • Operate up to 8 secondary functions while at the same time keeping control of the steering wheel Ergonomic design Illuminated function keys – making it easier to operate in the dark Removable when not in use – quick release base Original operating functions remain intact INSTALLATION • Vehicles that utilize the Can-Bus system: 2 -3 hours • Vehicle without Can-Bus: 4 -6 hours • Flexible programming functions

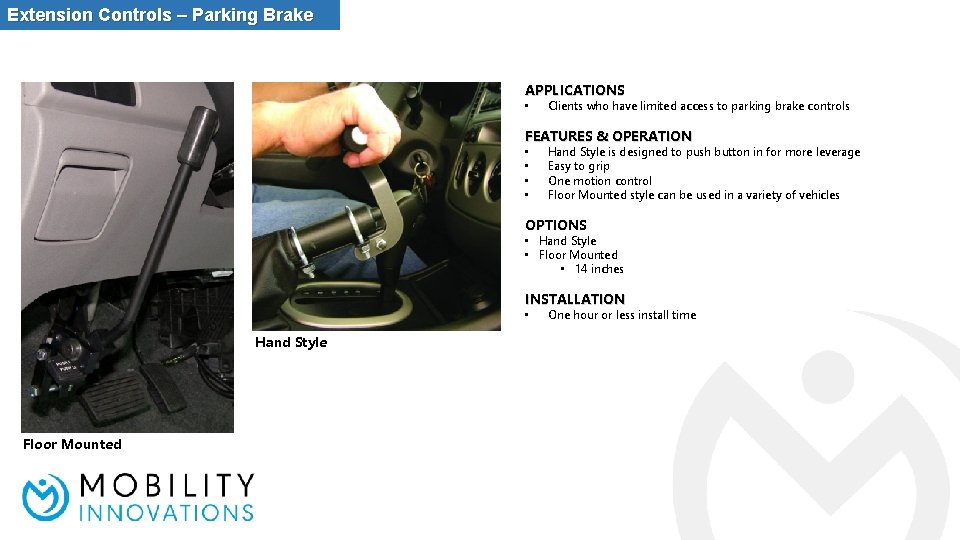

Extension Controls – Parking Brake APPLICATIONS • Clients who have limited access to parking brake controls FEATURES & OPERATION • • Hand Style is designed to push button in for more leverage Easy to grip One motion control Floor Mounted style can be used in a variety of vehicles OPTIONS • Hand Style • Floor Mounted • 14 inches INSTALLATION • Hand Style Floor Mounted One hour or less install time

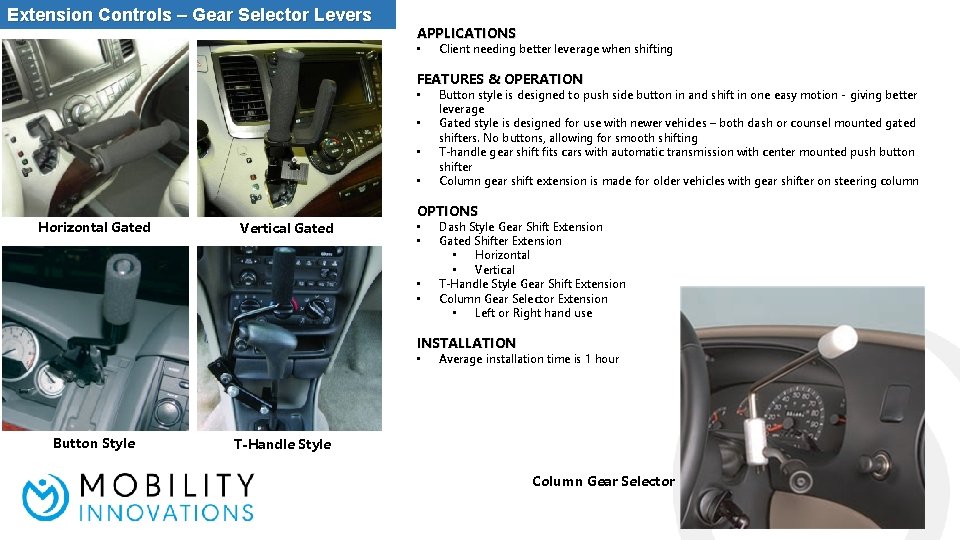

Extension Controls – Gear Selector Levers APPLICATIONS • Client needing better leverage when shifting FEATURES & OPERATION • • Horizontal Gated Vertical Gated Button style is designed to push side button in and shift in one easy motion - giving better leverage Gated style is designed for use with newer vehicles – both dash or counsel mounted gated shifters. No buttons, allowing for smooth shifting T-handle gear shift fits cars with automatic transmission with center mounted push button shifter Column gear shift extension is made for older vehicles with gear shifter on steering column OPTIONS • • Dash Style Gear Shift Extension Gated Shifter Extension • Horizontal • Vertical T-Handle Style Gear Shift Extension Column Gear Selector Extension • Left or Right hand use INSTALLATION • Button Style Average installation time is 1 hour T-Handle Style Column Gear Selector

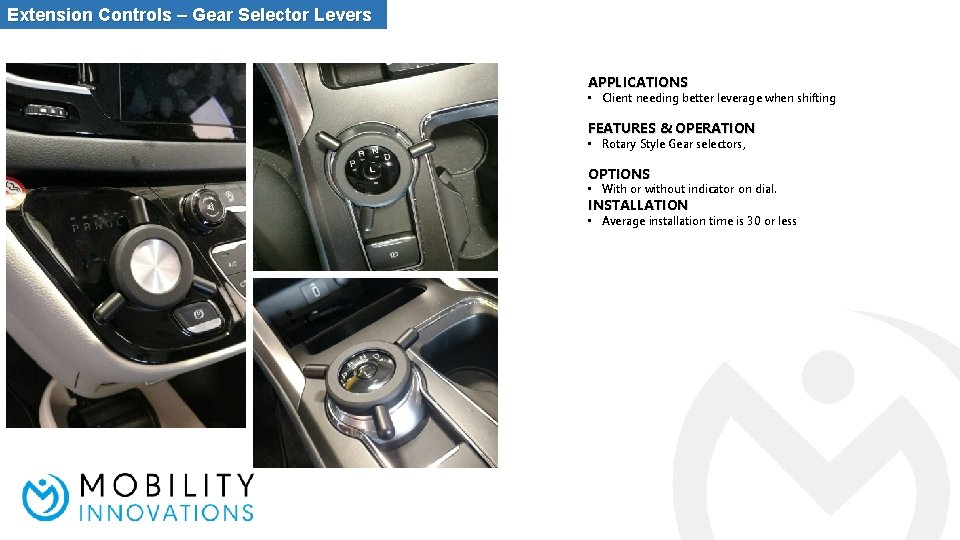

Extension Controls – Gear Selector Levers APPLICATIONS • Client needing better leverage when shifting FEATURES & OPERATION • Rotary Style Gear selectors, OPTIONS • With or without indicator on dial. INSTALLATION • Average installation time is 30 or less Ford
Extension Controls – Power Window Switch Extensions APPLICATIONS • Client needing assistance utilizing power window switches FEATURES & OPERATION • Soft silicone material • Glued (no drilling required) • 10 switch extensions per package INSTALLATION • Average installation time is less than 15 minutes

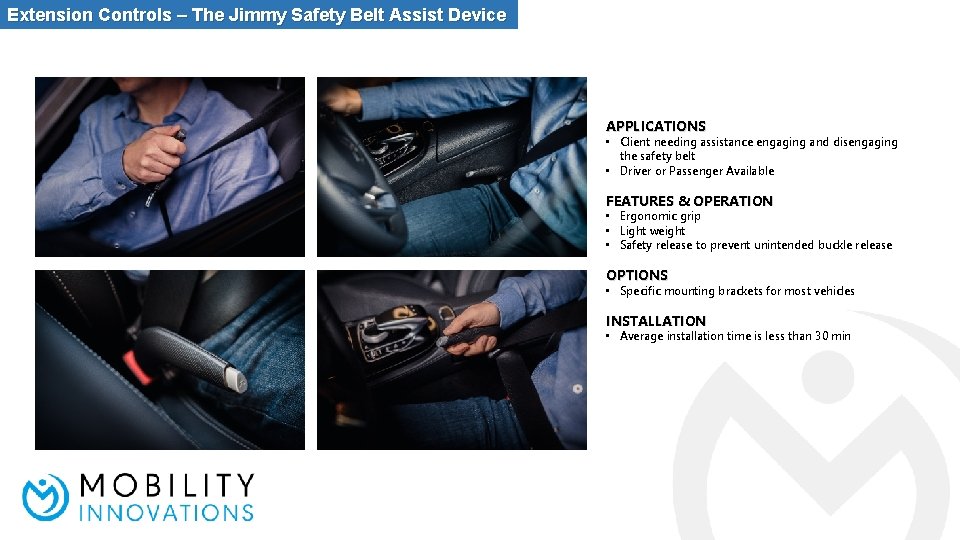

Extension Controls – The Jimmy Safety Belt Assist Device APPLICATIONS • Client needing assistance engaging and disengaging the safety belt • Driver or Passenger Available FEATURES & OPERATION • Ergonomic grip • Light weight • Safety release to prevent unintended buckle release OPTIONS • Specific mounting brackets for most vehicles INSTALLATION • Average installation time is less than 30 min
