Steel Design Developments in SCIA Engineer 17 SCIA Conference 2017 Author: Iveta Georgieva Date: 18 mei 2017 © Images Jaspers-Eyers Architects – photography by Mark Detiffe

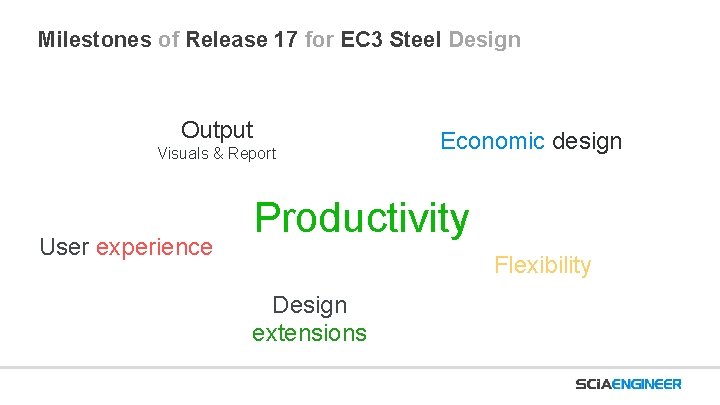

Milestones of Release 17 for EC 3 Steel Design Output Visuals & Report User experience Economic design Productivity Flexibility Design extensions

Today’s topics Speed and computation Cross-section Classification in Euro. Code 3 Check Effective section derivation beyond CFS SEMI-COMP+ implementation Better and customisable output Various productivity enhancements Links to third-party applications New design methods: tapered members stability, warping…

Today’s demo User project (2014): industrial hall 1762 nodes 2343 members 39 sections Modified for the purposes of this presentation 16 load cases 22 ULS code combinations & 10 envelopes

Classification and Effective Section extensions Class 1 Class 2 Class 3 Class 4 Class ? !

Classification and Effective Section extensions Centrelines and Initial Shape Flexib ility

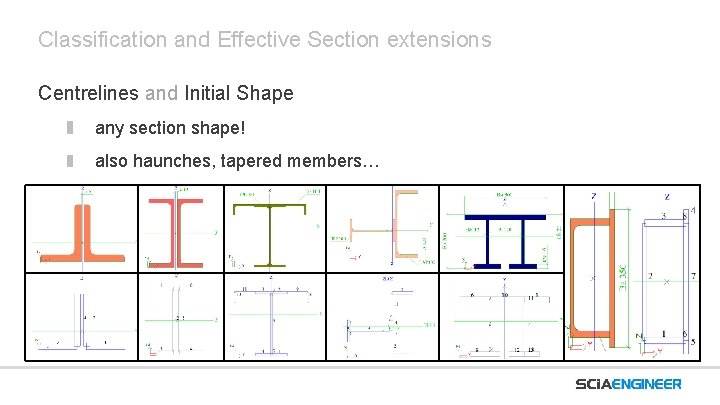

Classification and Effective Section extensions Centrelines and Initial Shape any section shape! also haunches, tapered members…

Classification and Effective Section extensions no “dump” to Class 3 combi-key based Fl ex Ec ib De ilit y sig n on ex te om ns io ic ns de sig n

Classification and Effective Section extensions 100 % code compliance > 100 combi-keys ? ! Accuracy Classification / combi-key ? ! Class 3 Class 4 Class 1 Class 2 Class 3

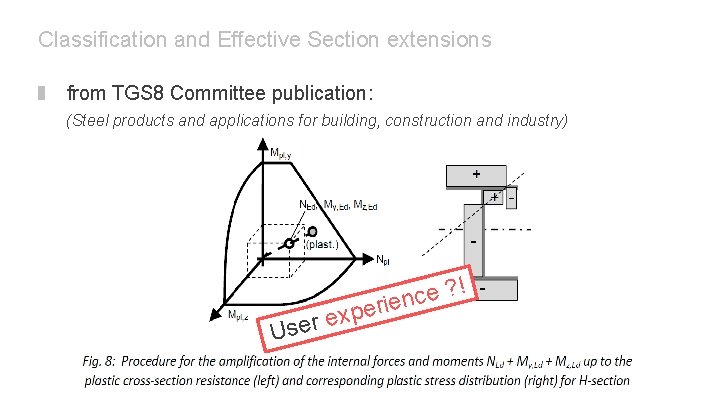

Classification and Effective Section extensions from TGS 8 Committee publication: (Steel products and applications for building, construction and industry) ! x e r e Us p ? e c n e eri

Classification and Effective Section extensions Plastic neutral axis determination: Elastic Stress Yield Surface Intersection Iterative Approach Yield surface Iterative

Classification and Effective Section extensions Effective section takes roundings/welds into account: Econ omic Example: IPE 600 (S 235) under pure compression (web is class 4) Formula SCIA Engineer 16. 1 SCIA Engineer 17. 0 des ign

Classification & Effective section summary Integrated in the Steel Code Check (run in background) Classification & Effective Section window for: better understanding the calculation method comparisons with hand calculations pre-selection of cross-section 99% of the sections used in practice 100 % code-compliant Us Classification with ACTUAL internal forces Additional economy: FAST calculation De Ec s on ign Fle om ex ex xib pe ic ten ility rie de sio nc sig e ns n er

Implementation of SEMI-COMP+ Design of semi-compact sections Original research title: “Plastic member capacity of semi-compact steel sections - a more economic design” funded by the Research Fund for Coal & Steel fully compatible with Euro. Code 3 (already in pr. EN 1993 -1 -1: 2015)

Implementation of SEMI-COMP+ Corrections to EN 1993 -1 -1: Moment resistance in Class 3 Section classification Benefits: more economic mechanically more logical simple to use conforms to existing rules in EC 3 (part 1 -3/1 -5) and international codes

Implementation of SEMI-COMP+ 1 st important consequence: Limited plastic moment resistance of Class 3 sections Only for symmetrical I-, H-, and box sections EN 1993 -1 -1 SEMI-COMP+

Implementation of SEMI-COMP+ 1 st important consequence: Limited plastic moment resistance of Class 3 sections Benefit in cross-section checks EN 1993 -1 -1 Benefit in member checks Benefit in interaction N + My + Mz Design extensions Economic design SEMI-COMP+

Implementation of SEMI-COMP+ 2 nd important consequence: Corrected limits between classes No discrepancy anymore between EN 1993 -1 -1 and EN 1993 -1 -5 Valid for any section

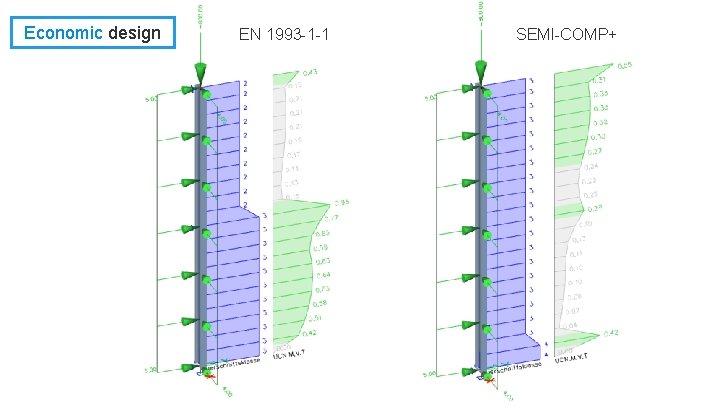

Economic design EN 1993 -1 -1 SEMI-COMP+

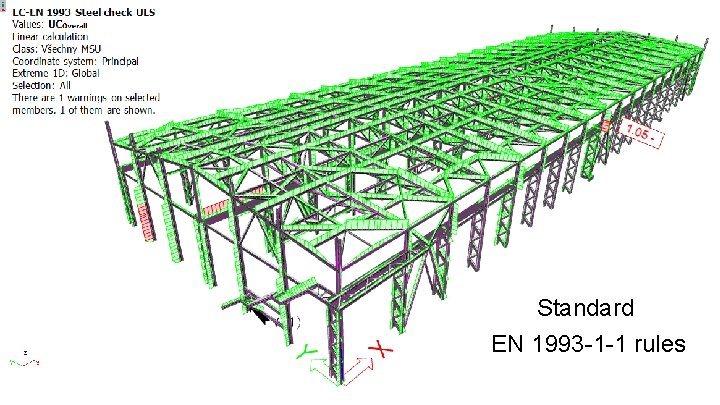

Standard EN 1993 -1 -1 rules

SEMI-COMP rules applied

Implementation of SEMI-COMP+ Sections influenced by SEMI-COMP+

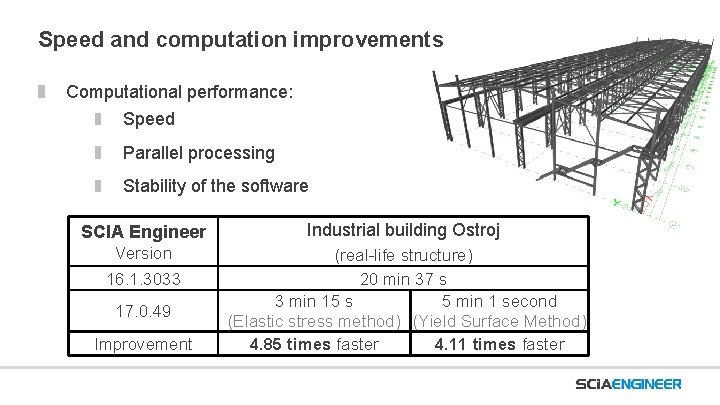

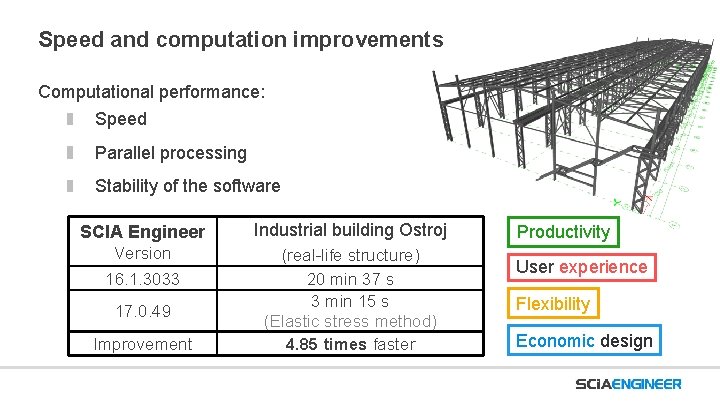

Speed and computation improvements Computational performance: Speed Parallel processing Stability of the software SCIA Engineer Industrial building Ostroj Version (real-life structure) 20 min 37 s 3 min 15 s (Elastic stress method) 4. 85 times faster 16. 1. 3033 17. 0. 49 Improvement Productivity User experience Flexibility Economic design

Speed and computation improvements Computational performance: Speed Parallel processing Stability of the software SCIA Engineer Industrial building Ostroj Version (real-life structure) 20 min 37 s 3 min 15 s 5 min 1 second (Elastic stress method) (Yield Surface Method) 4. 85 times faster 4. 11 times faster 16. 1. 3033 17. 0. 49 Improvement

Result legend Better visuals: • antialiasing • readable fonts • customisable colours • added descriptions Steel Code Check results: User experience & Flexibility On 3 D structure Documentation Check components

Steel Code Check output in 3 D scene Customisation: colours output per component combi-keys Readability: fonts antialiasing User experience Flexibility

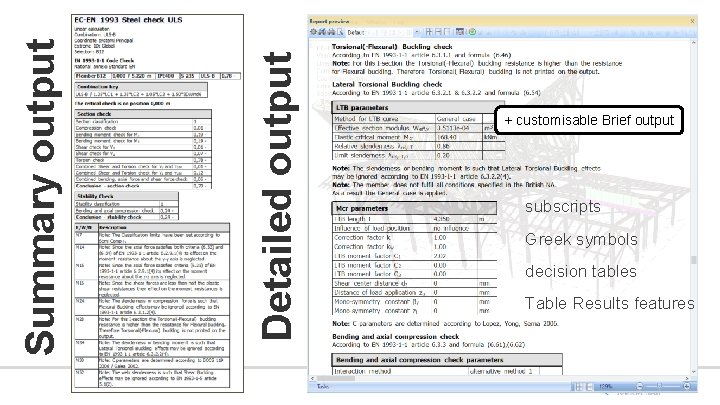

Detailed output Summary output + customisable Brief output subscripts Greek symbols decision tables Table Results features

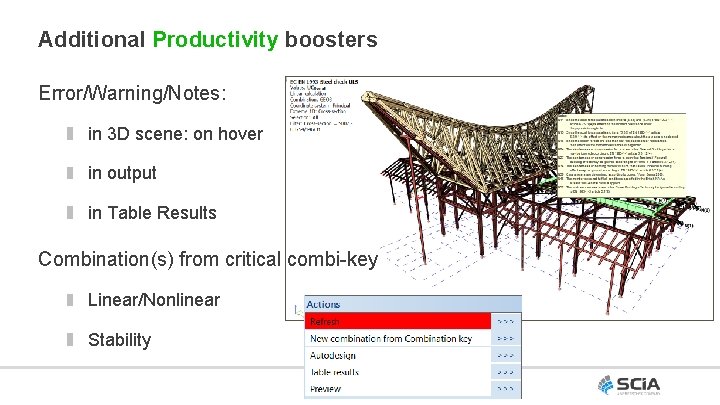

Additional Productivity boosters Error/Warning/Notes: in 3 D scene: on hover in output in Table Results Combination(s) from critical combi-key Linear/Nonlinear Stability

Additional Productivity boosters Store results AFTER changing the model View results View checks Create tables Create images Without recalculation v 17. 1 09. 2017

L o c k

Westok Cell. Beam link NEW SOLVER LINK Direct export from 3 D scene Update SCIA beams after optimisation Patch 1 June 2017 Support for composite beams slab data combined with diaphragms

IDEA Stati. Ca Connection Other steel-related items in SCIA E 17. 0 Strongly requested by clients Direct export from 3 D scene Storing of the IDEA project File packed inside ESA file Reopen at any point in time

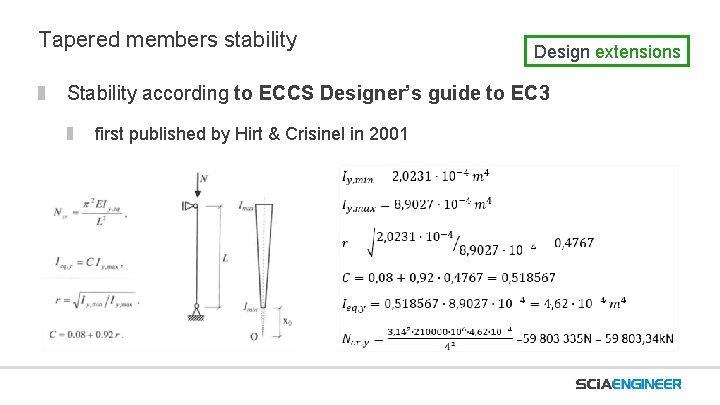

Tapered members stability Design extensions Stability according to ECCS Designer’s guide to EC 3 first published by Hirt & Crisinel in 2001

Warping check For all thin-walled cross-sections! Differentiation: primary and secondary torsion stress Design extensions

Design extensions: Tubular connection design Tubular connections (sneak preview): CHS-to-CHS connections recognition of joint type (K, T, Y, N, etc. ) all 2 D joint types except KT checks according to EN 1993 -1 -8 gap/overlap linked to model geometry and Structural Model

Latest version of AISC-codes AISC 360 -16 Specification for Structural Steel Buildings AISI S 100 -16 North American Specification for the Design of Cold-Formed Steel Structural Members Profile library to be updated in 17. 1 (after AISC publishes it) Design extensions

Thank you for your attention! i. georgieva@scia. net www. scia. net
