Steam Basics © 2008 Armstrong International, Inc.
![Steam Basics - Overview • What is Steam? • Why is Steam Used? • Steam Basics - Overview • What is Steam? • Why is Steam Used? •](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-2.jpg)

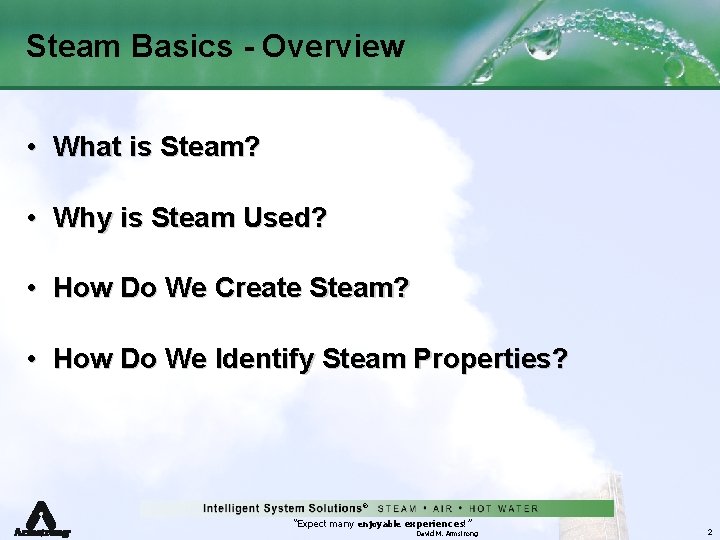

Steam Basics - Overview • What is Steam? • Why is Steam Used? • How Do We Create Steam? • How Do We Identify Steam Properties? ® “Expect many enjoyable experiences!” David M. Armstrong 2
![This Is Not Steam! • Steam is a vapor form of water, and is This Is Not Steam! • Steam is a vapor form of water, and is](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-3.jpg)
This Is Not Steam! • Steam is a vapor form of water, and is colorless, tasteless, and odorless ® “Expect many enjoyable experiences!” David M. Armstrong 3
![What is Steam Used For? Steam is Used to Transfer Heat Energy From One What is Steam Used For? Steam is Used to Transfer Heat Energy From One](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-4.jpg)

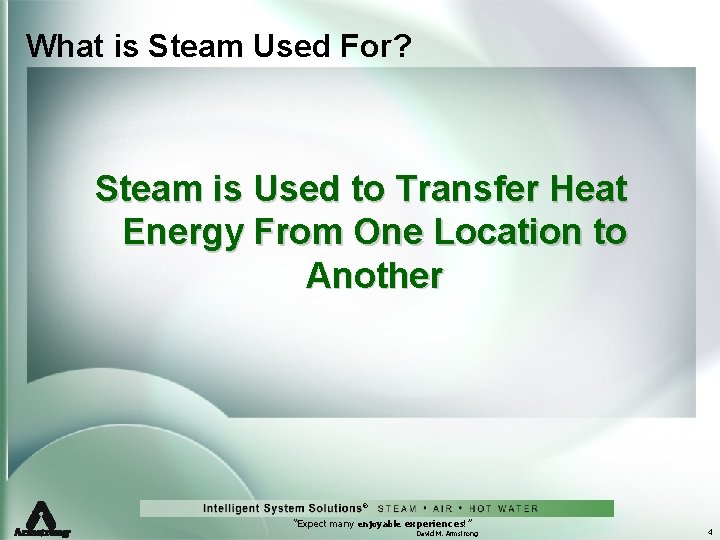

What is Steam Used For? Steam is Used to Transfer Heat Energy From One Location to Another ® “Expect many enjoyable experiences!” David M. Armstrong 4
![Why Use Steam We have already developed the equipment and expertise to design and Why Use Steam We have already developed the equipment and expertise to design and](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-5.jpg)

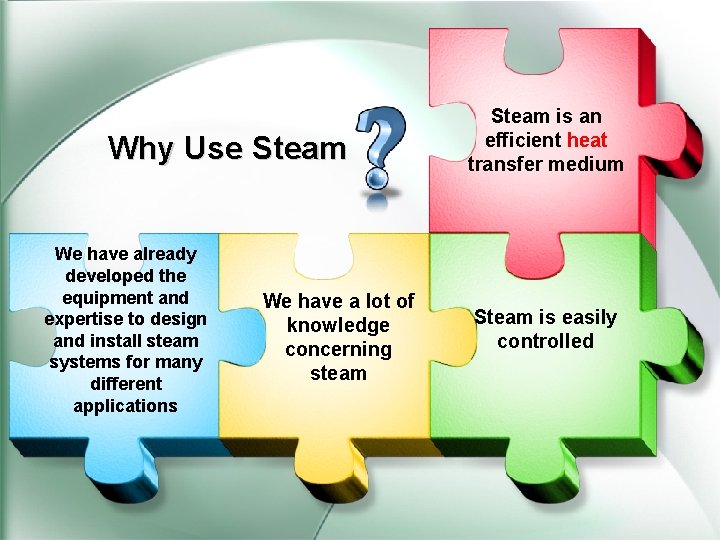

Why Use Steam We have already developed the equipment and expertise to design and install steam systems for many different applications We have a lot of knowledge concerning steam Steam is an efficient heat transfer medium Steam is easily controlled
![How We Create Steam • Steam is created by adding Heat Energy to water. How We Create Steam • Steam is created by adding Heat Energy to water.](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-6.jpg)

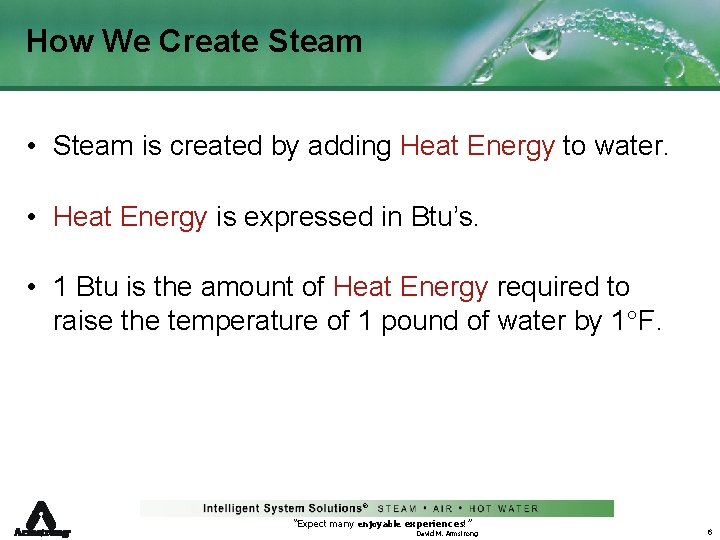

How We Create Steam • Steam is created by adding Heat Energy to water. • Heat Energy is expressed in Btu’s. • 1 Btu is the amount of Heat Energy required to raise the temperature of 1 pound of water by 1 F. ® “Expect many enjoyable experiences!” David M. Armstrong 6
![How We Create Steam The Heat Energy required to create steam has two forms: How We Create Steam The Heat Energy required to create steam has two forms:](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-7.jpg)
How We Create Steam The Heat Energy required to create steam has two forms: Sensible Heat Latent Heat ® “Expect many enjoyable experiences!” David M. Armstrong 7
![Heat Energy – Sensible Heat • Sensible Heat is the amount of Heat Energy Heat Energy – Sensible Heat • Sensible Heat is the amount of Heat Energy](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-8.jpg)
Heat Energy – Sensible Heat • Sensible Heat is the amount of Heat Energy required to raise the temperature of water from 32°F to the boiling point (saturated liquid) at a given pressure – Sensible Heat raises the temperature of the water and can be sensed with a thermometer ® “Expect many enjoyable experiences!” David M. Armstrong 8
![Heat Energy – Sensible Heat O PSIG 212 F. 1 lb. Water HEAT 1 Heat Energy – Sensible Heat O PSIG 212 F. 1 lb. Water HEAT 1](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-9.jpg)
Heat Energy – Sensible Heat O PSIG 212 F. 1 lb. Water HEAT 1 Lb. of Saturated Water at Atmospheric Pressure Contains 180 Btu’s of Sensible Heat ® “Expect many enjoyable experiences!” David M. Armstrong 9
![Adding Heat Energy – Sensible Heat 250 F. 15 PSIG HEAT 1 Lb. of Adding Heat Energy – Sensible Heat 250 F. 15 PSIG HEAT 1 Lb. of](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-10.jpg)

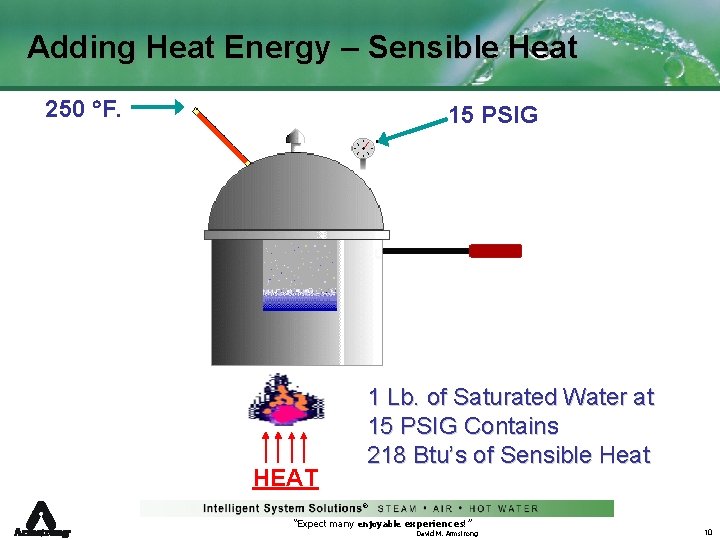

Adding Heat Energy – Sensible Heat 250 F. 15 PSIG HEAT 1 Lb. of Saturated Water at 15 PSIG Contains 218 Btu’s of Sensible Heat ® “Expect many enjoyable experiences!” David M. Armstrong 10
![Heat Energy – Sensible Heat 308 F. 60 PSIG 1 Lb. of Saturated Water Heat Energy – Sensible Heat 308 F. 60 PSIG 1 Lb. of Saturated Water](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-11.jpg)
Heat Energy – Sensible Heat 308 F. 60 PSIG 1 Lb. of Saturated Water at 60 PSIG Contains 277 Btu’s of Sensible Heat HEAT ® “Expect many enjoyable experiences!” David M. Armstrong 11
![Heat Energy – Latent Heat • Latent Heat is the amount of Heat Energy Heat Energy – Latent Heat • Latent Heat is the amount of Heat Energy](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-12.jpg)

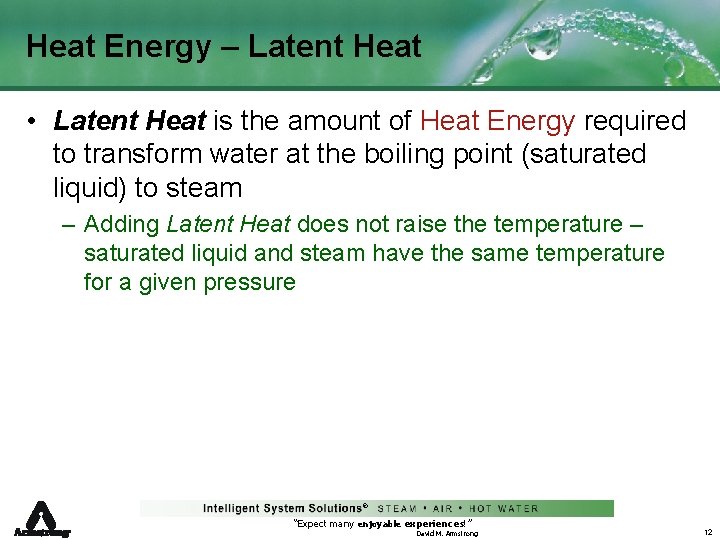

Heat Energy – Latent Heat • Latent Heat is the amount of Heat Energy required to transform water at the boiling point (saturated liquid) to steam – Adding Latent Heat does not raise the temperature – saturated liquid and steam have the same temperature for a given pressure ® “Expect many enjoyable experiences!” David M. Armstrong 12
![Adding Heat Energy – Latent Heat O PSIG 212 F. 1 lb. Steam HEAT Adding Heat Energy – Latent Heat O PSIG 212 F. 1 lb. Steam HEAT](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-13.jpg)
Adding Heat Energy – Latent Heat O PSIG 212 F. 1 lb. Steam HEAT 1 Lb. of Steam at Atmospheric Pressure Contains 970 Btu’s of Latent Heat ® “Expect many enjoyable experiences!” David M. Armstrong 13
![Adding Heat Energy – Latent Heat 250 F. 15 PSIG HEAT 1 Lb. of Adding Heat Energy – Latent Heat 250 F. 15 PSIG HEAT 1 Lb. of](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-14.jpg)
Adding Heat Energy – Latent Heat 250 F. 15 PSIG HEAT 1 Lb. of Steam at 15 PSIG Contains 945 Btu’s of Latent Heat ® “Expect many enjoyable experiences!” David M. Armstrong 14
![Adding Heat Energy – Latent Heat 308 F. 60 PSIG 1 Lb. of Steam Adding Heat Energy – Latent Heat 308 F. 60 PSIG 1 Lb. of Steam](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-15.jpg)

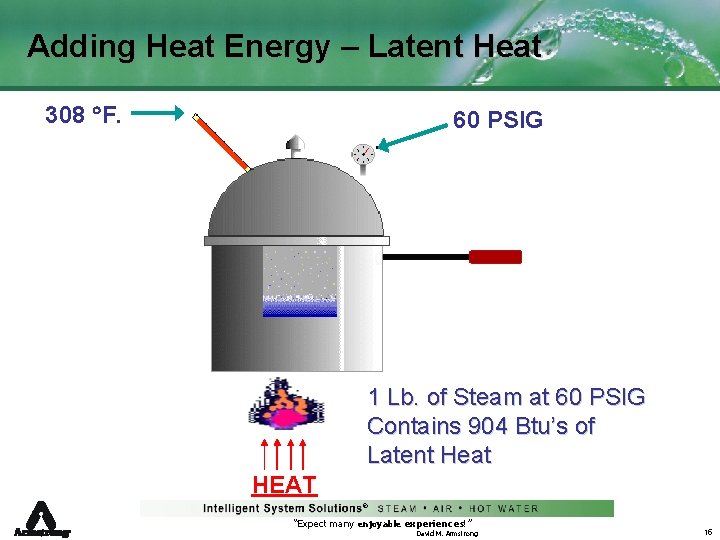

Adding Heat Energy – Latent Heat 308 F. 60 PSIG 1 Lb. of Steam at 60 PSIG Contains 904 Btu’s of Latent Heat HEAT ® “Expect many enjoyable experiences!” David M. Armstrong 15
![What is the Effect of Pressure? Increased Pressure: – Decreases the amount of Latent What is the Effect of Pressure? Increased Pressure: – Decreases the amount of Latent](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-16.jpg)
What is the Effect of Pressure? Increased Pressure: – Decreases the amount of Latent Heat – Increases the amount of Sensible Heat ® “Expect many enjoyable experiences!” David M. Armstrong 16
![What is the Effect of Pressure? 1000 900 800 700 600 500 400 300 What is the Effect of Pressure? 1000 900 800 700 600 500 400 300](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-17.jpg)
What is the Effect of Pressure? 1000 900 800 700 600 500 400 300 200 100 0 0 psig 15 pig 50 psig Latent Heat BTU/lb Sensible Heat BTU/lb ® “Expect many enjoyable experiences!” David M. Armstrong 17
![What Is The Effect Of Pressure? • Increased Pressure: – Decreases the Specific Volume What Is The Effect Of Pressure? • Increased Pressure: – Decreases the Specific Volume](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-18.jpg)

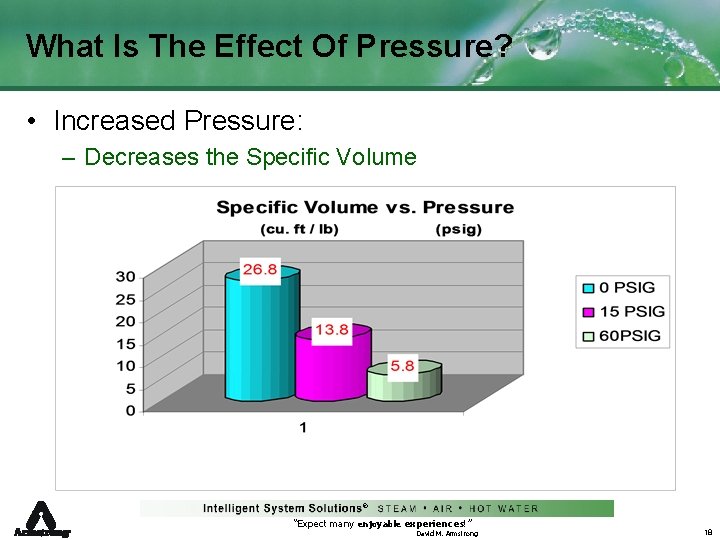

What Is The Effect Of Pressure? • Increased Pressure: – Decreases the Specific Volume ® “Expect many enjoyable experiences!” David M. Armstrong 18
![What Is The Effect Of Pressure? • Increased Pressure: – Increases the Steam Temperature What Is The Effect Of Pressure? • Increased Pressure: – Increases the Steam Temperature](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-19.jpg)

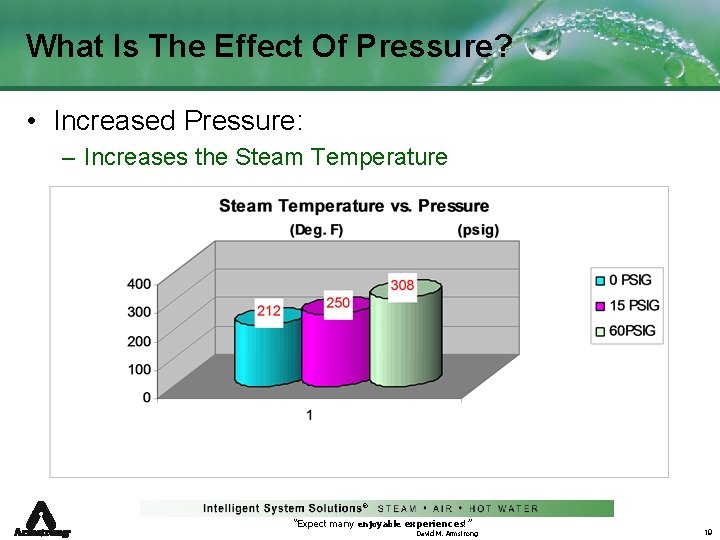

What Is The Effect Of Pressure? • Increased Pressure: – Increases the Steam Temperature ® “Expect many enjoyable experiences!” David M. Armstrong 19
![Specific Volume Latent Heat Sensible Heat Steam Temperature Steam Pressure The Pressure / Temperature Specific Volume Latent Heat Sensible Heat Steam Temperature Steam Pressure The Pressure / Temperature](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-20.jpg)
Specific Volume Latent Heat Sensible Heat Steam Temperature Steam Pressure The Pressure / Temperature / Volume Relationship ® “Expect many enjoyable experiences!” David M. Armstrong 20
![Identifying Steam Properties Steam Tables ® “Expect many enjoyable experiences!” David M. Armstrong 21 Identifying Steam Properties Steam Tables ® “Expect many enjoyable experiences!” David M. Armstrong 21](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-21.jpg)
Identifying Steam Properties Steam Tables ® “Expect many enjoyable experiences!” David M. Armstrong 21
![Steam tables allow us to identify all of the important properties of steam, given Steam tables allow us to identify all of the important properties of steam, given](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-22.jpg)
Steam tables allow us to identify all of the important properties of steam, given either the steam temperature or the steam pressure ® “Expect many enjoyable experiences!” David M. Armstrong 22
![Example: Steam at 250 o. F is at 15 psig, with 945 Btu’s/lb of Example: Steam at 250 o. F is at 15 psig, with 945 Btu’s/lb of](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-23.jpg)

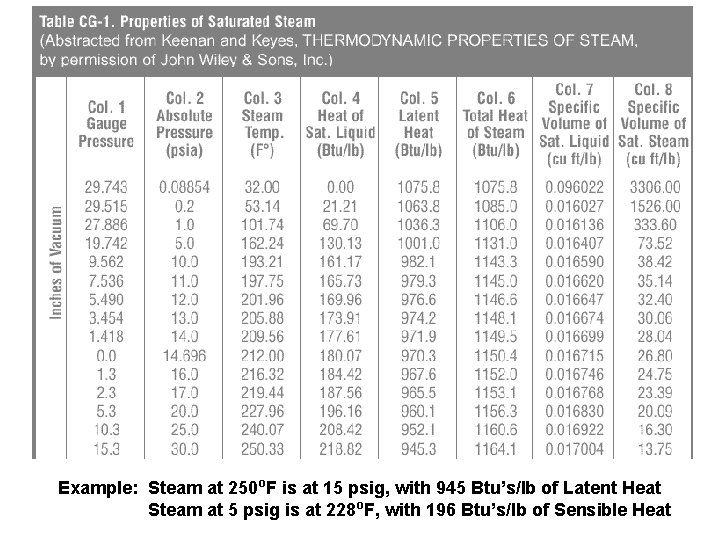

Example: Steam at 250 o. F is at 15 psig, with 945 Btu’s/lb of Latent Heat Steam at 5 psig is at 228 o. F, with 196 Btu’s/lb of Sensible Heat
![Now That We’ve Made Steam What Do We Do With It ® “Expect many Now That We’ve Made Steam What Do We Do With It ® “Expect many](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-24.jpg)

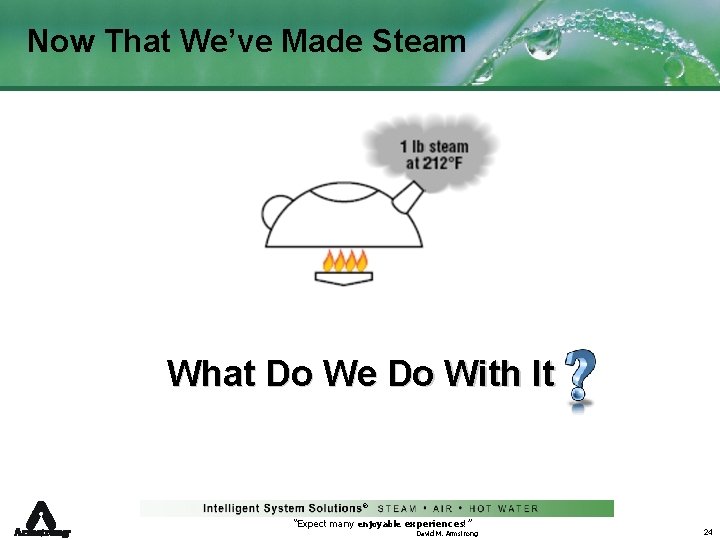

Now That We’ve Made Steam What Do We Do With It ® “Expect many enjoyable experiences!” David M. Armstrong 24
![Since Steam is used to Transfer Heat Energy From One Location to Another. . Since Steam is used to Transfer Heat Energy From One Location to Another. .](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-25.jpg)

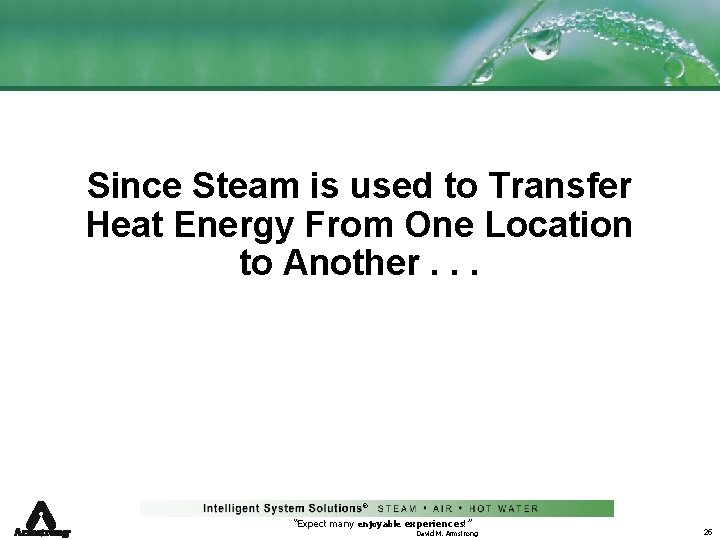

Since Steam is used to Transfer Heat Energy From One Location to Another. . . ® “Expect many enjoyable experiences!” David M. Armstrong 25
![It only makes sense that we take the heat energy back out and use It only makes sense that we take the heat energy back out and use](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-26.jpg)

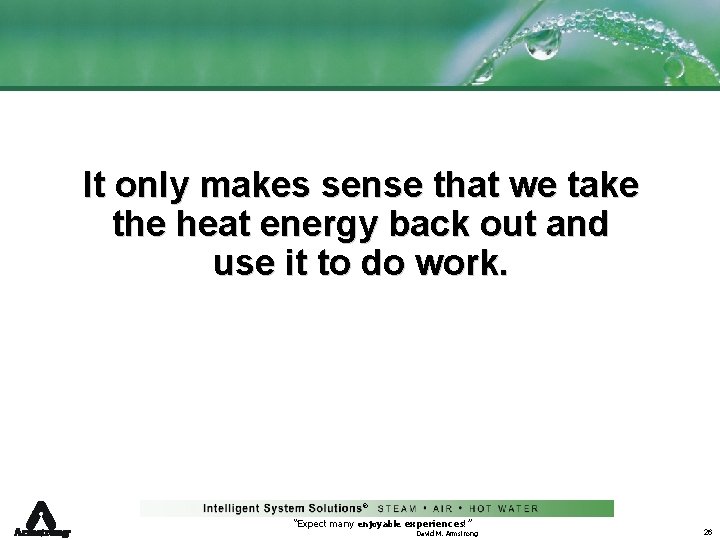

It only makes sense that we take the heat energy back out and use it to do work. ® “Expect many enjoyable experiences!” David M. Armstrong 26
![Removing Latent Heat 1 lb. of Steam at 212 F, with a TOTAL HEAT Removing Latent Heat 1 lb. of Steam at 212 F, with a TOTAL HEAT](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-27.jpg)

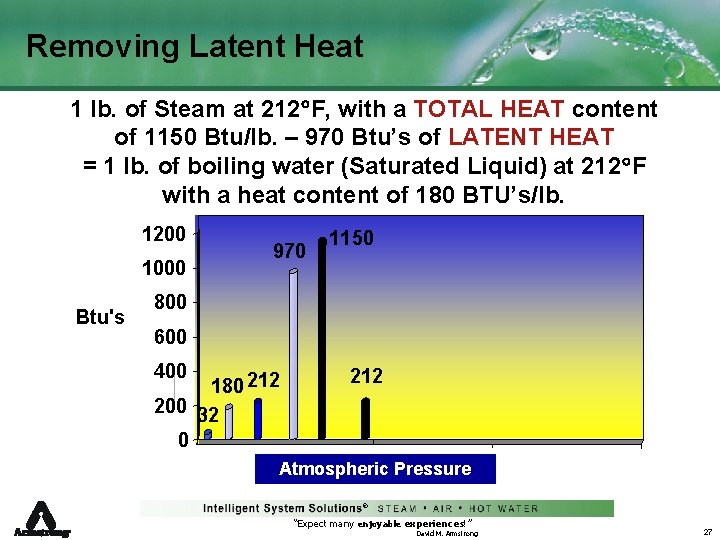

Removing Latent Heat 1 lb. of Steam at 212 F, with a TOTAL HEAT content of 1150 Btu/lb. – 970 Btu’s of LATENT HEAT = 1 lb. of boiling water (Saturated Liquid) at 212 F with a heat content of 180 BTU’s/lb. 1200 1000 Btu's 970 1150 800 600 400 180 212 200 32 0 212 Atmospheric Pressure ® “Expect many enjoyable experiences!” David M. Armstrong 27
![Remember: The Latent Heat added at the boiler is what we have available to Remember: The Latent Heat added at the boiler is what we have available to](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-28.jpg)

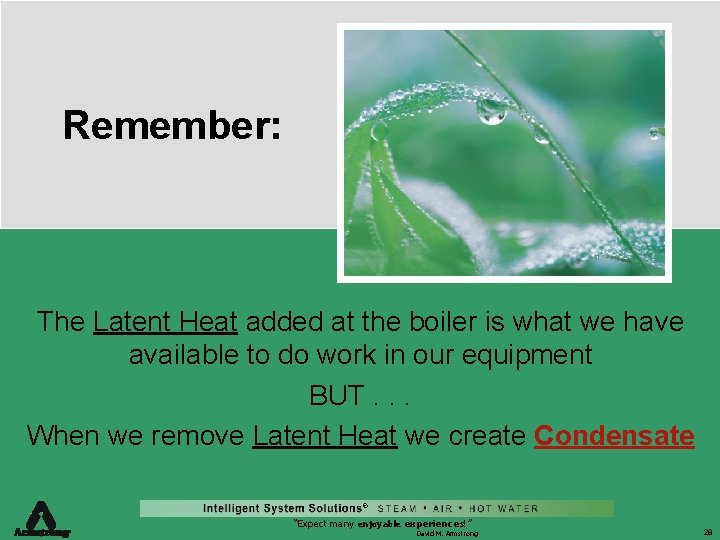

Remember: The Latent Heat added at the boiler is what we have available to do work in our equipment BUT. . . When we remove Latent Heat we create Condensate ® “Expect many enjoyable experiences!” David M. Armstrong 28
![Latent Heat can be removed intentionally, in a piece of heat exchange equipment, or Latent Heat can be removed intentionally, in a piece of heat exchange equipment, or](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-29.jpg)
Latent Heat can be removed intentionally, in a piece of heat exchange equipment, or unintentionally, from radiation heat loss in piping ® “Expect many enjoyable experiences!” David M. Armstrong 29
![What does this Unintentional Heat Loss Mean to your Steam System? Condensate Steam Vapor What does this Unintentional Heat Loss Mean to your Steam System? Condensate Steam Vapor](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-30.jpg)

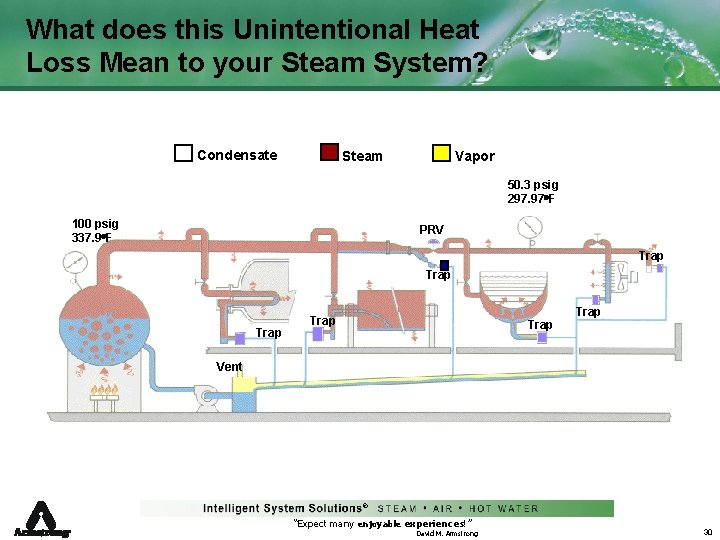

What does this Unintentional Heat Loss Mean to your Steam System? Condensate Steam Vapor 50. 3 psig 297. 97 F 100 psig 337. 9 F PRV Trap Trap Vent ® “Expect many enjoyable experiences!” David M. Armstrong 30
![It Means: The Steam System is Constantly Being Filled With Water (Condensate) ® “Expect It Means: The Steam System is Constantly Being Filled With Water (Condensate) ® “Expect](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-31.jpg)

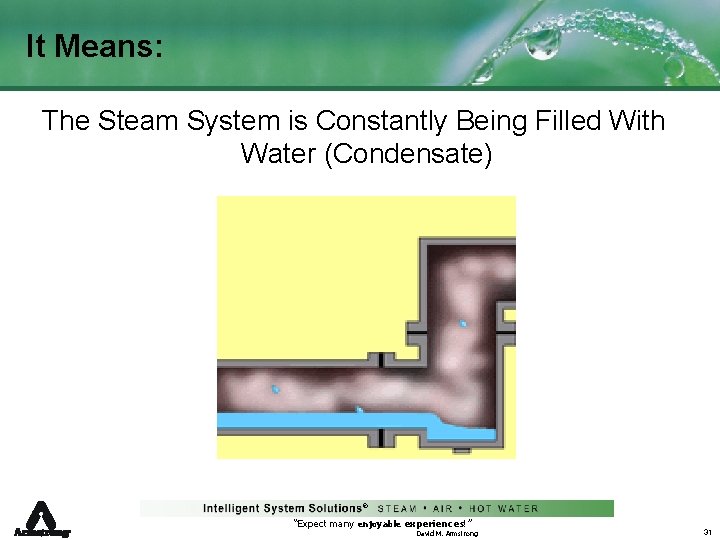

It Means: The Steam System is Constantly Being Filled With Water (Condensate) ® “Expect many enjoyable experiences!” David M. Armstrong 31
![It Means: Your Steam System is Subject to Corrosion ( CO 2 + H It Means: Your Steam System is Subject to Corrosion ( CO 2 + H](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-32.jpg)
It Means: Your Steam System is Subject to Corrosion ( CO 2 + H 2 O = H 2 CO 3 ) Subcooled Condensate + CO 2 Forms Carbonic Acid ® “Expect many enjoyable experiences!” David M. Armstrong 32
![It Means: Your Steam System is Subject to Water Hammer ® “Expect many enjoyable It Means: Your Steam System is Subject to Water Hammer ® “Expect many enjoyable](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-33.jpg)
It Means: Your Steam System is Subject to Water Hammer ® “Expect many enjoyable experiences!” David M. Armstrong 33
![It Means: Your Heat Exchange Equipment is Less Efficient ® “Expect many enjoyable experiences!” It Means: Your Heat Exchange Equipment is Less Efficient ® “Expect many enjoyable experiences!”](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-34.jpg)
It Means: Your Heat Exchange Equipment is Less Efficient ® “Expect many enjoyable experiences!” David M. Armstrong 34
![It Means: Your System Must Be Properly Piped ® “Expect many enjoyable experiences!” David It Means: Your System Must Be Properly Piped ® “Expect many enjoyable experiences!” David](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-35.jpg)

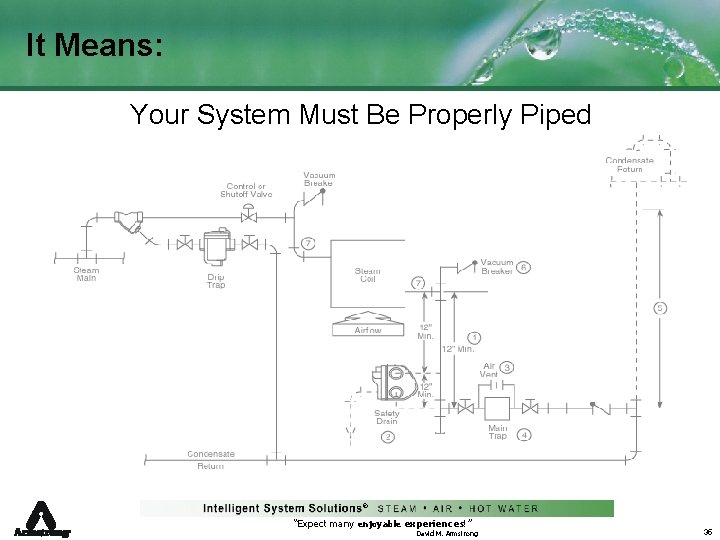

It Means: Your System Must Be Properly Piped ® “Expect many enjoyable experiences!” David M. Armstrong 35
![It Means: Your Equipment Must Be Properly Trapped ® “Expect many enjoyable experiences!” David It Means: Your Equipment Must Be Properly Trapped ® “Expect many enjoyable experiences!” David](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-36.jpg)
It Means: Your Equipment Must Be Properly Trapped ® “Expect many enjoyable experiences!” David M. Armstrong 36
![Armstrong Promise We provide intelligent system solutions that improve utility performance, lower energy consumption, Armstrong Promise We provide intelligent system solutions that improve utility performance, lower energy consumption,](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-37.jpg)
Armstrong Promise We provide intelligent system solutions that improve utility performance, lower energy consumption, and reduce environmental emissions. . . while providing an “enjoyable experience”! ® “Expect many enjoyable experiences!” David M. Armstrong 37
![® “Expect many enjoyable experiences!” David M. Armstrong 38 ® “Expect many enjoyable experiences!” David M. Armstrong 38](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-38.jpg)
® “Expect many enjoyable experiences!” David M. Armstrong 38
![© 2008 Armstrong International, Inc. © 2008 Armstrong International, Inc.](http://slidetodoc.com/presentation_image/3d1d431201468d0c5c381e35be58b675/image-39.jpg)
© 2008 Armstrong International, Inc.
