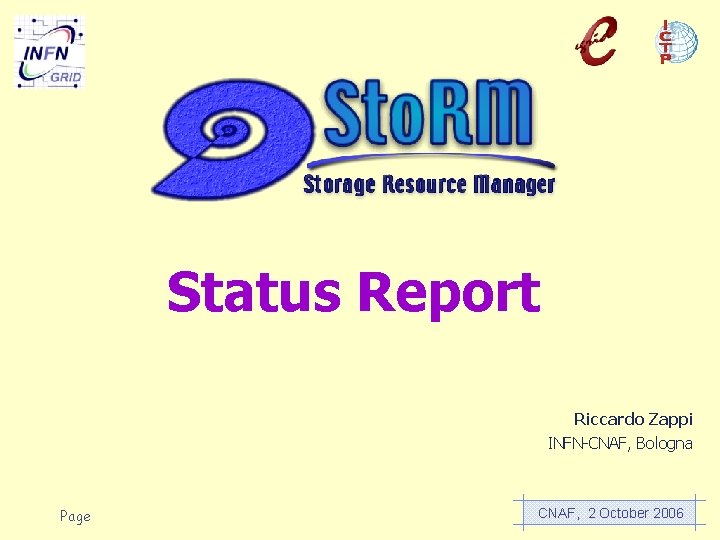

Status Report Riccardo Zappi INFN-CNAF, Bologna Page CNAF, 2 October 2006

Outline 1. Current Status • Functionalities developed • First SRM v 2. 2 interoperability test results 2. Next steps • Functionalities and Features incoming • Test bed for the experiments • Scenario for T 1 2 T 1 meeting CNAF, 2 October 2006

Migration Status to SRM v 2. 2 of Sto. RM • We started the migration from the released version of Sto. RM implementing SRM 2. 1. 1_modified (begin of July). • The followed strategy is based on adapting the 2. 1. 1 functions already developed. 3 T 1 meeting CNAF, 2 October 2006

Migration Status Summary Status Functionality Currently available srm. Ping, srm. Get. Protocols srm. Mkdir, srm. Rm, srm. Ls srm. Reserve. Space, srm. Get. Space. Metadata srm. Status. Of[*], srm. Prepare. To. Get, srm. Prepare. To. Put, srm. Put. Done, srm. Copy available by mid of October srm. Bring. On. Line, srm. Release. File, srm. Mv Available in near future 4 srm. Release. Space, srm. Change. Space. For. File, srm. Purge. From. Space T 1 meeting CNAF, 2 October 2006

SRM v 2. 2 Interoperability test • The interoperability tests are made within GIN context (Coordinated by Alex Sim (LBNL)). • Basic functional tests • Simple scenario for copy • More complex scenario Real time results are visible at: http: //sdm. lbl. gov/srm-tester/v 22 -progress. html 5 T 1 meeting CNAF, 2 October 2006

Interoperability test: preliminary results CERN Castor CERN DPM FNAL d. Cache INFN/EGRID Sto. RM RAL Castor LBNL SRM Ok Ok Exception Ok Ok Ok Prepare. To. Put, Status, Put. Done N. A. Ok Ok Ok Prepare. To. Get, Status Exception Ok Ok Ok Failed Ok Release N. A. Ok Ok Ok N. A. Ok Mkdir Ok Ok Ok Rmdir Ok Ok Ok Mv N. A. Ok Ok Rm N. A. Ok Ok Ok Ls Exception Ok Ok Exception Ok Reserve. Space Failed Ok Ok Ok Failed Ok Release. Space N. A. Ok Ok N. A. Ok Bring. Online, Status N. A. Ok N. A. Failed N. A. Ok Methods Ping 6 T 1 meeting CNAF, 2 October 2006

3 rd Party Copy Target SRM è Source SRM ê CERN Castor CERN DPM FNAL d. Cache INFN/EGRID Sto. RM N. A. Ok Ok CERN DPM N. A. FNAL d. Cache N. A. Ok INFN/EGRID Sto. RM N. A Ok Ok RAL Castor N. A. LBNL SRM N. A. Ok Ok Ok 7 T 1 meeting RAL Castor LBNL SRM Site Down Ok N. A. Ok CNAF, 2 October 2006

More complex scenario • get_1 • put_2 • gridftp_between_1_2 • release_1 • put_done_2 • srm. Ls_2 • remove_2 This scenario will be executed within a demo in SC 06. Sto. RM will be present! 8 T 1 meeting CNAF, 2 October 2006

Next Steps • Basic functionalities (Bo. L, MV, Release. Files) • Documentation for Users and Site Admin – New web site (wiki based) – New install guide (now via YAIM) and config. guide • Some improvements suggested by Vincenzo Vagnoni and risen during the tests. – Multiple volume – Authorization source (group/VO, path) – … • Sto. RM clients (CLI) improvements (man) • . . . 9 T 1 meeting CNAF, 2 October 2006

Timeline expected • Functionalities : mid/end of October • Improvements : mid/end of November • Documentation : ASAP Other tasks are concurrent: - Support GIN inter-op test - Dissemination of Sto. RM - CGW 06 conference (Crakow), Core. Grid meeting (Crakow), SC 06. By the end of October Sto. RM (SRM v 2. 2) will be ready (enough stable) for testing by experiment team, but if there are someone curious the Sto. RM endpoint is srm: //ibm 139. cnaf. infn. it: 8444//srm/managerv 2 10 T 1 meeting CNAF, 2 October 2006

Sto. RM test bed Currently Sto. RM is installed for test purpose only in: -ibm 139. cnaf. infn. it: 8444 - Underlying file system is GPFS v. 3. 1 with 60 GB of space - Dedicated to inter-op test and SC 06 demo. At the begin of November Sto. RM will be able to support more testers, so : - Better test bed should be installed (and different from ibm 139!) - Available to the testing job of experiment. We need the description of how experiment application would like to use the storage. 11 T 1 meeting CNAF, 2 October 2006

Using of SRM v 2. 2 Available by the end of October (declared) • FTS • GFAL • lcg-utils • “Private” clients – Sto. RM provides clients CLI – Other API or Clients are possible 12 T 1 meeting CNAF, 2 October 2006

Sto. RM and SRM-Castor cohabitation srm. Copy Sto. RM GPFS srm. Pt. G file, rfio SRM - Castor srm. Pt. G rfio WN 13 T 1 meeting CNAF, 2 October 2006

Questions ? ! 14 T 1 meeting CNAF, 2 October 2006
