Status of tools and available beam instrumentation in the PS for MTE Marcel Coly, Alexander Huschauer, Davide Gamba, Frank Tecker Many thanks to the Operations team!

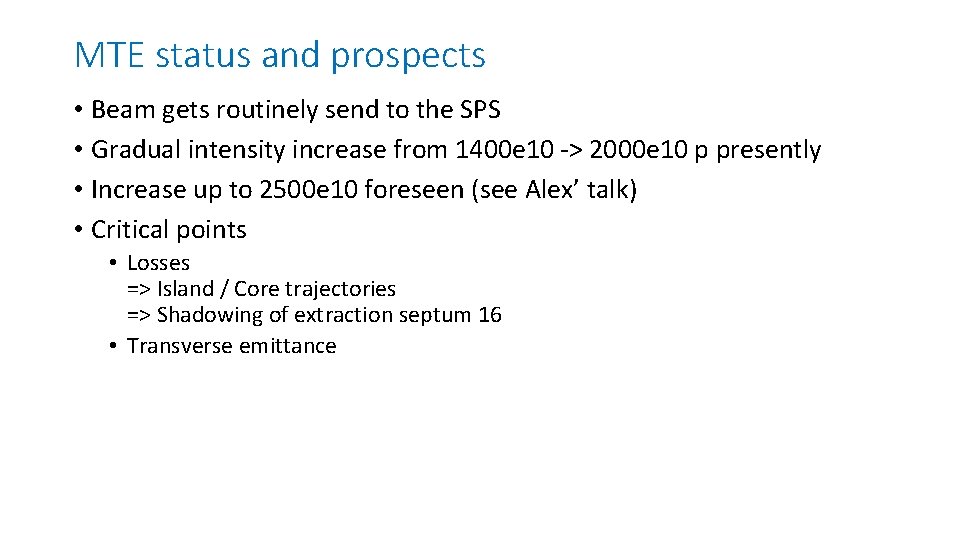

MTE status and prospects • Beam gets routinely send to the SPS • Gradual intensity increase from 1400 e 10 -> 2000 e 10 p presently • Increase up to 2500 e 10 foreseen (see Alex’ talk) • Critical points • Losses => Island / Core trajectories => Shadowing of extraction septum 16 • Transverse emittance

MTE Vistar

Orbit for island extraction - Shadowing Dummy septum 15 is to protect SMH 16 from excessive losses

Diamond BLMs around extraction • The shadowing was well setup in 2015/16 by using fast BLMs to shift losses from SHM 16 to the dummy septum in SS 15. • Reflected in radiation surveys that show dose in SS 16 less than ½ of SS 15 • In 2017, BLMs were not available until July BLM 15 • Orbit changed after realignment 2015 (at 10 Ge. V => better at 14 Ge. V? ) • Optimizing the shadowing impossible BLM 16 • 2017 ITS radiation surveys show equal dose rate in SS 15 and 16

Shadowing optimization • Losses in SS 16 almost as high as in SS 15 • Dummy septum / septum movement affects other beams • Position of the dummy septum is at interior limit • Possible to improve shadowing by orbit changes • Optimization difficult Operational MTE BLM 15 BLM 16 MTE clone BLM 15 BLM 16

Orbit correction • Only 3 high energy correctors (sections 5, 18, 60) • Linear feedback tool from Davide Gamba • First used to move orbit at BPM 15 by +3 mm • Tried to approach 2016 orbit

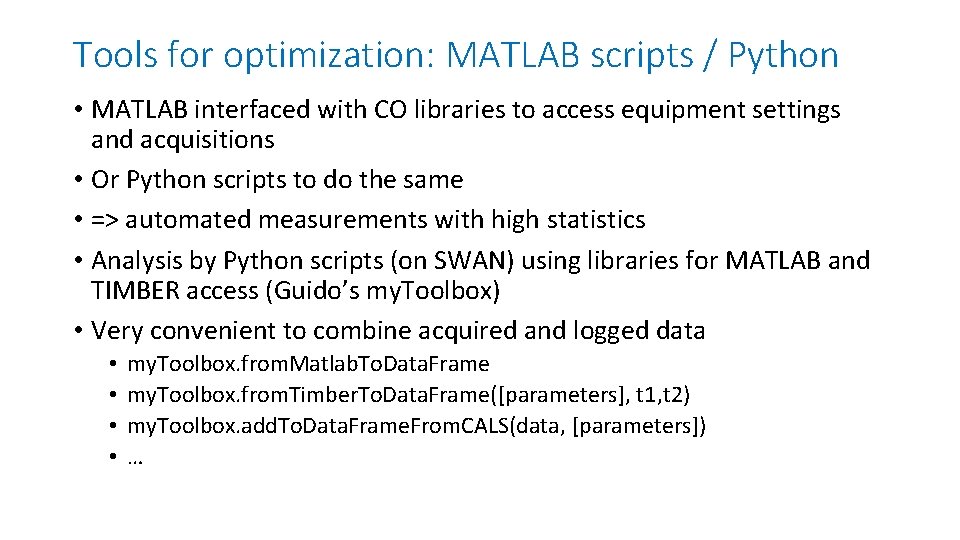

Tools for optimization: MATLAB scripts / Python • MATLAB interfaced with CO libraries to access equipment settings and acquisitions • Or Python scripts to do the same • => automated measurements with high statistics • Analysis by Python scripts (on SWAN) using libraries for MATLAB and TIMBER access (Guido’s my. Toolbox) • Very convenient to combine acquired and logged data • • my. Toolbox. from. Matlab. To. Data. Frame my. Toolbox. from. Timber. To. Data. Frame([parameters], t 1, t 2) my. Toolbox. add. To. Data. Frame. From. CALS(data, [parameters]) …

Bump optimization • Four fast bumpers in SS 12, 14, 20, and 22 • Done by Marcel with Python scripts • Can improve the shadowing • Better shadowing increased total losses and other BLMs Marcel Coly

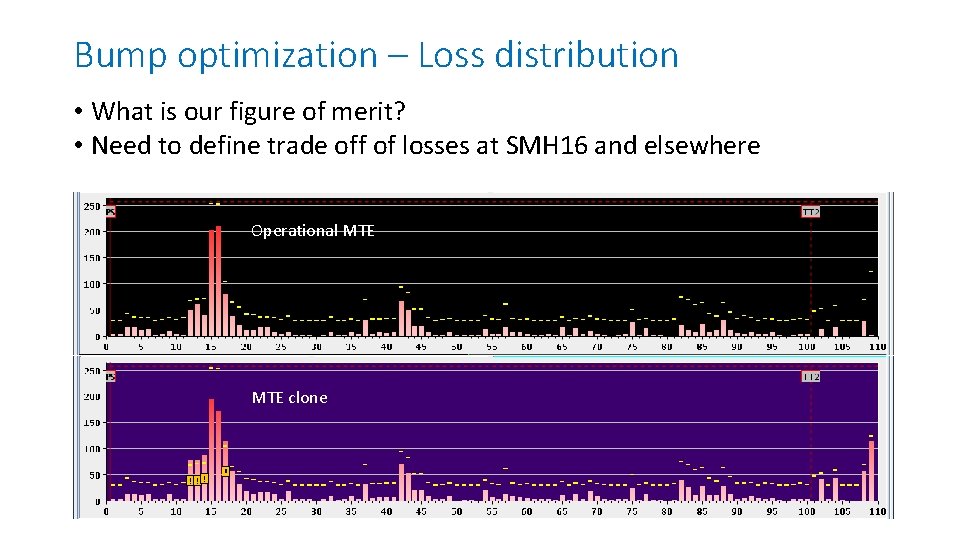

Bump optimization – Loss distribution • What is our figure of merit? • Need to define trade off of losses at SMH 16 and elsewhere Operational MTE clone

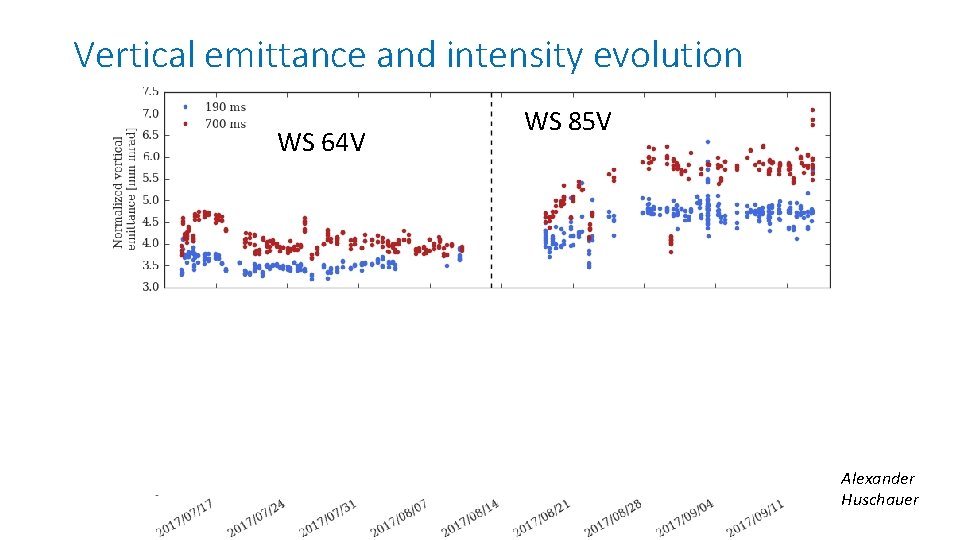

Vertical emittance and intensity evolution WS 64 V WS 85 V Alexander Huschauer

Vertical emittance • 64 V broken wire since mid-August => 85 V had to be used • 85 V gives larger emittance measurement => only relative measurements • SEMGrids in PS measure higher value than is SPS @ 190 ms Alexander Huschauer @ 700 ms

Vertical emittance • For higher intensity • Higher injected emittance • Stronger blowup during cycle Alexander Huschauer

Scan of vertical emittance (12/09/2017) - WS 85 V • Intensity ~1800 e 10 • TFB excitation OFF • Main growth in first ramp and beginning of flat top • Constant bucket area could help for first ramp • Working point optimization could help for flat top Alexander Huschauer

BTV 15 screen • Used to steer the extraction • In mid-July it did not go to out position and can’t be used since • Will be hopefully examined during technical stop next week

TT 2 extraction line • Fast correctors (DFAs) allow to correct the 5 extracted turns • Setting on one cycle can affect another cycle => needs identical values on different cycles • BPM 274 in F 16 is now available in sampler to see spill trajectory • Regulation usually done by the SPS (Stephane) • SEMFil F 16. BSF 277 defective and taken out • SEMGrids have to be used

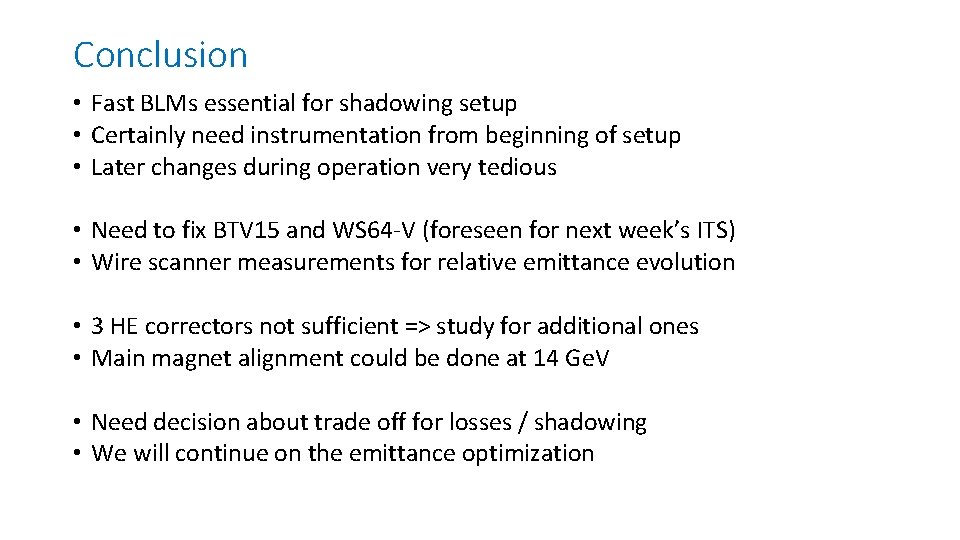

Conclusion • Fast BLMs essential for shadowing setup • Certainly need instrumentation from beginning of setup • Later changes during operation very tedious • Need to fix BTV 15 and WS 64 -V (foreseen for next week’s ITS) • Wire scanner measurements for relative emittance evolution • 3 HE correctors not sufficient => study for additional ones • Main magnet alignment could be done at 14 Ge. V • Need decision about trade off for losses / shadowing • We will continue on the emittance optimization
