Status of EPICs Operations Guillermo Buenadicha Neil Cheek

Status of EPICs Operations Guillermo Buenadicha Neil Cheek MALLORCA 26/10/2006 XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 1

SUMMARY · · General XMM activities in the period PN events MOS events OBSW report · Slew Survey – General description – Preparatory tests – Rev #1242 – Future activities XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 2

General XMM activities · Summer eclipse 2006 – From rev. #1211 to rev. #1222, 12 eclipses after perigee. – Longest eclipse duration: 59’ – No significant changes w. r. t previous eclipses, operations automatically handled from TL or time tagged TC’s. – One instrument reconfiguration after eclipse affected due to a TC failure (G/S failure). XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 3

General XMM activities XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 4

General XMM activities · OTHER ACTIVITIES – Training to MOC: One week review of Instrument Activities and Operations, (one MOC engineer per instrument) designed to provide redundant first level support in case of manpower shortage or redistribution. – DB release version 5. 4 deployed in 1221 (08/08/06), mainly providing needed inputs for Slew Survey plus other fixes. – RBI clock resynchronization on rev #1173 (05/05/06), next on #1270 (16/11/06) XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 5

General XMM activities · Ground segment for XMM – S 2 K Ground system, release 9. 5 under testing, ready to deploy. Should be the final version to freeze. – All ESTRACK network planned to migrate from X-25 to TCP/IP. Affects PERTH and KOUROU. Some minor impacts during testing, plus impact from KOUROU suffering maintenance. – No more regular SANTIAGO support as of 2007. Gap with no TC but with TM around apogee. Instruments radiation protection TBD. – Possible loss of KOUROU in parts of 2007 due to ULYSSES nutation control campaign. TBC strategy, STG provides redundant coverage. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 6

PN OPERATIONS · PN new BRAT of 24 Kbps is now permanent, selected from the T/L or manually reconfigured if required. · RGS 2 in SETUP from 1207 to 1210, due to analysis of NCR-113 (no science produce, anomaly found correlated to temperature of electronics). Impact on the gain of PN, due to electronics cool down. · TC failure in PN F 0096 in rev #1214, one quadrant not responding to it and remaining in ROM version. Detected through consistency among all EPEA SW versions. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 7

PN OPERATIONS · Special Tests for PN · PN Timing with modified threshold during the NRCO-63 in Omega Centauri, rev. #1227 (threshold lowered by 4 ADU to 548 without offset calculation). · Future tests for November 2006 – Lower threshold by 4 ADU in LW during RCO of OM. Offsets to be calculated with or without new value ? ? ? – NRCO-57 repeat, source PKS 2155 -304, SW with offsets in closed FW set to Thin-Medium-Thick final Offsets in Thick XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 8

PN OPERATIONS · PN LCL failure in rev 1201, 30/06/06 · SEU opening of LCL for EPIC PN Branch A, causing loss of power to the instrument. · Thermal situation under control thanks to CDMU J CSF function and good operator and engineering responses. · MOS thermal impact due to the use of redundant heaters. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 9

PN OPERATIONS LCL failure PN OFF CSF triggered heaters ON Redundant heater off Recovery, EPDH K load PN ON, TH ctrl back Nom heater off XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 10

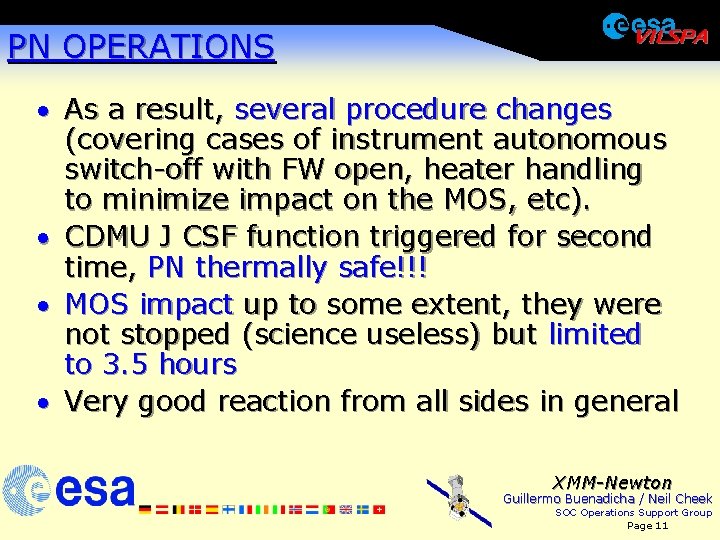

PN OPERATIONS · As a result, several procedure changes (covering cases of instrument autonomous switch-off with FW open, heater handling to minimize impact on the MOS, etc). · CDMU J CSF function triggered for second time, PN thermally safe!!! · MOS impact up to some extent, they were not stopped (science useless) but limited to 3. 5 hours · Very good reaction from all sides in general XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 11

MOS OPERATIONS · Pinhole test in NRCO-63 (Omega Cen) – Diagnostic RPP mode – FW positions away from calibrated ones, 12 and 20 degrees from Medium to Thin-2 – Series of 5 diagnostics of CCD 1, 2 and 7 · New mode for diagnostics to be executed Nov 2006 – – 3 full frame for all 7 CCDs 10 frames CCD 1 SW + 1 FF peripherals with CCD 1 in SW 5 frames CCD 1 LW + 1 FF peripherals with CCD 1 in LW 10 frames CCD 1 TI + 1 FF peripherals with CCD 1 in TI XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 12

MOS OPERATIONS MOS 1 SW Rev 1159 Obs ID: 0410180301 SOURCE: RS Oph SAS, emproc · DB modifications – MOS: Correction of sequences of IDLE to avoid problems with new BRAT. The sequence handling the Go To Idle is now 200 s. long. – The new BRAT was also affecting diagnostics. The diagnostic sequences have been modified to reset 16 Kbps BRAT before and go to 12 at the end. – DB now detects through DP’s the case of HBR stuck on 25% occupancy, to prevent NCR-42 Rev 1159, ID: 0410180301, RS Oph, MOS 1 in SW XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 13

PENDING SW Activities XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 14

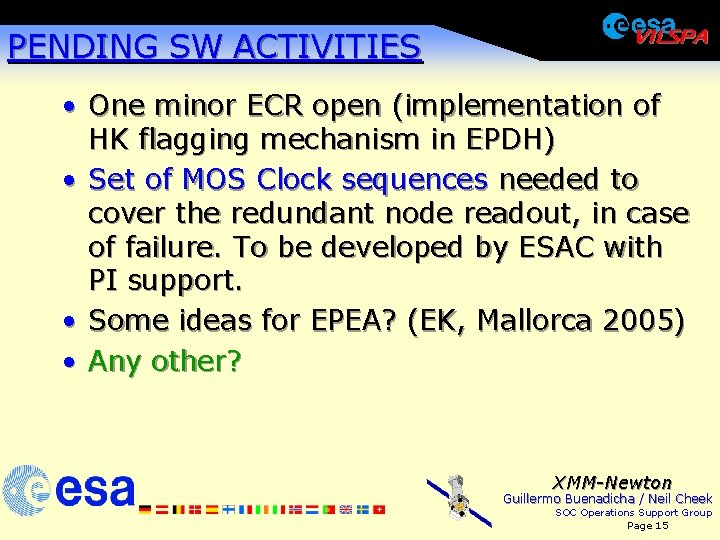

PENDING SW ACTIVITIES • One minor ECR open (implementation of HK flagging mechanism in EPDH) • Set of MOS Clock sequences needed to cover the redundant node readout, in case of failure. To be developed by ESAC with PI support. • Some ideas for EPEA? (EK, Mallorca 2005) • Any other? XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 15

OBSW: S 2 K for the EGSE HLCL + OBDH + Power CCOE EGSE. log ISU TC + ACK/NAK + REP TM TM OTHERS EXP-COE EXT S 2 K. log TC + ACK/NAK + REP DB Editors NCTRS · Major problem is how to translate from spare environment procedures to flying unit ones and vice versa, plus how to maintain usability. · Meeting held at ESAC in Sept. to assess needs for S 2 K usage at EGSE. · Analysis from ESAC of data in the current EGSE and also in the S 2 K environment. · Several needs identified, analysis ongoing to assess cost and timescale. · T. Abbey coordinator, ESAC acts as consultant. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 16

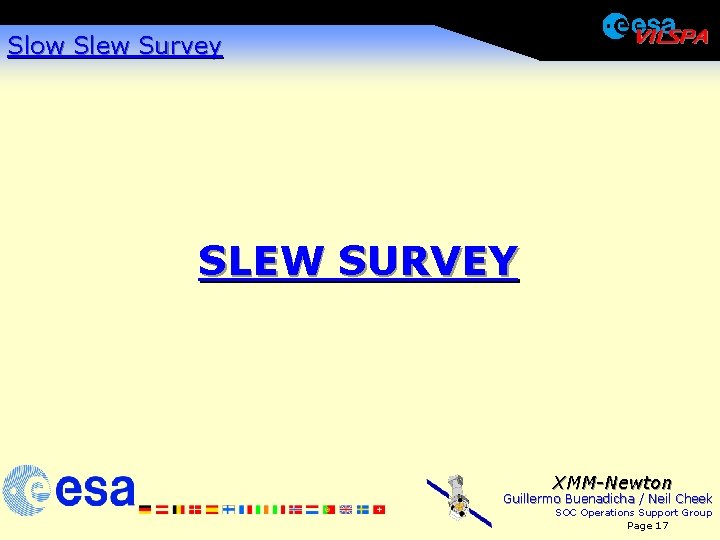

Slow Slew Survey SLEW SURVEY XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 17

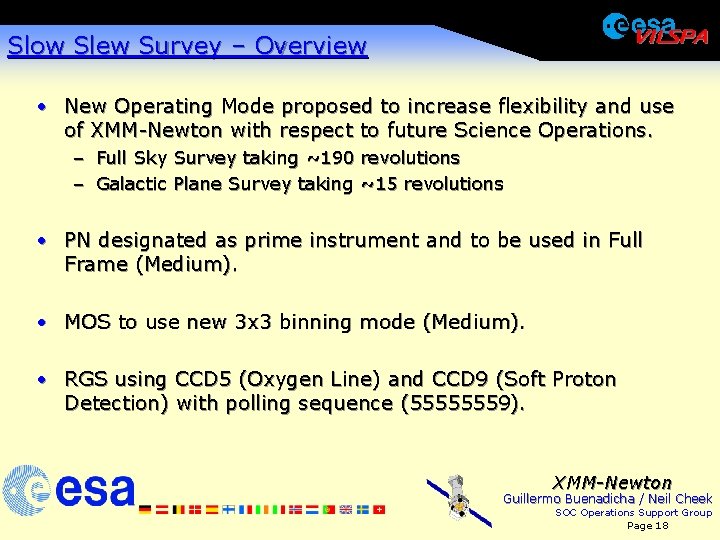

Slow Slew Survey – Overview · New Operating Mode proposed to increase flexibility and use of XMM-Newton with respect to future Science Operations. – Full Sky Survey taking ~190 revolutions – Galactic Plane Survey taking ~15 revolutions · PN designated as prime instrument and to be used in Full Frame (Medium). · MOS to use new 3 x 3 binning mode (Medium). · RGS using CCD 5 (Oxygen Line) and CCD 9 (Soft Proton Detection) with polling sequence (55555559). XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 18

Slow Slew Survey – Overview (cont) · OM requires new High Time Resolution mode (RTRD) to be developed. · Feasibility testing at both Spacecraft and MOC/SOC systems level had to be completed by end September 2006. · Complete revolution (1242) dedicated for first Survey across the Galactic Centre. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 19

Slow Slew Survey – Preparation · MOC perform testing of slew speeds at both 20 deg/h and 30 deg/h. The later is chosen to be used during rev 1242. · PN Offset calculation repetition rate increased to 100 to gain cleaner pixel by pixel offset values. Testing indicates no problems. Database definitions already present hence no further work required. · MOS 3 x 3 binning mode implemented with its reduced frame time of 0. 4 s in comparison to Full frame (2. 7 s). Initial testing performed manually during rev 1210, with relevant definitions consequently being applied in the database and re-tested during rev 1228. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 20

Slow Slew Survey – Preparation (cont) · Updated Database released to support rev 1242 Survey. · Due to no proposals being available for Slew Survey, and consequently no targets, the planning could not be performed using the Proposal Handling System. This meant that a high level of manual intervention was required to produce the POS/ICP. · Rules and Constraints file used to integrate database components into planning cycle. Thereby, offering full flexibility and by passing the need for Activities. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 21

Slow Slew Survey – MOS 3 x 3 Binning · First test during rev 1210 (CALCLOSED) was performed only on MOS-1, without any Bright Pixel masking and theoretical offset tables (TC’s manually modified). The test being performed with both 0. 4 s and 0. 5 s integration times. · Second test, to verify database entries, was performed during rev 1228 (CALCLOSED) on both MOS-1 and MOS-2. Bright Pixel Tables were derived from the 1 x 1 Sequences and Offsets based on results seen during rev 1210. No further changes were necessary for rev 1242. · Clock sequences used were the same as for 3 x 3 diagnostic. · Bandwidth remained at roughly 6 kb/s during above testing. Therefore, no appreciable increase compared to 1 x 1 (CALCLOSED). XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 22

Slow Slew Survey – MOS 3 x 3 Bin. (cont) Image shows QLA interpretation (!) of MOS-2 3 x 3 data in Full Frame (Closed Cal) using 203 lines x 201 columns per CCD. View on right showing all CCDs in comparison to the zoomed view on the left. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 23

Slow Slew Survey – Rev 1242 · Survey consisted of 16 Open Loop slews across the Galactic Centre each lasting around 1. 5 hours at a rate of 30 deg/h with each leg being separated by 15 arcmin. A Closed Loop Slew (~17 mins) then being used to move from the end of one OLS to the start of the next. · In order to keep filter wheel movements to a minimum EPICs remained in an Medium position during all slews. · To ensure EPIC safety against radiation, RGS remained observing during both Open and Closed Loop slews thereby providing soft proton detection at all times. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 24

Slow Slew Survey – Rev 1242 (cont) · MOS/PN sent to idle at end of each Open Loop Slew (FW remained in Medium) This ensured correct termination of data products for each leg. · During the Closed Loop Slew PN down-linked discarded lines. · RGS used as originally foreseen. · OM used in Image+Fast (UVM 2) with reduced window size (2 windows of 22 x 23). XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 25

Slow Slew Survey – Future Activities · Super ED’s required to rejoin instruments during an Open Loop Slew, thereby removing the current constraint of rejoining at the start of the next leg (worse case loss of 1. 5 hours). · Incorporate inputs from calibration team for 3 x 3 mode (new offsets/Bright Pixel Tables) into Database (i. e. fully commission mode). · PN observations will be extended into the Closed Loop Slews by sacrificing down-link of discarded lines. Requires new ED. · Implement strategy for reduction of manual activities required for POS/ICP Generation. XMM-Newton Guillermo Buenadicha / Neil Cheek SOC Operations Support Group Page 26
