Status of CERN tests Naoki Kimura for the

Status of CERN tests Naoki Kimura for the FTK group 1

Motivation • Dual-HOLA, IM and DF combined test at CERN for coming FTK Global Integration on this summer (Jun to Sep). – These modules are the most up stream of FTK system. – Early phase test of input boards using real data are important. Debug interface with ID. Start to look at synchronization with ID and TDAQ. – They are the input for downstream modules, so these should be work well and be robust. 2

Previous VS test @ CERN We did the Vertical Slice using first prototype boards and real data at CERN 2012 -2013. • Receive real ROD outputs from SCT @ P 1. Vertical Slice Test ATLAS Run Control • ROD data receiving with required input data speed (L 1: 70 k. Hz) is successful in ATLAS environment. • Received data was correctly processed by some FTK prototype boards. • Data sending to ROS was checked by on ATLAS TDAQ system, and ATLAS Run Control worked without error form FTK. 3

Test Hardware Setup We used Dual-HOLA => Input mezzanine (IM) => Data Formatter (DF) => Reare Trandition Module (RTM) => ROS setup using latest boards. Current TEST Setup 4

QUEST Test Hardware Setup For pseudo data Input Mezzanine (IM) Dual-HOLA SCT Pixel (IBL ) ROD Current TEST Setup ROS PC Data Formatter (DF) Rear Transition Module (RTM) ROBIN card 5

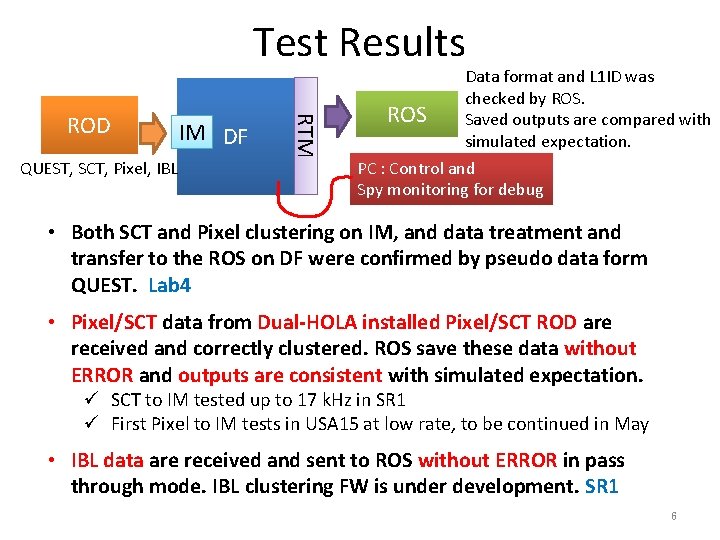

Test Results QUEST, SCT, Pixel, IBL IM DF RTM ROD Data format and L 1 ID was checked by ROS Saved outputs are compared with simulated expectation. PC : Control and Spy monitoring for debug • Both SCT and Pixel clustering on IM, and data treatment and transfer to the ROS on DF were confirmed by pseudo data form QUEST. Lab 4 • Pixel/SCT data from Dual-HOLA installed Pixel/SCT ROD are received and correctly clustered. ROS save these data without ERROR and outputs are consistent with simulated expectation. ü SCT to IM tested up to 17 k. Hz in SR 1 ü First Pixel to IM tests in USA 15 at low rate, to be continued in May • IBL data are received and sent to ROS without ERROR in pass through mode. IBL clustering FW is under development. SR 1 6

DF test with ATCA crate Currently DF boards are working standalone with additional power supply, but finally DF boards are installed to ATCA for the high speed data sharing on each boards. DF board on ATCA crate Some ATCA tests are done at Lab 4 • DF boards are inserted to ATCA and power is supplied by ATCA crate. • Hot-swap functionality is confirmed. • Net work access to DF board via ATCA switch board is checked. With help by Silvia M. B. (netadmins) 7

CERN combined test team INFN Waseda AUTH U. Chicago AUTH Waseda

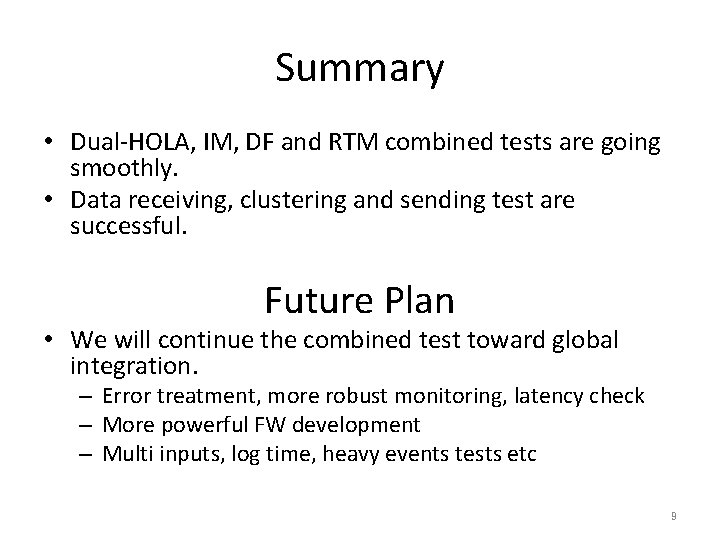

Summary • Dual-HOLA, IM, DF and RTM combined tests are going smoothly. • Data receiving, clustering and sending test are successful. Future Plan • We will continue the combined test toward global integration. – Error treatment, more robust monitoring, latency check – More powerful FW development – Multi inputs, log time, heavy events tests etc 9
