Statistical based IDS background introduction Statistical IDS background
Statistical based IDS background introduction
Statistical IDS background • Why do we do this project • Attack introduction • IDS architecture • Data description • Feature extraction • Statistical method introduction • Result analysis
Project goals • Related work – Internet has various network attacks, including denial of service attacks and port scans, etc. – Overall traffic detection – Flow-level detection • Our goals – Detect both attacks at the same time – Differentiate Do. S and port scans
Attack introduction • TCP SYN flooding - An important form of Do. S attacks - Exploit the TCP’s three-way handshake mechanism and its limitation in maintaining half-open connection - Feature: spoofed source IP - Recent reflected SYN/ACK flooding attacks

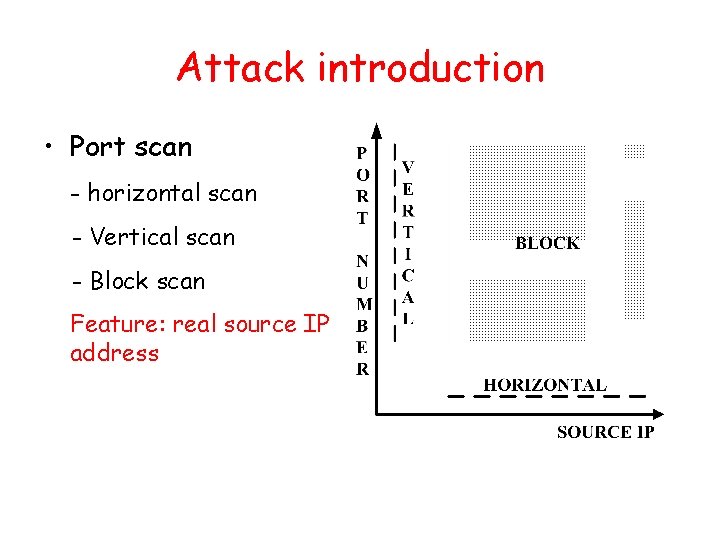

Attack introduction • Port scan - horizontal scan - Vertical scan - Block scan Feature: real source IP address

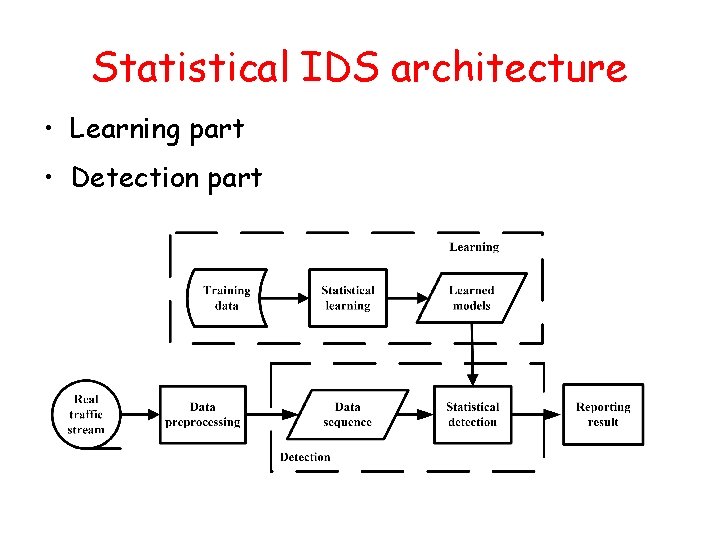

Statistical IDS architecture • Learning part • Detection part

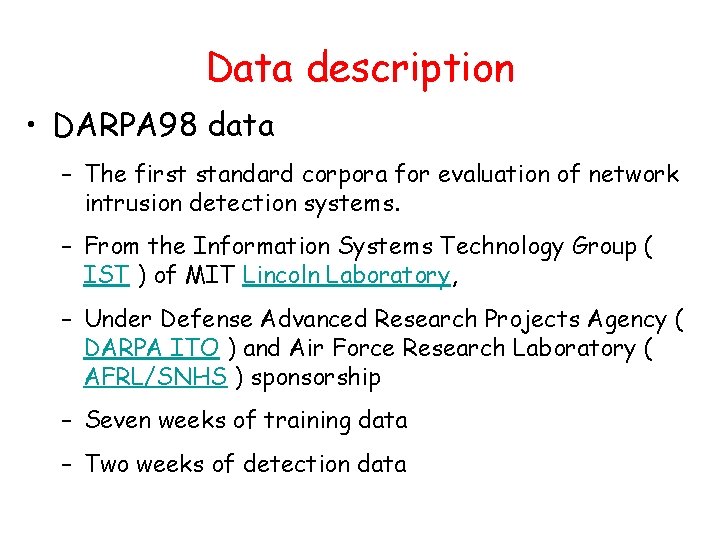

Data description • DARPA 98 data – The first standard corpora for evaluation of network intrusion detection systems. – From the Information Systems Technology Group ( IST ) of MIT Lincoln Laboratory, – Under Defense Advanced Research Projects Agency ( DARPA ITO ) and Air Force Research Laboratory ( AFRL/SNHS ) sponsorship – Seven weeks of training data – Two weeks of detection data
Data description • DARPA 98 data format 897048008. 080700 172. 16. 114. 169. 1024 > 195. 73. 151. 50. 25: S ACK 1055330111: 1055330111(0) win 512 <mss 1460> - Time stamp: 897048008. 080700 - Source IP address + port: 172. 16. 114. 169. 1024 - Destination IP address + port: 195. 73. 151. 50. 25 - TCP flag: S (maybe other : R, F, P) - ACK flag: ACK - Other part of packet header: 1055330111(0) win 512 <mss 1460>

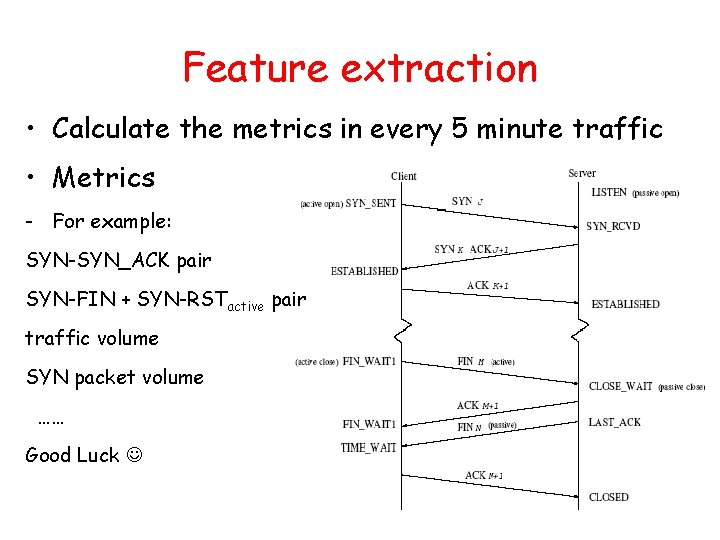

Feature extraction • Calculate the metrics in every 5 minute traffic • Metrics - For example: SYN-SYN_ACK pair SYN-FIN + SYN-RSTactive pair traffic volume SYN packet volume …… Good Luck
Statistical method • Statistical based IDS Goals: Using statistical metrics and algorithm to differentiate the anomaly traffic from benign traffic, and to differentiate different types of attacks. - Advantage: detect unknown attacks - Disadvantage: false positive and false negative

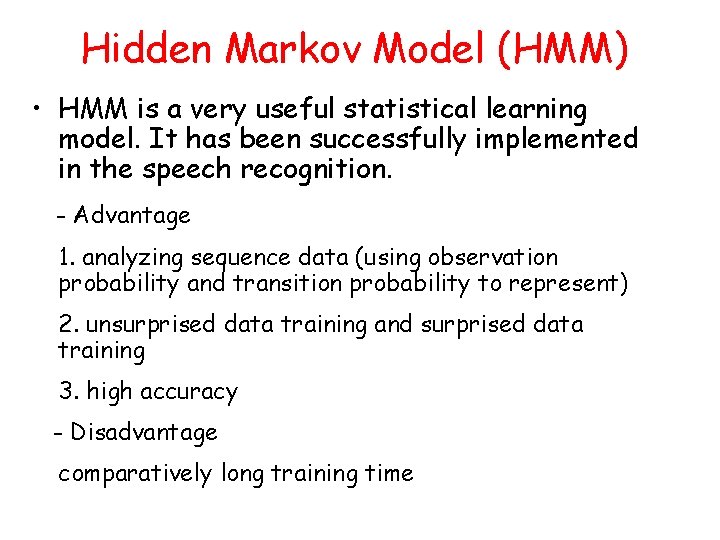

Hidden Markov Model (HMM) • HMM is a very useful statistical learning model. It has been successfully implemented in the speech recognition. - Advantage 1. analyzing sequence data (using observation probability and transition probability to represent) 2. unsurprised data training and surprised data training 3. high accuracy - Disadvantage comparatively long training time

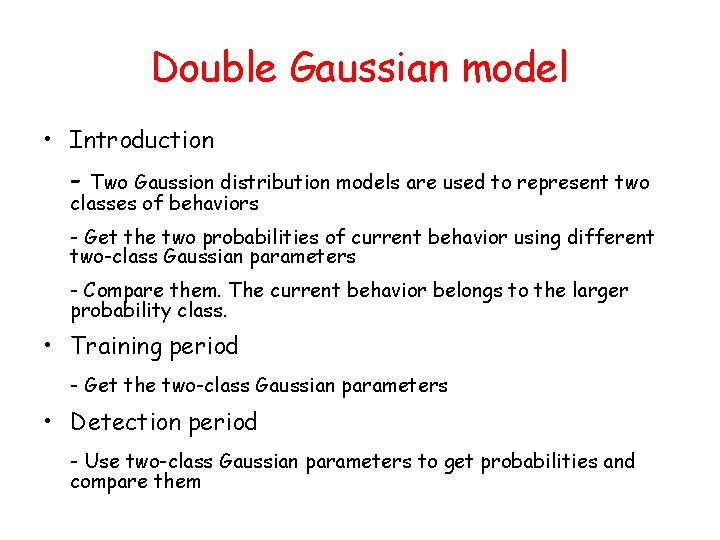

Double Gaussian model • Introduction - Two Gaussion distribution models are used to represent two classes of behaviors - Get the two probabilities of current behavior using different two-class Gaussian parameters - Compare them. The current behavior belongs to the larger probability class. • Training period - Get the two-class Gaussian parameters • Detection period - Use two-class Gaussian parameters to get probabilities and compare them
Double Gaussian model • Advantage – Simple, easy to understand – Fast • Disadvantage – No sequence characteristic
Result analysis • Evaluation - Important quantitative analysis: false positive + false negative - Looking at metric value, and finding the reasons - Repeating experiments
