Static Memory Management for Efficient Mobile Sensing Applications Farley Lai, Daniel Schmidt, Octav Chipara Department of Computer Science EMSOFT 2015 University of Iowa | Mobile Sensing Laboratory

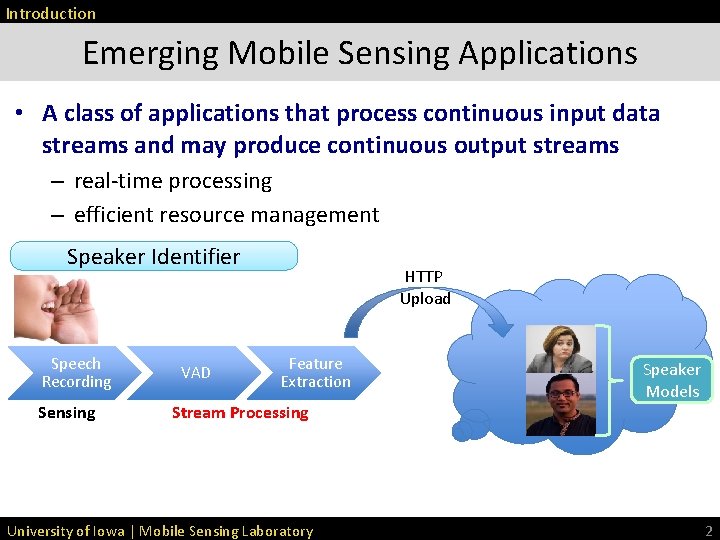

Introduction Emerging Mobile Sensing Applications • A class of applications that process continuous input data streams and may produce continuous output streams – real-time processing – efficient resource management Speaker Identifier Speech Recording Sensing VAD HTTP Upload Feature Extraction Stream Processing University of Iowa | Mobile Sensing Laboratory Speaker Models 2

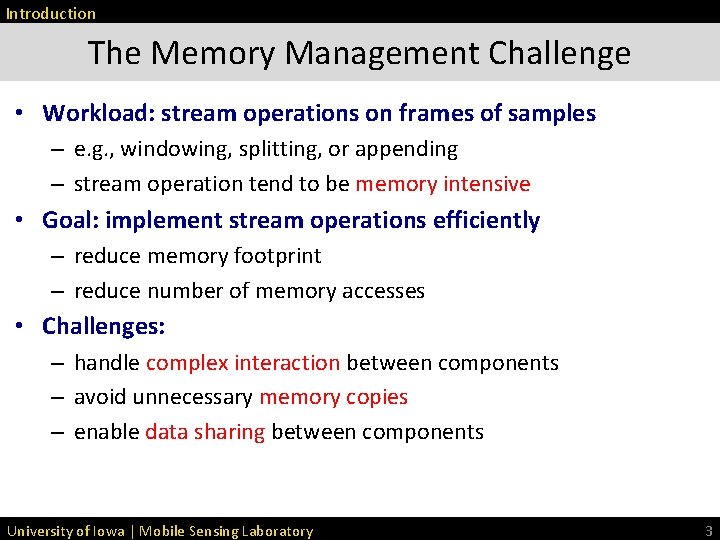

Introduction The Memory Management Challenge • Workload: stream operations on frames of samples – e. g. , windowing, splitting, or appending – stream operation tend to be memory intensive • Goal: implement stream operations efficiently – reduce memory footprint – reduce number of memory accesses • Challenges: – handle complex interaction between components – avoid unnecessary memory copies – enable data sharing between components University of Iowa | Mobile Sensing Laboratory 3

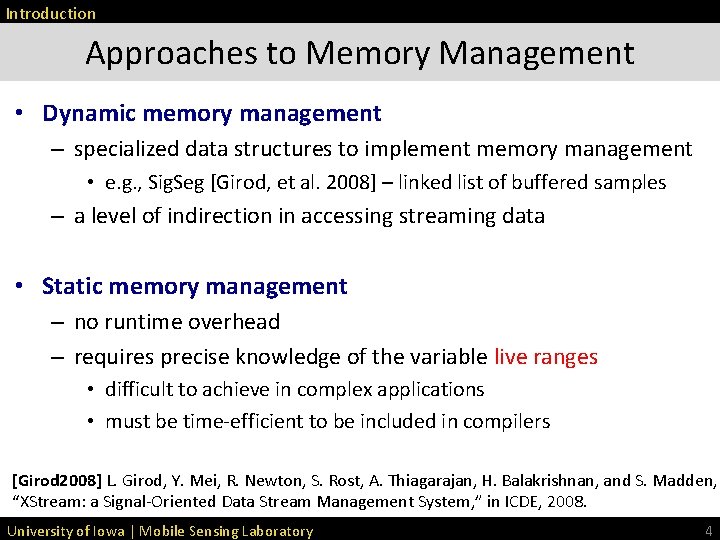

Introduction Approaches to Memory Management • Dynamic memory management – specialized data structures to implement memory management • e. g. , Sig. Seg [Girod, et al. 2008] – linked list of buffered samples – a level of indirection in accessing streaming data • Static memory management – no runtime overhead – requires precise knowledge of the variable live ranges • difficult to achieve in complex applications • must be time-efficient to be included in compilers [Girod 2008] L. Girod, Y. Mei, R. Newton, S. Rost, A. Thiagarajan, H. Balakrishnan, and S. Madden, “XStream: a Signal-Oriented Data Stream Management System, ” in ICDE, 2008. University of Iowa | Mobile Sensing Laboratory 4

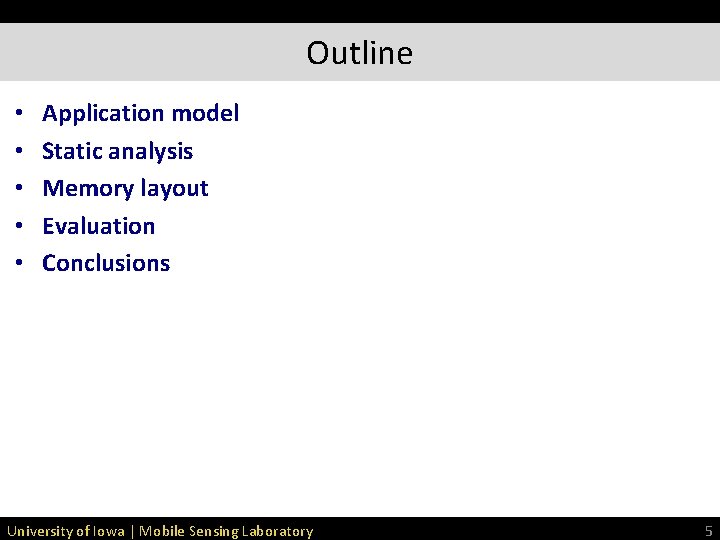

Outline • • • Application model Static analysis Memory layout Evaluation Conclusions University of Iowa | Mobile Sensing Laboratory 5

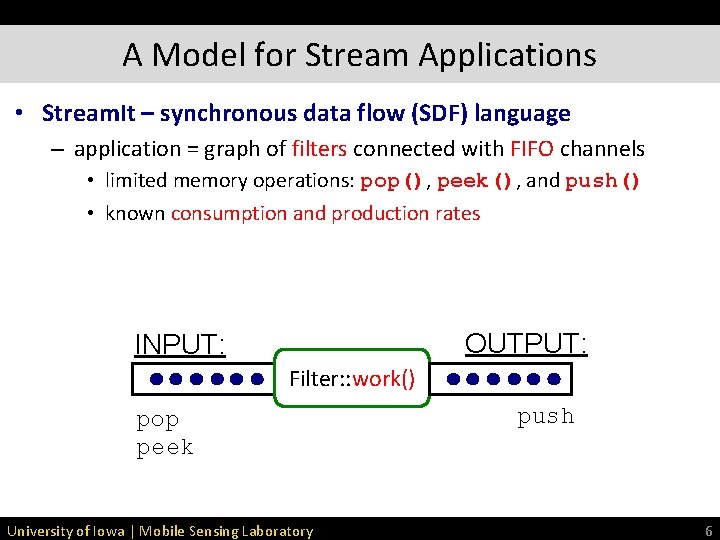

A Model for Stream Applications • Stream. It – synchronous data flow (SDF) language – application = graph of filters connected with FIFO channels • limited memory operations: pop(), peek(), and push() • known consumption and production rates OUTPUT: INPUT: Filter: : work() pop peek University of Iowa | Mobile Sensing Laboratory push 6

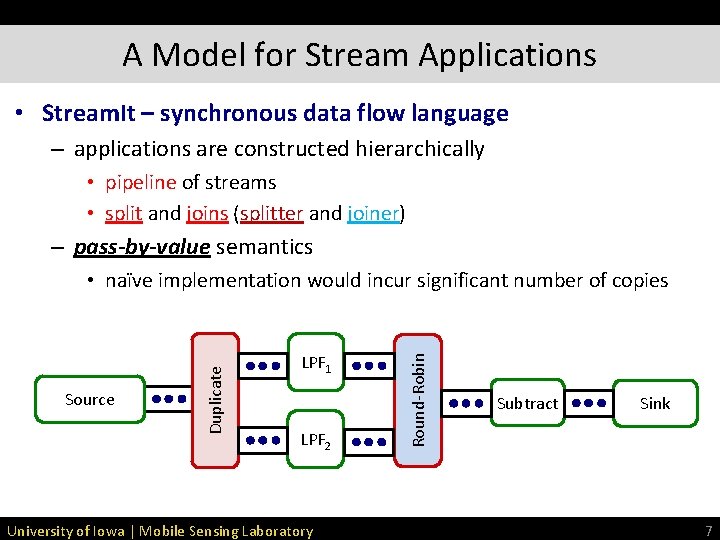

A Model for Stream Applications • Stream. It – synchronous data flow language – applications are constructed hierarchically • pipeline of streams • split and joins (splitter and joiner) – pass-by-value semantics LPF 1 LPF 2 University of Iowa | Mobile Sensing Laboratory Round-Robin Source Duplicate • naïve implementation would incur significant number of copies Subtract Sink 7

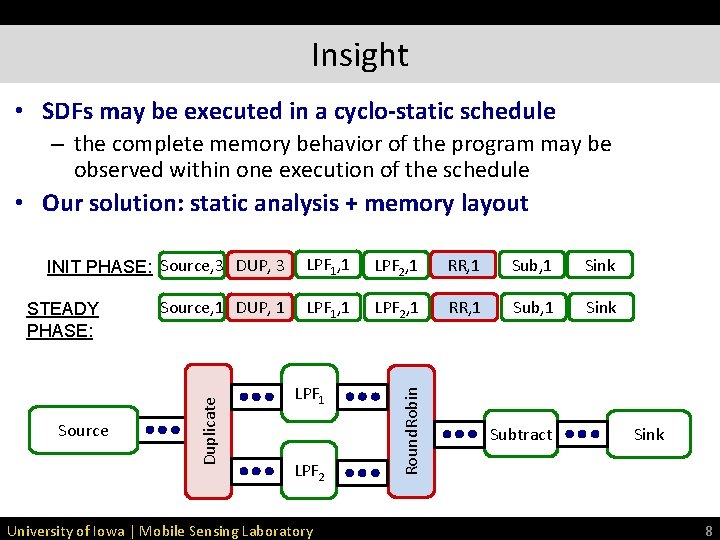

Insight • SDFs may be executed in a cyclo-static schedule – the complete memory behavior of the program may be observed within one execution of the schedule • Our solution: static analysis + memory layout LPF 2, 1 RR, 1 Sub, 1 Sink Source, 1 DUP, 1 LPF 1, 1 LPF 2, 1 RR, 1 Sub, 1 Sink STEADY PHASE: Source LPF 1 LPF 2 University of Iowa | Mobile Sensing Laboratory Round. Robin LPF 1, 1 Duplicate INIT PHASE: Source, 3 DUP, 3 Subtract Sink 8

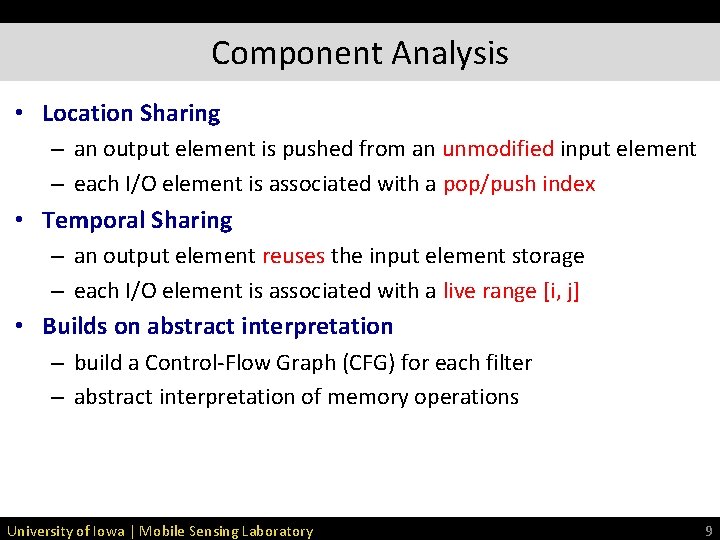

Component Analysis • Location Sharing – an output element is pushed from an unmodified input element – each I/O element is associated with a pop/push index • Temporal Sharing – an output element reuses the input element storage – each I/O element is associated with a live range [i, j] • Builds on abstract interpretation – build a Control-Flow Graph (CFG) for each filter – abstract interpretation of memory operations University of Iowa | Mobile Sensing Laboratory 9

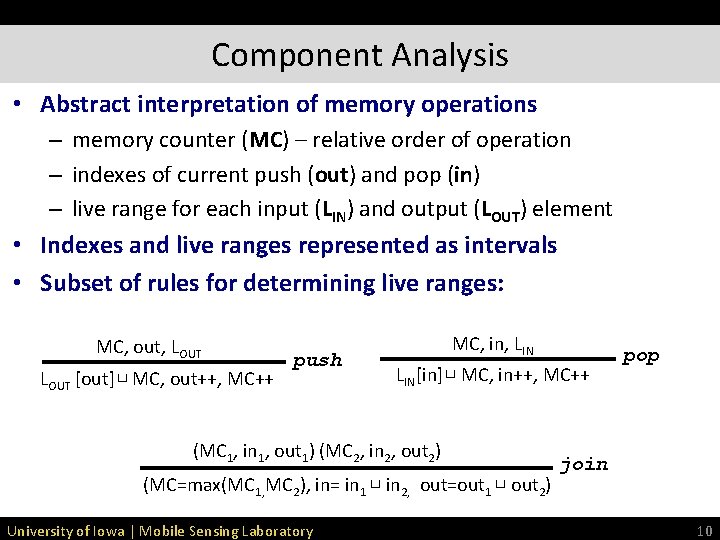

Component Analysis • Abstract interpretation of memory operations – memory counter (MC) – relative order of operation – indexes of current push (out) and pop (in) – live range for each input (LIN) and output (LOUT) element • Indexes and live ranges represented as intervals • Subset of rules for determining live ranges: MC, out, LOUT [out] ⊔ MC, out++, MC++ push MC, in, LIN[in] ⊔ MC, in++, MC++ (MC 1, in 1, out 1) (MC 2, in 2, out 2) (MC=max(MC 1, MC 2), in= in 1 ⊔ in 2, out=out 1 ⊔ out 2) University of Iowa | Mobile Sensing Laboratory pop join 10

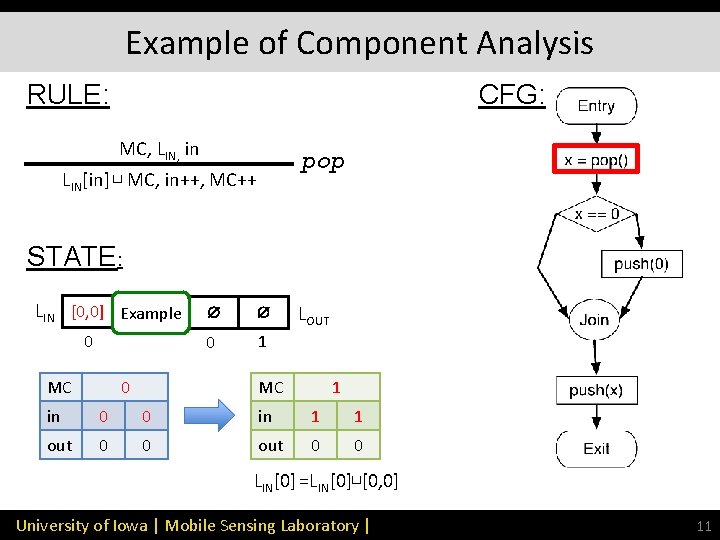

Example of Component Analysis RULE: CFG: MC, LIN, in pop LIN[in] ⊔ MC, in++, MC++ STATE: LIN [0, 0] Example 0 MC 0 ∅ ∅ 0 1 LOUT MC 1 in 0 0 in 1 1 out 0 0 LIN[0] =LIN[0]⊔[0, 0] University of Iowa | Mobile Sensing Laboratory | 11

Example of Component Analysis RULE: CFG: MC, LOUT, out push LOUT [out] ⊔ MC, out++, MC++ STATE: LIN [0, 0] Example [1, 1] 0 0 MC 1 ∅ LOUT 1 MC 2 in 1 1 out 0 0 out 1 1 LOUT[0] =LOUT[0]⊔[1, 1] University of Iowa | Mobile Sensing Laboratory | 12

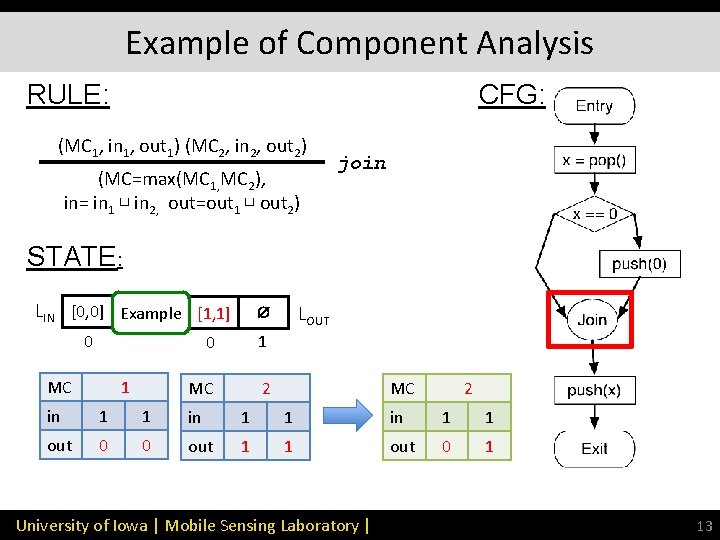

Example of Component Analysis RULE: CFG: (MC 1, in 1, out 1) (MC 2, in 2, out 2) (MC=max(MC 1, MC 2), in= in 1 ⊔ in 2, out=out 1 ⊔ out 2) join STATE: LIN [0, 0] Example [1, 1] 0 MC 1 ∅ 0 1 MC 2 LOUT MC 2 in 1 1 out 0 0 out 1 1 out 0 1 University of Iowa | Mobile Sensing Laboratory | 13

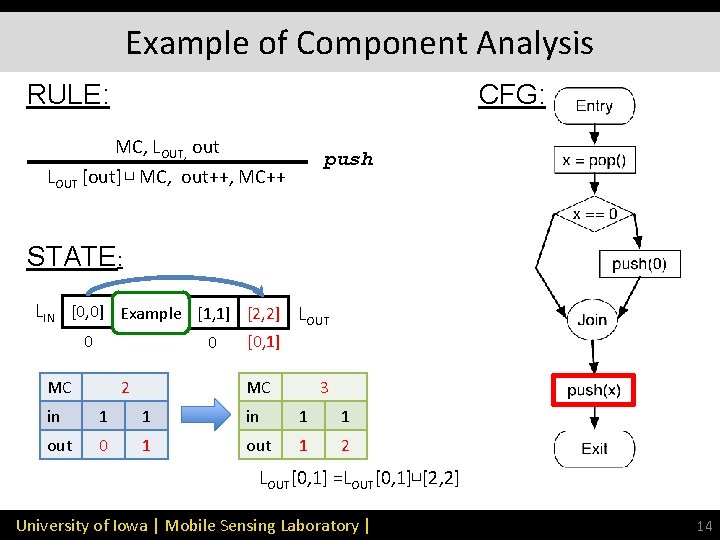

Example of Component Analysis RULE: CFG: MC, LOUT, out push LOUT [out] ⊔ MC, out++, MC++ STATE: LIN [0, 0] Example [1, 1] [2, 2] LOUT 0 0 MC 2 [0, 1] MC 3 in 1 1 out 0 1 out 1 2 LOUT[0, 1] =LOUT[0, 1]⊔[2, 2] University of Iowa | Mobile Sensing Laboratory | 14

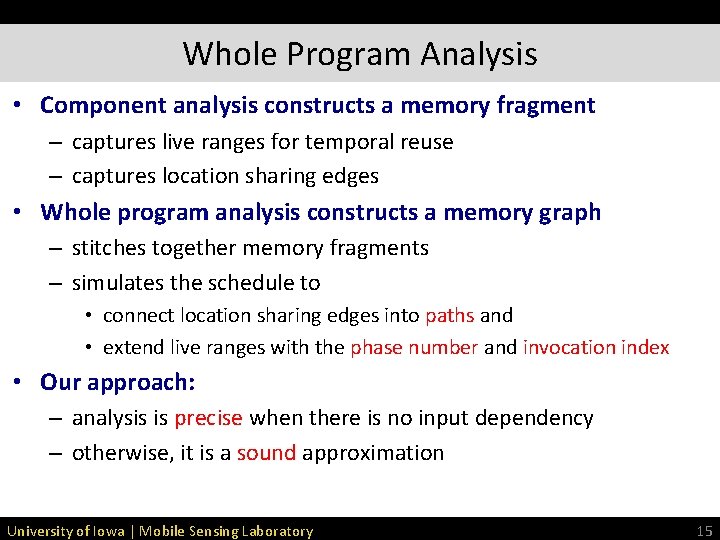

Whole Program Analysis • Component analysis constructs a memory fragment – captures live ranges for temporal reuse – captures location sharing edges • Whole program analysis constructs a memory graph – stitches together memory fragments – simulates the schedule to • connect location sharing edges into paths and • extend live ranges with the phase number and invocation index • Our approach: – analysis is precise when there is no input dependency – otherwise, it is a sound approximation University of Iowa | Mobile Sensing Laboratory 15

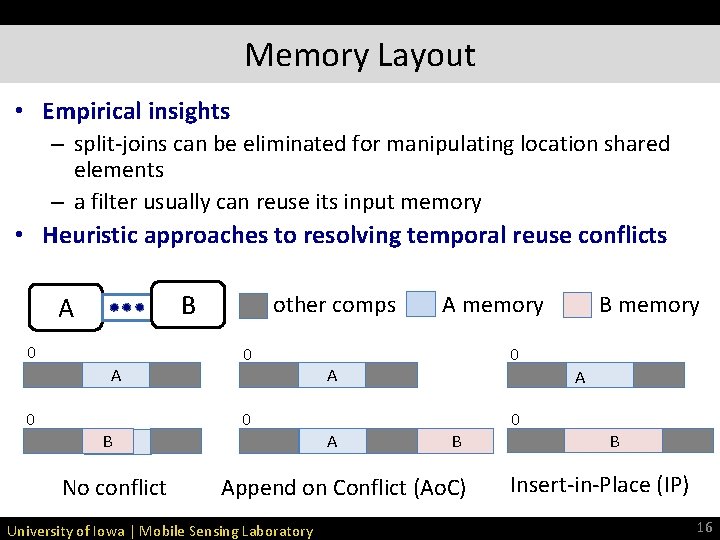

Memory Layout • Empirical insights – split-joins can be eliminated for manipulating location shared elements – a filter usually can reuse its input memory • Heuristic approaches to resolving temporal reuse conflicts B A 0 other comps 0 A memory 0 A A 0 B No conflict 0 A B Append on Conflict (Ao. C) University of Iowa | Mobile Sensing Laboratory B memory B Insert-in-Place (IP) 16

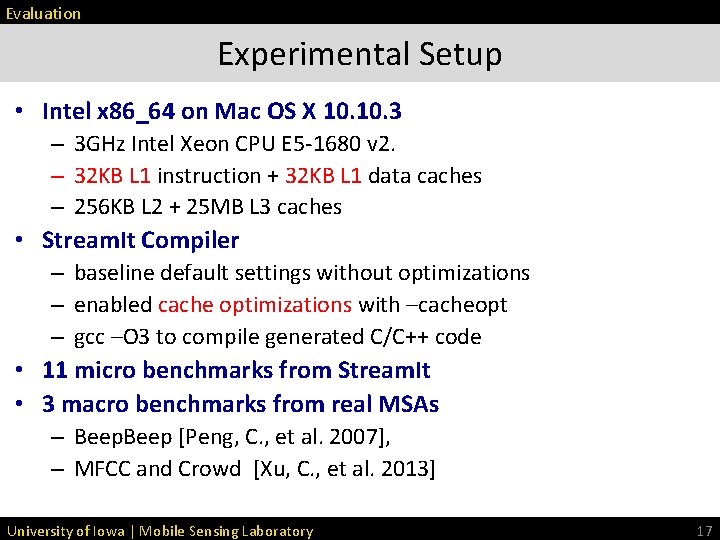

Evaluation Experimental Setup • Intel x 86_64 on Mac OS X 10. 3 – 3 GHz Intel Xeon CPU E 5 -1680 v 2. – 32 KB L 1 instruction + 32 KB L 1 data caches – 256 KB L 2 + 25 MB L 3 caches • Stream. It Compiler – baseline default settings without optimizations – enabled cache optimizations with –cacheopt – gcc –O 3 to compile generated C/C++ code • 11 micro benchmarks from Stream. It • 3 macro benchmarks from real MSAs – Beep [Peng, C. , et al. 2007], – MFCC and Crowd [Xu, C. , et al. 2013] University of Iowa | Mobile Sensing Laboratory 17

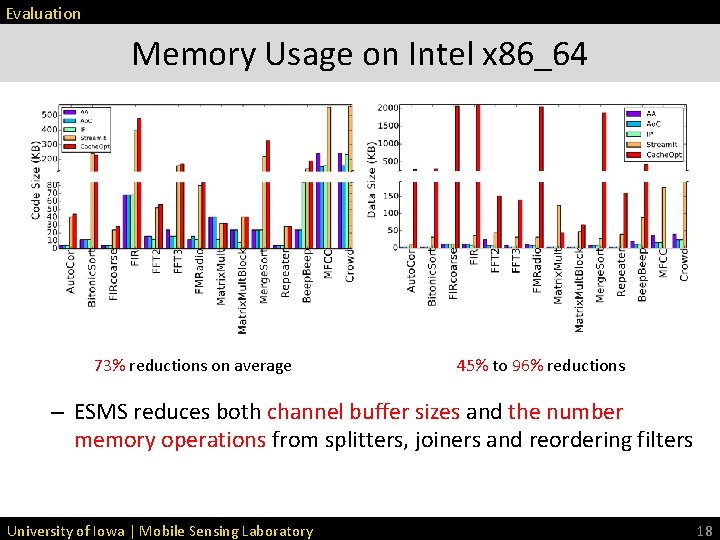

Evaluation Memory Usage on Intel x 86_64 73% reductions on average 45% to 96% reductions – ESMS reduces both channel buffer sizes and the number memory operations from splitters, joiners and reordering filters University of Iowa | Mobile Sensing Laboratory 18

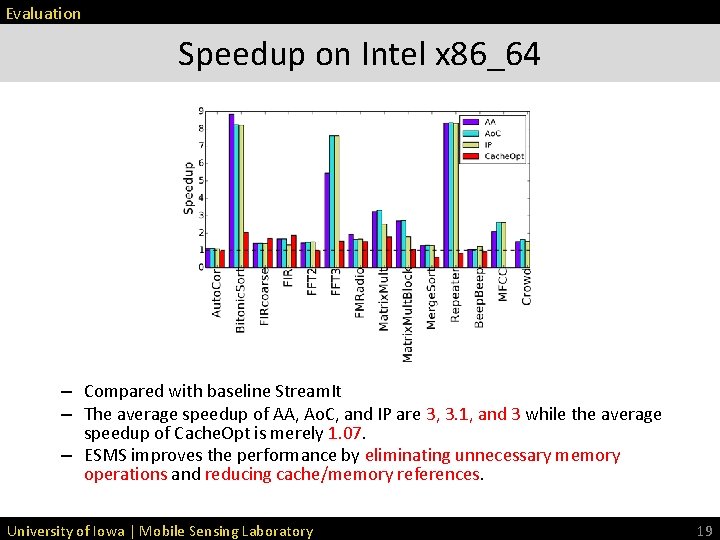

Evaluation Speedup on Intel x 86_64 – Compared with baseline Stream. It – The average speedup of AA, Ao. C, and IP are 3, 3. 1, and 3 while the average speedup of Cache. Opt is merely 1. 07. – ESMS improves the performance by eliminating unnecessary memory operations and reducing cache/memory references. University of Iowa | Mobile Sensing Laboratory 19

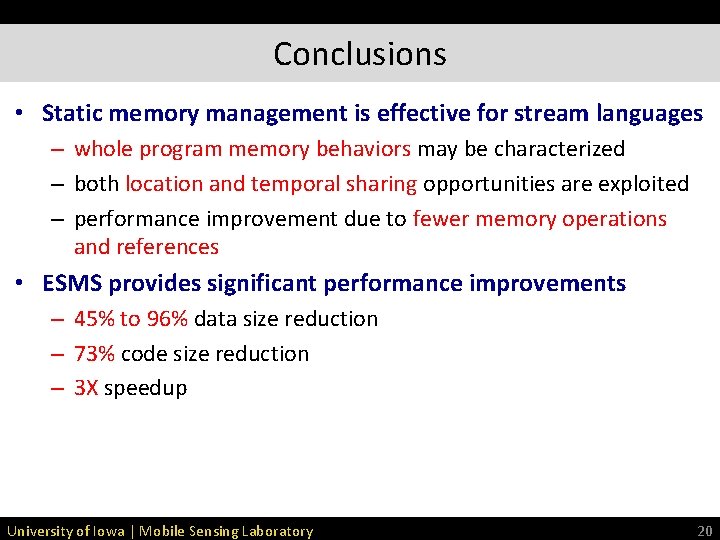

Conclusions • Static memory management is effective for stream languages – whole program memory behaviors may be characterized – both location and temporal sharing opportunities are exploited – performance improvement due to fewer memory operations and references • ESMS provides significant performance improvements – 45% to 96% data size reduction – 73% code size reduction – 3 X speedup University of Iowa | Mobile Sensing Laboratory 20

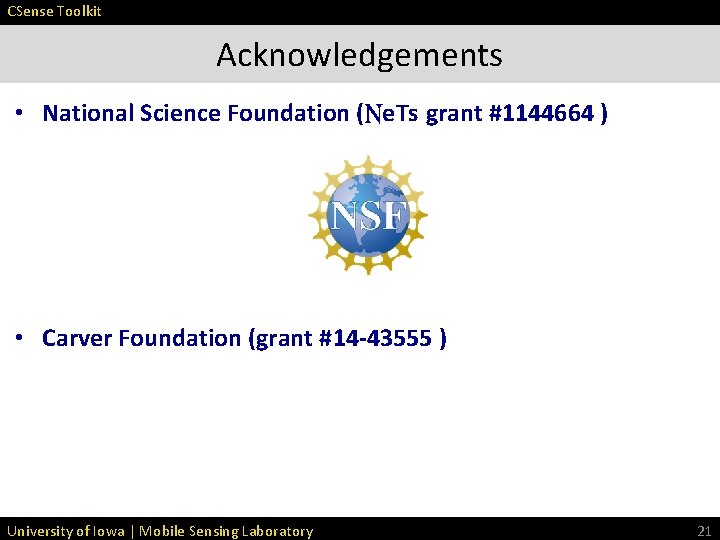

CSense Toolkit Acknowledgements • National Science Foundation (Ne. Ts grant #1144664 ) • Carver Foundation (grant #14 -43555 ) University of Iowa | Mobile Sensing Laboratory 21

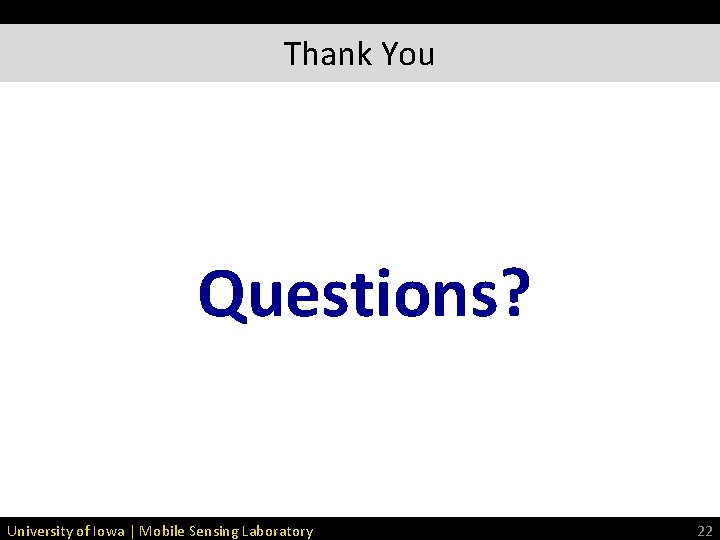

Thank You Questions? University of Iowa | Mobile Sensing Laboratory 22
