Static Equilibrium Problems 1

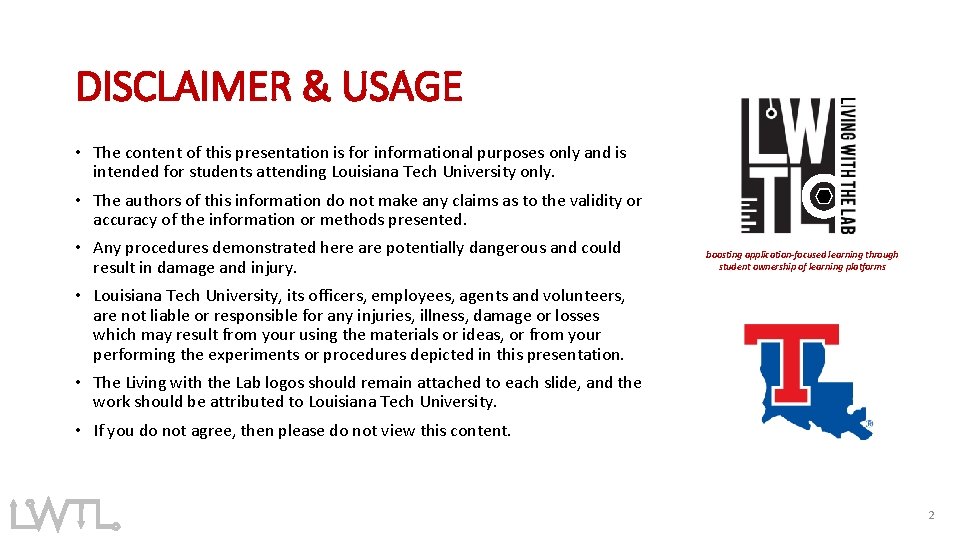

DISCLAIMER & USAGE • The content of this presentation is for informational purposes only and is intended for students attending Louisiana Tech University only. • The authors of this information do not make any claims as to the validity or accuracy of the information or methods presented. • Any procedures demonstrated here are potentially dangerous and could result in damage and injury. boosting application-focused learning through student ownership of learning platforms • Louisiana Tech University, its officers, employees, agents and volunteers, are not liable or responsible for any injuries, illness, damage or losses which may result from your using the materials or ideas, or from your performing the experiments or procedures depicted in this presentation. • The Living with the Lab logos should remain attached to each slide, and the work should be attributed to Louisiana Tech University. • If you do not agree, then please do not view this content. 2

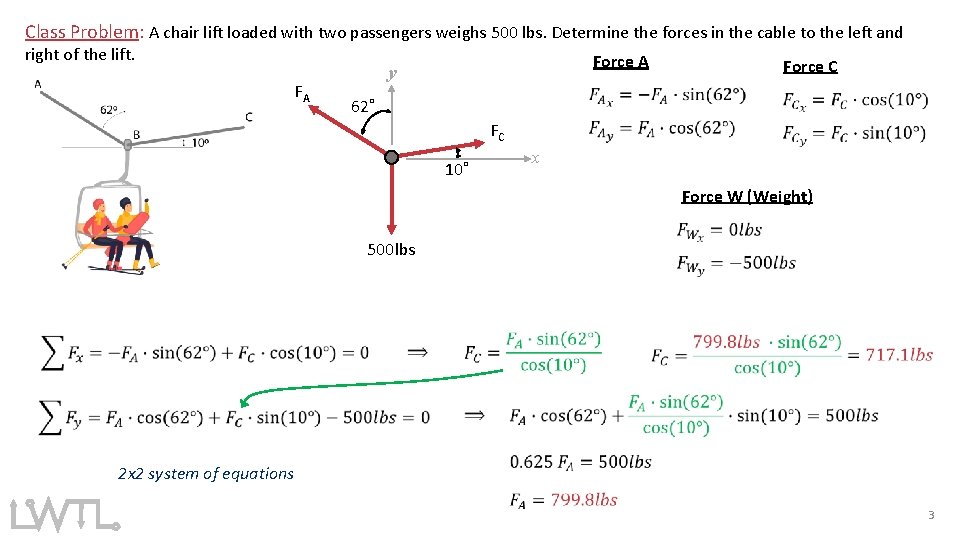

Class Problem: A chair lift loaded with two passengers weighs 500 lbs. Determine the forces in the cable to the left and right of the lift. FA Force A y Force C 62˚ FC 10˚ x Force W (Weight) 500 lbs 2 x 2 system of equations 3

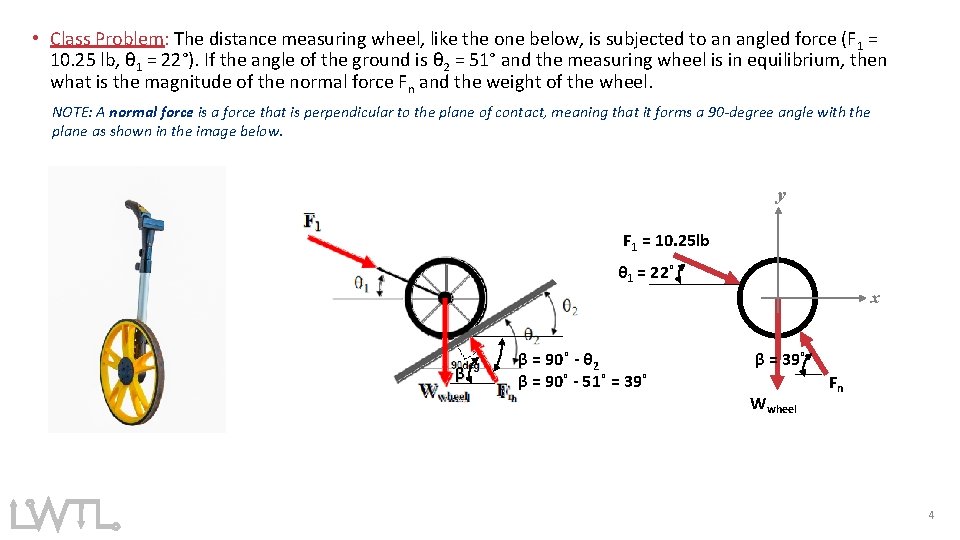

• Class Problem: The distance measuring wheel, like the one below, is subjected to an angled force (F 1 = 10. 25 lb, θ 1 = 22°). If the angle of the ground is θ 2 = 51° and the measuring wheel is in equilibrium, then what is the magnitude of the normal force Fn and the weight of the wheel. NOTE: A normal force is a force that is perpendicular to the plane of contact, meaning that it forms a 90 -degree angle with the plane as shown in the image below. y F 1 = 10. 25 lb θ 1 = 22˚ x β β = 90˚ - θ 2 β = 90˚ - 51˚ = 39˚ β = 39˚ Wwheel Fn 4

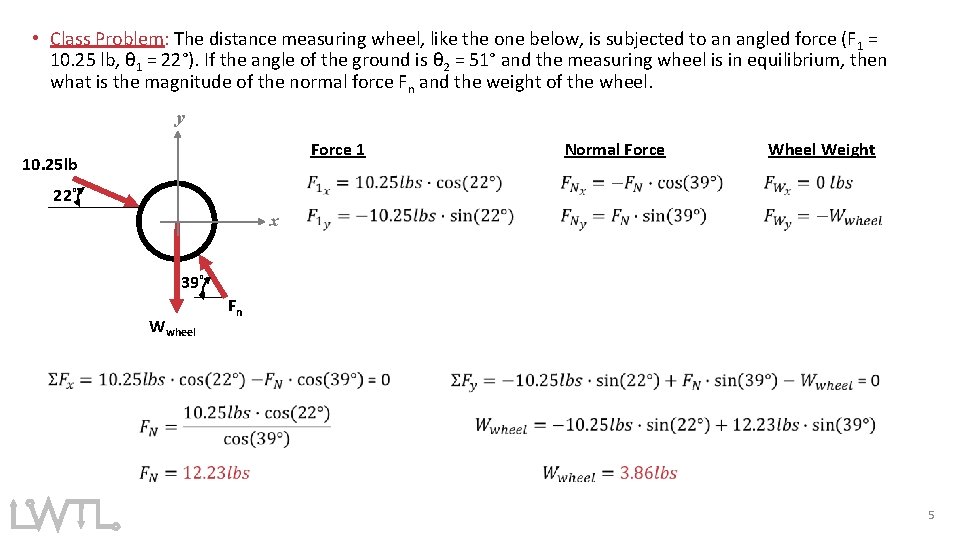

• Class Problem: The distance measuring wheel, like the one below, is subjected to an angled force (F 1 = 10. 25 lb, θ 1 = 22°). If the angle of the ground is θ 2 = 51° and the measuring wheel is in equilibrium, then what is the magnitude of the normal force Fn and the weight of the wheel. y Force 1 10. 25 lb Normal Force Wheel Weight 22˚ x 39˚ Wwheel Fn 5

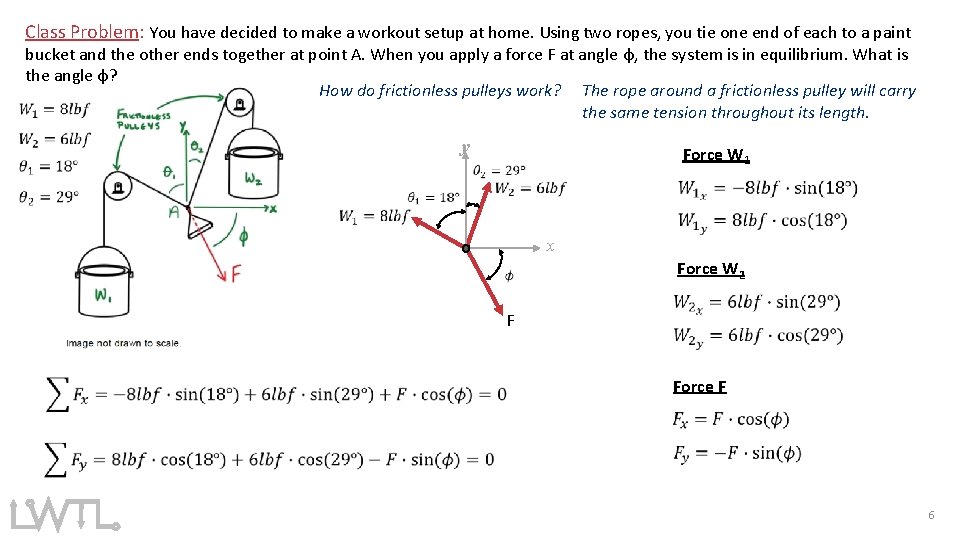

Class Problem: You have decided to make a workout setup at home. Using two ropes, you tie one end of each to a paint bucket and the other ends together at point A. When you apply a force F at angle φ, the system is in equilibrium. What is the angle φ? How do frictionless pulleys work? The rope around a frictionless pulley will carry the same tension throughout its length. y Force W 1 x Force W 2 F Force F 6

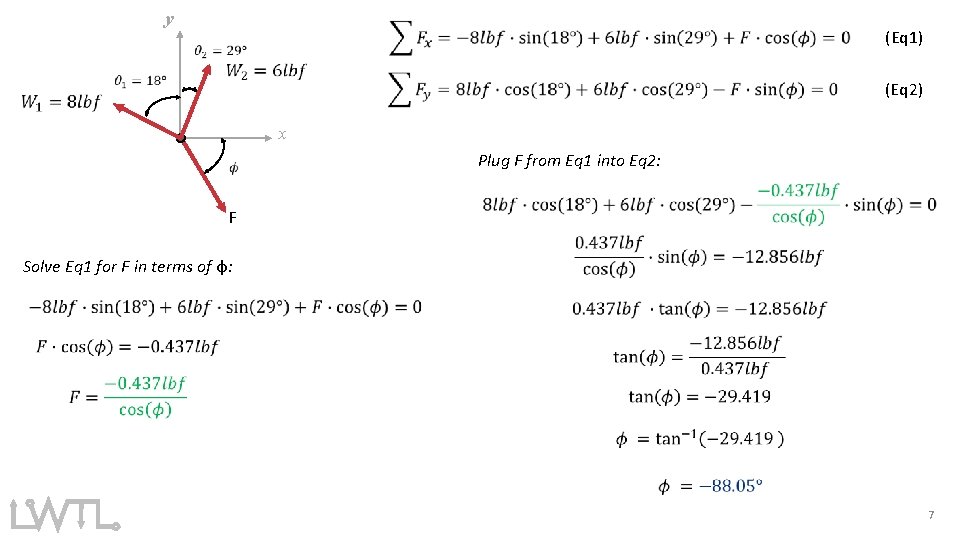

y (Eq 1) (Eq 2) x Plug F from Eq 1 into Eq 2: F Solve Eq 1 for F in terms of φ: 7
