State Diagram
ตวอยาง /Turn Off /Turn On Floor=1 Idle Want Down/ Go Down Move Down Want Up/Go Up Floor >1 /Go Down Move Up Desired Floor reached Floor <>1 & Desired Floor reached State Diagramแสดงการทำงานของล ฟต Reach
ตวอยาง /Turn Off /Turn On Floor=1 Idle entry/floor=1 Want Down/ Go Down Move Down Do/floor=floor-1 (floor=1)/Stop Want Up/Go Up Floor >1 /Go Down Floor <>1 & Desired Floor reached State Diagramแสดงการทำงานของล ฟต Move Up Do/floor=floor+1 (floor=max)/Stop Desired Floor reached Reach entry/Stop
เข ยน State Diagramของแตละ Function • Turn On (เป ดเคร อง) Ready do/waiting for instructions Booting Complete Boot do/Loading the Operation System Switch on Computer Off do/shut down the power Switch is turned on On Do/turn on the Computer
เข ยน State Diagramของแตละ Function • Shut Down (ป ดเคร อง) Ready do/waiting for instructions Switch is turned off Off Shut down the power

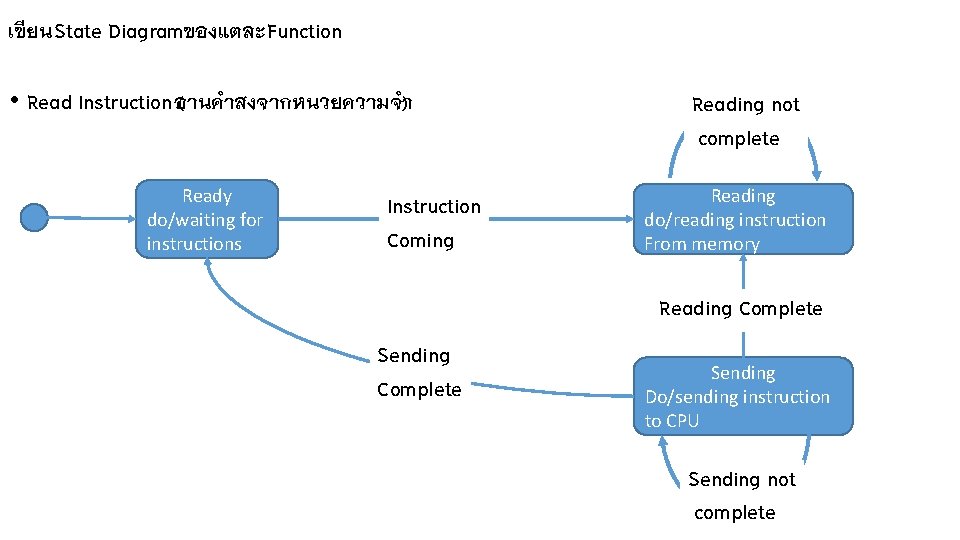

เข ยน State Diagramของแตละ Function • Read Instruction อานคำสงจากหนวยความจำ ( ) Ready do/waiting for instructions Instruction Coming Reading not complete Reading do/reading instruction From memory Reading Complete Sending Do/sending instruction to CPU Sending not complete

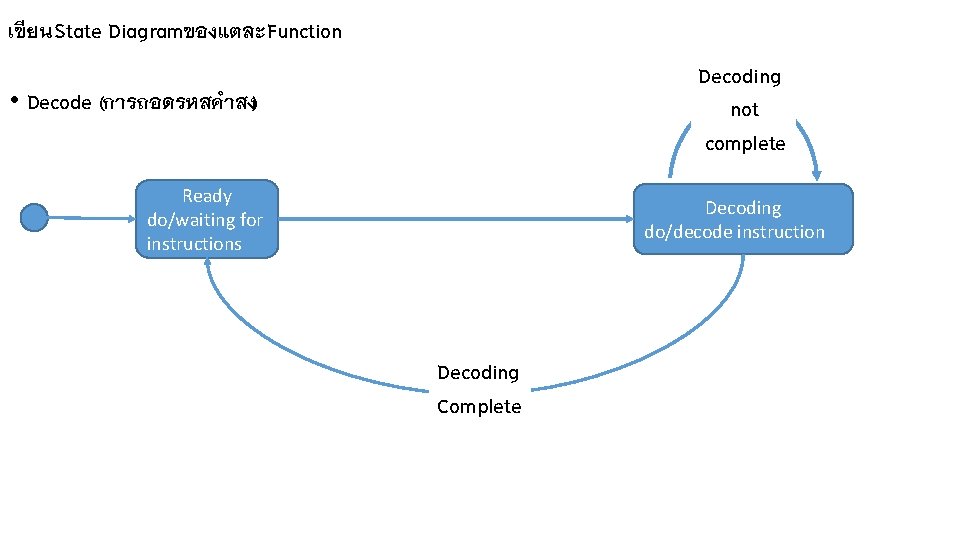

เข ยน State Diagramของแตละ Function Decoding not complete • Decode (การถอดรหสคำสง) Ready do/waiting for instructions Decoding do/decode instruction Decoding Complete
เข ยน State Diagramของแตละ Function • Execute (การประมวลผล) Ready do/waiting for instructions Executing not Complete Ready do/executing instructions Memory instruction Executed I/O Instruction Executed Buffering do/keep output in memory Reading Complete Output Do/Outputing the Result
เข ยน State Diagramของแตละ Function Storing Data not complete • Store Data (การบนท กผลลพธสหนวยความจำ) Ready do/waiting for instructions Storing Data do/storing data to memory Storing Data Complete
