STARTING SYSTEM Function Bring the engine to cranking

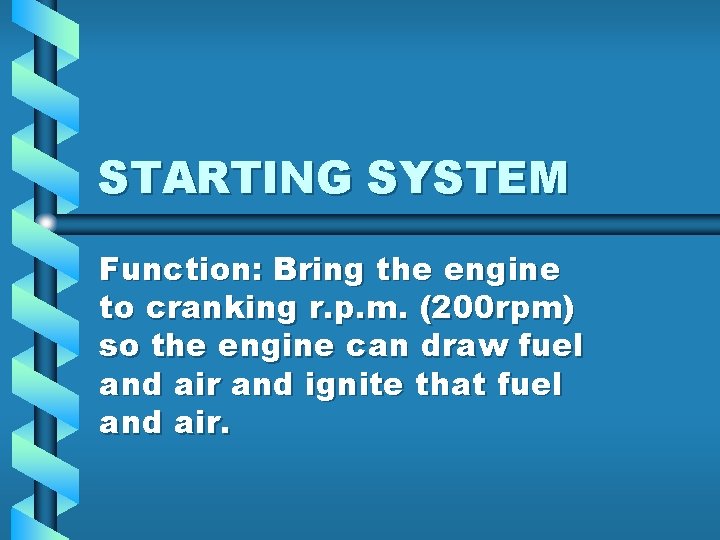

STARTING SYSTEM Function: Bring the engine to cranking r. p. m. (200 rpm) so the engine can draw fuel and air and ignite that fuel and air.

Starter Principles Video

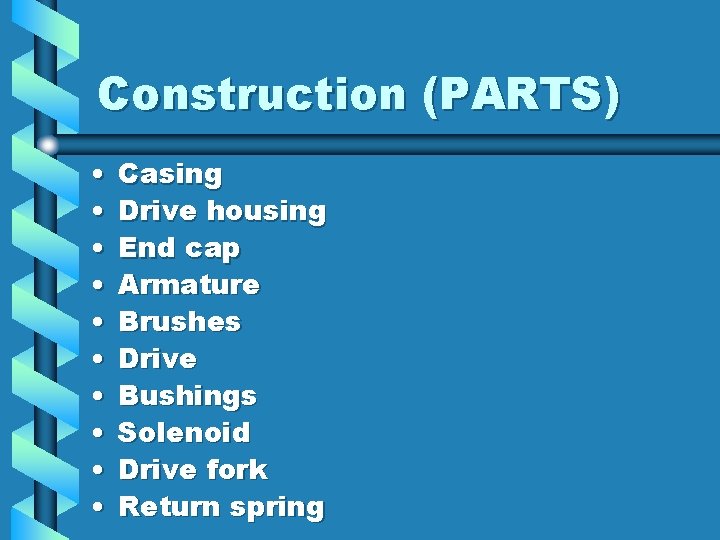

Construction (PARTS) • • • Casing Drive housing End cap Armature Brushes Drive Bushings Solenoid Drive fork Return spring

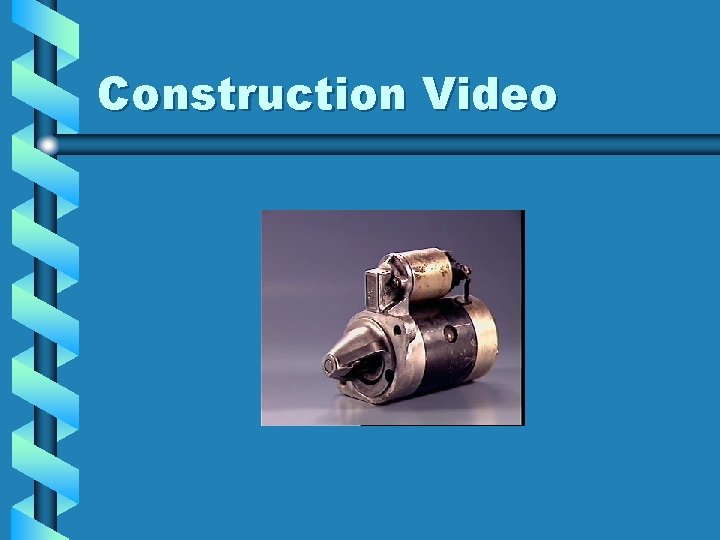

Construction Video

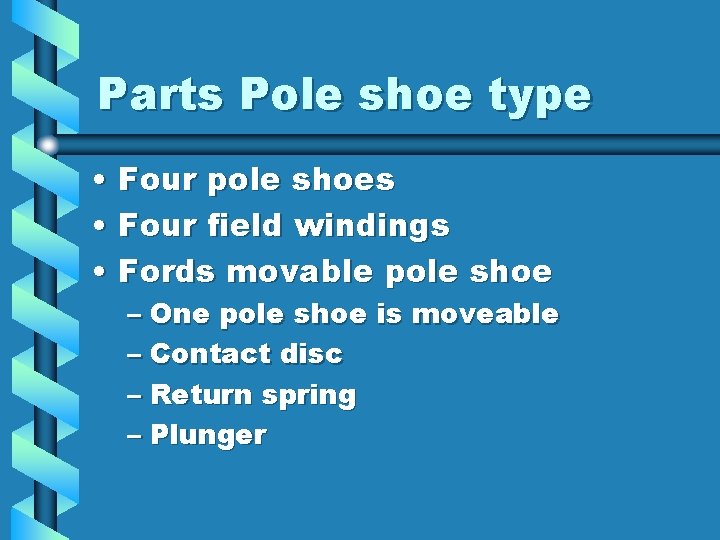

Parts Pole shoe type • Four pole shoes • Four field windings • Fords movable pole shoe – One pole shoe is moveable – Contact disc – Return spring – Plunger

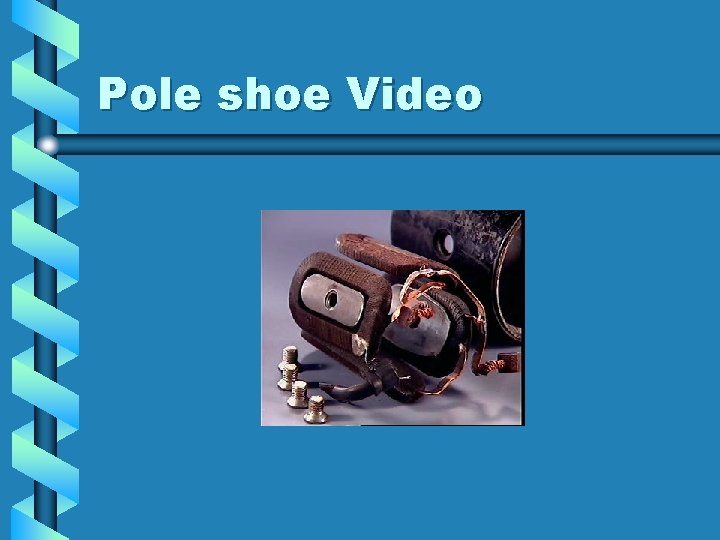

Pole shoe Video

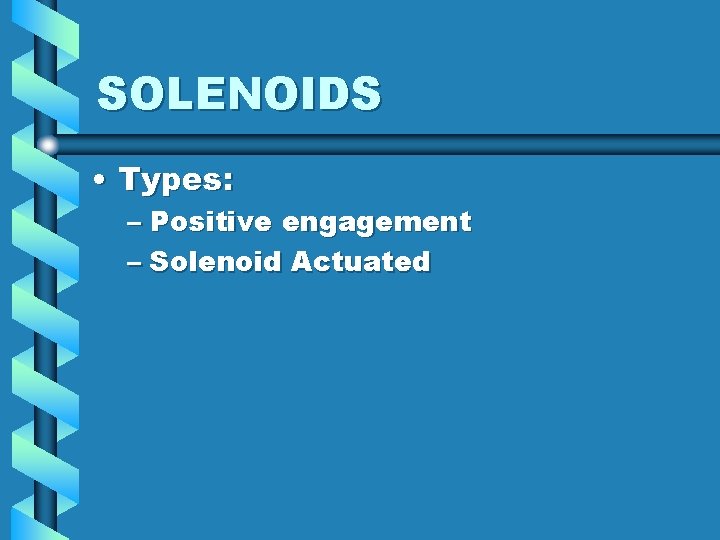

SOLENOIDS • Types: – Positive engagement – Solenoid Actuated

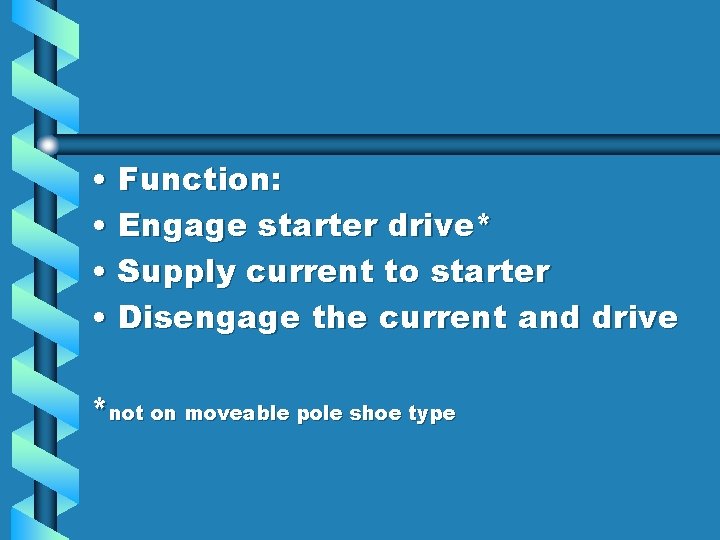

• Function: • Engage starter drive* • Supply current to starter • Disengage the current and drive *not on moveable pole shoe type

Construction • Pull in windings(large) • Hold in windings • Plunger • Return spring • Contact disc

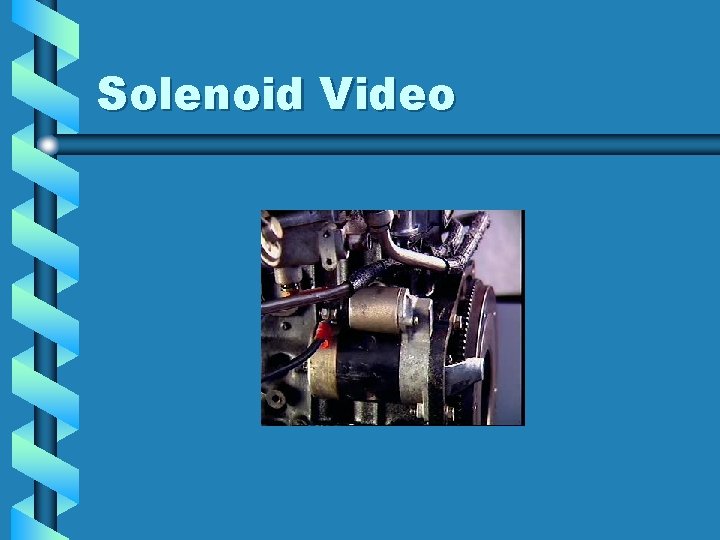

Solenoid Video

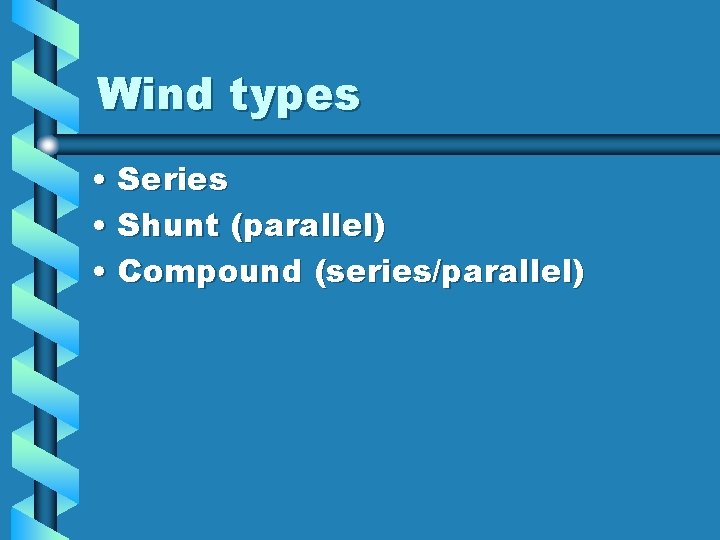

Wind types • Series • Shunt (parallel) • Compound (series/parallel)

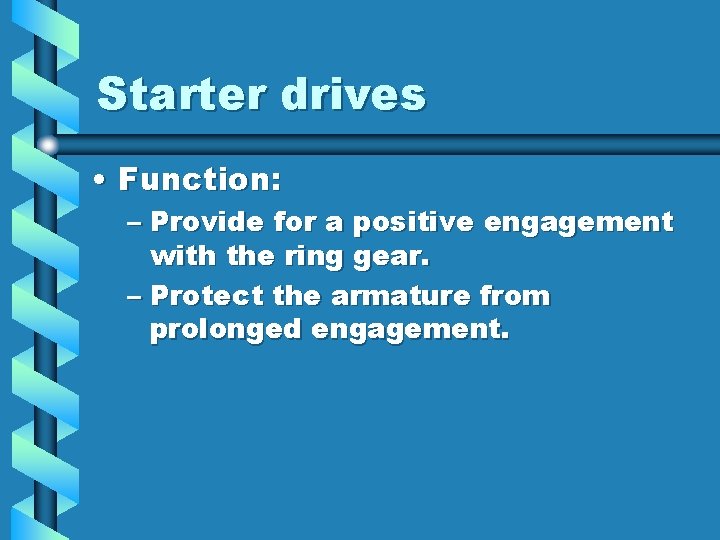

Starter drives • Function: – Provide for a positive engagement with the ring gear. – Protect the armature from prolonged engagement.

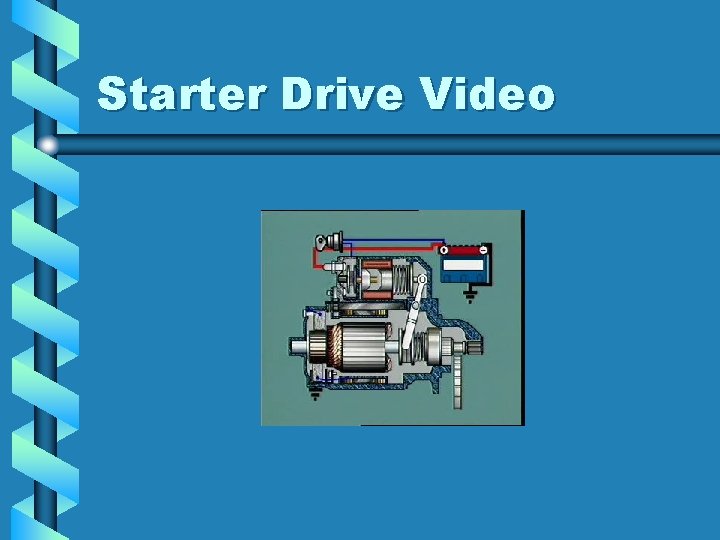

Starter Drive Video

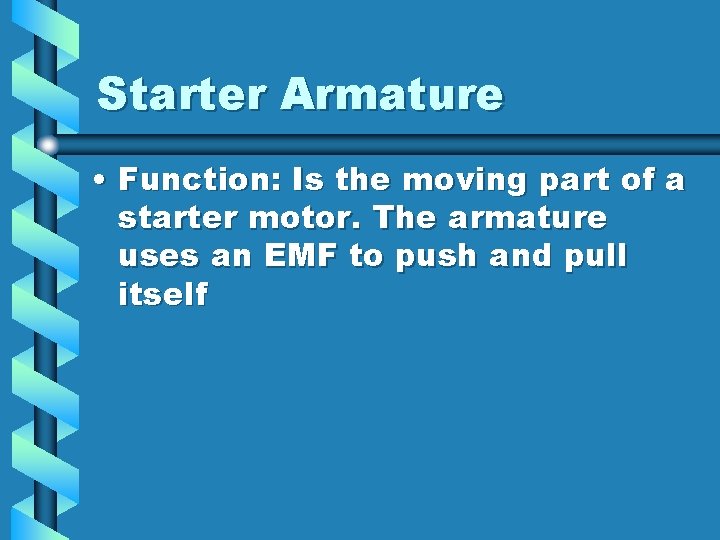

Starter Armature • Function: Is the moving part of a starter motor. The armature uses an EMF to push and pull itself

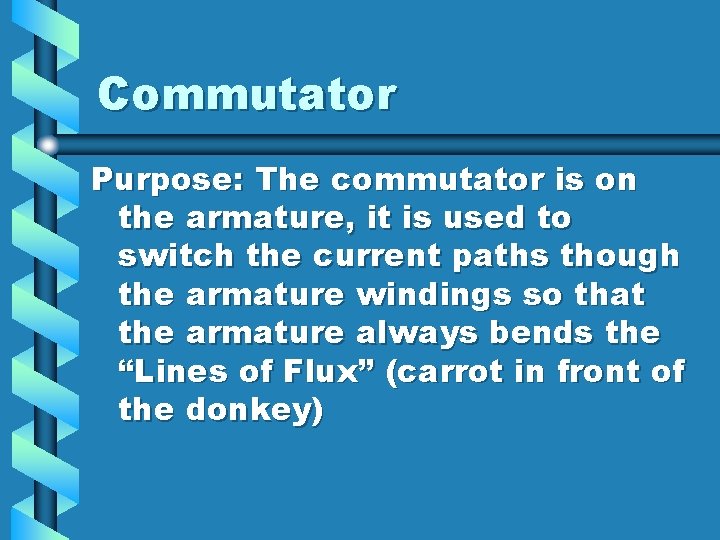

Commutator Purpose: The commutator is on the armature, it is used to switch the current paths though the armature windings so that the armature always bends the “Lines of Flux” (carrot in front of the donkey)

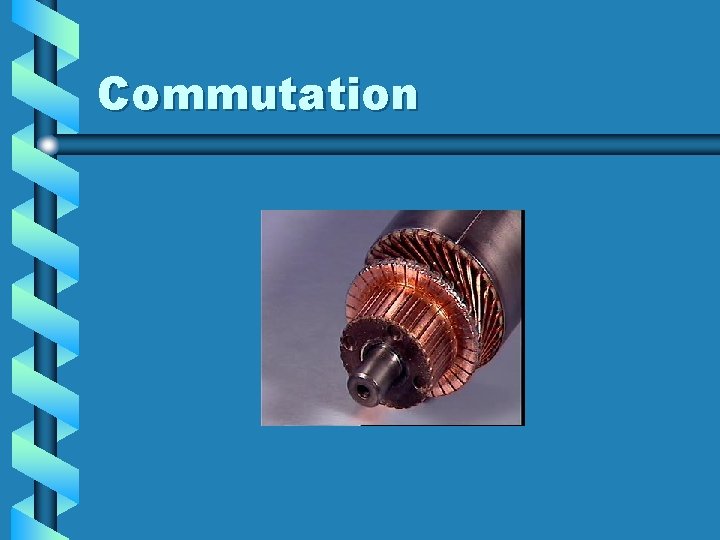

Commutation
