STARFISH DISSECTION Slide show by Kelly Riedell http

STARFISH DISSECTION Slide show by Kelly Riedell http: //www. emerchandise. com/images/p/SBS/pd. PASBS 0005. jpg

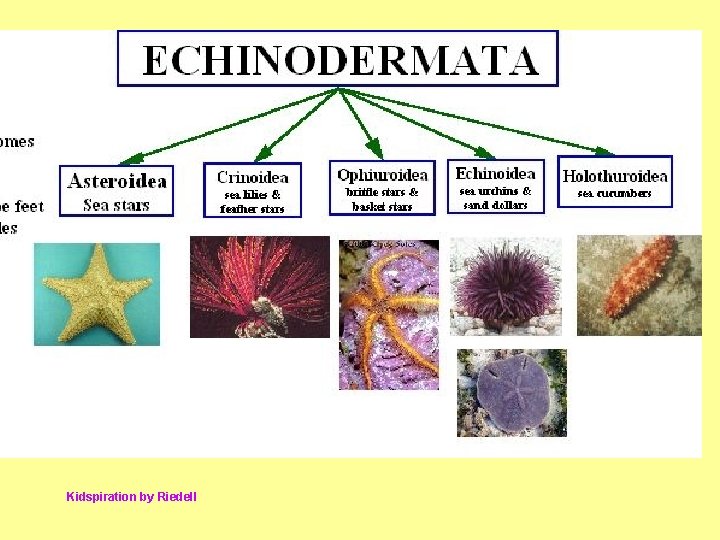

Kidspiration by Riedell

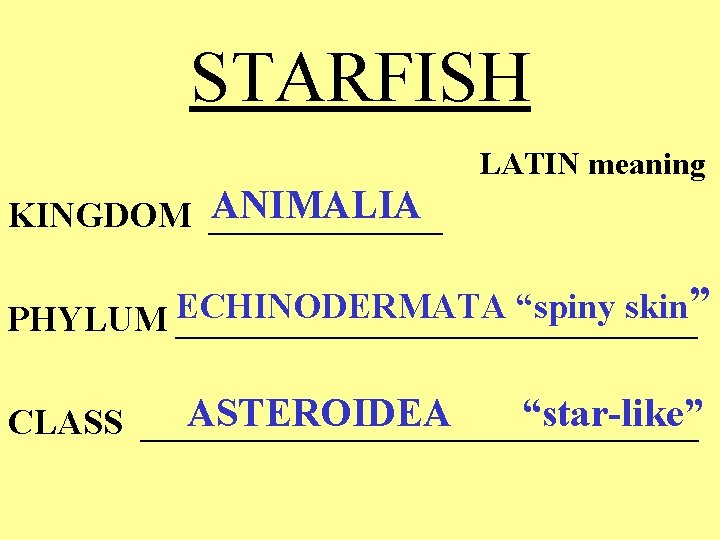

STARFISH LATIN meaning ANIMALIA KINGDOM _______ “spiny skin” PHYLUM ECHINODERMATA _______________ ASTEROIDEA “star-like” CLASS ________________

Starfish (sea stars) Come in a variety of colors http: //www. trinitykids. org/Portals/2/graphics/starfish. jpg http: //www. perspective. com/nature/animalia/starfish. html http: //www. deepseaimages. com/dsilibrary/data/1143/706 -28 a. jpg

. . . and sizes http: //bcuniversal. com/familyimages/Natasha%20&%20 Starfish%20 Seattle%202000. JPG

Not all starfish have 5 arms http: //www. perspective. com/nature/animalia/starfish. html http: //www. seashells. org/identcatagories/starfish. htm

SYMMETRY ADULTS- Radial LARVA- Bilateral http: //www. uic. edu/classes/bios 100/labs/radial. jpg

PENTARADIAL (5 armed starfish) http: //www. seashells. org/identcatagories/starfish. htm

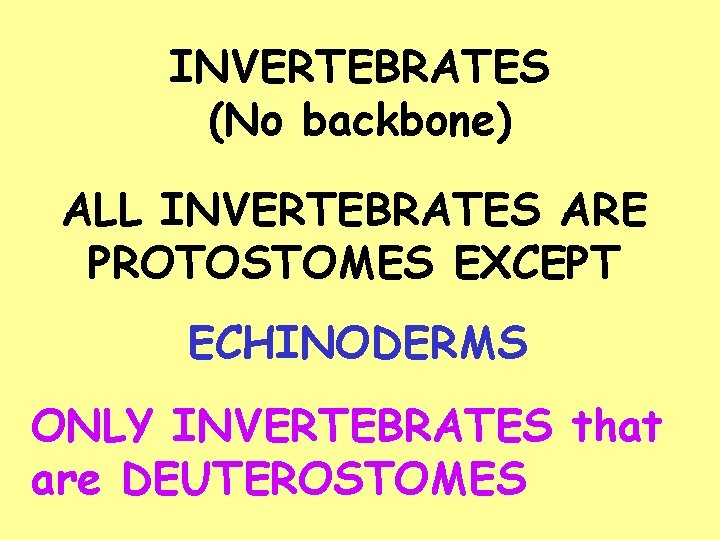

INVERTEBRATES (No backbone) ALL INVERTEBRATES ARE PROTOSTOMES EXCEPT ECHINODERMS ONLY INVERTEBRATES that are DEUTEROSTOMES

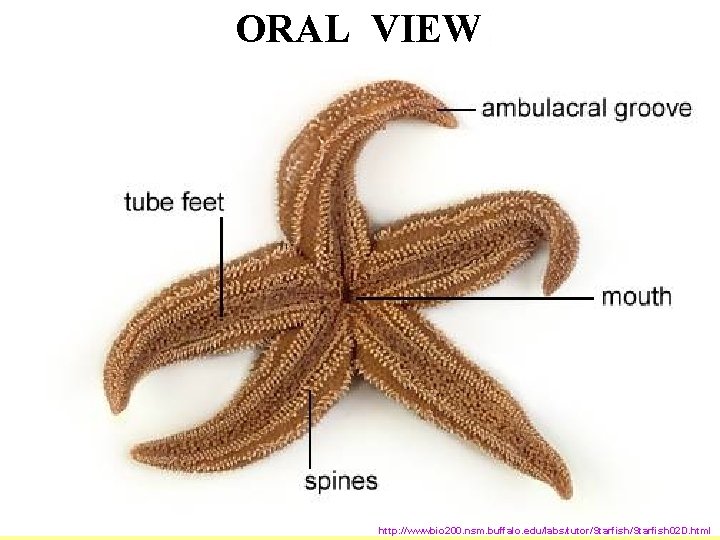

ORAL VIEW http: //wwwbio 200. nsm. buffalo. edu/labs/tutor/Starfish 02 D. html

http: //wwwbio 200. nsm. buffalo. edu/labs/tutor/Starfish

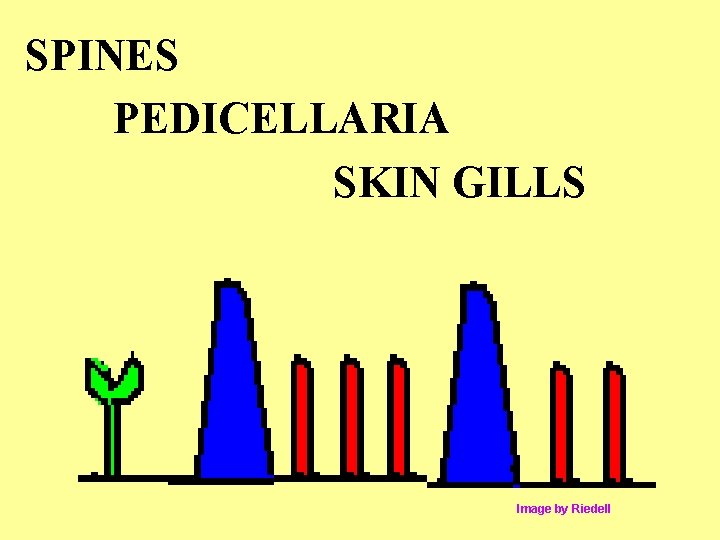

SPINES PEDICELLARIA SKIN GILLS Image by Riedell

SPINY SKIN http: //wwwbio 200. nsm. buffalo. edu/labs/tutor/Starfish SPINES for protection connect to ENDOSKELETON inside underneath skin

OSSICLES Calcium carbonate plates form endoskeleton inside http: //ebiomedia. com/prod/BOechinoderms. html

SPINES PEDICELLARIA SKIN GILLS Image by Riedell

PEDICELLARIAE (sing. Pedicellaria) http: //www. discoveringfossils. co. uk/echinoid_pedicillaria. jpg http: //attleborobio. blogspot. com/2008/04/weekly-urchin-pedicellariae. html Keep surface clear of organisms

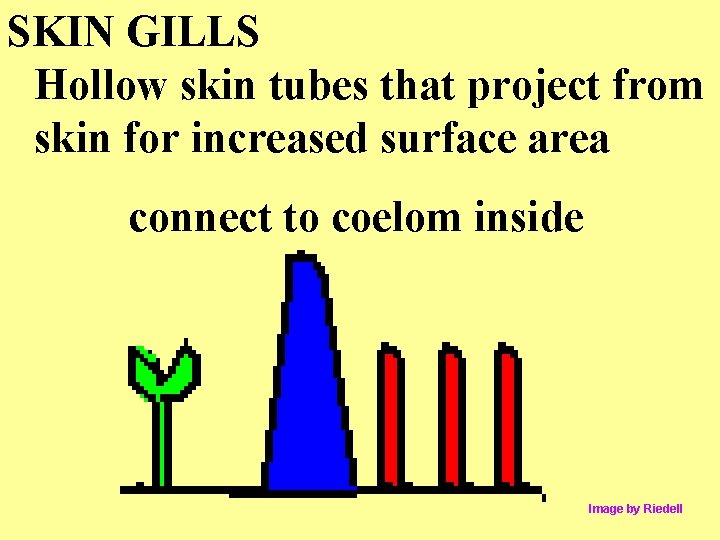

SKIN GILLS Hollow skin tubes that project from skin for increased surface area connect to coelom inside Image by Riedell

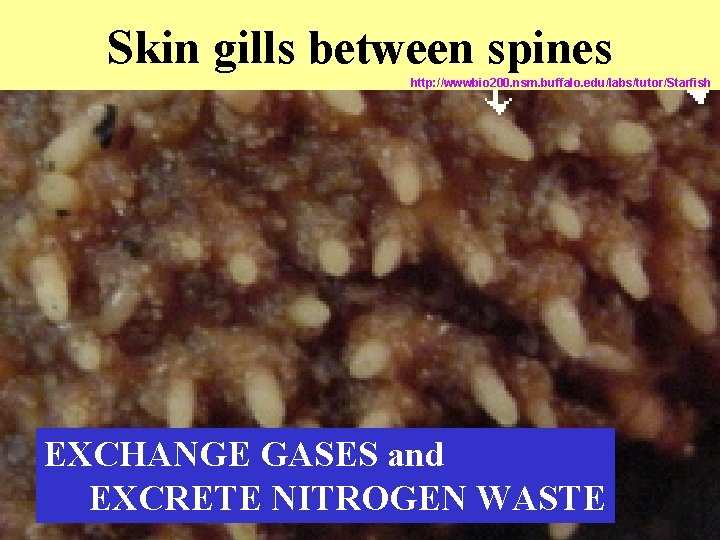

Skin gills between spines http: //wwwbio 200. nsm. buffalo. edu/labs/tutor/Starfish EXCHANGE GASES and EXCRETE NITROGEN WASTE

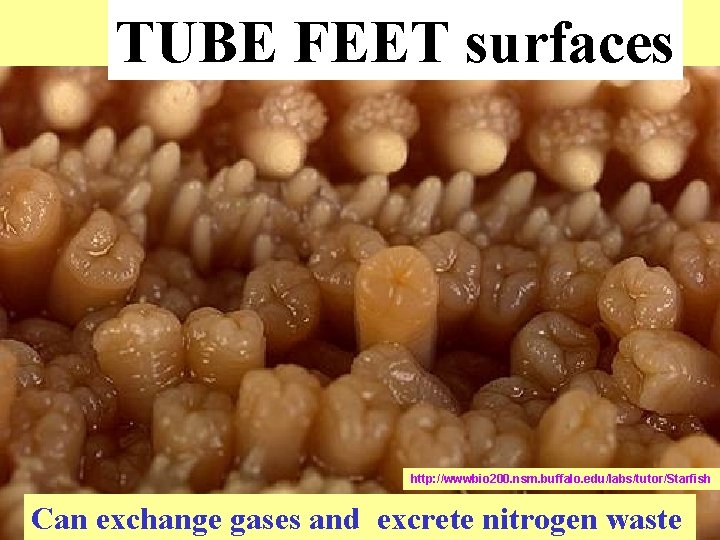

TUBE FEET surfaces http: //wwwbio 200. nsm. buffalo. edu/labs/tutor/Starfish Can exchange gases and excrete nitrogen waste

EYESPOTS Sense light/dark http: //www. oocities. org/Starfish 0966/Neoferdina-sp 1. jpg

Madreporite Opening to water vascular system http: //ebiomedia. com/gall/skin 1. html

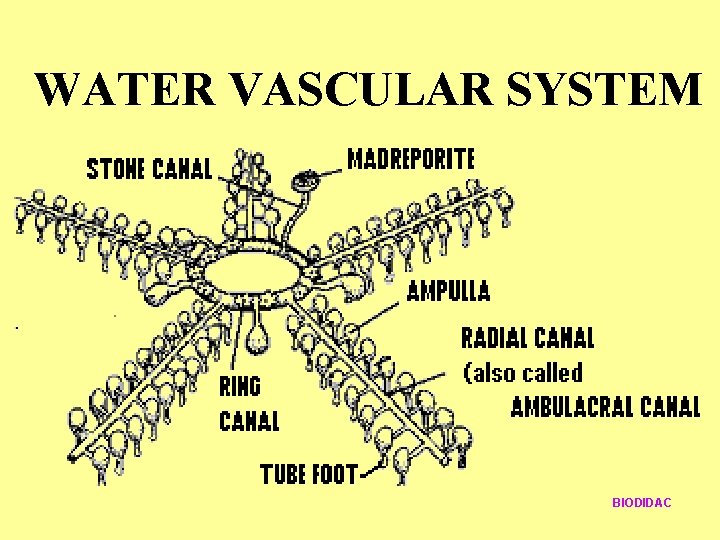

WATER VASCULAR SYSTEM BIODIDAC

http: //mbgnet. mobot. org/salt/animals/star. jpg

ORAL VIEW MOUTH http: //wwwbio 200. nsm. buffalo. edu/labs/tutor/Starfish 02 D. html

AMBULACRAL GROOVE TUBE FEET sit in GROOVE

TUBE FEET Used for feeding & locomotion http: //www. scsc. k 12. ar. us/2001 Outwest/Pacific. Natural. History/Projects/Reynolds. J/starfish. jpg http: //farm 5. staticflickr. com/4002/4262210790_d 367338 dbf. jpg

TUBE FEET Used for feeding & locomotion http: //wwwbio 200. nsm. buffalo. edu/labs/tutor/Starfish Can exchange gases and excrete nitrogen waste

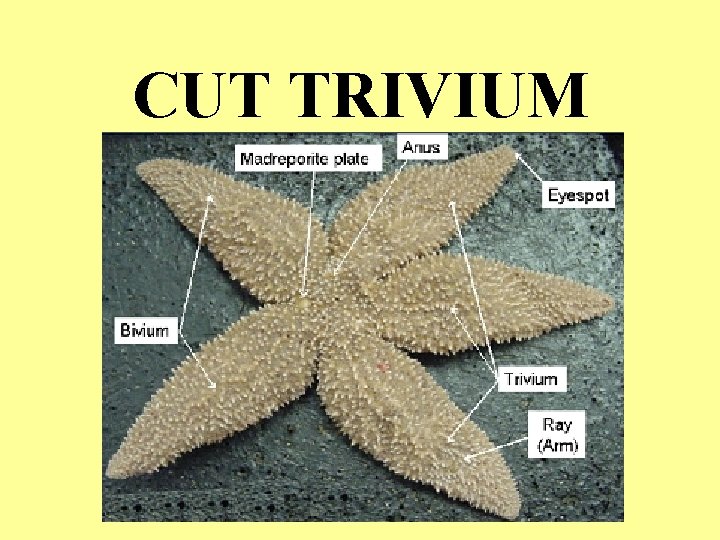

CUT TRIVIUM

DIGESTIVE GLAND Makes BILE ABSORBS NUTRIENTS

http: //www. k-state. edu/organismic/echinoderms_and_protochordates. htm

2 part STOMACH

DIGESTIVE SYSTEM ANUS DIGESTIVE GLANDS MOUTH Image by Riedell

http: //www. k-state. edu/organismic/echinoderms_and_protochordates. htm CARDIAC stomach connects to mouth (extruded during feeding) PYLORIC stomach connects to digestive glands and ANUS

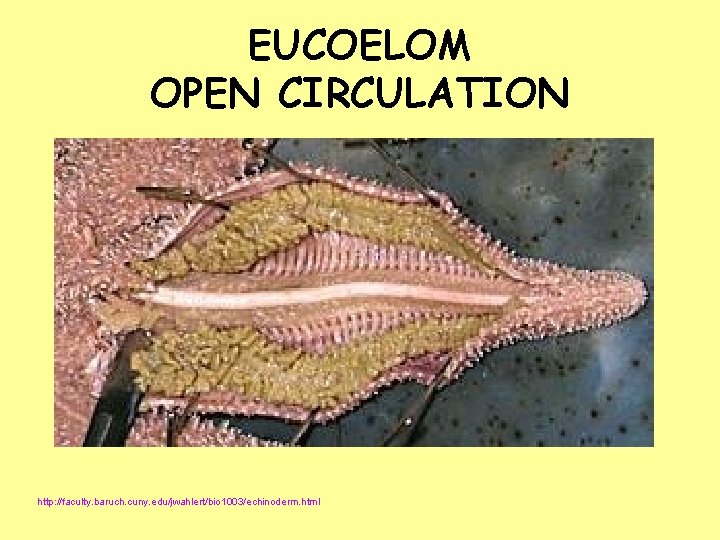

EUCOELOM OPEN CIRCULATION http: //faculty. baruch. cuny. edu/jwahlert/bio 1003/echinoderm. html

ENDOSKELETON made of OSSICLES http: //www. esu. edu/~milewski/intro_biol_two/lab__13_echinoderm/starfish_endoskeleton. html

OSSICLES Calcium carbonate plates form endoskeleton inside http: //ebiomedia. com/prod/BOechinoderms. html

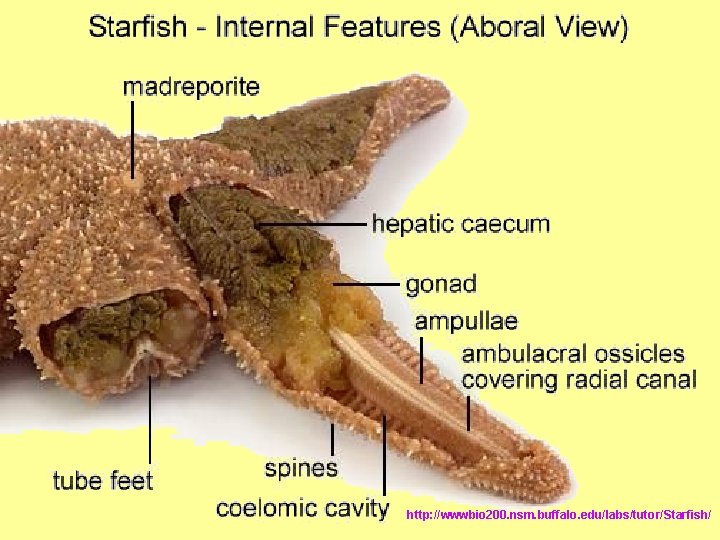

http: //wwwbio 200. nsm. buffalo. edu/labs/tutor/Starfish/

WATER VASCULAR SYSTEM BIODIDAC

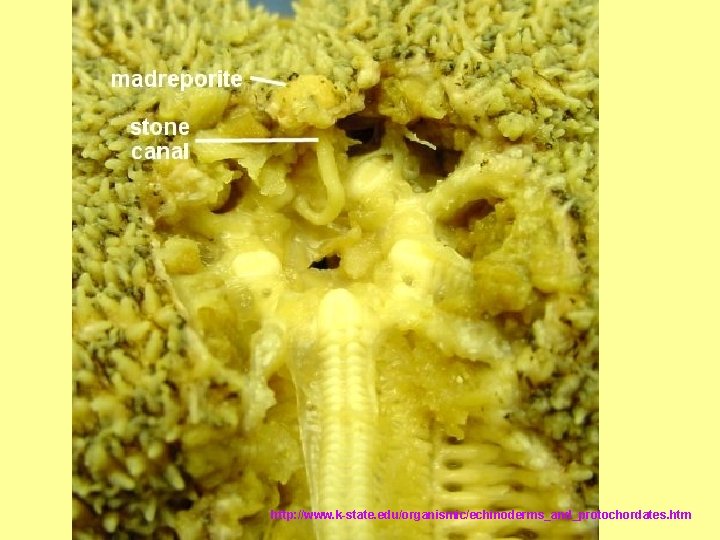

http: //www. k-state. edu/organismic/echinoderms_and_protochordates. htm

GONADS

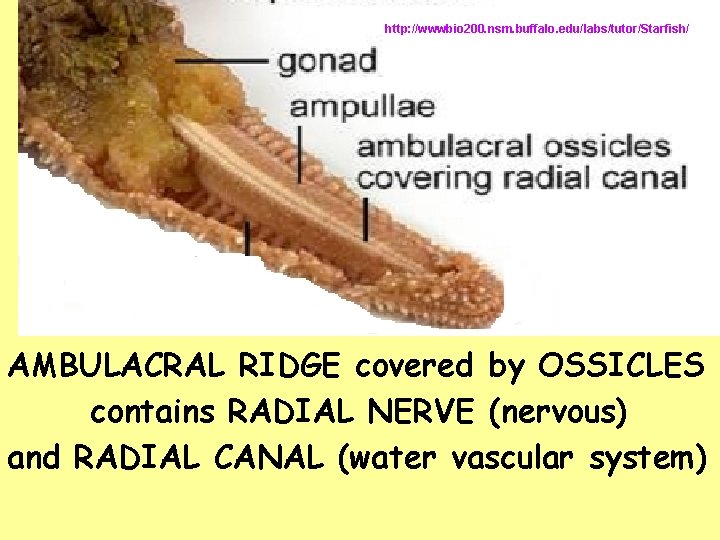

http: //wwwbio 200. nsm. buffalo. edu/labs/tutor/Starfish/ AMBULACRAL RIDGE covered by OSSICLES contains RADIAL NERVE (nervous) and RADIAL CANAL (water vascular system)

AMBULACRAL RIDGE AMPULLAE (tops of tube feet)

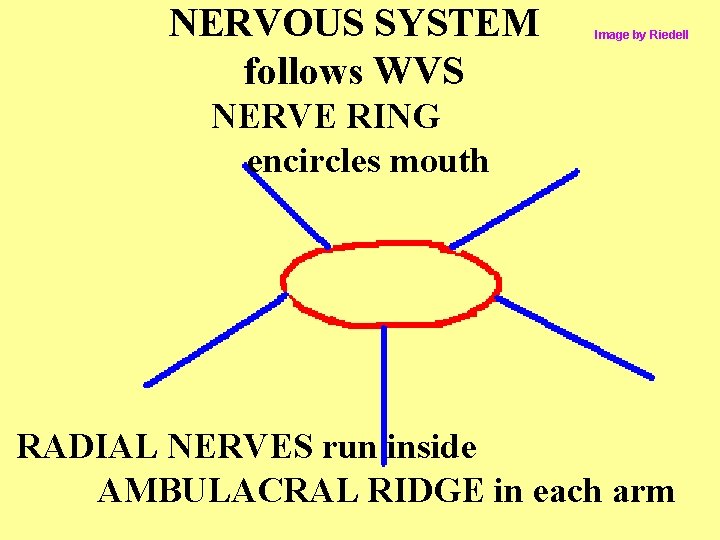

NERVOUS SYSTEM follows WVS Image by Riedell NERVE RING encircles mouth RADIAL NERVES run inside AMBULACRAL RIDGE in each arm

SEPARATE SEXES GONADSreproductive organs Starfish have both SEXUAL ASEXUAL (Regeneration)

http: //www. k-state. edu/organismic/echinoderms_and_protochordates. htm

DIGESTIVE GLAND GONAD OSSICLES

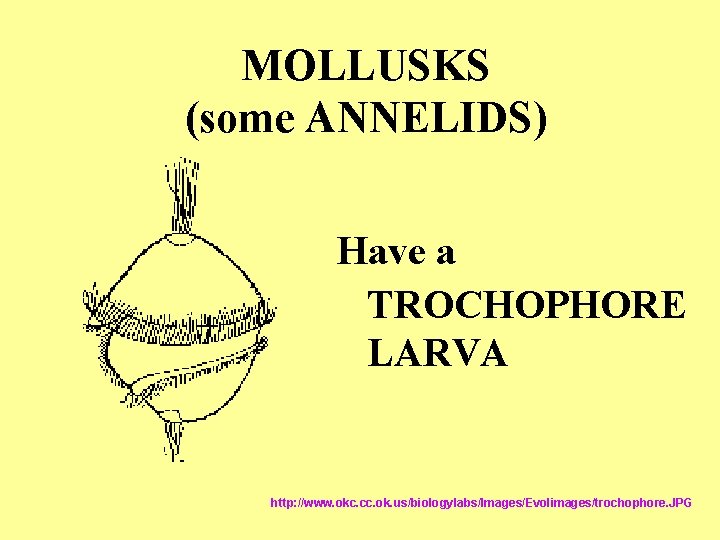

MOLLUSKS (some ANNELIDS) Have a TROCHOPHORE LARVA http: //www. okc. cc. ok. us/biologylabs/Images/Evolimages/trochophore. JPG

SEXUAL REPRODUCTION FERTILIZATION EXTERNAL DEVELOPMENT INDIRECT LARVA BIPINNARIA Has BILATERAL SYMMETRY and wings to swim

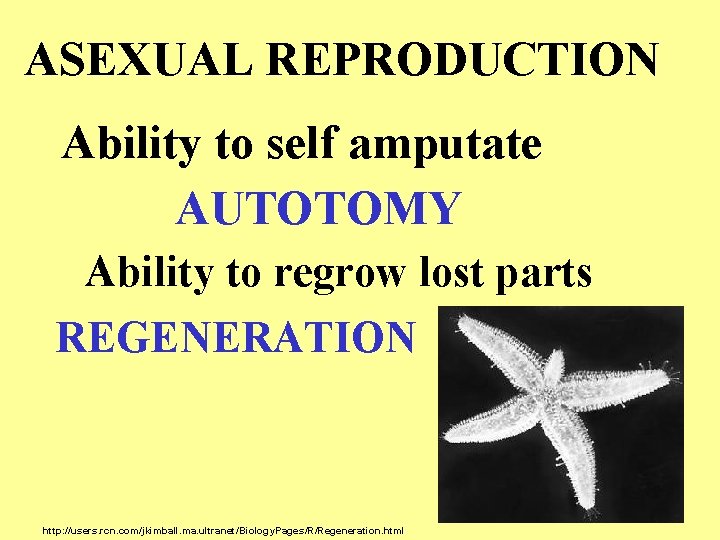

ASEXUAL REPRODUCTION Ability to self amputate AUTOTOMY Ability to regrow lost parts REGENERATION http: //users. rcn. com/jkimball. ma. ultranet/Biology. Pages/R/Regeneration. html
