STANDART OF RIGA SHIPYARD 2011 RIGA SHIPYARD General

STANDART OF RIGA SHIPYARD 2011

RIGA SHIPYARD General information • • • RIGA SHIPYARD has a large experience in shipbuilding, ship conversions and ship repairs since 1913, and is one of the largest shipyards in Eastern Baltic region. In 1998, after an upgrade of the yard’s shipbuilding division to conform Western Europe shipbuilding standards, Riga Shipyard has built and delivered more than 130 hulls of ships of different levels of the outfit in length of 15 -80 m for Norwegian, Swedish, Danish and Finnish customers. RIGA SHIPYARD operates nine berths having the following properties: Berth No. Length, m Depth, m RKR-1 205. 0 -5. 0 RKR-2 205. 0 -5. 0 RKR-3 70. 0 -6. 0 RKR-4 320. 0 -6. 0 RKR-5 161. 2 -6. 0 RKR-6 388. 0 -7. 3 RKR-6 a 105. 0 -6. 0 RKR-7 530. 0 -8. 5 RKR-8 184. 8 (194. 0) -5. 5 (8. 5) RKR-9 247. 6 -5. 5

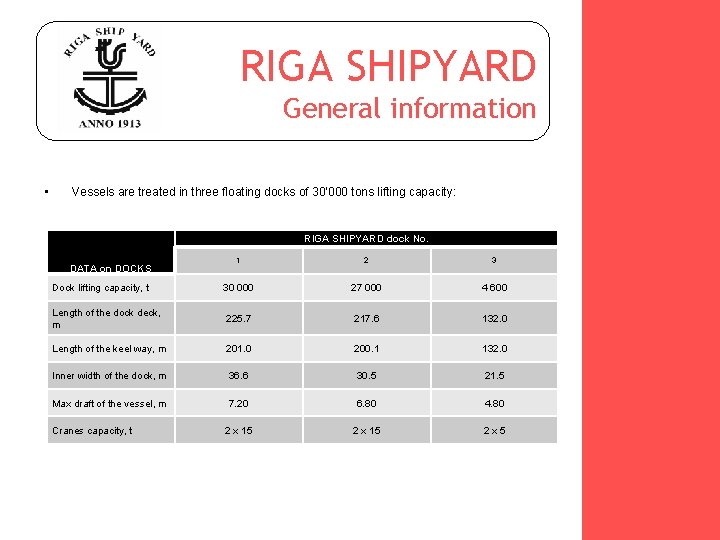

RIGA SHIPYARD General information • Vessels are treated in three floating docks of 30’ 000 tons lifting capacity: RIGA SHIPYARD dock No. 1 2 3 Dock lifting capacity, t 30 000 27 000 4 600 Length of the dock deck, m 225. 7 217. 6 132. 0 Length of the keel way, m 201. 0 200. 1 132. 0 Inner width of the dock, m 36. 6 30. 5 21. 5 Max draft of the vessel, m 7. 20 6. 80 4. 80 2 x 15 2 x 5 DATA on DOCKS Cranes capacity, t

RIGA SHIPYARD General information • • • • Two slip-ways allowing new ship’s hull building and launching of maximum dimension limits 100 m x 14 m and up to 900 ton of steel weight. In 2008 two Multipurpose escort turn-key tugboats were delivered by Riga Shipyard with Class notation 1 XHULL, XMACH, Escort Tug, Ice Class 1 A, Fire fighting ship, AUT – UMS, Oil recovery ship. In 2008 RIGA SHIPYARD entered aluminium hulls market, and since 2008 has begun to work on SWATH 25 m type patrol vessels building project. Production is planned to commence in July, 2010. RIGA SHIPYARD provides the following shipbuilding works in its premises: steel hull building, hull outfitting, manufacturing and installation of Stainless Steel parts, aluminium hulls and/or superstructures, masts, foundations, shotblasting, metalizing and painting, manufacturing and/or installation of propulsion and steering equipment, rudders and bow thrusters, putting equipment into a hull, installation of pins for insulation matts.

RIGA SHIPYARD General information • • Total manpower capacity presently constitutes 800 employees. It is a very good time to establish partnership with the new customers and offer them a good shipbuilding quality, attractive prices, flexibility and r delivery time. Welcome to the list of our customers!

RIGA SHIPYARD QUALITY ASSURANCE Riga Shipyard’s Quality Management System was approved by Lloyd's Register Quality Assurance as complying to Quality System Management Standard EN ISO 9001: 2000 in 2001. Riga Shipyard’s Testing Laboratory has been recognized by BUREAU VERITAS as per Rule Note NR 320 for tests, examinations, dectections and analysis. Riga Shipyard being an international port unit, Riga Free Port, strictly follows requirements of International Convention for the Safety of Life at Sea (SOLAS) and ISPS Code. 2011

RIGA SHIPYARD QUALITY ASSURANCE 2011

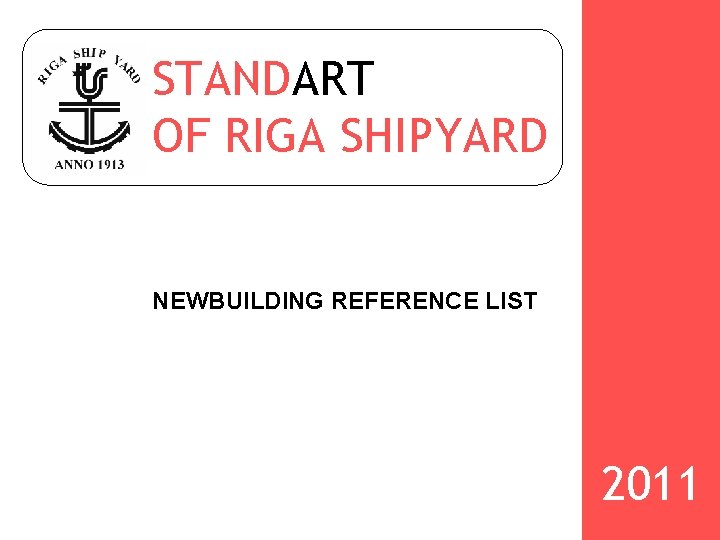

STANDART OF RIGA SHIPYARD NEWBUILDING REFERENCE LIST 2011

STANDART OF RIGA SHIPYARD GALLERY OF SHIPS 2011

“SANTA” Aplication Classification Notation Towing, mooring, escort, fire fighting, oil recovery BUREAU VERITAS 1 X HULL, XMACH, Coastal area – temporary unrestricted navigation, Escort Tug, Ice Class 1 A, Fire fighting ship, AUT – UMS, Oil recovery ship. Main Characteristics: Length O. A. 34, 20 m Breadth O. A. 14, 70 m Depth 5, 63 m Draft 3, 90 m Overall draft 4, 80 m Crew 8 Bollard pull 60 t Speed 13, 2 kn NB 1501

“STELLA” Aplication Classification Notation Towing, mooring, escort, fire fighting, oil recovery BUREAU VERITAS 1 X HULL, XMACH, Coastal area – temporary unrestricted navigation, Escort Tug, Ice Class 1 A, Fire fighting ship, AUT – UMS, Oil recovery ship. Main Characteristics: Length O. A. 34, 20 m Breadth O. A. 14, 70 m Depth 5, 63 m Draft 3, 90 m Overall draft 4, 80 m Crew 8 Bollard pull 60 t Speed 13, 2 kn NB 1502

“FOX LUNA” Aplication Classification Builder: Hull builder: Oil Product Tanker 1 A 1 ICE-1 C TANKER FOR OIL ESP RP E 0 DYNPOS-AUTS HL(1. 5) Aas Mek. Verksted , Norway, build no. 178, Year 2008 Riga Shipyard, Latvia, build no. 1103, Year 2008 Main Characteristics: Length O. A 79, 95 m Length P. P 72, 08 m Breadth 13, 20 m Mld. depth 7, 50 m Tonnage 2284 BRT NB 178

“RONJA NORDIC” Aplication Classification Builder: Hull builder: Live Fish Carrier (Wellboat) NMD, scantlings according to DNV X 1 A 1 Aas Mek. Verksted , Norway, build no. 182, Year 2008 Riga Shipyard, Latvia, build no. 1111, Year 2008 Main Characteristics: Length O. A 57, 07 m Length P. P 51, 44 m Breadth 12, 00 m Mld. depth 5, 10 m Tonnage 1256 BRT NB 182

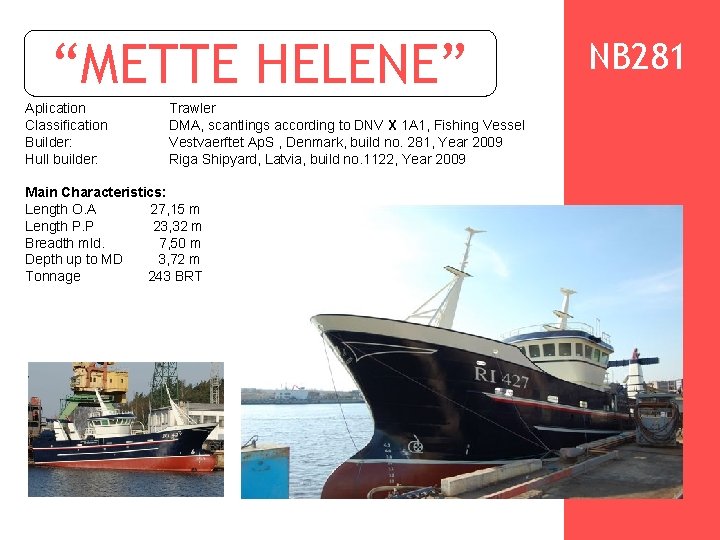

“METTE HELENE” Aplication Classification Builder: Hull builder: Trawler DMA, scantlings according to DNV X 1 A 1, Fishing Vessel Vestvaerftet Ap. S , Denmark, build no. 281, Year 2009 Riga Shipyard, Latvia, build no. 1122, Year 2009 Main Characteristics: Length O. A 27, 15 m Length P. P 23, 32 m Breadth mld. 7, 50 m Depth up to MD 3, 72 m Tonnage 243 BRT NB 281

“CRUM” Aplication Classification Builder: Hull builder: High Endurance Expedition Vessel SMA, scantlings according to DNV Light Craft TJÖRNVARVET AB , Sweden, build no. 135, Year 2008 Riga Shipyard, Latvia, build no. 1107, Year 2007 Main Characteristics: Length O. A 17, 200 m Length P. P 14, 995 m Breadth mld. 5, 500 m Depth up to MD 4, 300 m Draught 1, 300 m Displacement 36 ton NB 135

HMS “ANTARES” (A 502) Aplication Classification Builder: Hull builder: Training Vessel for the Swedish Navy DNV X 1 A 1 LC R 1 Naval Support Patrol E 0 Swede Ship Marine AB , Sweden, build no. 429, Year 2008 Riga Shipyard, Latvia, build no. 1503, Year 2008 Main Characteristics: Length overall: 25, 90 m Length design waterline: 23, 90 m Breadth overall 6, 00 m Breadth design waterline: 5, 50 m Draught to waterline: 1, 40 m Depth at L/2 3, 60 m Displacement 80 tons NB 429

Riga Shipyard Newbuilding Department 2 Gales iela, LV-1015 Riga, Latvia Phone: +371 67 349 373 Fax: +371 67 353 994 E-mail: shipbld@riga-shipyard. com Web: www. riga-shipyard. com
