Standardizing IPbased Emergency Services Richard Barnes BBN Technologies
Standardizing IP-based Emergency Services Richard Barnes BBN Technologies IETF GEOPRIV Chair Hannes Tschofenig Nokia-Siemens IETF ECRIT Chair rbarnes@bbn. com Hannes. tschofenig@gmx. net

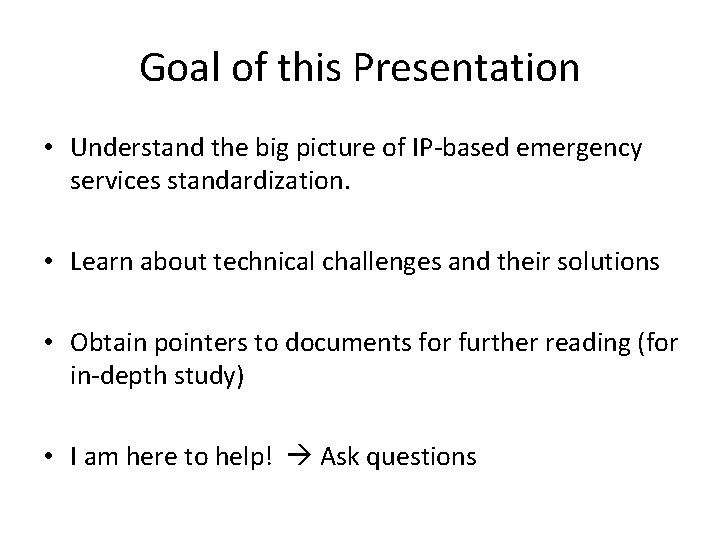

Goal of this Presentation • Understand the big picture of IP-based emergency services standardization. • Learn about technical challenges and their solutions • Obtain pointers to documents for further reading (for in-depth study) • I am here to help! Ask questions
High-Level Emergency Services Categorization • Authority-to-Citizen – Example: Tsunami warning • Authority-to-Authority – Example: Communication between emergency personnel Citizen-to-Authority Note that some Standards Development Organizations (SDOs) use the term “individuals” instead of “citizen”.
Architectural Considerations Layer 7 Layer 3 Layer 1/2 Vo. IP, Inc. (Application Service Provider) ISP, Inc. (Internet Service Provider) Last Mile, Inc. (Internet Access Provider) End Host
Architectural Considerations, cont. • ISP/IAP has the technical means to know the precise location of the end host. • ASP, ISP and IAP are, in some cases, different entities. • Internet is a world-wide network; end points go everywhere – services come from everywhere. • There a multitude of different business models with – Many different protocols being used – Long time to migrate and devices / networks with very different capabilities
Assumptions about PSAP Capabilities • Throughout the subsequent slides we assume a IP-based PSAP to be present in the future emergency services architecture. • Architectural descriptions for how to interwork with legacy PSAPs can, for example, be found in the NENA i 2 specification. – http: //www. nena. org/media/File/08001_20051205. pdf – Other national variants (often derived from the NENA i 2 work exist)
Putting the Pieces together • Work done in a couple of organizations – – – … 3 GPP/3 GPP 2 Wimax Forum NENA / EENA OMA ATIS ESIF ETSI EMTEL IETF COCOM EGEA E 9 -1 -1 Institute COMCARE NIST
3 GPP, 3 GPP 2, Wimax Forum NENA/EENA IETF
SIP Dependency • The IETF emergency services architecture does NOT require SIP being used between the User Agent and the VSP. – The usage of SIP is, however, documented for those using SIP. – Currently, there is no specification for usage of non-SIP protocols for emergency services. – Although the 3 GPP IMS architecture utilizes SIP their communication model is different enough to cause interoperability problems with plain IETF SIP clients. As such, one could see the User Agent to VSP 3 GPP specification as a different SIP dialect. • For interworking with IP-based PSAPs IETF and NENA assume the usage of SIP by the VSP. • Other organizations have a much stronger requirement for SIP usage, such as 3 GPP, and 3 GPP 2.

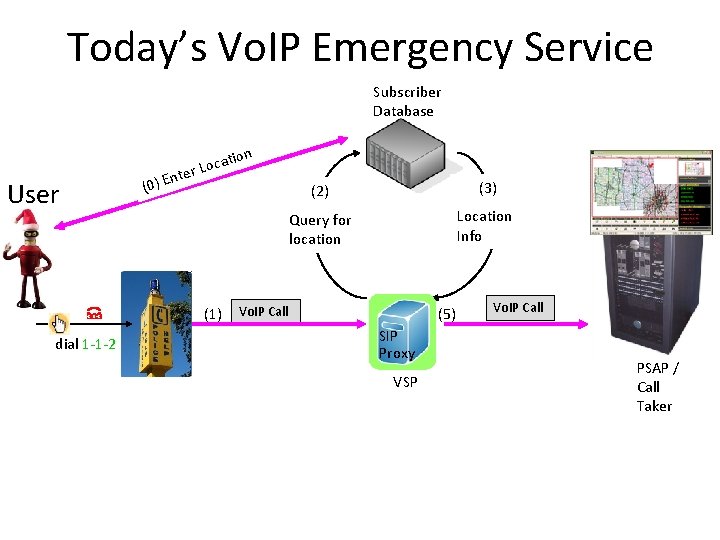

Today’s Vo. IP Emergency Service Subscriber Database User nt (0) E cat er Lo (1) dial 1 -1 -2 ion (2) (3) Query for location Location Info Vo. IP Call (5) SIP Proxy VSP Vo. IP Call PSAP / Call Taker
Properties • Systems largely build on user-provided location information (and updates when necessary). – Causes problems when update is not provided in time. Challenges with nomadic usage and particularly with true mobility. – Requires call-taker to verify the provided location information. • Provided only by those who interwork with the PSTN (from a regulatory point of view). • VSP often hands calls over to emergency services interconnection provider to interface PSAP. • Emergency numbers are detected by the VSP. There is typically no special support for emergency calling provided by the User Agent software.
Automatic Location • The ISP/IAP best knows the location of the end host. – Note: GPS, and location databases maintained by independent third parties do not require ISP/IAP. – However, these mechanisms work only under certain conditions. Hence, often seen as additional possibility rather than a replacement for ISP/IAP provided location. • Common understanding in the industry is that automatic location will have to be provided for Vo. IP emergency services in the mid- to long-term. • The next slides assume that such an automatic location capability is added for IP-based emergency services.
“Legacy End Points” Location Information Server (2) Location Routing Database (3) Location + Service Identifier (4) PSAP URI (1) INVITE dial 1 -1 -2 Request URI: 112 To: 112 (5) INVITE SIP Proxy VSP Request URI: urn: service: sos To: 112 Route Header: PSAP URI < Reference to PIDF-LO> PSAP / Call Taker • Dial string provided by the end point may conform to RFC 4967 or RFC 3966. • Dial string recognition, location determination, route determination done by SIP proxy
Challenges Two challenges appear with the mentioned architecture: 1. How is the LIS discovered? The IP address is the only information that is available to the VSP. Hence, the IP address has to be used to determine the ISP. Based on this info the LIS run by the ISP has to be determined. 2. How is the emergency call routed to the nearest PSAP? Information about the PSAP boundaries need to be available. •
Disadvantages • When the emergency call is not recognized by the User Agent then • • • Call Waiting Call Transfer Three Way Call Flash hold Outbound Call Blocking cannot be disabled. – Callbacks from the PSAP may get blocked by the User Agent software. – Privacy settings might disclosure identity information, even if not desired. – Certain call features may not be supported either, such as REFER (for conference call and transfer to secondary PSAP) or GRUU. • • User Agents will not convey location information to the VSP (even if available at the end host). Only the emergency numbers configured at the VSP are understood. This may lead to cases where a dialed emergency number is not recognized. Using the IP address to find the ISP is challenging and may, in case of mobility protocols and VPNs, lead to wrong results. Privacy concerns might arise when a potentially large number of VSPs/ASPs are able to retrieve location information from an ISP. – It is likely that only authorized VSP/ASPs are allowed to be granted access. Unlikely to work across country boundaries. – Might require specific emergency services structure in order to work securely.
Privacy & Security • Allowing other parties to retrieve location from an ISP raises authorization challenges. • BUT: Is the VSP really in need for location? • Interestingly enough only to a limited extend (at a country level) when there are not too many options to route calls exist. Examples: – A) Very small number of stage 1 PSAP cover the entire country (UK). – B) A single or a small number of ESRPs exist within the country that accept any call and routing happens within the ES network automatically. (e. g. , Sweden and Lithuania). – C) VSP routes calls via the ISP (e. g. , IMS, DT) • Learning the country where a specific host is located can be done based on IP-to-Location lookups. • With option (B) there are not necessarily changes to the emergency services systems necessary as the number of PSAPs may be left unchanged.

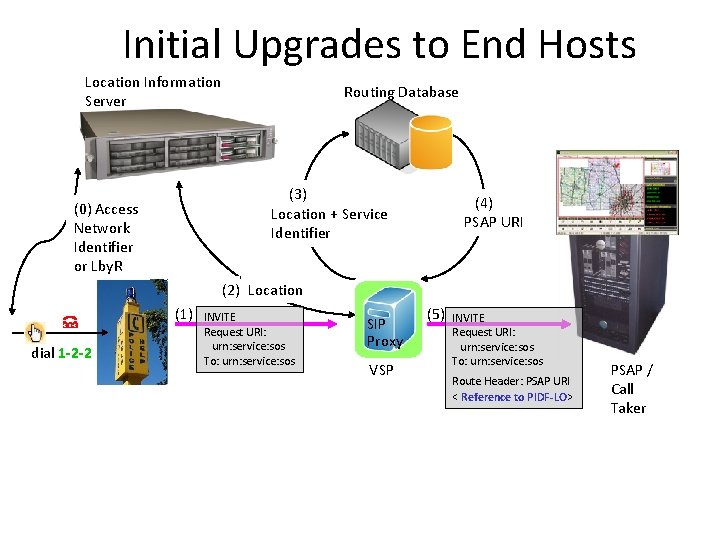

Initial Upgrades to End Hosts Location Information Server Routing Database (3) Location + Service Identifier (0) Access Network Identifier or Lby. R (4) PSAP URI (2) Location (1) dial 1 -2 -2 INVITE Request URI: urn: service: sos To: urn: service: sos SIP Proxy VSP (5) INVITE Request URI: urn: service: sos To: urn: service: sos Route Header: PSAP URI < Reference to PIDF-LO> PSAP / Call Taker

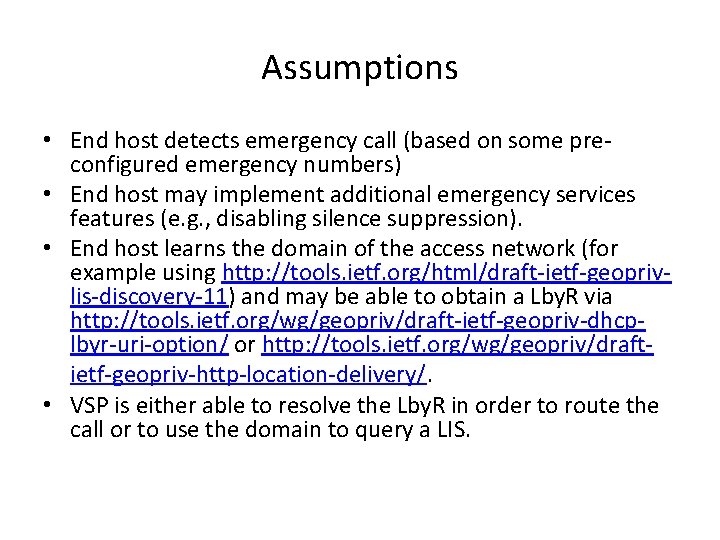

Assumptions • End host detects emergency call (based on some preconfigured emergency numbers) • End host may implement additional emergency services features (e. g. , disabling silence suppression). • End host learns the domain of the access network (for example using http: //tools. ietf. org/html/draft-ietf-geoprivlis-discovery-11) and may be able to obtain a Lby. R via http: //tools. ietf. org/wg/geopriv/draft-ietf-geopriv-dhcplbyr-uri-option/ or http: //tools. ietf. org/wg/geopriv/draftietf-geopriv-http-location-delivery/. • VSP is either able to resolve the Lby. R in order to route the call or to use the domain to query a LIS.

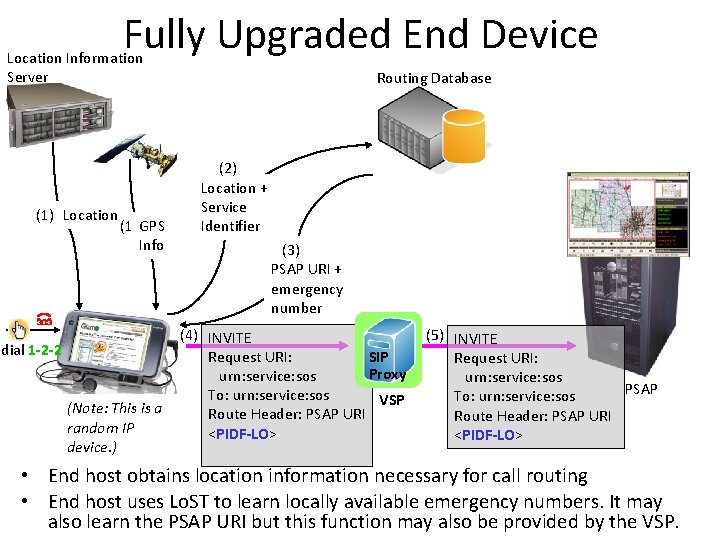

Fully Upgraded End Device Location Information Server (1) Location dial 1 -2 -2 (1)GPS Info Routing Database (2) Location + Service Identifier (3) PSAP URI + emergency number (4) INVITE Request URI: SIP Proxy urn: service: sos To: urn: service: sos VSP (Note: This is a Route Header: PSAP URI random IP <PIDF-LO> device. ) (5) INVITE Request URI: urn: service: sos PSAP To: urn: service: sos Route Header: PSAP URI <PIDF-LO> • End host obtains location information necessary for call routing • End host uses Lo. ST to learn locally available emergency numbers. It may also learn the PSAP URI but this function may also be provided by the VSP.
Characteristics • Locally available Lo. ST servers improve reliability. Lo. ST servers can, however, be deployed everywhere. • Lo. ST servers provide dial string recognition • Local network characteristics (e. g. , enterprise emergency network) can be considered using locally deployed Lo. ST servers. • If connectivity to VSP does not work direct messaging to PSAP possible (assumes certain SIP profile).
… subsequent slides talk about some of the components in more detail • Identifying an emergency call • Location – Format of location information – Protocols for obtaining location • Emergency Call Routing • Standardization of the emergency call procedures for SIP.
Identifying an Emergency Call
Emergency Numbers used worldwide, see http: //www. sccfd. org/travel. html Emergency numbers vary in countries. Example: 9 -1 -1 for North America, 1 -1 -2 for Europe. Some countries use separate numbers for ambulance/police/fire; others don’t
Service URNs • Emergency caller enters emergency dial string into the user interface • On the protocol level an emergency number independent scheme is desired to mark a call as an emergency call. This lead to the work on Service URNs. Work done in the ECRIT working group: http: //www. ietf. org/html. charters/ecrit-charter. html • Service URN registry established in http: //tools. ietf. org/html/rfc 5031 – Examples: urn: service: sos, urn: service: sos. ambulance, urn: service: sos. fire, urn: service: sos. poison, urn: service: sos. police
Home and Visited Emergency Numbers • Required to support both home and visited emergency number – e. g. , for an American traveler who is visiting Europe, both 9 -1 -1 and 1 -1 -2 should be recognized as emergency • How does the User Agent learn about emergency numbers: – Home Emergency Number: User can learn this number through Lo. ST* or device configuration. – Visited Emergency Number: Obtained dynamically via Lo. ST* (*): Lo. ST is a protocol, more on later slides.
Location
Encoding of Location Information – The GEOPRIV WG http: //www. ietf. org/html. charters/geoprivcharter. html uses two formats for location information encoding. • Binary Format • XML-based Format – For bandwidth constraint environments a functionalityreduced binary encoding is used (e. g. , DHCP, link layer protocols) and for application protocols the XML encoding is preferred. – The XML encoding is based on the Presence Information Data Format (PIDF) for Location Objects (LO), or simply PIDF-LO. – PIDF-LO uses the Geography Markup Language (GML) developed by OGC for describing geodetic information.
PIDF-LO: RFC 4119 – The Presence Information Data Format (PIDF) is an XMLbased format for presence (RFC 3863) – A PIDF document contains identity information (as part of the ‘entity’ attribute). – Extends PIDF to accommodate new functionality: • <location-info> Element – Encapsulates location information – GML 3. 0 <feature. xsd> schema (mandatory-to-implement) – Supports civic location format (optional-to-implement) • <method> Element – Describes the way location information was derived or discovered. – Example: <method>gps</method> – Registry available at: http: //www. iana. org/assignments/method-tokens • <provided-by> Element – Entity or organization that supplied this location information • <usage-rules> Element – Used to indicate privacy preferences
More on Civic Information – Initially civic location was specified for DHCP in RFC 4776* (http: //www. ietf. org/rfc 4776. txt) – RFC 4776 uses a binary format. – With RFC 4119* (PIDF-LO) for some of the RFC 4776 civic elements an XML encoding was specified. – With http: //www. ietf. org/rfc 5139. txt the document was revised and new civic tokens were added to be able to express addresses in Asia. – Note: Not every jurisdiction needs to make use of all civic tokens. An example of a profiling for Austria is described in http: //tools. ietf. org/html/draft-ietfgeopriv-civic-address-recommendations *: Note that the content of RFC 4776 was developed before the work on PIDF-LO (RFC 4119). It was, however, faster to finish the standardization work on PIDF-LO.
Location Shapes for Geodetic Info – Location determination techniques produce location information in different shape types. The specification uses the GML-based format for describing the shapes: http: //tools. ietf. org/html/rfc 5491 – The following location shapes are described: – Point (2 d and 3 d) – Polygon (2 d) – Circle (2 d) – Ellipse (2 d) – Arc Band (2 d) – Sphere (3 d) – Ellipsoid (3 d) – Prism (3 d) – The document additionally makes a couple of simplifying restrictions (e. g. , coordinate reference systems). – Finally, it also describes how PIDF-LO documents are created when location information from multiple sources is available. – Format is aligned with functionality provided by OMA and 3 GPP specifications.

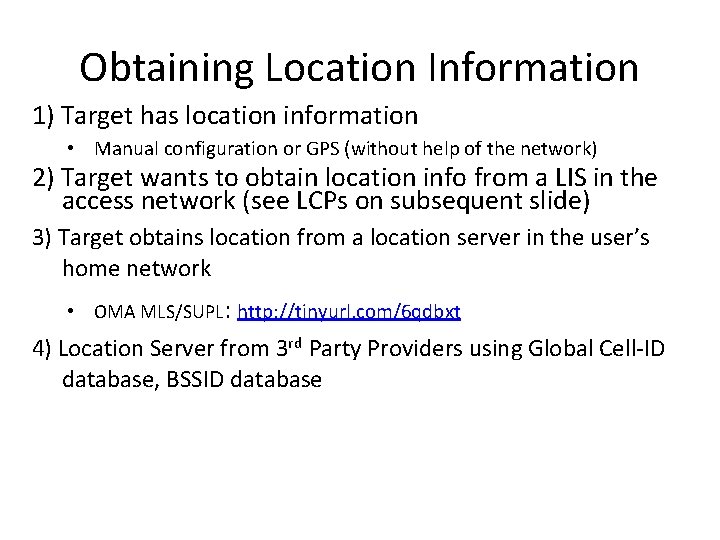

Obtaining Location Information 1) Target has location information • Manual configuration or GPS (without help of the network) 2) Target wants to obtain location info from a LIS in the access network (see LCPs on subsequent slide) 3) Target obtains location from a location server in the user’s home network • OMA MLS/SUPL: http: //tinyurl. com/6 qdbxt 4) Location Server from 3 rd Party Providers using Global Cell-ID database, BSSID database
Location Configuration Protocols (LCPs) Location Information Server Target Request Location • Assumes that some entity in the access network knows the location of the Target. • LIS is topologically close to the Target. • Request from the Target to the LIS needs to contain identifier to lookup location information • Identifier will typically be the IP address • Protocol exchange may happen at different layers. E. g. : – – HTTP in case of HELD IP in case of DHCP On top of the link layer but below IP (LLDP-MED) Link layer
LCPs, cont. • Link layer mechanisms (e. g. , various extensions to IEEE link layer protocols) LLDP-MED – http: //tinyurl. com/5 eqlpq – http: //tinyurl. com/5 o 3 yxk – http: //tinyurl. com/6 hvag 5 • DHCP (civic and geospatial) – RFC 4776 for civic location information (slides at http: //tinyurl. com/6 oj 52 t) http: //www. ietf. org/rfc 4776. txt – RFC 3825 for geodetic location information (slides at http: //tinyurl. com/6 jgchf) http: //www. ietf. org/rfc 3825. txt Application Layer Location Configuration Protocol (e. g. , HELD http: //tools. ietf. org/html/draft-ietf-geopriv-http-location-delivery ) • OMA MLS/SUPL: http: //tinyurl. com/6 qdbxt •
Location by Reference • Previous slides describe how location can be passed around per value. • But there are examples when this is not desired. – E. g. , when location frequently changes • Solution approach: – Instead of retrieving location information per value a reference is obtained. – This reference can be resolved to a location object (more than once) and may yield to fresh location – Access control can also be enforced. • The reference plays the role of a privacy-enhancing generalized identifier.

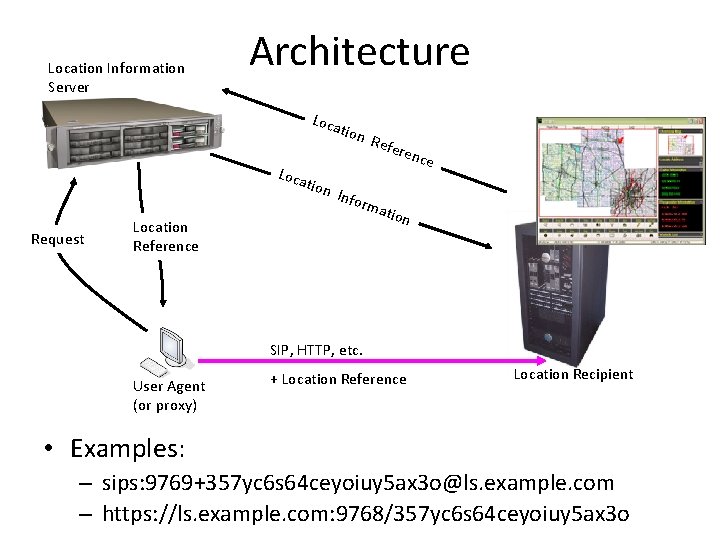

Location Information Server Architecture Loca tion Request Refe renc Info r Location Reference mat io n SIP, HTTP, etc. User Agent (or proxy) + Location Reference Location Recipient • Examples: – sips: 9769+357 yc 6 s 64 ceyoiuy 5 ax 3 o@ls. example. com – https: //ls. example. com: 9768/357 yc 6 s 64 ceyoiuy 5 ax 3 o
Identifier Extensions • HELD allows the source IP address of the HELD request to be used for the location lookup. • Sometimes more flexiblity with regard to the identifier choice is needed „HELD Identity Extensions“ Document: http: //tools. ietf. org/id/draft-ietf-geopriv-held-identity-extensions • Typical usage: – LIS-to-LIS communication scenarios (in DSL wholesale environments) http: //tools. ietf. org/html/draft-winterbottom-geopriv-held-lis 2 lis-bcp – SIP proxy-to-Location Server communication
Example IAP LIS Request (2 a) location for VCI/VPI xyz. ISP LIS (2 b) Location Request (2 a) location for IP address 10. 162. 93. 203 (2 b) Location (1) dial 1 -1 -2 Target (Emergency Caller) INVITE Request URI: urn: service: sos To: urn: service: sos SIP Proxy VSP (5) INVITE Request URI: urn: service: sos To: urn: service: sos Route Header: PSAP URI <Location Reference> PSAP / Call Taker

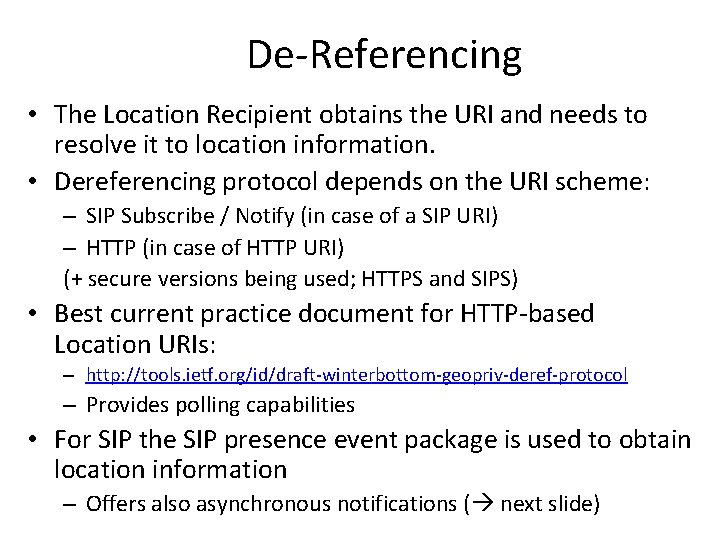

De-Referencing • The Location Recipient obtains the URI and needs to resolve it to location information. • Dereferencing protocol depends on the URI scheme: – SIP Subscribe / Notify (in case of a SIP URI) – HTTP (in case of HTTP URI) (+ secure versions being used; HTTPS and SIPS) • Best current practice document for HTTP-based Location URIs: – http: //tools. ietf. org/id/draft-winterbottom-geopriv-deref-protocol – Provides polling capabilities • For SIP the SIP presence event package is used to obtain location information – Offers also asynchronous notifications ( next slide)
Rate Limiting Asynchronous Notifications of SIP • When location may change regularly then it is useful to restrict the number of asynchronous notifications being sent. • SIP offers asynchronous message (with the Pub. Sub concept) and a SUBSCRIBE message may contains rate limiting filters. • Document is available with: http: //tools. ietf. org/wg/geopriv/draft-ietf-geopriv-loc-filters/ • Features: 1. Object moves more than a specific distance horizontally or vertically since the last notification 2. Object exceeds a specific speed 3. Object enters or exits pre-defined regions 4. one or more of the values of the specified address labels has changed 5. Reduction of the rate at which messages that are being sent.
Emergency Call Routing
Finding the closest PSAP Location Information + Service URN Emergency Number + Service URN + (PSAP) URI Location-to-Service Translation (Lo. ST) is an XML-based query and response protocol running on top of HTTP. + Service Boundary
Features • Protocol specification available with – http: //tools. ietf. org/html/rfc 5222 • Satisfies the requirements for mapping protocols: – http: //tools. ietf. org/html/rfc 5012 • Provides civic address validation – Returns XML tag names of components (classified into <valid>, <invalid> and <unchecked>) • Offers recursive and iterative query resolution • Service boundary may be returned via reference or by value. • Functionality for listing available service URNs and listing service URNs per location. • Supports extensible location profiles. Currently 2 profiles are available: – geodetic-2 d (offers Point, Polygon, Circle, Ellipse, Arc. Band) – civic (based on http: //tools. ietf. org/html/rfc 5139 )
From a Protocol to an Architecture • Lo. ST is a protocol that runs between a Lo. ST client and a Lo. ST server. • Not sufficient when calls from anywhere need to find their way to the right PSAP. • RFC 5582 describes a global mapping architecture using Lo. ST. – Unlike DNS it does not require a single root. There are many root elements and they synchronize their mappings, for example, using http: //tools. ietf. org/html/draft-ietf-ecrit-lost-sync – Like DNS it has redundancy mechanisms built-in • Lo. ST is a core building block for the NENA i 3 architecture, see http: //tinyurl. com/63 dvs 4 • There are multiple ways to deploy Lo. ST deployment needs countryspecific profiling to historical deployment differences and other preferences. Example questions: – – Who runs authoritative Lo. ST servers? Who runs caches? Who is allowed to put mapping data into the Lo. ST server? Who is allowed to access Lo. ST servers? How many Lo. ST servers are needed? Is there a synchronization between them?

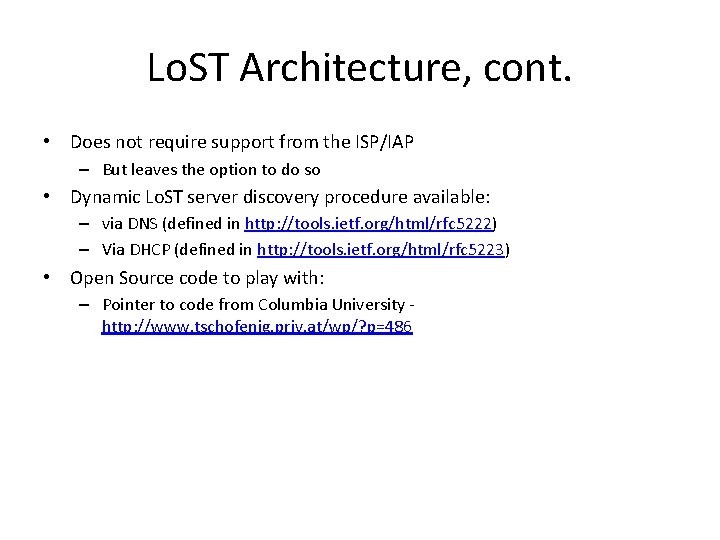

Lo. ST Architecture, cont. • Does not require support from the ISP/IAP – But leaves the option to do so • Dynamic Lo. ST server discovery procedure available: – via DNS (defined in http: //tools. ietf. org/html/rfc 5222) – Via DHCP (defined in http: //tools. ietf. org/html/rfc 5223) • Open Source code to play with: – Pointer to code from Columbia University http: //www. tschofenig. priv. at/wp/? p=486
Terminology Forest Guide FG FG FG Resolver T 2 seeker T 1 (. de) (. us) Tree Node Tree Node T 3 (. at) Leaf Node
Terminology • Seekers: Consumers of mapping data and may cache responses. Don’t act as servers. • Resolvers: Know how to contact FGs and tree nodes. May cache results. Does not have authoritative mappings configured. • Forest Guide: Knows about the coverage region of all trees. Do not provide mapping data themselves. Redirects only to tree nodes. • Tree Node: Maintains mapping data and coverage regions. Knows about the coverage region of all its child nodes. • Leaf Nodes only maintain mapping data. No coverage region data. • From an implementation point of view: – Coverage Region: • Maintains {PSAP Boundary & Service URN Lo. ST server URI} mappings – Mapping Data: • Maintains {PSAP Boundary & Service URN PSAP URI } mappings
Example FG FG FG broadcast (gossip) FG T 1: . us FG T 2: . de resolver seeker 313 Westview Leonia, NJ US T 2 T 1 (. us) (. de) T 3 (. at)

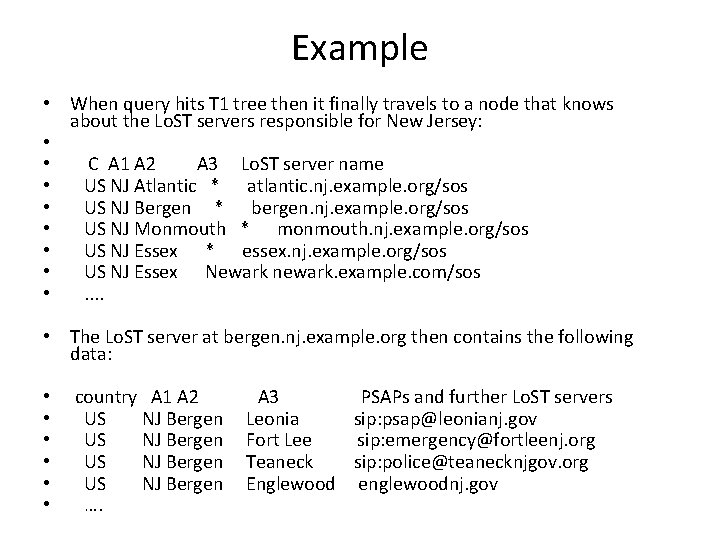

Example • When query hits T 1 tree then it finally travels to a node that knows about the Lo. ST servers responsible for New Jersey: • • C A 1 A 2 A 3 Lo. ST server name • US NJ Atlantic * atlantic. nj. example. org/sos • US NJ Bergen * bergen. nj. example. org/sos • US NJ Monmouth * monmouth. nj. example. org/sos • US NJ Essex * essex. nj. example. org/sos • US NJ Essex Newark newark. example. com/sos • . . • The Lo. ST server at bergen. nj. example. org then contains the following data: • • • country A 1 A 2 US NJ Bergen …. A 3 PSAPs and further Lo. ST servers Leonia sip: psap@leonianj. gov Fort Lee sip: emergency@fortleenj. org Teaneck sip: police@teanecknjgov. org Englewood englewoodnj. gov
Standardization of the emergency call procedures for SIP.

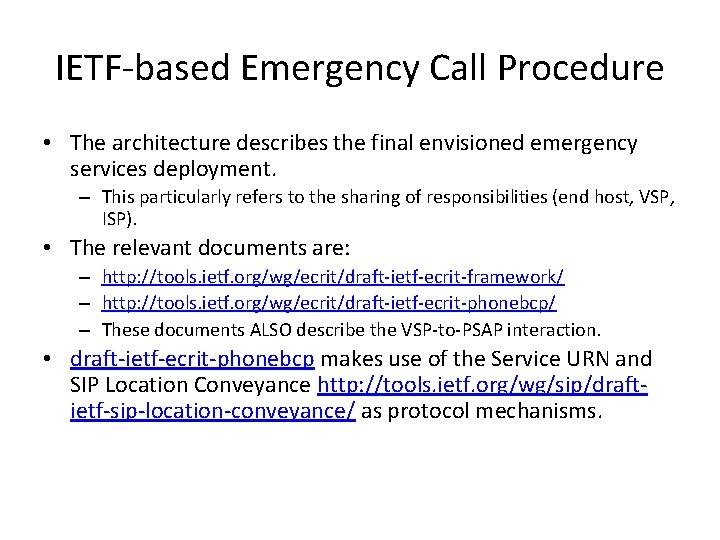

IETF-based Emergency Call Procedure • The architecture describes the final envisioned emergency services deployment. – This particularly refers to the sharing of responsibilities (end host, VSP, ISP). • The relevant documents are: – http: //tools. ietf. org/wg/ecrit/draft-ietf-ecrit-framework/ – http: //tools. ietf. org/wg/ecrit/draft-ietf-ecrit-phonebcp/ – These documents ALSO describe the VSP-to-PSAP interaction. • draft-ietf-ecrit-phonebcp makes use of the Service URN and SIP Location Conveyance http: //tools. ietf. org/wg/sip/draftietf-sip-location-conveyance/ as protocol mechanisms.
IETF - Multi-Media Support • RTP based media traffic RFC 3550 mandatory • Minimum requirements: • • Audio codec: G. 711 Instant Messaging: RFC 3428 or RFC 3920 Real-time text: RFC 4103 Video: H. 264 RFC 3984 • Better codecs/features can be negotiated via SIP offer/answer RFC 3264. • Testing: INVITE requests to a service urn with a urn parameter of "test" indicates a request for an automated test. – Example: "urn: service. sos. fire; test“ – Response may include a text body (text/plain) with PSAP identity, the requested service, and the location reported with the call. • Media security mechanisms (SRTP & key management) currently not mandated.
SIP Location Conveyance • Mechanism to carry location by value and by reference in SIP http: //tools. ietf. org/html/draft-ietf-sip-location-conveyance • Defines the Geolocation header: – Points to location per value (using a cid: ) or contains a reference (e. g. , sips: ) • Geolocation header may contain additional parameters: – inserted-by parameter: Indicates which entry added location to the message ("endpoint" or "server“) – used-for-routing parameter: Used when location was used for routing – recipient parameter: Indicates intended recipient ("endpoint“, "routingentity“ or "both“) • New geolocation option tag: To indicate support for the this extension by UAs in Require, Supported and Unsupported headers (RFC 3261) • New error message (424 Bad Location Information) – Contains addition error value – Node identification of the entity that experienced the location-based error – Human readable error text pre-defined in the draft • Defines sip/sips/pres as a dereference scheme
Example: SIP Invite with Location by Value (1) Bob Alice INVITE sip: bob@192. 168. 10. 20 SIP/2. 0 Via: SIP/2. 0/TCP pc 33. atlanta. example. com ; branch=z 9 h. G 4 b. K 77 i 832 k 9 Max-Forwards: 70 To: Bob <sip: bob@biloxi. com> From: Alice <sip: alice@atlanta. examplecom>; tag=1928301774 Call-ID: a 84 b 4 c 76 e 6 Kr 456@pc 33. atlanta. com Geolocation: cid: alice 123@atlanta. example. com; inserted-by=alice@atlanta. example. com; recipient=endpoint Supported: geolocation CSeq: 314159 INVITE Contact: <sip: alice@pc 33. atlanta. example. com> Accept: application/sdp, application/pidf-xml Content-Type: multipart/mixed; boundary=0 a 0 Content-Length: 543 sdp geolocation (if as a message body) • Example shows location added by value. cid: points to location in the body.
Location Hiding • Let us assume: – Network operator does not want to provide end host with precise location information. – Operator is only willing to provide enough information to accomplish location based routing to the PSAP. • Problem Statement and Requirements provided with – http: //tools. ietf. org/wg/ecrit/draft-ietf-ecrit-location-hiding-req/ • REMINDER: Two types of location information are used for emergency services: (a) Location Information for Dispatch (b) Location Information for Routing • This is not about hiding location towards the PSAP! • Solution proposal available with – http: //tools. ietf. org/html/draft-barnes-ecrit-rough-loc
Unauthenticated Emergency Services • Reference: http: //tools. ietf. org/id/draft-schulzrinne-ecritunauthenticated-access • Cases: – The emergency caller does not have credentials for access to the network but still has credentials for his Vo. IP provider. – The emergency caller has credentials for network access but does not have credentials for a Vo. IP provider. – The emergency caller has valid credentials but is not authorized to make a call. • Work assumes lower-layer procedures for omitting network access authentication. • Technically complex and difficult to deploy. Introduces security vulnerabilities.
Callback • Marking of Calls initiated by Public Safety Answering Points (PSAPs) – Touches the authority-to-citizen topic – Callback is an ordinary call, i. e. no preferential treatment. Call could get blocked, re-directed or ignored. • Phone BCP describes a basic solution: – Store information about the participating communication parties of the emergency call for a limited period of time – When callback arrives check against stored state. – Acts similar to stateful packet filtering firewalls. • Problem statement, requirements and solution strawmans are provided in http: //tools. ietf. org/id/draft-schulzrinne-ecritpsap-callback

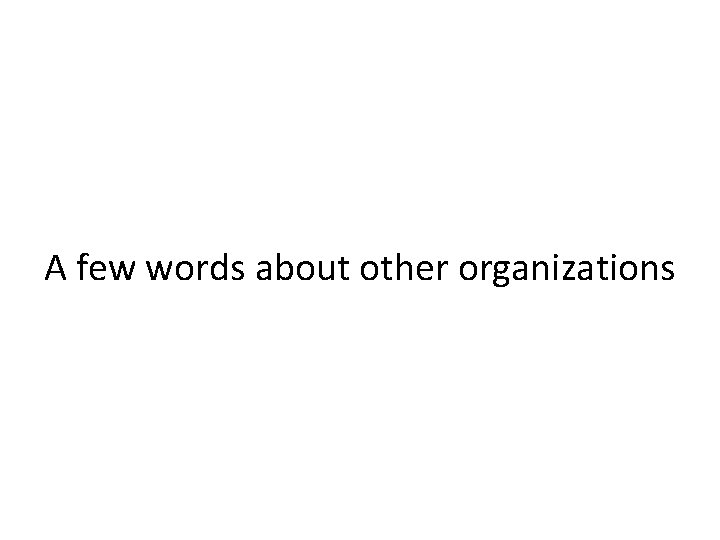

A few words about other organizations
NENA • NENA was founded in 1981 on the principle of “One Nation, One Number, ” in order to help assure ubiquitous 9 -1 -1 service across the United States of America • Today, that initial vision has largely been realized with better than 99% of the U. S. population now covered by some form of 9 -1 -1 service • But, the effort started anew in 2001 with the NENA Future Path Plan and in 2003 with the start of development of NG 91 -1, the IP-based replacement for Enhanced 9 -1 -1 • See http: //www. nena. org for further description; membership required to access work-in-progress documents.
Mission Statement • NENA, through public and private industry partnerships, is committed to the technological advancement, availability, accessibility and implementation of a reliable system for requesting emergency assistance. • In carrying out its mission, NENA promotes: Research, planning, training and education. 77
Important technical working groups • NENA i 2. 5 – Revises NENA i 2 • NENA Long Term Definition – Development of NENA i 3 – A number of relevant sub-groups, such as additional data group, ECRF LVF, etc. – NENA Text to NG 911 Group

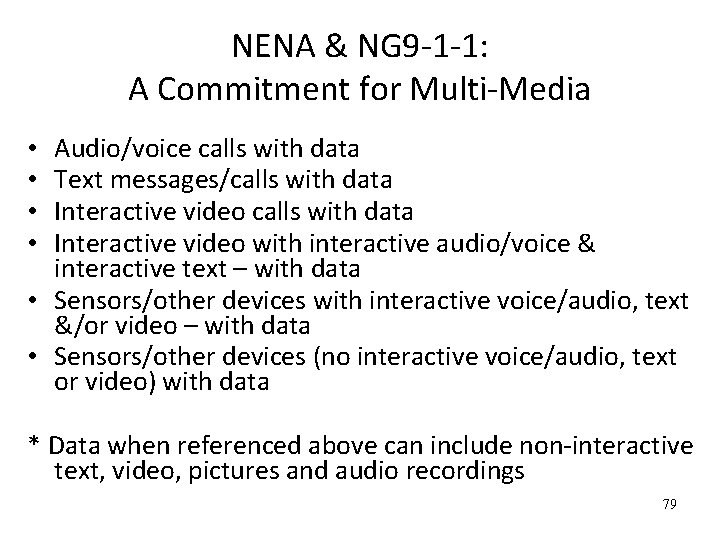

NENA & NG 9 -1 -1: A Commitment for Multi-Media Audio/voice calls with data Text messages/calls with data Interactive video with interactive audio/voice & interactive text – with data • Sensors/other devices with interactive voice/audio, text &/or video – with data • Sensors/other devices (no interactive voice/audio, text or video) with data • • * Data when referenced above can include non-interactive text, video, pictures and audio recordings 79

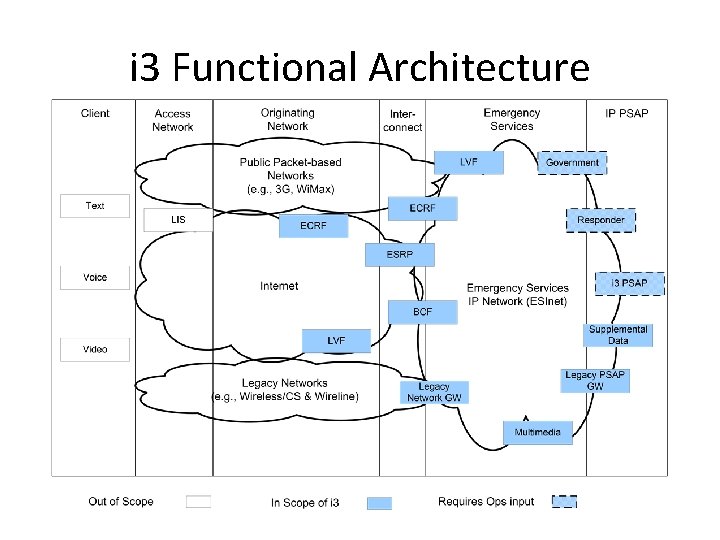

i 3 Functional Architecture
EENA NG 112 TC EENA: http: //www. eena. org Technical discussion group within EENA Phone conference calls (every 2 weeks) Google Groups Mailing List and Document Storage. • Document sharing agreement between NENA and EENA exists. • • – Idea: Re-use existing work (in particular NENA i 3)!
The EENA NG 112 Project – Long Term View Technical Operations Education Partnership Transition • Technical Committee: Technical development with the NG 112 TC. • Operations Committee: Operations development including interoperability testing, certification, and registry maintenance. • Education Program: Education for a broad spectrum of entities and people • Partner Program: Addresses policy issues around NG 112, coordinating with the EENA legal group. • Transition Committee: Best current practice guidelines around transition & implementation
Next Steps? • Review NENA i 3 specification (Requirements, Stage 2 and Stage 3 documents) • Profile text according to European deployment environment. • Interact with NENA members to clarify, modify and enhance specification • May need to create additional sub-groups to tackle the work in an efficient manner – Non-IP-based PSAPs (aka NENA i 2. 5) – Civic location address group • Goal: – Get requirements document finished by Nov 2009 – Finish architecture document by Jan 2010
How to contribute? • Send a mail to Gary (gm@eena. org), Roger (rhixson@nena. org) or myself (Hannes. Tschofenig@gmx. net). – We will add you to the mailing list and configure the access control lists. • Share your thoughts about technical aspects with others in the group. • Give presentations about IP-based emergency services aspects. • Submit text contributions. • Tell us about implementation, pilots, and deployment work: What worked? What didn’t? • Volunteer to drive the work forward as a member or chair of a group.
How to get involved? • The Emergency Services Workshop is not a membership organization, but rather an ad-hoc forum for discussions about emergency services. There are no entrance requirements and no fees (other than a small amount to cover meeting costs). To get involved: – Join the e-mail list: Subscribe to the mailing list (https: //lists. columbia. edu/cucslists/listinfo/es-coordination) for information sharing in the context of emergency services – Come to a workshop: Info about next meeting, see subsequent slide. • More information can be found at the main workshop page: http: //www. emergency-services-coordination. info • Next workshop to be in March/April 2010, in US or Europe
Conclusion • Standardizing protocols for emergency services means – facing technical challenges – learning to deal with an unclear regulatory framework – balancing conflicting interests of the stakeholders along the entire value chain – working with a large number of players and instituations
Still work to do? YES… • Work with regulators and governments to get a better understanding of the responsibilities and funding models • Use the available open source code; help to improve it and contribute your own code • Get engaged in early pilot activities • Participate in technical groups (IETF ECRIT http: //www. ietf. org/html. charters/ecrit-charter. html, NENA, EENA, etc. ) • Contribute your research results
