Standalone Firefly Tools with an embedded Tomcat 7
Standalone Firefly Tools with an embedded Tomcat 7 No additional dependencies besides Java 1. 8
Where is it? • https: //github. com/lsst/firefly/releases/ OR • https: //github. com/lsst/firefly then click ‘releases’ tab
Steps • Download fftools-exec. war from github • Override properties with . /config/fftools/app. prop • Launch Firefly Server: java -jar fftools-exec. war <optional params>
Options java -jar fftools-exec. war --help -extract. Directory <extract. Directory> -http. Port <http. Port> -Xmx<memory allocation> -Dserver_config_dir=<config directory>
External Task Launcher allows Firefly to get Image, Table or JSON from an external process allows user to extend Firefly server capabilities
Python Launcher – now and then • For now, Python launcher is an executable on the same machine started with the same UID as Firefly server • Later, Python launcher is local or remote need to handle both scenarios
Sample Python Task Launcher at Firefly Github src/firefly/python/Sample. Python. Launcher. py • Illustrates communication protocol between Firefly and Python code: -d DIR work directory -i FILE json file with task params -n TASK task name (no spaces) -o DIR output file directory
Setting Python Launcher Location Override the property: config/fftools/app. prop python. exe= python <my. Python. Launcher. py> Pass it to Firefly Tools with embedded Tomcat: java -http. Port 8000 -Xmx 8 g -jar fftools-exec. war -Dserver_config_dir=. /config

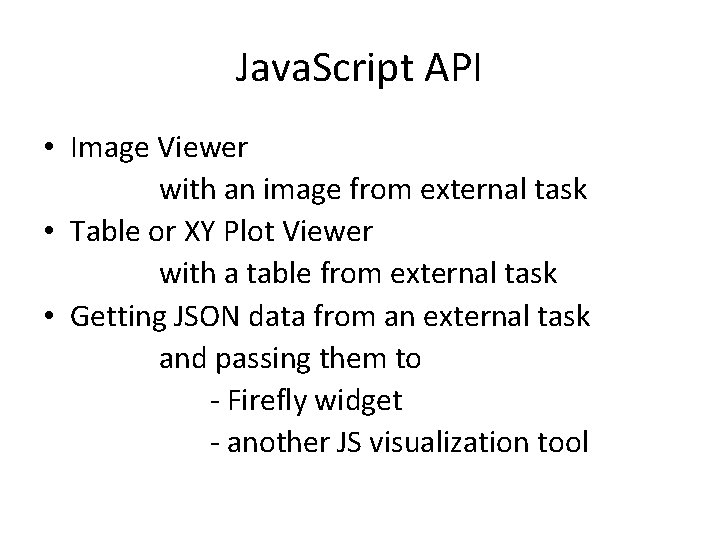

Java. Script API • Image Viewer with an image from external task • Table or XY Plot Viewer with a table from external task • Getting JSON data from an external task and passing them to - Firefly widget - another JS visualization tool
Java. Script API: JSON
Documentation On LSST Firefly Github: https: //github. com/lsst/firefly Check “Adding Python Launcher to Firefly”
Java. Script API: FITS
Java. Script API: Table
