İSTANBUL TEKNIK ÜNIVERSITESI MOLEKÜLER BIYOLOJI VE GENETIK &BIYOTEKNOLOJI QUORUM SENSING ODAKLı YENILIKLER VE BIYOTEKNOLOJIK UYGULAMALAR MBG 617 BIYOTEKNOLOJIDE SON GELIŞMELER Hazırlayan : Murat Kemal AVCI Öğretim Üyesi : Doç. Dr. Zeynep Petek ÇAKAR Aralık-2009 Maslak
İÇERIK… Quorum sensing mekanizması. . . Araştırma alanları. . . Günümüzdeki uygulamalar ve potansiyeller. . Sonuç ve Öneriler… 02. 12. 2009 2 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net
1. MIKROORGANIZMALAR VE BIZ. . . 02. 12. 2009 ? 3 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net
Vücudumuzdaki Mikroorganizma habitatları: 1. Baş derisi 02. 12. 2009 2. Göz 3. Kulak 4. Ağız 5. Deri - Göğüs - Kollar - Eller - Bacaklar - Ayaklar 6. İç organlar - Mide - Barsaklar 5 VS. . Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net
İnsanları Etkileyen Diğer Faktörlerle Mikroorganizmaların Etkileşimleri 02. 12. 2009 6 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net

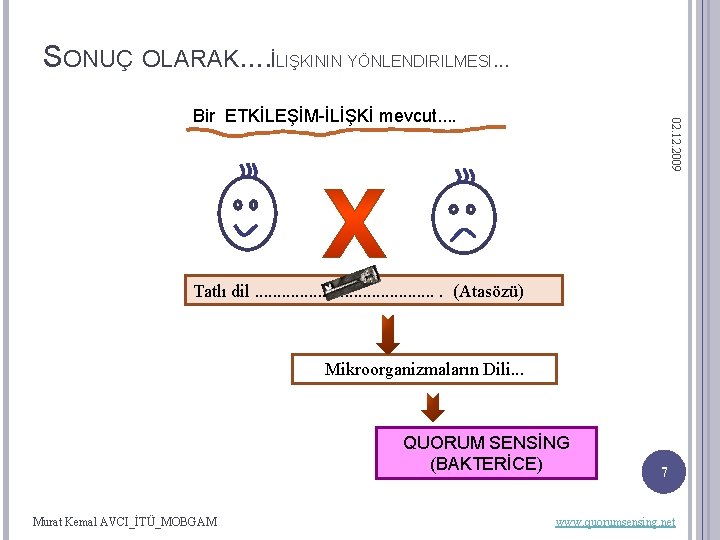

SONUÇ OLARAK. . İLIŞKININ YÖNLENDIRILMESI. . . 02. 12. 2009 Bir ETKİLEŞİM-İLİŞKİ mevcut. . Tatlı dil. . . . . (Atasözü) Mikroorganizmaların Dili. . . QUORUM SENSİNG (BAKTERİCE) Murat Kemal AVCI_İTÜ_MOBGAM 7 www. quorumsensing. net
QUORUM SENSING 02. 12. 2009 Mikroorganizmaların, ortamdaki hücre konsantrasyonuna bağlı olarak bir takım sinyal molekülleri aracılığıyla aralarında iletişim kurup, davranışlarını/gen ifadelerini populasyon çapında düzenlemelerini sağlayan bir iletişim mekanizmasıdır. Quorum : Yeterli sayı Sense : Hissetmek, algılamak Murat Kemal AVCI_İTÜ_MOBGAM 8 www. quorumsensing. net
QUORUM SENSING 02. 12. 2009 “BAKTERİCE” Sözcükler = Kimyasal Moleküller (Autoinducer Peptides, AIPs) Türe özgü davranış (FENOTİP) - Biyofilm oluşumu - Ekstraselüler enzim üretimi - Toksin salgılama - Antibiyotik üretimi - Kommensal-Patojen Dönüşümü v. . . s. . . 9 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net

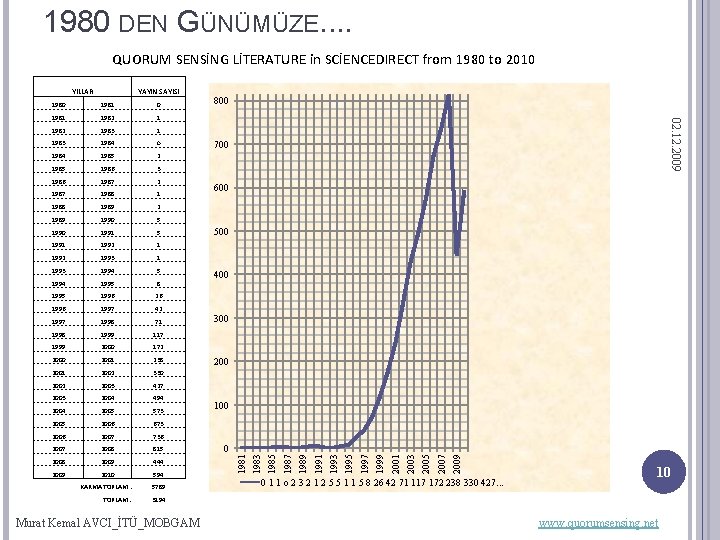

1980 DEN GÜNÜMÜZE. . QUORUM SENSİNG LİTERATURE in SCİENCEDIRECT from 1980 to 2010 1987 1988 1989 2 1989 1990 5 1990 1991 5 1991 1992 1993 1994 5 1994 1995 8 1995 1996 26 1997 42 1997 1998 71 1998 1999 117 1999 2000 172 2000 2001 238 2001 2002 330 2002 2003 427 2003 2004 494 2005 573 2005 2006 673 2006 2007 736 2007 2008 815 2008 2009 444 2009 2010 594 KARMA TOPLAM : 5789 TOPLAM : 3194 Murat Kemal AVCI_İTÜ_MOBGAM 600 500 400 300 200 100 0 2009 2 2007 3 1987 2005 1986 2003 1985 700 2001 2 1999 1985 1997 1984 1995 o 1993 1 1984 1991 1983 1989 1982 800 1987 1 1985 1982 02. 12. 2009 0 1981 1983 YAYIN SAYISI 1981 YILLAR 1980 0 1 1 o 2 3 2 1 2 5 5 1 1 5 8 26 42 71 117 172 238 330 427. . . 10 www. quorumsensing. net

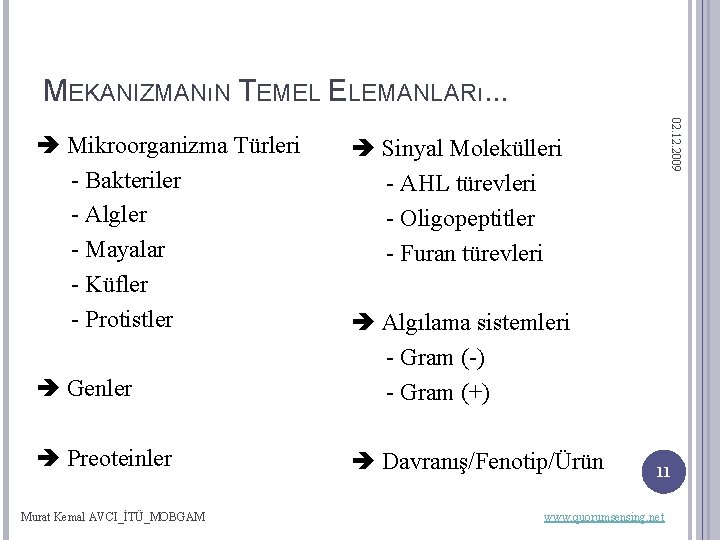

MEKANIZMANıN TEMEL ELEMANLARı. . . Sinyal Molekülleri - AHL türevleri - Oligopeptitler - Furan türevleri Genler Algılama sistemleri - Gram (-) - Gram (+) Preoteinler Davranış/Fenotip/Ürün Murat Kemal AVCI_İTÜ_MOBGAM 02. 12. 2009 Mikroorganizma Türleri - Bakteriler - Algler - Mayalar - Küfler - Protistler 11 www. quorumsensing. net
MADALYONUN [YOĞUNLUĞA BAĞLI] İKI YÜZÜ. . . Patojen Duyarlı Dirençli A ürünü B ürünü 02. 12. 2009 Kommensal OD 600 t 3 t 2 X formu Y ürünü Masum Canavar Dost Düşman t 1 Eksponansiyal Faz QS Zaman 12 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net

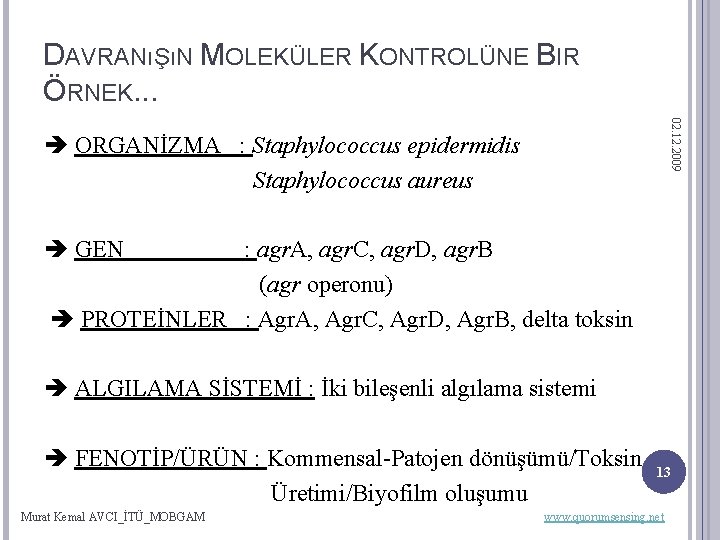

DAVRANıŞıN MOLEKÜLER KONTROLÜNE BIR ÖRNEK. . . 02. 12. 2009 ORGANİZMA : Staphylococcus epidermidis Staphylococcus aureus GEN : agr. A, agr. C, agr. D, agr. B (agr operonu) PROTEİNLER : Agr. A, Agr. C, Agr. D, Agr. B, delta toksin ALGILAMA SİSTEMİ : İki bileşenli algılama sistemi FENOTİP/ÜRÜN : Kommensal-Patojen dönüşümü/Toksin Üretimi/Biyofilm oluşumu Murat Kemal AVCI_İTÜ_MOBGAM 13 www. quorumsensing. net
02. 12. 2009 Şekil : Staphylococcal agr sistemi. A) İki ayrı promotor (P 2 ve p 3) ve bunların transkriptleri. P 2 operonu 4 gen içeri; agr. A, B, C ve D. B) Agr D’nin açık yapısında autoinducer peptidin (AIP) amino asit dizisi görülmektedir (koyu harfler). Bu peptid Agr. C’ye bağlanarak metabolik yolun aktivasyonunu sağlayan ligand olarak iş görür. C) Agr. Cnin açık yapısında beş transmembran heliksi görülmektedir. S 9 -rf 1/52 Murat Kemal AVCI_İTÜ_MOBGAM 14 www. quorumsensing. net
12. 05. 2006 15 Şekil. : Staphylococ’larda accessory gene regulator (agr) sistemi. P 2 promotoru sinyal mekanizmasını kodlar (RNAII aracılığıyla) P 3 promotoru ise agr lokusunun effektörü olarak hareket eder (RNAIII tarafından kodlanır). [J. M. Yarwood and P. M. Schlievert, The Journal of Clinical Investigation, December 2003, Volume 112, Number 11] Murat Kemal AVCI_İTÜ_MOBGAM 15 www. quorumsensing. net
AGR SISTEMI INAKTIF OLDUĞUNDA - Protein A 12. 05. 2006 - Koagülaz Virülans Faktörleri - Fibronektin bağlanma proteini vs… (Ekzo proteinler) 16 Hücre duvarıyla ilişkili proteinler (+) ETKİ (-) - Alfa-toksin - Beta toksin - Delta toksin - Serin proteaz - DNAase - Fibrinolizin - Enterotoksin B - TSST-1 Şekil : Agr sisteminin inaktif olması kommensal olmayı teşvik eder. [Yarwood and Schlievert (2003)’den uarlanmıştır, Çizim: M. K. AVCI] Murat Kemal AVCI_İTÜ_MOBGAM 16 www. quorumsensing. net
AGR SISTEMI AKTIF OLDUĞUNDA 12. 05. 2006 - Alfa-toksin - Beta toksin - Delta toksin - Serin proteaz - DNAase - Fibrinolizin - Enterotoksin B - TSST-1 Hücre duvarıyla ilişkili proteinler 17 - Protein A - Koagülaz Virülans Faktörleri - Fibronektin bağlanma proteini vs… (Ekzo proteinler) (-) ETKİ (+) Şekil. 20 : Agr sisteminin aktif olması patojen olmayı teşvik eder. [Yarwood and Schlievert (2003)’den uarlanmıştır, Çizim: M. K. AVCI] 17 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net
QUORUM SENSING CROSS TALK 02. 12. 2009 Türler arası Cinsler arası Prokaryot-Ökaryot Ör: S. epidermdis ve S. aureus 18 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net
UYGULAMA ALANLARı 02. 12. 2009 Tıp Yapay Kalp kapakçıkları, implent materyaller Veterinerlik Mastitis. . Ziraat / Botanik Bitkisel hastalıklar. . . Biyoteknoloji Malzeme Mühendisliği Biyo-uyumlu materyaller / ürünler Medikal Teknolojileri Moleküler Biyoloji Biyoremediasyon Atık arıtımı. . . Fermentasyon Endüstriyel Mikrobiyoloji Murat Kemal AVCI_İTÜ_MOBGAM 19 www. quorumsensing. net
TARTıŞMA VE ÖNERILER 02. 12. 2009 . . . ? ? √√√√√√ 20 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net
02. 12. 2009 21
REFERANSLAR 1. Bakke, R. , Trulear, M. G. , Robinson, J. A. , Characklis, W. G. , 1984. Activity of Pseudomonas aeruginosa in biofilms: steady state. Biotechnol. Bioeng. 26, 1418– 1424. [BİOF-15/rf] 02. 12. 2009 2. Costerton, J. W. , Cheng, K. J. , Geesey, G. G. , Ladd, T. I. , Nickel, J. C. , Dasgupta, M. , Marrie, T. J. , 1987. Bacterial biofilms in nature and disease. Annu. Rev. Microbiol. 41, 435– 464. 3. Blaschek, H. P. , Wag, H. H. , Agle, M. E. , Biofilms in the Food Environment. IFT Press, Blackwell Publishing (Book) 2007 Chapter 1, s. 3 4. Prof. Dr. Menemşe GÜMÜŞDERELİOĞLU, Müge DESTAN. Biyofilmler. BİTOTEK (2003) YIL: 3 SAYI: 15 5. Cerca, N. et al. , Quantitative analysis of adhesion and biofilm formation on hydrophilic and hydrophobic surfaces of clinical isolates of Staphylococcus epidermidis. Res. Microbiol. 2005 May ; 156 (4): 506– 514. [QS-222] 6. Galdbart, J. O. et al. , Phenotypic and Genomic Variation among Staphylococcus epidermidis Strains Infecting Joint Prostheses. Journal Of Clinical Microbiology, May 1999, p. 1306– 1312 Vol. 37, No. 5. [QS-252] 7. Gross, M. et al. , Key Role of Teichoic Acid Net Charge in Staphylococcus aureus Colonization of Artificial Surfaces. Infectıon and Immunity, May. 2001, p. 3423– 3426 Vol. 69, No. 5. [QS-274] 8. Rupp, M. E. et al. Characterization of the Importance of Staphylococcus epidermidis Autolysin and Polysaccharide Intercellular Adhesin in the Pathogenesis of Intravascular Catheter–Associated Infection in a Rat Model. The Journal of Infectious Diseases 2001; 183: 1038– 42. [QS-275] 9. Briandet, R. , Determination of the van der Waals, electron donor and electron acceptor surface tension components of static Gram-positive microbial biofilms. Colloids and Surfaces B: Biointerfaces 21 (2001) 299– 310. [BİOF-23] 9. Saldarriaga Fernández, I. C. , et al. , In vitro and in vivo comparisons of staphylococcal biofilm formation on a crosslinked poly(ethylene glycol)-based polymer coating. Acta Biomaterialia xxx (2009) xxx–xxx. [BİOF-F 35] 10. van der Borden, A. J. , Electric Current-Induced Detachment of Staphylococcus epidermidis Biofilms from Surgical Stainless Envıronmental 6871– 6874. Applıed And Steel. Mıcrobıology, p. 2004, Nov. 227] 22 11. Anderson, J. M. and Marchant R. E. , Biomaterials: factors favoring colonization and infection. In: Waldvogel FA, Bisno AL, editors. Infections associated with indwelling medical devices. Washington DC: ASM Press; 2000. p. 89– 110. [BİOF-F 35/rf. 3] Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net
12. Costerton J. W. , Introduction to biofilm. International Journal of Antimicrobial Agents 11 (1999) 217– 221. [BİOF-F 22] 13. Rohde, H. et al. , Structure, function and contribution of polysaccharide intercellular adhesin (PIA) to Staphylococcus epidermidis biofilm formation and pathogenesis of biomaterial-associate dinfections. European Journal of Cell Biology (2009) 1 -9. [BİOF-S 7] 02. 12. 2009 14. Sutherland, I. W. , The biofilm matrix – an immobilized but dynamic microbial environment (Review). TRENDS in Microbiology, May 2001, Vol. 9 No. 5 [BİOF-S 13] 15. environment. Journal of Applied Microbiology, 2004, 96, 177 -184. [QS-463] 16. Blaschek, H. P. , Wag, H. H. , Agle, M. E. , Biofilms in the Food Environment, (Book) Chapter 5, s. 106) 17. Monds, R. and O’Toole, G. A. , The developmental model of microbial biofilms: ten years of a paradigm up for review. Trends in Microbiology (2009) Vol. 17 No. 2 [BİOF-24] 18. Lee, J. . et al, Structure and Function of the Escherichia coli Protein Ymg. B: A Protein Critical for Biofilm Formation and Acidresistance. J. Mol. Biol. (2007) 373, 11– 26. [BİOF-S 6] 19. Mack, D. et. al, Mechanisms of biofilm formation in Staphylococcus epidermidis and Staphylococcus aureus: functional molecules, regulatory circuits, and adaptive responses (REVIEW). International Journal of Medical Microbiology 294 (2004) 203– 212. [QS-201] 20. Kozitskaya, S. et al. , Clonal Analysis of Staphylococcus epidermidis Isolates Carrying or Lacking Biofilm-Mediating Genes by Multilocus Sequence Typing. Journal Of Clinical Microbiology, Sept. 2005, Vol. 43, No. 9 p. 4751– 4757. [QS-220] 21. Zhang, Y. -Q. et al. , Genome-based analysis of virulence genes in a non-biofilm-forming Staphylococcus epidermidis train (ATCC 12228). Molecular Microbiology, (2003) (6), 1577– 1593. [QS-245] 21. Arevalo-Ferroa, C. et al. , Biofilm formation of Pseudomonas putida Iso. F: the role of quorum sensing as assessed by proteomics. Systematic and Applied Microbiology 28 (2005) 87– 114. [BİOF-F 17] 22. Cucarella, C. et al. Bap, a Staphylococcus aureus Surface Protein Involved in Biofilm Formation. Journal Of Bacterıology, May-2001, Vol. 183, No. 9, p. 2888– 2896. [QS-256] 23 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net
24. Hansen, S. K. Et al. , Evolution of species interactions in a biofilm community. NATURE| Vol 445| 1 February 2007. [BİOF-6] 25. Kumar, C. G. and Anand, S. K. , Significance of microbial biofilms in food industry: a review. International Journal of Food Microbiology 42 (1998) 9– 27. [BİOF-15] 02. 12. 2009 26. Melchior, M. B. et. al, Biofilms: A role in recurrent mastitis infections? (Review) The Veterinary Journal, 171 (2006) 398– 407. [BİOF-16] 27. Morikawa, M, Beneficial Biofilm Formation by Industrial Bacteria Bacillus subtilis and Related Species. Journal Of Bıoscıence And Bıoengıneerıng. Vol. 101, No. 1, 1– 8. 2006. [BİOF 19] 28. Senior, K. , Navigating the hidden depths of biofilms. Infectious Diseases Vol 4 April 2004. 20] [BİOF- 29. Jefferson, K. K. , What drives bacteria to produce a biofilm? , Mini. Review, FEMS Microbiology Letters 236 (2004) 163– 173. [BİOF-F 18] 30. Hansen, S. K. , Evolution of species interactions in a biofilm community, NATURE, Vol 445|, 1 February 2007. [BİOF-6] 31. Kennedy, P. , et al. , Burns, biofilm and a new appraisal of burn wound sepsis, B U R N S( 2 0 0 9 ) 1 -8. [BİOF-11] 32. Huq, A. , Biofilms in water, its role and impact in human disease transmission. Current Opinion in Biotechnology 2008, 19: 244– 247. [BİOF-12] 33. Stephens, C. , Microbiology: Breaking Down Biofilms. Current Biology, Vol. 12, R 132–R 134, February 19, 2002. [BİOF-26] 34. Matsukawa, M. , Biofilms: From Bench to the Bedside. Speakers' Abstracts/International Journal of Antimicrobial Agents 26 S (2005) S 1 -S 63 [BİOF-27] 35. Ramey, B. E. , Biofilm formation in plant–microbe associations, Current Opinion in Microbiology 2004, 7: 602– 609. [BİOF-28] 36. Shapiro, J. A. , Thinking about bacterial populations as multicellular organisms. Annu. Rev. Microbiol. (1998) 52, 81– 104. [BİOF-F 18/rf. 26] 37. Federle, M. J. and Bassler, B. L. , Interspecies communication in bacteria. J. Clin. Invest. (2003) 112, 1291– 1299. . [BİOF-F 18/rf. 32] Murat Kemal AVCI_İTÜ_MOBGAM 24 www. quorumsensing. net
38. Voung, C. , Otto, M. , 2000. Staphylococcus epidermidis infections. Microbs and Infections 4 (2002) 481 -489. [QS-241] 39. Vacheethasanee K. , and Marchant, R. E. , Surfactant polymers designed to suppress bacterial (Staphylococcus epidermidis) adhesion on biomaterials. Student Research Award in the Ph. D. Degree Candidate Category, World Biomaterials Congress 2000, Kamuela, HI, May 15 -20, 2000. [QS-271] 02. 12. 2009 40. Milohanic, E. , et al. , The autolysin Ami contributes to the adhesion of Listeria monocytogenes to eukaryotic cells via its cell wall anchor. Molecular Mibrobiology (2001) 39 (5), 1212 -1224. [QS-308] 41. Patti, J. M. , (1994) MSCRAMM-mediated adherence of microorganisms to host tissues. Annu. Rev. Microbiol. 48, 585– 617. [BİOF-F 18/rf. 20] 42. Mazmanian, S. K. et al. , Sortase-catalysed anchoring of surface proteins to the cell wall of Staphylococcus aureus, Mol. Microbiol. 40 (2001) 1049– 1057. ) [QS-276] 43. Hussain, M. , A 140 -kilodalton extracellular protein is essential for the accumulation of Staphylococcus epidermidis strains on surfaces, Infect. Immun. 65 (1997) 519– 524. [QS-241/rf 23] 44. Vuong, C. , Polysaccharide intercellular adhesin (PIA) protects Staphylococcus epidermidis against major components of the human innate immune system. Cellular Microbiology (2004) 6 (3), 269– 275. [QS-244] 45. Arciola, C. R. , Presence of ica. A and ica. D Genes and slime production in a collection of staphylococcal strains from catheter-associated infections, J. Clin. Microbiol. 39 (2001) 2151– 2156. [S 9 -rf 1/31] 46. Chamberlain, N. R. , and Brueggemann, S. A. , Characterisation and expression of fatty acid modifying enzyme produced by Staph. epidermidis, J. Med. Microbiol. 46 (1997) 693– 6 [S 9 -rf 1/35] 47. Ronner, U. , Husmark, U. , Henriksson, A. , 1990. Adhesion of Bacillus species in relation to hydrophobicity. J. Appl. Bacteriol. 69, 550– 556. 48. Dewanti, R. , Wong, A. C. L. , 1995. Influence of culture conditions on biofilm formation by Escherichia coli O 157: H 7. Int. J. Food Microbiol. 26, 147– 164. 49. Collins, E. B. , Hardt, P. , 1980. Inhibition of Candida albicans by Lactobacillus acidophilus. J. Dairy Sci. 63, 830– 832. 50. B. Gottenbos, H. C. van der Mei, H. J. Busscher, Initial adhesion and surface growth of Staphylococcus epidermidis and Pseudomonas aeruginosa on biomedical polymers, J. Biomed. Mater. Res. 50 (2000) 208– 214. 51. Kumamoto, C. A. , Candida Biofilms, Curr. Op. İn Micbio. 2002, 5: 608 -611 52. Rinker, K. D. , Kelly, R. M. , 1996. Growth physiology of the hyperthermophilic archaeon Thermococcus litoralis: Development of a sulfur-free defined medium, characterization of an exopolysaccharide and evidence of biofilm formation. Appl. Environ. Microbiol. 62, 4478– 4485. [BİOF-15/rf. 198] Murat Kemal AVCI_İTÜ_MOBGAM 25 www. quorumsensing. net
53. Rogers, J. , Dowsett, A. B. , Keevil, C. W. , 1995. A paint incorporat ing silver to control mixed biofilms containing Legionella pneumophila. J. Ind. Microbiol. 15, 377– 382. BİOF-15/rf. 201] 54. Stern, N. J. , Kazmi, S. U. , 1989. Campylobacter jejuni. In: Doyle, M. P. (Ed. ), Foodborne Bacterial Pathogens. Marcel Dekker, New York, USA, pp. 71– 110. [BİOF 15/rf. 219] 02. 12. 2009 55. Wirtanen, G. , Mattila-Sandholm, T. , 1994. Measurement of biofilm of Pediococcus pentosaceus and Pseudomonas fragi on stainless steel surfaces. Coll. Surf. B: Biointerfaces 2, 33– 39. [BİOF-15/rf. 241] 56. Masako, K. , A novel method to control the balance of skin microflora, Part 1. Attack on biofilm of Staphylococcus aureus without antibiotics. Journal of Dermatological Science (2005) 38, 197— 205. [BİOF-C 2] 26 Murat Kemal AVCI_İTÜ_MOBGAM www. quorumsensing. net
