Stair Gait Lecture Notes Stair Gait Stair climbing

Stair Gait Lecture Notes

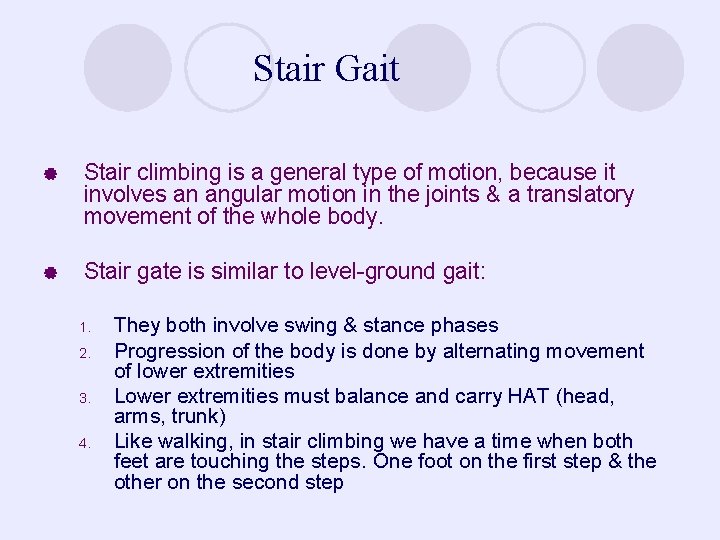

Stair Gait | Stair climbing is a general type of motion, because it involves an angular motion in the joints & a translatory movement of the whole body. | Stair gate is similar to level-ground gait: 1. 2. 3. 4. They both involve swing & stance phases Progression of the body is done by alternating movement of lower extremities Lower extremities must balance and carry HAT (head, arms, trunk) Like walking, in stair climbing we have a time when both feet are touching the steps. One foot on the first step & the other on the second step

Stair Gait | Stair gate is different than level-ground gait: 1. The firs thing we put on the stair is the anterior portion of the foot, unlike in level walking where posterior portion of the foot (heel) is put first on the ground 2. The subphases of stance & swing phase are different

Phases of Stair Gait | 1. 2. 3. Stance phase includes: Weight Acceptance Pull Up Forward Continuation | Swing phase includes: 1. Foot Clearance Foot Placement 2.

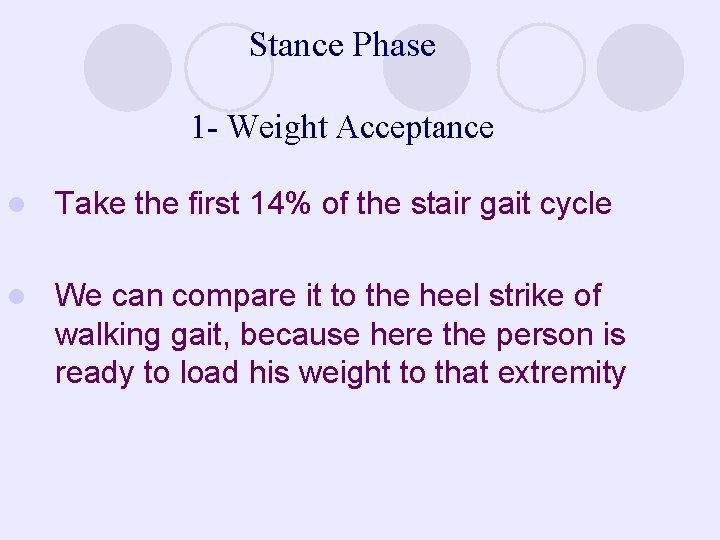

Stance Phase 1 - Weight Acceptance l Take the first 14% of the stair gait cycle l We can compare it to the heel strike of walking gait, because here the person is ready to load his weight to that extremity

Stance Phase 2 - Pull Up l Meaning pull up the other leg, along with the whole body l Extends from 14% to 32% of the stair gait cycle l It is a period of single limb support, equivalent to midstance in walking gait l It is a time of instability, because all of the body weight is shifted to the stance extremity l Knee extensors (quadriceps) are responsible for most energy generation required here

Stance Phase 3 - Forward Continuous l The period from 32% to 64% of stair gait cycle l Equivalent to midstance, heel off & toe off of walking gait l Ankle planterflexors are responsible for most energy generation required here

¿Question? l If a person can walk normally, can you tell if he/she can go upstairs? ! l No, because the ranges of motion required for stair gait is different than the ranges of motion required for walking gait. l The amount of energy required is the least in walking. Stair climbing require more energy & more muscle activity

Swing Phase 1 - Foot Clearance l When the person takes the whole foot off the first step 2 - Foot Placement l When the person is ready to put the foot on the second step

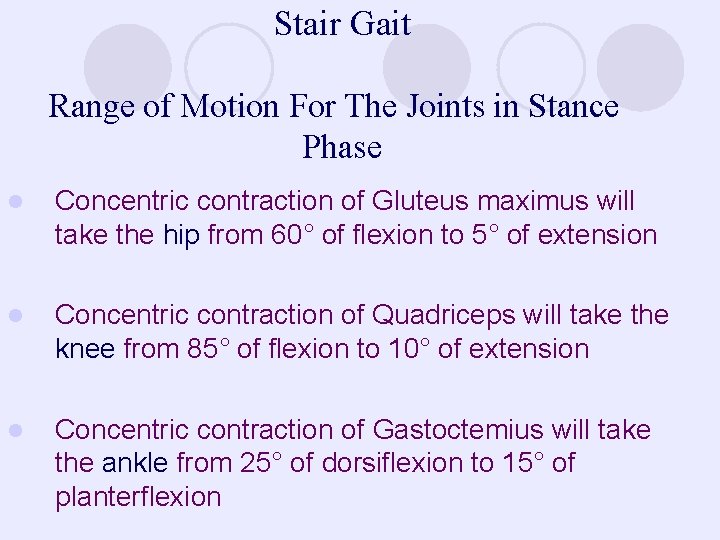

Stair Gait Range of Motion For The Joints in Stance Phase l Concentric contraction of Gluteus maximus will take the hip from 60° of flexion to 5° of extension l Concentric contraction of Quadriceps will take the knee from 85° of flexion to 10° of extension l Concentric contraction of Gastoctemius will take the ankle from 25° of dorsiflexion to 15° of planterflexion

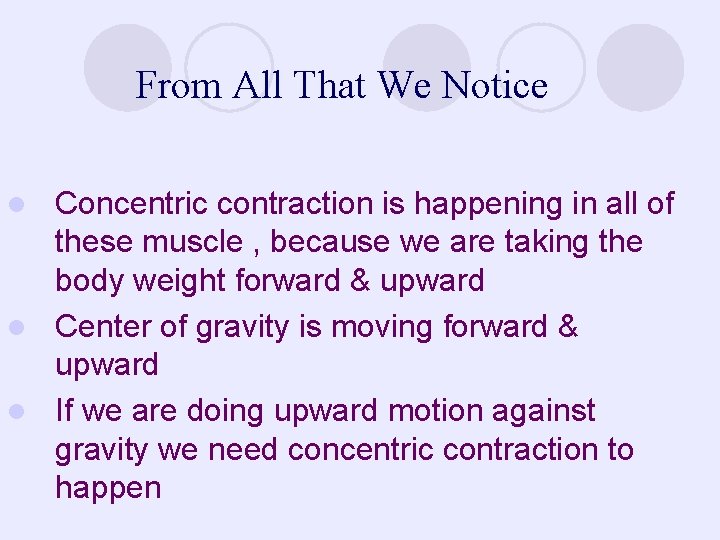

From All That We Notice Concentric contraction is happening in all of these muscle , because we are taking the body weight forward & upward l Center of gravity is moving forward & upward l If we are doing upward motion against gravity we need concentric contraction to happen l

Stair Gait Range of Motion For The Joints in Swing Phase l Concentric contraction of Gluteus medius will cause 10° -20° to 40°-60° of flexion in the hip joint l Concentric contraction of the hamstrings will cause 10° of flexion to 90° -100° flexion in the knee joint l Concentric contraction of the tibialis anterior will cause 10° of planterflexion to 20° of dorsiflexion in the ankle joint

Again We Notice! Concentric contraction is happening in all of these muscle , because we are taking the body weight forward & upward l Center of gravity is moving forward & upward l If we are doing upward motion against gravity we need concentric contraction to happen l
