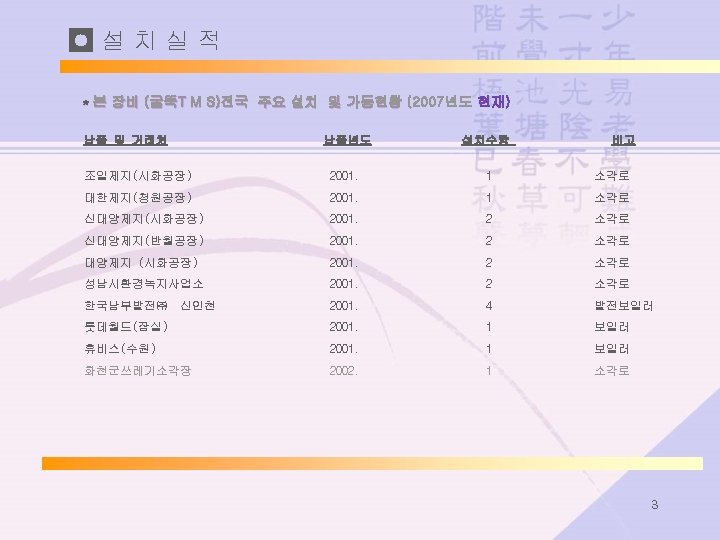

STACK TMS 10 STACK TMS 13 STACK TMS
- Slides: 55

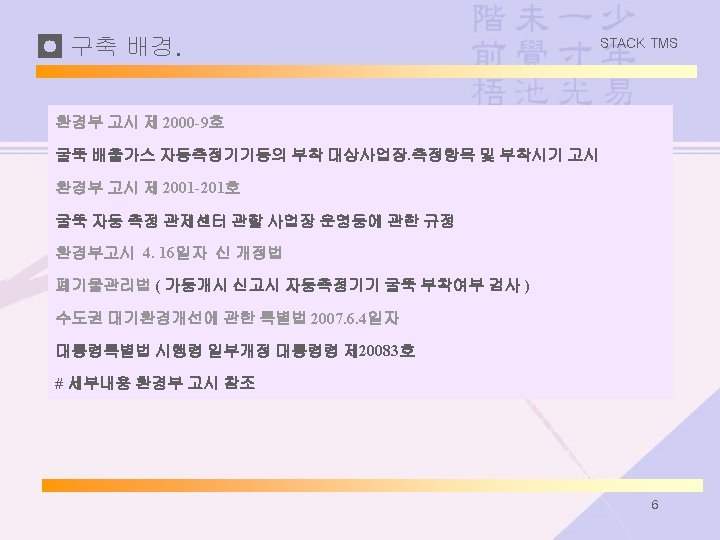

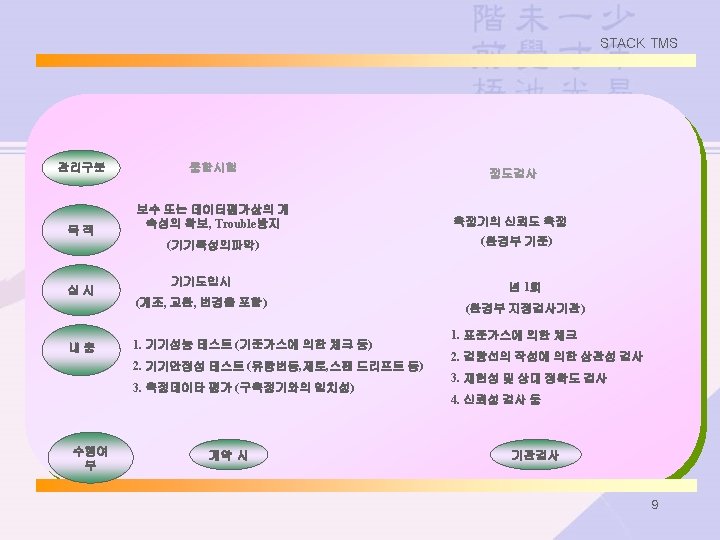

STACK TMS 측 정 기 10

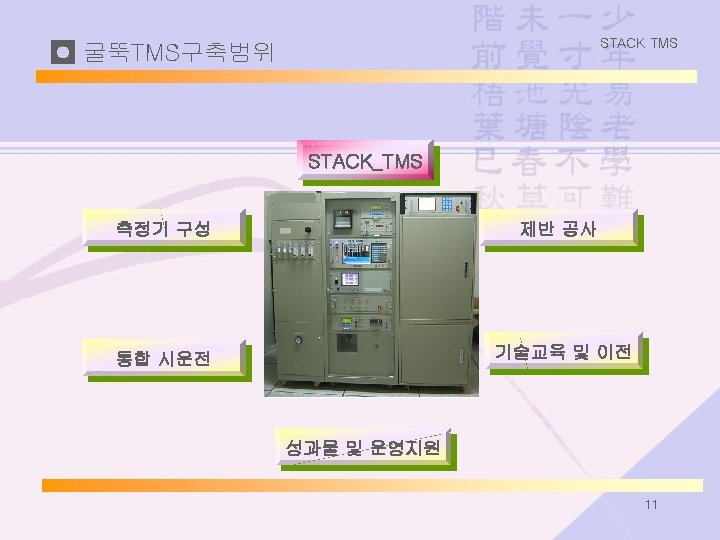

STACK TMS 13
STACK TMS 15

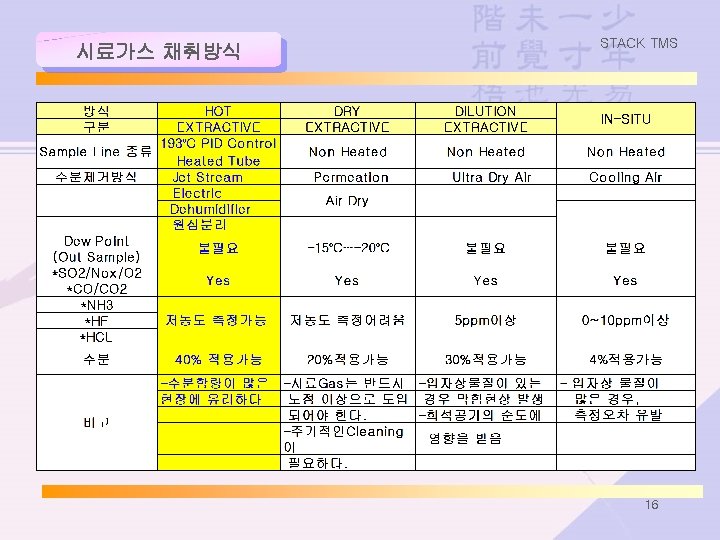

STACK TMS 3) System 사양 (환경기준에 적합하며 측정농도에대해 형식승인득) - 측정방식 : SO 2/Nox/CO – NDIR, O 2 – Zirconia - 측정범위 : SO 2/Nox/CO – 0 ~ 100/250/500/1000 ppm, O 2 - 0~25% - Zero Drift : SO 2/Nox/CO-Within± 2% FS/week, O 2 -Within ± 2% FS/week - Span Drift : SO 2/Nox/CO-Within ± 2% FS/week, O 2 -Within ± 2% FS/week - Linearity : Within ± 2% FS - Repeatability : Within ± 0. 5% FS - Response Time : SO 2/Nox/CO-25 sec(for 90%), O 2 -20 sec(for 90%) - Sample flow rate : 0. 5 ± 0. 25ℓ/min -출력 : 0~1 VDC -전원 : 100 VAC, 50/60 Hz -치수 : W 483 x. D 429 x. H 194 mm -중량 : Approx 20 kg 19

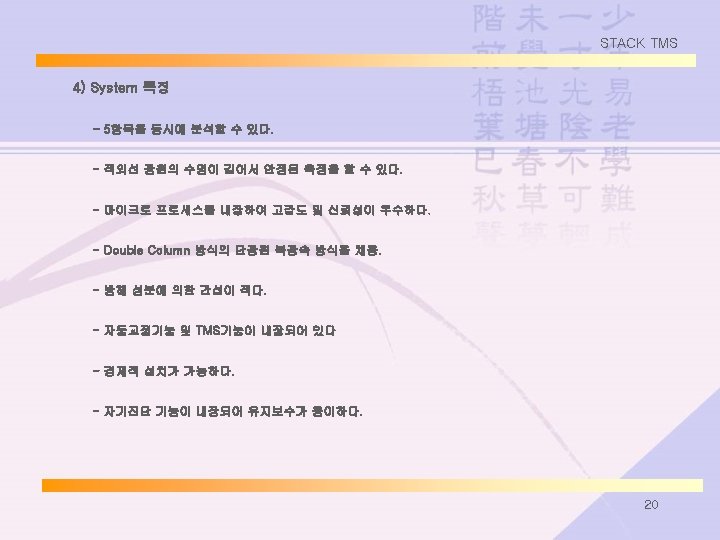

Principle Diagram (SO/NOx/CO/CO 2) STACK TMS 21
STACK TMS TEMP MONITOR(Model : 423 A) SENSOR MAKER : Mirae e&i (한국) 1) Specification 1. 측정 방법 : RTD Sensor Type 2. 응답시간 : 95% / sec 이내 3. Temp Range : 0 ~ 200℃ ( Option : 0 ~ 600℃ ) 4. Output Signal : 4 ~ 20 m. A DC 5. Power : AC 110 V 50 / 60 Hz 6. Mounting Size : 240(W) X 114(H) X 280(D)mm 19" Rack Type 3 U ( Half ) 7. Sensor : Input : PT 100 ohm Length : 1, 080(L)mm X 3. 2∅ ( 설치환경에 따라 변경됨) 8. Material : SUS 304 25

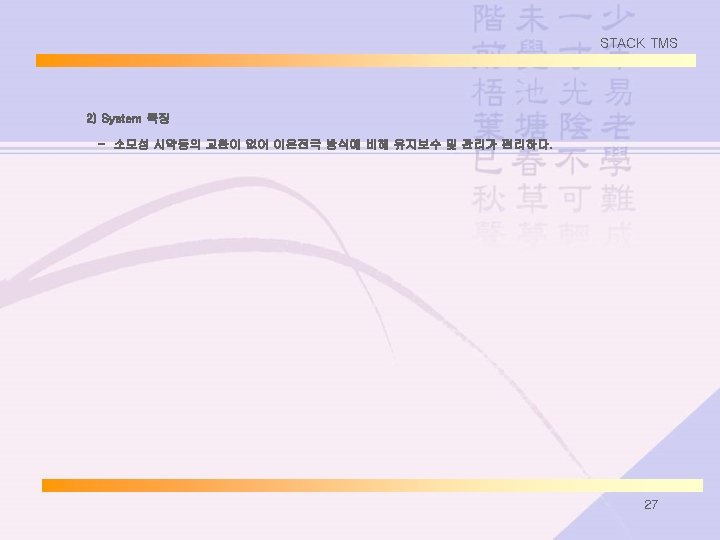

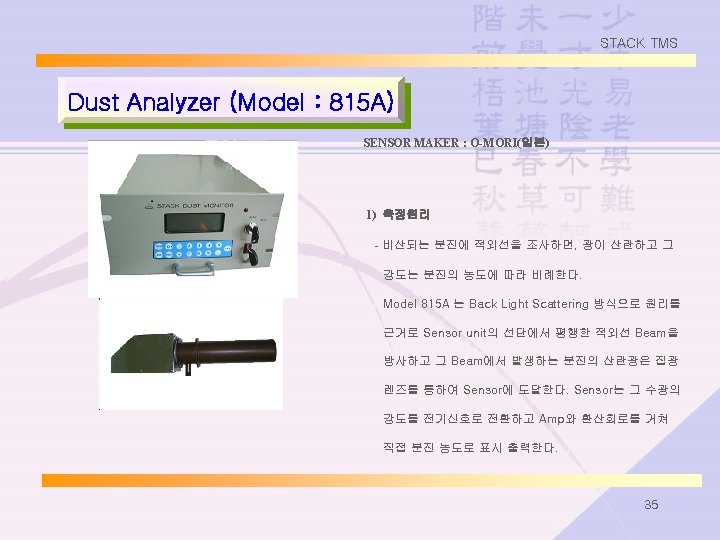

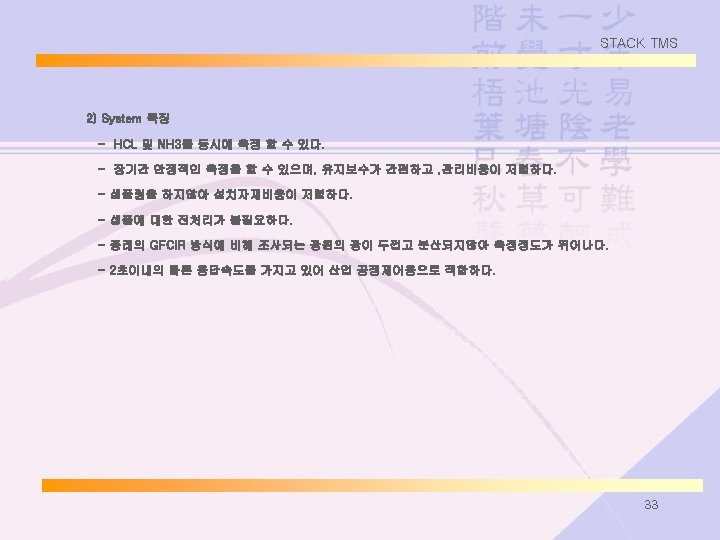

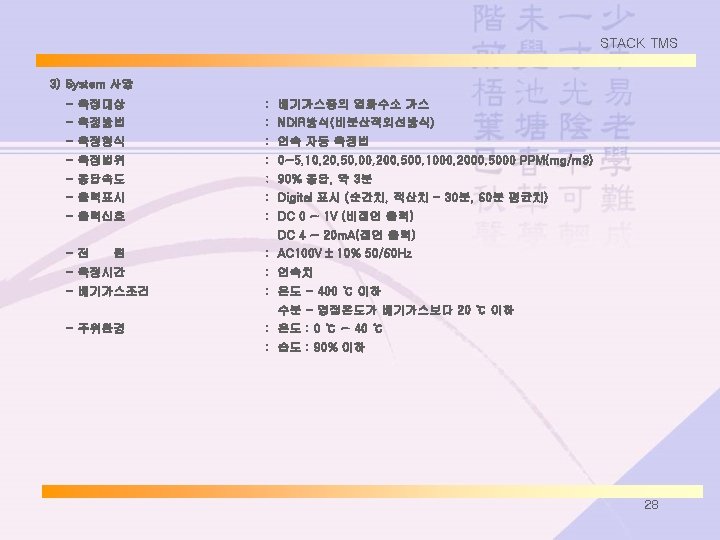

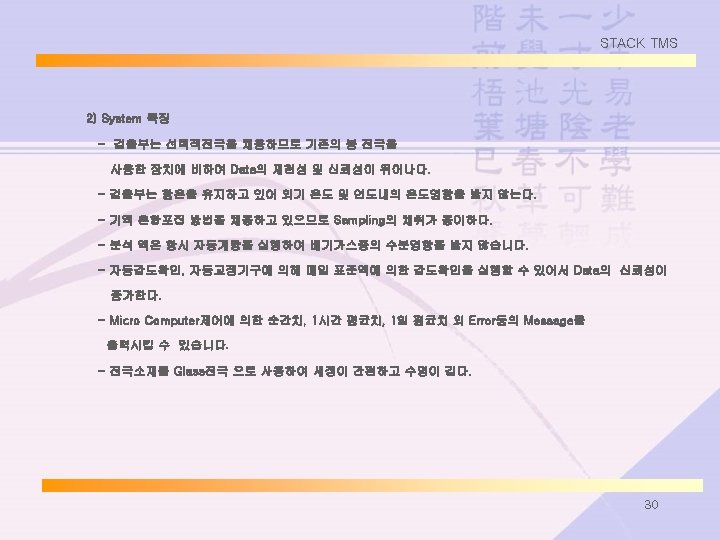

STACK TMS 2) System 구성 - Sensor Probe Unit - 냉각(세정)용 Air Pump or 계장냉각용 Air (Clean Air) 3) System 사양 - 측정방식 : 후방산란방식 (광 산란법) - 측정범위 : 0. ~150 - Range : 0. 1, 0. 2, 0. 5, 5, 10 g/m 3중에 1 Range 고정 - Sensor온도 : 0~70ºC 이하(표준) -출력 : 농도- 4~20 m. A, 0~1 VDC 온도 - 0~1 VDC(Sensor부 온도) Alarm(Temp/분진농도) - Zero Drift : 2% FS/24시간 - 0~1 A, 24 V - Span Drift : 2% FS/24시간 동작불량 – Dry Contact, 0~1 A, 24 V -전원 : 110 VAC, 50/60 Hz 조정중 - “ - 소비전력 : 최대 35 W 전원단 - “ - Air 유량 : 40ℓ/min -치수 : Meter-W 482 x. D 330 x. H 105 mm Prove- Ø 90 x. L 355 (표준) -광원 : 적외선(파장 940 nm) -중량 : Meter- Approx 5 kg Probe- Approx 6 kg 36

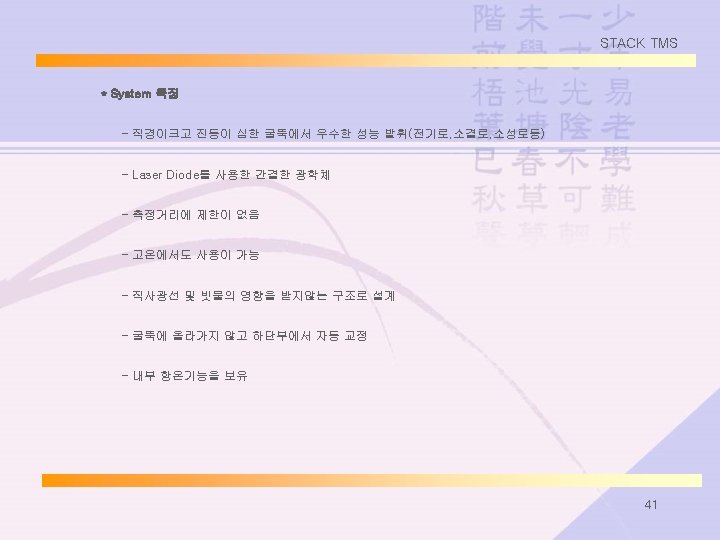

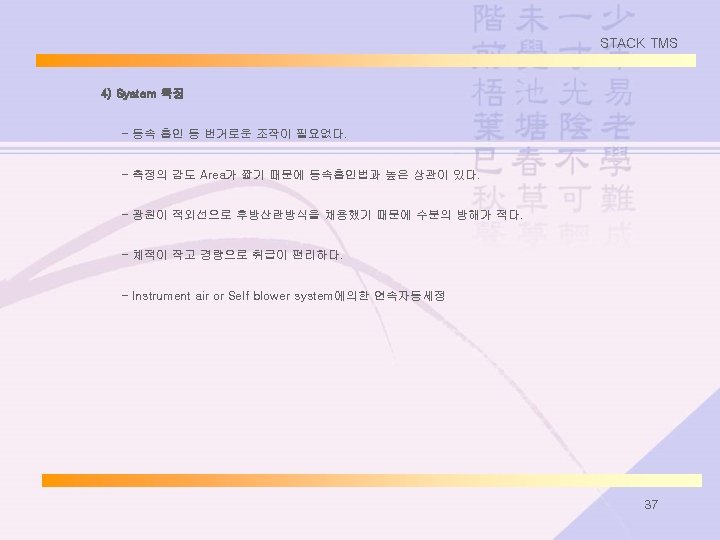

STACK TMS 25℃ 38

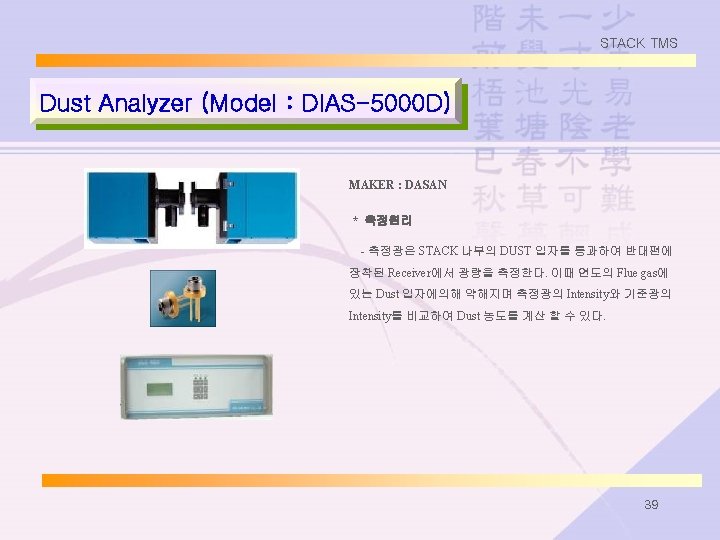

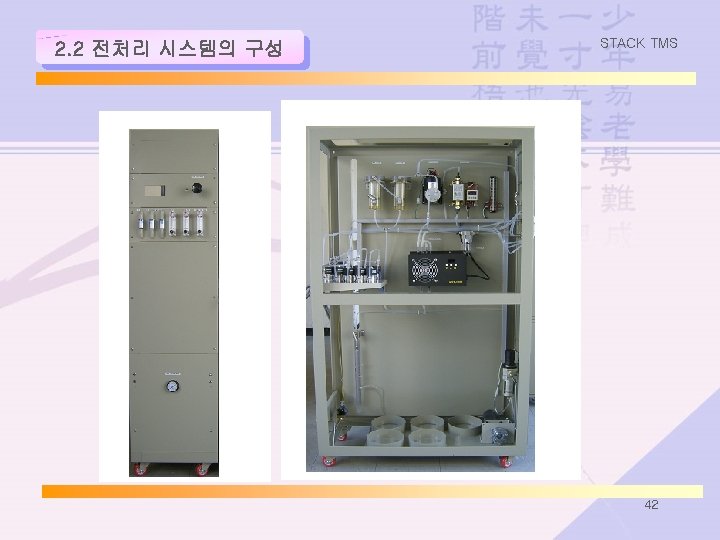

STACK TMS 3. 2. 3 전처리 System 43
STACK TMS 44
STACK TMS 45

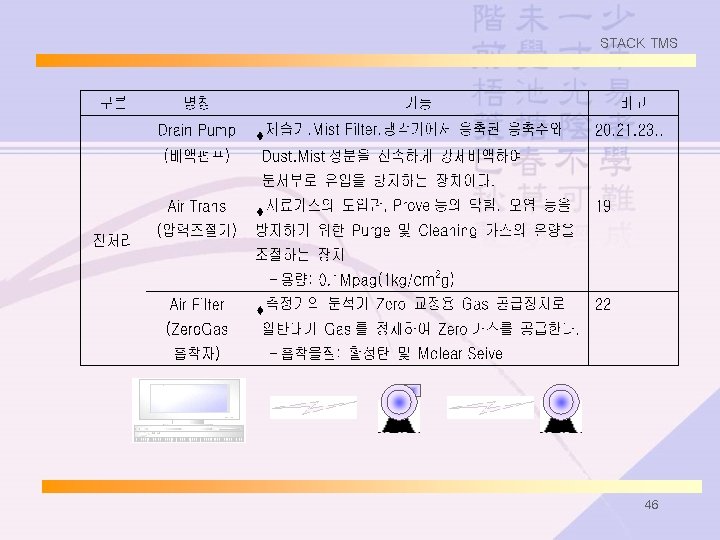

STACK TMS 46

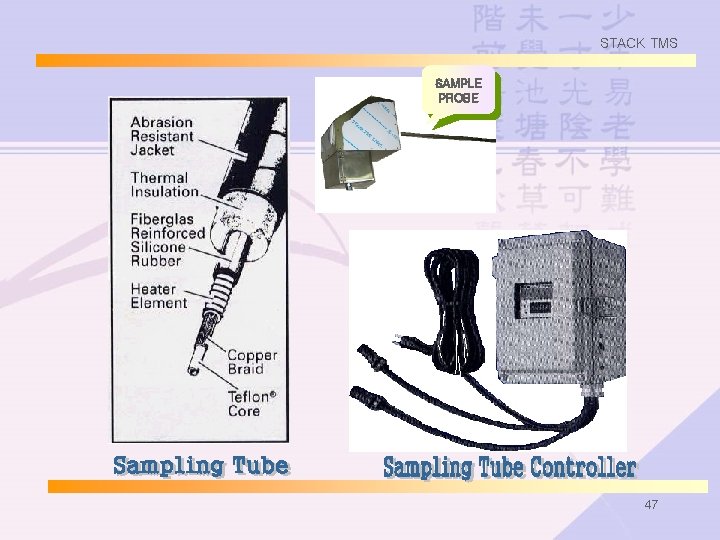

STACK TMS SAMPLE PROBE 47
STACK TMS 3) System 사양 * DIGITAL INPUT * CPU Pentium 200 MHz이상 * MEMORY 32 M * DISPLAY TFT LCD, 10. 4 inch * KEY Keyboard 종류 * COMMUNICATION 2 Ports 용량 Method 종류 * DIGITAL OUTPUT 32 CH Onto Isoated, Dry Contact 32 CH Dry Contact, Normal Open 10 VA RS-232 C , RS 422, RS 485 Serial * SECURITY KEY 1200~9600 bps * 19” RACK MOUNT TYPE, STEEL ENCLOSURE * ANALOG INTPUT 16 CH * OPERATING TEMP/HUM - 0~40 ºC /0~95% 분해능 12 Bit * POWER AC 110/220 V겸용 30 Times/Sec(Max) * SIZE W 483 x. D 345 x. H 266 mm Speed 변환시간 * ANALOG OUTPUT 16 CH 분해능 12 Bit 종류 4~20 m. A 50

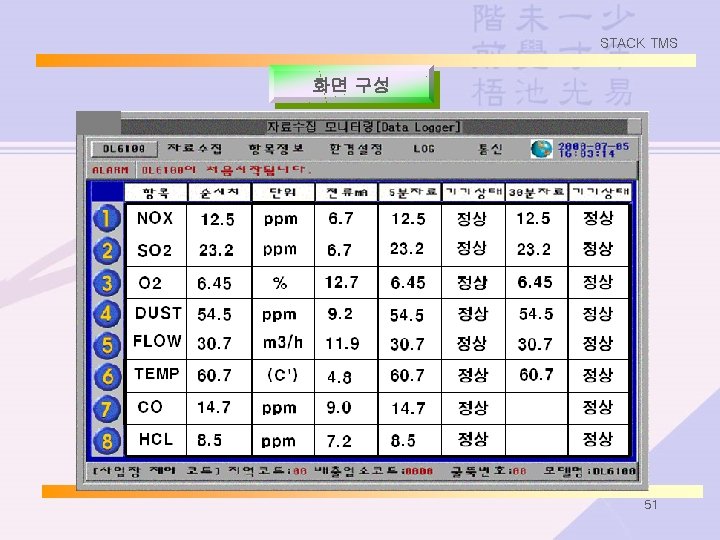

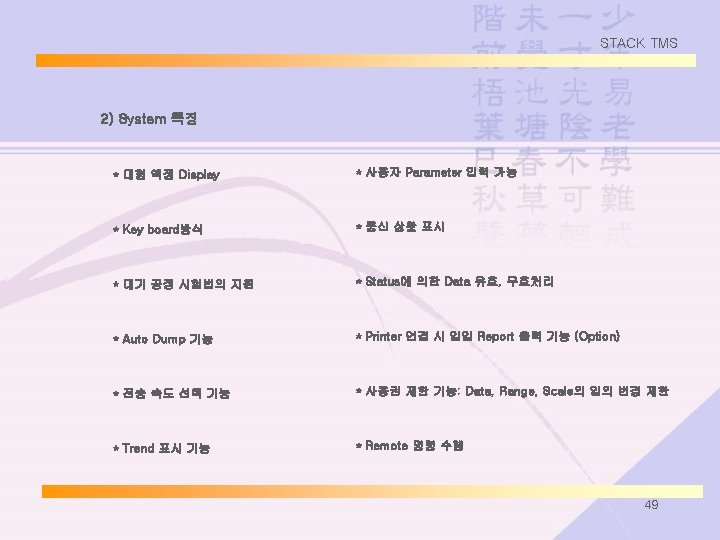

STACK TMS 화면 구성 51

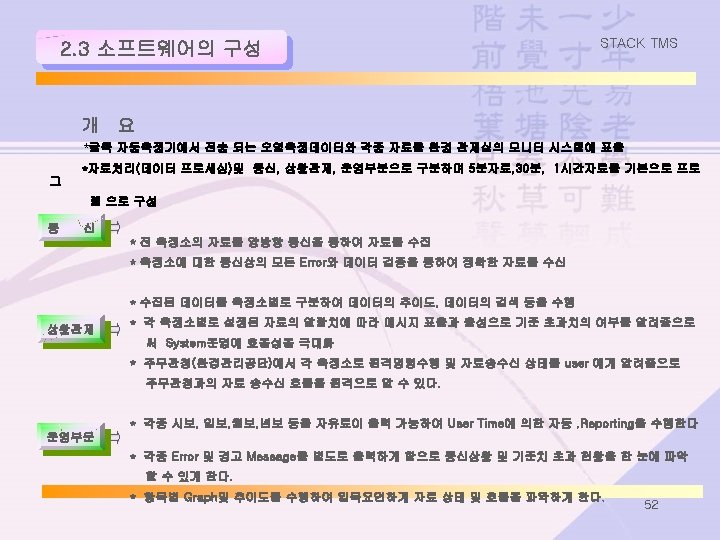

STACK TMS 일간 레포트 53
