Stability in Film Casting Olena Zavinska Outline Problem

Stability in Film Casting Olena Zavinska

Outline Problem Statement Project Goal Modeling Solution Method Validation Results Conclusions

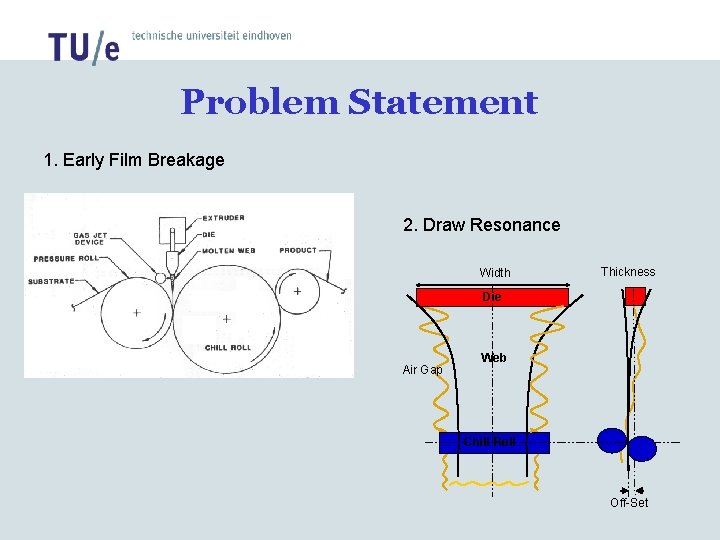

Problem Statement 1. Early Film Breakage 2. Draw Resonance Width Thickness Die Air Gap Web Chill Roll Off-Set

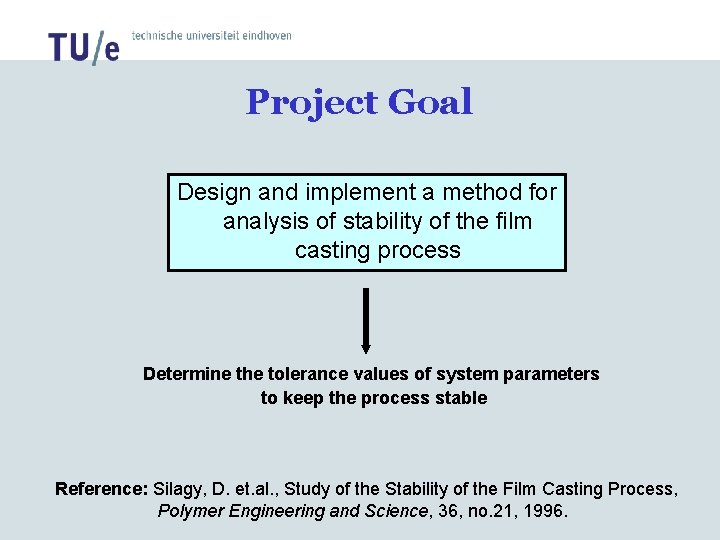

Project Goal Design and implement a method for analysis of stability of the film casting process Determine the tolerance values of system parameters to keep the process stable Reference: Silagy, D. et. al. , Study of the Stability of the Film Casting Process, Polymer Engineering and Science, 36, no. 21, 1996.

Outline Problem Statement Project Goal Modeling Solution Method Validation Results Conclusions

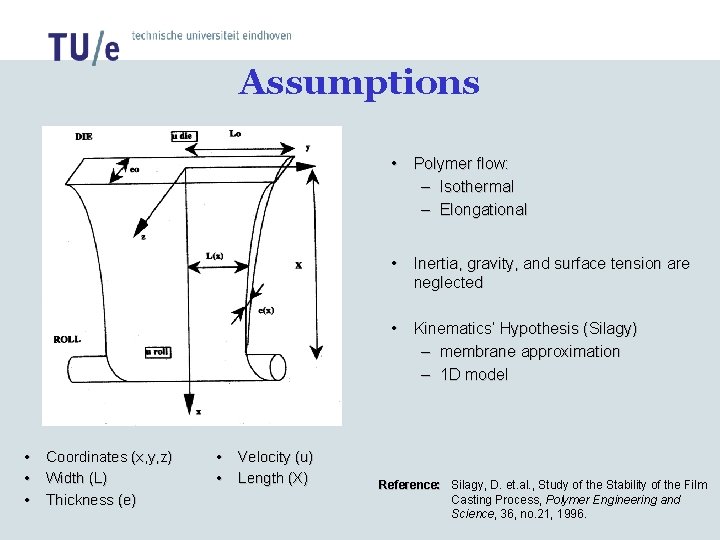

Assumptions • Polymer flow: – Isothermal – Elongational • Inertia, gravity, and surface tension are neglected • Kinematics’ Hypothesis (Silagy) – membrane approximation – 1 D model • • • Coordinates (x, y, z) Width (L) Thickness (e) • • Velocity (u) Length (X) Reference: Silagy, D. et. al. , Study of the Stability of the Film Casting Process, Polymer Engineering and Science, 36, no. 21, 1996.

Governing Equations 5. Kinematics F. S. Condition: 1. Mass Conservation: 4. Stress F. S. condition: 2. Forces: Solving Unknowns 6. Boundary Conditions: 3. Constitutive Eq. : Modeling

Outline Problem Statement Project Goal Modeling Solution Method Validation Results Conclusions

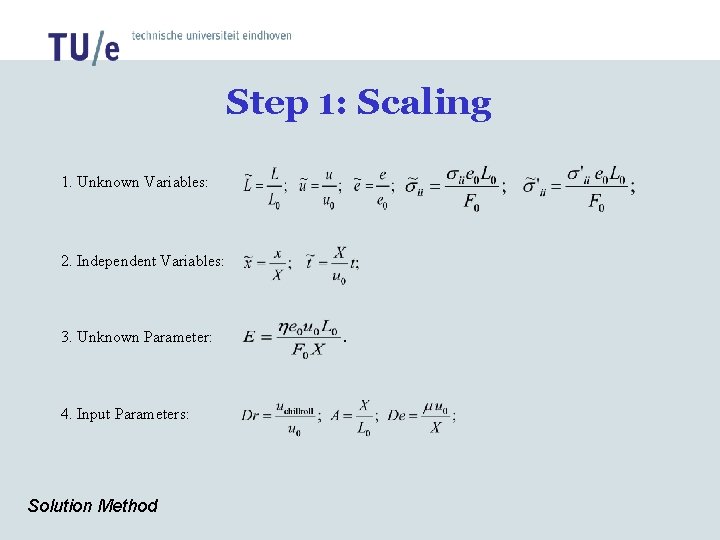

Step 1: Scaling 1. Unknown Variables: 2. Independent Variables: 3. Unknown Parameter: 4. Input Parameters: Solution Method

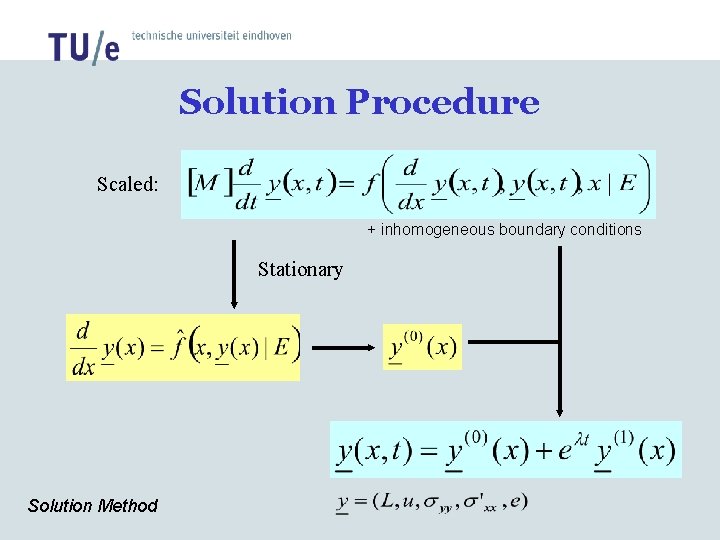

Solution Procedure Scaled: + inhomogeneous boundary conditions Stationary Solution Method

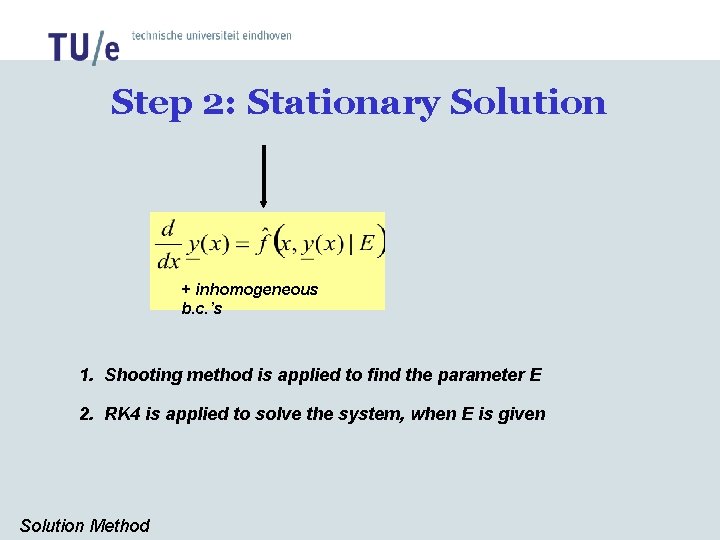

Step 2: Stationary Solution + inhomogeneous b. c. ’s 1. Shooting method is applied to find the parameter E 2. RK 4 is applied to solve the system, when E is given Solution Method

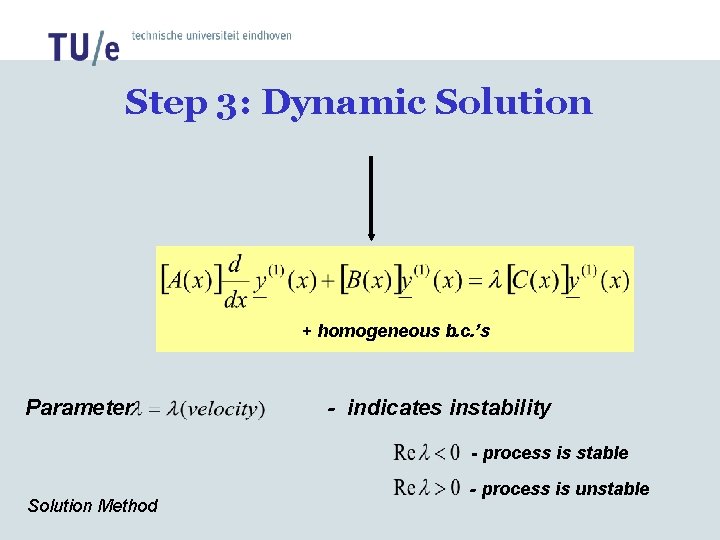

Step 3: Dynamic Solution + homogeneous b. c. ’s Parameter - indicates instability - process is stable Solution Method - process is unstable

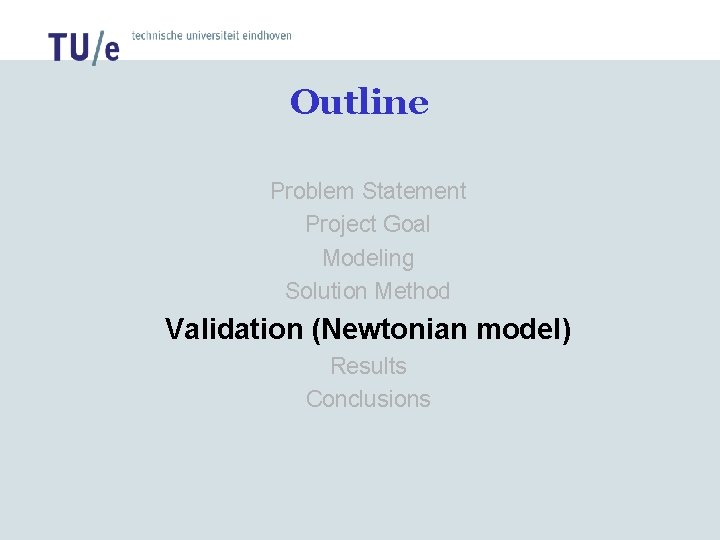

Outline Problem Statement Project Goal Modeling Solution Method Validation (Newtonian model) Results Conclusions

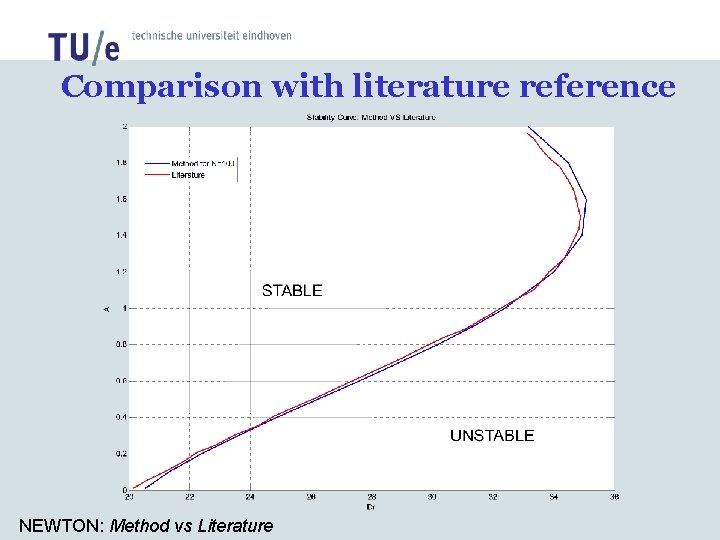

Comparison with literature reference NEWTON: Method vs Literature

Outline Problem Statement Project Goal Modeling Solution Method Validation Results (PTT model) Conclusions

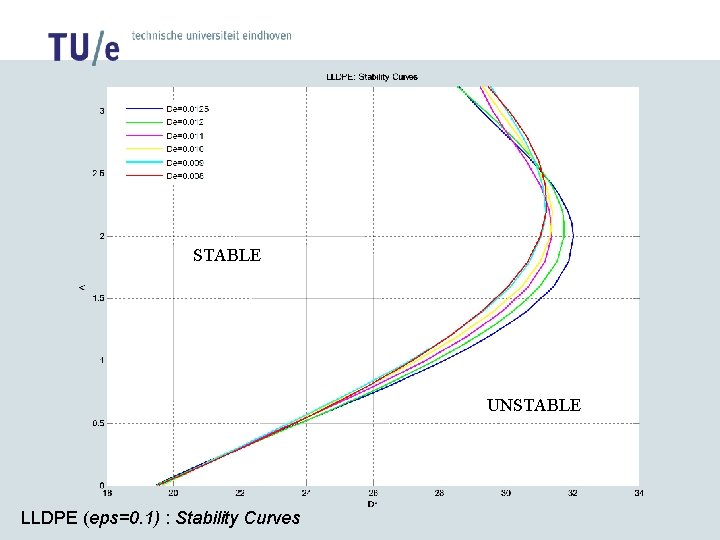

STABLE UNSTABLE LLDPE (eps=0. 1) : Stability Curves

STABLE UNSTABLE LDPE (eps=0. 01) : Stability Curves

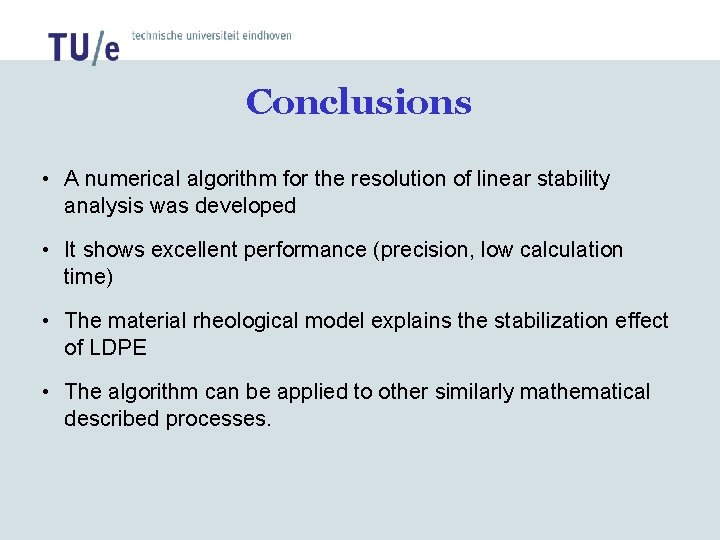

Conclusions • A numerical algorithm for the resolution of linear stability analysis was developed • It shows excellent performance (precision, low calculation time) • The material rheological model explains the stabilization effect of LDPE • The algorithm can be applied to other similarly mathematical described processes.

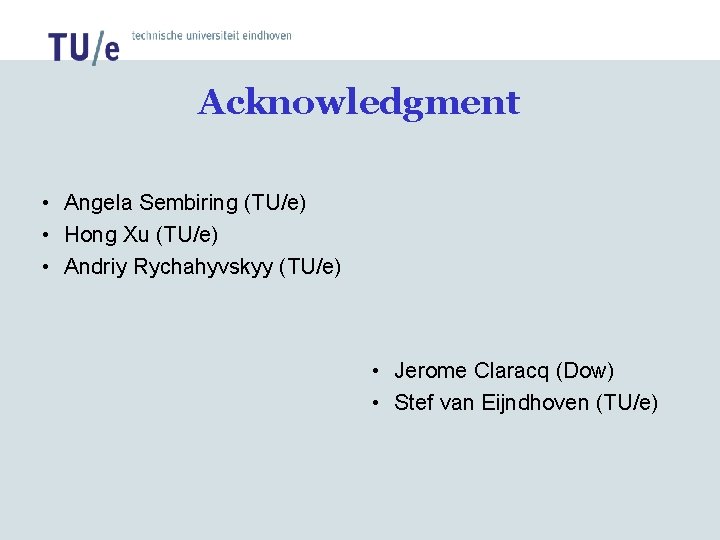

Acknowledgment • Angela Sembiring (TU/e) • Hong Xu (TU/e) • Andriy Rychahyvskyy (TU/e) • Jerome Claracq (Dow) • Stef van Eijndhoven (TU/e)
