SSLstrip Slowloris IPv 6 Split Handshake Sam Bowne

SSLstrip Slowloris & IPv 6 & Split Handshake Sam Bowne

Contact Sam Bowne n Computer Networking and Information Technology n City College San Francisco n Email: sbowne@ccsf. edu n Web: samsclass. info n

Topics n sslstrip – Steals passwords from mixedmode Web login pages n Slowloris – Denial of Service – Stops Apache Web servers n IPv 6 – The end of the world n Split Handshake--simple trick that evades all tested IPS systems

sslstrip

The 15 Most Popular Web 2. 0 Sites 1. You. Tube n 2. Wikipedia n 3. Craigslist n 4. Photobucket n 5. Flickr n 6. Word. Press n 7. Twitter n 8. IMDB n HTTPS HTTPS MIXED HTTPS

The 15 Most Popular Web 2. 0 Sites 9. Digg n 10. e. How n 11. Type. Pad n 12. topix n 13. Live. Journal n 14. deviant. ART n 15. Technorati n n HTTPS HTTP Obfuscated HTTP MIXED HTTPS From http: //www. ebizmba. com/articles/user-generated -content

Password Stealing Medium ssltrip Easy Wall of Sheep MIXED, 3 HTTP, 5 HTTPS, 7 Hard Spoofing Certificates

Mixed Mode n HTTP Page with an HTTPS Logon Button

sslstrip Proxy Changes HTTPS to HTTP To Internet HTTPS HTTP Target Using Facebook Attacker: sslstrip Proxy in the Middle

Ways to Get in the Middle

Physical Insertion in a Wired Network To Internet Attacker Target

Configuring Proxy Server in the Browser

ARP Poisoning Redirects Traffic at Layer 2 n Sends a lot of false ARP packets on the LAN n Can be easily detected n De. Caffienate. ID by Iron. Geek n n http: //k 78. sl. pt

ARP Request and Reply Client wants to find Gateway n ARP Request: Who has 192. 168. 2. 1? n ARP Reply: n n MAC: 00 -30 -bd-02 -ed-7 b has 192. 168. 2. 1 ARP Request ARP Reply Client Gateway Facebook. com

ARP Poisoning Attacker ARP Replies: I am the Gateway Forwarded & Altered Traffic to Facebook Client Gateway Facebook. com

Demonstration

slowloris

HTTP GET

Send Incomplete HTTP Requests n n Apache has a queue of approx. 256 requests Each one waits approx. 400 seconds by default for the request to complete So less than one packet per second is enough to occupy them all Low-bandwidth Do. S--no collateral damage!

OSI Model Do. S Attack 7 Application Slowloris – Incomplete HTTP Requests 6 Presentation 5 Session 4 Transport SYN Flood – Incomplete TCP Handshakes 3 Network 2 Data Link 1 Physical Cut a cable

Demonstration

i. Clicker Questions

Power failures brought down servers at 365 Main last year. What OSI Model was that attack in? A. B. C. D. E. Layer 1 Layer 2 Layer 3 Layer 4 Layer 5 or higher

Which type of website is the most dangerous? A. B. C. HTTP Mixed: HTTP with HTTPS elements HTTPS

What precaution protects you best when using a public Wi-Fi hotspot? A. B. C. D. E. Open Access WEP WPA VPN 802. 1 x

What precaution seems best against Slow. Loris? A. B. C. D. E. Do nothing and ignore it Adjust Apache timeouts Use a load-balancer Add a module to Apache Something else

What sort of logins do users of your Website use? A. B. C. D. E. Plaintext Mixed-mode HTTPS with a CA Self-signed SSL Something else

What plans do you have to use IPv 6? A. B. C. D. I don't care about IPv 6 at all I'll implement IPv 6, but not for years Planning to implement it within a year Planning to implement it sooner than a year E. I am already using IPv 6

IPv 4 Exhaustion n Available pool is 18 "/8 address ranges" n n n Each /8 has 16. 8 Million Addresses 203 already allocated 35 Reserved for special uses n Data from 5 -13 -2010, CNIT 202 E, link IPv 6 3

The End is Near

The End of the World n No Reprieve n n IANA will not re-purpose class D or E addresses for general use People who ask for IPv 4 addresses after exhaustion will not get them n Hoarding, scalping, and simple direct sale of IPv 4 addresses will begin soon

n CNIT 202 E - Link IPv 6 2 (from 2003)

Federal IPv 6 Transition Timeline n Cisco, Sept 2009 (CNIT 202 E, link IPv 6 9)

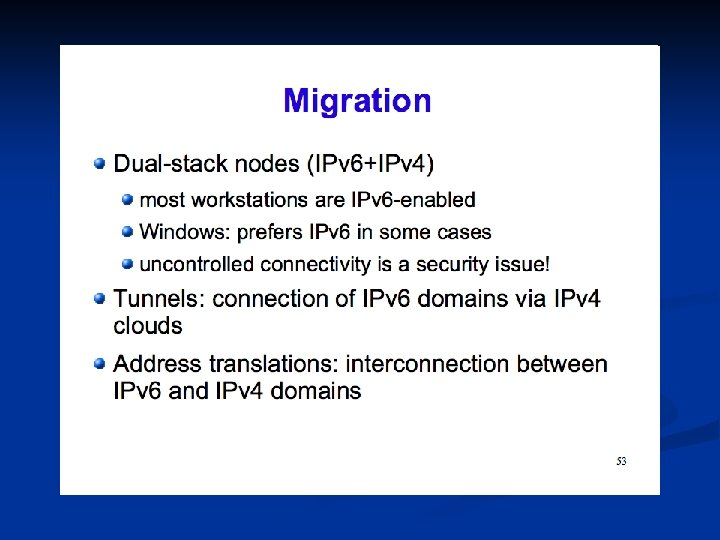

IPv 6 Tunnels n n n Tunnelbroker. com Free IPv 4 -to-IPv 6 Tunnels BUT your router needs to allow protocol 41 n I had to move to the DMZ to get it through

IPv 6 Certification n Get it now!

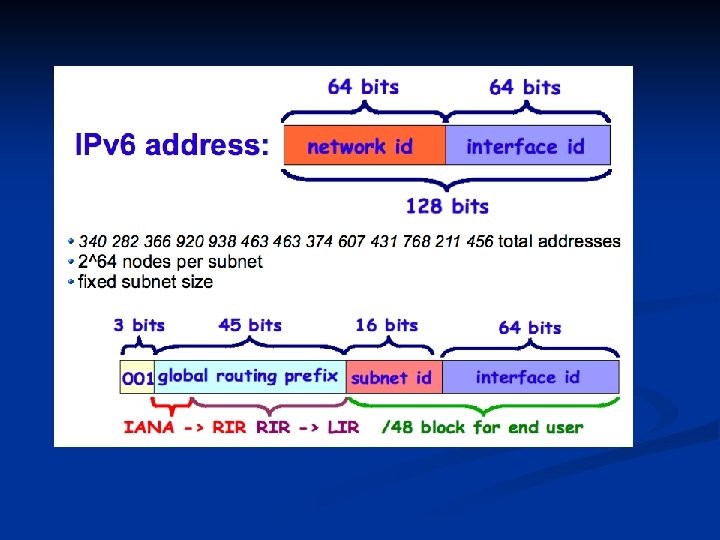

n : : can be used once to represent a string of zeroes

n From Zytrax: link IPv 6 10

IPv 6 - IPv 4 Addresses n A hybrid format may be used when dealing with IPv 6 - IPv 4 addresses where the normal IPv 4 dotted decimal notation may be used after the first 6, 16 bit address elements:

Examples

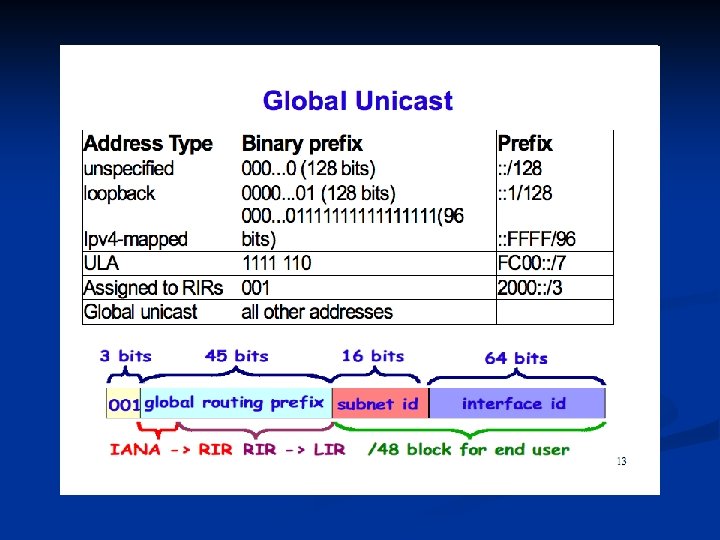

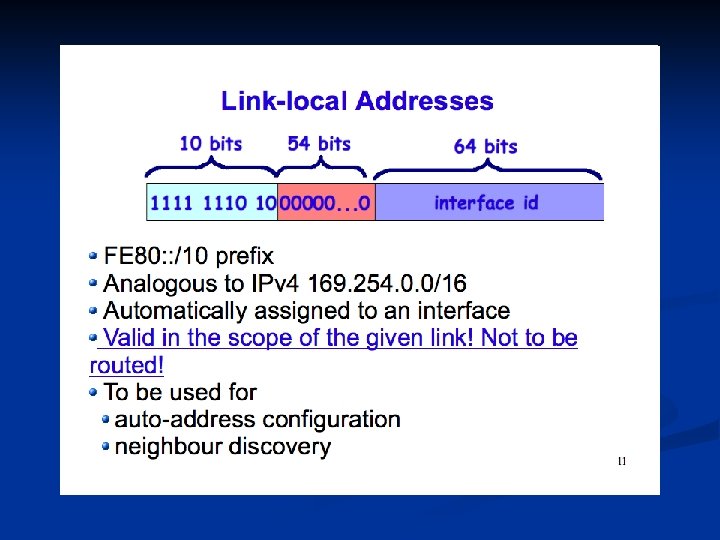

Multiple Addresses n Note: Interfaces normally have two addresses, or even more Link-local n Global unicast n FE 80: : w. x. y. z

n Used by Ethernet

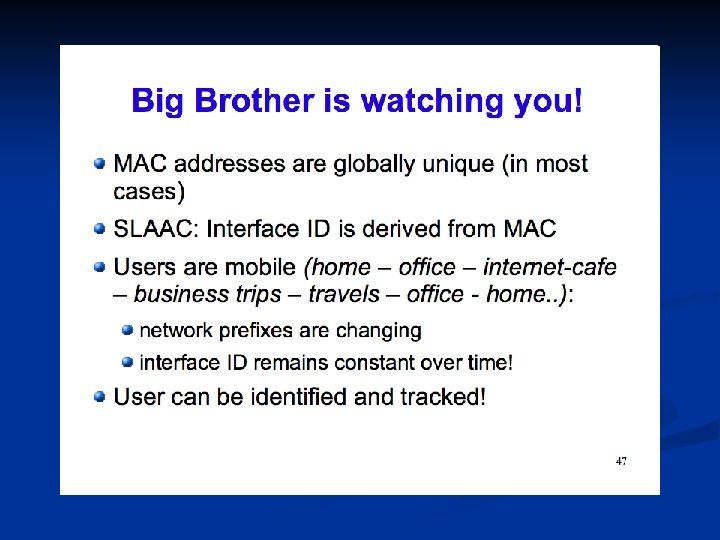

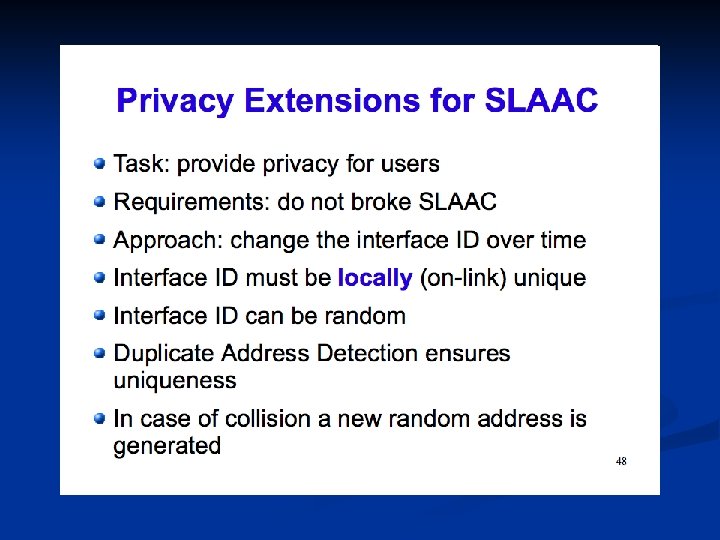

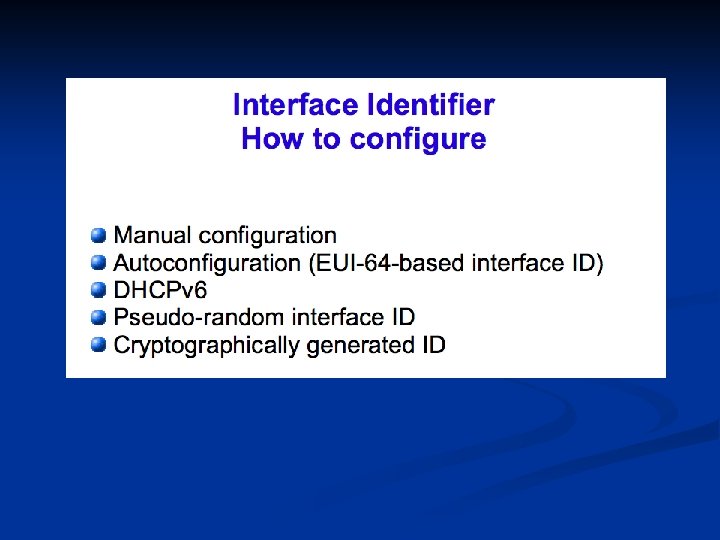

Example Interface MAC 00 -40 -63 -ca-9 a-20 IPv 6 Interface ID (EUI-64) : : 0040: 63 FF: FECA: 9 A 20 or : : 40: 63 FF: FECA: 9 A 20 link local FE 80: : 40: 63 FF: FECA: 9 A 20

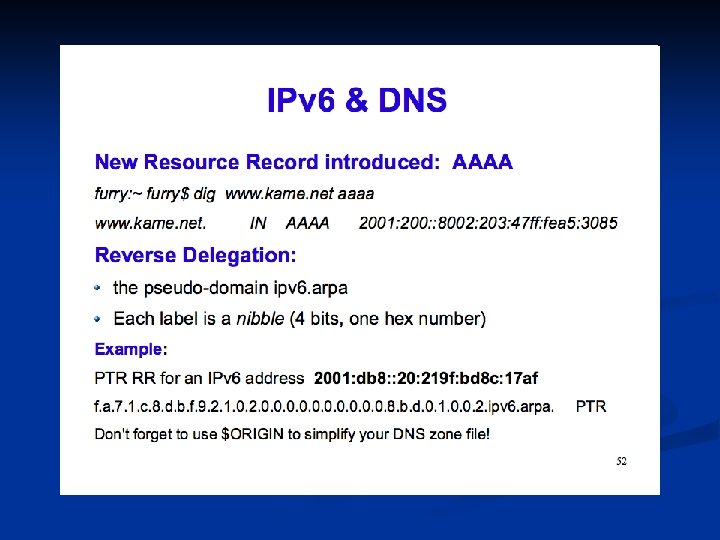

AAAA Records in DNS n iana. org and ipv 6. net work too

Primary Source n I got a lot of this talk here

i. Clicker Questions

What plans do you have to use IPv 6? A. B. C. D. I don't care about IPv 6 at all I'll implement IPv 6, but not for years Planning to implement it within a year Planning to implement it sooner than a year E. I am already using IPv 6

Split Handshake

TCP Handshake n Normally a three-way process SYN ACK SYN / ACK

TCP Handshake n Since both devices could start the session simultaneously, this four-way handshake is also allowed SYN ACK SYN

TCP Handshake n But when you send those packets to a modern OS, this is what really happens SYN ACK / ACK SYN ACK

Which Side Opened That Session? n n This five-way handshake works--it opens a session so data can flow But security devices are so confused by it they no longer provide protection Snort, Tipping. Point 2400, and Juniper SRX 5800 all failed to detect attacks sent after that handshake More info here: http: //bit. ly/9 t. Ufb 9
