SPS70 DL Download Documentation StepbyStep SPS70 DL Download
SPS-70 DL Download Documentation Step-by-Step

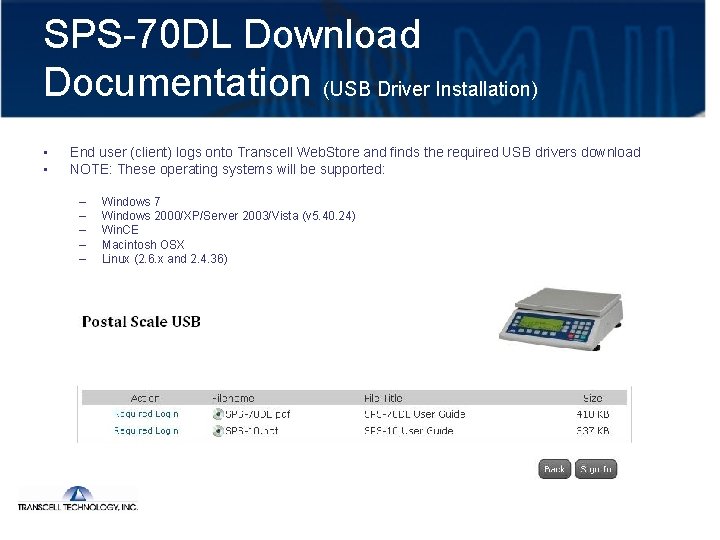

SPS-70 DL Download Documentation (USB Driver Installation) • • End user (client) logs onto Transcell Web. Store and finds the required USB drivers download NOTE: These operating systems will be supported: – – – Windows 7 Windows 2000/XP/Server 2003/Vista (v 5. 40. 24) Win. CE Macintosh OSX Linux (2. 6. x and 2. 4. 36)
SPS-70 DL Download Documentation (USB Driver Installation) • End user (client) runs *. EXE file and follows installation directions
SPS-70 DL Download Documentation (USB Driver Installation) • USB driver install …
SPS-70 DL Download Documentation (USB Driver Installation) • USB driver install …

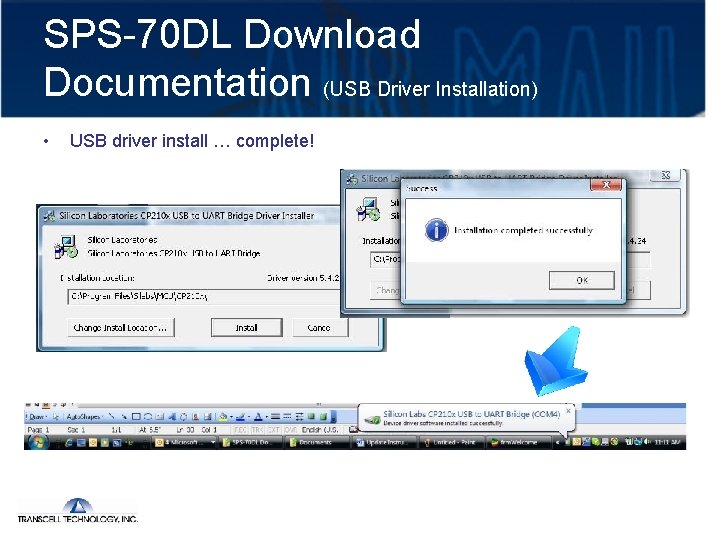

SPS-70 DL Download Documentation (USB Driver Installation) • USB driver install … complete!

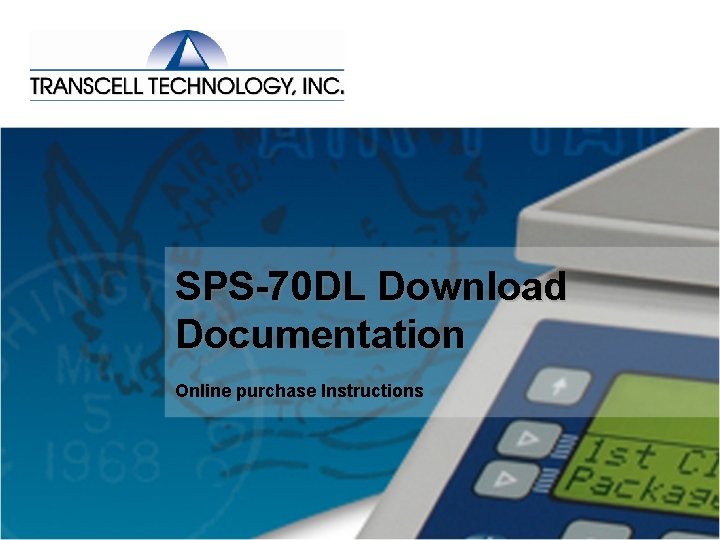

SPS-70 DL Download Documentation Online purchase Instructions
SPS-70 DL Download Documentation (Online Purchase Instruction) • End user (client) finds the Rate Update Package and clicks ‘Buy Now’
SPS-70 DL Download Documentation (Online Purchase Instruction) • End user (client) enters scale serial number and clicks ‘Add to Cart’ • End user (client) clicks ‘Checkout’
SPS-70 DL Download Documentation (Online Purchase Instruction) • Client must either log-in or register with site.
SPS-70 DL Download Documentation (Online Purchase Instruction) • Once transaction is complete, click on the ‘My Account Overview’ link, followed by ‘My Downloads’
SPS-70 DL Download Documentation (Online Purchase Instruction) • Click on ‘Download Key’ link and then select Save
SPS-70 DL Download Documentation (Online Purchase Instruction) • Select ‘Desktop’ and then hit ‘Save’
SPS-70 DL Download Documentation (Online Purchase Instruction) • Click on ‘Download’ link and then select ‘Run’
SPS-70 DL Download Documentation Load Rate application Installation
SPS-70 DL Download Documentation (Load Rate Application) • End user (client) installs Load Rate application:
SPS-70 DL Download Documentation (Load Rate Application) • Transcell Load Rate install …
SPS-70 DL Download Documentation (Load Rate Application) • Load Rate install …
SPS-70 DL Download Documentation (Load Rate Application) • Transcell Load Rate install … complete !
SPS-70 DL Download Documentation Load Rate application Installation (From Windows)
SPS-70 DL Download Documentation (Load Rate Application) • End user (client) runs Transcell Load Rate Application from Windows Start Menu Welcome to the Postal Scale Update Application Click Next to Continue
SPS-70 DL Download Documentation (Load Rate Application) • Transcell Load Rate Application … Step 1: For first time user, please download USB driver from: WWW. Transcell. com If you already done so, please press next
SPS-70 DL Download Documentation (Load Rate Application) • Transcell Load Rate Application … Step 2: Locate your Postal Scale and connect scale to computer using supplied USB Cable. Click Next to Continue
SPS-70 DL Download Documentation (Load Rate Application) • Transcell Load Rate Application … Step 3: Step 4: Switch Scale power on Per Scale Manual Place Scale into “Load Rate” mode Click Next to Continue
SPS-70 DL Download Documentation (Load Rate Application) • Transcell Load Rate Application … Step 5: Searching for Scale Please Wait…… Step 6: Downloading…. Please wait…
SPS-70 DL Download Documentation (Load Rate Application) • Transcell Load Rate Application … Step 7: Step 8: Download finished… Power off scale Press CTR key one scale Click Next to Continue. .
SPS-70 DL Download Documentation (Load Rate Application) • Transcell Load Rate Application … Step 9: Step 10: Disconnect scale from computer Update Complete! Click Next to Continue. . Your scale will prompt you when it is Time to activate updates.
Thank you!
