Spot weldability Lesson Objectives When you finish this lesson you will understand: • Concept of Spot Weldability • Electrode arrangements Learning Activities 1. View Slides; 2. Read Notes, 3. Listen to lecture 4. Do on-line workbook Keywords: Current Level, Current Range, Lobe Curve, Electrode Life, Peel Test, Nugget Size, Button Size, Interfacial Failure, Shunting Effect, Multiple Direct Electrodes, Series Electrodes, Electrode Tooling

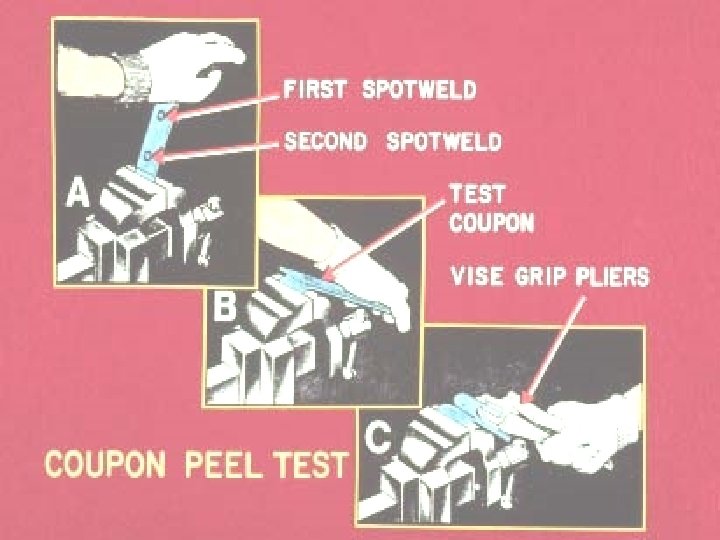

Process Characteristics as a Measure of Weldability • Current Level • Current Range & Weldability Lobe • Process Deterioration – Characterization of the loss in weld size at constant welding conditions – Characterization of the variation in process requirements for maintaining welds of an adequate quality Peel Test Used As Measure

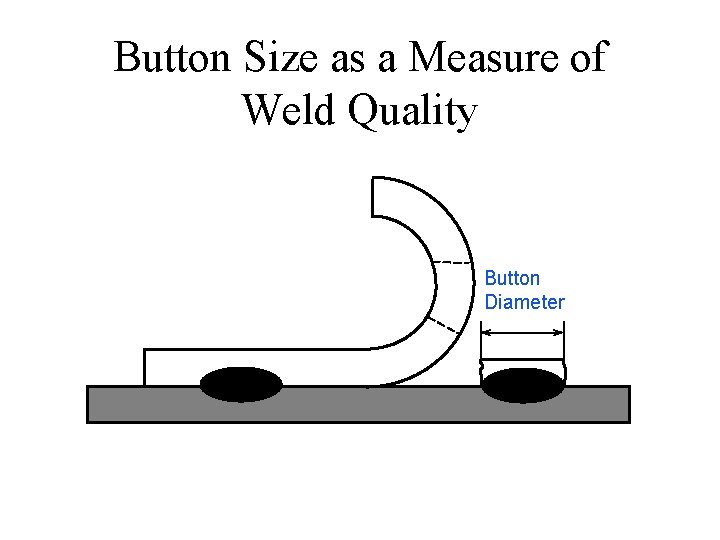

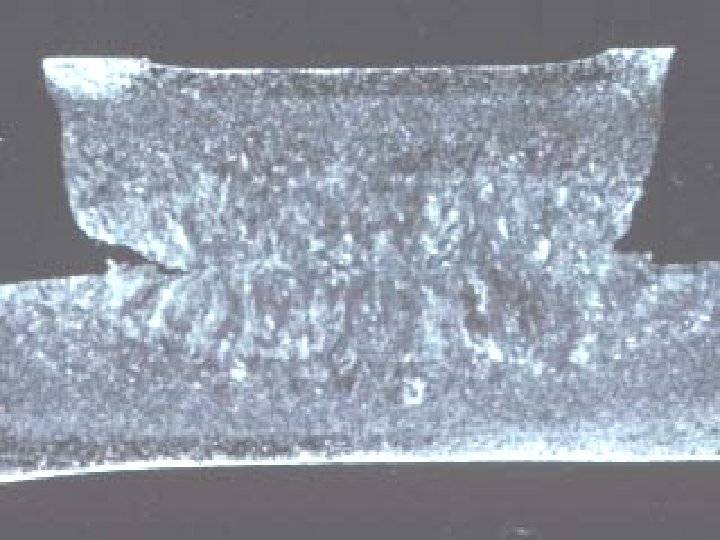

Button Size as a Measure of Weld Quality Button Diameter

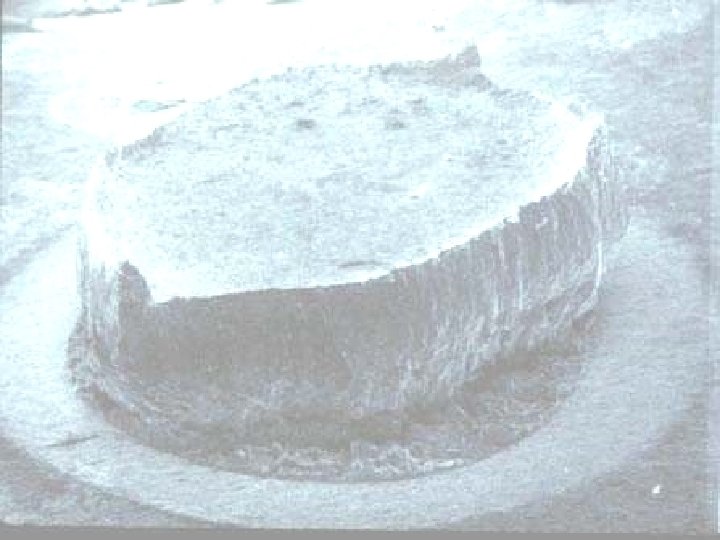

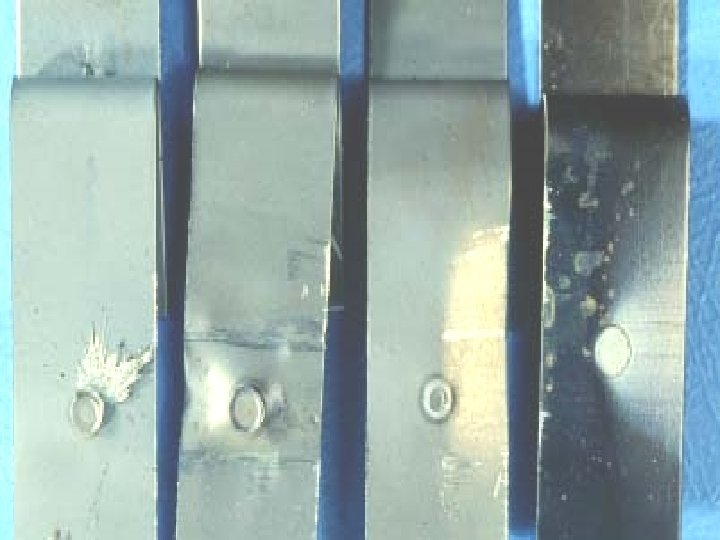

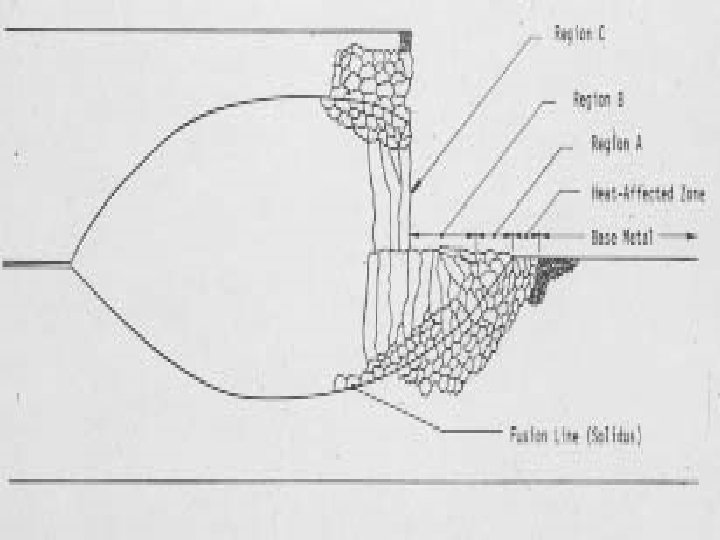

Modes of Failure in Spot Welds Full Button Irregular Button Interfacial Failure
Process Characteristics as a Measure of Weldability • Current Level • Current Range & Weldability Lobe • Process Deterioration – Characterization of the loss in weld size at constant welding conditions – Characterization of the variation in process requirements for maintaining welds of an adequate quality Peel Test Used As Measure

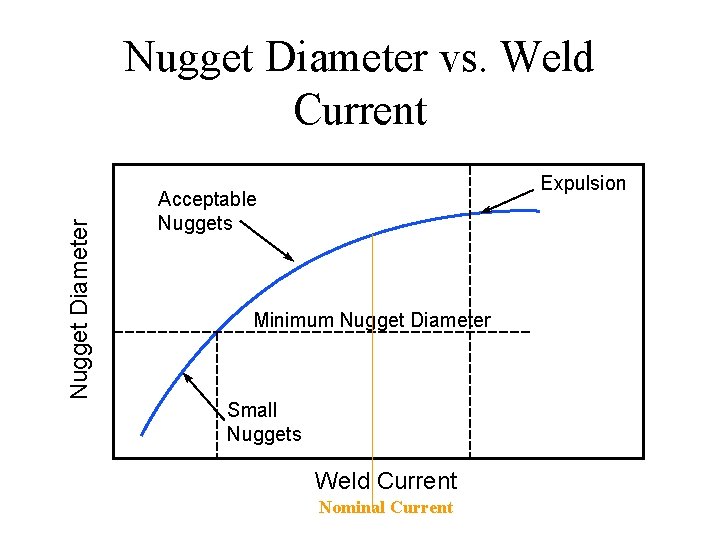

Nugget Diameter vs. Weld Current Expulsion Acceptable Nuggets Minimum Nugget Diameter Small Nuggets Weld Current Nominal Current
Process Characteristics as a Measure of Weldability • Current Level • Current Range & Weldability Lobe • Process Deterioration – Characterization of the loss in weld size at constant welding conditions – Characterization of the variation in process requirements for maintaining welds of an adequate quality Peel Test Used As Measure

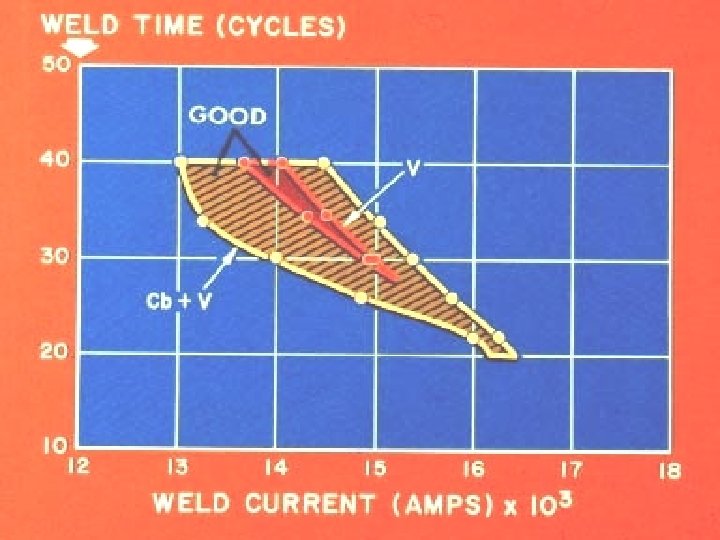

Nugget Diameter Current Range & Weldability Lobe Acceptable Nuggets Minimum Nugget Diameter Small Nuggets Weld Current Weld Time Expulsion Time A Smaller “Brittle” Nuggets Time A Lobe Curve Acceptable Nuggets Weld Current Expulsion Level
Process Characteristics as a Measure of Weldability • Current Level • Current Range & Weldability Lobe • Process Deterioration – Characterization of the loss in weld size at constant welding conditions – Characterization of the variation in process requirements for maintaining welds of an adequate quality Peel Test Used As Measure
Process Deterioration Weld Diameter Minimum Acceptable Diameter Number of Welds
Shunting Effect IB IA B A Itotal = IA + IB I A RA = I B RB IB/Itotal = 1 - RB/(RA + RB) [Reference: Resistance Welding Manual, p. 1 -7, RWMA]
Multiple Direct Electrodes Series Electrode
Tooling for Multiple Welding Pressure Adjustment Screw Stud and Jam Nuts Equalizing Bar Compression Spring Split and Clamped to Electrode Flexible Conductors Slip-Fit Workpiece Lower Electrode (a) (b) [Reference: Resistance Welding Manual, p. 17 -8, RWMA]
