SPM 200 Skills Lab 6 Nasogastric Tube NGT

SPM 200 Skills Lab 6 Nasogastric Tube (NGT) / Oral and Nasal Airways / O 2 Delivery Devices Daryl P. Lofaso, MEd, RRT Clinical Skills Lab Coordinator

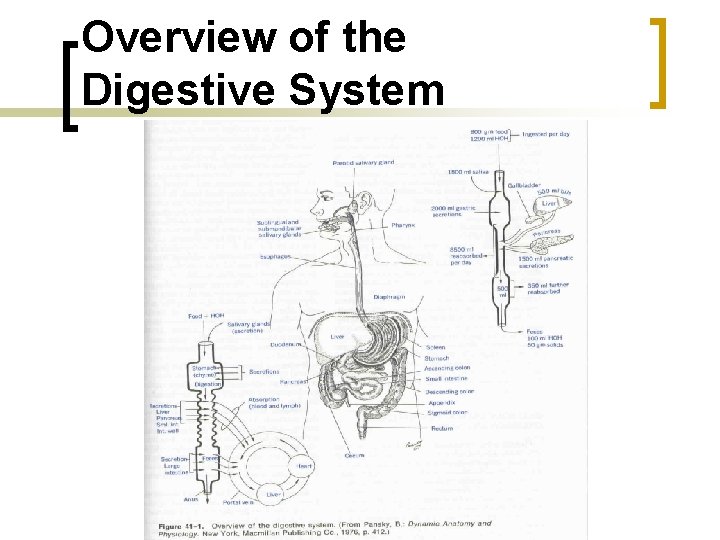

Overview of the Digestive System

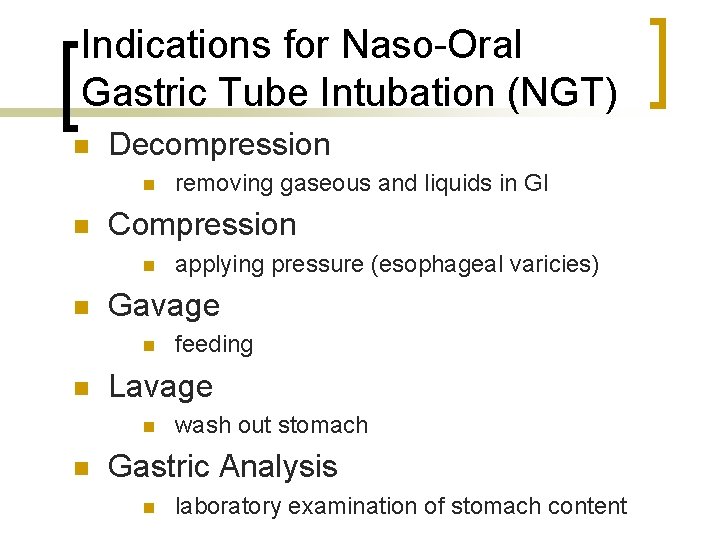

Indications for Naso-Oral Gastric Tube Intubation (NGT) n Decompression n n Compression n n feeding Lavage n n applying pressure (esophageal varicies) Gavage n n removing gaseous and liquids in GI wash out stomach Gastric Analysis n laboratory examination of stomach content

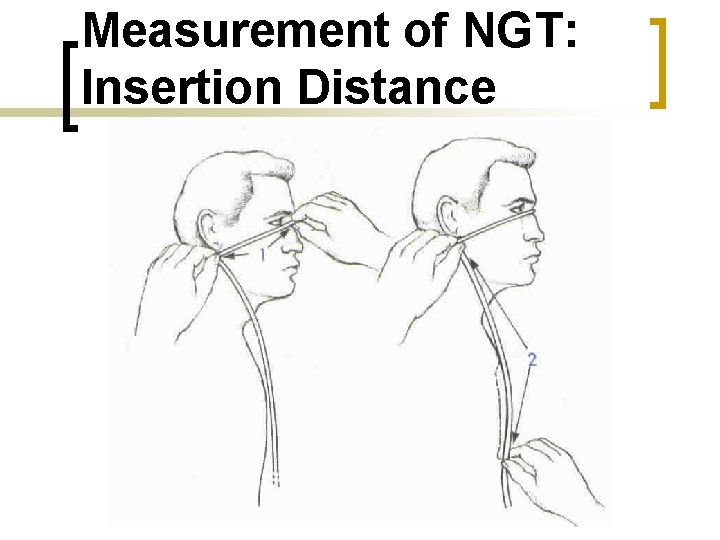

Measurement of NGT: Insertion Distance

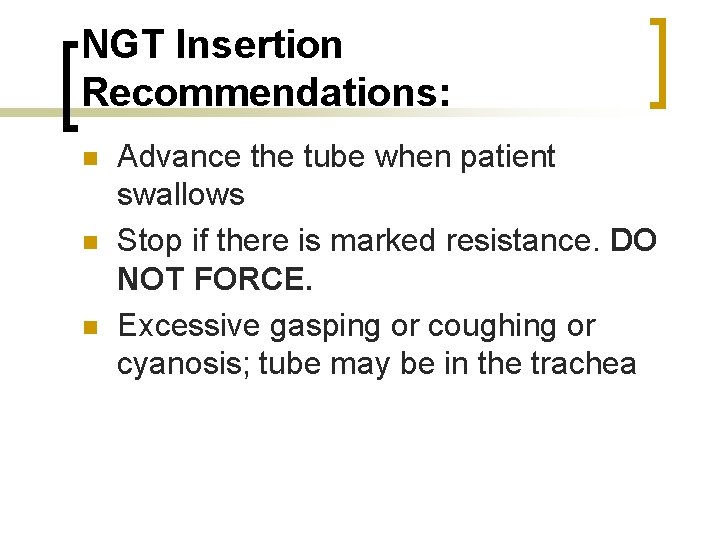

NGT Insertion Recommendations: n n n Advance the tube when patient swallows Stop if there is marked resistance. DO NOT FORCE. Excessive gasping or coughing or cyanosis; tube may be in the trachea

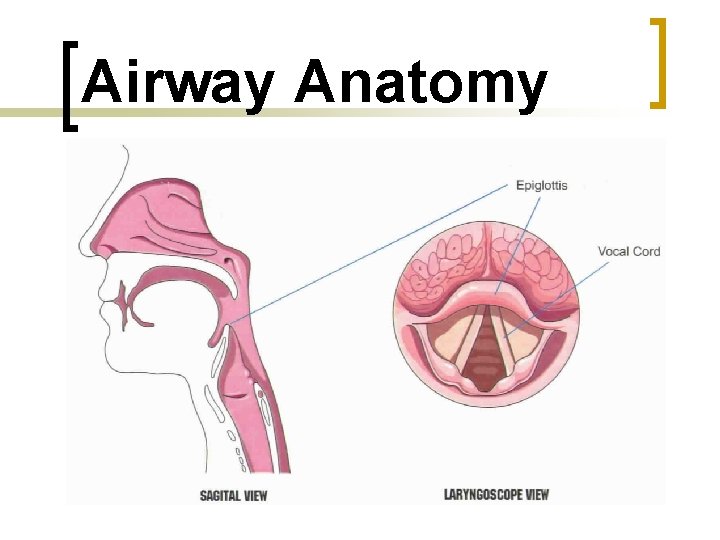

Airway Anatomy

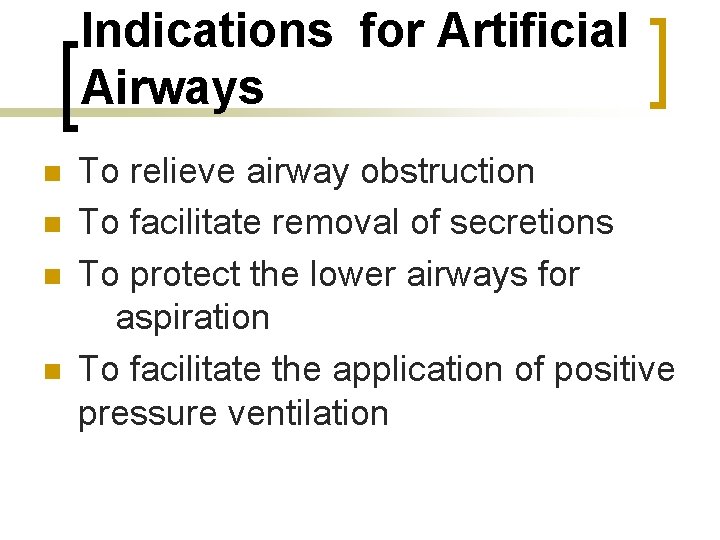

Indications for Artificial Airways n n To relieve airway obstruction To facilitate removal of secretions To protect the lower airways for aspiration To facilitate the application of positive pressure ventilation

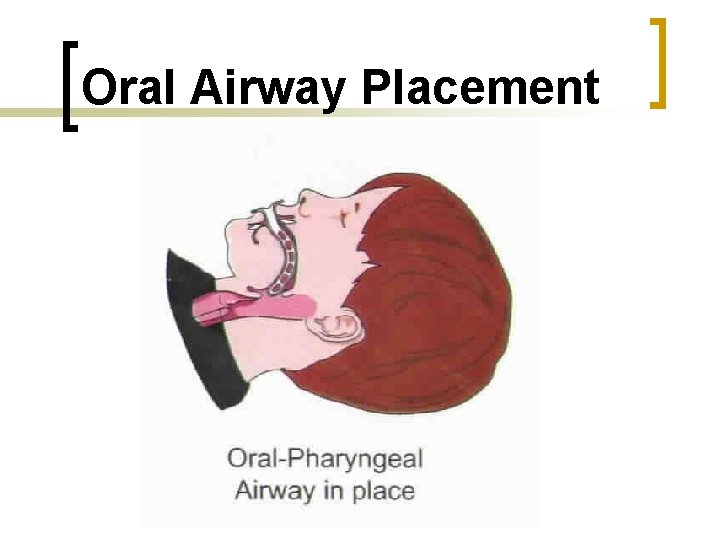

Oral Airway Placement

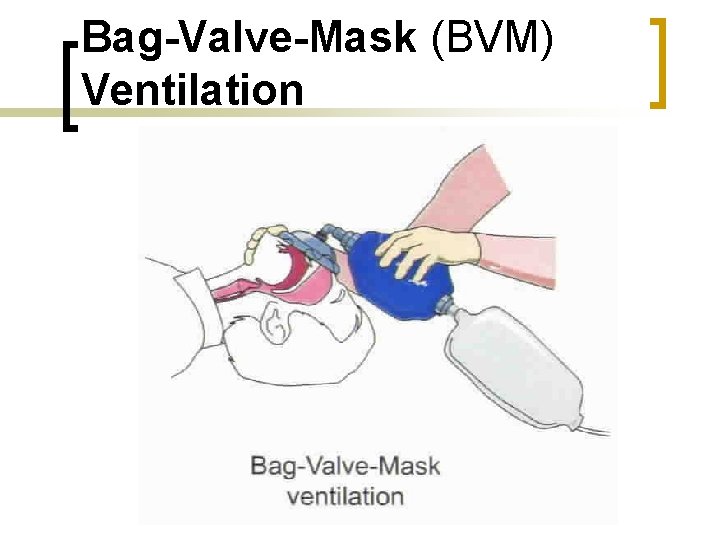

Bag-Valve-Mask (BVM) Ventilation

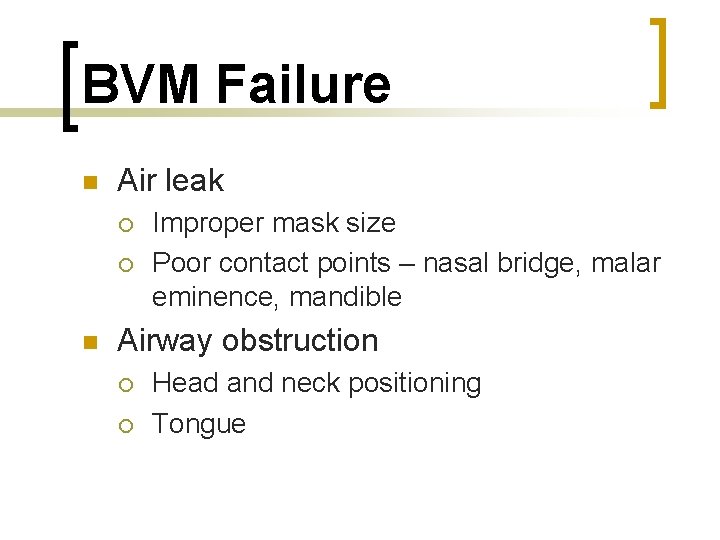

BVM Failure n Air leak ¡ ¡ n Improper mask size Poor contact points – nasal bridge, malar eminence, mandible Airway obstruction ¡ ¡ Head and neck positioning Tongue

Intubation Equipment

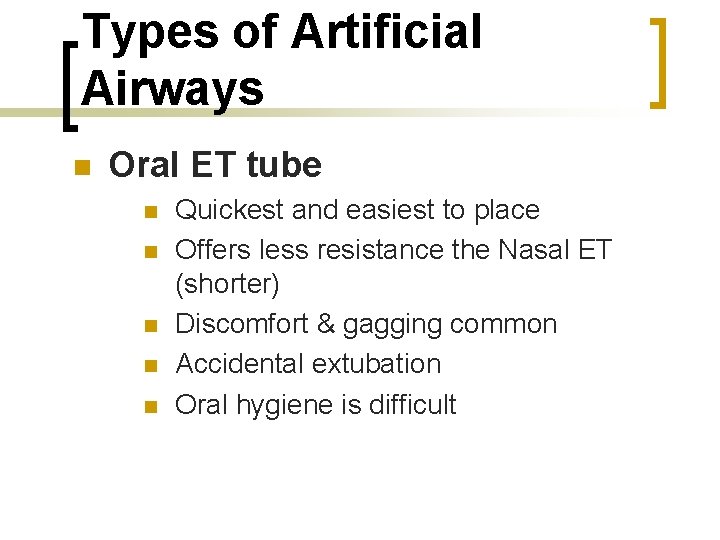

Types of Artificial Airways n Oral ET tube n n n Quickest and easiest to place Offers less resistance the Nasal ET (shorter) Discomfort & gagging common Accidental extubation Oral hygiene is difficult

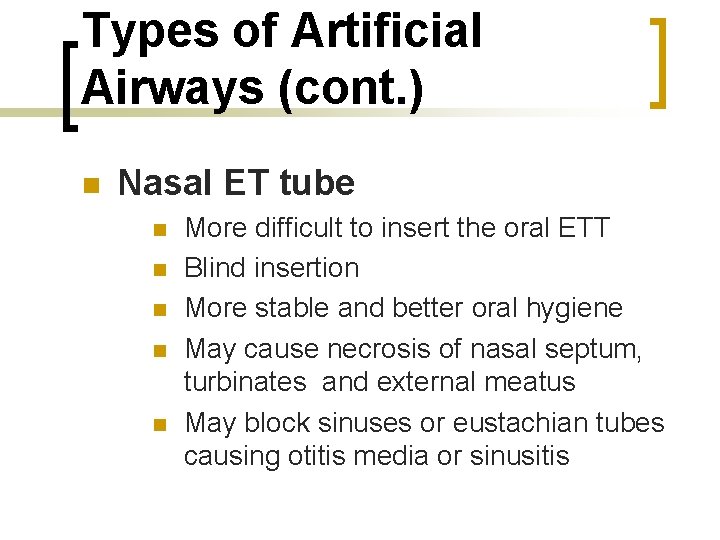

Types of Artificial Airways (cont. ) n Nasal ET tube n n n More difficult to insert the oral ETT Blind insertion More stable and better oral hygiene May cause necrosis of nasal septum, turbinates and external meatus May block sinuses or eustachian tubes causing otitis media or sinusitis

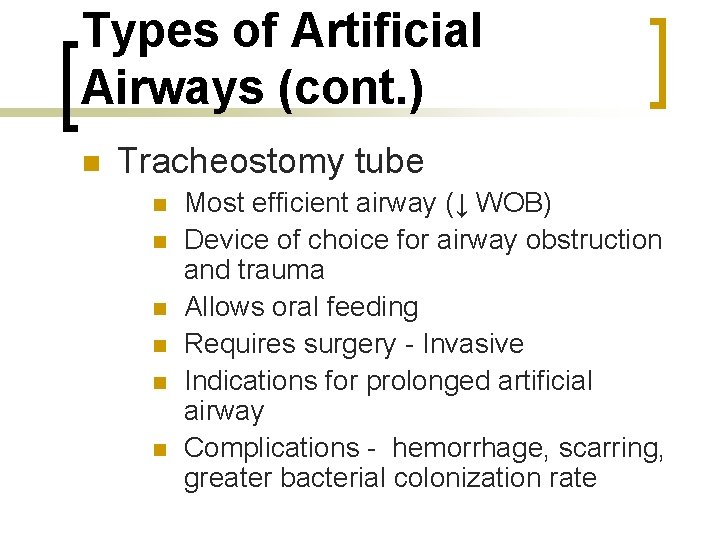

Types of Artificial Airways (cont. ) n Tracheostomy tube n n n Most efficient airway (↓ WOB) Device of choice for airway obstruction and trauma Allows oral feeding Requires surgery - Invasive Indications for prolonged artificial airway Complications - hemorrhage, scarring, greater bacterial colonization rate

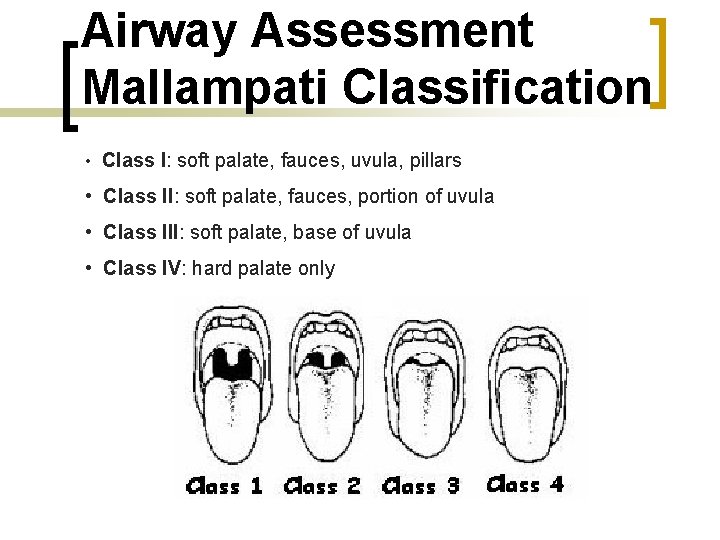

Airway Assessment Mallampati Classification • Class I: soft palate, fauces, uvula, pillars • Class II: soft palate, fauces, portion of uvula • Class III: soft palate, base of uvula • Class IV: hard palate only

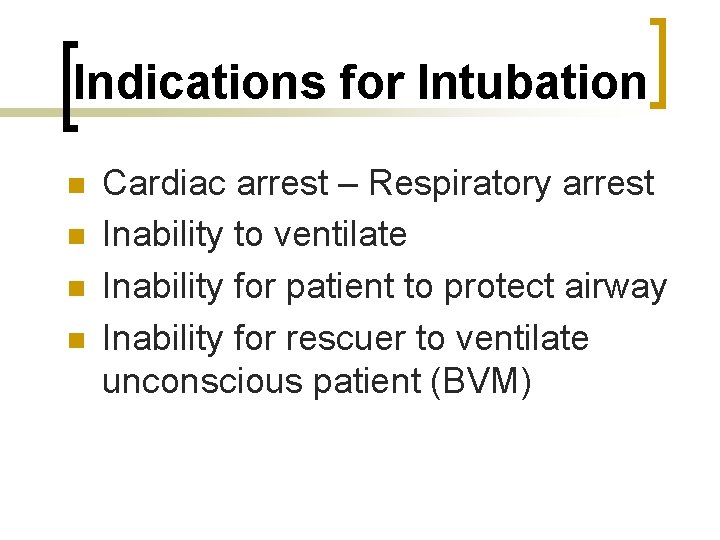

Indications for Intubation n n Cardiac arrest – Respiratory arrest Inability to ventilate Inability for patient to protect airway Inability for rescuer to ventilate unconscious patient (BVM)

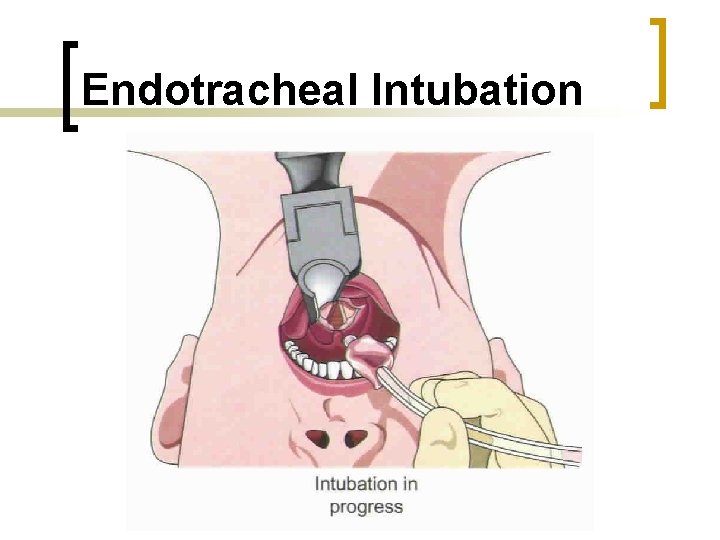

Endotracheal Intubation

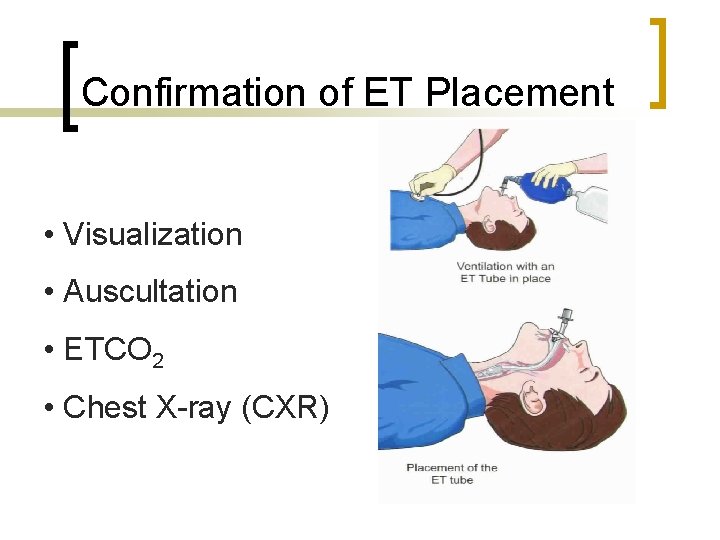

Confirmation of ET Placement • Visualization • Auscultation • ETCO 2 • Chest X-ray (CXR)

Respiratory Failure n n n Inability to remove CO 2 and deliver O 2 to the pulmonary capillary bed Acute or Chronic Two main groups ¡ ¡ Hypoxia respiratory failure Hypercapnic-hypoxic respiratory failure

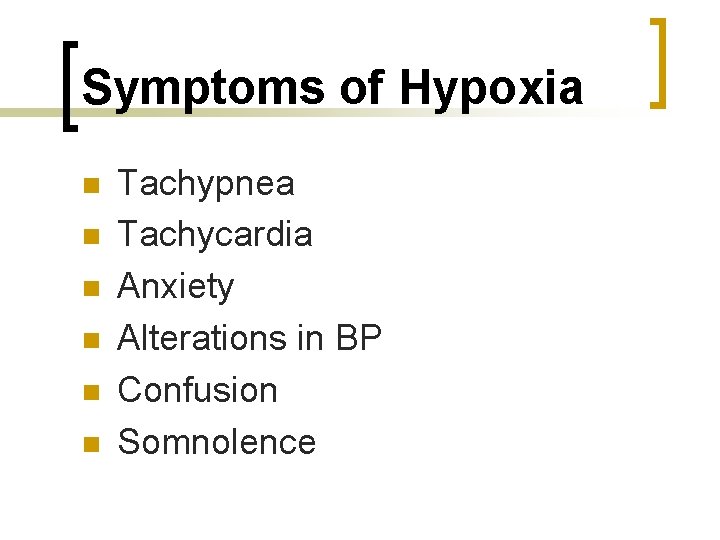

Symptoms of Hypoxia n n n Tachypnea Tachycardia Anxiety Alterations in BP Confusion Somnolence

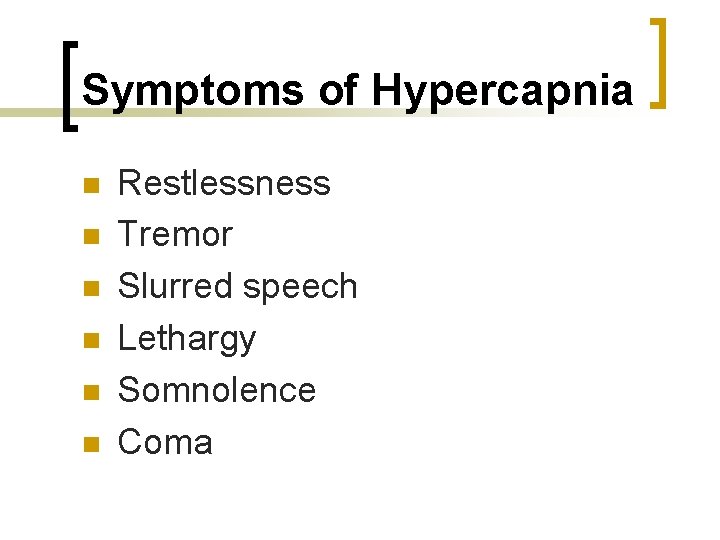

Symptoms of Hypercapnia n n n Restlessness Tremor Slurred speech Lethargy Somnolence Coma

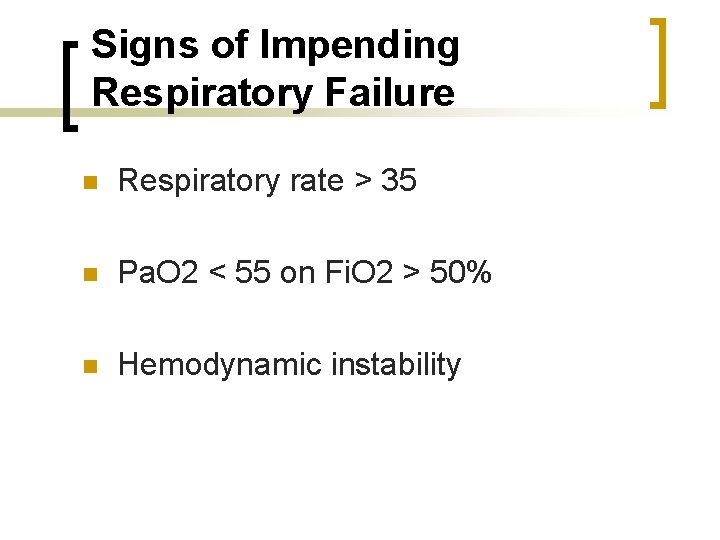

Signs of Impending Respiratory Failure n Respiratory rate > 35 n Pa. O 2 < 55 on Fi. O 2 > 50% n Hemodynamic instability

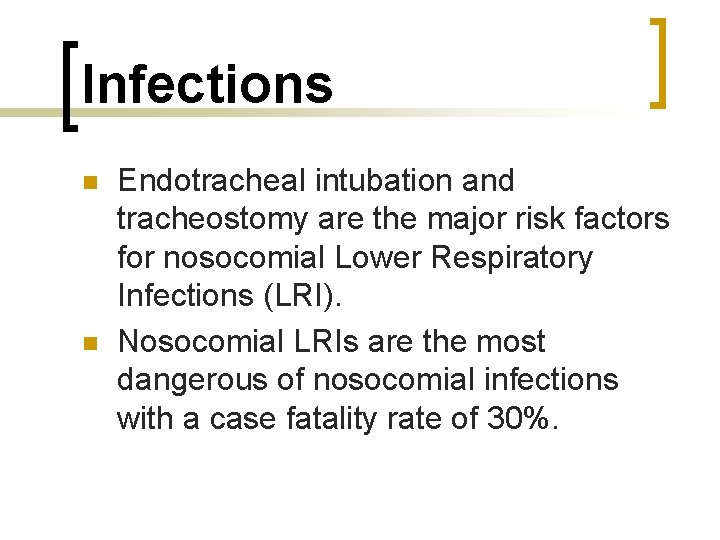

Infections n n Endotracheal intubation and tracheostomy are the major risk factors for nosocomial Lower Respiratory Infections (LRI). Nosocomial LRIs are the most dangerous of nosocomial infections with a case fatality rate of 30%.

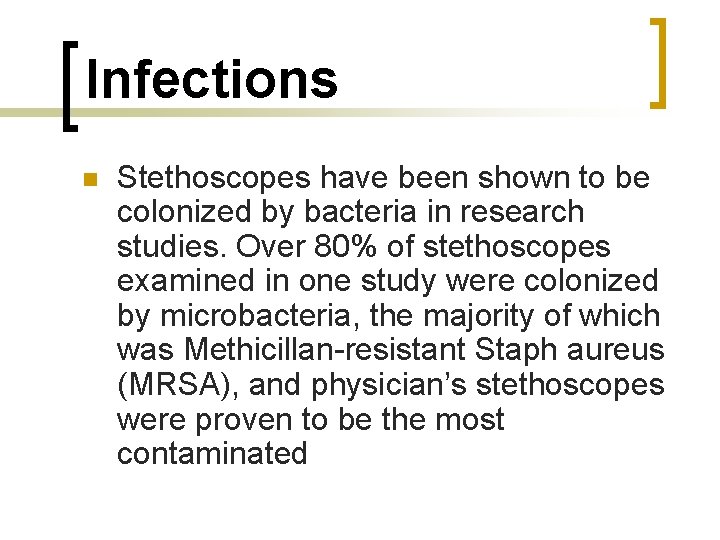

Infections n Stethoscopes have been shown to be colonized by bacteria in research studies. Over 80% of stethoscopes examined in one study were colonized by microbacteria, the majority of which was Methicillan-resistant Staph aureus (MRSA), and physician’s stethoscopes were proven to be the most contaminated

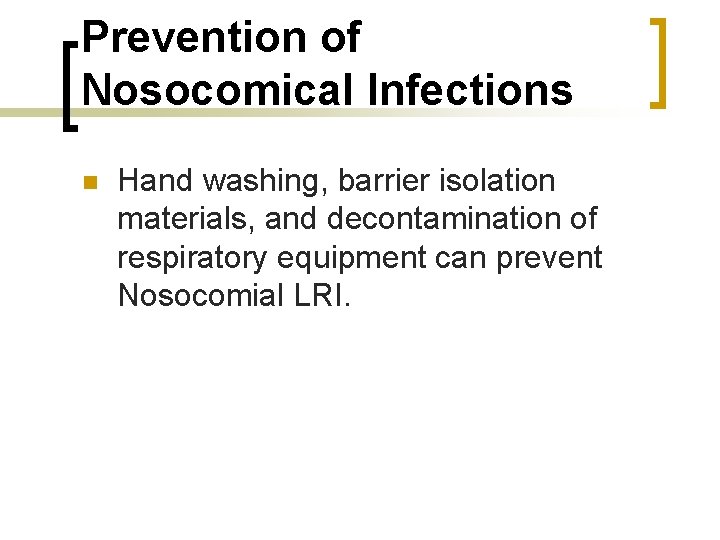

Prevention of Nosocomical Infections n Hand washing, barrier isolation materials, and decontamination of respiratory equipment can prevent Nosocomial LRI.
