Splicers Rekha V Tranquebar email rvtbuffalo edu definitions
Splicers Rekha. V. Tranquebar e-mail: rvt@buffalo. edu
definitions Splicer mechanical device for joining two pieces of paper or film or magnetic tape q Splice joint made by overlapping two ends and joining them q Splicing process of the permanent connection of two pieces of optical fibres q
scope n n n Types of splicing Splicing procedure Losses Comparison Manufacturers Cost
types of splicing n n Mechanical Fusion (welding)
scribe & break End preparation n Striping (cable jacket, buffer tube & coating) n Cleaving n Cleaning the end surface
mechanical splicing bonding two fibers together in an alignment structure n Transparent adhesive - e. g. epoxy resin n Commonly used groove - V-groove n Alignment problems n

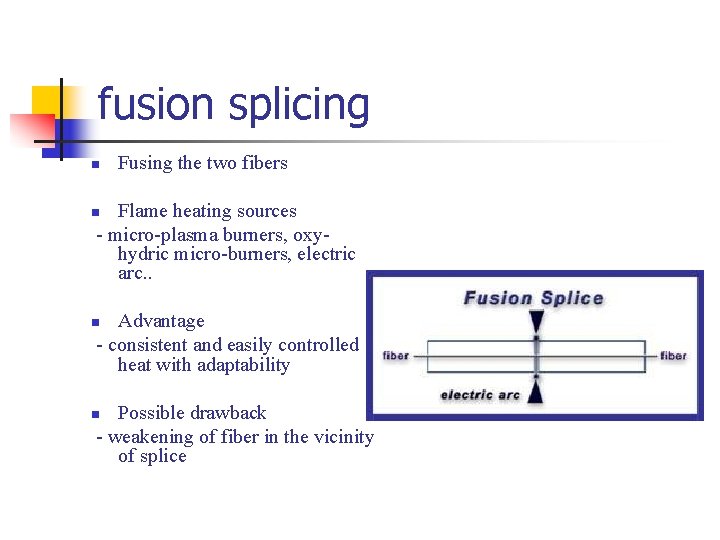

fusion splicing n Fusing the two fibers Flame heating sources - micro-plasma burners, oxyhydric micro-burners, electric arc. . n Advantage - consistent and easily controlled heat with adaptability n Possible drawback - weakening of fiber in the vicinity of splice n

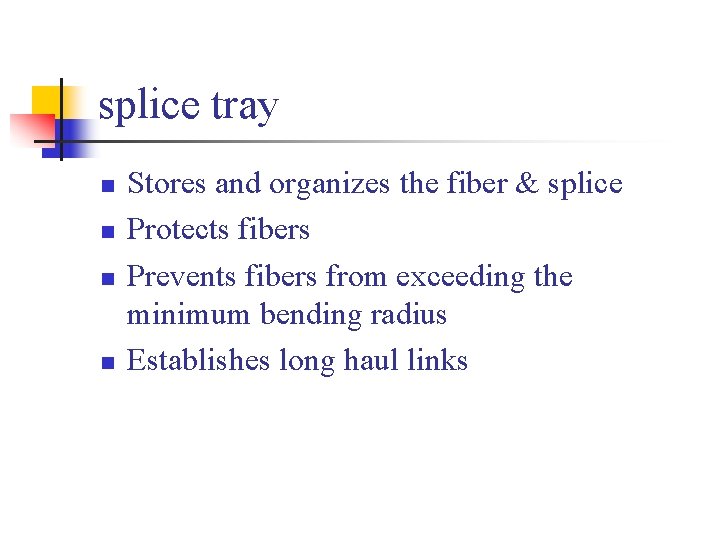

splice tray n n Stores and organizes the fiber & splice Protects fibers Prevents fibers from exceeding the minimum bending radius Establishes long haul links
comparison Mechanical splicing Reflection losses (-45 db to -55 db) Insertion loss (0. 2 db) cost – high Fusion splicing No reflection losses Very low insertion loss (0. 1 db to. 15 db) Comparatively less

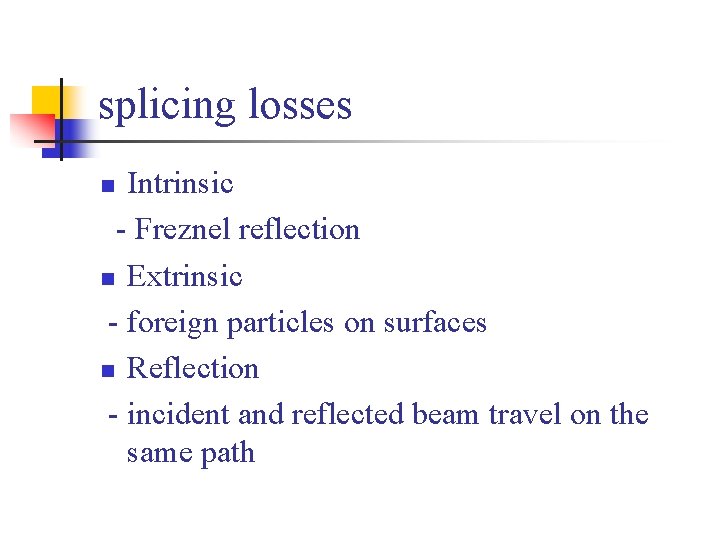

splicing losses Intrinsic - Freznel reflection n Extrinsic - foreign particles on surfaces n Reflection - incident and reflected beam travel on the same path n
what do we achieve by splicing? n n n Clear Better appearance Greater strength
fusion splicer FSM-16 S manufacturer : Fujikura
specifications n n n n Applicable fiber No. of fibers applied Splice loss Return loss Cleaved fiber length Magnification of fibre Viewing method Splice loss estimtion Splice result storage Mechanical proof test Power supply Dimensions Weight
manufacturers Fujikura “the market leader” Ø 65% of fusion splicers are manufactured Ø $3000 million annual turnover Ø Training www. fujikura. co. uk n Ericsson Ø internships www. ericsson. com n Fitel www. fitel. com n Sumitomo n
highest cost Fujikura $ 34, 450 n Ericsson $7, 995 n Fitel $6, 600 n
summary n n n Fusion and mechanical splicing Splicing procedure Comparison Manufacturers Cost
references Optical Fiber Communications Principles and practice - John. M. Senior Fiber Optic Communications Joseph. C. Palais www. fujikura. co. uk www. eurobility. com/news www. tecratools. com www. hyperdictionary. com www. ieee. org www. google. com
questions?
