SPL 301 WE SPL 331 WE 01 Market
- Slides: 26
SP-L 301 WE, SP-L 331 WE
01 Market Trend 2500~3000 ANSI 급의 Business (DATA model) Projector 시장은 지속적으로 성장하고 있다. Business 용도라 하여 단순 Presentation 용이 아니라 각종 multi media 나 편의적 기능을 강조한 모델에 대한 고객들의 요구가 늘어나고 있다. DATA model 의 지속적인 성장세 2500~3000 ANSI 급성장 Projector 가격폭 Resolution 2010년 예상 Brightness 2010년 예상 Street Price VGA or lower 12. 7% 0~1499 23. 6% Under $499 41. 3% 480 P 5. 3% 1500~1999 2. 3% $500~999 SVGA 44. 5% 20. 1% 2000~2499 28. 1% $1, 000~1, 499 5. 5% XGA 48. 3% 2500~2999 28. 1% $1, 500~2, 999 6. 6% 720 P 2. 5% 3000~3499 9. 1% $3, 000~4, 999 1080 P 1. 0% 4. 0% 3500~3999 3. 7% $5, 000 plus 1. 2% 6. 6% 4000~4999 3. 4% 0. 5% 5000 PLUS 1. 7% WIDE XGA Others XGA(DATA)시장 향후 지속성장 (10~20%) 2000~2999 동안 ANSI 등급은 56. 2%로 1080 P 는 2010년 48% 성장 최대 점유율 예상 SVGA 시장은 현 규모를 유지할 것임 2500 및 3000 ANSI급 급성장 2010년 각42%, 2010년 예상 $500~999 시장이 가장 큰 시장 pico projector에 의하여 $499 이하 제품 시장 증가 예상 33% 성장 2
01 Market Trend Target Customer XGA 2000~3300 ANSI Projectors 시장 Target LCD Projector 는 화질과 가격적 만족도를 중요시 여기는 고객들이 선호한다. 4
02 Differentiation of Brand L 300 강점 중간 약점 Maker Samsung EPSON NEC ACER HITACHI Model L 301 EX 100 NP 50 P 1270 X 401 Type 3 LCD DLP 3 LCD Resolution 1024 x 768 1024 x 768 Brightness 3000 ANSI 2700 ANSI 3000 ANSI Contrast Ratio 500 : 1 400: 1 500: 1 2000: 1 400: 1 Noise 30 d. B 35 d. B 31 d. B 35 d. B Lamp Life(hr) 3, 000 3, 000 Speaker 3 W X 2 stereo 1 W mono 7 W mono Function Network Screen Size 40~300” 40~300” Power Consumption 290 W 244 W 295 W - 320 W Size (Hx. Wx. D) 115 291 289 110 x 330 x 250 90 X 310 X 260 90 X 300 X 230 100 X 340 X 270 Weight (kg) 3. 8 1. 6 3. 0 3. 5 5
02 Differentiation of Brand L 220(L 200) 강점 중간 약점 Maker Samsung EPSON NEC ACER SONY Model L 220 EX 50 NP 300 X 1260 VPL-X 5 Type 3 LCD DLP 3 LCD Resolution 1024 x 768 1024 x 768 Brightness 2200 ANSI 2, 200 ANSI 2000 ANSI Contrast Ratio 500 : 1 400: 1 500: 1 2000: 1 500: 1 Noise 30 d. B 35 d. B 33 d. B 28 d. B Lamp Life(hr) 5, 000 3, 000 4, 000 3, 000 Speaker 3 W X 2 Stereo 1 W mono 7 W mono 2 W mono 1 W mono Screen Size 40~300” 40~300” Power Consumption 290 W - - - 260 W Size (Hx. Wx. D) 115 291 289 90 x 240 x 300 90 X 310 X 260 80 X 270 X 190 90 X 310 X 260 Weight (kg) 3. 8 2. 8 3. 0 2. 3 3. 0 6

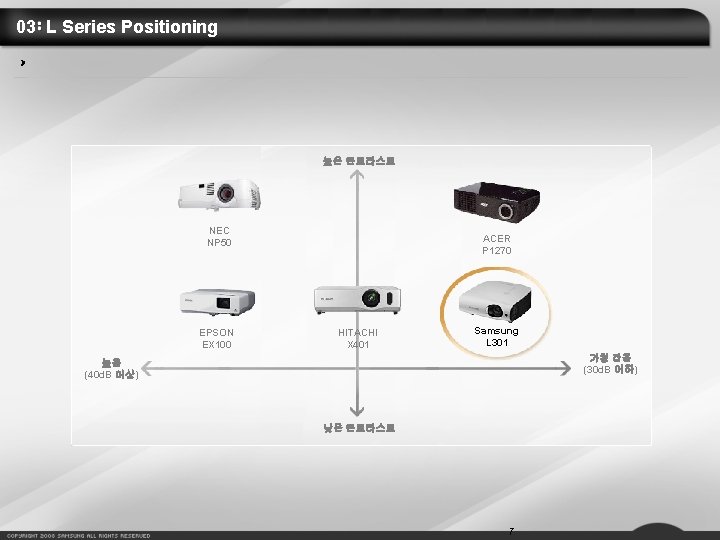

03 L Series Positioning 높은 콘트라스트 NEC NP 50 EPSON EX 100 ACER P 1270 HITACHI X 401 Samsung L 301 가청 잡음 (30 d. B 이하) 높음 (40 d. B 이상) 낮은 콘트라스트 7
03 L Series Positioning 작업 환경과 최적화된 연결성 - RJ-45 : Projector를 네트워크 상에서 모니터 및 제어 - USB : USB Office Viewer로 PC 없이 프레젠테이션 가능 (L 255, L 305, L 335한 적용) L 255 L 305 L 335 L 301 L 331 L 201 L 221 L 251 Value Basic Connectivity, RJ 45, USB Step-Up Basic Connectivity, RJ 45 Basic Connectivity 신규 도입 모델 8
03 L Series Positioning 개선된 부가가치 기능 변화점 신규기능 부가가치 기능 - Auto Keystone (V) - Auto Source Sensing - Closed Caption - Quick On/ Off Item Corvette 2 5. 7 W Under 1 W H/V Keystone L 330 L 301, L 331 RS-232 C Phone-Jack 9 Pin D-Sub 2 1 Stereo Mini Jack (In) 2 1 HDMI L 330, L 300 All USB X L 255/L 305/L 335 RJ-45 X Standby Power Consumption Display Connectivity 차별화 - PC가 불필요한 Office Viewer ※ SP-L 255, 305, L 335 모델한 적용 - RJ-45 원격관리 Corvette 9 L 255/L 305/L 335 L 301/L 331
04 Sales Point PC Free File Viewer USB Plug & Play Presentation => SP-L 255, L 305, L 335 모델限 적용 01 / USB 장치를 포트에 삽입 02 / 자동 플레이 파일 뷰어 03 / 파일 찾기 및 불러오기 04 / Play file 11
04 Sales Point PC Free File Viewer USB Plug & Play Presentation => SP-L 255, L 305, L 335 모델限 적용 Zoom In / Out Preview Zoom Page Navigation View Mode Rotation Optimization

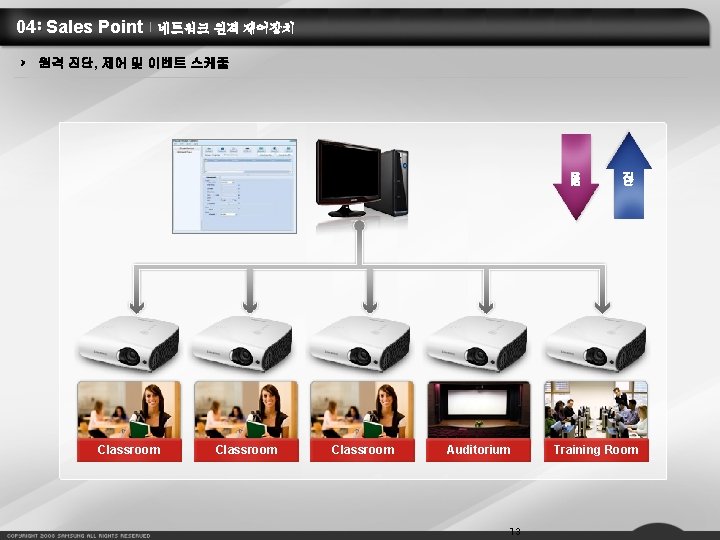

04 Sales Point 네트워크 원격 제어장치 원격 진단, 제어 및 이벤트 스케줄 Control Management Power Source Mute Picture Mode Brightness Picture Size Contrast Ratio Keystone Volume 14
04 Sales Point 네트워크 원격 제어장치 원격 진단, 제어 및 이벤트 스케줄 Monitoring Scheduling Monitoring Items Scheduling Items IP Address, Group, Power, Lamp Time Source, Power On, Power Off, AV, S-Video, PC 1, PC 2, HDMI Temp. Level, Error 15
04 Sales Point 세련된 디자인 L Series는 White Glossy Design으로 세련되고 고급스러운 이미지를 더해준다. Compact Design으로 다양한 환경과 경우의 Presentation에 대비할 수 있다. Samsung’s Glossy Design Projectors Smooth edge & flawless surface SP- D 300 Luxurious high glossy White SP- D 400 Invisible Stereo Speaker SP- P 400 슬라이딩방식의 내장 렌즈덮개 SP- A 400 다양한 설치환경을 고려한 열 배출구 높낮이 나사 17
04 Sales Point 짧은 투사거리가 비교적 짧아 소규모 회의실 등의 좁은 공간에서도 만족도 높은 presentation 이 가능하다. Focusing 을 할 때 wide size 와 normal size를 선택할 수 있다. 짧은 투사 거리 L 300 Conventional Projectors WIDE 화면 size 와 NORMAL 화면 size FOCUSING 가능 WIDE 16: 9 NORMAL 4: 3 18
04 Sales Point HDMI 등 다양한 입력 단자 지원 L 300/L 350은 HDMI, Composite, S-video, PC input (D-sub 15 pin), Monitor out, RS-232 C, Audio input, Speaker 단자를 지원한다. Various Connection을 통해 주변기기와 쉽고 간편하게 연결하여 다양한 content 를 즐길 수 있다. DATA Model중 HDMI 지원은 본 제품이 동급 최초이다. L 300/L 350 입력단자 확대 1 HDMI Audio input RS-232 C S-video PC input HDMI? Blu Ray Digital Camcorder “Easy and Various Connection” PC 고선명 멀티미디어 인터 페이스 (High-Definition Multimedia Interface)의 약자로써 data의 손실 없이 고해상도 비디오와 멀티채널 오디오를 하나의 cable로 전송 할 수 있는 인터페이스 Headphone Game Console S-video 21

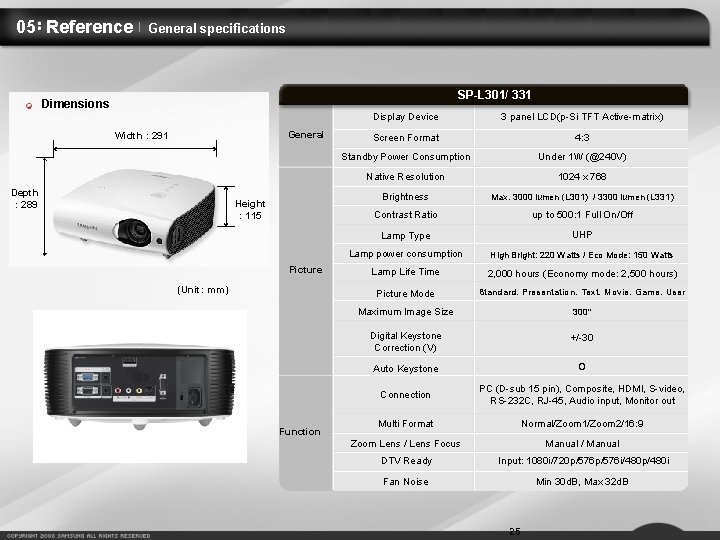

05 Reference General specifications SP-L 301/ 331 Dimensions General Width : 291 Depth : 289 Height : 115 Picture (Unit: mm) Function Display Device 3 panel LCD(p-Si TFT Active-matrix) Screen Format 4: 3 Standby Power Consumption Under 1 W (@240 V) Native Resolution 1024 x 768 Brightness Max. 3000 lumen (L 301) / 3300 lumen (L 331) Contrast Ratio up to 500: 1 Full On/Off Lamp Type UHP Lamp power consumption High Bright: 220 Watts / Eco Mode: 150 Watts Lamp Life Time 2, 000 hours (Economy mode: 2, 500 hours) Picture Mode Standard, Presentation, Text, Movie, Game, User Maximum Image Size 300" Digital Keystone Correction (V) +/-30 Auto Keystone O Connection PC (D-sub 15 pin), Composite, HDMI, S-video, RS-232 C, RJ-45, Audio input, Monitor out Multi Format Normal/Zoom 1/Zoom 2/16: 9 Zoom Lens / Lens Focus Manual / Manual DTV Ready Input: 1080 i/720 p/576 i/480 p/480 i Fan Noise Min 30 d. B, Max 32 d. B 25
