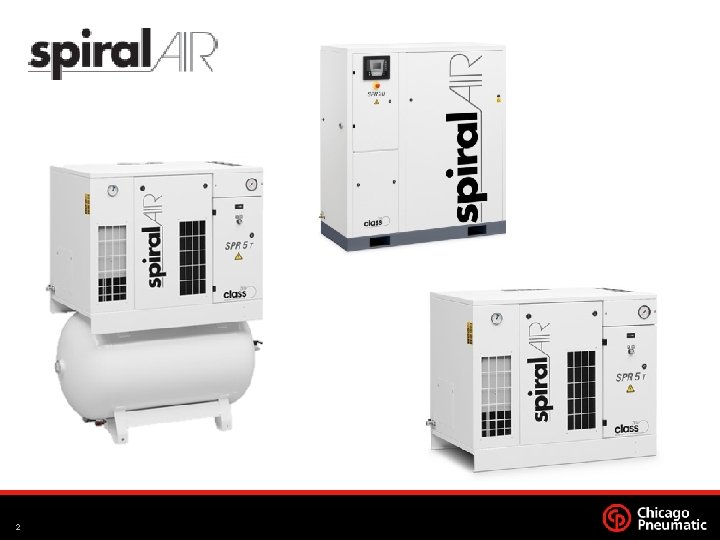

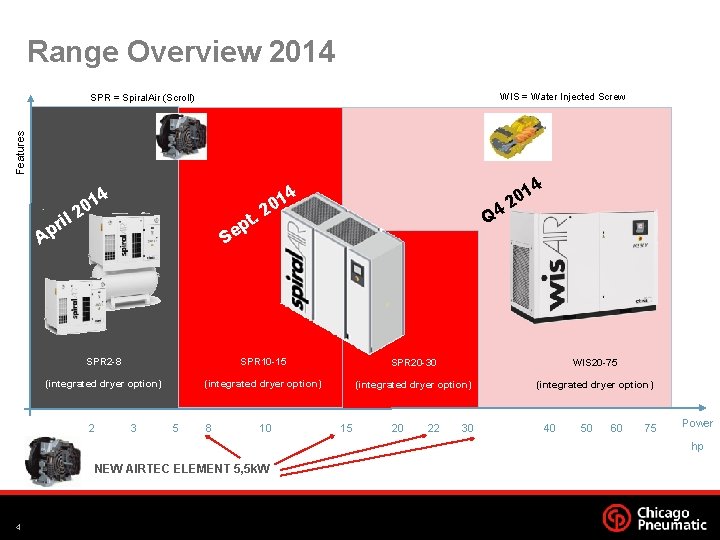

Range Overview 2014 WIS = Water Injected Screw Features SPR = Spiral. Air (Scroll) il pr 4 01 2 t. p e A 4 4 01 2 Q 4 S 1 20 SPR 2 -8 SPR 10 -15 SPR 20 -30 WIS 20 -75 (integrated dryer option) 2 3 5 8 10 15 20 22 30 40 50 60 75 Power hp NEW AIRTEC ELEMENT 5, 5 k. W 4

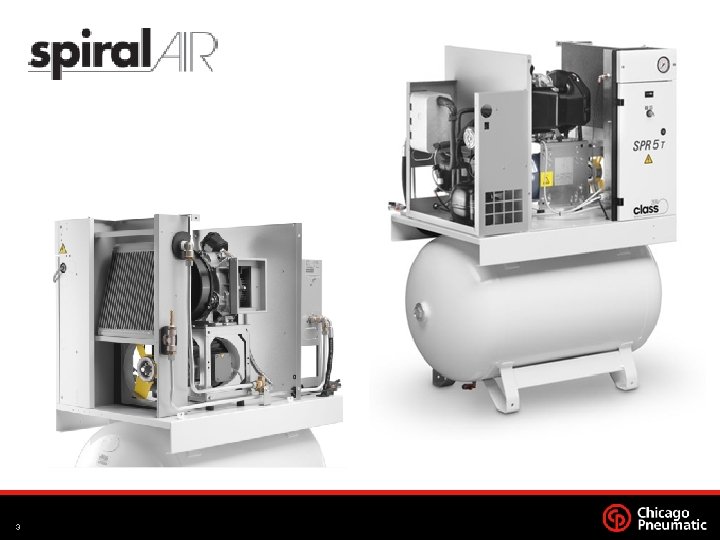

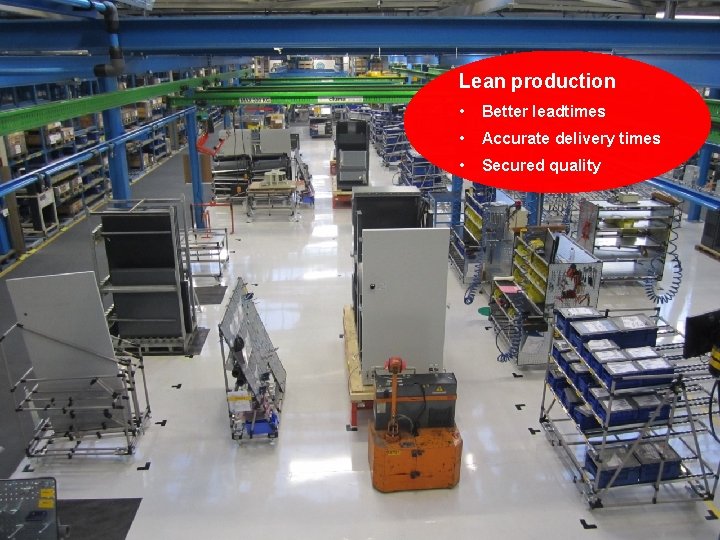

Lean production Footer 5. Date • Better leadtimes • Accurate delivery times • Secured quality

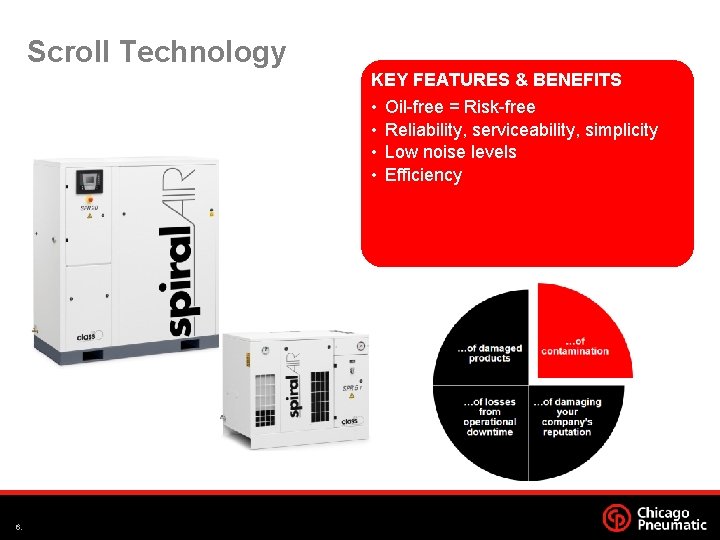

Scroll Technology KEY FEATURES & BENEFITS • • 6. Oil-free = Risk-free Reliability, serviceability, simplicity Low noise levels Efficiency

Simplicity, the ultimate sophistication 7

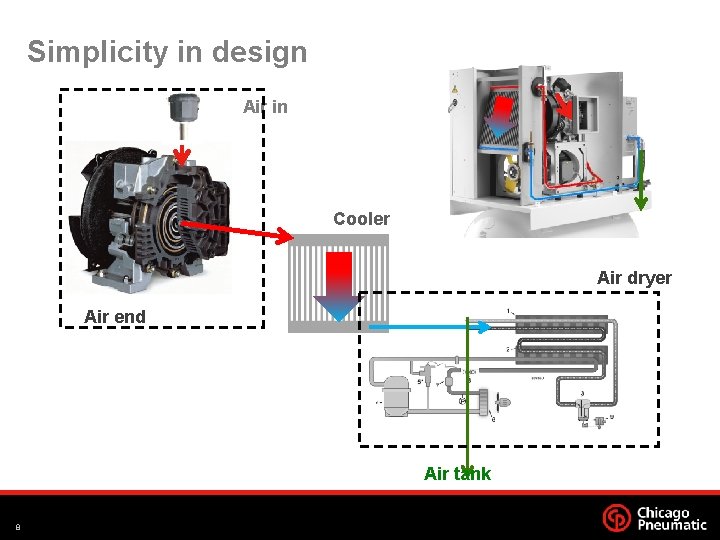

Simplicity in design Air in Cooler Air dryer Air end Air tank 8

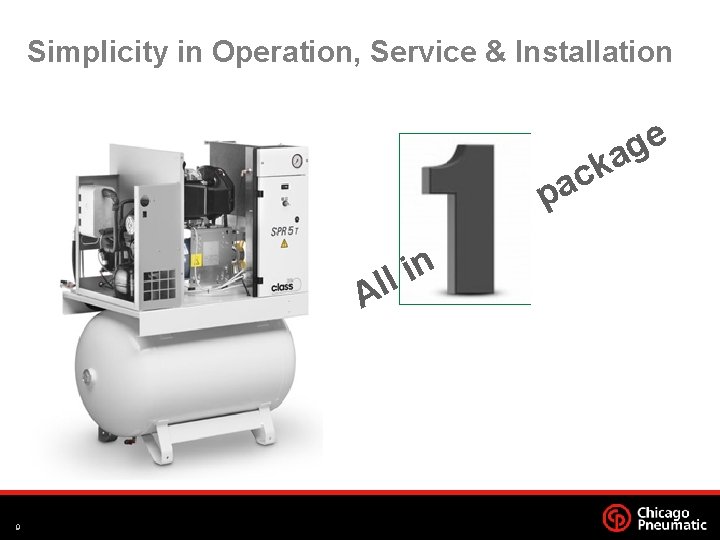

Simplicity in Operation, Service & Installation e g a k c pa n i l Al 9

10

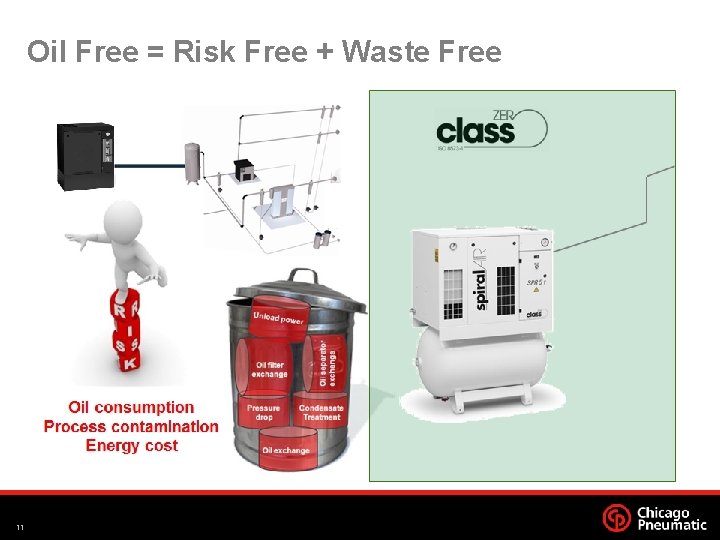

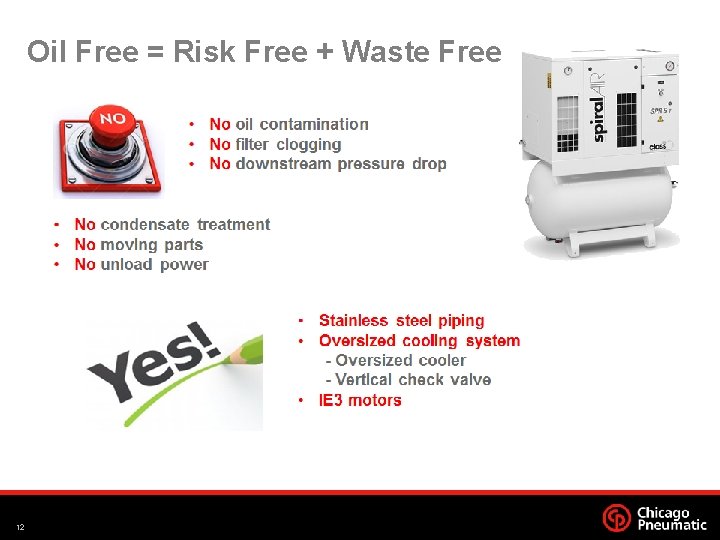

Oil Free = Risk Free + Waste Free 11

Oil Free = Risk Free + Waste Free 12

13

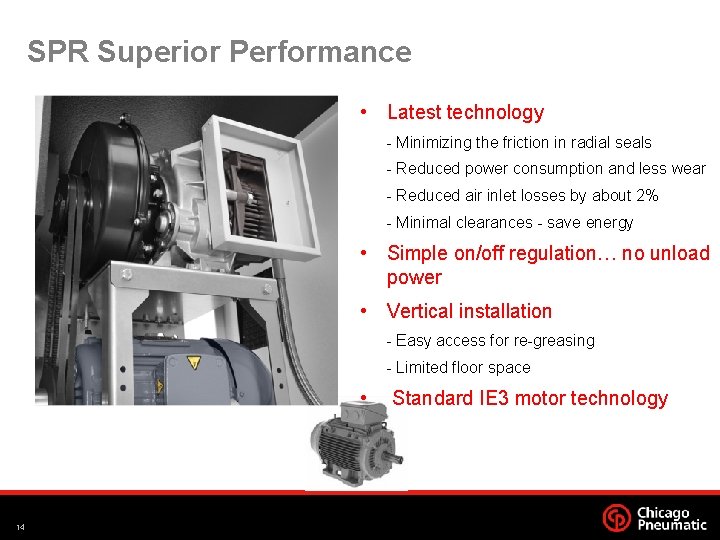

SPR Superior Performance • Latest technology - Minimizing the friction in radial seals - Reduced power consumption and less wear - Reduced air inlet losses by about 2% - Minimal clearances - save energy • Simple on/off regulation… no unload power • Vertical installation - Easy access for re-greasing - Limited floor space • 14 Standard IE 3 motor technology

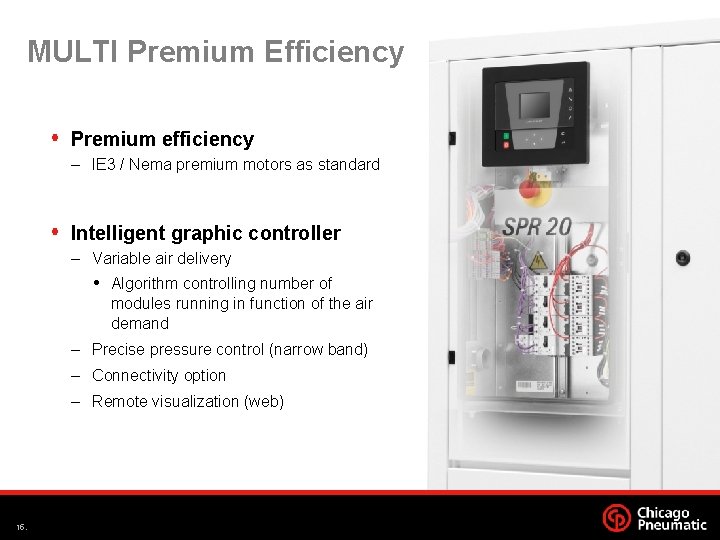

MULTI Premium Efficiency Premium efficiency – IE 3 / Nema premium motors as standard Intelligent graphic controller – Variable air delivery Algorithm controlling number of modules running in function of the air demand – Precise pressure control (narrow band) – Connectivity option – Remote visualization (web) 15.

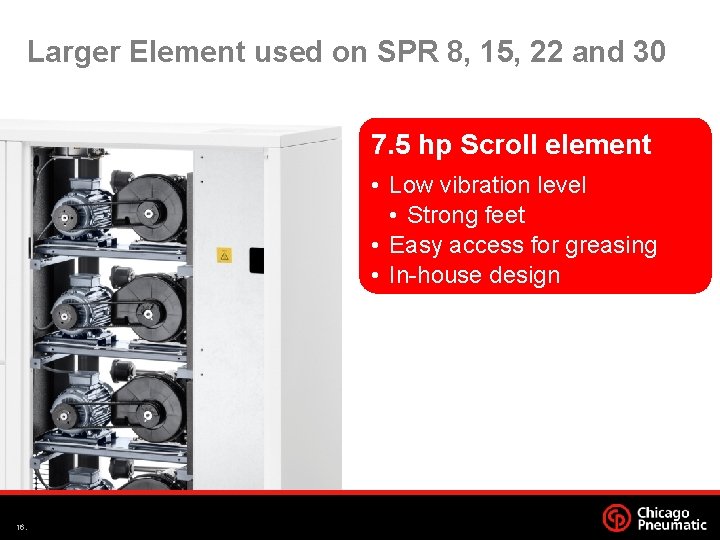

Larger Element used on SPR 8, 15, 22 and 30 7. 5 hp Scroll element • Low vibration level • Strong feet • Easy access for greasing • In-house design 16.

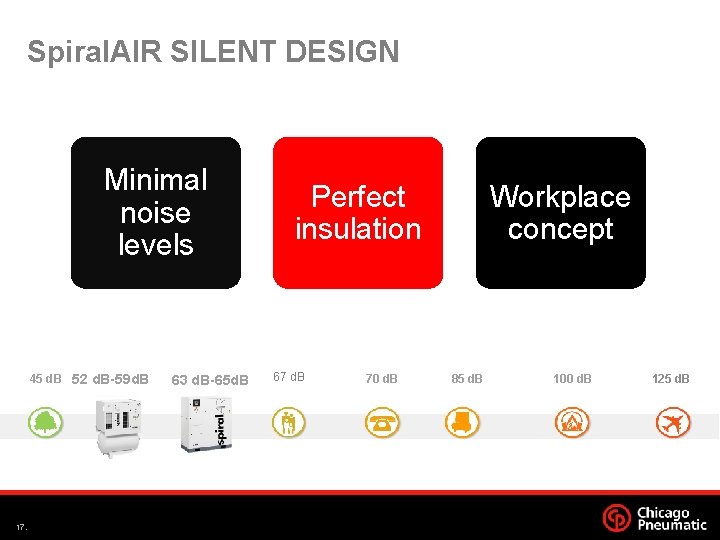

Spiral. AIR SILENT DESIGN Minimal noise levels 45 d. B 52 d. B-59 d. B 17. 63 d. B-65 d. B Perfect insulation 67 d. B 70 d. B Workplace concept 85 d. B 100 d. B 125 d. B

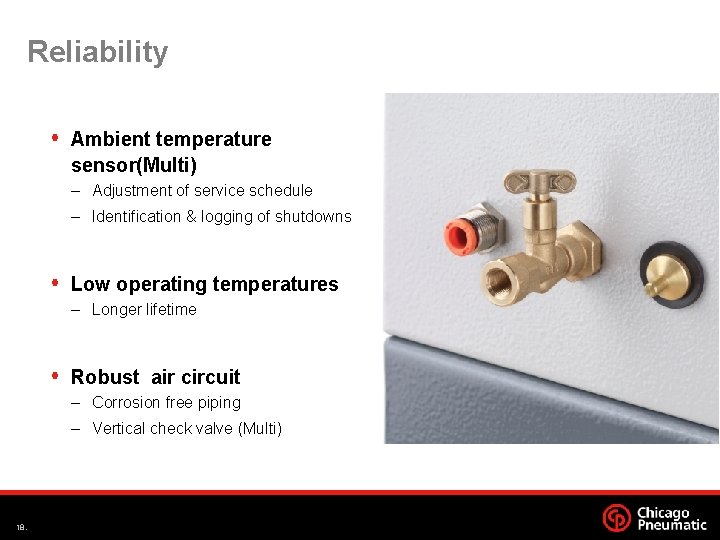

Reliability Ambient temperature sensor(Multi) – Adjustment of service schedule – Identification & logging of shutdowns Low operating temperatures – Longer lifetime Robust air circuit – Corrosion free piping – Vertical check valve (Multi) 18.

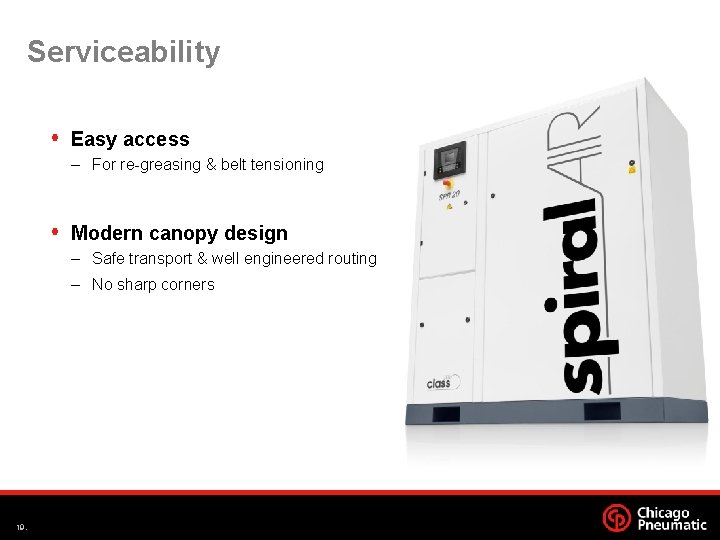

Serviceability Easy access – For re-greasing & belt tensioning Modern canopy design – Safe transport & well engineered routing – No sharp corners 19.

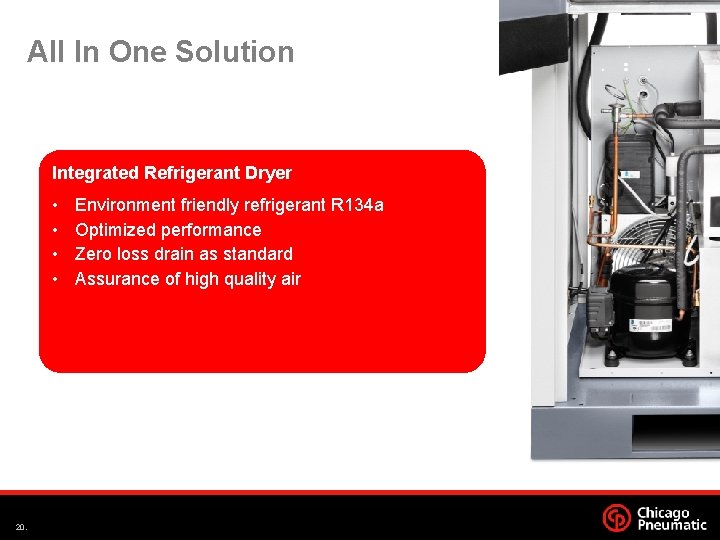

All In One Solution Integrated Refrigerant Dryer • • 20. Environment friendly refrigerant R 134 a Optimized performance Zero loss drain as standard Assurance of high quality air

Summary 21

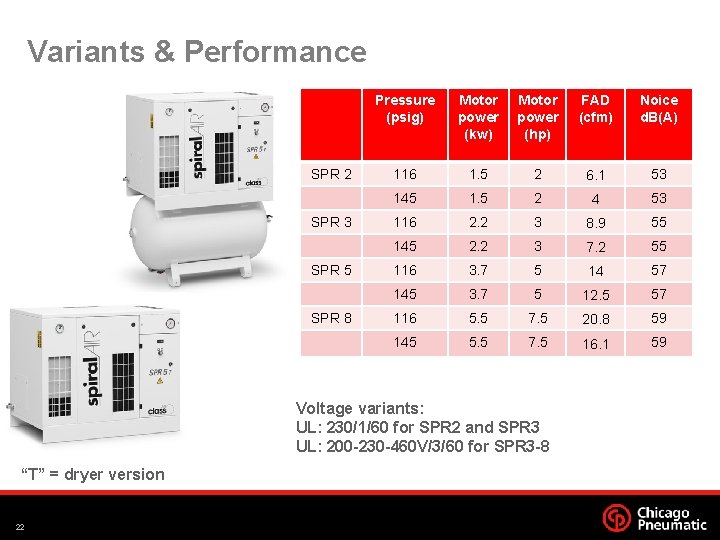

Variants & Performance SPR 2 SPR 3 SPR 5 SPR 8 Pressure (psig) Motor power (kw) Motor power (hp) FAD (cfm) Noice d. B(A) 116 1. 5 2 6. 1 53 145 1. 5 2 4 53 116 2. 2 3 8. 9 55 145 2. 2 3 7. 2 55 116 3. 7 5 14 57 145 3. 7 5 12. 5 57 116 5. 5 7. 5 20. 8 59 145 5. 5 7. 5 16. 1 59 Voltage variants: UL: 230/1/60 for SPR 2 and SPR 3 UL: 200 -230 -460 V/3/60 for SPR 3 -8 “T” = dryer version 22

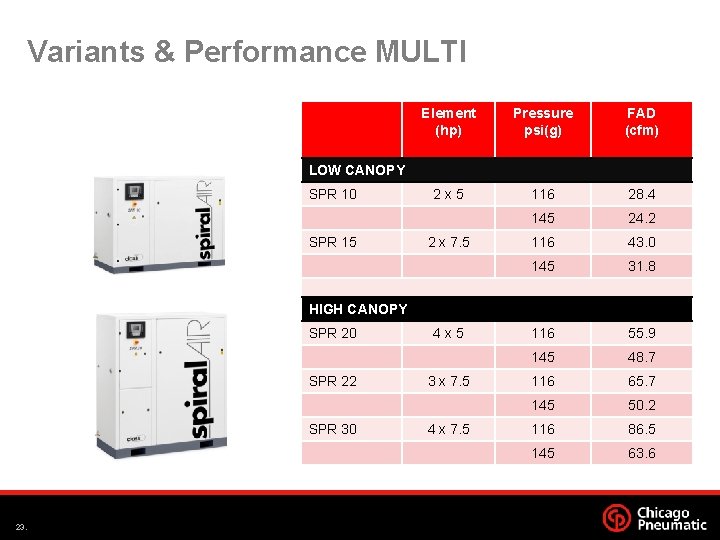

Variants & Performance MULTI Element (hp) Pressure psi(g) FAD (cfm) 2 x 5 116 28. 4 145 24. 2 116 43. 0 145 31. 8 116 55. 9 145 48. 7 116 65. 7 145 50. 2 116 86. 5 145 63. 6 LOW CANOPY SPR 10 SPR 15 2 x 7. 5 HIGH CANOPY SPR 20 SPR 22 SPR 30 23. 4 x 5 3 x 7. 5 4 x 7. 5

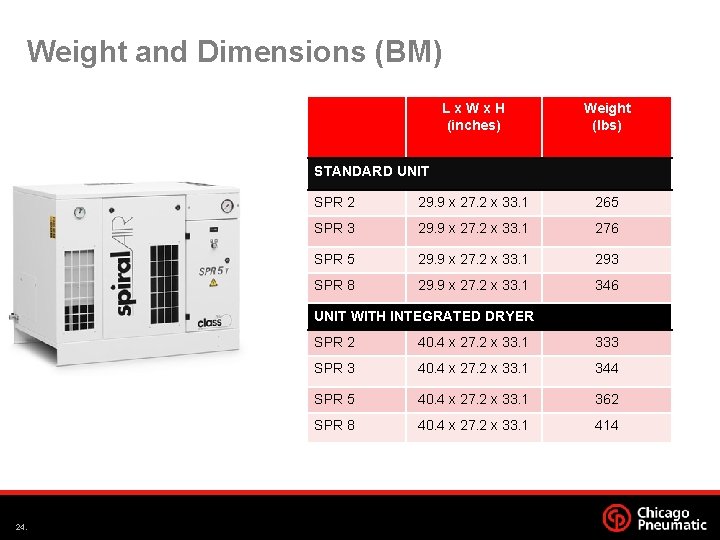

Weight and Dimensions (BM) Lx. Wx. H (inches) Weight (lbs) SPR 2 29. 9 x 27. 2 x 33. 1 265 SPR 3 29. 9 x 27. 2 x 33. 1 276 SPR 5 29. 9 x 27. 2 x 33. 1 293 SPR 8 29. 9 x 27. 2 x 33. 1 346 STANDARD UNIT WITH INTEGRATED DRYER 24. SPR 2 40. 4 x 27. 2 x 33. 1 333 SPR 3 40. 4 x 27. 2 x 33. 1 344 SPR 5 40. 4 x 27. 2 x 33. 1 362 SPR 8 40. 4 x 27. 2 x 33. 1 414

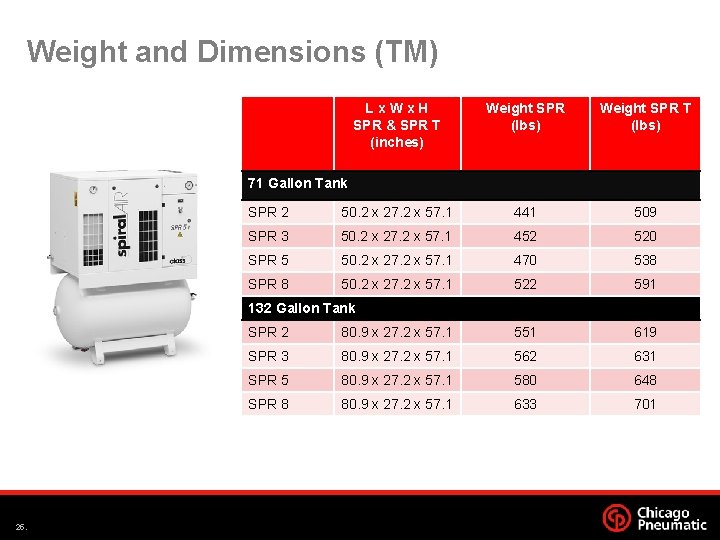

Weight and Dimensions (TM) Lx. Wx. H SPR & SPR T (inches) Weight SPR (lbs) Weight SPR T (lbs) SPR 2 50. 2 x 27. 2 x 57. 1 441 509 SPR 3 50. 2 x 27. 2 x 57. 1 452 520 SPR 5 50. 2 x 27. 2 x 57. 1 470 538 SPR 8 50. 2 x 27. 2 x 57. 1 522 591 71 Gallon Tank 132 Gallon Tank 25. SPR 2 80. 9 x 27. 2 x 57. 1 551 619 SPR 3 80. 9 x 27. 2 x 57. 1 562 631 SPR 5 80. 9 x 27. 2 x 57. 1 580 648 SPR 8 80. 9 x 27. 2 x 57. 1 633 701

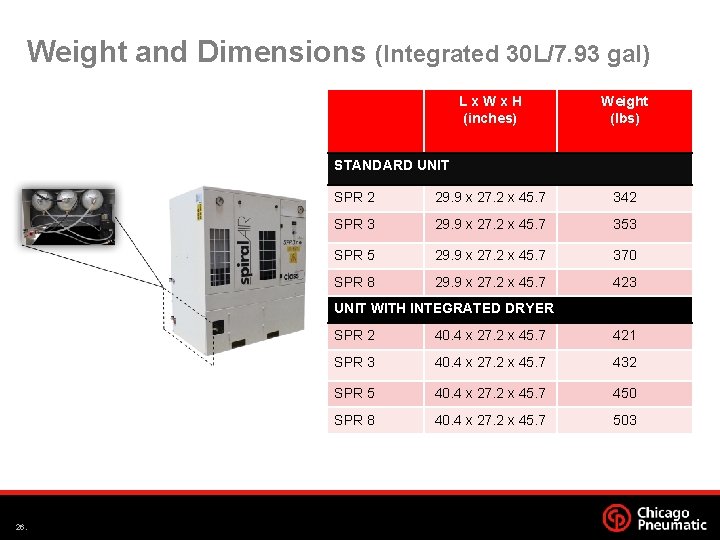

Weight and Dimensions (Integrated 30 L/7. 93 gal) Lx. Wx. H (inches) Weight (lbs) SPR 2 29. 9 x 27. 2 x 45. 7 342 SPR 3 29. 9 x 27. 2 x 45. 7 353 SPR 5 29. 9 x 27. 2 x 45. 7 370 SPR 8 29. 9 x 27. 2 x 45. 7 423 STANDARD UNIT WITH INTEGRATED DRYER 26. SPR 2 40. 4 x 27. 2 x 45. 7 421 SPR 3 40. 4 x 27. 2 x 45. 7 432 SPR 5 40. 4 x 27. 2 x 45. 7 450 SPR 8 40. 4 x 27. 2 x 45. 7 503

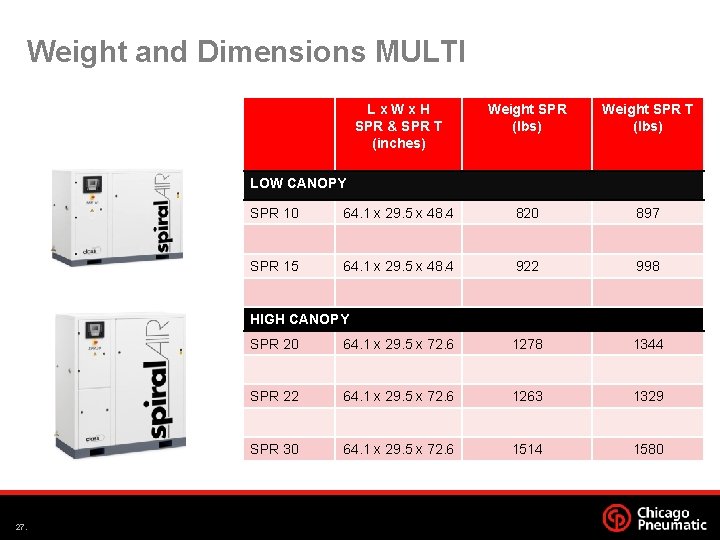

Weight and Dimensions MULTI Lx. Wx. H SPR & SPR T (inches) Weight SPR (lbs) Weight SPR T (lbs) SPR 10 64. 1 x 29. 5 x 48. 4 820 897 SPR 15 64. 1 x 29. 5 x 48. 4 922 998 LOW CANOPY HIGH CANOPY 27. SPR 20 64. 1 x 29. 5 x 72. 6 1278 1344 SPR 22 64. 1 x 29. 5 x 72. 6 1263 1329 SPR 30 64. 1 x 29. 5 x 72. 6 1514 1580

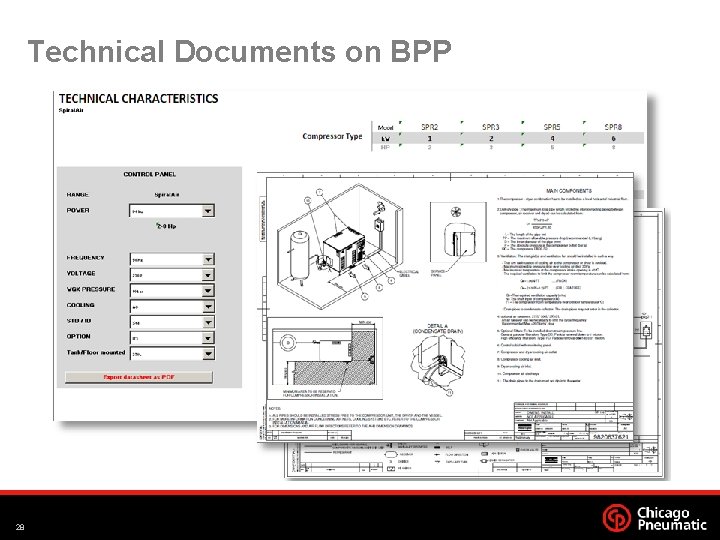

Technical Documents on BPP 28
