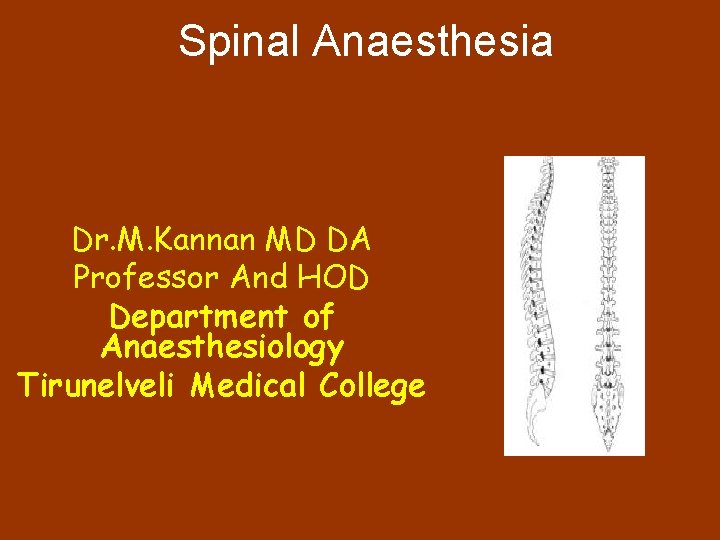

Spinal Anaesthesia Dr. M. Kannan MD DA Professor And HOD Department of Anaesthesiology Tirunelveli

Spinal Anaesthesia Dr. M. Kannan MD DA Professor And HOD Department of Anaesthesiology Tirunelveli Medical College

August Bier 1885

August Bier 1885

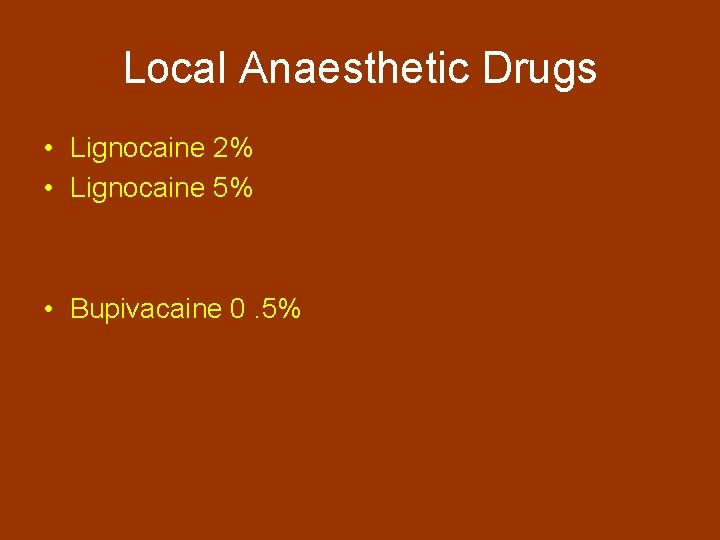

Local Anaesthetic Drugs • Lignocaine 2% • Lignocaine 5% • Bupivacaine 0. 5%

Local Anaesthetic Drugs • Lignocaine 2% • Lignocaine 5% • Bupivacaine 0. 5%

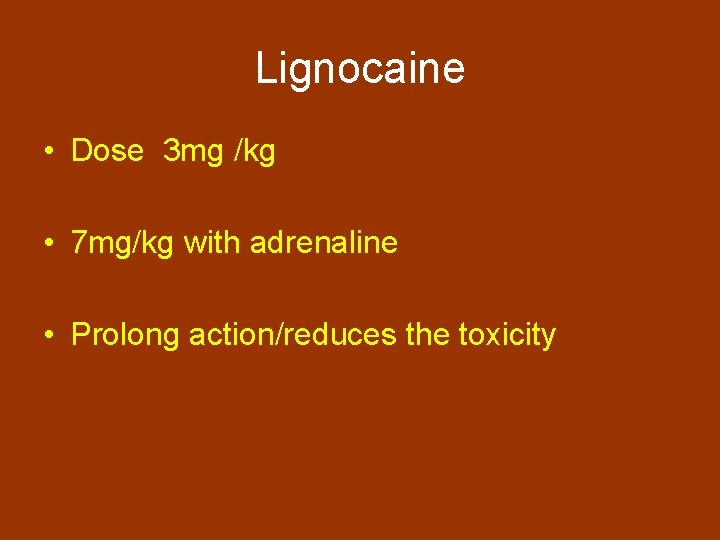

Lignocaine • Dose 3 mg /kg • 7 mg/kg with adrenaline • Prolong action/reduces

Lignocaine • Dose 3 mg /kg • 7 mg/kg with adrenaline • Prolong action/reduces the toxicity

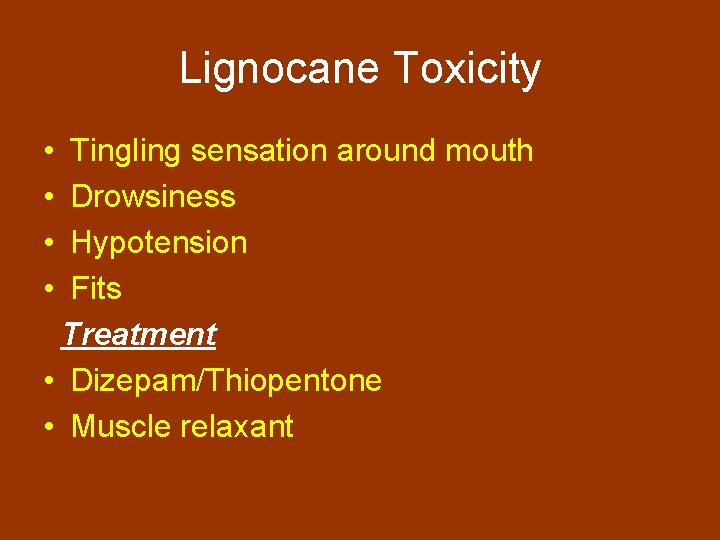

Lignocane Toxicity • • Tingling sensation around mouth Drowsiness Hypotension Fits Treatment • Dizepam/Thiopentone

Lignocane Toxicity • • Tingling sensation around mouth Drowsiness Hypotension Fits Treatment • Dizepam/Thiopentone • Muscle relaxant

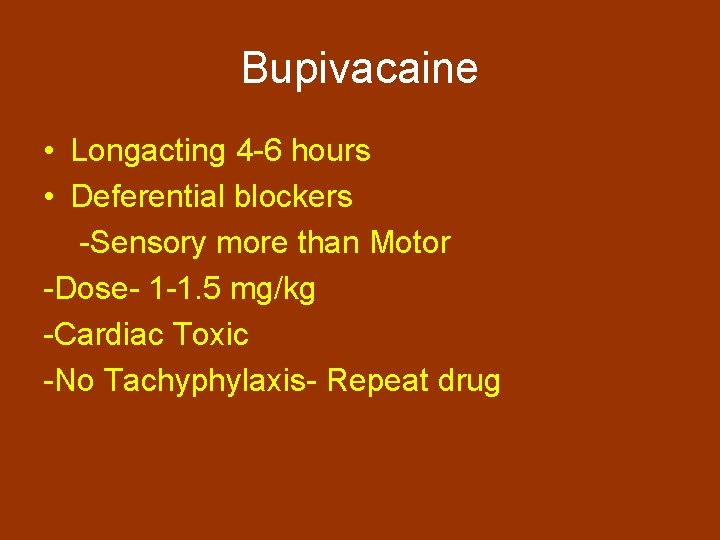

Bupivacaine • Longacting 4 -6 hours • Deferential blockers -Sensory more than Motor -Dose-

Bupivacaine • Longacting 4 -6 hours • Deferential blockers -Sensory more than Motor -Dose- 1 -1. 5 mg/kg -Cardiac Toxic -No Tachyphylaxis- Repeat drug

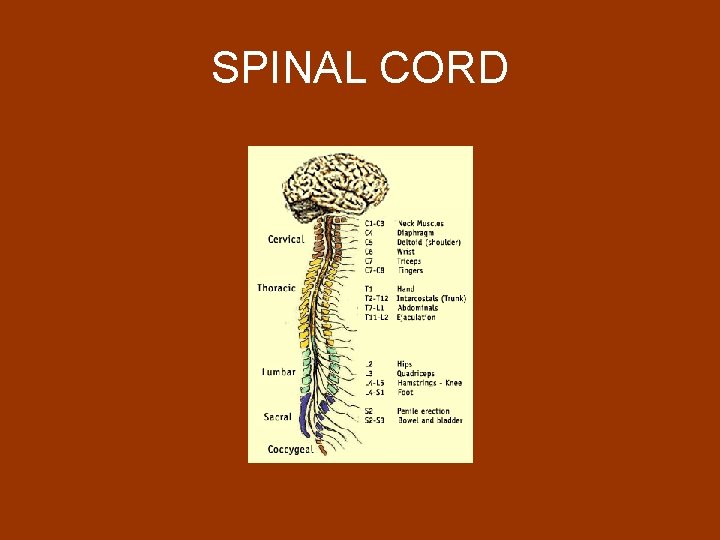

SPINAL CORD

SPINAL CORD

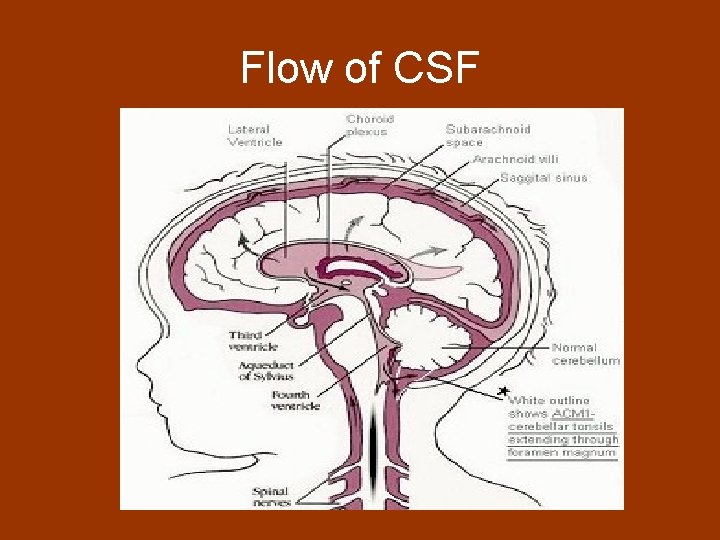

Flow of CSF

Flow of CSF

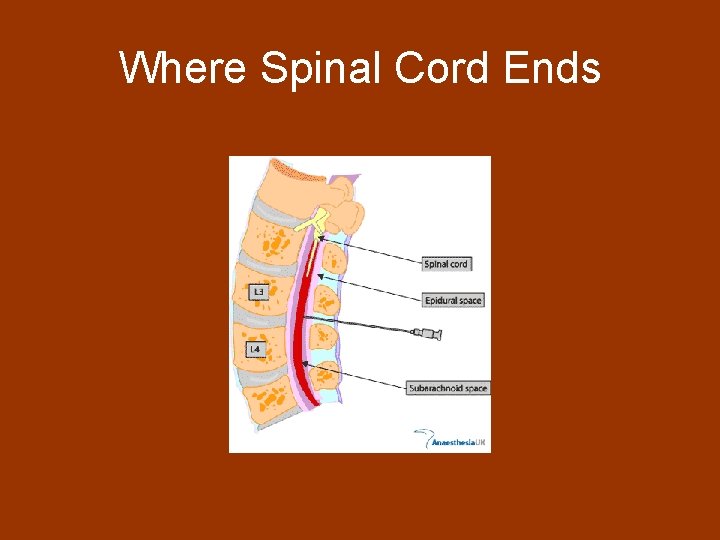

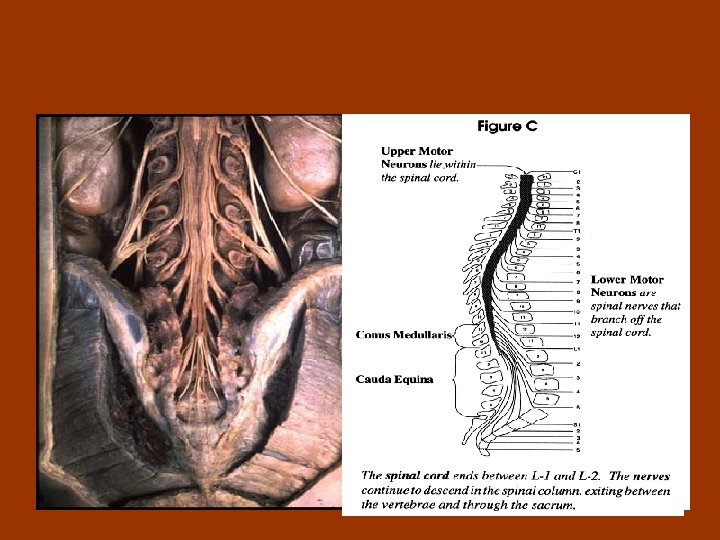

Where Spinal Cord Ends

Where Spinal Cord Ends

Cauda Equina

Cauda Equina

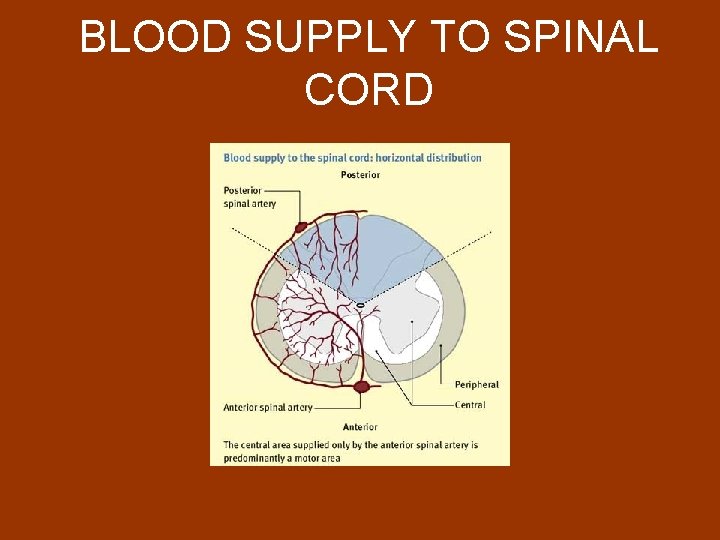

BLOOD SUPPLY TO SPINAL CORD

BLOOD SUPPLY TO SPINAL CORD

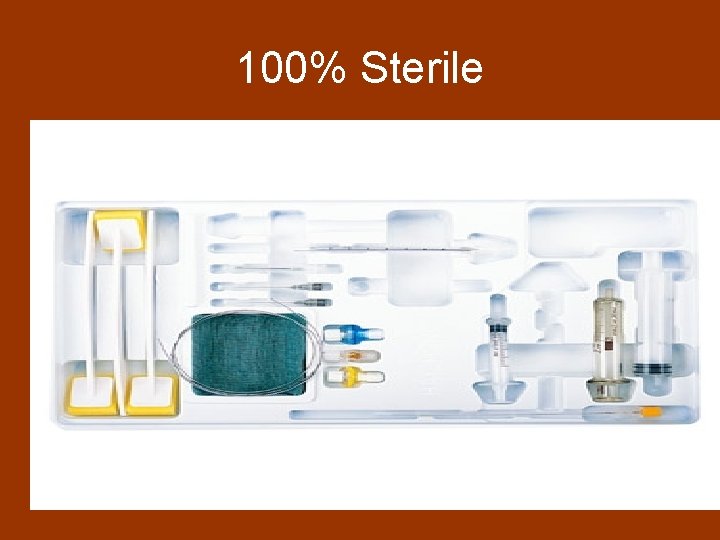

100% Sterile

100% Sterile

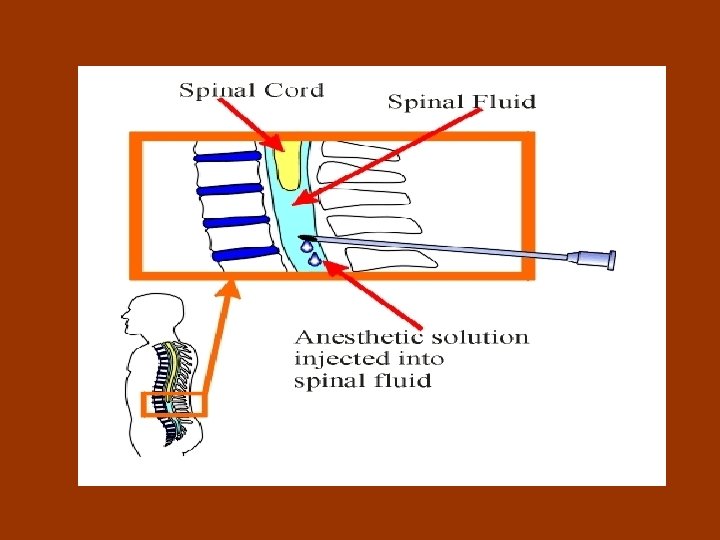

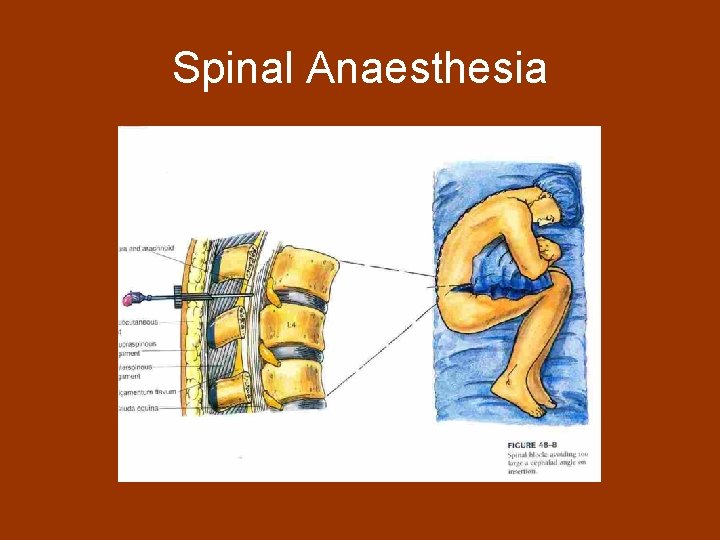

Spinal Anaesthesia

Spinal Anaesthesia

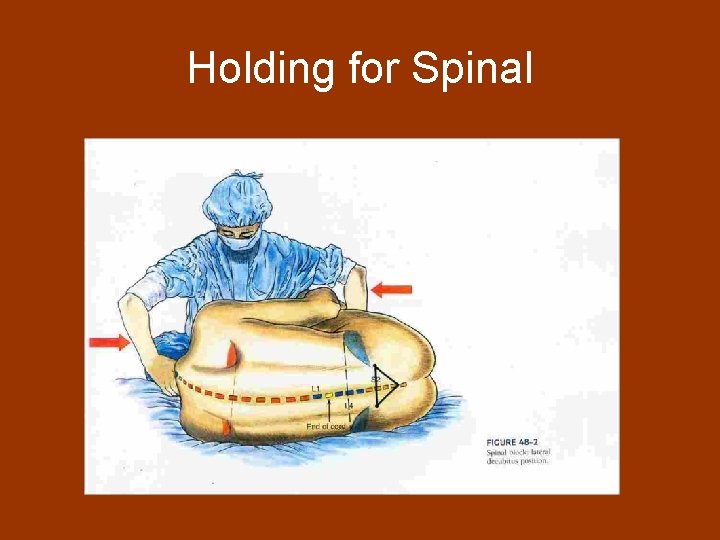

Holding for Spinal

Holding for Spinal

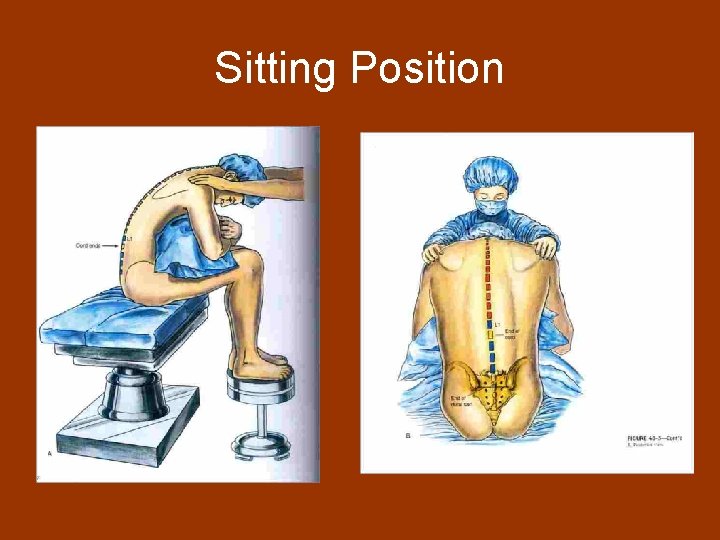

Sitting Position

Sitting Position

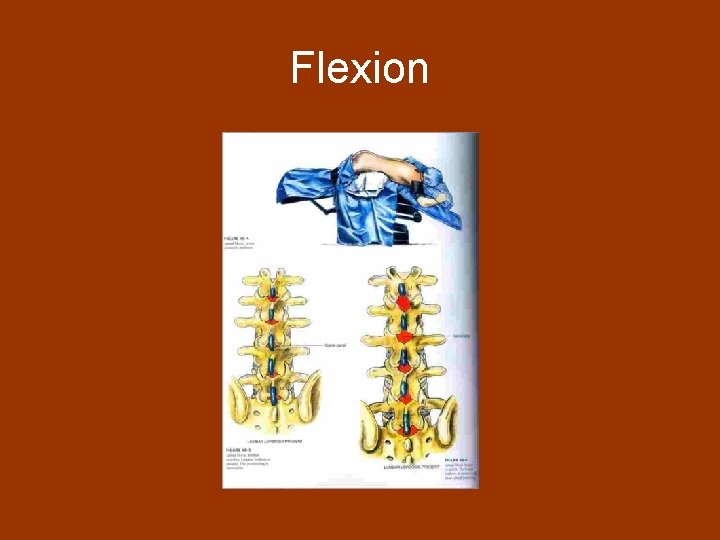

Flexion

Flexion

Structures Pierced

Structures Pierced

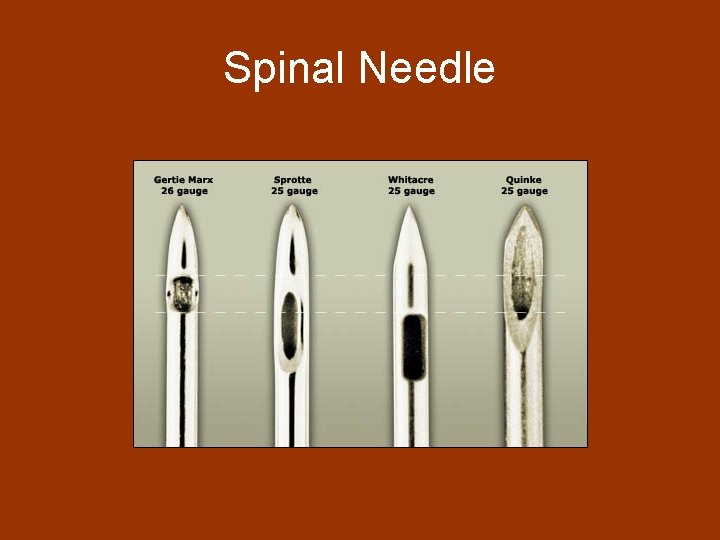

Spinal Needle

Spinal Needle

Factors Influence The Level Of Anaesthesia • • The level of Injection The volume

Factors Influence The Level Of Anaesthesia • • The level of Injection The volume of drug Tilt of Table Speed of Injection

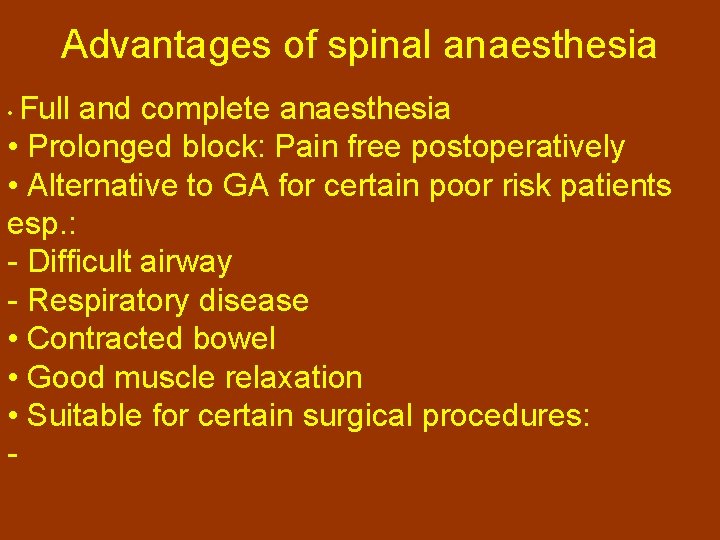

Advantages of spinal anaesthesia Full and complete anaesthesia • Prolonged block: Pain free postoperatively

Advantages of spinal anaesthesia Full and complete anaesthesia • Prolonged block: Pain free postoperatively • Alternative to GA for certain poor risk patients esp. : - Difficult airway - Respiratory disease • Contracted bowel • Good muscle relaxation • Suitable for certain surgical procedures: •

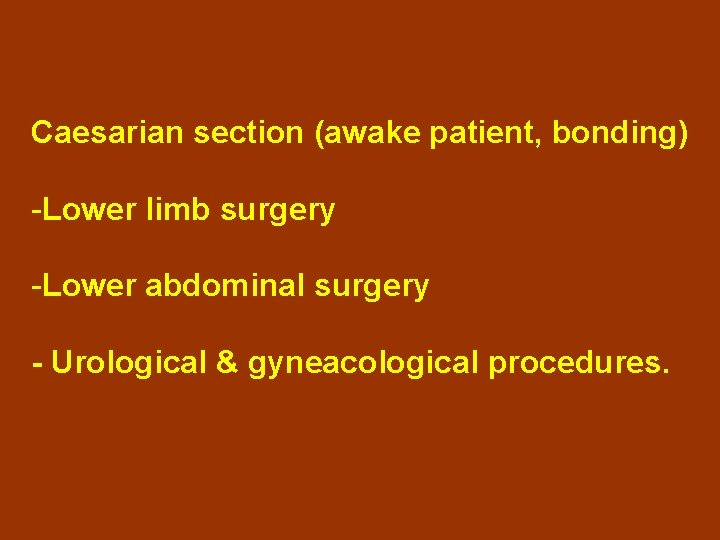

Caesarian section (awake patient, bonding) -Lower limb surgery -Lower abdominal surgery - Urological &

Caesarian section (awake patient, bonding) -Lower limb surgery -Lower abdominal surgery - Urological & gyneacological procedures.

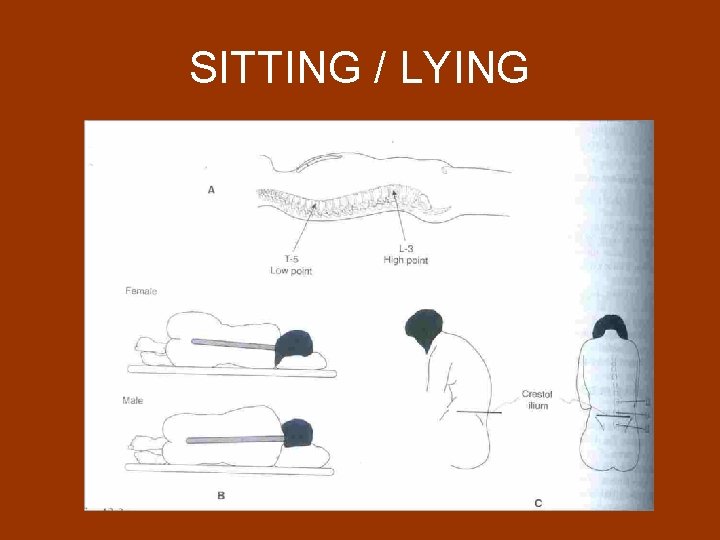

SITTING / LYING

SITTING / LYING

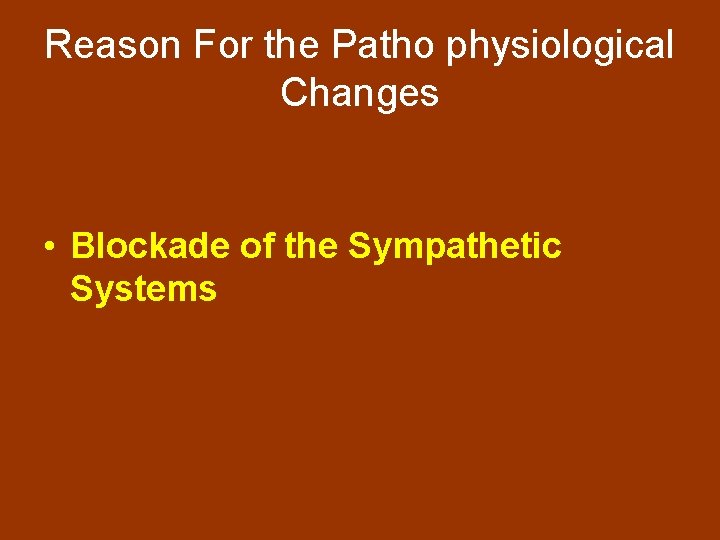

Reason For the Patho physiological Changes • Blockade of the Sympathetic Systems

Reason For the Patho physiological Changes • Blockade of the Sympathetic Systems

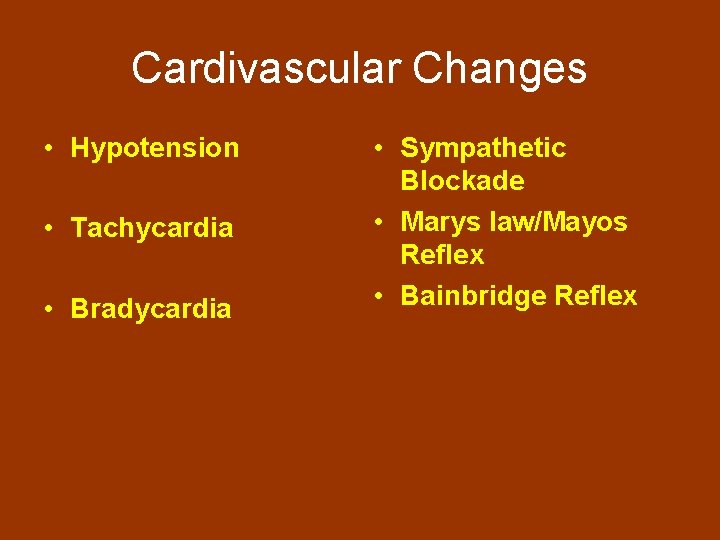

Cardivascular Changes • Hypotension • Tachycardia • Bradycardia • Sympathetic Blockade • Marys law/Mayos

Cardivascular Changes • Hypotension • Tachycardia • Bradycardia • Sympathetic Blockade • Marys law/Mayos Reflex • Bainbridge Reflex

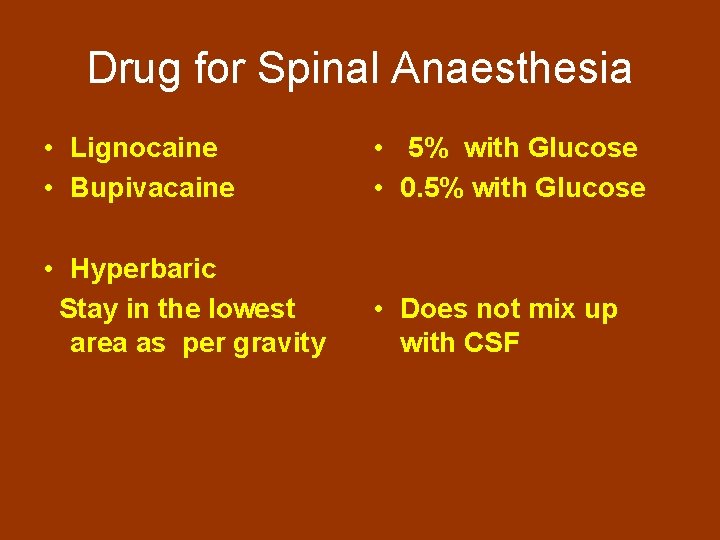

Drug for Spinal Anaesthesia • Lignocaine • Bupivacaine • 5% with Glucose • 0.

Drug for Spinal Anaesthesia • Lignocaine • Bupivacaine • 5% with Glucose • 0. 5% with Glucose • Hyperbaric Stay in the lowest area as per gravity • Does not mix up with CSF

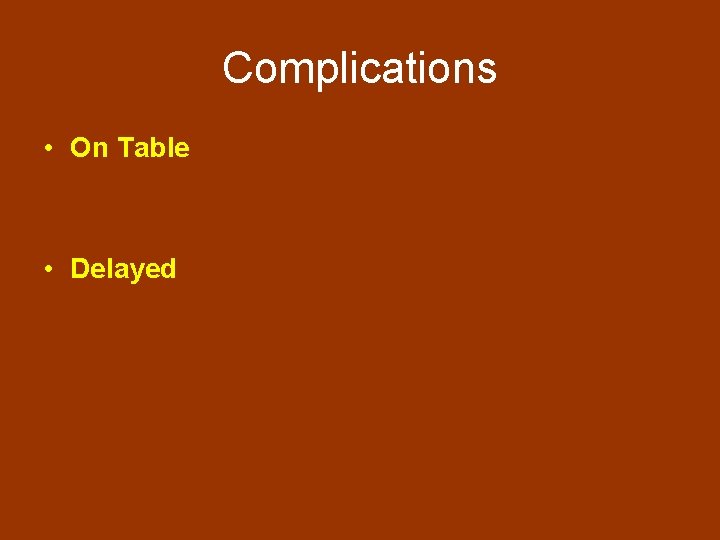

Complications • On Table • Delayed

Complications • On Table • Delayed

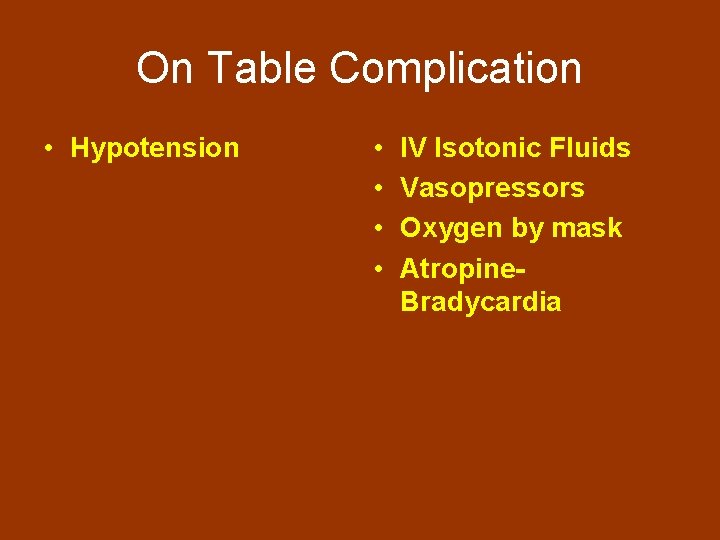

On Table Complication • Hypotension • • IV Isotonic Fluids Vasopressors Oxygen by mask

On Table Complication • Hypotension • • IV Isotonic Fluids Vasopressors Oxygen by mask Atropine. Bradycardia

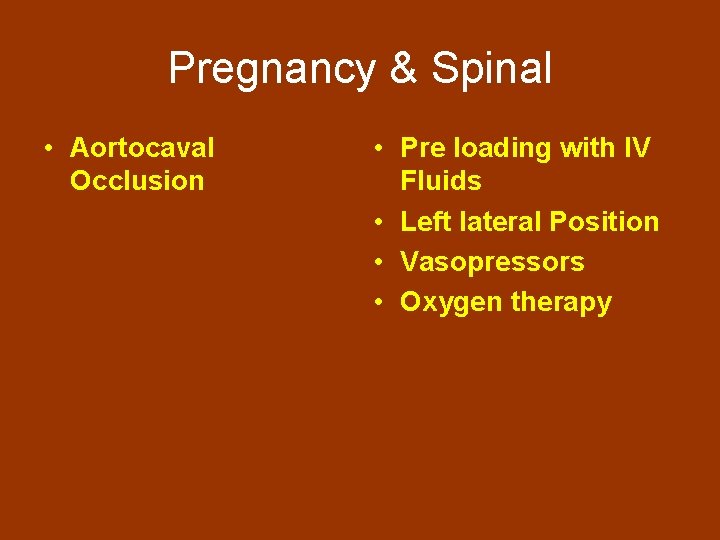

Pregnancy & Spinal • Aortocaval Occlusion • Pre loading with IV Fluids • Left

Pregnancy & Spinal • Aortocaval Occlusion • Pre loading with IV Fluids • Left lateral Position • Vasopressors • Oxygen therapy

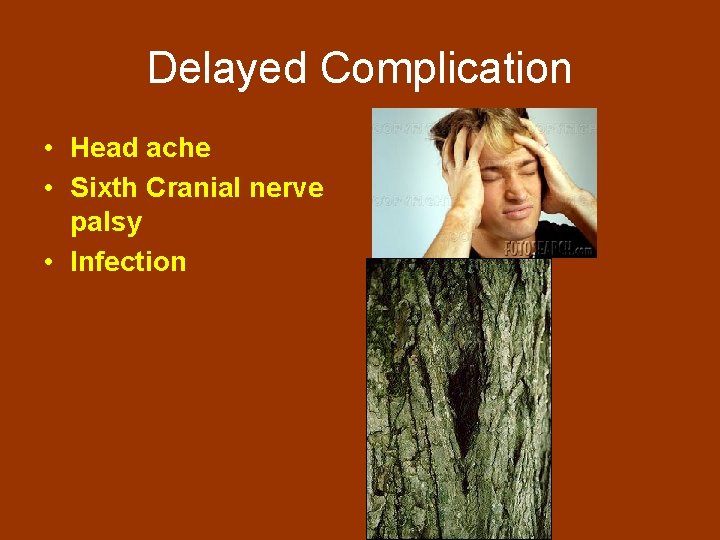

Delayed Complication • Head ache • Sixth Cranial nerve palsy • Infection

Delayed Complication • Head ache • Sixth Cranial nerve palsy • Infection

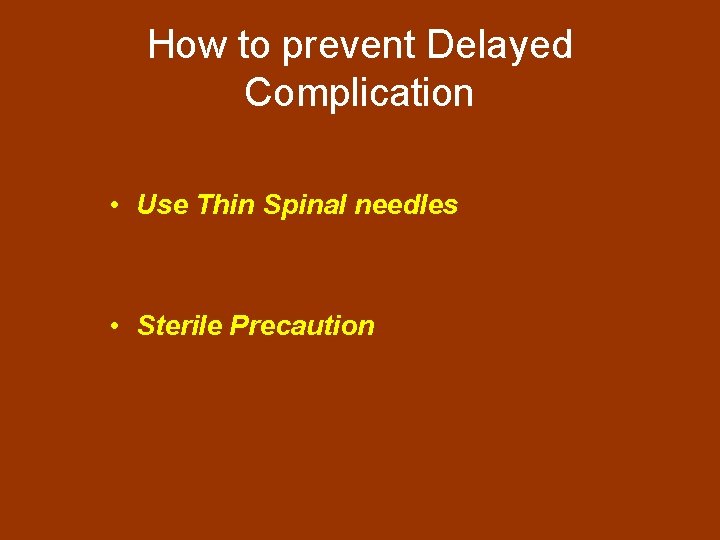

How to prevent Delayed Complication • Use Thin Spinal needles • Sterile Precaution

How to prevent Delayed Complication • Use Thin Spinal needles • Sterile Precaution

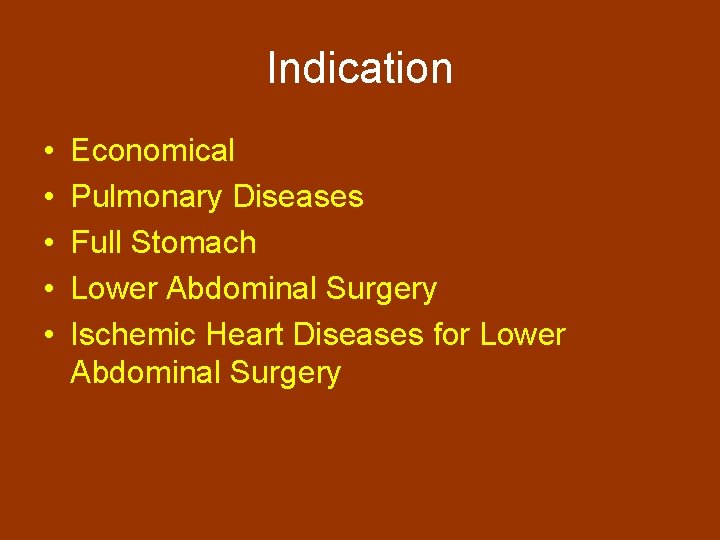

Indication • • • Economical Pulmonary Diseases Full Stomach Lower Abdominal Surgery Ischemic Heart

Indication • • • Economical Pulmonary Diseases Full Stomach Lower Abdominal Surgery Ischemic Heart Diseases for Lower Abdominal Surgery

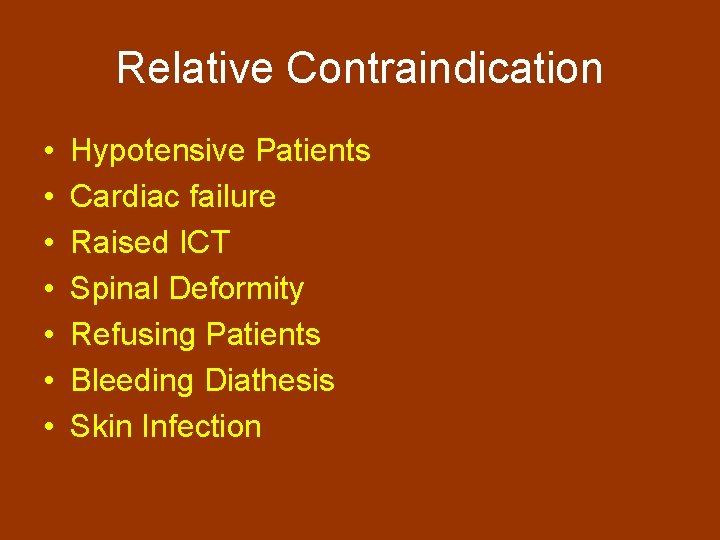

Relative Contraindication • • Hypotensive Patients Cardiac failure Raised ICT Spinal Deformity Refusing Patients

Relative Contraindication • • Hypotensive Patients Cardiac failure Raised ICT Spinal Deformity Refusing Patients Bleeding Diathesis Skin Infection
