SPH ANALYSIS PROJECTILE SOIL 3 D PROJECTILE MOTION
- Slides: 35
SPH ANALYSIS – PROJECTILE SOIL 3 D PROJECTILE MOTION PROJECTILE SOIL TOP VIEW SIDE VIEW 1
PROJECTILE & SOIL IMPACT SPH Velocity Motion Y direction 1000 mm/s PROJECTILE – steel SOIL 1. Dirt MAT-014 2. Sand damped MAT-014 3. Sand dry & loose MAT-005 2
GEOMETRY AND UNITS tonne: mm: ms Spacing between particles 10 mm 3
MODEL AND LOADING Velocity Motion Y direction 1000 mm/s 4
BC Soil inner nodes BC Projectile nodes BC Soil outer nodes X Y Z TRANS free fixed ROT fixed free X Y Z TRANS fixed ROT fixed BOUNDARY CONDITIONS 5
ANALYSIS MATERIAL DEFINITION +ve -ve 6
7
8
1. SAND MAT-005 ANALYSIS MATERIAL DEFINITION 2. SAND MAT-014 3. SOIL MAT-014 Pressure (MPa) Versus Strain (ln(V/V 0) 9
Dirt SOIL_MAT_014 10
Dry & loose sand SAND_MAT_014 11
Damped sand SAND_MAT_005 12
NUMERICAL ENGINEERING SOLUTIONS RESULTS 13

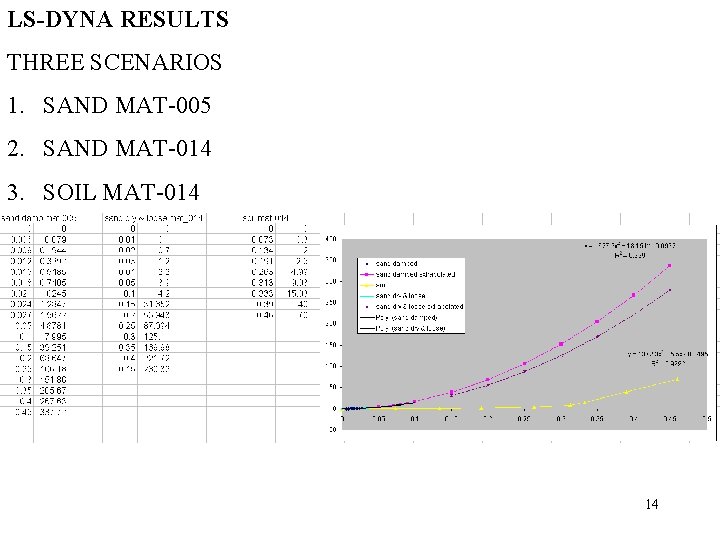

LS-DYNA RESULTS THREE SCENARIOS 1. SAND MAT-005 2. SAND MAT-014 3. SOIL MAT-014 14
SAND-1 DAMPED Sand deformation SAND MAT_005 15

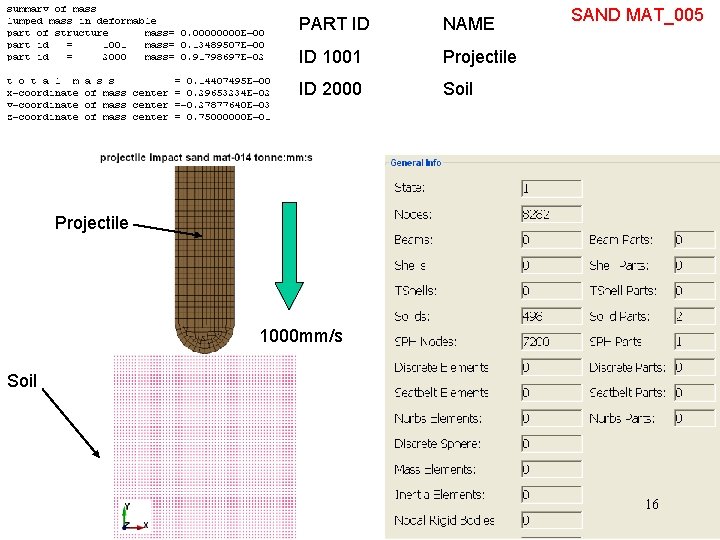

PART ID NAME ID 1001 Projectile ID 2000 Soil SAND MAT_005 Projectile 1000 mm/s Soil 16
Projectile Displacement SAND MAT_005 17
Projectile Velocity SAND MAT_005 18
Reaction Contact Force Projectile and SAND MAT_005 19
Von Mises Stress in Projectile SAND MAT_005 20
Scenario Timing SAND MAT_005 21
SAND-2 DRY LOOSE Sand deformation SAND MAT_014 22
PART ID NAME ID 1001 Projectile ID 2000 Soil SAND MAT_014 Projectile 1000 mm/s Soil 23
Projectile Displacement SAND MAT_014 24
Projectile Velocity SAND MAT_014 25
Reaction Contact Force Projectile and SAND MAT_014 26

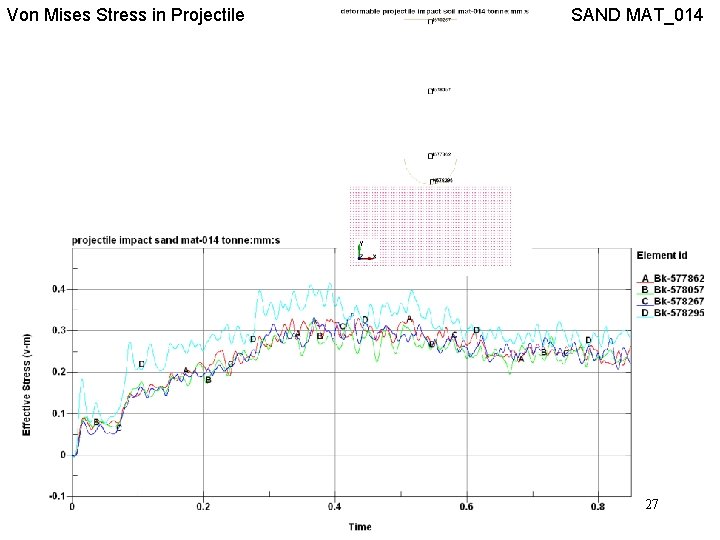

Von Mises Stress in Projectile SAND MAT_014 27
Scenario Timing SAND MAT_014 28
SOIL MAT_014 29
PART ID NAME ID 1001 Projectile ID 2000 Soil Projectile 1000 mm/s Soil 30
Projectile Displacement SOIL MAT_014 31
Projectile Velocity SOIL MAT_014 32
Reaction Contact Force Projectile and Soil SOIL MAT_014 33
Von Mises Stress in Projectile SOIL MAT_014 34
Scenario Timing SOIL MAT_014 35
