Speed Measurement Techniques Urvish

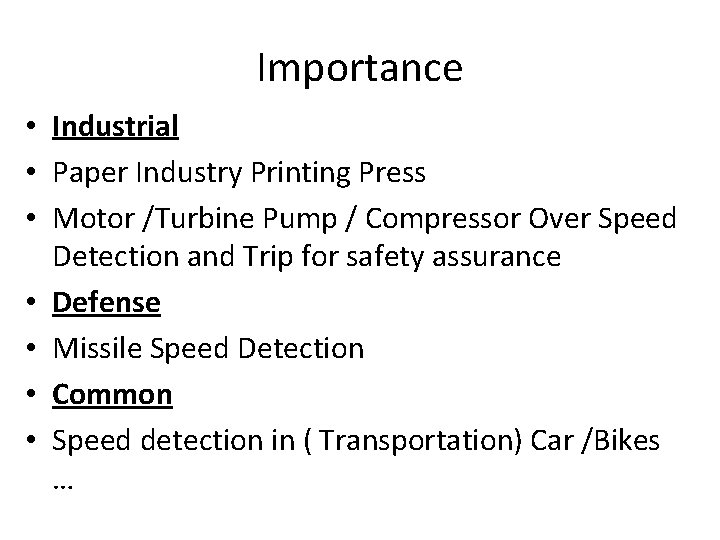

Importance • Industrial • Paper Industry Printing Press • Motor /Turbine Pump / Compressor Over Speed Detection and Trip for safety assurance • Defense • Missile Speed Detection • Common • Speed detection in ( Transportation) Car /Bikes …

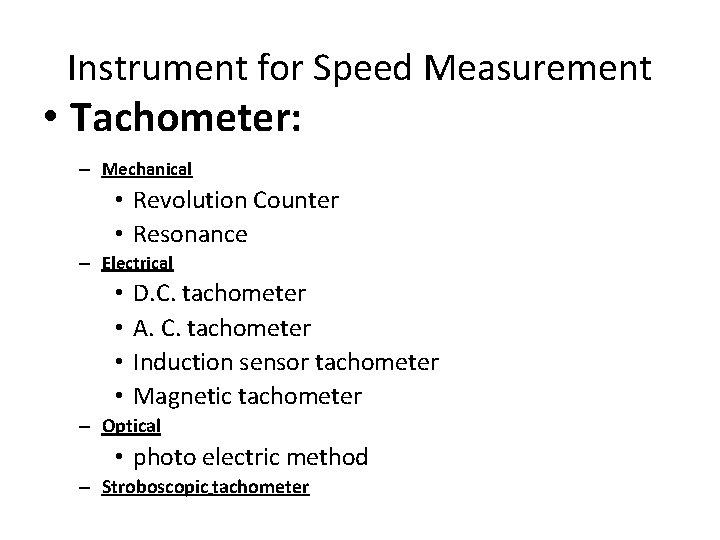

Instrument for Speed Measurement • Tachometer: – Mechanical • Revolution Counter • Resonance – Electrical • • D. C. tachometer A. C. tachometer Induction sensor tachometer Magnetic tachometer – Optical • photo electric method – Stroboscopic tachometer

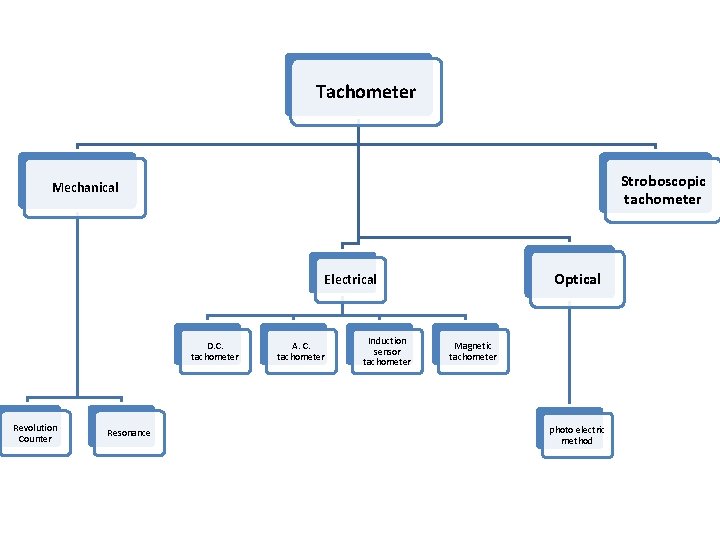

Tachometer Stroboscopic tachometer Mechanical Optical Electrical D. C. tachometer Revolution Counter Resonance A. C. tachometer Induction sensor tachometer Magnetic tachometer photo electric method

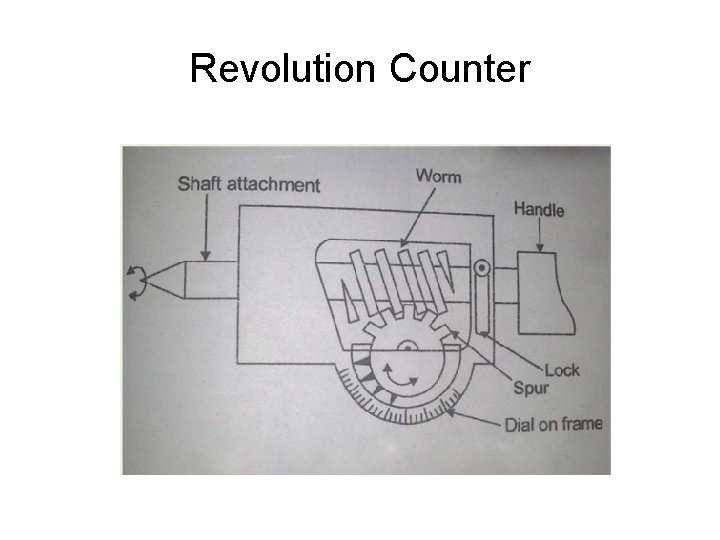

Revolution Counter

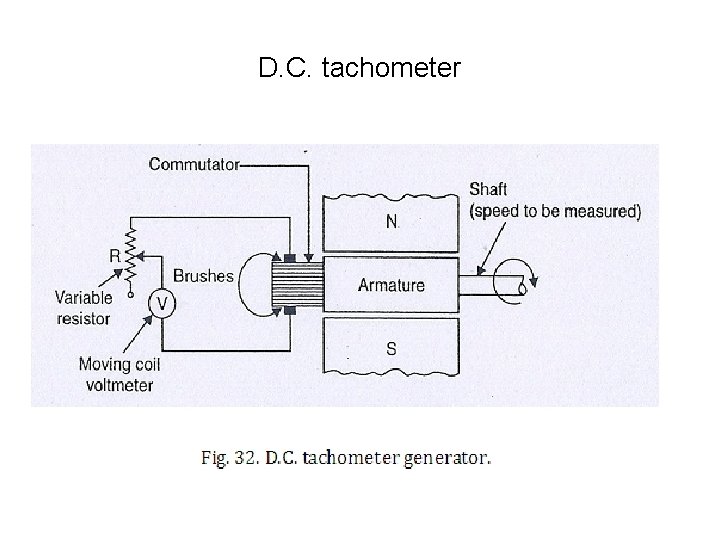

D. C. tachometer

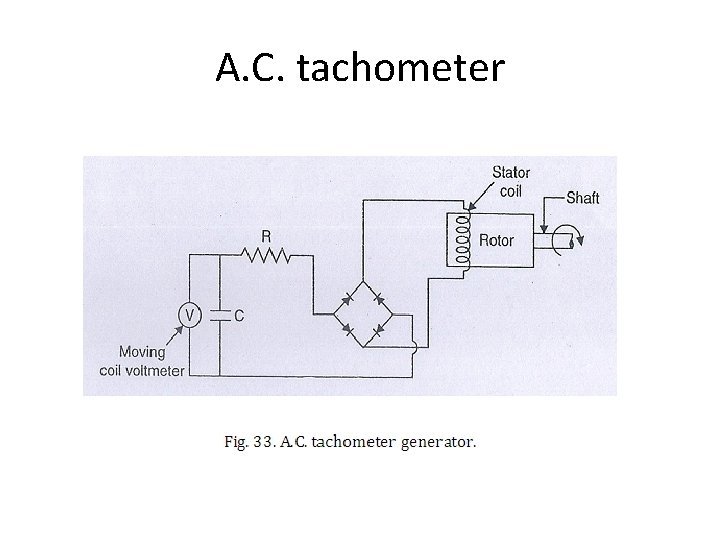

A. C. tachometer

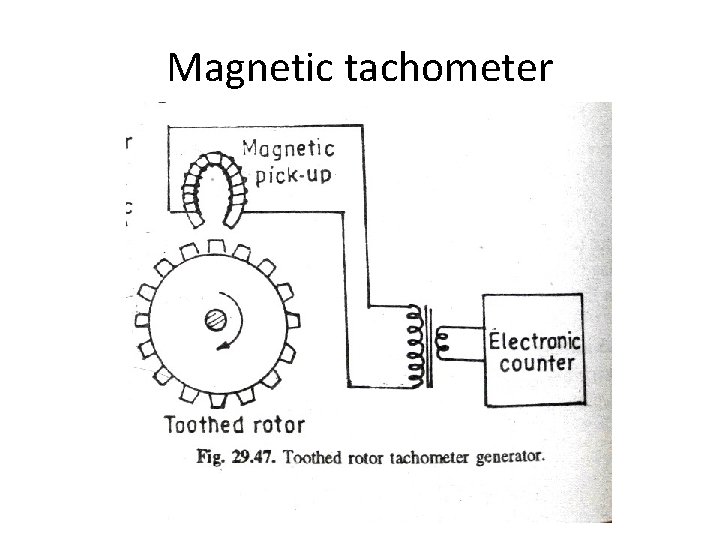

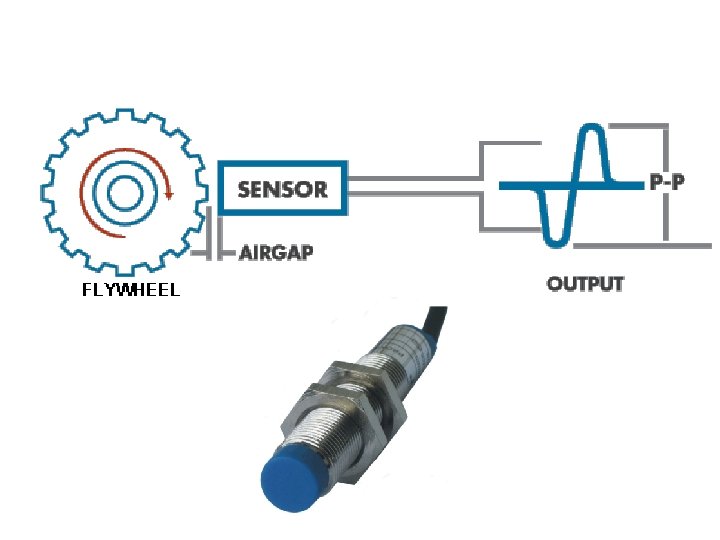

Magnetic tachometer

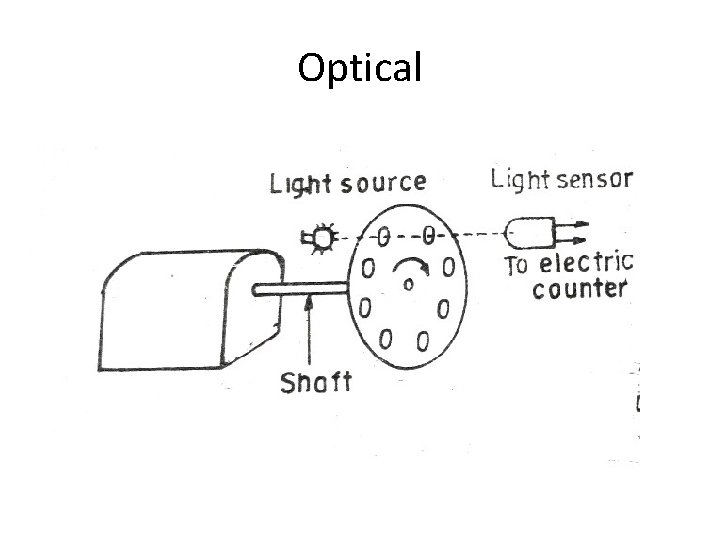

Optical

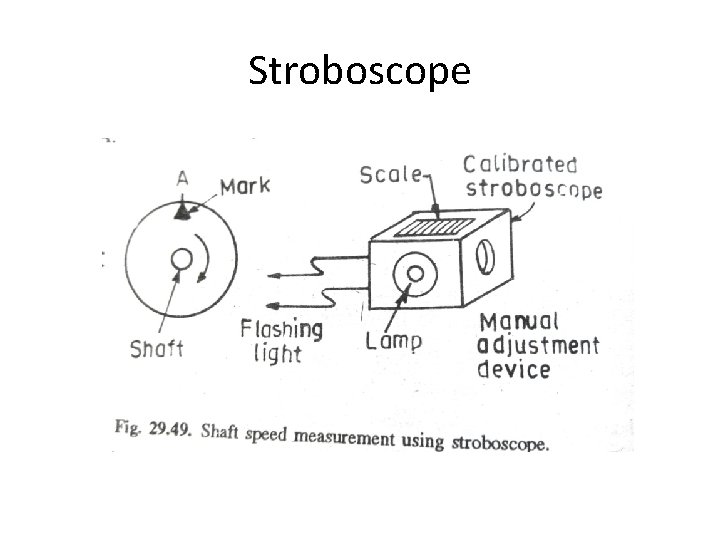

Stroboscope

Moisture And Humidity Measurement

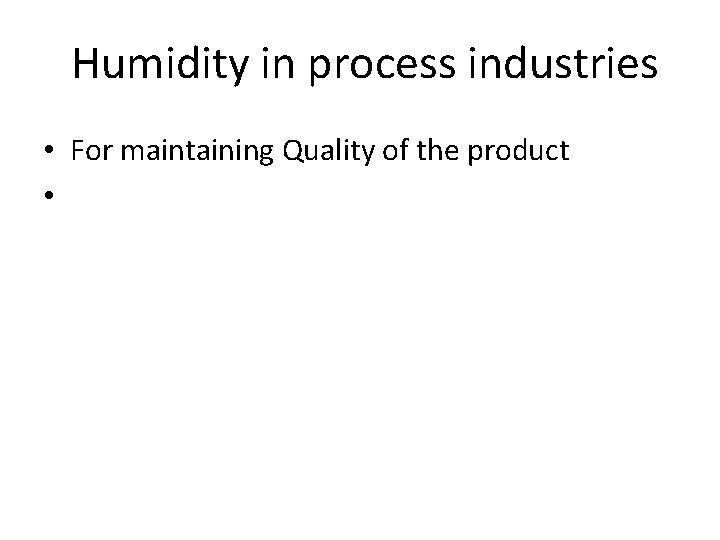

Humidity in process industries • For maintaining Quality of the product •

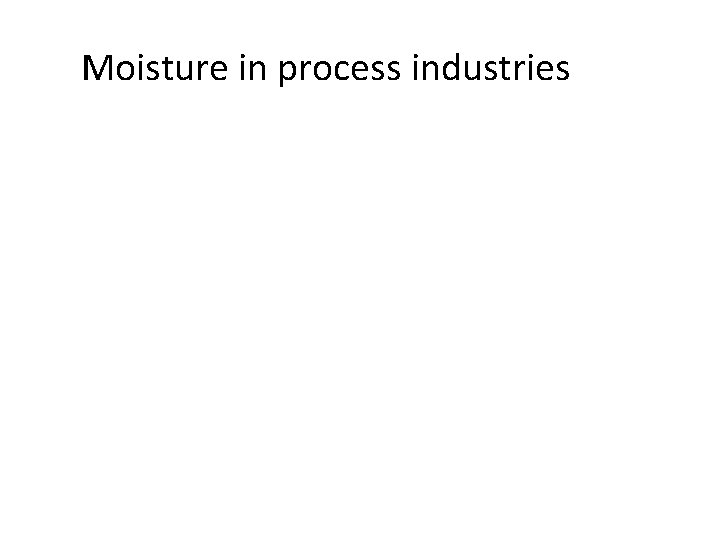

Moisture in process industries

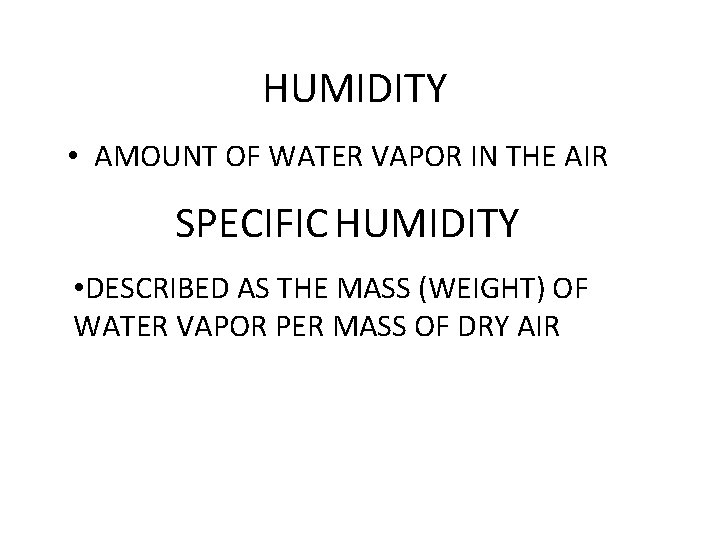

HUMIDITY • AMOUNT OF WATER VAPOR IN THE AIR SPECIFIC HUMIDITY • DESCRIBED AS THE MASS (WEIGHT) OF WATER VAPOR PER MASS OF DRY AIR

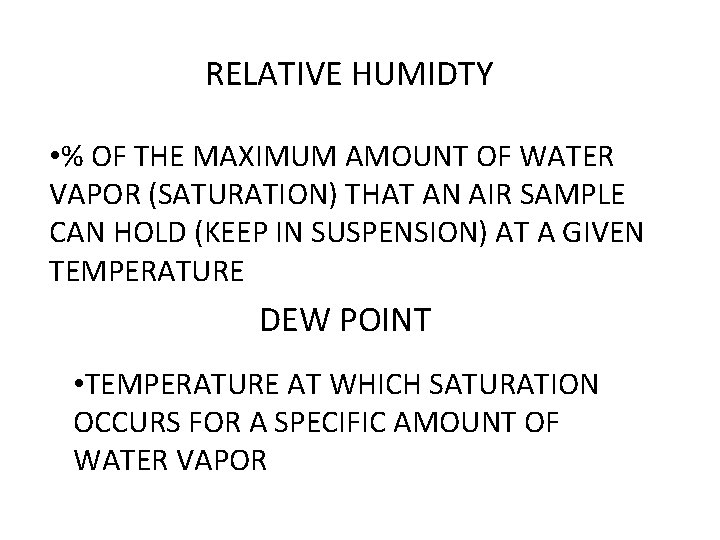

RELATIVE HUMIDTY • % OF THE MAXIMUM AMOUNT OF WATER VAPOR (SATURATION) THAT AN AIR SAMPLE CAN HOLD (KEEP IN SUSPENSION) AT A GIVEN TEMPERATURE DEW POINT • TEMPERATURE AT WHICH SATURATION OCCURS FOR A SPECIFIC AMOUNT OF WATER VAPOR

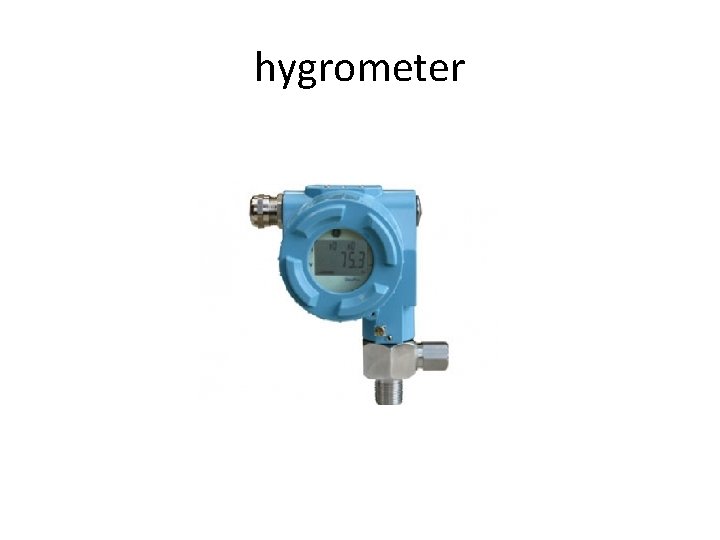

hygrometer

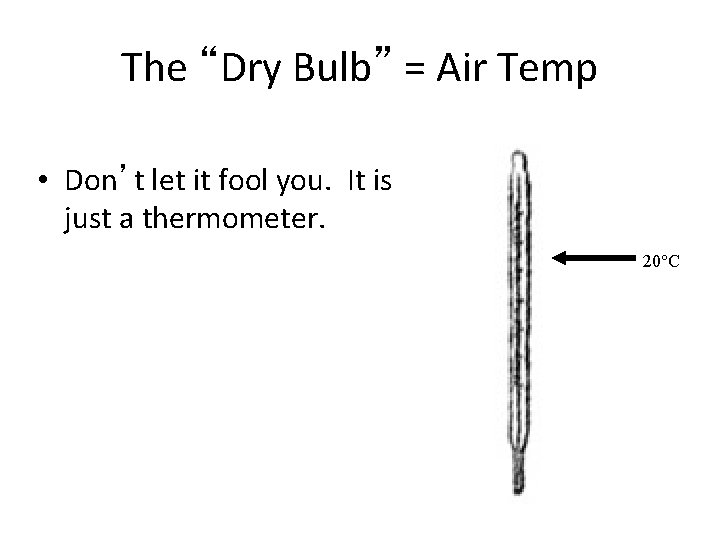

The “Dry Bulb” = Air Temp • Don’t let it fool you. It is just a thermometer. 20°C

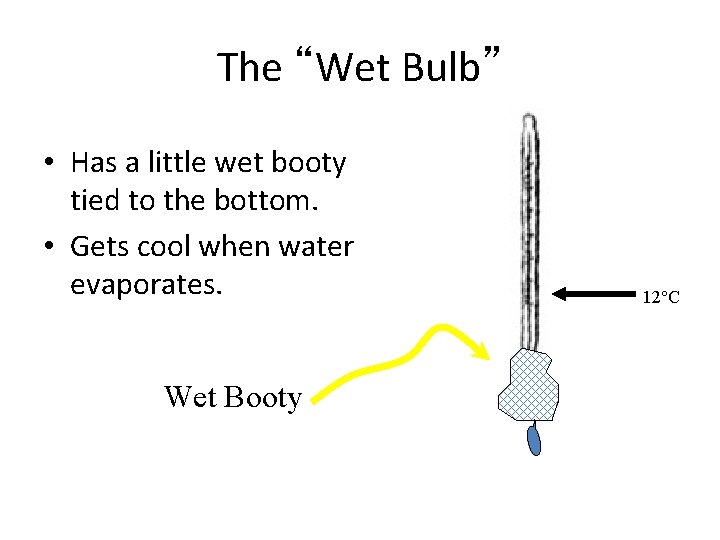

The “Wet Bulb” • Has a little wet booty tied to the bottom. • Gets cool when water evaporates. Wet Booty 12°C

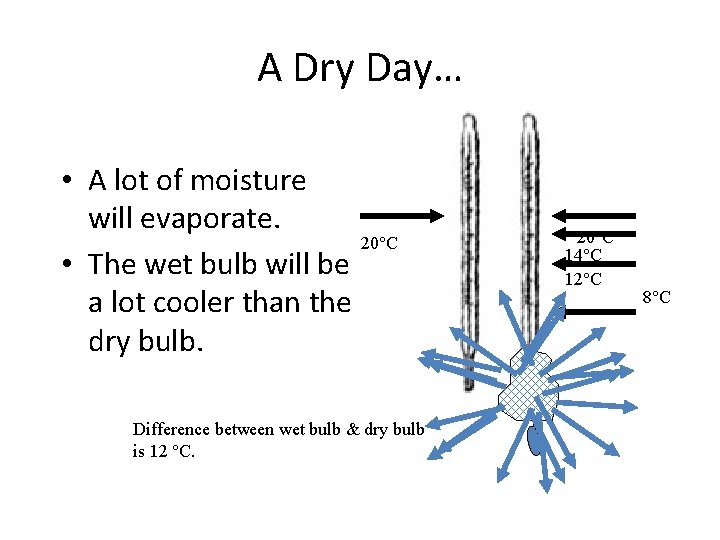

A Dry Day… • A lot of moisture will evaporate. 20°C • The wet bulb will be a lot cooler than the dry bulb. Difference between wet bulb & dry bulb is 12 °C. 20°C 14°C 12°C 8°C

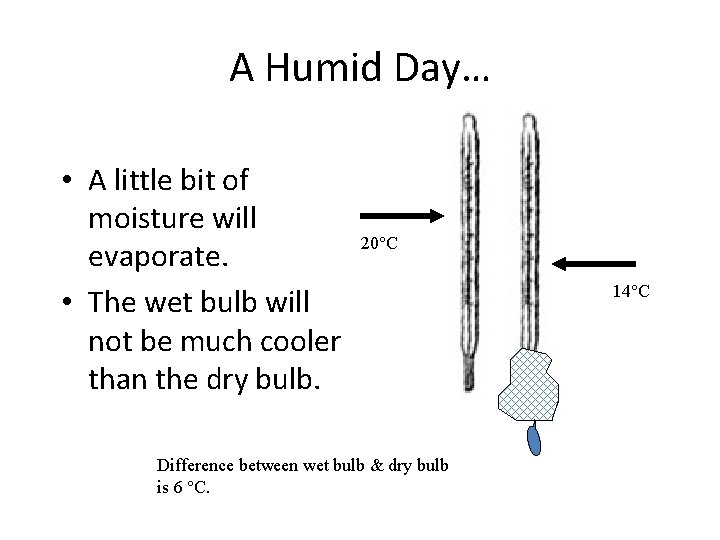

A Humid Day… • A little bit of moisture will evaporate. • The wet bulb will not be much cooler than the dry bulb. 20°C Difference between wet bulb & dry bulb is 6 °C. 14°C

Wet and dry bulb type hygrometer

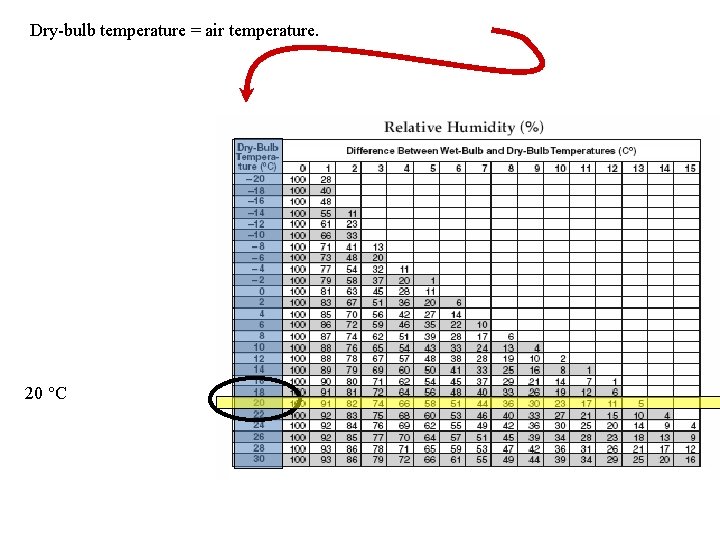

Dry-bulb temperature = air temperature. 20 °C

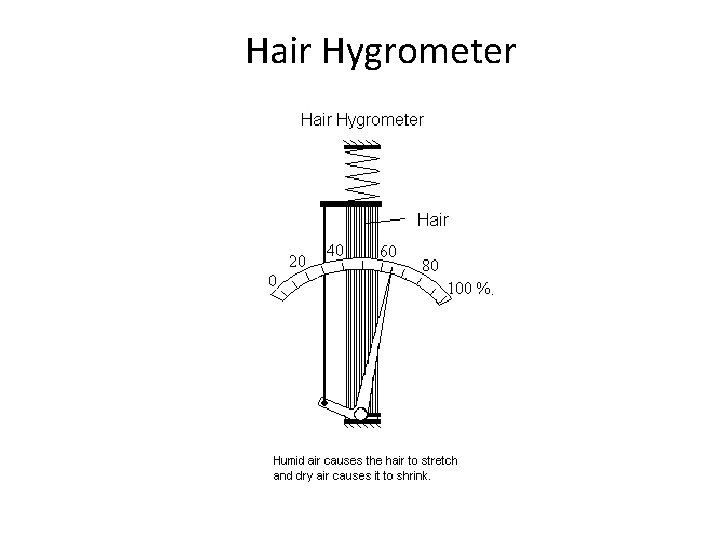

Hair Hygrometer

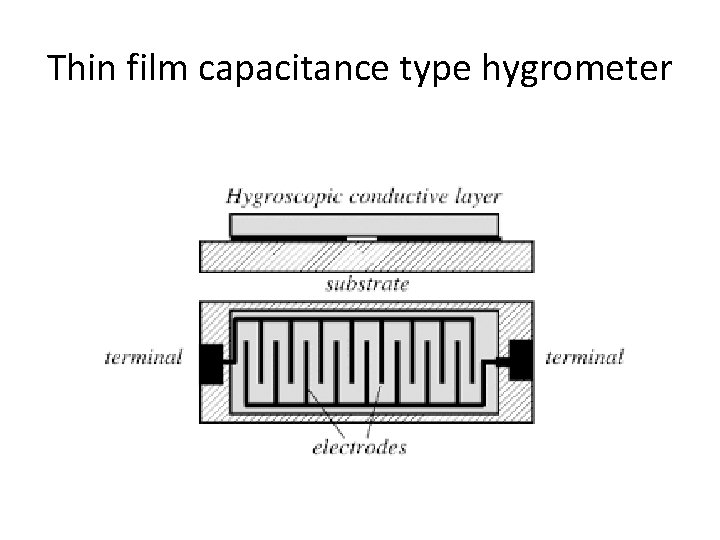

Thin film capacitance type hygrometer

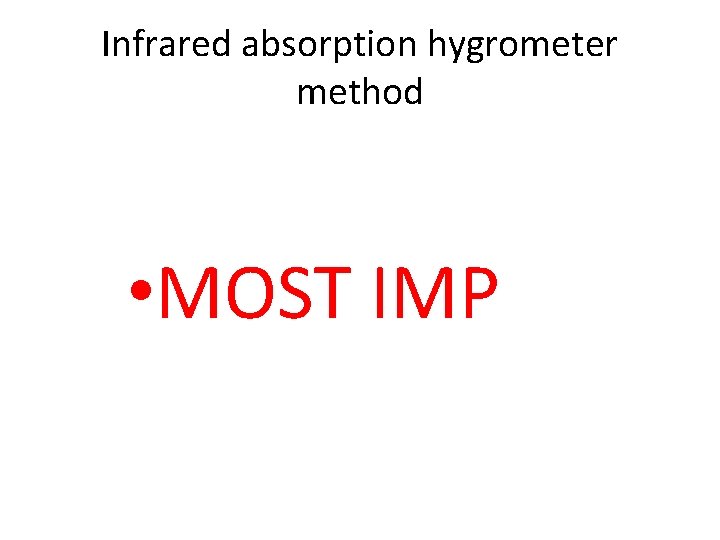

Infrared absorption hygrometer method • MOST IMP

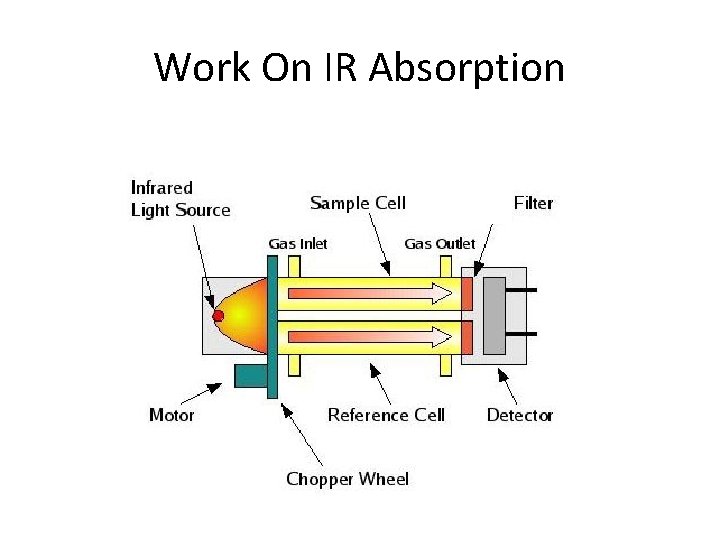

Work On IR Absorption
