SPEDAS Interoperability Tools and Future Development Plans IHDEA Virtual Meeting, October 2020 SPEDAS downloads, documentation, and email list: spedas. org Jim Lewis Space Sciences Lab, University of California, Berkeley jwl@ssl. berkeley. edu SPEDAS Slide − 1

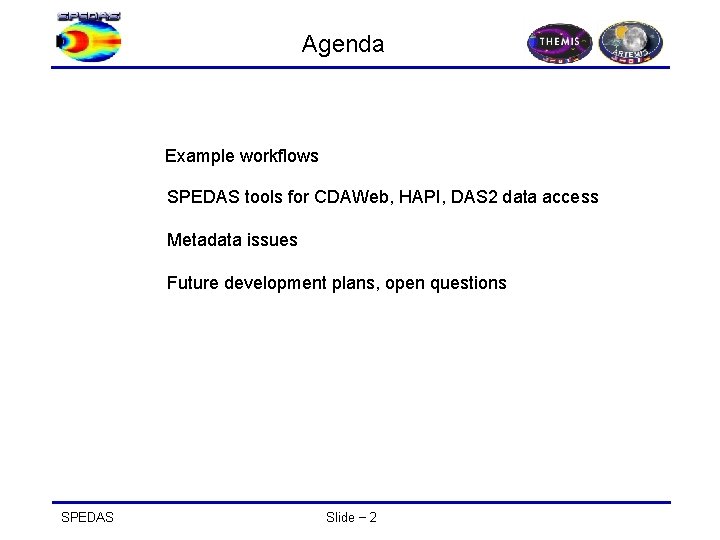

Agenda Example workflows SPEDAS tools for CDAWeb, HAPI, DAS 2 data access Metadata issues Future development plans, open questions SPEDAS Slide − 2
Sample SPEDAS work flow • Load THEMIS satellite positions and fluxgate magnetometer data for a time range of interest • Load solar wind parameters from the OMNIWeb data repository • Load geomagnetic indices from the Kyoto data repository • Use the solar wind parameters, geomagnetic indices, and times/locations as inputs to a magnetic field model (e. g TS 07 via the GEOPACK library), to generate expected field values at the THEMIS times and positions • Plot and compare the THEMIS observed fields to the modeled fields • Each of these steps could be accomplished with just a few lines of IDL code, or a few clicks in the SPEDAS GUI, because SPEDAS already includes full-featured load routines for THEMIS, OMNI, Kyoto WDC, etc. But could this workflow be accomplished for a different data source (e. g. Bepi. Columbo flyby), using generic tools (HAPI, CDAWeb, DAS 2)? reduced SPEDAS Slide − 3

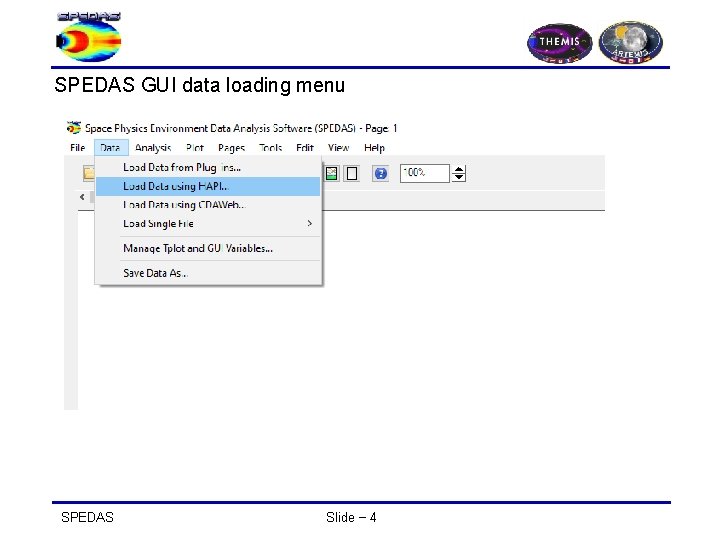

SPEDAS GUI data loading menu ; -------- SPEDAS Slide − 4
; -------- SPEDAS Slide − 5
Magnetic Field Models The GUI is now able to: - Model the field at the spacecraft position - Trace field from position to the ionosphere and equator SPEDAS Slide − 6

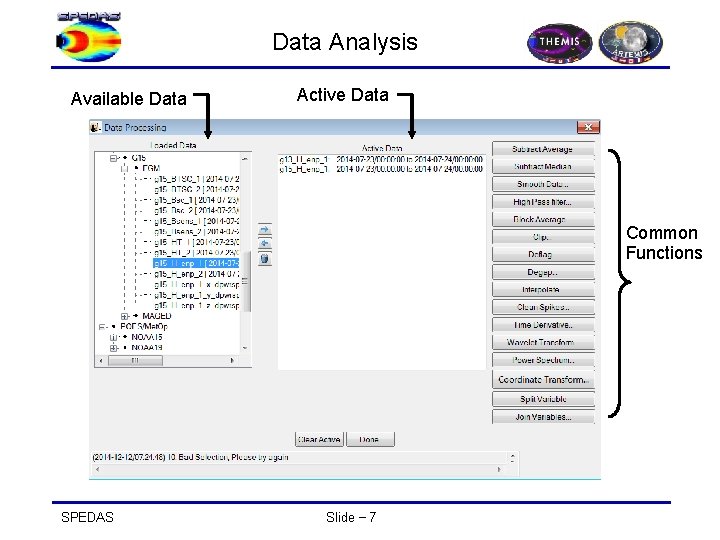

Data Analysis Available Data Active Data Common Functions SPEDAS Slide − 7

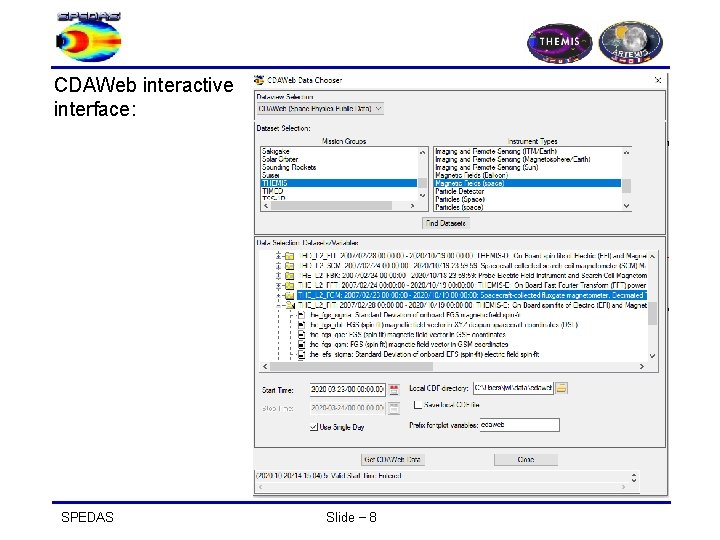

CDAWeb interactive interface: ; -------- SPEDAS Slide − 8

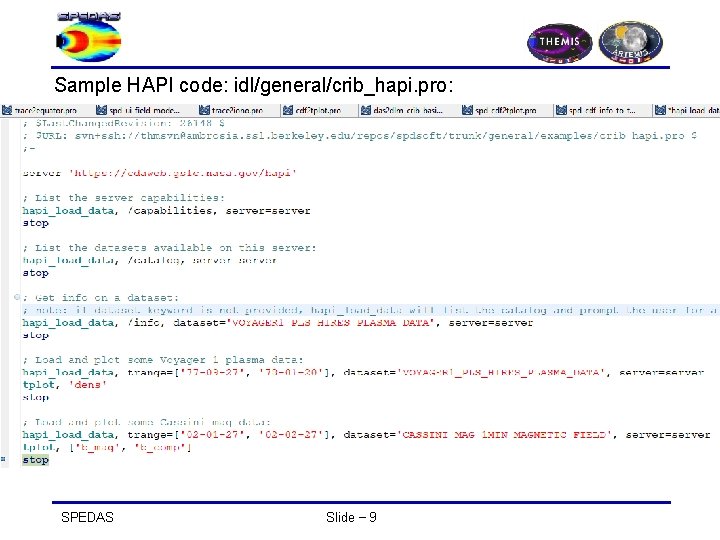

Sample HAPI code: idl/general/crib_hapi. pro: ; -------- SPEDAS Slide − 9
Cassini mag data via Heliophysics API (HAPI), from idl/general/crib_hapi. pro: ; --------- SPEDAS Slide − 10

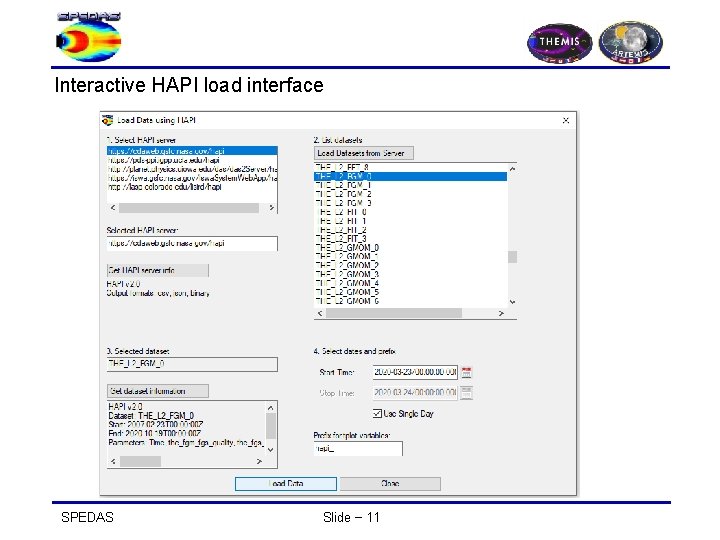

Interactive HAPI load interface ; --------- SPEDAS Slide − 11

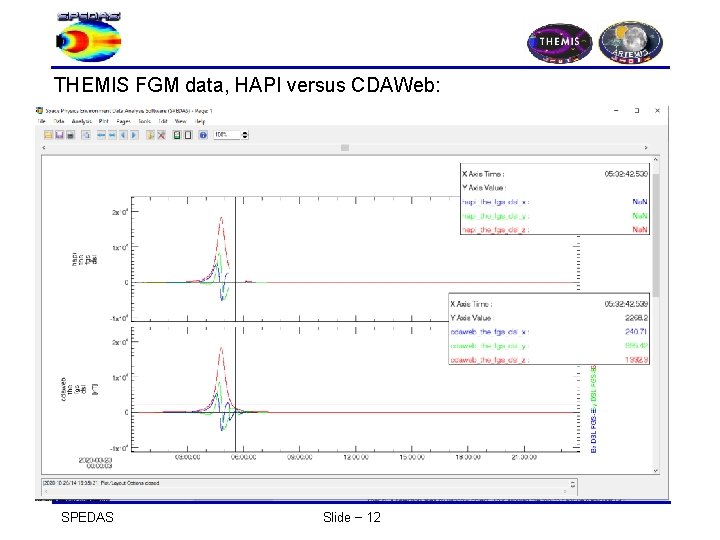

THEMIS FGM data, HAPI versus CDAWeb: ; --------- SPEDAS Slide − 12

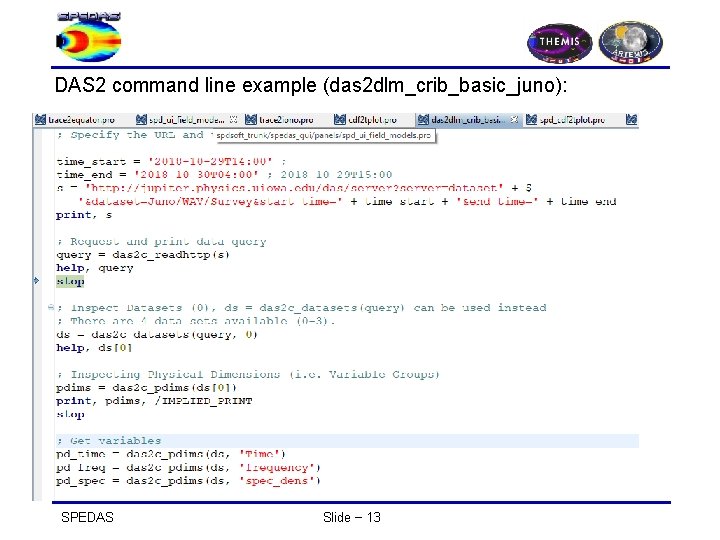

DAS 2 command line example (das 2 dlm_crib_basic_juno): ; --------- SPEDAS Slide − 13
Juno spectrogram via DAS 2: ; --------- SPEDAS Slide − 14

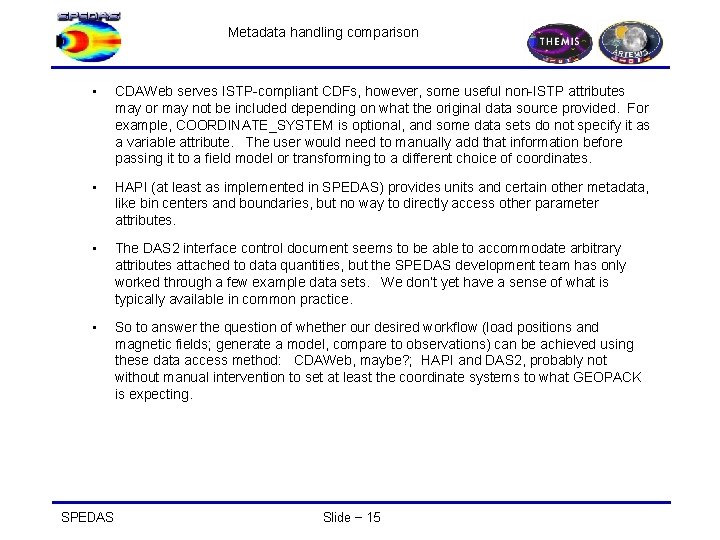

Metadata handling comparison • CDAWeb serves ISTP-compliant CDFs, however, some useful non-ISTP attributes may or may not be included depending on what the original data source provided. For example, COORDINATE_SYSTEM is optional, and some data sets do not specify it as a variable attribute. The user would need to manually add that information before passing it to a field model or transforming to a different choice of coordinates. • HAPI (at least as implemented in SPEDAS) provides units and certain other metadata, like bin centers and boundaries, but no way to directly access other parameter attributes. • The DAS 2 interface control document seems to be able to accommodate arbitrary attributes attached to data quantities, but the SPEDAS development team has only worked through a few example data sets. We don’t yet have a sense of what is typically available in common practice. • So to answer the question of whether our desired workflow (load positions and magnetic fields; generate a model, compare to observations) can be achieved using these data access method: CDAWeb, maybe? ; HAPI and DAS 2, probably not without manual intervention to set at least the coordinate systems to what GEOPACK is expecting. SPEDAS Slide − 15
More metadata considerations • Even if the necessary metadata is available, would SPEDAS necessarily know what to do with it? Consider the values one might encounter for coordinate system attributes, specifically earth-centered inertial coordinates. • SPEDAS would call this system “GEI”. Another mission might reasonably call it “ECI”. MMS uses “J 2000”. Can they be treated as synonyms? Unfortunately, no! SPEDAS’ GEI system uses “true of date” equator & equinox, while J 2000 is “mean equator/equinox as of the J 2000 epoch”, and if you come across ECI, who knows? • The SPASE model is probably the best available standard reference for these sorts of issues, and SPEDAS should probably be making more explicit use of it. If HAPI, CDAWeb, DAS 2, and other access methods could be extended to provide DOIs or other unique identifier, or directly specify a URL such as an HDPE landing page, SPEDAS could very easily leverage that to supplement whatever metadata might be present in the native data stream. • Even so, there are nuances that may not yet be completely captured by SPASE. One issue that came up during the Bepi. Columbo analysis was a discrepancy between the published THEMIS ephemeris products in GSM coordinates, and the result of converting from GEI to GSM using a different tool. It turns out that the internal tool was using the recently released IGRF-13 dipole parameters, while THEMIS was still using IGRF-12 to generate its GSM positions. SPEDAS Slide − 16
