Spectroscopic Analysis for biological samples towards in situ

Spectroscopic Analysis for biological samples : towards in situ sample analysis of body fluids Gilwon Yoon September 27, 2006 Seoul National University of Technology

Spectra of water, Hb(RBC), albumin, glucose from visible to NIR (water compensated)

Absorption spectrum of water

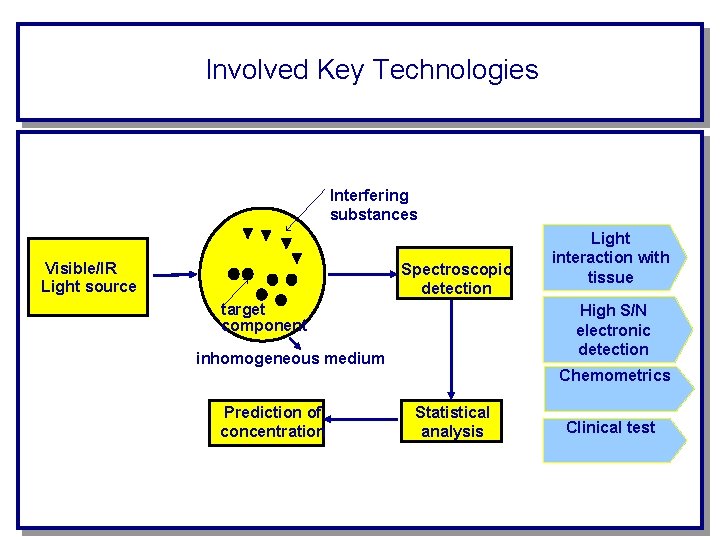

Involved Key Technologies Interfering substances Visible/IR Light source Spectroscopic detection target component High S/N electronic detection inhomogeneous medium Prediction of concentration Light interaction with tissue Chemometrics Statistical analysis Clinical test

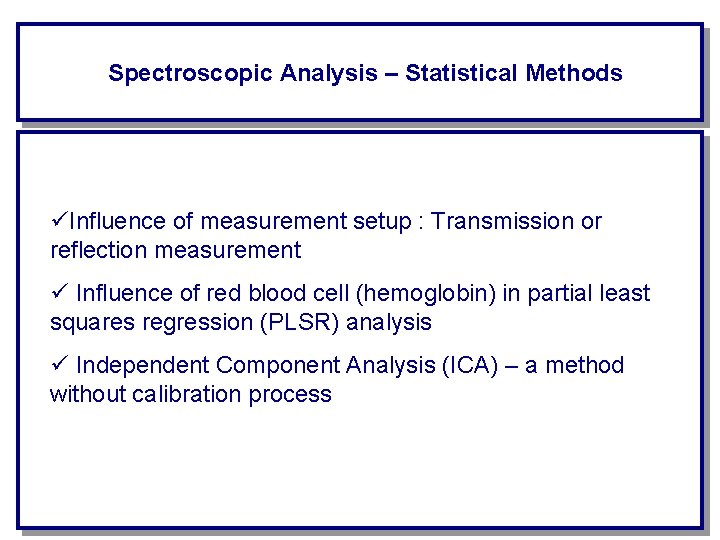

Spectroscopic Analysis – Statistical Methods üInfluence of measurement setup : Transmission or reflection measurement ü Influence of red blood cell (hemoglobin) in partial least squares regression (PLSR) analysis ü Independent Component Analysis (ICA) – a method without calibration process

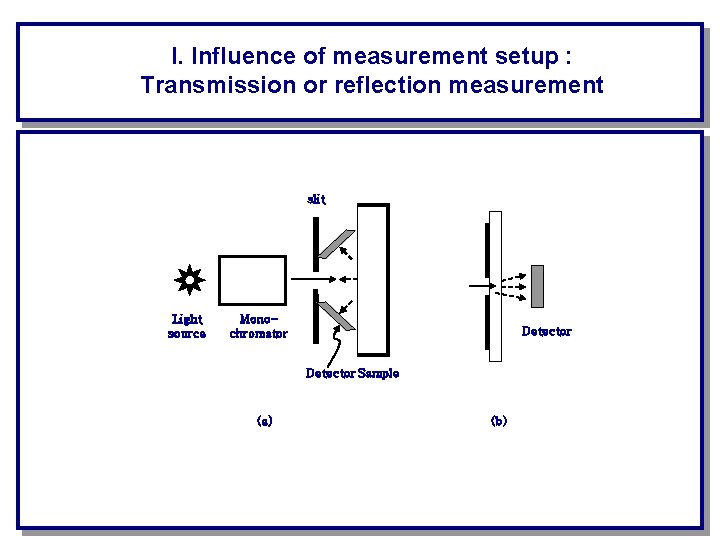

I. Influence of measurement setup : Transmission or reflection measurement slit Light source Monochromator Detector Sample (a) (b)

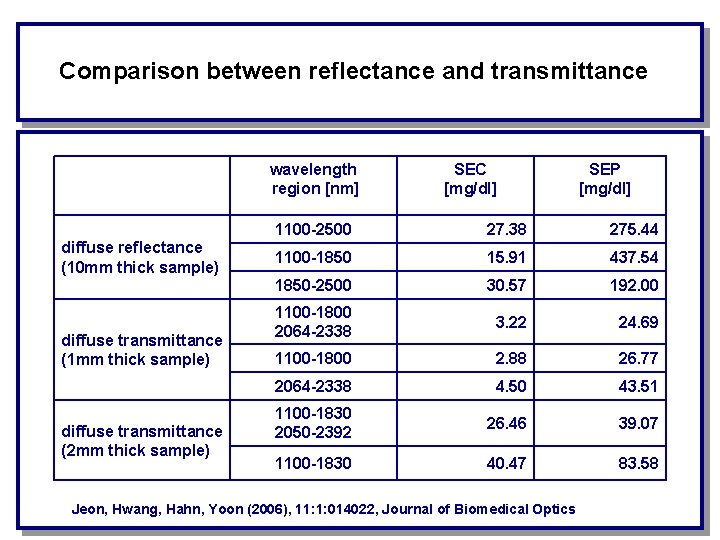

Comparison between reflectance and transmittance wavelength region [nm] diffuse reflectance (10 mm thick sample) diffuse transmittance (1 mm thick sample) diffuse transmittance (2 mm thick sample) SEC [mg/dl] SEP [mg/dl] 1100 -2500 27. 38 275. 44 1100 -1850 15. 91 437. 54 1850 -2500 30. 57 192. 00 1100 -1800 2064 -2338 3. 22 24. 69 1100 -1800 2. 88 26. 77 2064 -2338 4. 50 43. 51 1100 -1830 2050 -2392 26. 46 39. 07 1100 -1830 40. 47 83. 58 Jeon, Hwang, Hahn, Yoon (2006), 11: 1: 014022, Journal of Biomedical Optics

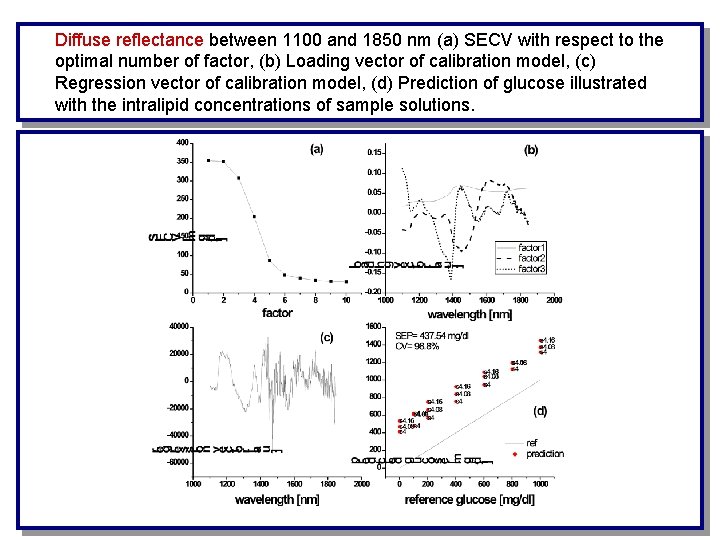

Diffuse reflectance between 1100 and 1850 nm (a) SECV with respect to the optimal number of factor, (b) Loading vector of calibration model, (c) Regression vector of calibration model, (d) Prediction of glucose illustrated with the intralipid concentrations of sample solutions.

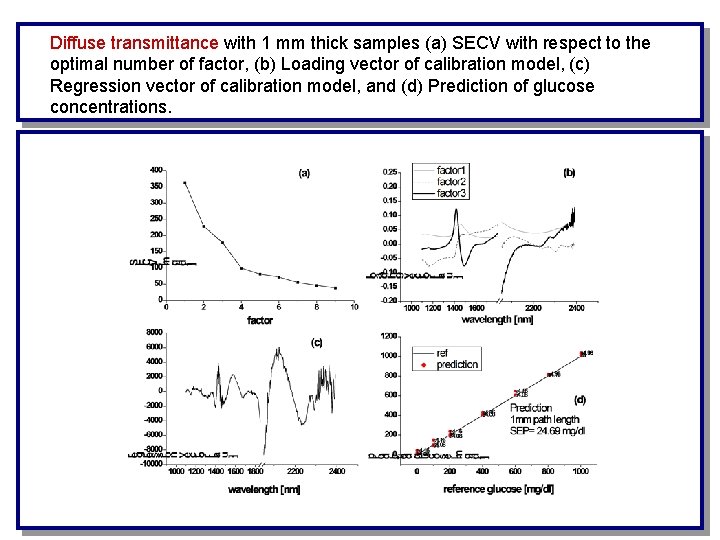

Diffuse transmittance with 1 mm thick samples (a) SECV with respect to the optimal number of factor, (b) Loading vector of calibration model, (c) Regression vector of calibration model, and (d) Prediction of glucose concentrations.

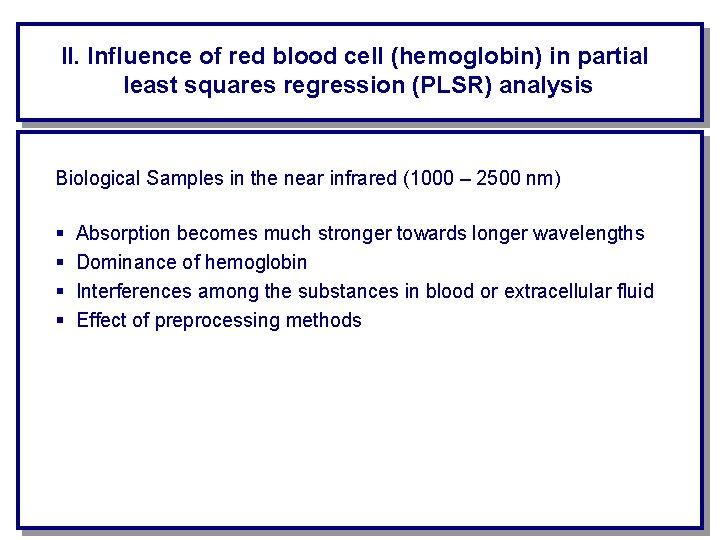

II. Influence of red blood cell (hemoglobin) in partial least squares regression (PLSR) analysis Biological Samples in the near infrared (1000 – 2500 nm) § § Absorption becomes much stronger towards longer wavelengths Dominance of hemoglobin Interferences among the substances in blood or extracellular fluid Effect of preprocessing methods

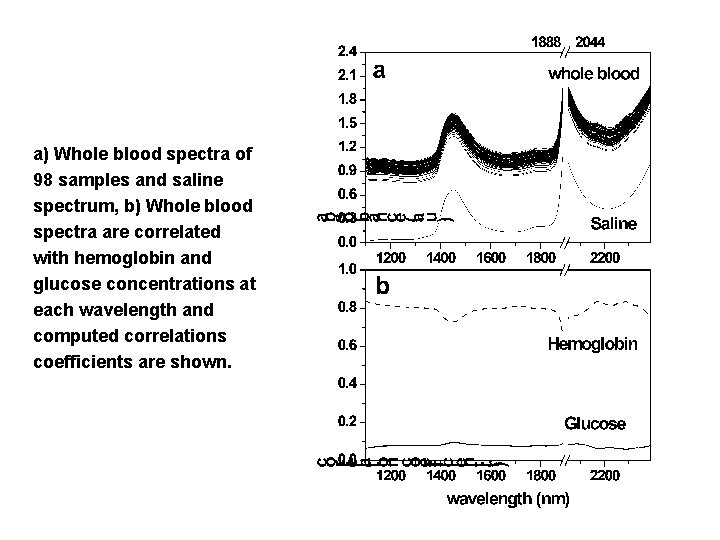

a) Whole blood spectra of 98 samples and saline spectrum, b) Whole blood spectra are correlated with hemoglobin and glucose concentrations at each wavelength and computed correlations coefficients are shown.

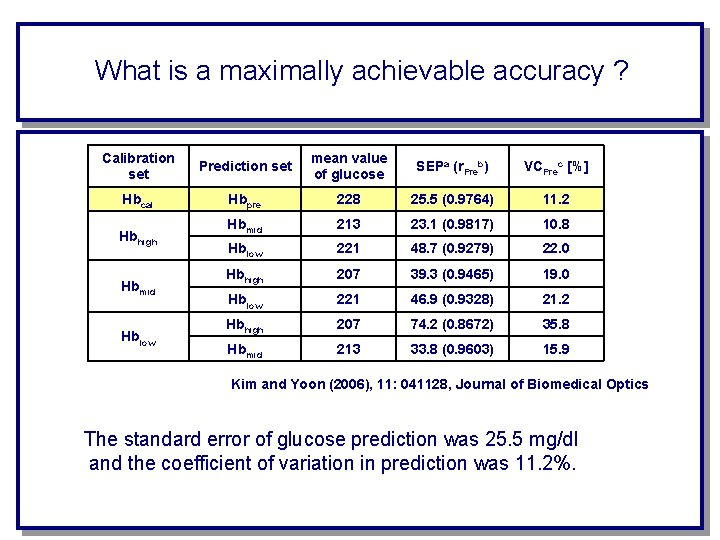

What is a maximally achievable accuracy ? Calibration set Prediction set mean value of glucose SEPa (r. Preb) VCPrec [%] Hbcal Hbpre 228 25. 5 (0. 9764) 11. 2 Hbmid 213 23. 1 (0. 9817) 10. 8 Hblow 221 48. 7 (0. 9279) 22. 0 Hbhigh 207 39. 3 (0. 9465) 19. 0 Hblow 221 46. 9 (0. 9328) 21. 2 Hbhigh 207 74. 2 (0. 8672) 35. 8 Hbmid 213 33. 8 (0. 9603) 15. 9 Hbhigh Hbmid Hblow Kim and Yoon (2006), 11: 041128, Journal of Biomedical Optics The standard error of glucose prediction was 25. 5 mg/dl and the coefficient of variation in prediction was 11. 2%.

III. Independent Component Analysis (ICA) – method without calibration process § Identification of pure, or individual, absorption spectra of constituent components from the mixture spectra without a priori knowledge of the mixture. § This method was tested with a two-component system consisting of aqueous solution of both glucose and sucrose, which exhibit distinct but closely overlapped spectra. § ICA combined with principal component analysis was able to identify a spectrum for each component, the correct number of components, and the concentrations of the components in the mixture. This method does not need calibration process. Hahn and Yoon (2006), in print, 45: 32, November, Applied Optics

Pure, or individual, water-subtracted absorption profiles of Glucose (G) and Sucrose (S)

25 measured mid-IR spectra for the mixtures of glucose and sucrose. Water absorption was subtracted to enhance the absorption profile of each component.

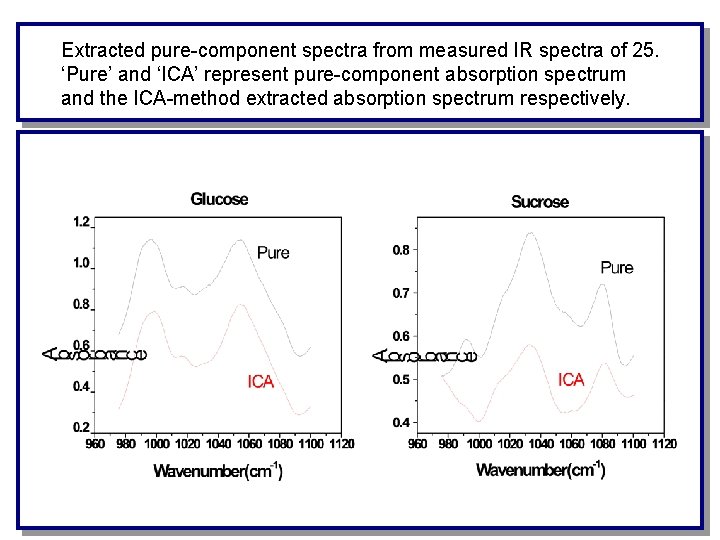

Extracted pure-component spectra from measured IR spectra of 25. ‘Pure’ and ‘ICA’ represent pure-component absorption spectrum and the ICA-method extracted absorption spectrum respectively.

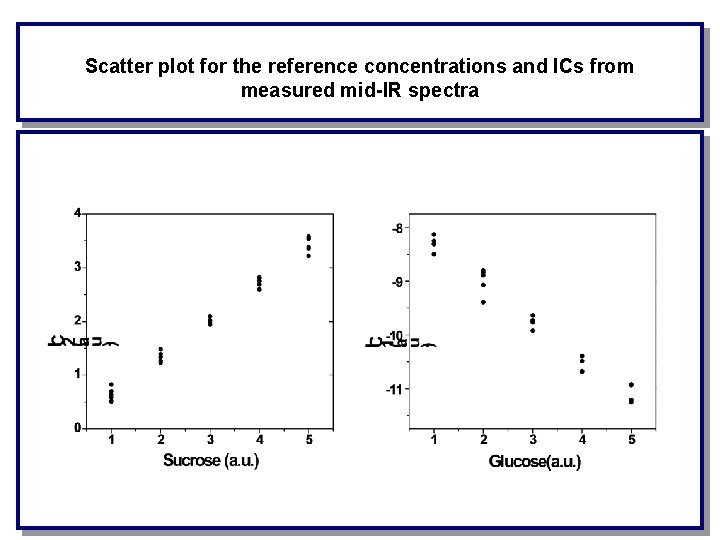

Scatter plot for the reference concentrations and ICs from measured mid-IR spectra

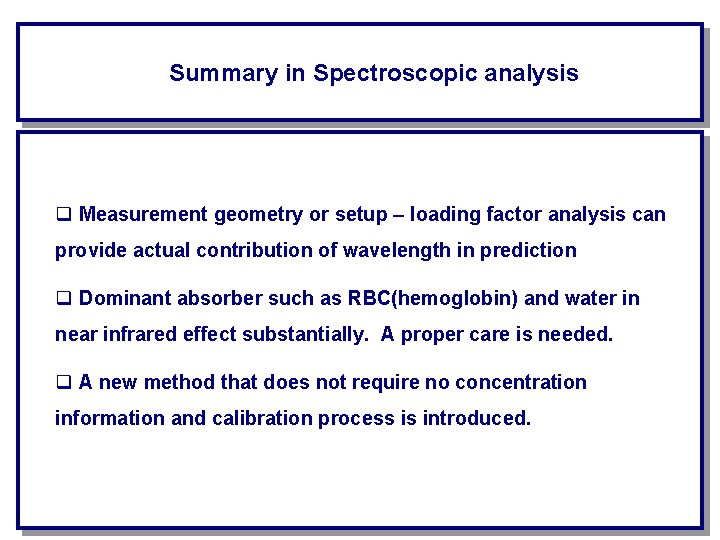

Summary in Spectroscopic analysis q Measurement geometry or setup – loading factor analysis can provide actual contribution of wavelength in prediction q Dominant absorber such as RBC(hemoglobin) and water in near infrared effect substantially. A proper care is needed. q A new method that does not require no concentration information and calibration process is introduced.
