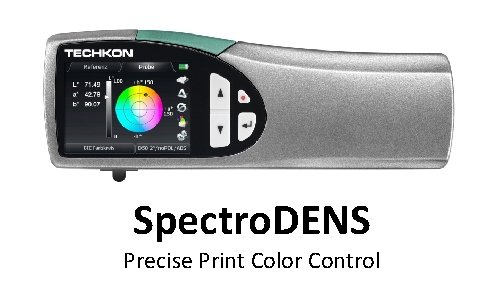

Spectro. DENS Precise Print Color Control

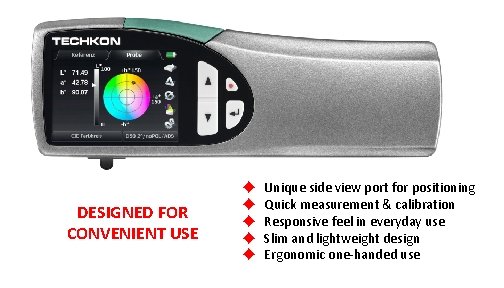

DESIGNED FOR CONVENIENT USE ◆ ◆ ◆ Unique side view port for positioning Quick measurement & calibration Responsive feel in everyday use Slim and lightweight design Ergonomic one-handed use

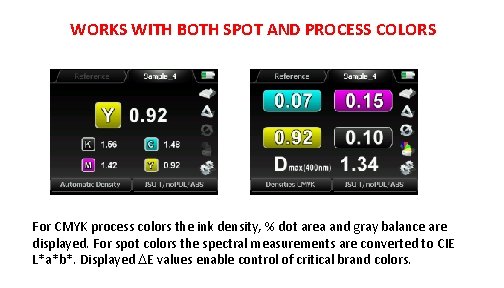

WORKS WITH BOTH SPOT AND PROCESS COLORS For CMYK process colors the ink density, % dot area and gray balance are displayed. For spot colors the spectral measurements are converted to CIE L*a*b*. Displayed DE values enable control of critical brand colors.

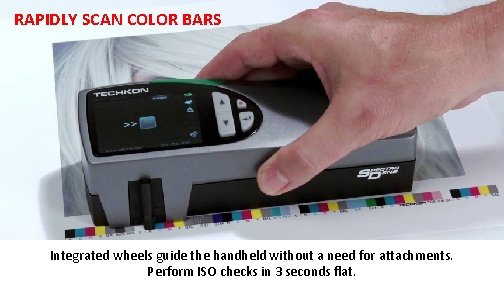

RAPIDLY SCAN COLOR BARS Integrated wheels guide the handheld without a need for attachments. Perform ISO checks in 3 seconds flat.

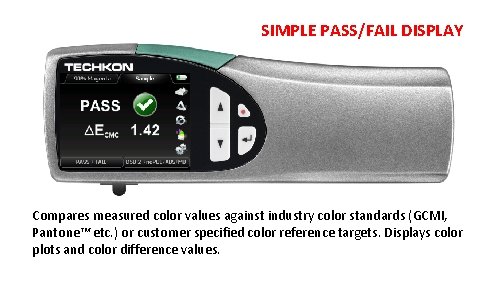

SIMPLE PASS/FAIL DISPLAY Compares measured color values against industry color standards (GCMI, Pantone™ etc. ) or customer specified color reference targets. Displays color plots and color difference values.

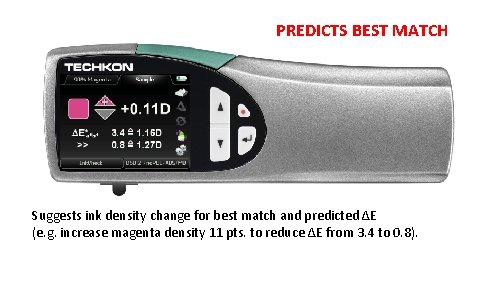

PREDICTS BEST MATCH Suggests ink density change for best match and predicted ΔE (e. g. increase magenta density 11 pts. to reduce ΔE from 3. 4 to 0. 8).

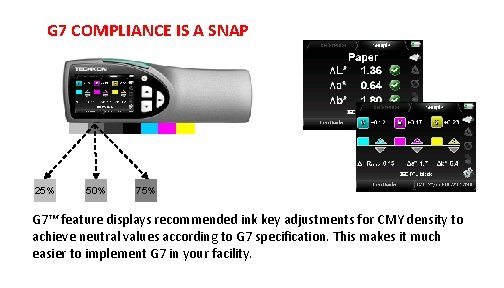

G 7 COMPLIANCE IS A SNAP 25% 50% 75% G 7™ feature displays recommended ink key adjustments for CMY density to achieve neutral values according to G 7 specification. This makes it much easier to implement G 7 in your facility.

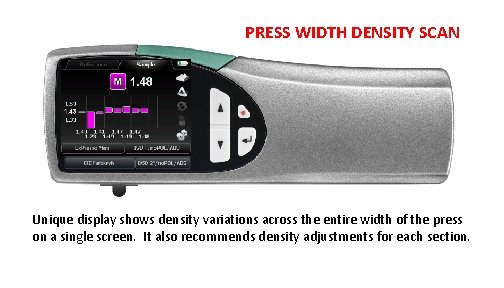

PRESS WIDTH DENSITY SCAN Unique display shows density variations across the entire width of the press on a single screen. It also recommends density adjustments for each section.

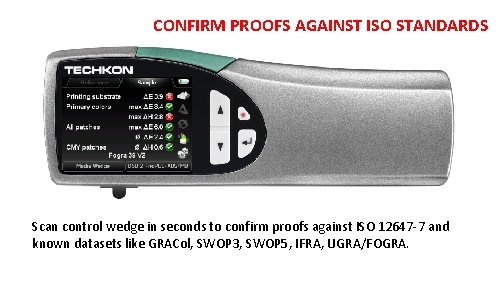

CONFIRM PROOFS AGAINST ISO STANDARDS Scan control wedge in seconds to confirm proofs against ISO 12647 -7 and known datasets like GRACol, SWOP 3, SWOP 5, IFRA, UGRA/FOGRA.

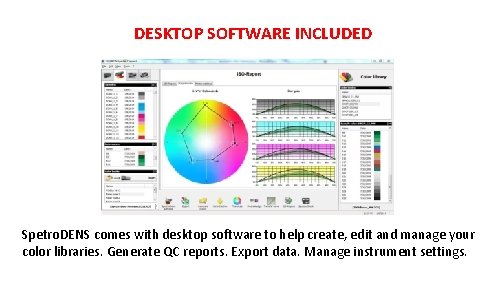

DESKTOP SOFTWARE INCLUDED Spetro. DENS comes with desktop software to help create, edit and manage your color libraries. Generate QC reports. Export data. Manage instrument settings.

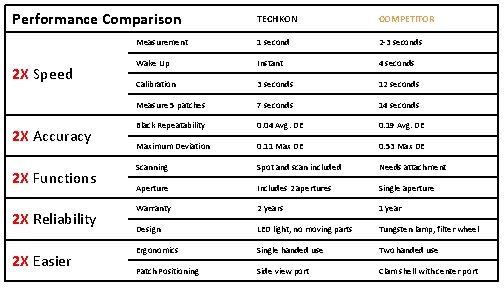

Performance Comparison 2 X Speed 2 X Accuracy 2 X Functions 2 X Reliability 2 X Easier TECHKON COMPETITOR Measurement 1 second 2 -3 seconds Wake Up Instant 4 seconds Calibration 3 seconds 12 seconds Measure 5 patches 7 seconds 14 seconds Black Repeatability 0. 04 Avg. DE 0. 19 Avg. DE Maximum Deviation 0. 11 Max DE 0. 53 Max DE Scanning Spot and scan included Needs attachment Aperture Includes 2 apertures Single aperture Warranty 2 years 1 year Design LED light, no moving parts Tungsten lamp, filter wheel Ergonomics Single handed use Two handed use Patch Positioning Side view port Clam shell with center port

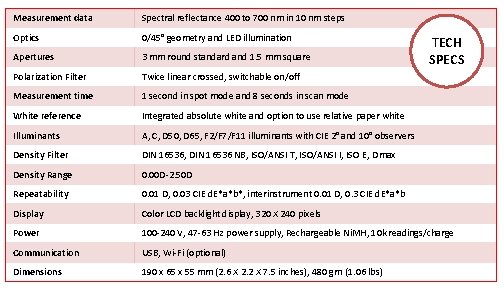

Measurement data Spectral reflectance 400 to 700 nm in 10 nm steps Optics 0/45° geometry and LED illumination Apertures 3 mm round standard and 1. 5 mm square Polarization Filter Twice linear crossed, switchable on/off Measurement time 1 second in spot mode and 8 seconds in scan mode White reference Integrated absolute white and option to use relative paper white Illuminants A, C, D 50, D 65, F 2/F 7/F 11 illuminants with CIE 2° and 10° observers Density Filter DIN 16536, DIN 16536 NB, ISO/ANSI T, ISO/ANSI I, ISO E, Dmax Density Range 0. 00 D-2. 50 D Repeatability 0. 01 D, 0. 03 CIE d. E*a*b*, interinstrument 0. 01 D, 0. 3 CIE d. E*a*b Display Color LCD backlight display, 320 X 240 pixels Power 100 -240 V, 47 -63 Hz power supply, Rechargeable Ni. MH, 10 k readings/charge Communication USB, Wi-Fi (optional) Dimensions 190 x 65 x 55 mm (2. 6 X 2. 2 X 7. 5 inches), 480 gm (1. 06 lbs) TECH SPECS

OUR CUSTOMERS SAY… “We use the Techkon Spectro. Dens here. Works great for us, includes measurement export, nice trending features and a lot of features built in to one device. The ink check feature is very user friendly as well…” “You are absolutely right the Techkon Spectro. Dens is very rugged and reliable. ” “Techkon is a real rising star right now with their current instrument line-up. All their instruments are very fast and handle great (good ergonomics)” “The Techkon Spectro. Dens has the better UI, superior ergonomics, measurement speed, and nice *free* software. ” “We have both and the Techkon is better designed all the way around. If for no other reason, you can set it directly on the patch you want to measure and take a reading. ”

TOP 10 REASONS 1. Fast Operation 2. Accurate Results 3. Convenient Design 4. CMYK and Spot Colors 5. Color bar Scanning 6. Predicts Best Match 7. Press Width Density 8. Desktop Software Included 9. Gra. COL G 7 Control 10. ISO Proof Checks

CALL CHELSEA 978 -777 -1854 TRY SPECTRODENS FOR 30 DAYS
