Specs Data and Web By Ben Jolitz Specs
Specs, Data, and Web By Ben Jolitz

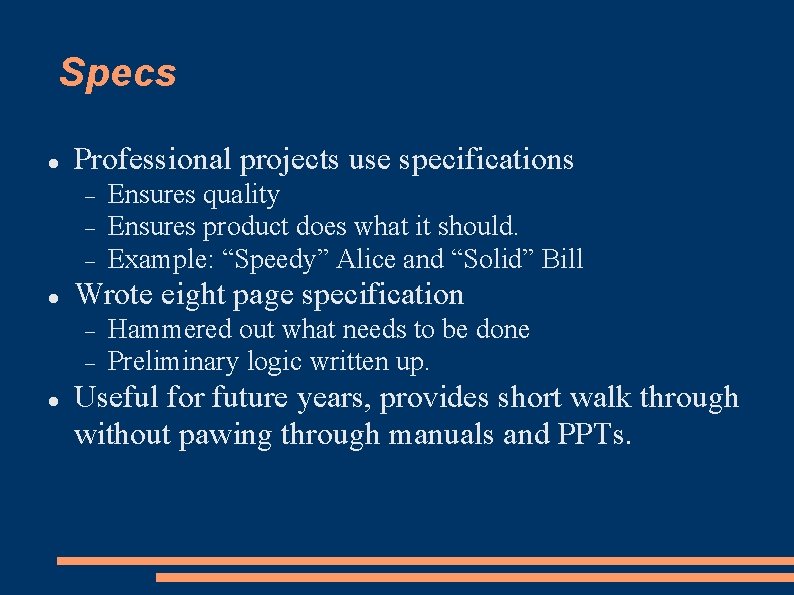

Specs Professional projects use specifications Wrote eight page specification Ensures quality Ensures product does what it should. Example: “Speedy” Alice and “Solid” Bill Hammered out what needs to be done Preliminary logic written up. Useful for future years, provides short walk through without pawing through manuals and PPTs.
Specs II All programs written in Python. Extendable Easy to adapt Other languages (C, Perl, VB) were rejected due to maintenance reasons.
Specs -> Program Muon lifetime's logic was to search for a “start” trigger, find that trigger's end, and check the time index spacing between the first triggers “end” and the next ones “start”. 3μs < Space < 10μs. ADOM logic: Find the number of “events” in two minute intervals. Ignore x seconds of data

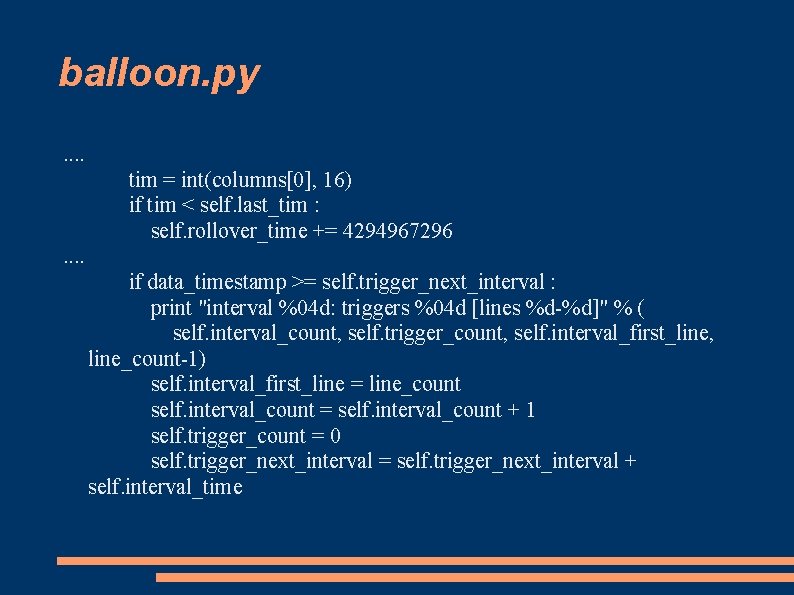

balloon. py. . tim = int(columns[0], 16) if tim < self. last_tim : self. rollover_time += 4294967296. . if data_timestamp >= self. trigger_next_interval : print "interval %04 d: triggers %04 d [lines %d-%d]" % ( self. interval_count, self. trigger_count, self. interval_first_line, line_count-1) self. interval_first_line = line_count self. interval_count = self. interval_count + 1 self. trigger_count = 0 self. trigger_next_interval = self. trigger_next_interval + self. interval_time
lifetime. py. . . if columns[1] == '80' : # trigger self. trigger = True self. trigger_time = data_timestamp if self. trigger : self. trigger_accumulator = self. trigger_accumulator + [columns]. . . if self. trigger and columns[5] == '00' : self. trigger = False self. trigger_accumulator = []
Issues ADOM balloon. py has a “dropout” mechanism to remove invalid lines or typed in commands. Prints out dropouts along with line number Assumes all valid data lines are 16 columns. “Smiley face” Help Issue fixed by simply tracking down the false data lines using the other dropout prints to get an idea, delete by hand or by command piping.
Data Lore ADOM experiment was carried out on 25 July, 2007 at around 11 AM. Muon life time has not been carried out yet, due to equipment issues.
Balloon was pulled lower due to winds Unknown
Data Lore II Cannot account for the count drop on ground. Lowest point is 18 mins for both experiments. Ground Data had 6 dropouts. Coindicidence? Time dependent error? Mainly commands ['DS'], . . . Aerial Data had ~162 dropouts. Data lines that were “mangled” (repeating section, transmission error).
Data Lore III Potential sources of error: Power fluctuating somewhere? ADOM transmitter encountering interference? Changing altitude suddenly The null-modem serial piece was not fastened in and slightly loose. Tether may have brought around flex error because the setup was bouncing all over the place, due to lack of stabilizers. ADOM's balloon did not reach 1000 ft. Lack of sufficient lift. Winds
Web site Developed on live CMF webserver http: //zbenjamin. telemuse. net/ http: //objectis. net http: //www. zope. org Content kept on scipp server. XHTML 1. 0/CSS 2/JScript 1. 5 Ported over with browser “View HTML” and “Save as” Full versions working perfectly on FF 1. 5+, IE 7+, Opera, Safari. Partial version working on IE 5. 5, 6
Round up Wrote specification Good for later years as logic reference Data format section good as long Qnet boards “speak” that format Two programs: Proven “balloon. py” program Invoked by python balloon. py datafile. txt [secs to ignore] ([] optional) Experimental “lifetime. py” program Clean website supported by standards.
