Specification Specification for 4 wheelers 150 cc Open

Specification: Specification for 4 wheelers: 150 cc Open Roof Model 2 -door version (CNG / Petrol) Type: 4× 2 R. R. Wheel drive External Size: 2750 mm× 1280 mm× 1660 mm FR. Dimension: 1100 mm RR. Dimension: 1100 mm Wheel Base: 1845 mm Approach Angle: 30° Lengthways Passing: 25° Net Weight: 450 kg Passenger Capacity: 4 persons Max. Speed: 70 km/h Slope: 14~20° Economical Consumption: 3. 8 L/100 km Engine Type: 4 -stroke, water-cooling, 150 cc Max. Power: 9. 2/9000 (kw/r/min) Max. Torque: 10. 2/7000 (N. m/r/min) Transmit: Axle Drive Fuel tank: 15 L Options: CNG: Yes Inner mirror – USD 10. 00 Body Material: Steel Seat Belt: - USD 25. 00 for all seats 2003 150 cc MINI CAR 1 year warranty, 1% spare parts free of Sur-charge to add the top roof: charge. QUOTATION US$500. 00/pc Moveable canvas roof: : USD 250. 00 per unit. Engine: 4 wheelers with CNG Quantity per container: CBU: 2 units FOB Chongqing price: for 20 ft for CBU, CBU : USD 2, 000. 4 units for 40 ft. CKD: 5 units for 20 FCL, 10 unit for 40 FCL CKD: USD 1, 900. 00

150 cc Open Roof Model (4 -door version)

Model ZS 169 YML (CNG & Petrol) PRICES: FOB Shandong or Chongqing CBU Unit price: US$ 2560. 00. CKD Unit Price: US$ 2, 400. 00 * US$150/pc deducted if only Petrol Engine. - Min. Quantity: 11 x 40’FCL (90 CKD) _ Min. quantity: 1000 units for LHD, 500 units for RHD. _ Engine: CNG and Petro _ Delivery leadtime: 60 -90 days. _ Quantity : CBU: 3 units/40 FCL or SKD: 8 units per 40 FCL. _ Standard we have achieved: Euro 1#. (But have not undergone road test officially)

ZS 169 YML (Technical Specification) Technical. Data Engine: ZS 169 YML Fuel. Type: petrol-CNG Power(KW/v/min): 12. 5/8000 Oil. Tank. Volume(L): 15 Displacement(ml): 198 Gasbottlevolume(L): 22 Torque(N. m/r/min): 15. 5/7000 Braketype: hydraulic Ignitiontype: CDI Themin ground clearance: 170 mm Coolingtype: external, oilcooling Starttype: electric Burningtype: igniting Rated Loading(kg): 450 Rated passengers: 4 Max speed per hour (km/h)≥ 60 Min truning radius (m)≤ 3. 5 Brakedistance(m): 16(whentheinitial speedis 50 km/h) Wheel base(mm): 2020 Wheeldistance(mm): 1090/1120(front/rear) Tyrespecification: 4. 50 -12 Braketype(front/rear): Drum/drum Sizeofappearance(length×width×height): 3100 mm× 1330 mm× 1500 mm Climbing ability(°)≥ 15° Mini car is equipped with 4 stroke 200 cc external oil cooling motorcycle engine. Now available is right hand drive. For one year warranty

DB 175 (175 cc) CNG & Petrol STOCK 16 Red + 150 Blue

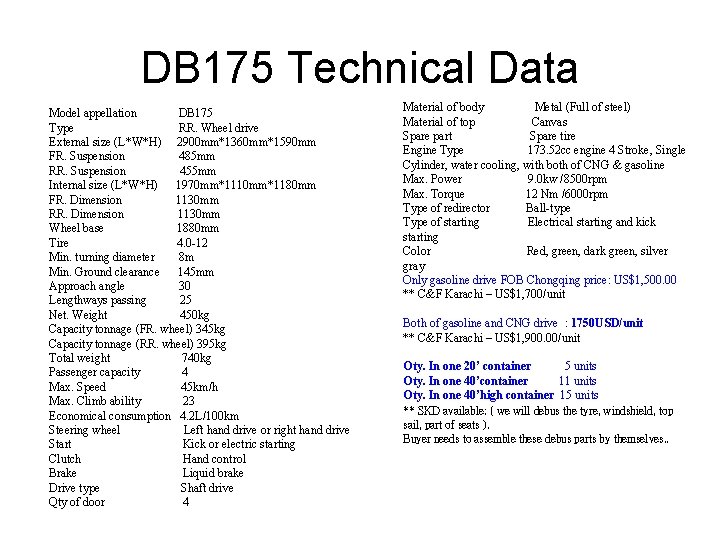

DB 175 Technical Data Model appellation DB 175 Type RR. Wheel drive External size (L*W*H) 2900 mm*1360 mm*1590 mm FR. Suspension 485 mm RR. Suspension 455 mm Internal size (L*W*H) 1970 mm*1110 mm*1180 mm FR. Dimension 1130 mm RR. Dimension 1130 mm Wheel base 1880 mm Tire 4. 0 -12 Min. turning diameter 8 m Min. Ground clearance 145 mm Approach angle 30 Lengthways passing 25 Net. Weight 450 kg Capacity tonnage (FR. wheel) 345 kg Capacity tonnage (RR. wheel) 395 kg Total weight 740 kg Passenger capacity 4 Max. Speed 45 km/h Max. Climb ability 23 Economical consumption 4. 2 L/100 km Steering wheel Left hand drive or right hand drive Start Kick or electric starting Clutch Hand control Brake Liquid brake Drive type Shaft drive Qty of door 4 Material of body Metal (Full of steel) Material of top Canvas Spare part Spare tire Engine Type 173. 52 cc engine 4 Stroke, Single Cylinder, water cooling, with both of CNG & gasoline Max. Power 9. 0 kw /8500 rpm Max. Torque 12 Nm /6000 rpm Type of redirector Ball-type Type of starting Electrical starting and kick starting Color Red, green, dark green, silver gray Only gasoline drive FOB Chongqing price: US$1, 500. 00 ** C&F Karachi – US$1, 700/unit Both of gasoline and CNG drive : 1750 USD/unit ** C&F Karachi – US$1, 900. 00/unit Oty. In one 20’ container 5 units Oty. In one 40’container 11 units Oty. In one 40’high container 15 units ** SKD available: ( we will debus the tyre, windshield, top sail, part of seats ). Buyer needs to assemble these debus parts by themselves. .

ZN 650 (8 seats) CNG + Petrol

ZN 650 MINI CAR Technical data ITEMS CONTENTS Passenger capacity 8 persons or 500 kg Length 3300 mm Width 1420 mm Height 1800 mm Wheel base 1840 mm FR. Track 1200 mm RR. Track 1250 mm Net. Weight 600 kg Total weight 900 kg Max. Speed ≥ 80 km/h Max. Slope 32% Oil consumption per 100 km 6. 5 L Min. Steeling diameter 8. 6 m Min. Ground clearance 170 mm Drive way Rear-wheel drive Wheel type 145/80 R 12 74 T Gear box Four-speed, mechanic full-synchronism Engine type LJ 276 M Engine form 2 vats, water-cooling Discharging 644 ml Specified power/Rotational speed 17 kw/4500 r/min Max. Power/Rotational speed 44 N. M/3000± 300 r/min

600 cc JEEP • Fuel: Patrol. Speed: 80 – 120 Km/hr. Seat capacity: 4 seats. Canvas Roof Price: US$3300. 00
