SPE 71517 Decline Curve Analysis Using Type Curves — Evaluation of Well Performance Behavior in a Multiwell Reservoir System T. Marhaendrajana, Schlumberger T. A. Blasingame, Texas A&M U. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

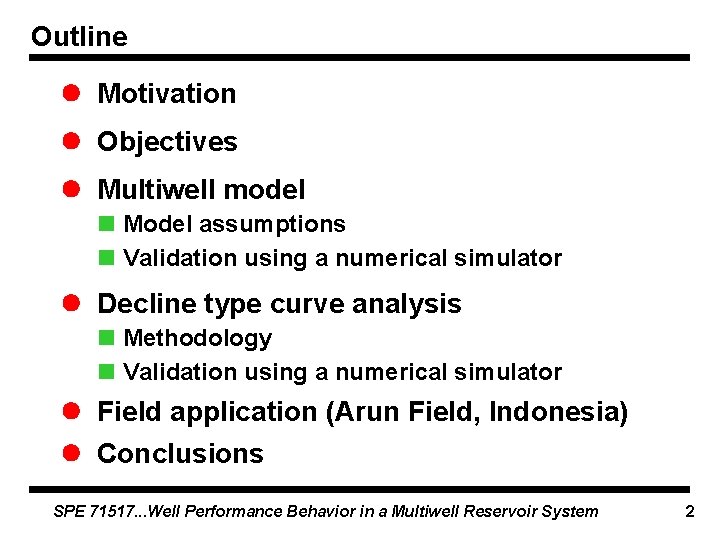

Outline Motivation Objectives Multiwell model Model assumptions Validation using a numerical simulator Decline type curve analysis Methodology Validation using a numerical simulator Field application (Arun Field, Indonesia) Conclusions SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System 2

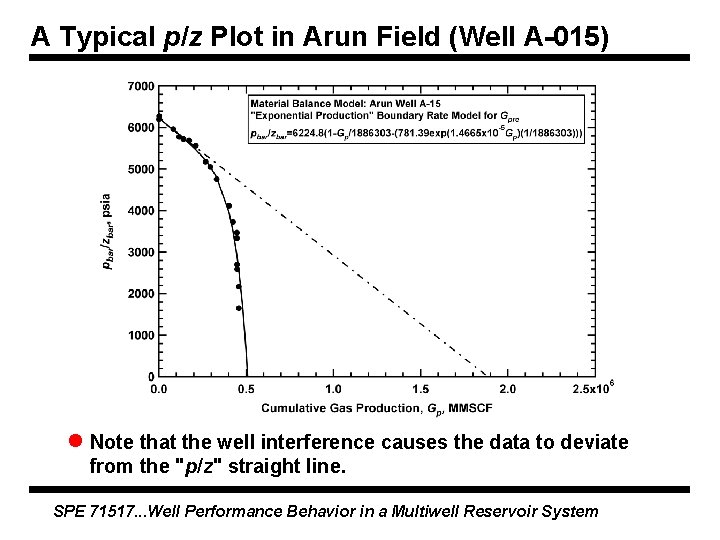

A Typical p/z Plot in Arun Field (Well A-015) l Note that the well interference causes the data to deviate from the "p/z" straight line. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

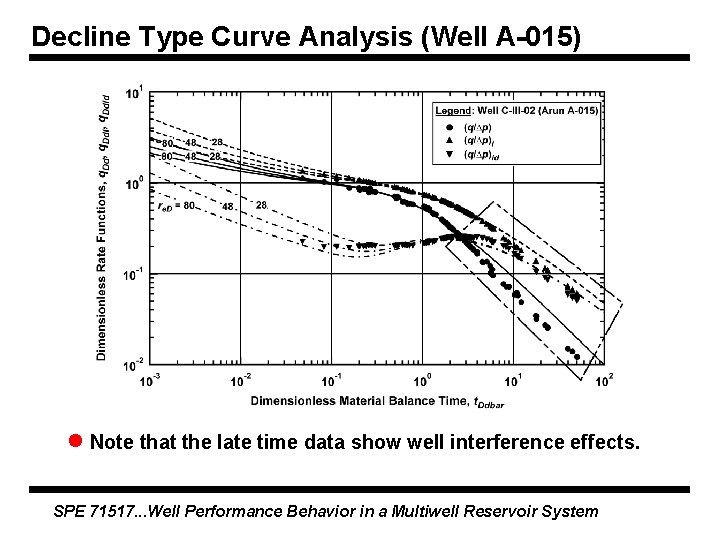

Decline Type Curve Analysis (Well A-015) l Note that the late time data show well interference effects. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

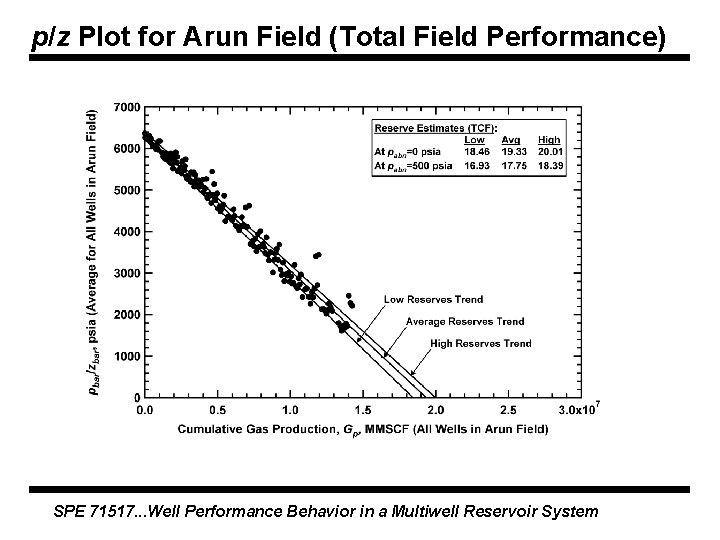

p/z Plot for Arun Field (Total Field Performance) SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

Objectives To develop an analytical solution for a multiwell system Correctly models all flow regimes Completely general formulation (constant rate, constant pressure, variable rate/pressure) To develop a method for the analysis of production data from a multiwell system Estimate the original oil/gas-in-place Estimate the local flow capacity (permeabilitythickness product) SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

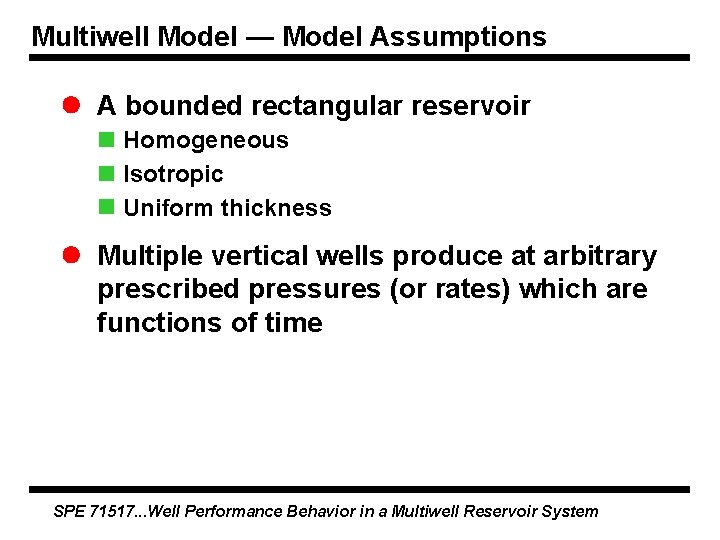

Multiwell Model — Model Assumptions A bounded rectangular reservoir Homogeneous Isotropic Uniform thickness Multiple vertical wells produce at arbitrary prescribed pressures (or rates) which are functions of time SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

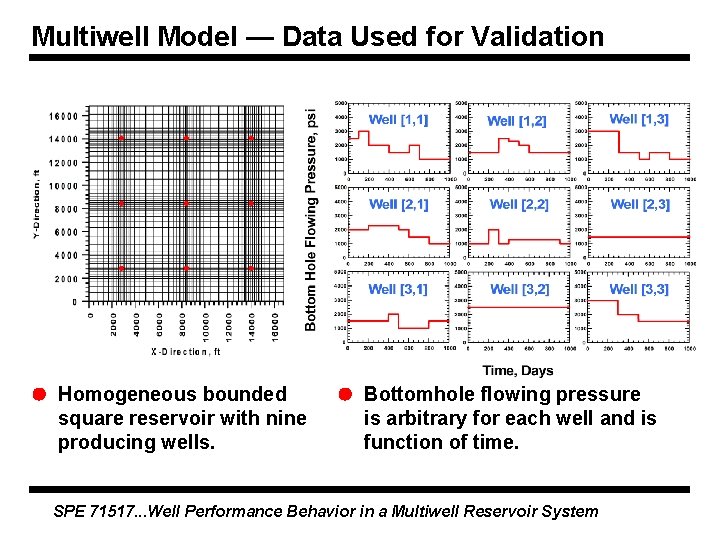

Multiwell Model — Data Used for Validation Homogeneous bounded square reservoir with nine producing wells. Bottomhole flowing pressure is arbitrary for each well and is function of time. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

Multiwell Model — Validation SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

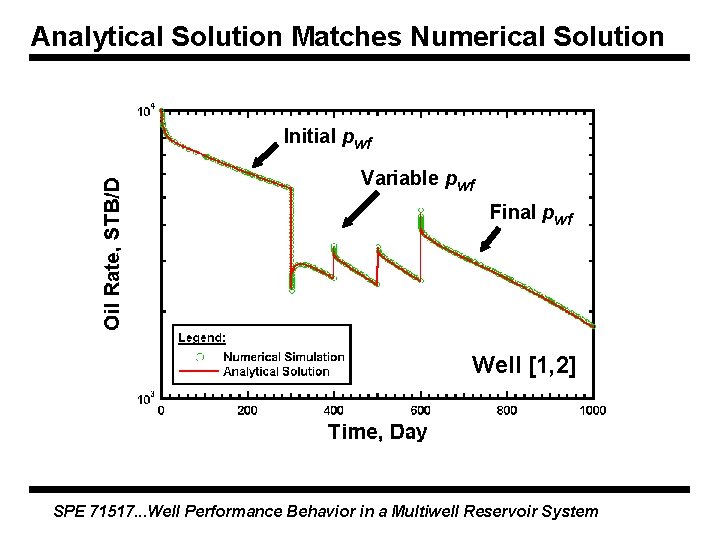

Analytical Solution Matches Numerical Solution Oil Rate, STB/D Initial pwf Variable pwf Final pwf Well [1, 2] Time, Days SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

Decline Type Curve Analysis — Methodology Production Data (Pressure & Rate) Total Material Balance Time c(t) becomes constant at long times Results from this work: A general formulation of the "Arp's Exponential Decline. " A single well decline type curve can be used to analyze a well performance in a multiwell system. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

Decline Type Curve Analysis — Methodology SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

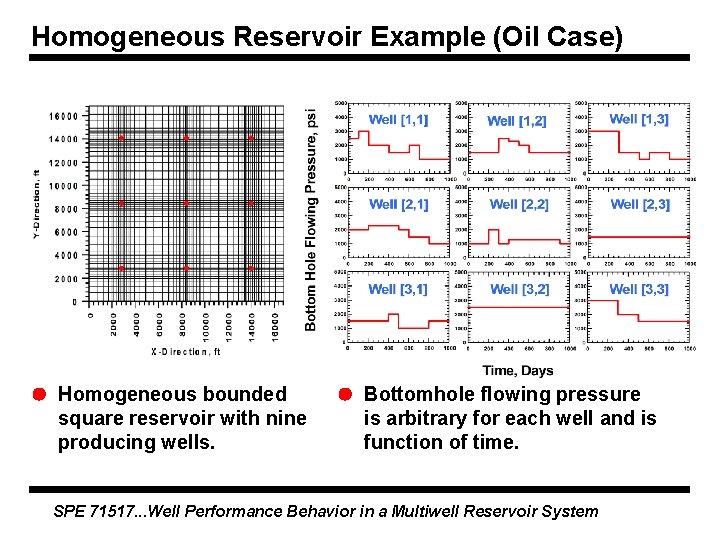

Homogeneous Reservoir Example (Oil Case) Homogeneous bounded square reservoir with nine producing wells. Bottomhole flowing pressure is arbitrary for each well and is function of time. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

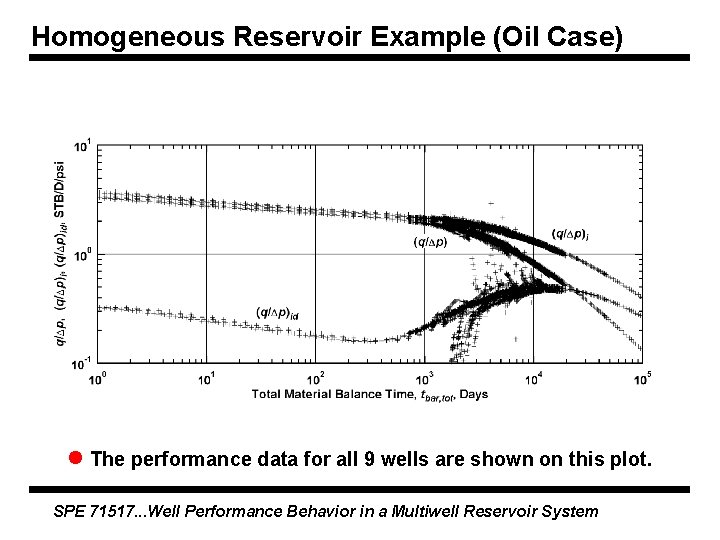

Homogeneous Reservoir Example (Oil Case) l The performance data for all 9 wells are shown on this plot. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

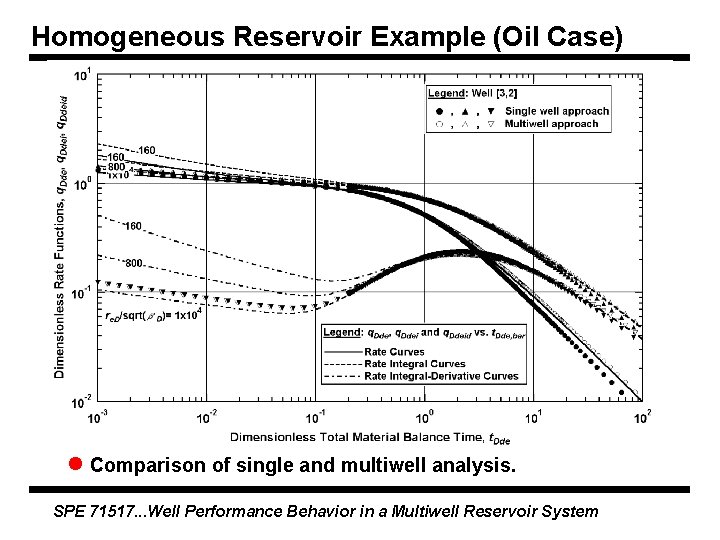

Homogeneous Reservoir Example (Oil Case) l Comparison of single and multiwell analysis. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

Homogeneous Reservoir Example (Gas Case) SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

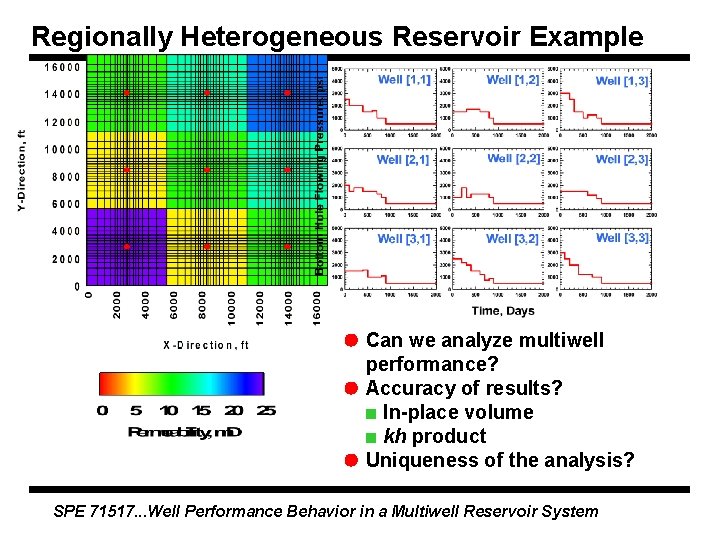

Regionally Heterogeneous Reservoir Example Can we analyze multiwell performance? Accuracy of results? In-place volume kh product Uniqueness of the analysis? SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

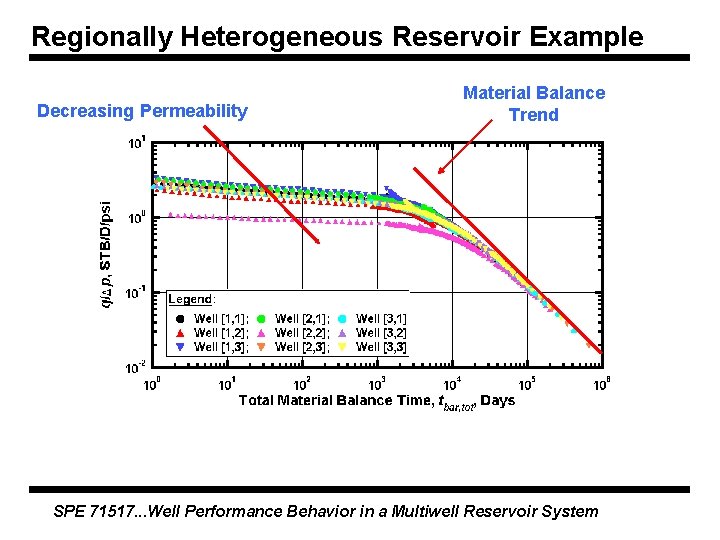

Regionally Heterogeneous Reservoir Example Decreasing Permeability Material Balance Trend SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

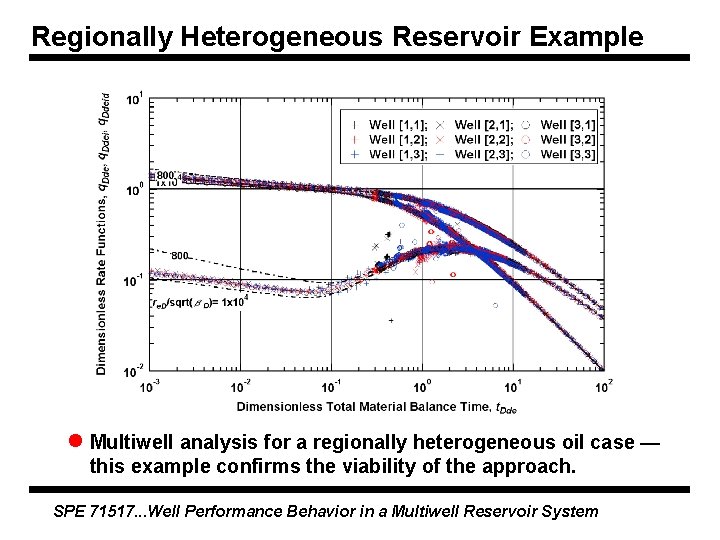

Regionally Heterogeneous Reservoir Example l Multiwell analysis for a regionally heterogeneous oil case — this example confirms the viability of the approach. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

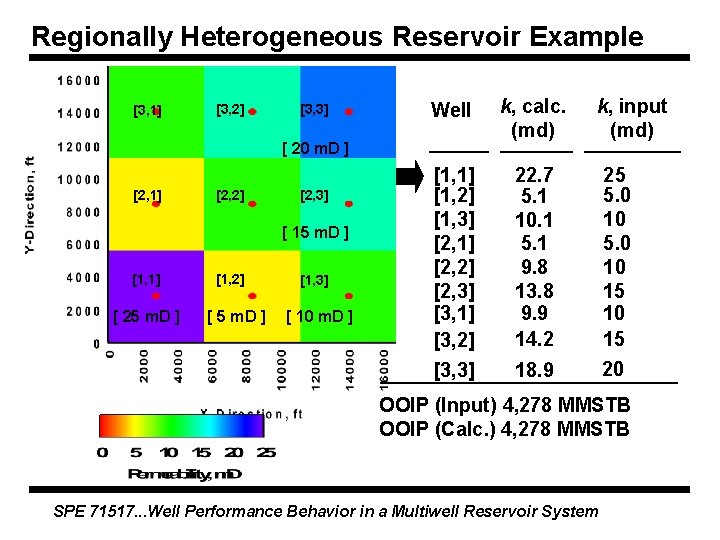

Regionally Heterogeneous Reservoir Example [3, 1] [3, 2] [3, 3] Well k, calc. (md) [1, 1] [1, 2] [1, 3] [2, 1] [2, 2] [2, 3] [3, 1] [3, 2] [3, 3] 22. 7 5. 1 10. 1 5. 1 9. 8 13. 8 9. 9 14. 2 [ 20 m. D ] [2, 1] [2, 2] [2, 3] [ 15 m. D ] [1, 1] [ 25 m. D ] [1, 2] [ 5 m. D ] [1, 3] [ 10 m. D ] k, input (md) 18. 9 25 5. 0 10 15 20 OOIP (Input) 4, 278 MMSTB OOIP (Calc. ) 4, 278 MMSTB SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

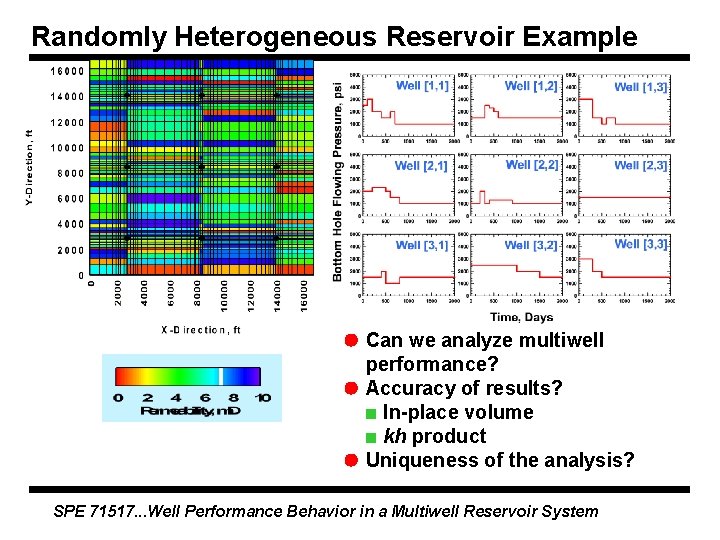

Randomly Heterogeneous Reservoir Example Can we analyze multiwell performance? Accuracy of results? In-place volume kh product Uniqueness of the analysis? SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

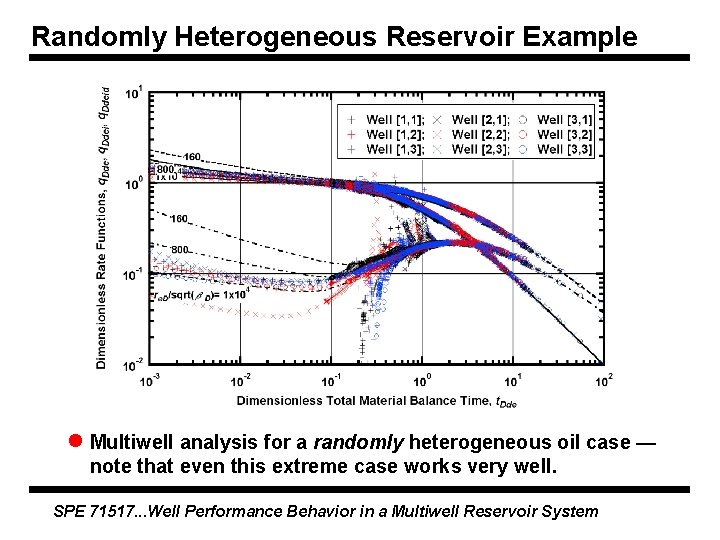

Randomly Heterogeneous Reservoir Example l Multiwell analysis for a randomly heterogeneous oil case — note that even this extreme case works very well. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

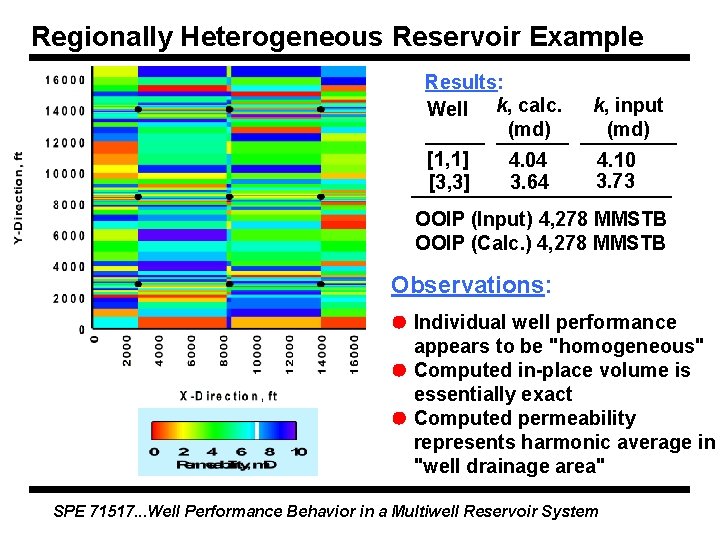

Regionally Heterogeneous Reservoir Example Results: Well k, calc. (md) k, input (md) [1, 1] [3, 3] 4. 10 3. 73 4. 04 3. 64 OOIP (Input) 4, 278 MMSTB OOIP (Calc. ) 4, 278 MMSTB Observations: Individual well performance appears to be "homogeneous" Computed in-place volume is essentially exact Computed permeability represents harmonic average in "well drainage area" SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

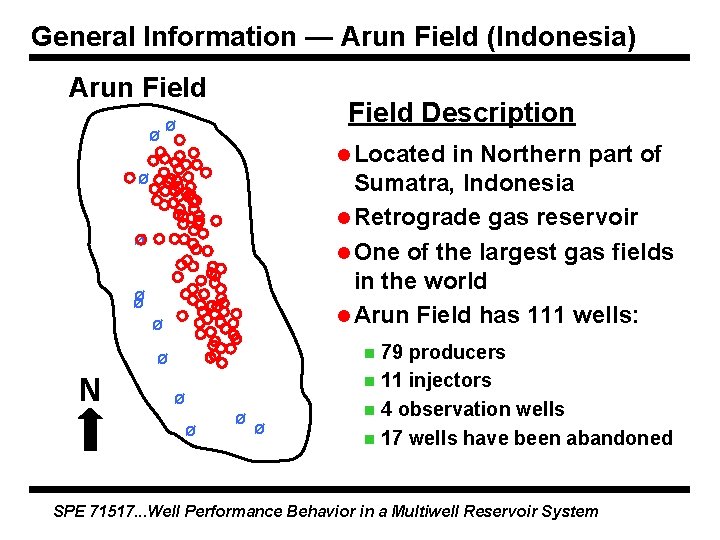

General Information — Arun Field (Indonesia) Arun Field Ø Field Description Ø l Located in Northern part of Sumatra, Indonesia l Retrograde gas reservoir l One of the largest gas fields in the world l Arun Field has 111 wells: Ø Ø Ø N 79 producers n 11 injectors n 4 observation wells n 17 wells have been abandoned n Ø Ø Ø SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

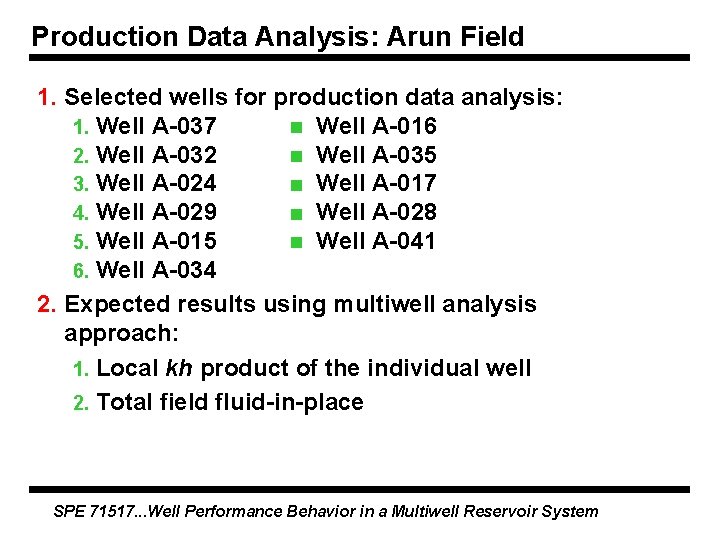

Production Data Analysis: Arun Field 1. Selected wells for production data analysis: 1. Well A-037 Well A-016 2. Well A-032 Well A-035 3. Well A-024 Well A-017 4. Well A-029 Well A-028 5. Well A-015 Well A-041 6. Well A-034 2. Expected results using multiwell analysis approach: 1. Local kh product of the individual well 2. Total field fluid-in-place SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

Arun Well A-015 — Production History l Good rate and pressure history. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

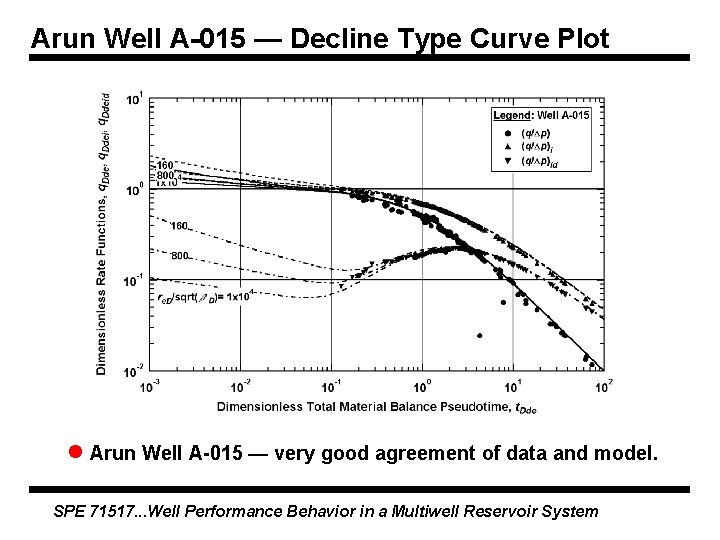

Arun Well A-015 — Decline Type Curve Plot l Arun Well A-015 — very good agreement of data and model. SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

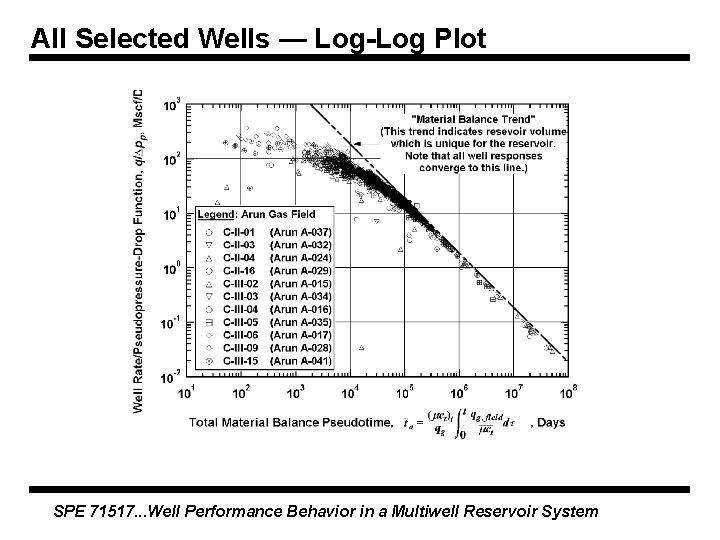

All Selected Wells — Log-Log Plot SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

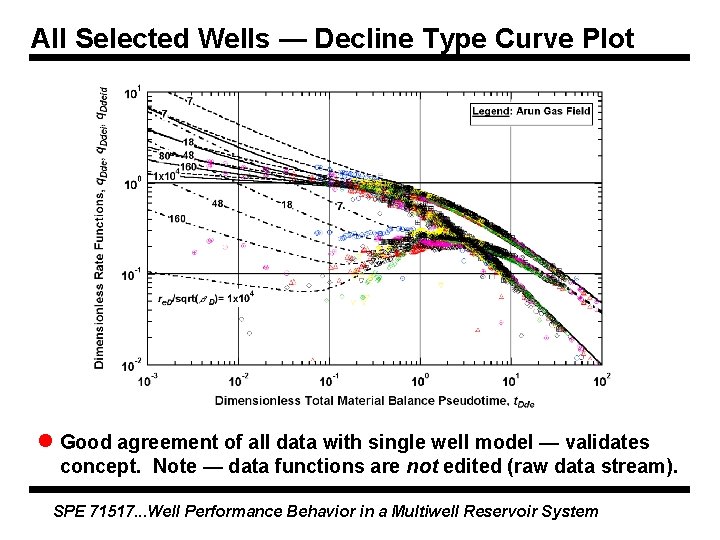

All Selected Wells — Decline Type Curve Plot l Good agreement of all data with single well model — validates concept. Note — data functions are not edited (raw data stream). SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

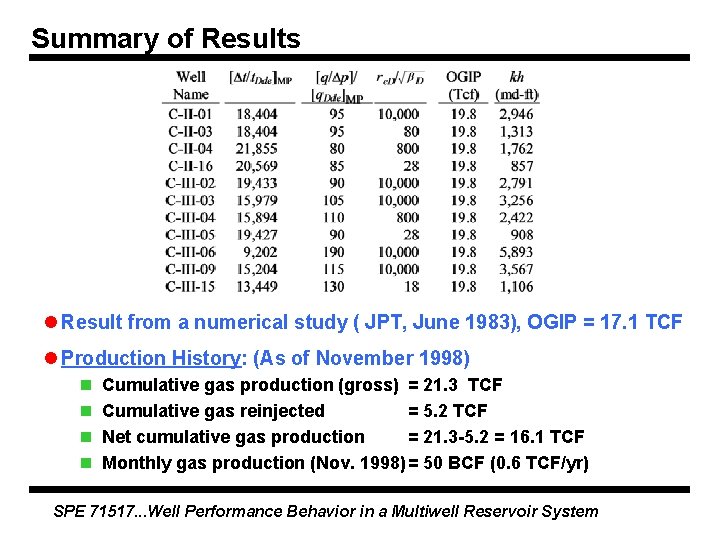

Summary of Results l Result from a numerical study ( JPT, June 1983), OGIP = 17. 1 TCF l Production History: (As of November 1998) n n Cumulative gas production (gross) = 21. 3 TCF Cumulative gas reinjected = 5. 2 TCF Net cumulative gas production = 21. 3 -5. 2 = 16. 1 TCF Monthly gas production (Nov. 1998)= 50 BCF (0. 6 TCF/yr) SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

Conclusions l Developed a general multiwell solution Accurate n Provide mechanism for the analysis of production data from a single well in a multiwell system n l Developed a methodology for the analysis of production data from an individual well in a multiwell system Can estimate original fluid-in-place (total system) and the regional permeability n Can be applied for both oil and gas reservoirs n SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System

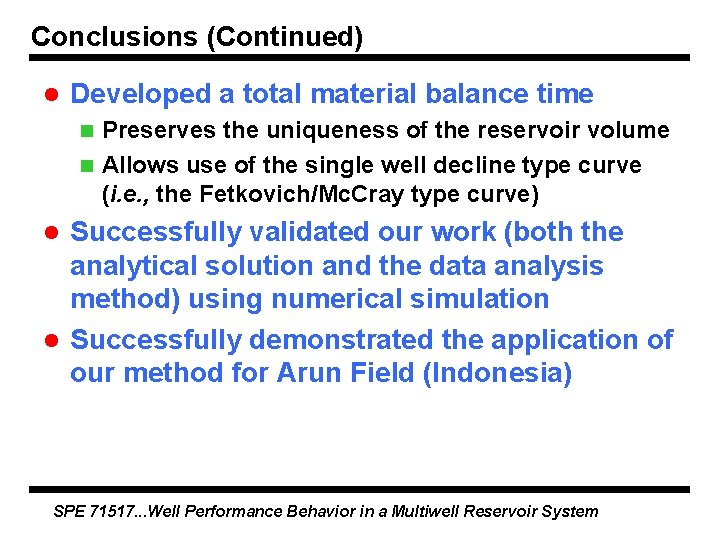

Conclusions (Continued) l Developed a total material balance time Preserves the uniqueness of the reservoir volume n Allows use of the single well decline type curve (i. e. , the Fetkovich/Mc. Cray type curve) n Successfully validated our work (both the analytical solution and the data analysis method) using numerical simulation l Successfully demonstrated the application of our method for Arun Field (Indonesia) l SPE 71517. . . Well Performance Behavior in a Multiwell Reservoir System
