Spark, Shark and Spark Streaming Introduction Part 2 Tushar Kale tusharkale@in. ibm. com June 2015
This Talk § Introduction to Shark, Spark and Spark Streaming § Architecture § Deployment Methodology § Performance § References
Data Processing Stack Data Processing Layer Resource Management Layer Storage Layer
Hadoop Stack Hive Pig Data Processing Layer HBase … Storm Hadoop MR Yarn Resource. Hadoop Management Layer HDFS, S 3, … Storage Layer
BDAS Stack MLBase Blink. DB Spark Graph. X Streaming Data Processing Layer. MLlib Shark SQL Spark Mesos Resource Management Layer Tachyon Storage Layer HDFS, S 3, …
How do BDAS & Hadoop fit together? MLbase MLBase Blink. DB Spark Graph Spark Hive Pig Graph. X Streaming Shark ML X Streaming Shark HBase Storm SQL MLlib SQL library Blink. DB Spark Mesos Spark Hadoop MR Hadoop Yarn Tachyon HDFS, S 3, … Mesos
Spark Streaming Apache Mesos Blink. DB Shark Graph. X Spark Mesos Tachyon HDFS, S 3, … § Enable multiple frameworks to share same cluster resources (e. g. , Hadoop, Storm, Spark) § Twitter’s large scale deployment - 6, 000+ servers, - 500+ engineers running jobs on Mesos § Third party Mesos schedulers - Air. Bn. B’s Chronos - Twitter’s Aurora § Mesospehere: startup to commercialize MLBase MLlib
Spark Streaming. Blink. DB Shark Graph. X Spark Apache Spark § Distributed Execution Engine Mesos Tachyon HDFS, S 3, … - Fault-tolerant, efficient in-memory storage (RDDs) - Powerful programming model and APIs (Scala, Python, Java) § Fast: up to 100 x faster than Hadoop § Easy to use: 5 -10 x less code than Hadoop § General: support interactive & iterative apps § Two major releases since last AMPCamp MLBase MLlib
Spark Streaming Blink. DB Shark Graph. X Spark Mesos Tachyon HDFS, S 3, … § Large scale streaming computation § Implement streaming as a sequence of <1 s jobs - Fault tolerant - Handle stragglers - Ensure exactly one semantics § Integrated with Spark: unifies batch, interactive, and batch computations § Alpha release (Spring, 2013) MLBase MLlib
Spark Streaming Shark Blink. DB Shark Graph. X Spark Mesos Tachyon HDFS, S 3, … § Hive over Spark: full support for HQL and UDFs § Up to 100 x when input is in memory § Up to 5 -10 x when input is on disk § Running on hundreds of nodes at Yahoo! § Two major releases along Spark MLBase MLlib
Unified Programming Models § Unified system for SQL, graph processing, machine learning § All share the same set of workers and caches
Spark Streaming Blink. DB Shark Blink. DB Graph. X Spark Mesos Tachyon HDFS, S 3, … § Trade between query performance and accuracy using sampling § Why? 512 GB - In-memory processing doesn’t guarantee interactive processing - E. g. , ~10’s sec just to scan 512 GB RAM! 40 -60 GB/s - Gap between memory capacity and transfer rate increasing 16 cores doubles every 18 months doubles every 36 months MLBase MLlib
Spark Streaming Key Insights Blink. DB Shark Graph. X MLBase MLlib Spark Mesos Tachyon HDFS, S 3, … § Input often noisy: exact computations do not guarantee exact answers § Error often acceptable if small and bounded § Main challenge: estimate errors for arbitrary computations § Alpha release (August, 2013) - Allow users to build uniform and stratified samples - Provide error bounds for simple aggregate queries
Spark Streaming Graph. X Blink. DB Shark Graph. X Spark Mesos Tachyon HDFS, S 3, … § Combine data-parallel and graph-parallel computations § Provide powerful abstractions: - Power. Graph, Pregel implemented in less than 20 LOC! § Leverage Spark’s fault tolerance § Alpha release: expected this fall MLBase MLlib
Spark Streaming MLlib and MLbase Blink. DB Shark Graph. X Spark Mesos Tachyon HDFS, S 3, … § MLlib: high quality library for ML algorithms - Will be released with Spark 0. 8 (September, 2013) § MLbase: make ML accessible to non-experts - Declarative interface: allow users to say what they want - E. g. , classify(data) - Automatically pick best algorithm for given data, time - Allow developers to easily add and test new algorithms - Alpha release of MLI, first component of MLbase, in September, 2013 MLBase MLlib
Spark Streaming Tachyon Blink. DB Shark Graph. X MLBase MLlib Spark Mesos Tachyon HDFS, S 3, … § In-memory, fault-tolerant storage system § Flexible API, including HDFS API § Allow multiple frameworks (including Hadoop) to share in-memory data § Alpha release (June, 2013)

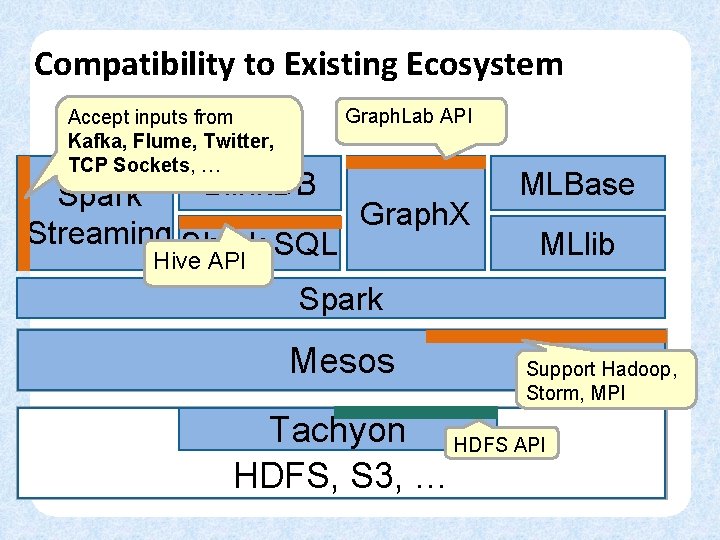

Compatibility to Existing Ecosystem Accept inputs from Kafka, Flume, Twitter, TCP Sockets, … Graph. Lab API Blink. DB Spark Graph. X Streaming Shark SQL Hive API MLBase MLlib Spark Mesos Resource Management Layer Support Hadoop, Storm, MPI Tachyon HDFS API Storage Layer HDFS, S 3, …
Summary § BDAS: address next Big Data challenges § Unify batch, interactive, and streaming computations § Easy to develop sophisticate applications - Support graph & ML algorithms, approximate queries § Witnessed significant adoption - 20+ companies, 70+ individuals contributing code § Exciting ongoing work - MLbase, Graph. X, Blink. DB, … Interactive Batch Spark Streamin g
This Talk § Introduction to Shark, Spark and Spark Streaming § Architecture § Deployment Methodology § Performance § References

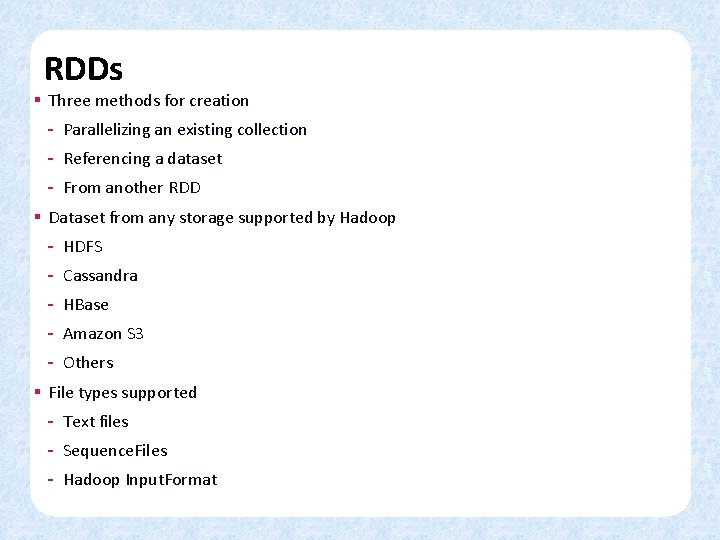

RDDs § Three methods for creation - Parallelizing an existing collection - Referencing a dataset - From another RDD § Dataset from any storage supported by Hadoop - HDFS - Cassandra - HBase - Amazon S 3 - Others § File types supported - Text files - Sequence. Files - Hadoop Input. Format

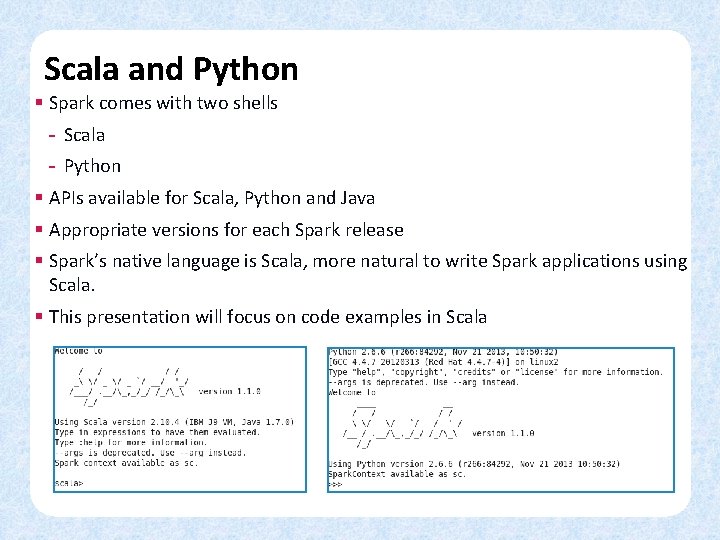

Scala and Python § Spark comes with two shells - Scala - Python § APIs available for Scala, Python and Java § Appropriate versions for each Spark release § Spark’s native language is Scala, more natural to write Spark applications using Scala. § This presentation will focus on code examples in Scala
Spark’s Scala and Python Shell § Powerful tool to analyze data interactively § The Scala shell runs on the Java VM - Can leverage existing Java libraries § Scala: - To launch the Scala shell (from Spark home directory): . /bin/spark-shell - To read in a text file: scala> val text. File = sc. text. File("README. txt") § Python: - To launch the Python shell (from Spark home directory): . /bin/pyspark - To read in a text file: >>> text. File = sc. text. File("README. txt")
Scala § ‘Scalable Language’ § Object oriented, functional programming language § Runs in a JVM - Java Interoperability § Functions are passable objects § Two approaches - Anonymous function syntax x => x + 1 - Static methods in a global singleton object My. Functions { def func 1 (s: String): String = {…} } my. Rdd. map(My. Functions. func 1)
Code Execution (1) § ‘spark-shell’ provides Spark context as ‘sc’ // Create RDD val quotes = sc. text. File("hdfs: /sparkdata/spark. Quotes. txt") // Transformations val dan. Quotes = quotes. filter(_. starts. With("DAN")) val dan. Spark = dan. Quotes. map(_. split(" ")). map(x => x(1)) // Action dan. Spark. filter(_. contains("Spark")). count() File: spark. Quotes. txt DAN Spark is cool BOB Spark is fun BRIAN Spark is great DAN Scala is awesome BOB Scala is flexible
Code Execution (2) // Create RDD val quotes = sc. text. File("hdfs: /sparkdata/spark. Quotes. txt") // Transformations val dan. Quotes = quotes. filter(_. starts. With("DAN")) val dan. Spark = dan. Quotes. map(_. split(" ")). map(x => x(1)) // Action dan. Spark. filter(_. contains("Spark")). count() File: spark. Quotes. txt DAN Spark is cool BOB Spark is fun BRIAN Spark is great DAN Scala is awesome BOB Scala is flexible RDD: quotes
Code Execution (3) // Create RDD val quotes = sc. text. File("hdfs: /sparkdata/spark. Quotes. txt") // Transformations val dan. Quotes = quotes. filter(_. starts. With("DAN")) val dan. Spark = dan. Quotes. map(_. split(" ")). map(x => x(1)) // Action dan. Spark. filter(_. contains("Spark")). count() File: spark. Quotes. txt DAN Spark is cool BOB Spark is fun BRIAN Spark is great DAN Scala is awesome BOB Scala is flexible RDD: quotes RDD: dan. Quotes
Code Execution (4) // Create RDD val quotes = sc. text. File("hdfs: /sparkdata/spark. Quotes. txt") // Transformations val dan. Quotes = quotes. filter(_. starts. With("DAN")) val dan. Spark = dan. Quotes. map(_. split(" ")). map(x => x(1)) // Action dan. Spark. filter(_. contains("Spark")). count() File: spark. Quotes. txt DAN Spark is cool BOB Spark is fun BRIAN Spark is great DAN Scala is awesome BOB Scala is flexible RDD: quotes RDD: dan. Quotes RDD: dan. Spark
Code Execution (5) // Create RDD val quotes = sc. text. File("hdfs: /sparkdata/spark. Quotes. txt") // Transformations val dan. Quotes = quotes. filter(_. starts. With("DAN")) val dan. Spark = dan. Quotes. map(_. split(" ")). map(x => x(1)) // Action dan. Spark. filter(_. contains("Spark")). count() File: spark. Quotes. txt RDD: quotes RDD: dan. Quotes RDD: dan. Spark DAN Spark is cool BOB Spark is fun BRIAN Spark is great DAN Scala is awesome BOB Scala is flexible DAN Spark is cool DAN Scala is awesome Spark Scala Hadoop. RD D 1
RDD Transformations § Transformations are lazy evaluations § Returns a pointer to the transformed RDD Transformation Meaning map(func) Return a new dataset formed by passing each element of the source through a function func. filter(func) Return a new dataset formed by selecting those elements of the source on which func returns true. flat. Map(func) Similar to map, but each input item can be mapped to 0 or more output items. So func should return a Seq rather than a single item join(other. Dataset, [num. Tasks]) When called on datasets of type (K, V) and (K, W), returns a dataset of (K, (V, W)) pairs with all pairs of elements for each key. reduce. By. Key(func) When called on a dataset of (K, V) pairs, returns a dataset of (K, V) pairs where the values for each key are aggregated using the given reduce function func sort. By. Key([ascending], [num. Tasks]) When called on a dataset of (K, V) pairs where K implements Ordered, returns a dataset of (K, V) pairs sorted by keys in ascending or descending order. Full documentation at http: //spark. apache. org/docs/1. 2. 1/api/scala/index. html#org. apache. spark. package

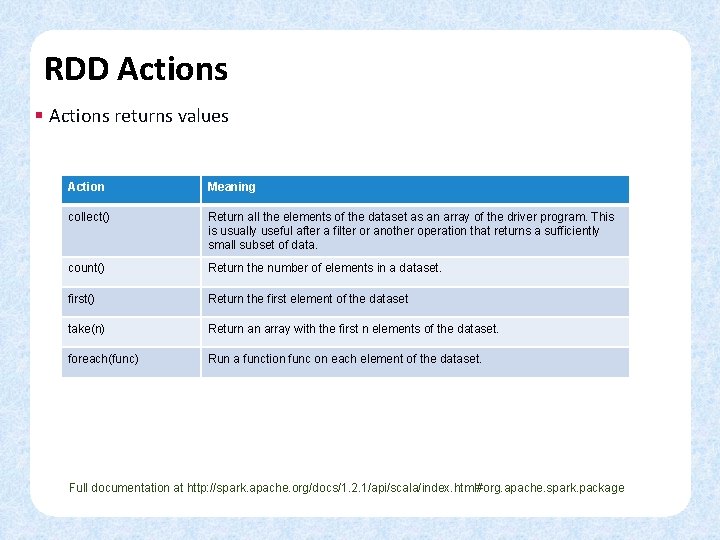

RDD Actions § Actions returns values Action Meaning collect() Return all the elements of the dataset as an array of the driver program. This is usually useful after a filter or another operation that returns a sufficiently small subset of data. count() Return the number of elements in a dataset. first() Return the first element of the dataset take(n) Return an array with the first n elements of the dataset. foreach(func) Run a function func on each element of the dataset. Full documentation at http: //spark. apache. org/docs/1. 2. 1/api/scala/index. html#org. apache. spark. package
RDD Persistence § Each node stores any partitions of the cache that it computes in memory § Reuses them in other actions on that dataset (or datasets derived from it) - Future actions are much faster (often by more than 10 x) § Two methods for RDD persistence: persist() and cache() Storage Level Meaning MEMORY_ONLY Store as deserialized Java objects in the JVM. If the RDD does not fit in memory, part of it will be cached. The other will be recomputed as needed. This is the default. The cache() method uses this. MEMORY_AND_DISK Same except also store on disk if it doesn’t fit in memory. Read from memory and disk when needed. MEMORY_ONLY_SER Store as serialized Java objects (one bye array per partition). Space efficient, but more CPU intensive to read. MEMORY_AND_DISK_SER Similar to MEMORY_AND_DISK but stored as serialized objects. DISK_ONLY Store only on disk. MEMORY_ONLY_2, MEMORY_AND_DISK_2, etc. Same as above, but replicate each partition on two cluster nodes OFF_HEAP (experimental) Store RDD in serialized format in Tachyon.
Quick Introduction to Data Frames § Experimental API introduced in Spark 1. 3 § Distributed Collection of Data organized in Columns § Targeted at Python ecosystem § Equivalent to Tables in Databases or Data. Frame in R/PYTHON § Much richer optimization than any other implementation of DF § Can be constructed from a wide variety of sources and APIs
Create a Data. Frame val df = sql. Context. json. File("/home/ned/attendees. json") df. show() df. print. Schema() df. select ("First Name"). show() df. select("First Name", "Age"). show() df. filter(df("age")>40). show() df. group. By("age"). count(). show()
Create a Data. Frame from an RDD case class attendees_class (first_name: String, last_name: String, age: Int) Val attendees=sc. text. File("/home/ned/attendees. csv"). map(_. split(", ")). map(p=>at tendees_class(p(0), p(1), p(2). trim. to. Int)). to. DF() people. register. Temp. Table("attendees") val youngppl=sql. Context. sql("select first_name, last_name from attendees where age <35") youngppl. map(t=>"Name: " +t(0)+ " " + t(1)). collect(). foreach(println)
Spark. Context in Applications § The main entry point for Spark functionality § Represents the connection to a Spark cluster § Create RDDs, accumulators, and broadcast variables on that cluster § In the Spark shell, the Spark. Context, sc, is automatically initialized for you to use § In a Spark program, import some classes and implicit conversions into your program: import org. apache. spark. Spark. Context. _ import org. apache. spark. Spark. Conf
A Spark Standalone Application in Scala Import statements Transformations and Actions Spark. Conf and Spark. Context

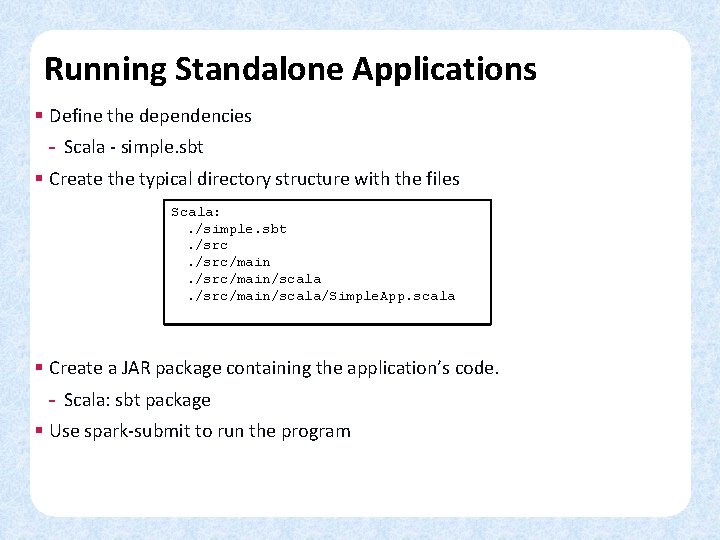

Running Standalone Applications § Define the dependencies - Scala - simple. sbt § Create the typical directory structure with the files Scala: . /simple. sbt. /src/main/scala/Simple. App. scala § Create a JAR package containing the application’s code. - Scala: sbt package § Use spark-submit to run the program
Fault Recovery RDDs track lineage information that can be used to efficiently recompute lost data Ex: msgs = text. File. filter(lambda s: s. starts. With(“ERROR”)). map(lambda s: s. split(“t”)[2]) HDFS File Filtered RDD filter (func = _. contains(. . . )) Mapped RDD map (func = _. split(. . . ))
Which Language Should I Use? § Standalone programs can be written in any, but interactive shell is only Python & Scala § Python users: can do Python for both § Java users: consider learning Scala for shell Performance: Java & Scala are faster due to static typing, but Python is often fine
Scala Cheat Sheet § Variables: Functions: § var x: Int = 7 var x = 7 // type inferred def square(x: Int): Int = x*x § val y = “hi” // read-only def square(x: Int): Int = { x*x // last line returned } Collections and closures: Java interop: val nums = Array(1, 2, 3) import java. net. URL nums. map((x: Int) => x + 2) // {3, 4, 5} nums. map(x => x + 2) // same nums. map(_ + 2) // same new URL(“http: //cnn. com”). open. Stream() nums. reduce((x, y) => x + y) // 6 nums. reduce(_ + _) // same More details: scala-lang. org

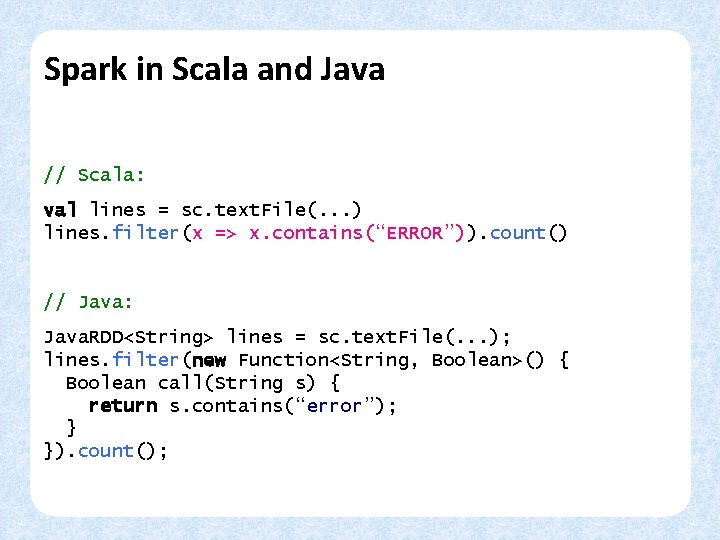

Spark in Scala and Java // Scala: val lines = sc. text. File(. . . ) lines. filter(x => x. contains(“ERROR”)). count() // Java: Java. RDD<String> lines = sc. text. File(. . . ); lines. filter(new Function<String, Boolean>() { Boolean call(String s) { return s. contains(“error”); } }). count();
This Talk § Introduction to Shark, Spark and Spark Streaming § Architecture § Deployment Methodology § Performance § References
12 30 41 58 100 90 80 70 60 50 40 30 20 10 0 69 Execution time (s) Behavior with Less RAM Cache disabled 25% 50% 75% % of working set in cache Fully cached
Performance Can process 6 GB/sec (60 M records/sec) of data on 100 nodes at sub-second latency 7 Grep 6 5 4 3 2 1 sec 1 2 sec 0 0 50 # Nodes in Cluster 100 Cluster Throughput (GB/s) Cluster Thhroughput (GB/s) - Tested with 100 text streams on 100 EC 2 instances with 4 cores each 3. 5 Word. Count 3 2. 5 2 1. 5 1 1 sec 0. 5 2 sec 0 0 50 # Nodes in Cluster 100

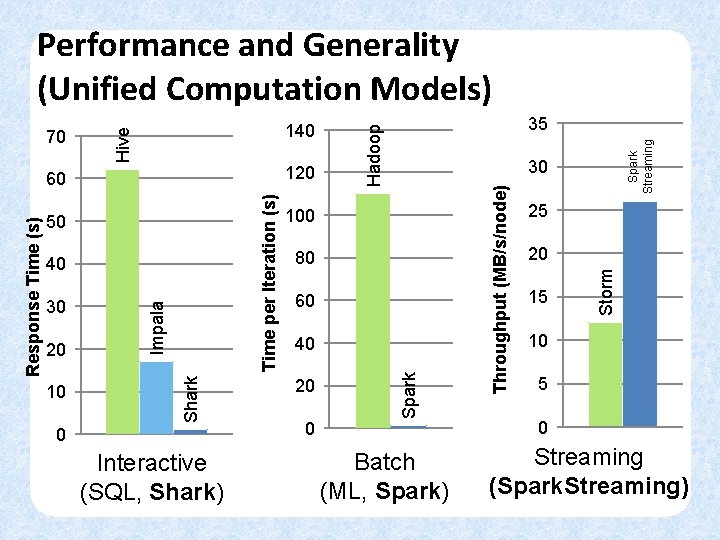

Performance and Generality (Unified Computation Models) 20 10 Shark 0 Interactive (SQL, Shark) 80 60 40 20 0 Batch (ML, Spark) Spark Streaming 25 20 15 Storm 30 100 Spark Time per Iteration (s) 40 Impala Response Time (s) 50 30 Throughput (MB/s/node) 120 60 35 Hadoop 140 Hive 70 10 5 0 Streaming (Spark. Streaming)
Example: Video Quality Diagnosis Top 10 worse performers identical! 440 x faster! Latency: 772. 34 sec (17 TB input) Latency: 1. 78 sec (1. 7 GB input)
This Talk § Introduction to Shark, Spark and Spark Streaming § Architecture § Deployment Methodology § Implementation Next Steps § References
§ https: //amplab. cs. Berkeley. edu/software § www. bigdatauniversity. com/bdu-wp/bdu-course/sparkfundamentals/ § www. ibm. com/analytics/us/en/technology/spark/ § https: //amplab. cs. berkeley. edu/software/
THANK YOU
