Spacesuit Updates to NASA Standard 3001 Volume 2

Spacesuit Updates to NASA Standard 3001 Volume 2 Andrew Abercromby NASA Standard 3001

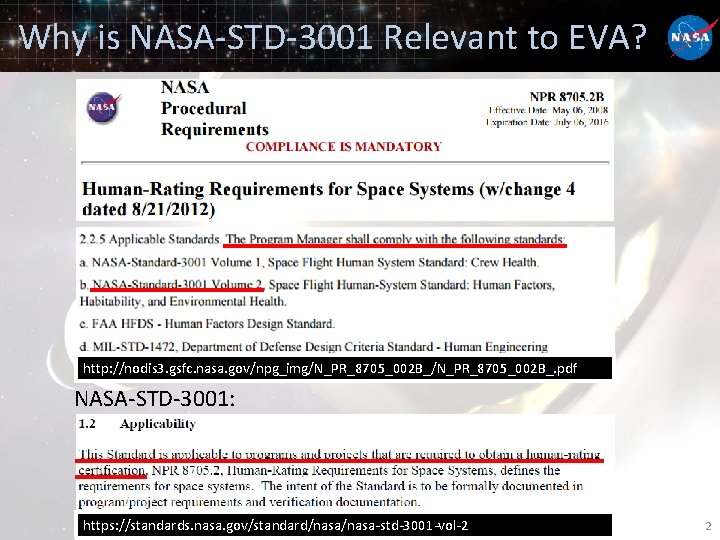

Why is NASA-STD-3001 Relevant to EVA? http: //nodis 3. gsfc. nasa. gov/npg_img/N_PR_8705_002 B_. pdf NASA-STD-3001: https: //standards. nasa. gov/standard/nasa-std-3001 -vol-2 2

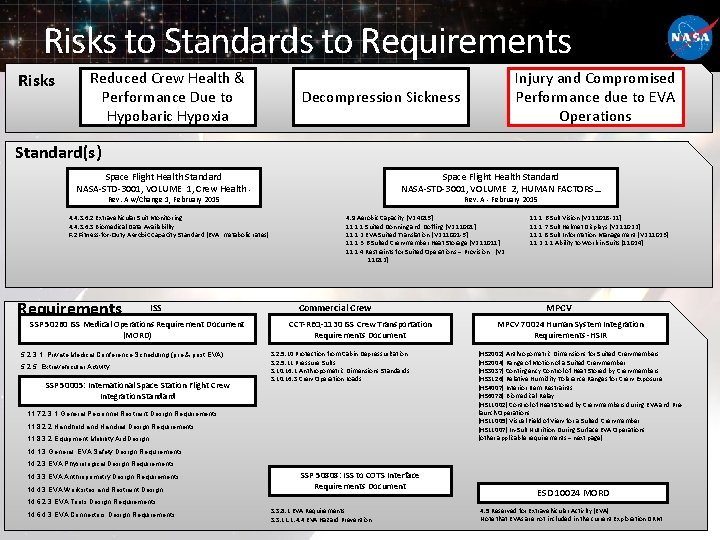

Risks to Standards to Requirements Risks Reduced Crew Health & Performance Due to Hypobaric Hypoxia Injury and Compromised Performance due to EVA Operations Decompression Sickness Standard(s) Space Flight Health Standard NASA-STD-3001, VOLUME 1, Crew Health - Space Flight Health Standard NASA-STD-3001, VOLUME 2, HUMAN FACTORS… Rev. A w/Change 1, February 2015 4. 4. 3. 6. 2 Extravehicular Suit Monitoring 4. 4. 3. 6. 3 Biomedical Data Availability F. 2 Fitness-for-Duty Aerobic Capacity Standard (EVA metabolic rates) Requirements ISS SSP 50260 ISS Medical Operations Requirement Document (MORD) 5. 2. 3. 1 Private Medical Conference Scheduling (pre & post EVA) 5. 2. 5 Extravehicular Activity SSP 50005: International Space Station Flight Crew Integration Standard Rev. A - February 2015 4. 9 Aerobic Capacity [V 2 4015] 11. 1. 1 Suited Donning and Doffing [V 2 11001] 11. 1. 2 EVA Suited Translation [V 2 11001 -5] 11. 1. 3. 6 Suited Crewmember Heat Storage [V 2 11011] 11. 1. 4 Restraints for Suited Operations – Provision [V 2 11012] Commercial Crew CCT-REQ-1130 ISS Crew Transportation Requirements Document 3. 2. 5. 10 Protection from Cabin Depressurization 3. 2. 5. 11 Pressure Suits 3. 10. 16. 1 Anthropometric Dimensions Standards 3. 10. 16. 3 Crew Operation Loads 11. 7. 2. 3. 1 General Personnel Restraint Design Requirements 11. 8. 2. 2 Handhold and Handrail Design Requirements 11. 8. 3. 2 Equipment Mobility Aid Design 11. 1. 6 Suit Vision [V 2 11018 -21] 11. 1. 7 Suit Helmet Displays [V 2 11022] 11. 1. 8 Suit Information Management [V 2 11023] 11. 2. 1. 1 Ability to Work in Suits [11024] MPCV 70024 Human System Integration Requirements -HSIR [HS 2002] Anthropometric Dimensions for Suited Crewmembers [HS 2004] Range of Motion of a Suited Crewmember [HS 3037] Contingency Control of Heat Stored by Crewmembers [HS 3126] Relative Humidity Tolerance Ranges for Crew Exposure [HS 4007] Interior Item Restraints [HS 6078] Biomedical Relay [HS 11002] Control of Heat Stored by Crewmembers during EVA and Prelaunch Operations [HS 11005] Visual Field of View for a Suited Crewmember [HS 11007] In-Suit Nutrition During Surface EVA Operations (other applicable requirements – next page) 14. 1. 3 General EVA Safety Design Requirements 14. 2. 3 EVA Physiological Design Requirements 14. 3. 3 EVA Anthropometry Design Requirements 14. 4. 3 EVA Worksites and Restraint Design SSP 50808: ISS to COTS Interface Requirements Document 14. 6. 2. 3 EVA Tools Design Requirements 14. 6. 4. 3 EVA Connectors Design Requirements 3. 3. 8. 1 EVA Requirements 3. 3. 11. 1. 4. 4 EVA Hazard Prevention ESD 10024 MORD 4. 5 Reserved for Extravehicular Activity (EVA) Note that EVAs are not included in the current Exploration DRM.

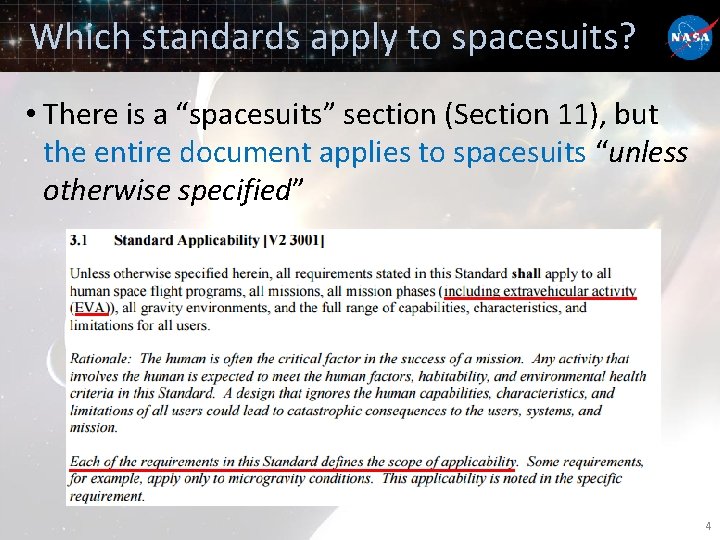

Which standards apply to spacesuits? • There is a “spacesuits” section (Section 11), but the entire document applies to spacesuits “unless otherwise specified” 4

Which standards apply to spacesuits? • However, many standards are clearly not applicable to spacesuits… e. g. … while others might or might not be intended to apply… e. g. … and others could potentially apply depending on the design approach e. g. 5

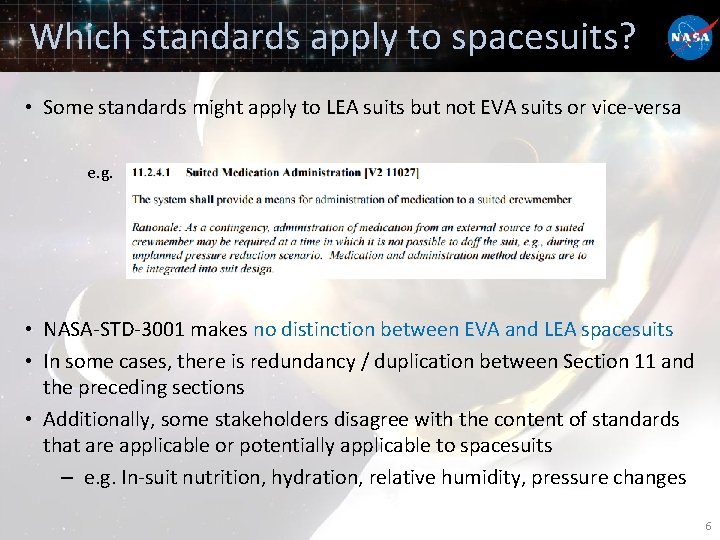

Which standards apply to spacesuits? • Some standards might apply to LEA suits but not EVA suits or vice-versa e. g. • NASA-STD-3001 makes no distinction between EVA and LEA spacesuits • In some cases, there is redundancy / duplication between Section 11 and the preceding sections • Additionally, some stakeholders disagree with the content of standards that are applicable or potentially applicable to spacesuits – e. g. In-suit nutrition, hydration, relative humidity, pressure changes 6

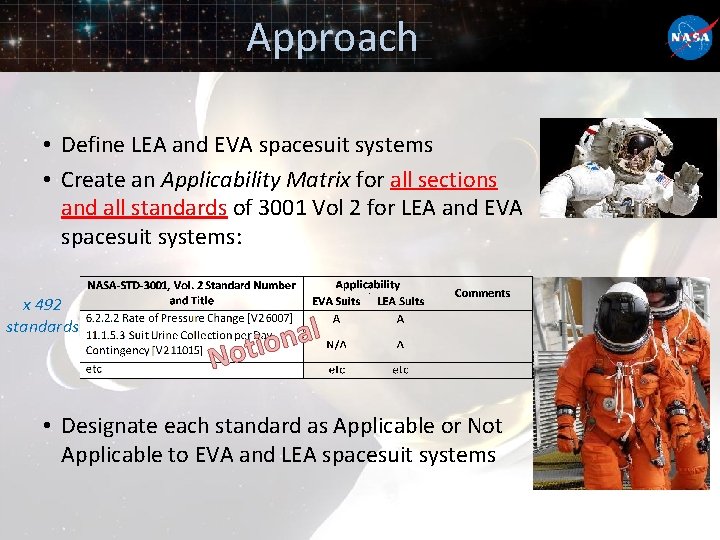

Approach • Define LEA and EVA spacesuit systems • Create an Applicability Matrix for all sections and all standards of 3001 Vol 2 for LEA and EVA spacesuit systems: x 492 standards l a n otio N • Designate each standard as Applicable or Not Applicable to EVA and LEA spacesuit systems

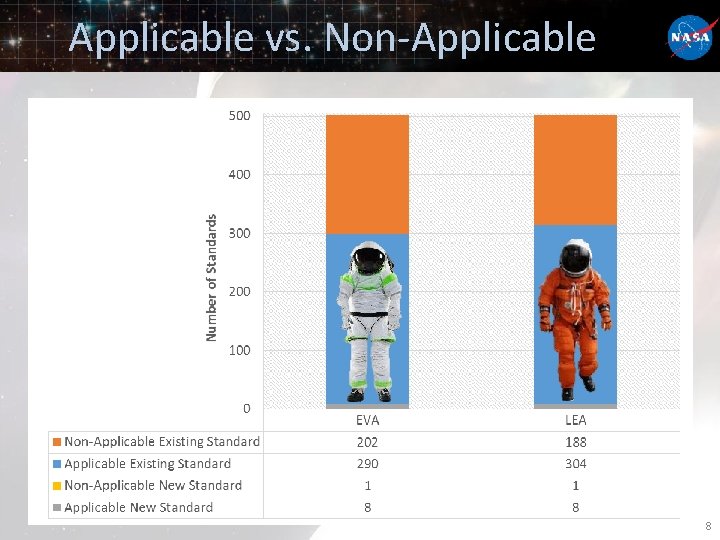

Applicable vs. Non-Applicable 8

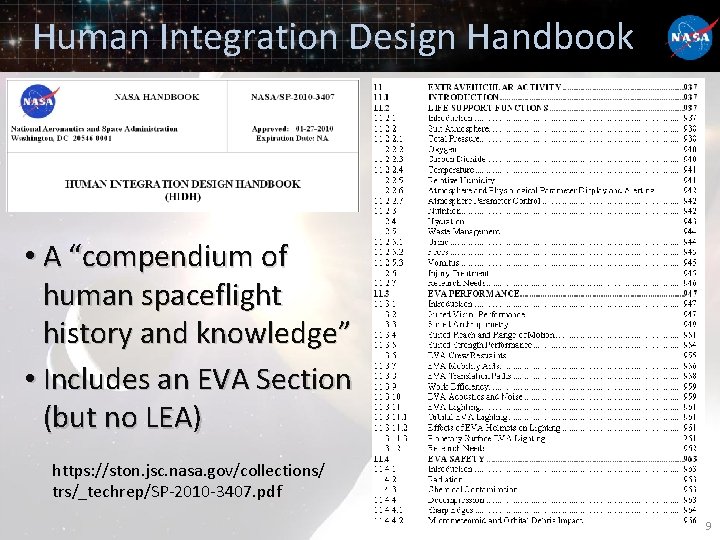

Human Integration Design Handbook • A “compendium of human spaceflight history and knowledge” • Includes an EVA Section (but no LEA) https: //ston. jsc. nasa. gov/collections/ trs/_techrep/SP-2010 -3407. pdf 9
